07
7-137
WARNING

[Reverse Parking Distance Warning
is a supplemental system. The
operation of the system can be
affected by several factors (including
environmental conditions). It is the
responsibility of the driver to always
check the rear view before and while
parking.

[Your new vehicle warranty does not
cover any accidents or damage to
the vehicle.

[Pay close attention when driving
near objects, pedestrians, and
especially children. Some objects
may not be detected by the
ultrasonic sensors, due to the objects
distance, size or material, all of
which can limit the effectiveness of
the sensor.
Limitations of the system

[Reverse Parking Distance Warning
may not operate normally when:
- Moisture is frozen to the sensor
- Sensor is covered with foreign
material, such as snow or water
(The system will operate normally
when such foreign material are
removed.)
- The weather is extremely hot or cold
- The sensor or sensor assembly is
disassembled
- The surface of the sensor is pressed
hard or an impact is applied with a
hard object
- The surface of the sensor is
scratched with a sharp object
- The sensors or its surrounding
area is directly sprayed with high
pressure washer
[Reverse Parking Distance Warning
may malfunction when:
- Heavy rain or water spray is present
- Water flows on the surface of the
sensor
-$IIHFWHGE\DQRWKHUYHKLFOH
TV
sensors
- The sensor is covered with snow
- Driving on uneven road, gravel
roads or bushes
- Objects that generates ultrasonic
waves are near the sensor
- Installing the license plate
differently from the original location
- The vehicle bumper height or
ultrasonic sensor installation has
been modified

[The following objects may not be
detected:
- Sharp or slim objects, such as ropes,
chains or small poles.
- Objects, which tend to absorb
sensor frequency, such as clothes,
spongy material or snow.
- Objects smaller than 40 in. (100 cm)
in length and narrower than 6 in. (14
cm) in diameter.

[Parking Distance Warning Indicators
may be displayed differently from
the actual detected location when
the obstacle is located between the
sensors.

[Parking Distance Warning indicator
may not occur sequentially depending
on vehicle speed or obstacle shape.

[If Reverse Parking Distance Warning
needs repair, we recommend that the
system be inspected by an authorized
HYUNDAI dealer.

Driver assistance system
7-138
Reverse Parking Collision-Avoidance
Assist can warn the driver or can
assist with braking to help reduce the
possibility of collision with a pedestrian
or an object when backing up.
WARNING

[ALWAYS look around your vehicle to
make sure there are no pedestrians
or objects before moving the vehicle.

[Do not solely rely on the system.
Doing so may lead to vehicle damage
or injuries.

[Some objects may not be detected
by the rear ultrasonic sensors due
to the objects distance, size or
material, all of which can limit the
effectiveness of the sensor.
Detecting sensor
OCN7050046L
OCN7050051N[1] : Rear view camera,
[2] : Rear ultrasonic sensors
Refer to the picture above for the
detailed location of the detecting
sensors.
REVERSE PARKING COLLISION
ØAVOIDANCE ASSIST
ãPCA
ä

ãIF EQUIPPED
ä

07
7-139
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensors:

[Always keep the rear view camera
and rear ultrasonic sensors clean.

[Do not use any cleanser containing
acid or alkaline detergents when
cleaning the rear view camera lens.
Use only a mild soap or neutral
detergent, and rinse thoroughly with
water.

[Never disassemble or strike the rear
view camera or the rear ultrasonic
sensors components.

[Do not apply unnecessary force on
the rear view camera or the rear
ultrasonic sensors. The system may
not operate properly if the rear
view camera or the rear ultrasonic
sensor(s) is forcibly moved out of
proper alignment. We recommend
that the vehicle be inspected by an
authorized HYUNDAI dealer.

[Do not spray the rear view camera or
the rear ultrasonic sensors or their
surrounding area directly with a
high pressure washer. It may cause
the rear view camera or the rear
ultrasonic sensors to malfunction.

[The function may not work properly
if the bumper has been damaged,
replaced or repaired.

[Do not apply objects, such as a
bumper sticker or a bumper guard,
near the rear view camera or rear
ultrasonic sensors or apply paint to
the bumper. Doing so may adversely
affect the performance of the
function.

[Reverse Parking Collision-Avoidance
Assist may not operate normally if
interfered by strong electromagnetic
waves.
Function settings
Setting
OCN7070110N
Parking Safety
With the Engine Start/Stop button in the
ON position, select or deselect ‘Driver
$VVLVWDQFH

Driver assistance system
7-140
OTM070140N
Warning Timing
With the Engine Start/Stop button in the
21SRVLWLRQVHOHFW
S'ULYHU$VVLVWDQFH

07
7-141
Function operation
Operating conditions
,I
S$FWLYH$VVLVW
TRU
S:DUQLQJ2QO\
TLVVHW
from the Settings menu, Reverse Parking
Collision-Avoidance Assist will be in
the ready status when the following
conditions are satisfied:
- The tailgate is closed
- The gear is shifted to R (Reverse)
- Vehicle speed is below 6 mph (10
km/h)
- System components such as the rear
view camera and the rear ultrasonic
sensors are in normal conditions
Warning Only

[If the function detects a risk of
collision with a pedestrian or an
object, the system will warn the driver
with an audible warning, steering
wheel vibration and warning message
on the cluster. When Rear View
Monitor is operating, a warning will
appear on the infotainment system
screen.

[
S,I
S:DUQLQJ2QO\
TLVVHOHFWHGEUDNLQJ
will not be assisted.

[The warning will turn off when the
gear is shifted to P (Park), N (Neutral)
or D (Drive).
Active Assist

[If the function detects a risk of
collision with a pedestrian or an
object, the system will warn the driver
with an audible warning, steering
wheel vibration and warning message
on the cluster. When Rear View
Monitor is operating, a warning will
appear on the infotainment system
screen.

[If the function detects imminent
collision with a pedestrian or an
object behind the vehicle, the system
will assist you with braking. The driver
needs to pay attention as the brake
assist will end within 2 seconds. The
driver must immediately depress
the brake pedal and check vehicle
surroundings.

[Brake control will end when:
- The gear is shifted to P (Park) or D
(Drive).
- The driver depresses the brake
pedal with sufficient power
- Braking assist has last for
approximately 2 seconds

[The warning will turn off when:
- The driver shifts the gear to P (Park),
N (Neutral), or D (Drive)

[The brake control may not operate
properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when:
- The ESC (Electronic Stability
Control) warning light is on
- ESC (Electronic Stability Control) is
engaged in a different function

Driver assistance system

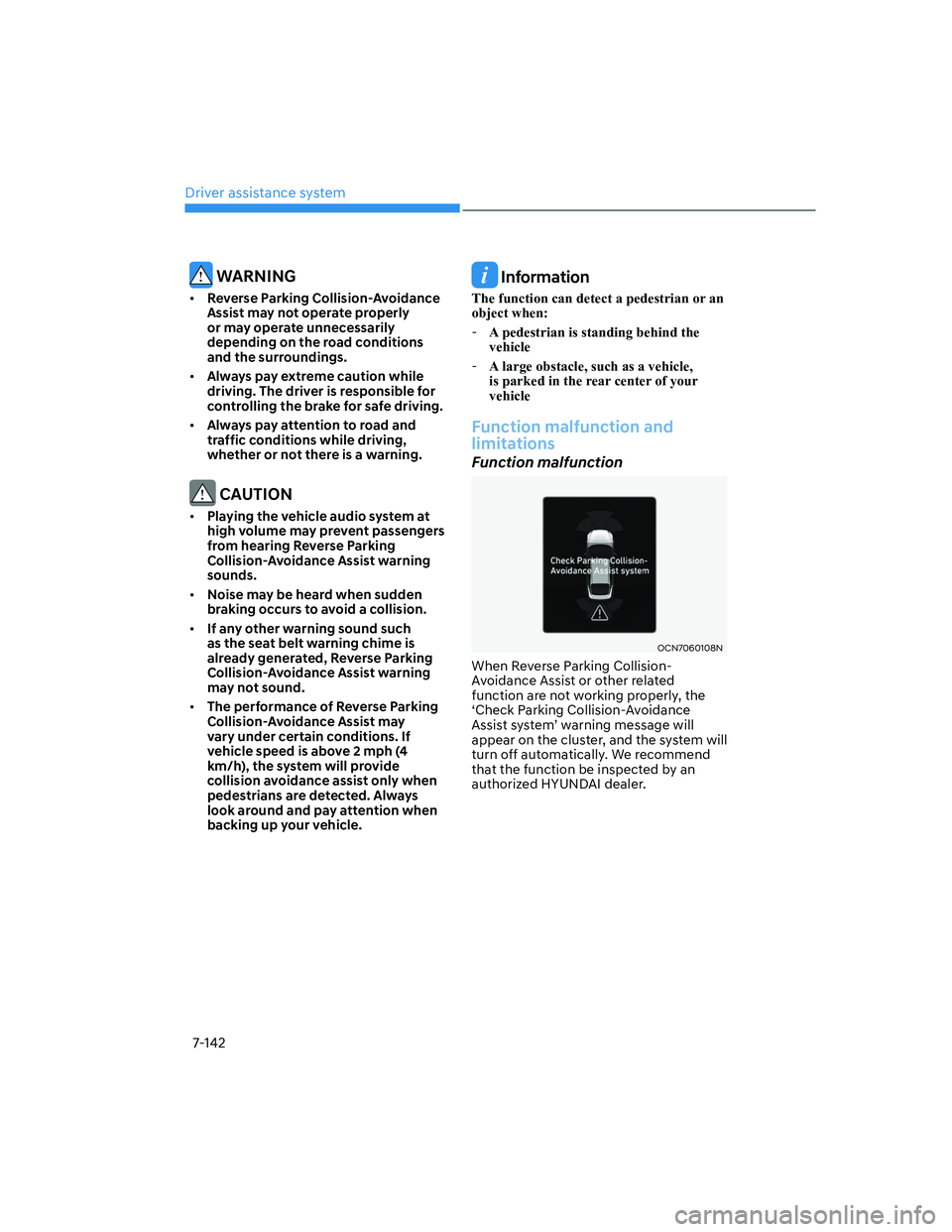

7-142
WARNING

[Reverse Parking Collision-Avoidance
Assist may not operate properly
or may operate unnecessarily
depending on the road conditions
and the surroundings.

[Always pay extreme caution while
driving. The driver is responsible for
controlling the brake for safe driving.

[Always pay attention to road and
traffic conditions while driving,
whether or not there is a warning.
CAUTION

[Playing the vehicle audio system at
high volume may prevent passengers
from hearing Reverse Parking
Collision-Avoidance Assist warning
sounds.

[Noise may be heard when sudden
braking occurs to avoid a collision.

[If any other warning sound such
as the seat belt warning chime is
already generated, Reverse Parking
Collision-Avoidance Assist warning
may not sound.

[The performance of Reverse Parking
Collision-Avoidance Assist may
vary under certain conditions. If
vehicle speed is above 2 mph (4
km/h), the system will provide
collision avoidance assist only when
pedestrians are detected. Always
look around and pay attention when
backing up your vehicle.
Information
The function can detect a pedestrian or an
object when:
-A pedestrian is standing behind the
vehicle
-A large obstacle, such as a vehicle,
is parked in the rear center of your
vehicle
Function malfunction and
limitations
Function malfunction
OCN7060108N
When Reverse Parking Collision-
Avoidance Assist or other related
function are not working properly, the
‘Check Parking Collision-Avoidance
$VVLVWV\VWHP
TZDUQLQJPHVVDJHZLOO
appear on the cluster, and the system will
turn off automatically. We recommend
that the function be inspected by an
authorized HYUNDAI dealer.

07
7-143
Function disabled
OCN7050046
The rear view camera is used as a
detecting sensor to detect pedestrians. If
the camera lens is covered with foreign
material, such as snow or rain, it may
adversely affect camera performance
and Reverse Parking Collision-Avoidance
Assist may not operate normally. Always
keep the camera lens clean.
OCN7060103
The rear ultrasonic sensors are located
inside the rear bumper to detect objects
in the rear area. If the sensors are
covered with foreign material, such as
snow or rain, it may adversely affect
sensor performance and Reverse Parking
Collision-Avoidance Assist may not
operate normally. Always keep the rear
bumper clean.
„Rear view camera„Rear ultrasonic sensor
OCN7060127NOCN7060128N
7KH
S5HDUFDPHUDHUURURUEORFNDJH
T
RU
S3DUNLQJVHQVRUHUURURUEORFNDJH
T
warning message will appear on the
cluster if the following situations occur:
- The rear view camera is covered with
foreign material, such as snow or rain,
etc.
- There is inclement weather, such as
heavy snow, heavy rain, etc.
If this occurs, Reverse Parking Collision-
Avoidance Assist may turn off or may not
operate properly. Check whether the rear
view camera and rear ultrasonic sensors
are clean.

Driver assistance system
7-144
Limitations of the function
Reverse Parking Collision-Avoidance
Assist may not assist braking or warn
the driver even if there are pedestrians
or objects under the following
circumstances:

[Any non-factory equipment or
accessory is installed

[Your vehicle is unstable due to an
accident or other causes

[Bumper height or rear ultrasonic
sensor installation has been modified

[Rear view camera or rear ultrasonic
sensor(s) is damaged

[Rear view camera or the rear
ultrasonic sensor(s) is stained with
foreign material, such as snow, dirt,
etc.

[Rear view camera is obscured by a
light source or by inclement weather,
such as heavy rain, fog, snow, etc.

[The surrounding is very bright or very
dark

[Outside temperature is very high or
very low

[The wind is either strong (above
12 mph (20 km/h)) or blowing
perpendicular to the rear bumper

[Objects generating excessive
noise, such as vehicle horns, loud
motorcycle engines or truck air
brakes, are near your vehicle

[An ultrasonic sensor with similar
frequency is near your vehicle

[There is ground height difference
between the vehicle and the
pedestrian

[The image of the pedestrian in the
rear view camera is indistinguishable
from the background
[The pedestrian is near the rear edge of
the vehicle

[The pedestrian is not standing upright

[The pedestrian is either very short or
very tall for the system to detect

[The pedestrian or cyclist is wearing
clothing that easily blends into the
background, making it difficult to
detect

[The pedestrian is wearing clothing
that does not reflect ultrasonic waves
well

[Size, thickness, height, or shape of
the object does not reflect ultrasonic
waves well (e.g., pole, bush, curbs,
carts, edge of a wall, etc.)

[The pedestrian or the object is moving

[The pedestrian or the object is very
close to the rear of the vehicle

[A wall is behind the pedestrian or the
object

[The object is not located at the rear
center of your vehicle

[The object is not parallel to the rear
bumper

[The road is slippery or inclined

[The driver backs up the vehicle
immediately after shifting to R
(Reverse)

[The driver accelerates or circles the
vehicle
