2022 HYUNDAI ELANTRA Owners Manual

05
5-41
MIRRORS
Inside Rearview Mirror
Before driving your vehicle, check to
see that your inside rearview mirror is
properly positioned. Adjust the rearview
mirror so that the view through the rear
window is properly centered.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in the
rear seat, cargo area, or behind the rear
head restraints which could interfere
with your vision through the rear
window.
WARNING
To prevent serious injury during an
accident or deployment of the air bag,
do not modify the rearview mirror and
do not install a wide mirror.
WARNING
NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
NOTICE
When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as this
may cause the liquid cleaner to enter
the mirror housing.
Day/night rearview mirror
(if equipped)
OCN7050017LOCN7050017L
[A] : Lever, [B] : Day, [C] : Night
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever towards you to
reduce glare from the headlamps of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.
CN7 HMA 5.indd 5-412020-12-03 9:20:48

Convenient Features
5-42
Electrochromic mirror (ECM) with
HomeLink® system (if equipped)
OCN7050084NOCN7050084N
Your vehicle may be equipped with
a Gentex Automatic-Dimming Mirror
with an Integrated HomeLink® Wireless
Control System.
During nighttime driving, this feature will
automatically detect and help reduce
rearview mirror glare. The HomeLink®
Universal Transceiver allows you to
activate your garage door(s), electric
gate, home lighting, etc.
(1) HomeLink Channel 1
(2) HomeLink Channel 2
(3) HomeLink Channel 3
(4) Garage Door Opener Status Indicator :
Closing or Closed
(5) HomeLink Operation Indicator
(6) Garage Door Opener Status Indicator :
Opening or Opened
(7) HomeLink User Interface Indicator
$XWRPDWLF'LPPLQJ1LJKW9LVLRQ6DIHW\

05
5-43
WARNING
Before programing HomeLink® to a
garage door opener or gate operator,
make sure people and objects are out
of the way of the device to prevent
potential harm or damage. Do not
use the HomeLink® with any garage
door opener that lacks the safety
stop and reverse features required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an
object - signaling the door to stop and
reverse - does not meet current U.S.
federal safety standards. Using a garage
door opener without these features
increases the risk of serious injury or
death.
3URJUDPLQJ+RPH/LQNŠ
Please note the following:
• When programing a garage door
opener, it is advised to park the
vehicle outside of the garage.
• It is recommended that a new battery
be placed in the hand-held transmitter
of the device being programed to
HomeLink® for quicker training and
accurate transmission of the radio-
frequency signal.
• Some vehicles may require the
Engine Start/Stop button to be in
the ACC (or “Accessories”) position
for programing and/or operation of
HomeLink®.
• In the event that there are still
programing difficulties or questions
after following the programing steps
listed below, contact HomeLink® at:
www.homelink.com, www.youtube.
com/HomeLinkGentex or by calling
1-800-355-3515.
3URJUDPLQJ
To program most devices, follow these
instructions:
OCN7050085NOCN7050085N
1. Press and release (1), (2) or (3) button.
• If the indicator (4) is turned ON in
Orange, go to Step 3) since it is a
new programing.
• If the indicator (4) is continuously
turned ON or flashes in Green rapidly
several times, go to Step 2) since it is
a programed button.
2. Press and hold the button you wish
to program for approximately 15-
25 seconds until the LED flashes in
Orange for several times.
3. Hold the Garage Door Opener Original
Transmitter near the HomeLink Mirror.
CN7 HMA 5.indd 5-432020-12-03 9:20:48

Convenient Features
5-44
OCN7050086NOCN7050086N
4. Press the Original Transmitter
button until the indicator (4) is
turned continuously ON or flashes in
Green for approximately 10 seconds
and it indicates the programing is
completed.
5. However, the indicator (4) flashes
in Green continuously, but if the
garage door opener does not operate,
please continue to follow the step
6 and 7 (“Rolling Code Programing”
procedures).
6. Firmly press and release the “Learn,”
“Smart,” or “Program” button while
the indicator (4) flashes in Green.
Once the button is pressed, you have
approximately 30 seconds to initiate
the next step.
Information
$WWKHJDUDJHGRRURSHQHUPRWRUVHFXULW\
JDWHPRWRUHWFORFDWHWKH

05
5-45
Gate operator & Canadian programing
During programing, your handheld
transmitter may automatically stop
transmitting. Continue to press the
Integrated HomeLink® Wireless Control
System button while you press and re-
press (“cycle”) your handheld transmitter
every two seconds until the frequency
signal has been learned. The indicator
light will flash slowly and then rapidly
after several seconds upon successful
training.
OCN7050085NOCN7050085N
Operating HomeLink®
1. Press and release one of the
HomeLink buttons (1, 2 or 3) that
programed.
2. The HomeLink indicator (4) will
operate as below:
- Indicates Green and is continuously
ON (Fixed Code Garage Door
Opener)
- Flashes in Green rapidly (Rolling
Code Garage Door Opener)
OCN7050087NOCN7050087N
Erasing HomeLink® buttons
1. Press and hold the button (1) and (3)
simultaneously.
2. The indicator (4) is turned
continuously ON in orange for about
10 seconds.
3. Then the indicator (4) color changes
to Green and flashes rapidly.
Release the buttons once the green
indicator flashes.
4. Now HomeLink button (1), (2) and (4)
memories are all cleared.
NVS® is a registered trademark and
Z-Nav™ is a trademark of the Gentex
Corporation, Zeeland, Michigan.
HomeLink® is a registered trademark
owned by Johnson Controls,
Incorporated, Milwaukee, Wisconsin.
FCC ID: NZLUAHL5A
IC: 4112A-UAHL5A
CN7 HMA 5.indd 5-452020-12-03 9:20:49

Convenient Features

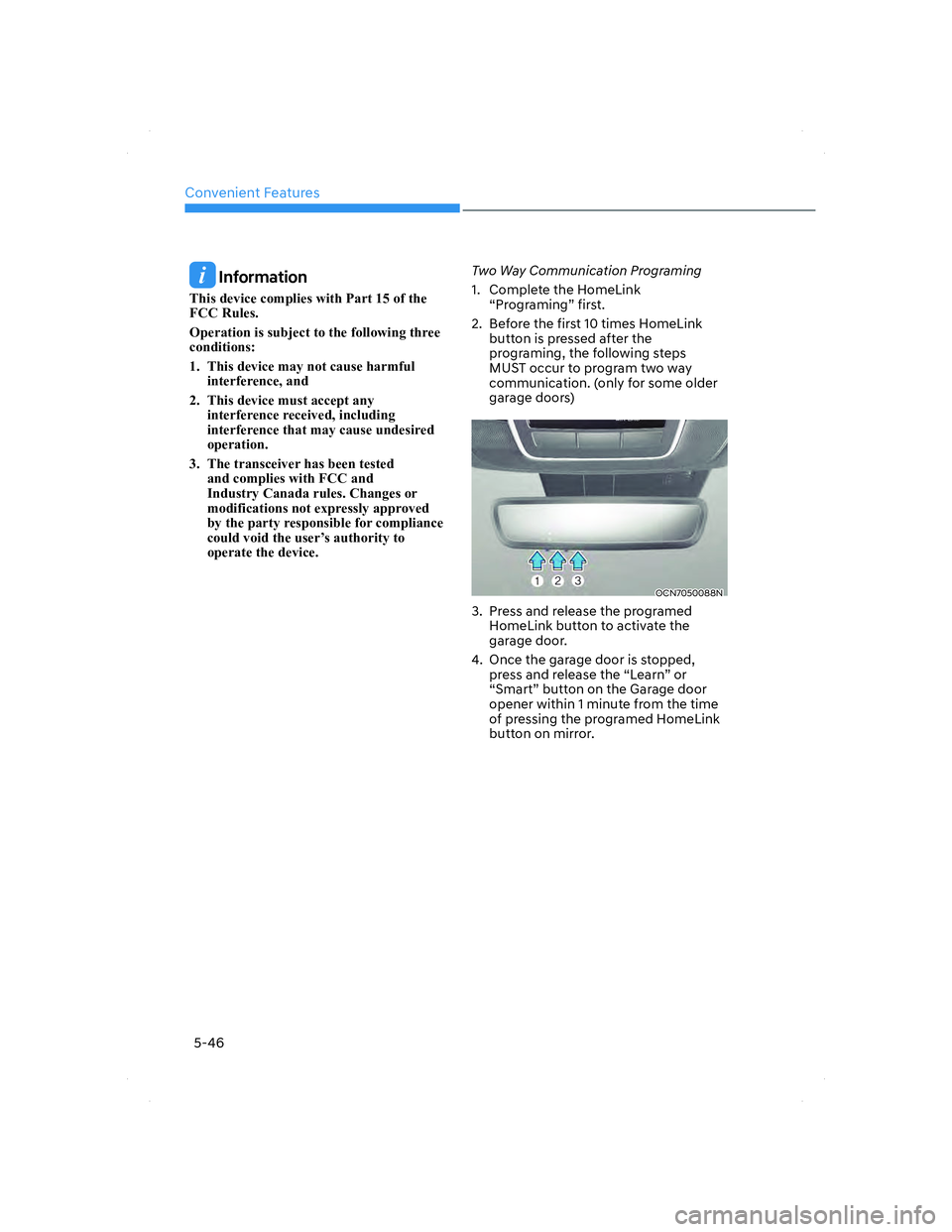

5-46
Information
7KLVGHYLFHFRPSOLHVZLWK3DUWRIWKH
)&&5XOHV
2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWKUHH
FRQGLWLRQV
 7KLVGHYLFHPD\QRWFDXVHKDUPIXO
LQWHUIHUHQFHDQG
 7KLVGHYLFHPXVWDFFHSWDQ\
LQWHUIHUHQFHUHFHLYHGLQFOXGLQJ
LQWHUIHUHQFHWKDWPD\FDXVHXQGHVLUHG
RSHUDWLRQ
 7KHWUDQVFHLYHUKDVEHHQWHVWHG
DQGFRPSOLHVZLWK)&&DQG
,QGXVWU\&DQDGDUXOHV&KDQJHVRU
PRGLILFDWLRQVQRWH[SUHVVO\DSSURYHG
E\WKHSDUW\UHVSRQVLEOHIRUFRPSOLDQFH
FRXOGYRLGWKHXVHU

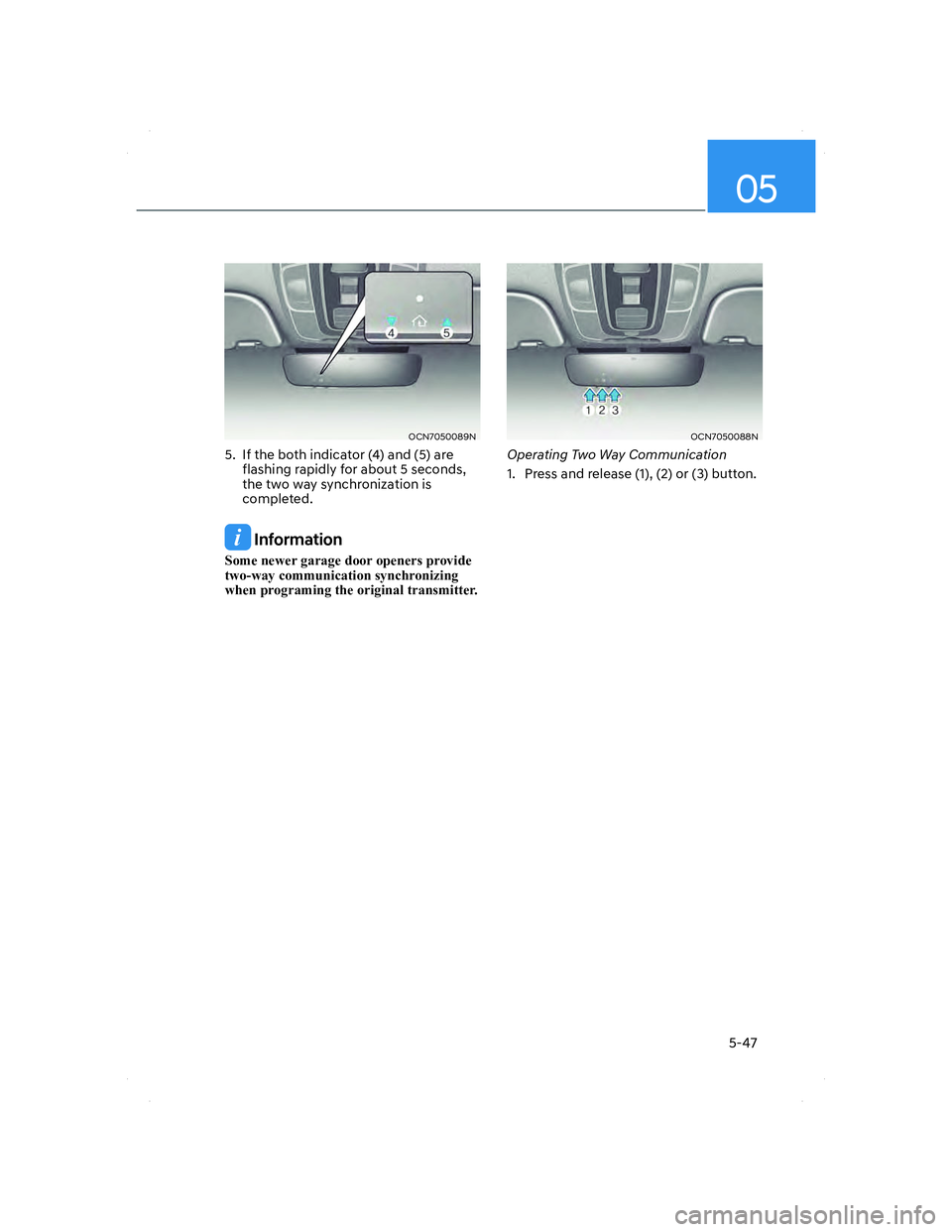

05
5-47
OCN7050089NOCN7050089N
5. If the both indicator (4) and (5) are
flashing rapidly for about 5 seconds,
the two way synchronization is
completed.
Information
6RPHQHZHUJDUDJHGRRURSHQHUVSURYLGH
WZRZD\FRPPXQLFDWLRQV\QFKURQL]LQJ
ZKHQSURJUDPLQJWKHRULJLQDOWUDQVPLWWHU
OCN7050088NOCN7050088N
Operating Two Way Communication
1. Press and release (1), (2) or (3) button.
CN7 HMA 5.indd 5-472020-12-03 9:20:49

Convenient Features
5-48
OCN7050089NOCN7050089N
2. The indicator (4) and (5) operates as
below:
- If the indicator (4) flashes in Orange,
it indicates that the garage door is
“closing”.
- If the indicator (4) is ON continuously
in Green, it indicates that the garage
door is “closed”.
- If the indicator (5) flashes in Orange,
it indicates that the garage door is
“Opening”.
- If the indicator (5) is ON
continuously in Green, it indicates
that the garage door is “Opened”.
- If the indicator (4) or (5) does not
turn to Green, it indicates that the
last status of garage door was not
received properly. The HomeLink
mirror tries to receive the last
known status of the garage door for
a few seconds.Recalling Garage Door Status
Homelink mirror with two way
communication provides a way to view
the last stored message from the garage
door opener. In order to recall the last
known status of the last activated device,
press the buttons “1 and 2” OR “2 and 3”
simultaneously.
• If the indicator (4) is ON continuously
in Green, it indicates that the last
activated device was “closed” properly.
• If the indicator (5) is ON continuously
in Green, it indicates that the last
activated device was “open” properly.
Information
7ZRZD\FRPPXQLFDWLRQUDQJHGLVWDQFH
EHWZHHQ
