7. Driver assistance system

Driver assistance system
7-2
Basic function
OCN7C070051
Forward Collision-Avoidance Assist is
designed to help detect and monitor the
vehicle ahead or detect a pedestrian in
the roadway and warn the driver that
a collision is imminent with a warning
message and audible warning, and if
necessary, apply emergency braking.
Detecting sensor
OCN7060030[1] : Front view camera
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[NEVER disassemble the detecting
sensor or sensor assembly, or apply
any impact on it.

[If the detecting sensors have been
replaced or repaired, we recommend
that you have your vehicle inspected
by an authorized HYUNDAI dealer.

[NEVER install any accessories or
stickers on the front windshield, or
tint the front windshield.

[Pay extreme caution to keep the
front view camera dry.

[NEVER place any reflective objects
(i.e. white paper, mirror) over the
dashboard. Any light reflection may
prevent the system from functioning
properly.
FORWARD COLLISION
ÙAVOIDANCE ASSIST
ãFCA
ä
ãFRONT
VIEW CAMERA ONLY
ä
ãIF EQUIPPED
ä

07
7-3
Function settings
Setting
OTM070090N
Forward Safety
With the engine on, select ‘Driver
$VVLVWDQFH

Driver assistance system
7-4
OTM070140N
Warning Timing
With the engine on, select ‘Driver
$VVLVWDQFH

07
7-5

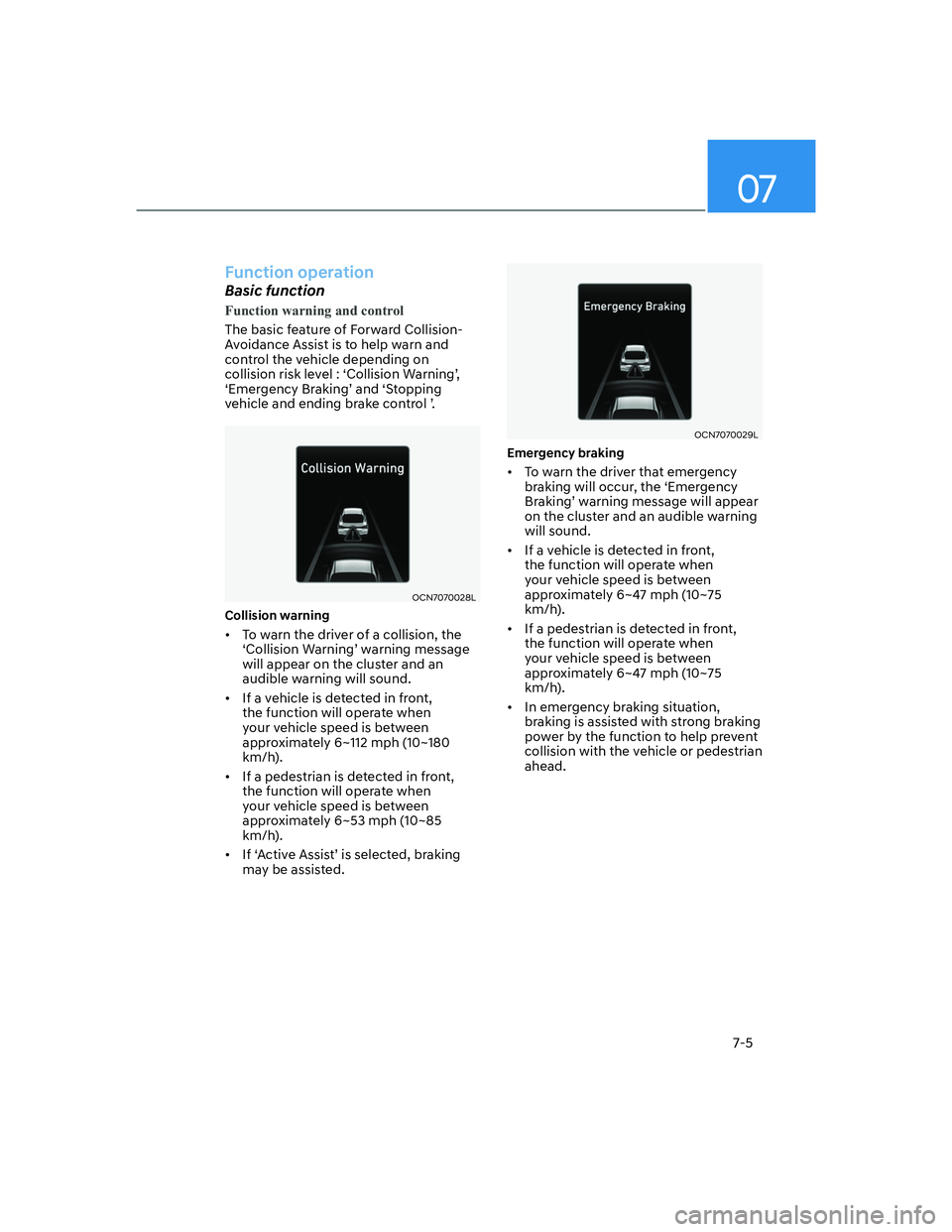

Function operation
Basic function
Function warning and control
The basic feature of Forward Collision-
Avoidance Assist is to help warn and
control the vehicle depending on
FROOLVLRQULVNOHYHO
S&ROOLVLRQ:DUQLQJ
T

S(PHUJHQF\%UDNLQJ
TDQG
S6WRSSLQJ
YHKLFOHDQGHQGLQJEUDNHFRQWURO
T
OCN7070028L
Collision warning

[To warn the driver of a collision, the

S&ROOLVLRQ:DUQLQJ
TZDUQLQJPHVVDJH
will appear on the cluster and an
audible warning will sound.

[If a vehicle is detected in front,
the function will operate when
your vehicle speed is between
approximately 6~112 mph (10~180
km/h).

[If a pedestrian is detected in front,
the function will operate when
your vehicle speed is between
approximately 6~53 mph (10~85
km/h).

[ ,I
S$FWLYH$VVLVW
TLVVHOHFWHGEUDNLQJ
may be assisted.
OCN7070029L
Emergency braking

[To warn the driver that emergency
braking will occur, the ‘Emergency
%UDNLQJ
TZDUQLQJPHVVDJHZLOODSSHDU
on the cluster and an audible warning
will sound.

[If a vehicle is detected in front,
the function will operate when
your vehicle speed is between
approximately 6~47 mph (10~75
km/h).

[If a pedestrian is detected in front,
the function will operate when
your vehicle speed is between
approximately 6~47 mph (10~75
km/h).

[In emergency braking situation,
braking is assisted with strong braking
power by the function to help prevent
collision with the vehicle or pedestrian
ahead.

Driver assistance system
7-6
OCN7070030L

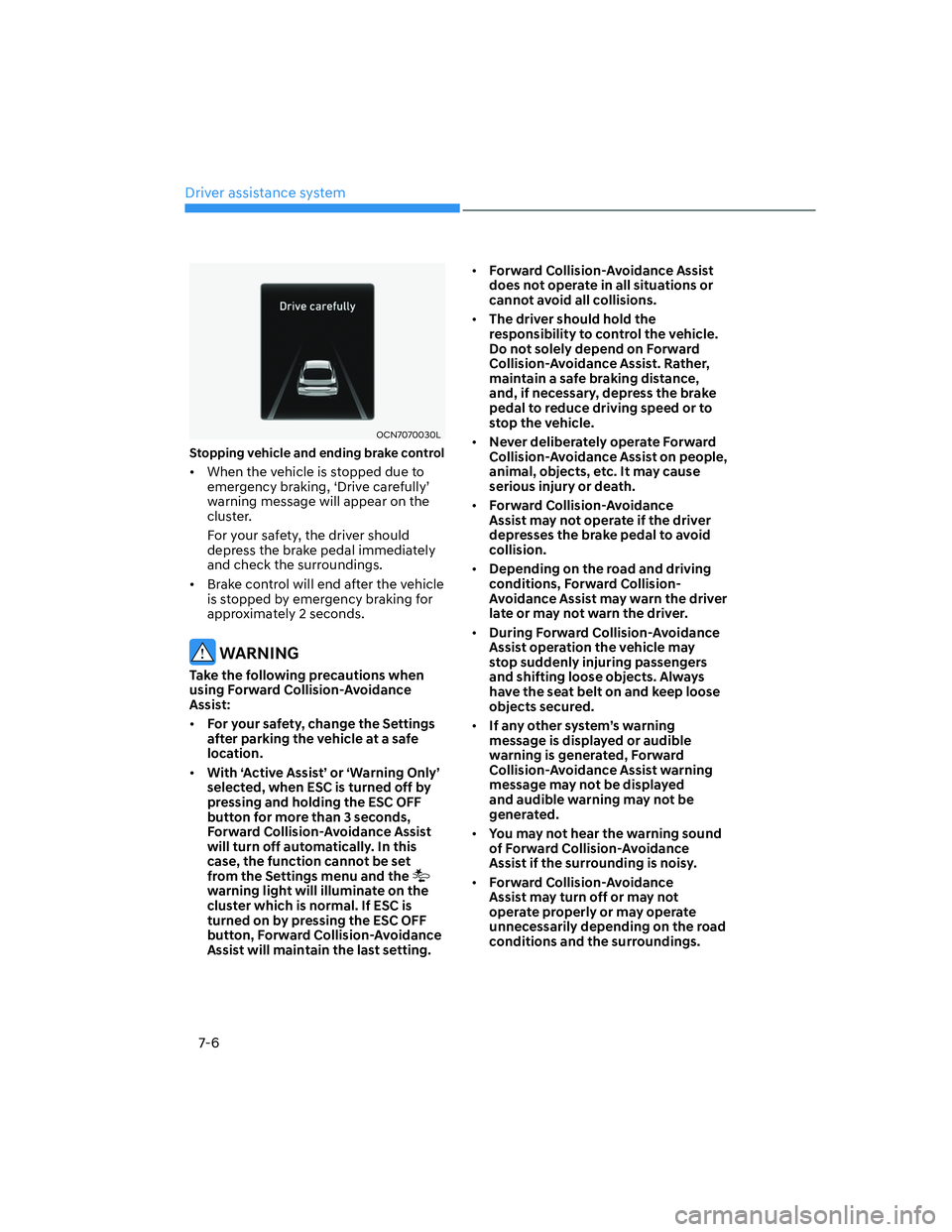

Stopping vehicle and ending brake control

[When the vehicle is stopped due to
HPHUJHQF\EUDNLQJ
S'ULYHFDUHIXOO\
T
warning message will appear on the
cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
WARNING
Take the following precautions when
using Forward Collision-Avoidance
Assist:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[With ‘Active Assist’ or ‘Warning Only’
selected, when ESC is turned off by
pressing and holding the ESC OFF
button for more than 3 seconds,
Forward Collision-Avoidance Assist
will turn off automatically. In this
case, the function cannot be set
from the Settings menu and the

warning light will illuminate on the
cluster which is normal. If ESC is
turned on by pressing the ESC OFF
button, Forward Collision-Avoidance
Assist will maintain the last setting.
[Forward Collision-Avoidance Assist
does not operate in all situations or
cannot avoid all collisions.

[The driver should hold the
responsibility to control the vehicle.
Do not solely depend on Forward
Collision-Avoidance Assist. Rather,
maintain a safe braking distance,
and, if necessary, depress the brake
pedal to reduce driving speed or to
stop the vehicle.

[Never deliberately operate Forward
Collision-Avoidance Assist on people,
animal, objects, etc. It may cause
serious injury or death.

[Forward Collision-Avoidance
Assist may not operate if the driver
depresses the brake pedal to avoid
collision.

[Depending on the road and driving
conditions, Forward Collision-
Avoidance Assist may warn the driver
late or may not warn the driver.

[During Forward Collision-Avoidance
Assist operation the vehicle may
stop suddenly injuring passengers
and shifting loose objects. Always
have the seat belt on and keep loose
objects secured.

[If any other system’s warning
message is displayed or audible
warning is generated, Forward
Collision-Avoidance Assist warning
message may not be displayed
and audible warning may not be
generated.

[You may not hear the warning sound
of Forward Collision-Avoidance
Assist if the surrounding is noisy.

[Forward Collision-Avoidance
Assist may turn off or may not
operate properly or may operate
unnecessarily depending on the road
conditions and the surroundings.

07
7-7

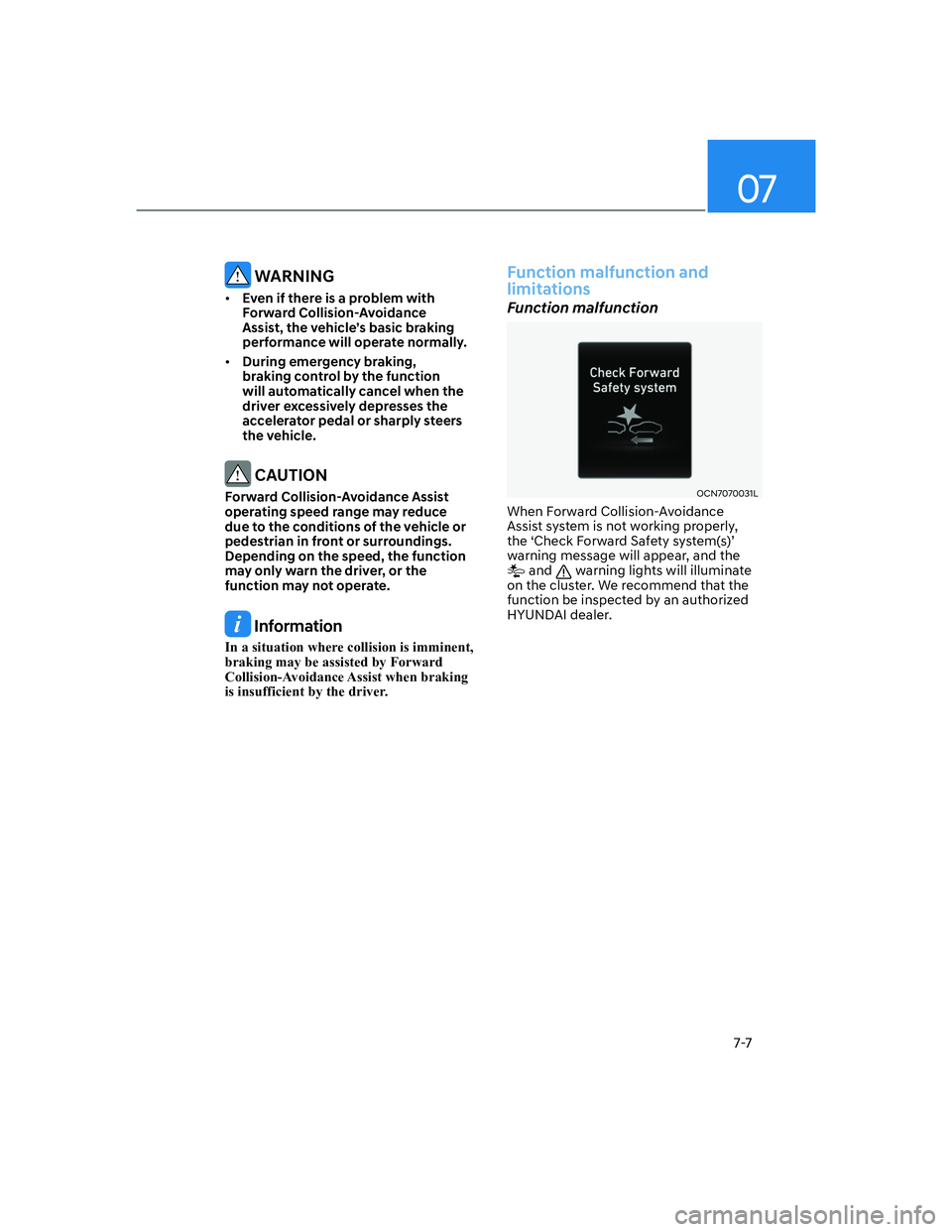

WARNING

[Even if there is a problem with
Forward Collision-Avoidance
Assist, the vehicle’s basic braking
performance will operate normally.

[During emergency braking,
braking control by the function
will automatically cancel when the
driver excessively depresses the
accelerator pedal or sharply steers
the vehicle.
CAUTION
Forward Collision-Avoidance Assist
operating speed range may reduce
due to the conditions of the vehicle or
pedestrian in front or surroundings.
Depending on the speed, the function
may only warn the driver, or the
function may not operate.
Information
In a situation where collision is imminent,
braking may be assisted by Forward
Collision-Avoidance Assist when braking
is insufficient by the driver.
Function malfunction and
limitations
Function malfunction
OCN7070031L
When Forward Collision-Avoidance
Assist system is not working properly,
WKH
S&KHFN )RUZDUG 6DIHW\ V\VWHPV
T
warning message will appear, and the
and warning lights will illuminate
on the cluster. We recommend that the
function be inspected by an authorized
HYUNDAI dealer.

Driver assistance system
7-8
Function disabled
OCN7070032L
When the front windshield where the
front view camera is located or the
sensor is covered with foreign material,
such as snow or rain, it can reduce the
detecting performance and temporarily
limit or disable Forward Collision-
Avoidance Assist.
If this occurs the ‘Forward Safety system
GLVDEOHG &DPHUD REVFXUHG
T ZDUQLQJ
message, and the
and warning
lights will illuminate on the cluster.
The system will operate normally when
such snow, rain or foreign material is
removed.
If the system does not operate normally
after obstruction (snow, rain, or foreign
material) is removed, we recommend
that the system be inspected by an
authorized HYUNDAI dealer.
WARNING

[Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.

[Forward Collision-Avoidance Assist
may not properly operate in an area
(e.g. open terrain), where any objects
are not detected after turning ON the
engine.
Limitations of the function
Forward Collision-Avoidance Assist may
not operate normally, OR the function
may operate unexpectedly under the
following circumstances:

[The detecting sensor or the
surroundings are contaminated or
damaged

[The temperature around the front
view camera is high or low

[The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or foreign material
(sticker, bug, etc.) on the glass

[Moisture is not removed or frozen on
the windshield

[Washer fluid is continuously sprayed,
or the wiper is on

[Driving in heavy rain or snow, or thick
fog

[The field of view of the front view
camera is obstructed by sun glare

[Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road

[An object is placed on the dashboard

[Your vehicle is being towed

[The surrounding is very bright

[The surrounding is very dark, such as
in a tunnel, etc.

[The brightness changes suddenly, for
example when entering or exiting a
tunnel

[The brightness outside is low, and the
headlamps are not on or are not bright
