2022 HYUNDAI ELANTRA Owners Manual

07
7-113
OCN7050046
OCN7050047
Rear View Monitor will show the area
behind the vehicle to assist you when
parking or backing up.
Detecting sensor
OCN7050046L[1] : Rear view camera
Refer to the picture above for the
detailed location of the detecting sensor.
REAR VIEW MONITOR
ãRVM
ä
ãIF EQUIPPED
ä

Driver assistance system
7-114

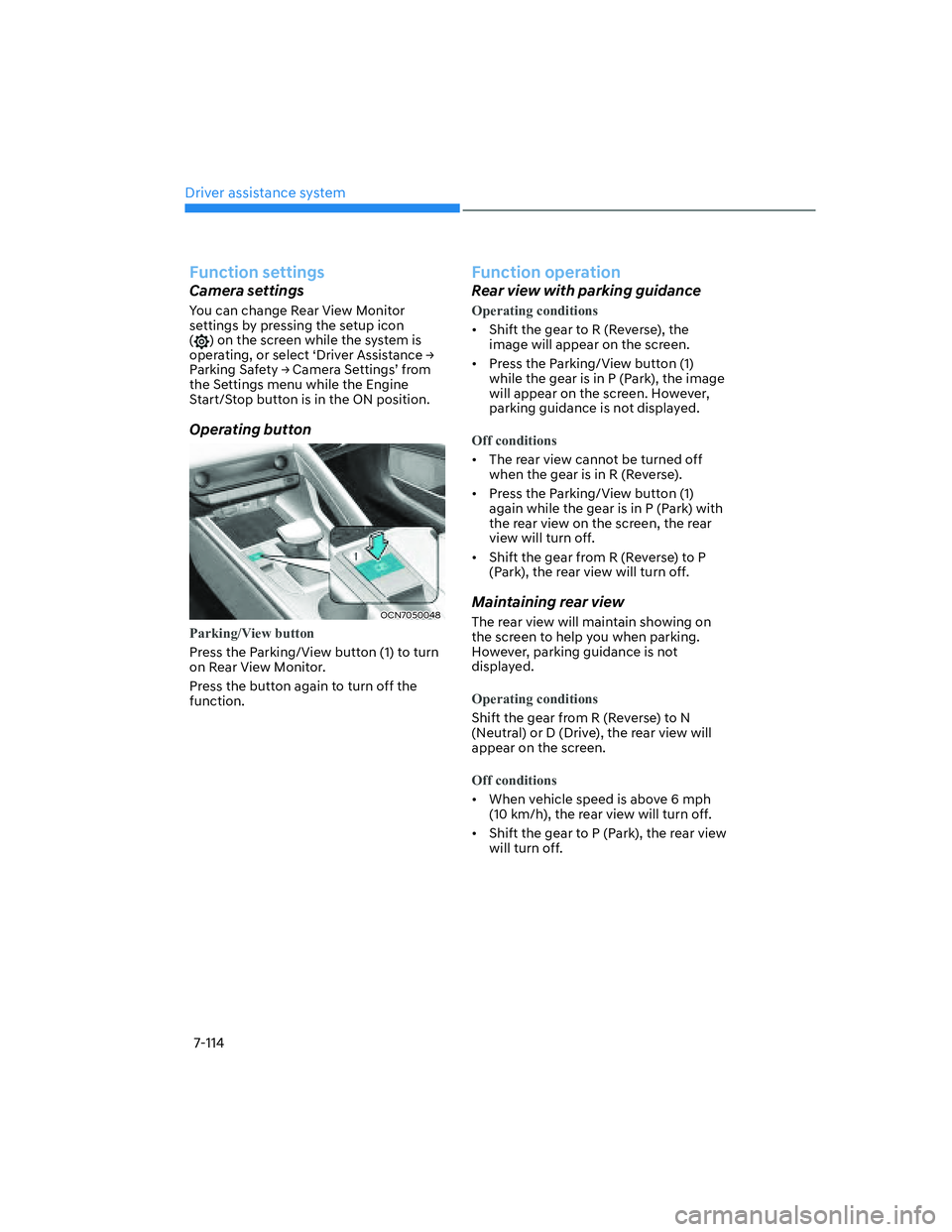

Function settings
Camera settings
You can change Rear View Monitor
settings by pressing the setup icon
(
) on the screen while the system is
RSHUDWLQJ RU VHOHFW
S'ULYHU $VVLVWDQFH

07
7-115
Driving rear view
OCN7050048
OCN7070062L
The driver is able to check the rear view
on the screen while driving, it is to assist
with safe driving.
Operating conditions
Press the Parking/View button (1) while
the gear is in D (Drive) or N (Neutral),
the driving rear view will appear on the
screen.
Off conditions

[Press the Parking/View button (1)
again, the driving rear view will turn
off.

[Press one of the infotainment system
button (2), the driving rear view will
turn off.

[Shift the gear to P (Park), the driving
rear view will turn off.
When operating

[If the gear is shifted to R (Reverse),
while Driving rear view is displayed on
the screen, the screen will change to
rear view with parking guidance.

[When Driving rear view is displayed
on the screen, an icon (
) will appear
on the upper right side of the screen
indicating that the rear view is being
displayed.

Driver assistance system
7-116
Rear top view
OCN7060147L
When you touch the icon (1), the top view
is displayed on the screen and shows the
distance from the vehicle in the back of
your vehicle while parking.
Function malfunction and
limitations
Function malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display normally,
we recommend that the system be
inspected by an authorized HYUNDAI
dealer.
Limitations of the function
When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur the
image.
WARNING

[The rear view camera does not
cover the complete area behind the
vehicle. The driver should always
check the rear area directly through
the inside and outside rearview
mirror before parking or backing up.

[The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[Always keep the rear view camera
lens clean. If the lens is covered with
foreign material, it may adversely
affect camera performance and
Rear View Monitor may not operate
normally.

07
7-117
EQUIPPED
ä
Rear Cross-Traffic Collision Warning
Assist is designed to help detect vehicles
approaching from the left and right side
while your vehicle is reversing, and warn
the driver that a collision is imminent
with a warning message and an audible
warning.
OCN7070094L[A] : Rear Cross-Traffic Collision Warning operating
range
CAUTION
The time of warning may vary
depending on vehicle speed of the
approaching vehicle.
Information
In the following text, Rear Cross-Traffic
Collision Warning will be referred as Rear
Cross-Traffic Safety system.
Detecting sensor
OCN7060046[1] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
For more details on the precautions of
the rear corner radar, refer to “Blind-
Spot Collision-Avoidance Warning
(BCW)” section in chapter 7.
REAR CROSS
ØTRAFFIC COLLISION WARNING
ãRCCW
ä
ãIF

Driver assistance system
7-118
Function settings
Setting
OCN7070063N
Rear Cross-Traffic Safety
With the engine on, select ‘Driver
$VVLVWDQFH

07
7-119
OTM070141N
Warning Volume
With the engine on, select ‘Driver
$VVLVWDQFH

Driver assistance system
7-120

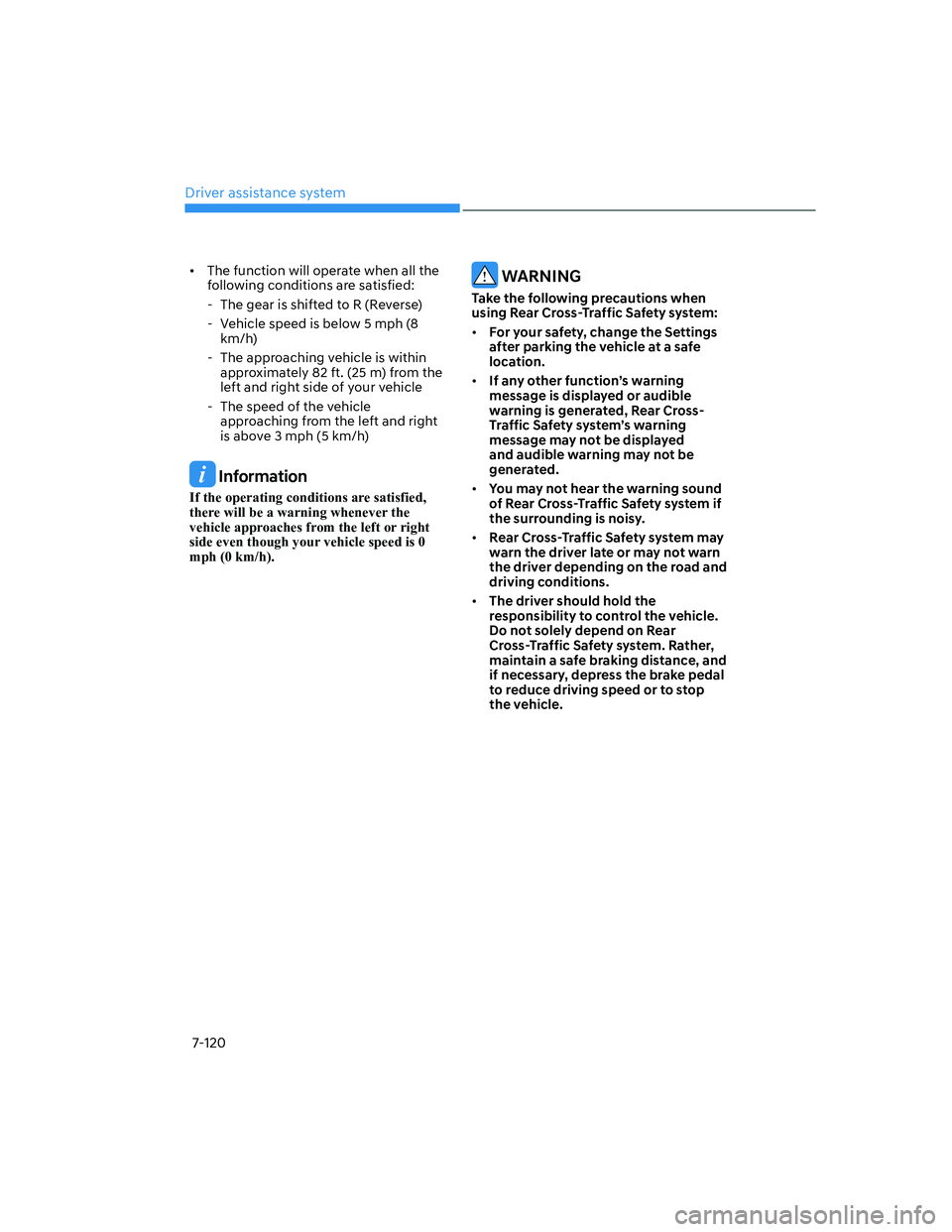

[The function will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- Vehicle speed is below 5 mph (8
km/h)
- The approaching vehicle is within
approximately 82 ft. (25 m) from the
left and right side of your vehicle
- The speed of the vehicle
approaching from the left and right
is above 3 mph (5 km/h)
Information
If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or right
side even though your vehicle speed is 0
mph (0 km/h).
WARNING
Take the following precautions when
using Rear Cross-Traffic Safety system:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[If any other function’s warning
message is displayed or audible
warning is generated, Rear Cross-
Traffic Safety system’s warning
message may not be displayed
and audible warning may not be
generated.

[You may not hear the warning sound
of Rear Cross-Traffic Safety system if
the surrounding is noisy.

[Rear Cross-Traffic Safety system may
warn the driver late or may not warn
the driver depending on the road and
driving conditions.

[The driver should hold the
responsibility to control the vehicle.
Do not solely depend on Rear
Cross-Traffic Safety system. Rather,
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce driving speed or to stop
the vehicle.
