2022 HYUNDAI ELANTRA Owners Manual

05
5-81
MANUAL CLIMATE CONTROL SYSTEM
ãIF EQUIPPED
ä
„„Type AType A
OCN7050100NOCN7050100N
„„Type BType B
OCN7050101NOCN7050101N
1. Fan speed control knob
2. Temperature control knob
3. Mode selection knob
4. Front windshield defroster position
5. Rear window defroster button
6. Air intake control button
7. A/C (Air conditioning) button
CN7 HMA 5.indd 5-812020-12-03 9:21:02

Convenient Features
5-82
Heating and Air Conditioning
1. Start the engine.
2. Set the mode to the desired position.
To improve the effectiveness of
heating and cooling, select the mode
according to the following:
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to fresh
mode or recirculation mode position.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn the
air conditioning system on.
When starting the vehicle in cold weather
a more efficient way to heat the passen-
ger compartment is to do the following.
- Turn off or lower the blower, right
after starting the engine.
• Engine temperature is still low and the
air flow from the heater is still cold.
- After a few minutes of engine warm
up, turn on or set the fan to a higher
level and adjust the temperature
setting towards hot.
CN7 HMA 5.indd 5-822020-12-03 9:21:02

05
5-83

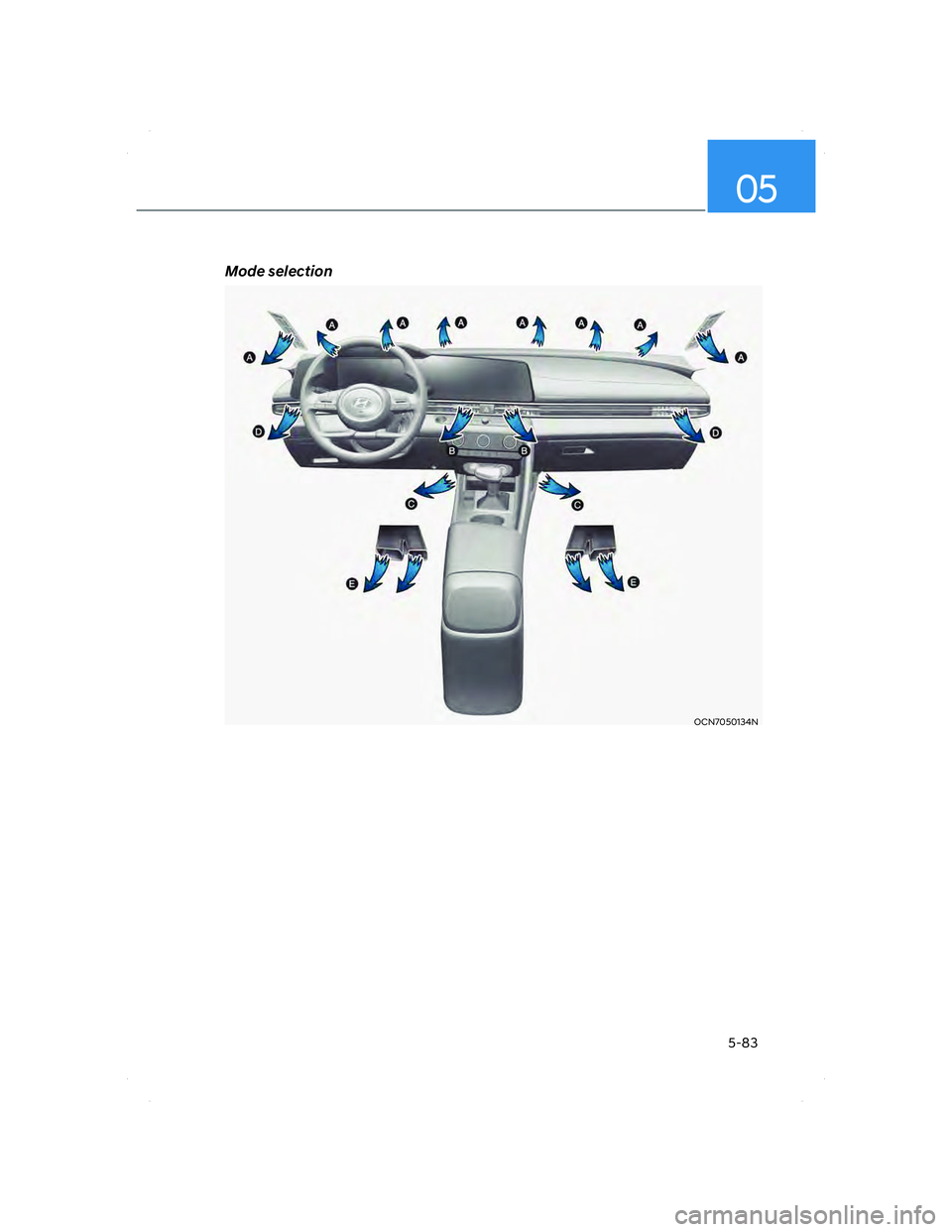

Mode selection
OCN7050134NOCN7050134N
CN7 HMA 5.indd 5-832020-12-03 9:21:02

Convenient Features
5-84
OCN7050102OCN7050102
The mode selection knob controls the
direction of the air flow through the
ventilation system.
Air can be directed to the floor,
dashboard outlets, or windshield. Five
symbols are used to represent Face, Bi-
Level, Floor, Floor-Defrost and Defrost air
position.
)DFH/HYHO%'
Air flow is directed toward the upper
body and face. Additionally, each outlet
can be controlled to direct the air
discharged from the outlet.
%L/HYHO%&'(
Air flow is directed towards the face and
the floor.
)ORRU/HYHO$&'(
Most of the air flow is directed to the
floor, with a small amount of the air
being directed to the windshield and side
window defrosters.
)ORRU 'HIURVW$&'(
Most of the air flow is directed to the
floor and the windshield with a small
amount directed to the side window
defrosters.
'HIURVW/HYHO$'
Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters.
OCN7050104OCN7050104
0$;$&/HYHO%'LIHTXLSSHG
The MAX A/C mode is used to cool the
inside of the vehicle faster. Air flow is
directed toward the upper body and
face.
In this mode, the air conditioning and
the recirculated air position cannot be
selected. Turn the fan speed mode to
adjust.
CN7 HMA 5.indd 5-842020-12-03 9:21:03

05
5-85

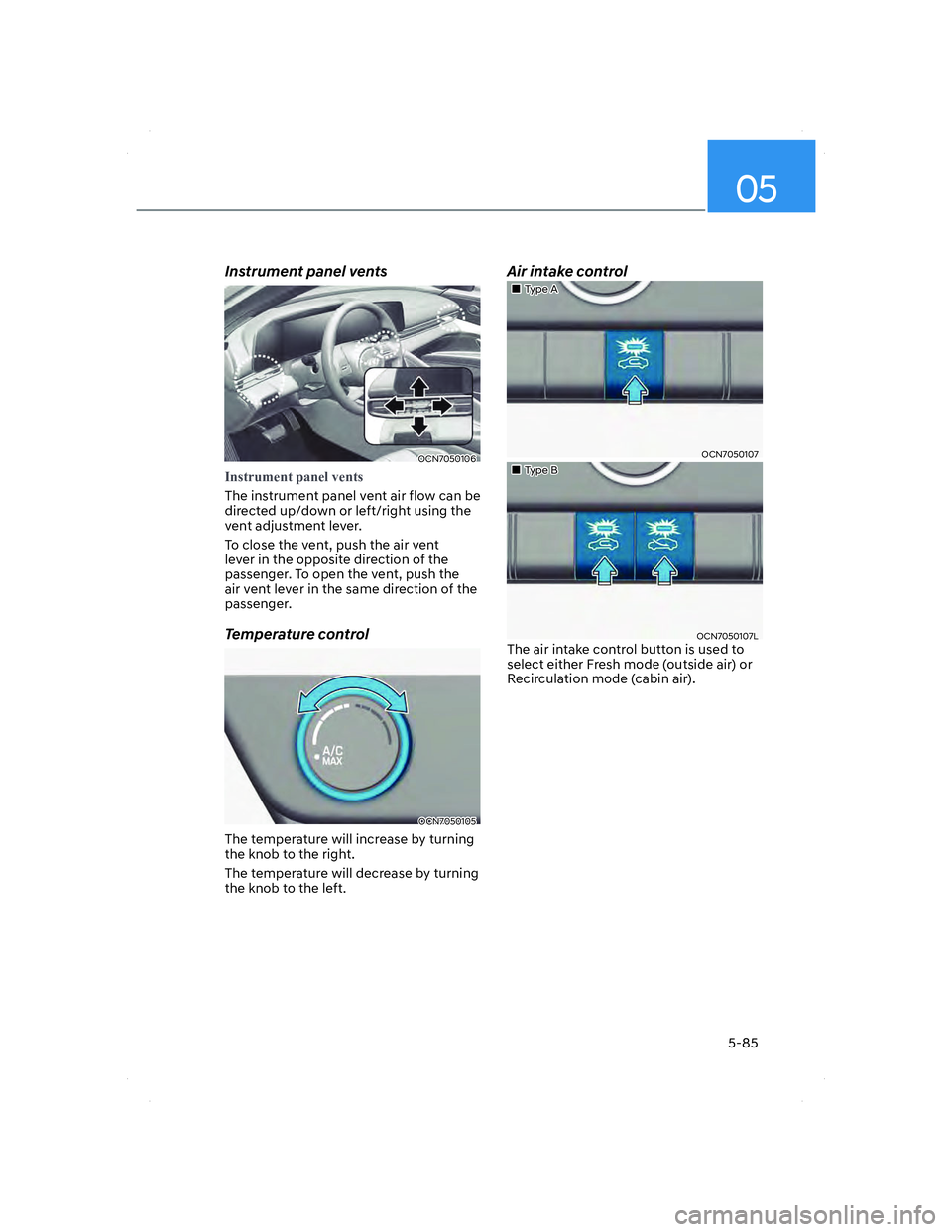

Instrument panel vents
OCN7050106OCN7050106
,QVWUXPHQWSDQHOYHQWV
The instrument panel vent air flow can be
directed up/down or left/right using the
vent adjustment lever.
To close the vent, push the air vent
lever in the opposite direction of the
passenger. To open the vent, push the
air vent lever in the same direction of the
passenger.
Temperature control
OCN7050105OCN7050105
The temperature will increase by turning
the knob to the right.
The temperature will decrease by turning
the knob to the left.
Air intake control
„„Type AType A
OCN7050107OCN7050107
„„Type BType B
OCN7050107LOCN7050107LThe air intake control button is used to
select either Fresh mode (outside air) or
Recirculation mode (cabin air).
CN7 HMA 5.indd 5-852020-12-03 9:21:03

Convenient Features
5-86
5HFLUFXODWLRQPRGH
When Recirculation mode
is selected, air from the
passenger compartment will
be recirculated through the
system and heated or cooled
according to the function
selected.
)UHVKPRGH
„„Type AType AWhen Fresh mode is
selected, air enters the
vehicle from outside and is
heated or cooled according
to the function selected.
„„Type BType B
Information
2SHUDWLQJWKHV\VWHPSULPDULO\LQ)UHVK
PRGHLVUHFRPPHQGHG8VH5HFLUFXODWLRQ
PRGHWHPSRUDULO\RQO\ZKHQQHHGHG
3URORQJHGRSHUDWLRQRIWKHKHDWHULQ
5HFLUFXODWLRQPRGHDQGZLWKRXWWKH$&
21FDQFDXVHIRJJLQJRIWKHZLQGVKLHOG
,QDGGLWLRQSURORQJHGXVHRIWKH$&
21LQ5HFLUFXODWLRQPRGHPD\UHVXOWLQ
H[FHVVLYHO\GU\GHKXPLGLILHGDLULQWKH
FDELQDQGPD\SURPRWHIRUPDWLRQRI
PXVW\YHQWRGRUGXHWRVWDJQDQWDLU
WARNING
• Continued use of the climate control
system operation in Recirculation
mode for a prolonged period of
time may cause drowsiness to the
occupants in the cabin. This may lead
to loss of vehicle control which may
lead to an accident.
• Continued use of the climate control
system operation in Recirculation
mode with the A/C OFF may allow
humidity to increase inside the
cabin. This may cause condensation
to accumulate on the windshield and
obscure visibility.
• Do not sleep in your vehicle or
remain parked in your vehicle with
the windows up and either the
heater or the air conditioning ON for
prolonged periods of time. Doing so
may increase the levels of carbon
dioxide in the cabin which may lead
to serious injury or death.
CN7 HMA 5.indd 5-862020-12-03 9:21:04

05
5-87
Fan speed control
OCN7050108NOCN7050108N
Turn the knob to the right to increase
the fan speed and airflow. Turn the knob
to the left to decrease fan speed and
airflow.
Setting the fan speed control knob to the
“0” position turns off the fan.
NOTICE
Operating the fan speed when the
ignition switch is in the ON position
could cause the battery to discharge.
Operate the fan speed when the engine
is running.
Air conditioning (if equipped)
OCN7050109OCN7050109
Press the A/C button to turn the air
conditioning system on (indicator light
will illuminate). Press the button again to
turn the air conditioning system off.
CN7 HMA 5.indd 5-872020-12-03 9:21:04

Convenient Features
5-88

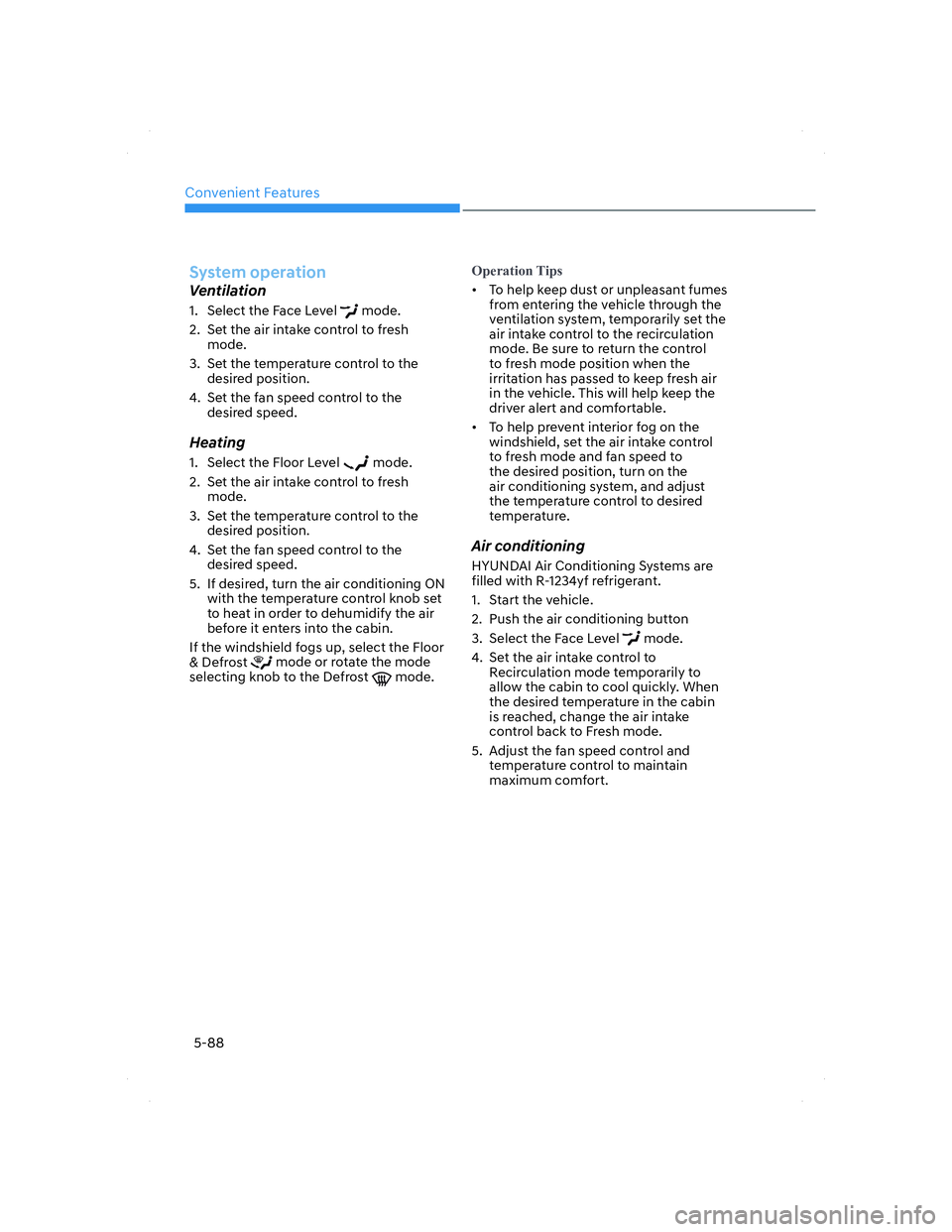

System operation
Ventilation
1. Select the Face Level mode.
2. Set the air intake control to fresh
mode.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
Heating
1. Select the Floor Level mode.
2. Set the air intake control to fresh
mode.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
5. If desired, turn the air conditioning ON
with the temperature control knob set
to heat in order to dehumidify the air
before it enters into the cabin.
If the windshield fogs up, select the Floor
& Defrost
mode or rotate the mode
selecting knob to the Defrost
mode.
2SHUDWLRQ7LSV
• To help keep dust or unpleasant fumes
from ent
ering the vehicle through the
ventilation system, temporarily set the
air intake control to the recirculation
mode. Be sure to return the control
to fresh mode position when the
irritation has passed to keep fresh air
in the vehicle. This will help keep the
driver alert and comfortable.
• To help prevent interior fog on the
windshield, set the air intake control
to fresh mode and fan speed to
the desired position, turn on the
air conditioning system, and adjust
the temperature control to desired
temperature.
Air conditioning
HYUNDAI Air Conditioning Systems are
filled with R-1234yf refrigerant.
1. Start the vehicle.
2. Push the air conditioning button
3. Select the Face Level
mode.
4. Set the air intake control to
Recirculation mode temporarily to
allow the cabin to cool quickly. When
the desired temperature in the cabin
is reached, change the air intake
control back to Fresh mode.
5. Adjust the fan speed control and
temperature control to maintain
maximum comfort.
