2022 HYUNDAI ELANTRA Owners Manual

Vehicle Information
2-12
VOLUME AND WEIGHT
ItemsSmartstream
G2.0 AtkinsonSmartstream
G1.6 T-GDi
M/T IVT M/T DCT
Gross vehicle weight
lbs. (kg)3,814
(1,730)3,858
(1,750)4,012
(1,820)4,078
(1,850)
Luggage volume
cu ft (
b)16.7 (474)
M/T : Manual transmission, IVT : Intelligent variable transmission
AIR CONDITIONING SYSTEM
Item Weight of Volume Classification
Refrigerant
oz. (g)17.6±0.88 (500±25) R-1234yf
Compressor lubricant
oz. (g)3.4 ± 0.3 (100 ± 10g) PAG (FD46XG)
Contact an authorized HYUNDAI dealer for more details.

02
2-13
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1
(drain and refill)Smartstream
G 2.0 Atkinson4.54 US qt.

bSAE OW-20, API SN PLUS/SP or
ILSAC GF-6 *
1
Smartstream
G1.6 T-GDi5.07 US qt.

bSAE 0W-20, API SN PLUS/SP or
ILSAC GF-6
Manual transmission fluid1.6~1.7 US qt.
a
bHK SYN MTF 70W, SPIRAX S6
GHME 70W MTF, GS MTF HD 70W
(API GL-4, SAE 70W, TGO-9)
Intelligent variable transmission
fluid6.87 US qt.

bHyundai genuine SP-CVT1
Dual clutch transmission fluid1.7~1.8 US qt.
a
bAPI GL-4, SAE 70W,
HK D DCTF TGO-10 (SK),
SPIRAX S6 GHDE 70W DCTF
(H.K.SHELL), 7 DCTF HKM (S-OIL)
CoolantSmartstream
G 2.0 Atkinson7.82 US qt.

bMixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator) Smartstream
G 1.6 T-GDi 7.19 US qt.

b
Brake/clutch fluid 0.74~0.85 US qt.
a
bDOT-4 *
2
Fuel49.66 US qt.

bRefer to “Fuel requirements” in
the Foreword chapter.
*1 : Refer to the recommended SAE viscosity numbers on page 12.
*2 : To maintain the best braking performance and ABS/ESC performance, we recommend
that you use genuine brake fluid that conform to specifications. (Standard : SAE J1704
DOT-4 LV, ISO4925 CLASS-6 and FMVSS 116 DOT-4)

Vehicle Information
2-14
Recommended SAE Viscosity
Number
CAUTION
Always be sure to clean the area around
any filler plug, drain plug, or dipstick
before checking or draining any
lubricant. This is especially important
in dusty or sandy areas and when the
vehicle is used on unpaved roads.
Cleaning the plug and dipstick areas
will prevent dirt and grit from entering
the engine and other mechanisms that
could be damaged.Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and
cold weather performance, however,
higher viscosity engine oils are required
for satisfactory lubrication in hot
weather.
Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle will be
operated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Engine Oil *
1
Smartstream
G2.0 Atkinson/
Smartstream
G1.6 T-GDi
0W-20
*1 : Requires grade engine oil. If a lower grade engine oil (mineral
oil) is used, then the engine oil and engine oil filter must be replaced as indicated for
severe maintenance condition.
An engine oil displaying this American Petroleum Institute(API)
Certification Mark conforms to the International Lubricant Specification
Advisory Committee (ILSAC). It is recommended to only use engine oils
that uphold this API Certification Mark.

02
2-15
VEHICLE IDENTIFICATION
NUMBER
ãVIN
ä
„VIN label
OCN7010010L
The VIN is also on a plate attached to the
top of the dashboard. The number on
the plate can easily be seen through the
windshield from outside.
VEHICLE CERTIFICATION
LABEL
OCN7010006
The vehicle certification label attached
on the driver’s side center pillar gives the
Vehicle Identification Number (VIN).

Vehicle Information
2-16
TIRE SPECIFICATION AND
PRESSURE LABEL
OCN7010009L
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your car.
ENGINE NUMBER
OCN7010007L
„Smartstream G1.6 T-GDi
OCN7N010020
The engine number is stamped on the
engine block as shown in the drawing.

02
2-17

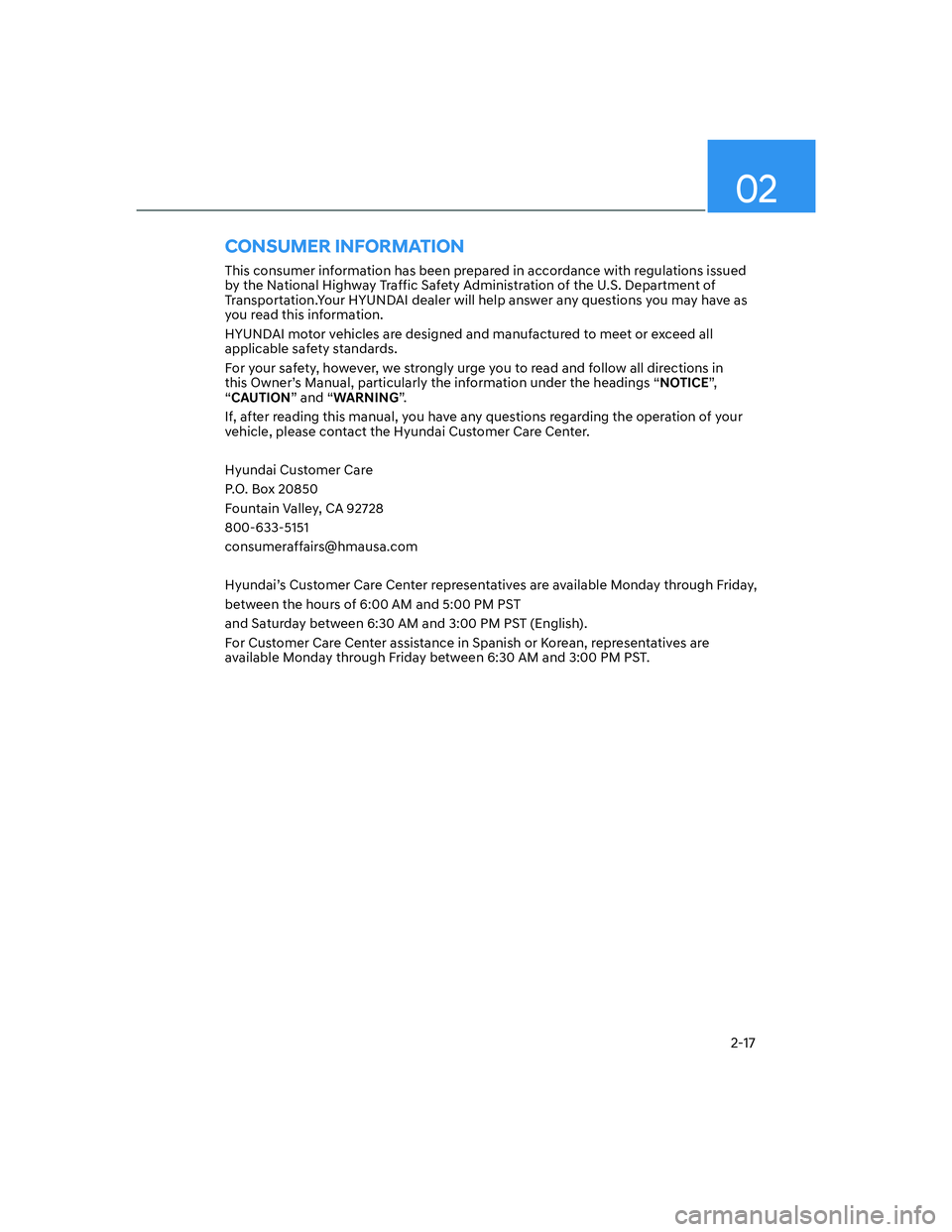

CONSUMER INFORMATION
This consumer information has been prepared in accordance with regulations issued
by the National Highway Traffic Safety Administration of the U.S. Department of
Transportation.Your HYUNDAI dealer will help answer any questions you may have as
you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in
this Owner’s Manual, particularly the information under the headings “NOTICE”,
“CAUTION” and “WARNING”.
If, after reading this manual, you have any questions regarding the operation of your
vehicle, please contact the Hyundai Customer Care Center.
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
[email protected]
Hyundai’s Customer Care Center representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care Center assistance in Spanish or Korean, representatives are
available Monday through Friday between 6:30 AM and 3:00 PM PST.

Vehicle Information
2-18

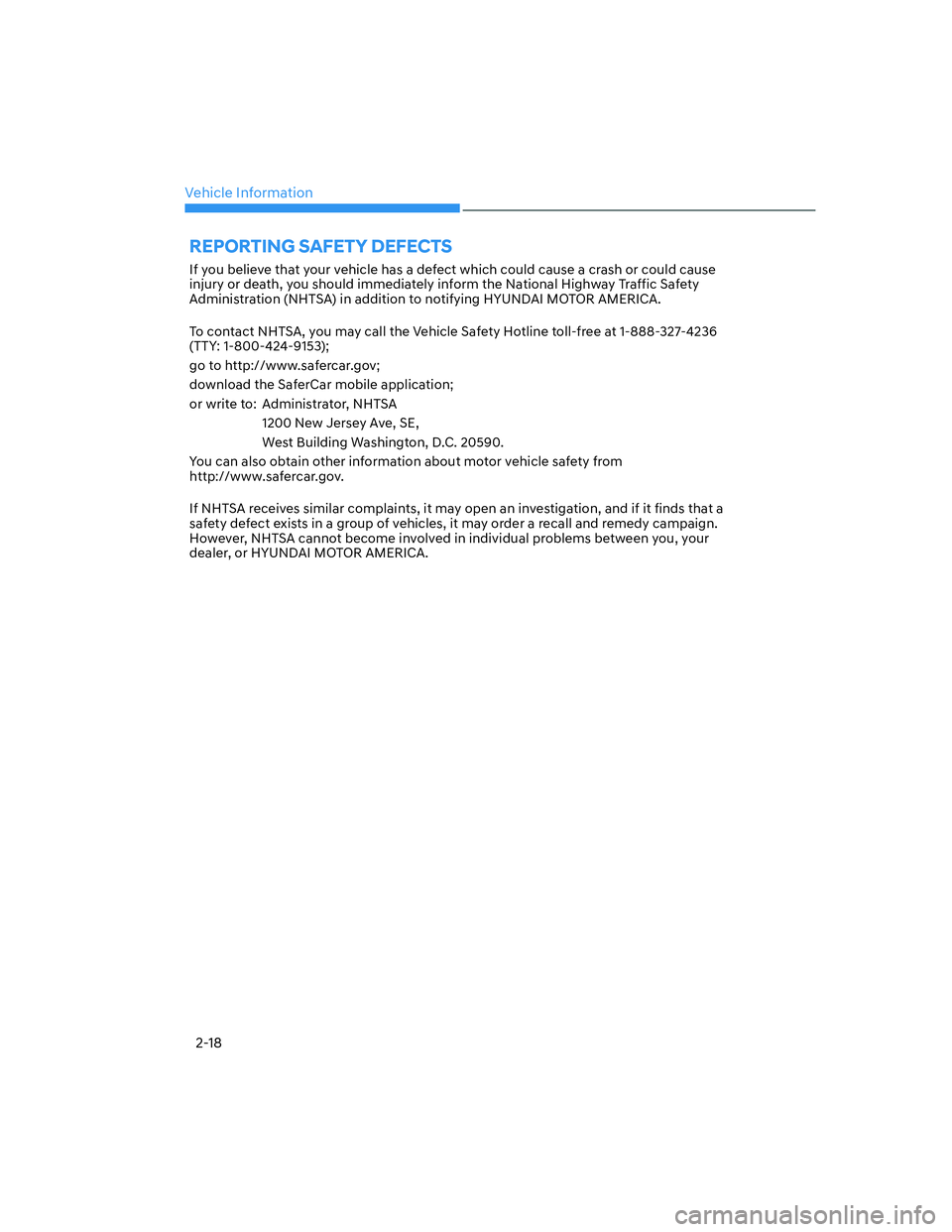

REPORTING SAFETY DEFECTS
If you believe that your vehicle has a defect which could cause a crash or could cause
injury or death, you should immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to: Administrator, NHTSA
1200 New Jersey Ave, SE,
West Building Washington, D.C. 20590.
You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
However, NHTSA cannot become involved in individual problems between you, your
dealer, or HYUNDAI MOTOR AMERICA.

3. Seats & Safety System
3
Important Safety Precautions ....................................................................... 3-2Always Wear Your Seat Belt ..................................................................................... 3-2
Restrain All Children ................................................................................................. 3-2
Air Bag Hazards ........................................................................................................ 3-2
Driver Distraction ..................................................................................................... 3-2
Control Your Speed .................................................................................................. 3-2
Keep Your Vehicle in Safe Condition ....................................................................... 3-2
Seats ............................................................................................................... 3-3Safety Precautions ................................................................................................... 3-4
Front Seats ................................................................................................................ 3-5
Rear Seats ................................................................................................................3-10
Head Restraints ........................................................................................................3-11
Seat Warmers .......................................................................................................... 3-15
Seat Belts ....................................................................................................... 3-17Seat Belt Safety Precautions .................................................................................. 3-17
Seat Belt Warning Light ..........................................................................................3-18
Seat Belt Restraint System .....................................................................................3-18
Additional Seat Belt Safety Precautions ............................................................... 3-23
Care of Seat Belts ................................................................................................... 3-25
Child Restraint System (CRS) ...................................................................... 3-26Children Always in the Rear ................................................................................... 3-26
Selecting a Child Restraint System (CRS) ..............................................................3-27
Installing a Child Restraint System (CRS) ............................................................. 3-28
Air Bag - Advanced Supplemental Restraint System ................................ 3-35Where Are the Air Bags? ........................................................................................ 3-37
How Does the Air Bag System Operate? ...............................................................3-40
What to Expect After an Air Bag Inflates .............................................................. 3-43
Occupant Classification System (OCS) ................................................................. 3-44
Why Didn’t My Air Bag Go Off in a Collision? ....................................................... 3-50
SRS Care ................................................................................................................. 3-54
Additional Safety Precautions ............................................................................... 3-55
Air Bag Warning Labels .......................................................................................... 3-55
This chapter provides you with important information about how to protect yourself and your
passengers. It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.
