2022 HYUNDAI ELANTRA Owners Manual

04
4-43
Driving Assist group
OCN7040082N
SCC/LFA/HDA
This group displays the state of Smart
Cruise Control, Lane Following Assist and
Highway Driving Assist.
For more details, refer to each function
information in chapter 7.
Navigation group
OCN7040023L
It shows the information by interworking
with the navigation.
Driving info. group
OCN7040083N
Driving information summary (1)
The current operation conditions of the
Cruise Control mode, Smart
Cruise Control and Highway Driving
Assist modes.
OCN7040042N
Driving information summary (2)
The current operation conditions of
the Cruise Control mode, Smart Cruise
Control and Highway Driving Assist
modes.

Instrument Cluster
4-44
Warning message group
When the warning message light
appears, check the detailed information
in warning message group.
User settings mode
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Driver Assistance
2. Door
3. Lights
4. Sound
5. Convenience
6. Service interval
7. Theme selection
8. Other
9. Language
10. Reset
The information provided may differ
depending on which functions are
applicable to your vehicle.
Shift to P to edit settings / Engage parking
brake to edit settings
This warning message illuminates if
you try to select an item from the User
Settings mode while driving.

[Intelligent variable transmission
For your safety, change the User
Settings after parking the vehicle,
applying the parking brake and
moving the shift level to P(Park).

[Manual transmission
For your safety, change the User
Settings after engaging the parking
brake.
Quick guide (Help)
This mode provides quick guides for the
systems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details about each system,
refer to this Owner’s Manual.

04
4-45
1. Driver Assistance
Items Explanation
Driving
Assist
[Highway Driving Assist: The function assists the driver to maintain
the set speed, keep a safe distance with a vehicle ahead and help
keep the vehicle inside of the lane while driving on the highway.
For more details, refer to the "Highway Driving Assist (HDA)" in chapter 7.
Speed limit
(if equipped)To adjust the Speed Limit function.

[Speed Limit Offset

[Auto Speed Change

[Speed Limit Assist/Speed Limit Warning/Off
For more details, refer to the “Intelligent Speed Limit Assist (ISLA)” in
chapter 7.
Warning
TimingTo adjust the warning timing of the driver assistance system.
[Normal / Late
Warning
VolumeTo adjust the warning volume of the driver assistance system.
[High / Medium / Low / Off
Driver
Attention
Warning

[Leading Vehicle Departure Alert
To activate or deactivate the Leading vehicle departure alert.

[Inattentive Driving Warning
To activate or deactivate the Driver Attention Warning.
For more details, refer to the “Driver Attention Warning (DAW)” in
chapter 7.
Forward
Safety
To adjust Forward Collision-Avoidance Assist function.

[Active Assist/Warning only/Off
For more details, refer to the "Forward Collision-Avoidance Assist
(FCA)" in chapter 7.
Lane Safety
To adjust the Lane Keeping Assist function.

[Lane Keeping Assist/Lane Departure Warning/Off
For more details, refer to "Lane Keeping Assist (LKA)" in chapter 7.
Blind-Spot
Safety

[Safe Exit Warning (SEW)
To activate or deactivate the Safe Exit Warning.
For more details, refer to the “Safe Exit Warning (SEW)” in chapter 7.

[Active Assist/Warning only/Off
For more details, refer to “Blind-Spot Collision Warning (BCW)” or
“Blind-Spot Collision-Avoidance Assist (BCA)” in chapter 7.

Instrument Cluster

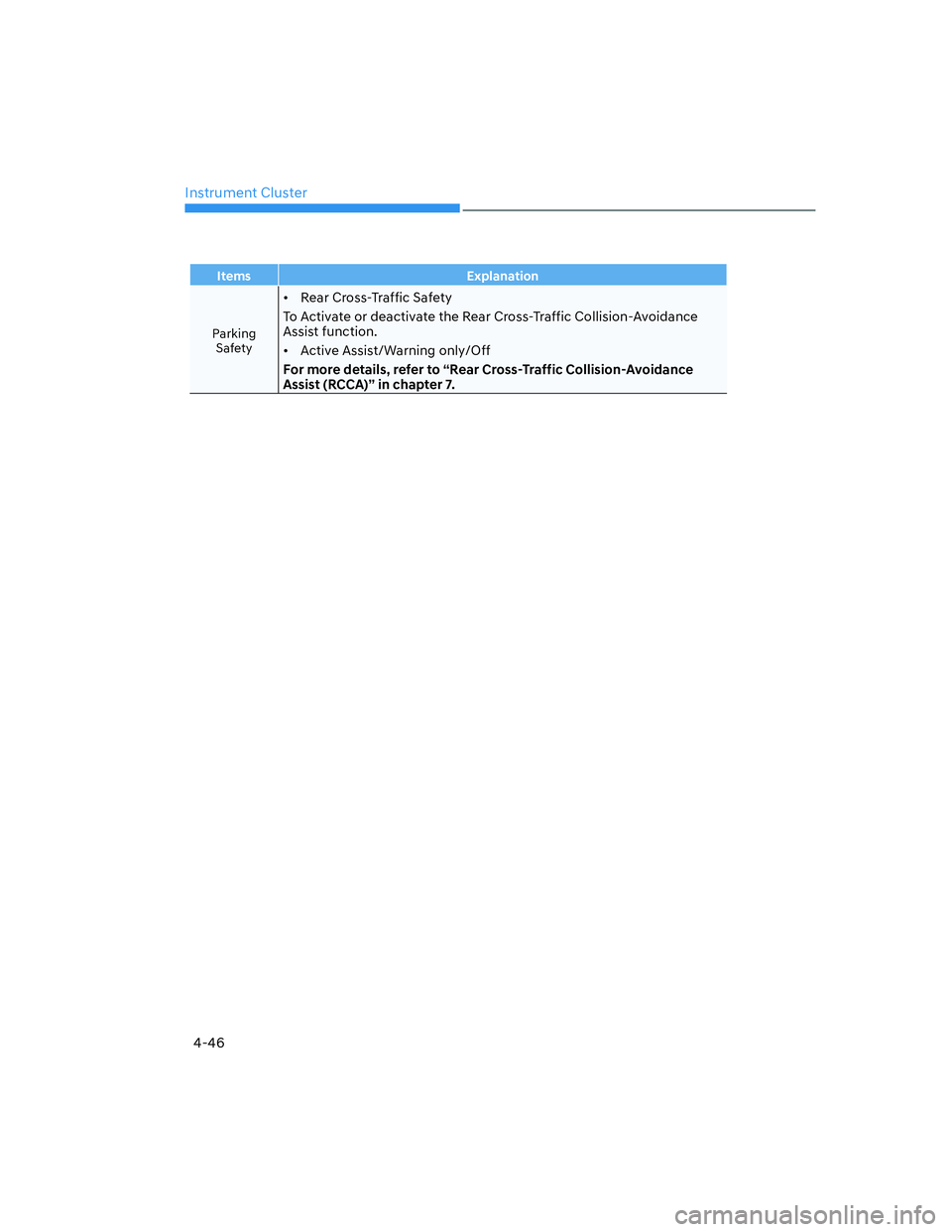

4-46
Items Explanation
Parking
Safety

[Rear Cross-Traffic Safety
To Activate or deactivate the Rear Cross-Traffic Collision-Avoidance
Assist function.

[Active Assist/Warning only/Off
For more details, refer to “Rear Cross-Traffic Collision-Avoidance
Assist (RCCA)” in chapter 7.

04
4-47
2. Door
Items Explanation
Auto Lock
[Enable on Shift: All doors will be automatically locked if the shift
lever is moved from the P (Park) position to the R (Reverse), N
(Neutral), or D (Drive) position. (Only when the engine is running)

[Enable on Speed: All doors will be automatically locked when the
vehicle speed exceeds 15km/h (9.3mph).

[Disable : The auto door lock operation will be deactivated.
Auto Unlock
[On Shift to P: All doors will be automatically unlocked if the shift
lever is moved to P (Park) position. (Only when the engine is
running)

[On key out/Vehicle Off : All doors will be automatically
unlockedwhen the ignition key is removed from the ignition switch
or the Engine Start/Stop button is set to the OFF position.

[Disable : The auto door unlock operation will be canceled.
Two Press
Unlock

[Off: The two press unlock function will be deactivated. Therefore, all
doors will unlock if the door unlock button is pressed.

[On: Only the driver’s door will unlock if the door unlock button is
pressed. When the door unlock button is pressed again within 4
seconds, the remaining doors will unlock.
Horn
Feedback
To activate or deactivate the horn feedback.
If the horn feedback is activated, after locking the door by pressing the
lock button on the remote key, and pressing it again within 4 seconds,
the horn feedback sound will operate once to indicate that all doors
are locked (if equipped with remote key).
Smart TrunkTo activate or deactivate the smart trunk.
For more details, refer to “Smart trunk” in chapter 5.
3. Lights
Items Explanation
IlluminationTo adjust the illumination level.
- Level 1~20
One Touch
Turn Signal
[Off: The one touch turn signal function will be deactivated.

[3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times
when the turn signal lever is moved slightly.
For more details, refer to “Lighting” in chapter 5.
Headlight
Delay
[To activate or deactivate the headlamp delay function.
For more details, refer to “Lighting” in chapter 5.
High Beam
Assist
[To activate or deactivate the High Beam Assist function.
For more details, refer to “High Beam Assist (HBA)” in chapter 5.

Instrument Cluster
4-48
4. sound
Items Explanation
Cluster
Voice
Guidance
VolumeTo adjust the cluster voice guidance volume.
Welcome
soundTo activate or deactivate the welcome sound.
5. Convenience
Items Explanation
Seat Easy
Access
[Off: The seat easy access function is deactivated.

[Normal/Extended: When you turn off the engine, the driver’s seat
will automatically move rearward short (Normal) or long (Extended)
for you to enter or exit the vehicle more comfortably.
For more details, refer to “Driver Position Memory System” in
chapter 5.
Rear
Occupant
Alert
[To activate or deactivate the rear occupant alert system.
For more details, refer to the “Rear Occupant Alert (ROA)" in chapter
5.
Welcome
Light
[On door unlock: The welcome light turns on automatically when the
doors are unlocked.

[On driver approach: The welcome light turns on automatically when
the vehicle is approached with the smart key.
For more details, refer to ‘’Welcome System’’ in chapter 5.
Wireless
Charging
SystemTo activate or deactivate the wireless charging system in the front seat.
For more details, refer to “Wireless cellular phone charging system”
in chapter 5.
Traffic
InformationTo activate or deactivate the traffic information.
When activated, the traffic information will be displayed on the LCD
display. (for cluster type B)
Tunnel Entry
AssistAutomatically adjusts climate controls upon entering a tunnel.
Icy Road
WarningTo activate or deactivate the icy road warning function.

04
4-49
6. Service interval
Items Explanation
Enable
Service
IntervalTo activate or deactivate the service interval function.
To use the service interval menu, consult an authorized HYUNDAI dealer.
If the service interval is activated and the time and distance is adjusted, messages are
displayed in the following situations each time the vehicle is turned on.
- Service in
: Displayed to inform the driver the remaining mileage and days to service.
- Service required
: Displayed when the mileage and days to service has been reached or passed.
Information
If any of the following conditions occur, the mileage and number of days to service may be
incorrect.
-The battery cable is disconnected.
-The fuse switch is turned off.
-The battery is discharged.
7. Theme selection
To select the style of instrument cluster graphic style and setting.

[Theme A / Theme B / Theme C

[Link to Drive Mode

Instrument Cluster
4-50
8. Other
Items Explanation
Reset fuel
economy
[At vehicle start : This displays the average fuel economy after
restarting.

[After refueling : This displays the average fuel economy after
refueling.

[Manually : You can calculate the accumulated average fuel
economy manually.
Fuel Econ.
Reset
[Off: The average fuel economy will not reset automatically
whenever refueling.

[After ignition: When the engine has been OFF for 4 hours or longer
the average fuel economy will reset automatically.

[After refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of fuel or more and after driving
speed exceeds 1 km/h (1 mph).
For more details, refer to “Trip Computer” in this chapter.
Speed Unit
(if equipped)To select the speed unit. (km/h, MPH)
Fuel Econ.
UnitTo select the fuel economy unit. (km/L, L/100km, MPG)
Temperature
UnitTo select the temperature unit. (°C,°F)
Tire Pressure
UnitTo select the tire pressure unit. (psi, kPa, bar)
9.
Language (if equipped)
Items Explanation
LanguageChoose the language. You can choose the language in infotainment
system. (if equipped)
10. Reset
Items Explanation
ResetYou can reset the menus in the User Settings Mode. All menus in the
User Settings Mode are reset to factory settings, except language and
service interval.
