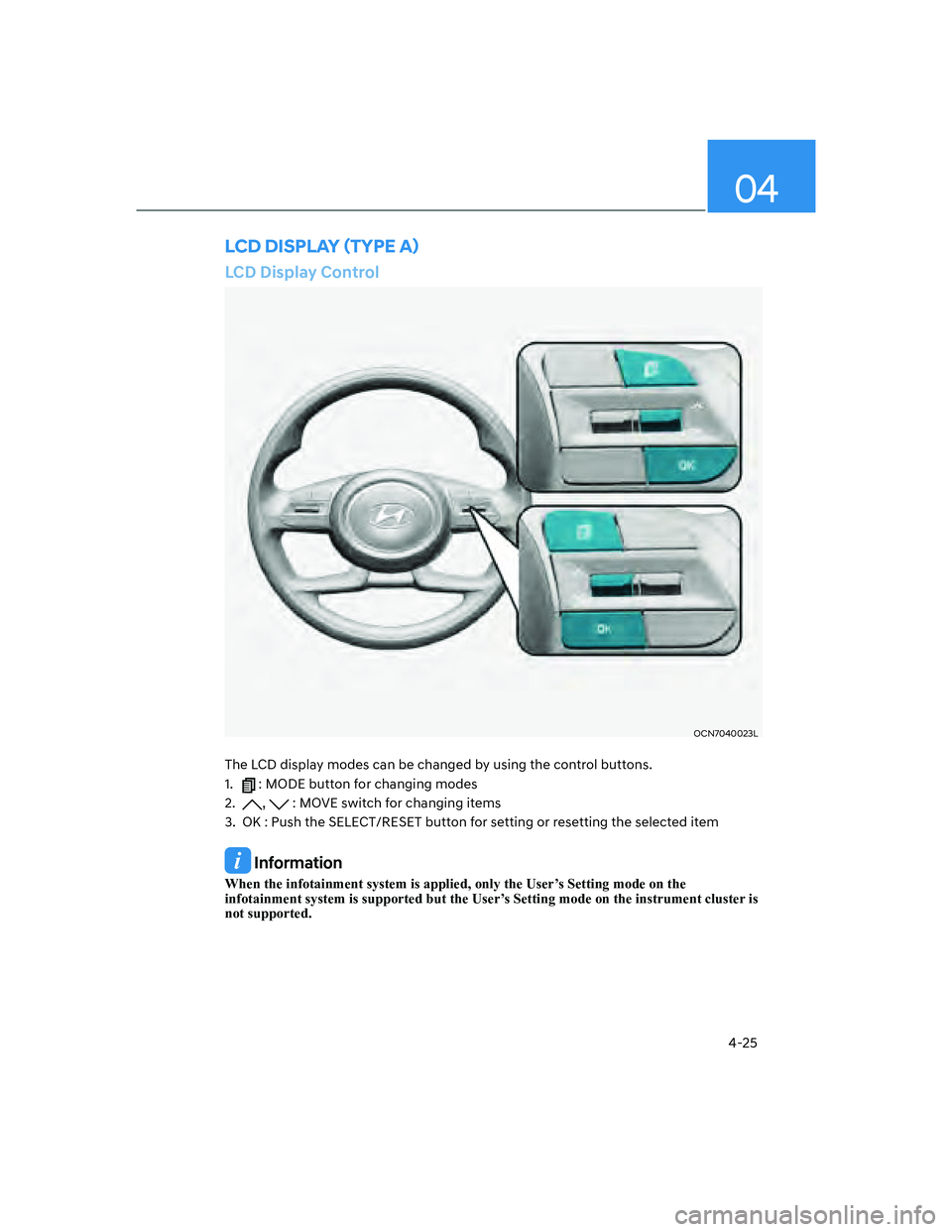

Page 111 of 584
4-25
04
LCD Display Control
OCN7040023L
The LCD display modes can be changed by using the control buttons.
1.
: MODE button for changing modes
2.
, : MOVE switch for changing items
3. OK : Push the SELECT/RESET button for setting or resetting the selected item
Information
When the infotainment system is applied, only the User’s Setting mode on the
infotainment system is supported but the User’s Setting mode on the instrument cluster is
not supported.
LCD DISPLAY ãTYPE Aä
Page 126 of 584
4-40
Instrument Cluster
LCD Display Control
OCN7040023L
The LCD display modes can be changed by using the control buttons.
Switch OperationFunction
Ta pMODE button for changing view modes
, Ta pMOVE switch for changing items
OKTa pSELECT/RESET button for setting the selected item
Tap and holdSELECT/RESET button for retrieving assist information or
resetting the selected item
Information
When the infotainment system is applied, only the User’s Setting mode on the
infotainment system is supported but the User’s Setting mode on the instrument cluster is
not supported.
LCD DISPLAY ãTYPE Bä
Page 181 of 584
05
5-45
Gate operator & Canadian programing
During programing, your handheld
transmitter may automatically stop
transmitting. Continue to press the
Integrated HomeLink® Wireless Control
System button while you press and re-
press (“cycle”) your handheld transmitter
every two seconds until the frequency
signal has been learned. The indicator
light will flash slowly and then rapidly
after several seconds upon successful
training.
OCN7050085NOCN7050085N
Operating HomeLink®
1. Press and release one of the
HomeLink buttons (1, 2 or 3) that
programed.
2. The HomeLink indicator (4) will
operate as below:
- Indicates Green and is continuously
ON (Fixed Code Garage Door
Opener)
- Flashes in Green rapidly (Rolling
Code Garage Door Opener)
OCN7050087NOCN7050087N
Erasing HomeLink® buttons
1. Press and hold the button (1) and (3)
simultaneously.
2. The indicator (4) is turned
continuously ON in orange for about
10 seconds.
3. Then the indicator (4) color changes
to Green and flashes rapidly.
Release the buttons once the green
indicator flashes.
4. Now HomeLink button (1), (2) and (4)
memories are all cleared.
NVS® is a registered trademark and
Z-Nav™ is a trademark of the Gentex
Corporation, Zeeland, Michigan.
HomeLink® is a registered trademark
owned by Johnson Controls,
Incorporated, Milwaukee, Wisconsin.
FCC ID: NZLUAHL5A
IC: 4112A-UAHL5A
CN7 HMA 5.indd 5-452020-12-03 9:20:49
Page 184 of 584
Convenient Features
5-48
OCN7050089NOCN7050089N
2. The indicator (4) and (5) operates as
below:
- If the indicator (4) flashes in Orange,
it indicates that the garage door is
“closing”.
- If the indicator (4) is ON continuously
in Green, it indicates that the garage
door is “closed”.
- If the indicator (5) flashes in Orange,
it indicates that the garage door is
“Opening”.
- If the indicator (5) is ON
continuously in Green, it indicates
that the garage door is “Opened”.
- If the indicator (4) or (5) does not
turn to Green, it indicates that the
last status of garage door was not
received properly. The HomeLink
mirror tries to receive the last
known status of the garage door for
a few seconds.Recalling Garage Door Status
Homelink mirror with two way
communication provides a way to view
the last stored message from the garage
door opener. In order to recall the last
known status of the last activated device,
press the buttons “1 and 2” OR “2 and 3”
simultaneously.
• If the indicator (4) is ON continuously
in Green, it indicates that the last
activated device was “closed” properly.
• If the indicator (5) is ON continuously
in Green, it indicates that the last
activated device was “open” properly.
Information
7 Z R Z D \ F R P P X Q L F D W L R Q U D Q J H G L V W D Q F H
E H W Z H H Q
Page 230 of 584
Convenient Features
5-94
OCN7050133OCN7050133
Information
1 H Y H U S O D F H D Q \ W K L Q J Q H D U W K H V H Q V R U W R
H Q V X U H E H W W H U F R Q W U R O R I W K H K H D W L Q J D Q G
F R R O L Q J V \ V W H P
Manual heating and air
conditioning
The heating and cooling system can be
controlled manually by pushing buttons
other than the AUTO button. In this case,
the system works sequentially according
to the order of buttons selected. When
pressing any button except the AUTO
button while using automatic operation,
the functions not selected will be
controlled automatically.
1. Start the engine.
2. Set the mode to the desired position.
To improve the effectiveness of
heating and cooling, select the mode
according to the following:
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to fresh
mode.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn the
air conditioning system on.
7. Press the AUTO button in order to
convert to full automatic control of
the system.
CN7 HMA 5.indd 5-942020-12-03 9:21:06
Page 236 of 584
Convenient Features
5-100
Air conditioning
OCN7050119OCN7050119
Push the A/C button to manually turn
the air conditioning system on (indicator
light will illuminate).
Push the button again to turn the air
conditioning system off.
OFF mode
OCN7050121OCN7050121
Push the OFF button of the front to
turn off the air climate control system.
However, you can still operate the mode
and air intake buttons as long as the
ignition switch is in the ON position.
System operation
Ventilation
1. Select the Face Level mode.
2. Set the air intake control to fresh
mode.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
Heating
1. Select the Floor Level mode.
2. Set the air intake control to fresh
mode.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
5. If desired, turn the air conditioning ON
with the temperature control knob set
to heat in order to dehumidify the air
before it enters into the cabin.
If the windshield fogs up, select the Front
& Deforst
mode or press the Front
Defrost mode.
2 S H U D W L R Q 7 L S V
• To help keep dust or unpleasant fumes
fr
om entering the vehicle through the
ventilation system, temporarily set the
air intake control to the recirculation
mode. Be sure to return the control
to fresh mode position when the
irritation has passed to keep fresh air
in the vehicle. This will help keep the
driver alert and comfortable.
• To help prevent interior fog on the
windshield, set the air intake control
to fresh mode and fan speed to
the desired position, turn on the
air conditioning system, and adjust
the temperature control to desired
temperature.
CN7 HMA 5.indd 5-1002020-12-03 9:21:08
Page 255 of 584
05
5-119
Steering wheel audio control
OCN7050073LOCN7050073L
The steering wheel audio control
switches are installed for your
convenience.
NOTICE
Do not operate audio remote control
buttons simultaneously.
VOLUME (VOL + / VOL -) (1)
• Move the VOLUME toggle switch up
to increase volume.
• Move the VOLUME toggle switch
down to decrease volume.
SEEK/PRESET ( / ) (2)
If the SEEK/PRESET toggle switch is
moved up or down and held for 0.8
second or more, it will function in the
following modes.•
5 $ ' , 2 P R G H
It will function as the AUTO SEEK
select switch. It will SEEK until you
release the switch.
•
0 ( ' , $ P R G H
It will function as the FF/REW switch.
If the SEEK/PRESET toggle s
witch is
moved up or down, it will function in
the following modes.
•
5 $ ' , 2 P R G H
It will function as the PRESET STATION
UP/DOWN switch.
•
0 ( ' , $ P R G H
It will function as the TRACK UP/
DOWN switch.
MODE ()(3)
Press the MODE button to select Radio.
Voice recognition button ( ) (4)• Start or end voice recognition of a
connected smartphone via phone
projection. (The button’s operation
may vary depending on smartphone
specifications.)
Information
' H W D L O H G L Q I R U P D W L R Q I R U D X G L R F R Q W U R O
E X W W R Q V D U H G H V F U L E H G L Q W K H I R O O R Z L Q J
S D J H V L Q W K L V F K D S W H U
