Instrument Cluster
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to the "Gauges and Meters" in this chapter.
OCN7040001N/OCN7040080N
INSTRUMENT CLUSTER
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge4. Fuel gauge
5. Warning and indicator lights
6. LCD display (including trip computer)
„Conventional cluster (Type A)

„Full LCD cluster (Type B)

Instrument Cluster
4-8
Odometer
OTMA048183OCN7040015N
„Type A„Type B
The odometer indicates the total
distance that the vehicle has been
driven and should be used to determine
when periodic maintenance should be
performed.
Range
OCN7040084NOCN7040016N
„Type A„Type B

[The range is the estimated distance
the vehicle can be driven with the
remaining fuel.

[If the estimated distance is below
1 mi. (1 km), the trip computer will
display "----" as range.
Information

[If the vehicle is not on level ground or
the battery power has been interrupted,
the range function may not operate
correctly.

[The range may differ from the actual
driving distance as it is only an estimate
of the available driving range for the
vehicle and driving conditions.

[The trip computer may not register
additional fuel if less than 1.6 gallon (6
liters) of fuel are added to the vehicle.

[The range may vary significantly based
on driving conditions, driving habits,
and condition of the vehicle.

Instrument Cluster
4-26
LCD display modes
Modes Symbol Explanation
Trip
ComputerThis mode displays driving information such as the tripmeter,
fuel economy, etc.
For more details, refer to "Trip Computer" in this chapter.
Turn By
Turn (TBT)This mode displays the state of the navigation.
Driving
Assist
- Smart Cruise Control (SCC)
- Lane Keeping Assist (LKA)
- Lane Following Assist (LFA)
- Driver Attention Warning (DAW)
User
SettingsIn this mode, you can change settings of the doors, lamps,
etc.
Warning
- This mode displays warning messages related to the
lamp malfunction, etc.
- Tire pressure information
The information provided may differ depending on which functions are applicable
to your vehicle.

04
4-27
Trip computer mode
OCN7040040N
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy, trip
meter information and vehicle speed.
For more information, refer to "Trip
Computer" in this chapter.
Turn By Turn (TBT) mode
OIK047147N
This mode displays the state of the
navigation.
Driving Assist mode
OCN7060074N
SCC/LKA
This group displays the state of the Smart
Cruise Control, Lane Keeping Assist.
For more details, refer to each function
information in chapter 7.
OIG059288L
Driver Attention Warning
This group displays information related
to Driver Attention Warning.
For more details, refer to "Driver
Attention Warning (DAW)" in chapter 7.

04
4-35
8. Other
Items Explanation
Fuel Econ.
Reset
[Off: The average fuel economy will not reset automatically
whenever refueling.

[After ignition: When the engine has been OFF for 4 hours or longer
the average fuel economy will reset automatically.

[After refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of fuel or more and after driving
speed exceeds 1 km/h (1 mph).
For more details, refer to “Trip Computer” in this chapter.
Speed Unit
(if equipped)To select the speed unit. (km/h, MPH)
Fuel Econ.
UnitTo select the fuel economy unit. (km/L, L/100km, MPG)
Temperature
UnitTo select the temperature unit. (°C,°F)
Tire Pressure
UnitTo select the tire pressure unit. (psi, kPa, bar)
9. Language (if equipped)
Items Explanation
LanguageChoose the language. You can choose the language in infotain-
ment system. (if equipped)
10. Reset
Items Explanation
ResetYou can reset the menus in the User Settings Mode. All menus in
the User Settings Mode are reset to factory settings, except language
and service interval.

Instrument Cluster
4-36

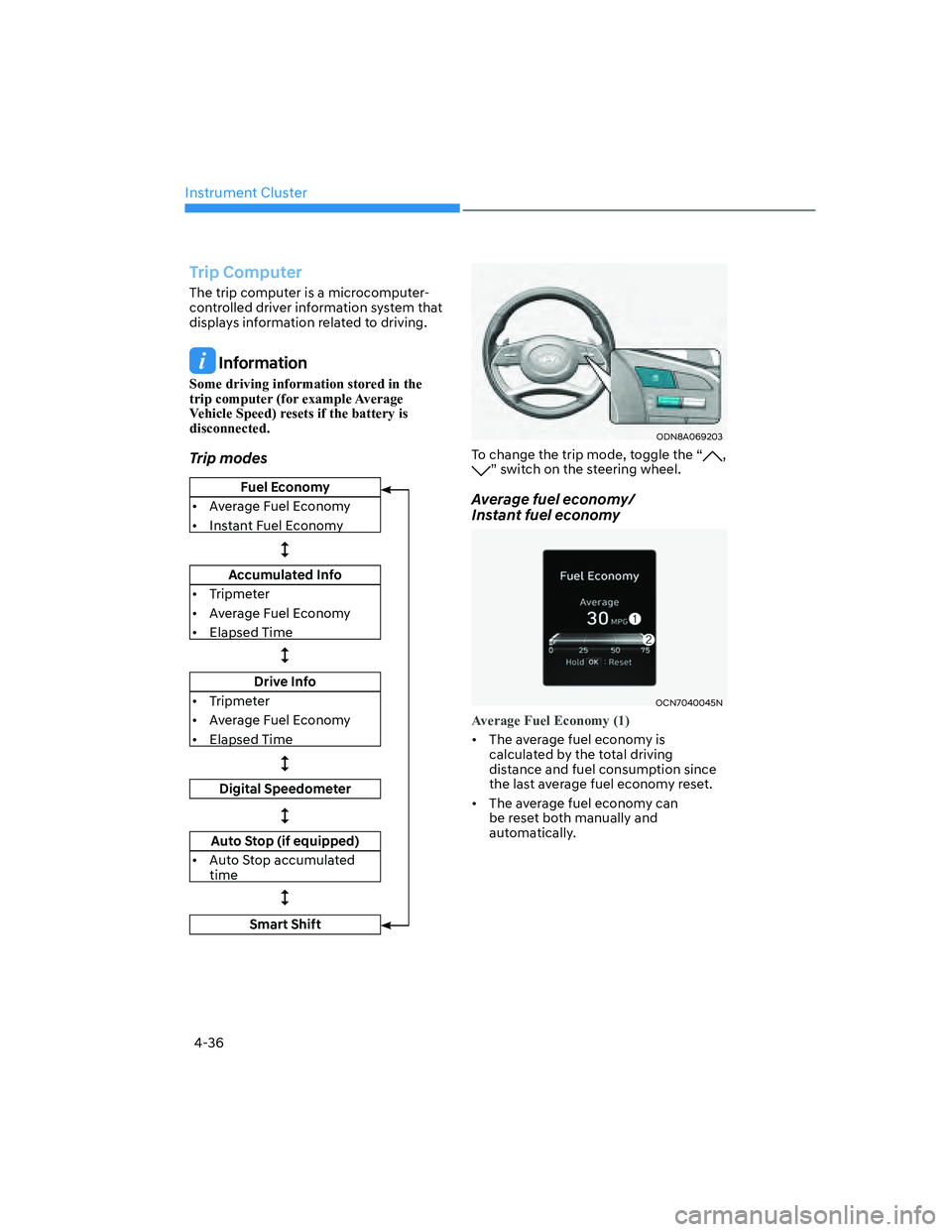

Trip Computer
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
Fuel Economy

[Average Fuel Economy

[Instant Fuel Economy

Accumulated Info

[Tripmeter

[Average Fuel Economy

[Elapsed Time

Drive Info

[Tripmeter

[Average Fuel Economy

[Elapsed Time

Digital Speedometer

Auto Stop (if equipped)

[Auto Stop accumulated
time

Smart Shift
ODN8A069203
To change the trip mode, toggle the “, ” switch on the steering wheel.
Average fuel economy/
Instant fuel economy
OCN7040045N
Average Fuel Economy (1)

[The average fuel economy is
calculated by the total driving
distance and fuel consumption since
the last average fuel econ omy reset.

[The average fuel economy can
be reset both manually and
automatically.

Instrument Cluster
4-50
8. Other
Items Explanation
Reset fuel
economy
[At vehicle start : This displays the average fuel economy after
restarting.

[After refueling : This displays the average fuel economy after
refueling.

[Manually : You can calculate the accumulated average fuel
economy manually.
Fuel Econ.
Reset
[Off: The average fuel economy will not reset automatically
whenever refueling.

[After ignition: When the engine has been OFF for 4 hours or longer
the average fuel economy will reset automatically.

[After refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of fuel or more and after driving
speed exceeds 1 km/h (1 mph).
For more details, refer to “Trip Computer” in this chapter.
Speed Unit
(if equipped)To select the speed unit. (km/h, MPH)
Fuel Econ.
UnitTo select the fuel economy unit. (km/L, L/100km, MPG)
Temperature
UnitTo select the temperature unit. (°C,°F)
Tire Pressure
UnitTo select the tire pressure unit. (psi, kPa, bar)
9.
Language (if equipped)
Items Explanation
LanguageChoose the language. You can choose the language in infotainment
system. (if equipped)
10. Reset
Items Explanation
ResetYou can reset the menus in the User Settings Mode. All menus in the
User Settings Mode are reset to factory settings, except language and
service interval.
