2022 HYUNDAI ELANTRA Owners Manual

07
7-121
Function malfunction and
limitations
Function malfunction
OCN7070064L
When Rear Cross-Traffic Safety system
is not working properly, the ‘Check
5HDU&URVV7UDIILF6DIHW\V\VWHPV
T
warning message will appear on the
cluster, and the system will turn off
automatically, or the system will be
limited. We recommend that the system
be inspected by an authorized HYUNDAI
dealer.
OCN7070040L
When the outside rearview mirror
warning light is not working properly, the

S&KHFNVLGHYLHZPLUURUZDUQLQJOLJKW
T
warning message will appear on the
cluster. We recommend that the system
be inspected by an authorized HYUNDAI
dealer.
Function disabled
OCN7070065L
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Rear Cross-
Traffic Safety system.
If this occurs, the ‘Rear Cross-Traffic
6DIHW\V\VWHPGLVDEOHG5DGDUEORFNHG
T
warning message will appear on the
cluster.
The system will operate normally when
such foreign material or trailer, etc. is
removed.
If the system does not operate normally
after it is removed, we recommend
that the system be inspected by an
authorized HYUNDAI dealer.

Driver assistance system
7-122
WARNING

[Even though the warning message
does not appear on the cluster, Rear
Cross-Traffic Safety system may not
operate properly.

[Rear Cross-Traffic Safety system may
not operate properly in an area (for
example: open terrain), where any
substance are not detected after
turning ON the engine.
CAUTION
Turn off Rear Cross-Traffic Safety
system to install a trailer, carrier, etc.,
or remove the trailer, carrier, etc. to use
Rear Cross-Traffic Safety system.
Limitations of the function
Rear Cross-Traffic Safety system may
not operate normally, or the system
may operate unexpectedly under the
following circumstances:

[Departing from where trees or grass
are overgrown

[Departing from where roads are wet

[Speed of the approaching vehicle is
fast or slow
For more details on the limitations of
the rear corner radar, refer to “Blind-
Spot Collision-Avoidance Warning
(BCW)” section in chapter 7.
WARNING

[Driving near a vehicle or structure
OHY059017[A] : Structure
Rear Cross-Traffic Safety system
may be limited when driving near
a vehicle or structure, and may not
detect the vehicle approaching
from the left or right. If this occurs,
the system may not warn the driver
when necessary.
Always check your surroundings
while backing up.

07
7-123

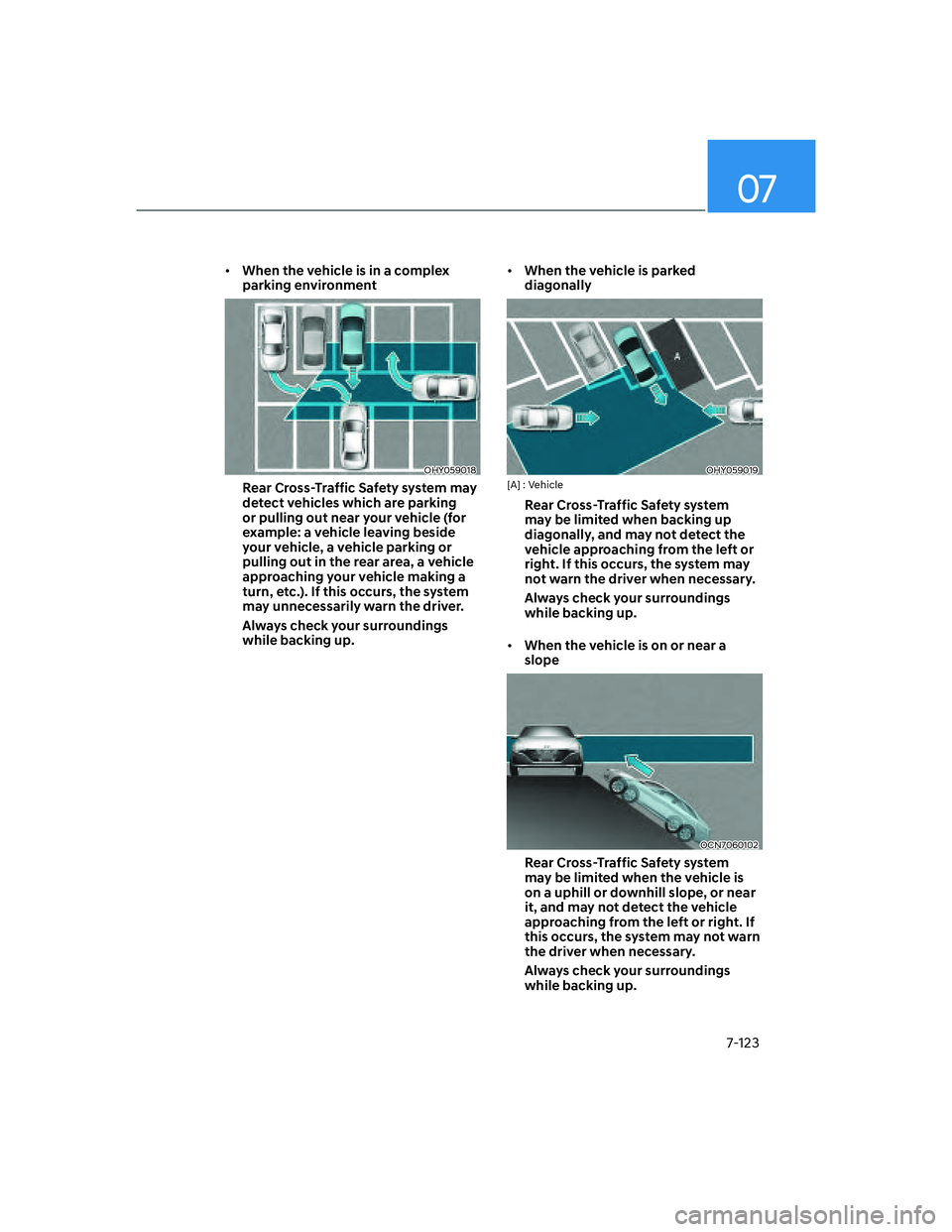

[When the vehicle is in a complex
parking environment
OHY059018
Rear Cross-Traffic Safety system may
detect vehicles which are parking
or pulling out near your vehicle (for
example: a vehicle leaving beside
your vehicle, a vehicle parking or
pulling out in the rear area, a vehicle
approaching your vehicle making a
turn, etc.). If this occurs, the system
may unnecessarily warn the driver.
Always check your surroundings
while backing up.
[When the vehicle is parked
diagonally
OHY059019[A] : Vehicle
Rear Cross-Traffic Safety system
may be limited when backing up
diagonally, and may not detect the
vehicle approaching from the left or
right. If this occurs, the system may
not warn the driver when necessary.
Always check your surroundings
while backing up.

[When the vehicle is on or near a
slope
OCN7060102
Rear Cross-Traffic Safety system
may be limited when the vehicle is
on a uphill or downhill slope, or near
it, and may not detect the vehicle
approaching from the left or right. If
this occurs, the system may not warn
the driver when necessary.
Always check your surroundings
while backing up.

Driver assistance system
7-124

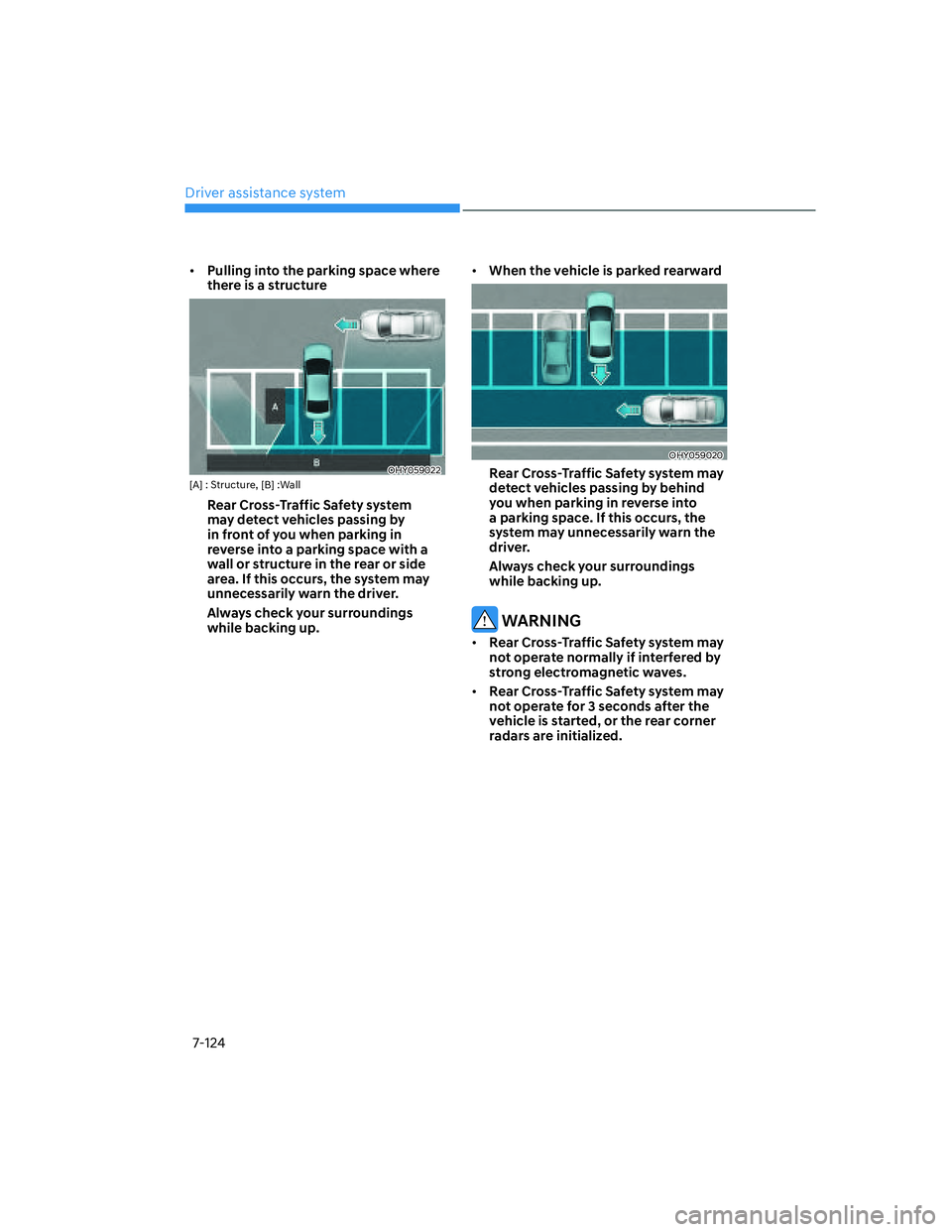

[Pulling into the parking space where
there is a structure
OHY059022[A] : Structure, [B] :Wall
Rear Cross-Traffic Safety system
may detect vehicles passing by
in front of you when parking in
reverse into a parking space with a
wall or structure in the rear or side
area. If this occurs, the system may
unnecessarily warn the driver.
Always check your surroundings
while backing up.
[When the vehicle is parked rearward
OHY059020
Rear Cross-Traffic Safety system may
detect vehicles passing by behind
you when parking in reverse into
a parking space. If this occurs, the
system may unnecessarily warn the
driver.
Always check your surroundings
while backing up.
WARNING

[Rear Cross-Traffic Safety system may
not operate normally if interfered by
strong electromagnetic waves.

[Rear Cross-Traffic Safety system may
not operate for 3 seconds after the
vehicle is started, or the rear corner
radars are initialized.

07
7-125
REAR CROSS
ØTRAFFIC COLLISION
ØAVOIDANCE ASSIST

ãRCCA
ä
ãIF EQUIPPED
ä
Rear Cross-Traffic Collision-Avoidance
Assist is designed to help detect vehicles
approaching from the left and right side
while your vehicle is reversing, and warn
the driver that a collision is imminent
with a warning message and an audible
warning. Also, braking is assisted to help
prevent a collision.
OHY059014[A] : Rear Cross-Traffic Collision Warning operating
range,
[B] : Rear Cross-Traffic Collision-Avoidance Assist
operating range
CAUTION
The time of warning may vary
depending on vehicle speed of the
approaching vehicle.
Information
In the following text, Rear Cross-Traffic
Collision Warning and Rear Cross-Traffic
Collision-Avoidance Assist will be referred
as Rear Cross-Traffic Safety system.
Detecting sensor
OCN7060046[1] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
CAUTION
For more details on the precautions of
the rear corner radar, refer to “Blind-
Spot Collision-Avoidance Assist (BCA)”
section in chapter 7.

Driver assistance system
7-126
Function settings
Setting
OTM070194N
Rear Cross-Traffic Safety
With the engine on, select ‘Driver
$VVLVWDQFH

07
7-127
OTM070141N
Warning Volume
With the engine on, select ‘Driver
$VVLVWDQFH

Driver assistance system
7-128

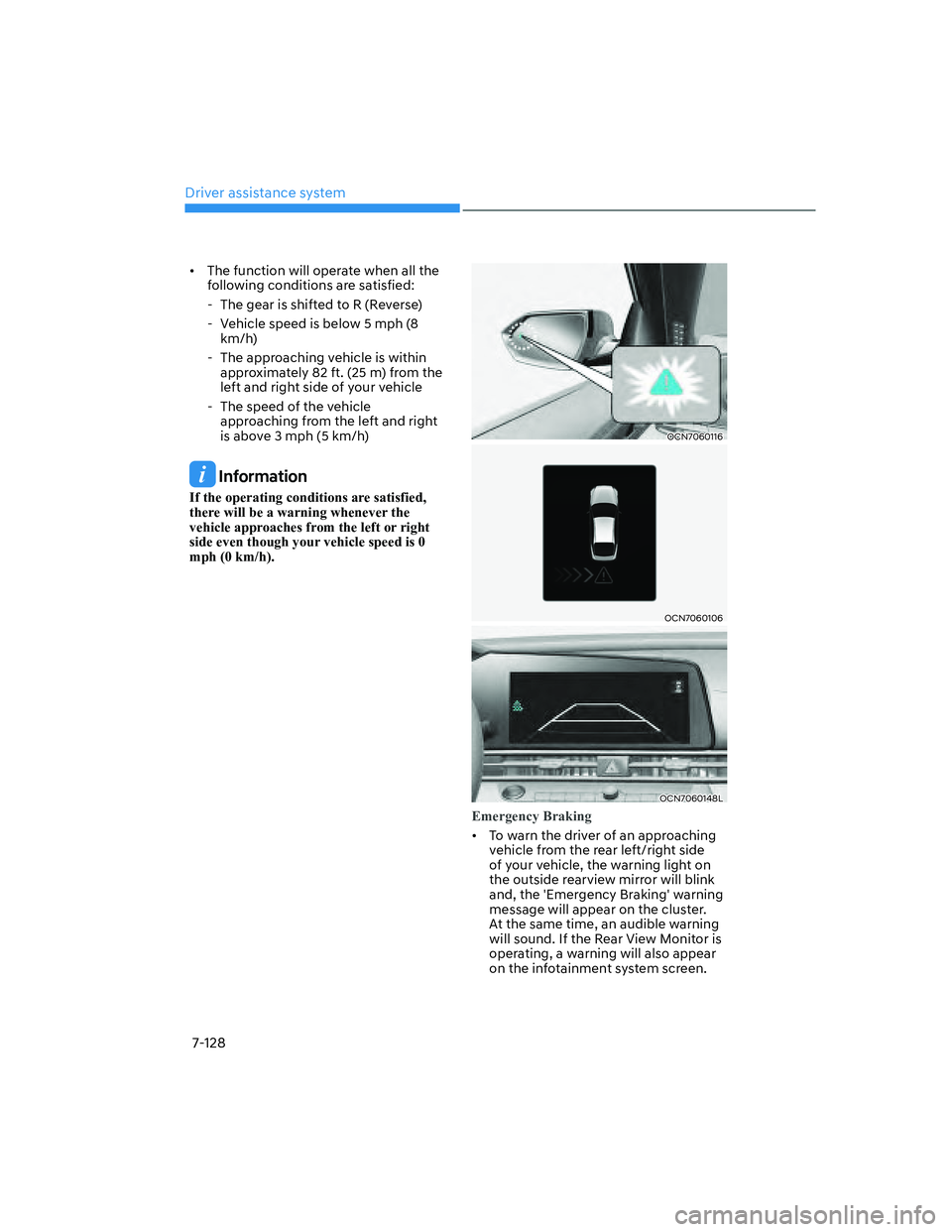

[The function will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- Vehicle speed is below 5 mph (8
km/h)
- The approaching vehicle is within
approximately 82 ft. (25 m) from the
left and right side of your vehicle
- The speed of the vehicle
approaching from the left and right
is above 3 mph (5 km/h)
Information
If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or right
side even though your vehicle speed is 0
mph (0 km/h).
OCN7060116
OCN7060106
OCN7060148L
Emergency Braking

[To warn the driver of an approaching
vehicle from the rear left/right side
of your vehicle, the warning light on
the outside rearview mirror will blink
and, the 'Emergency Braking' warning
message will appear on the cluster.
At the same time, an audible warning
will sound. If the Rear View Monitor is
operating, a warning will also appear
on the infotainment system screen.
