EXTERIOR LIGHTS
Lighting control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
ODN8A059200ODN8A059200
1. OFF position
2. AUTO headlamp position
3. Parking lamp position
4. Headlamp position
Daytime running light (DRL)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
lamp OFF when:
• The headlamps are ON.
• The parking lamps are ON.
• The vehicle is turned off.
• The parking brake is engaged.
OCN7050055OCN7050055
AUTO headlamp position
The parking lamp and headlamp will
be turned ON or OFF automatically
depending on the amount of daylight as
measured by the ambient light sensor on
the center dash (1).
Even with the AUTO headlamp feature
in operation, it is recommended to
manually turn ON the headlamps when
driving at night or in a fog, driving in the
rain, or when you enter dark areas, such
as tunnels and parking facilities.
NOTICE
• Do not cover or spill anything on
the sensor (1) located in front of the
instrument panel.
• Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.
• If your vehicle has window tint or
other types of metallic coating on
the front windshield, the AUTO
headlamp system may not work
properly.
CN7 HMA 5.indd 5-682020-12-03 9:20:59
Page 210 of 584
Convenient Features
5-74

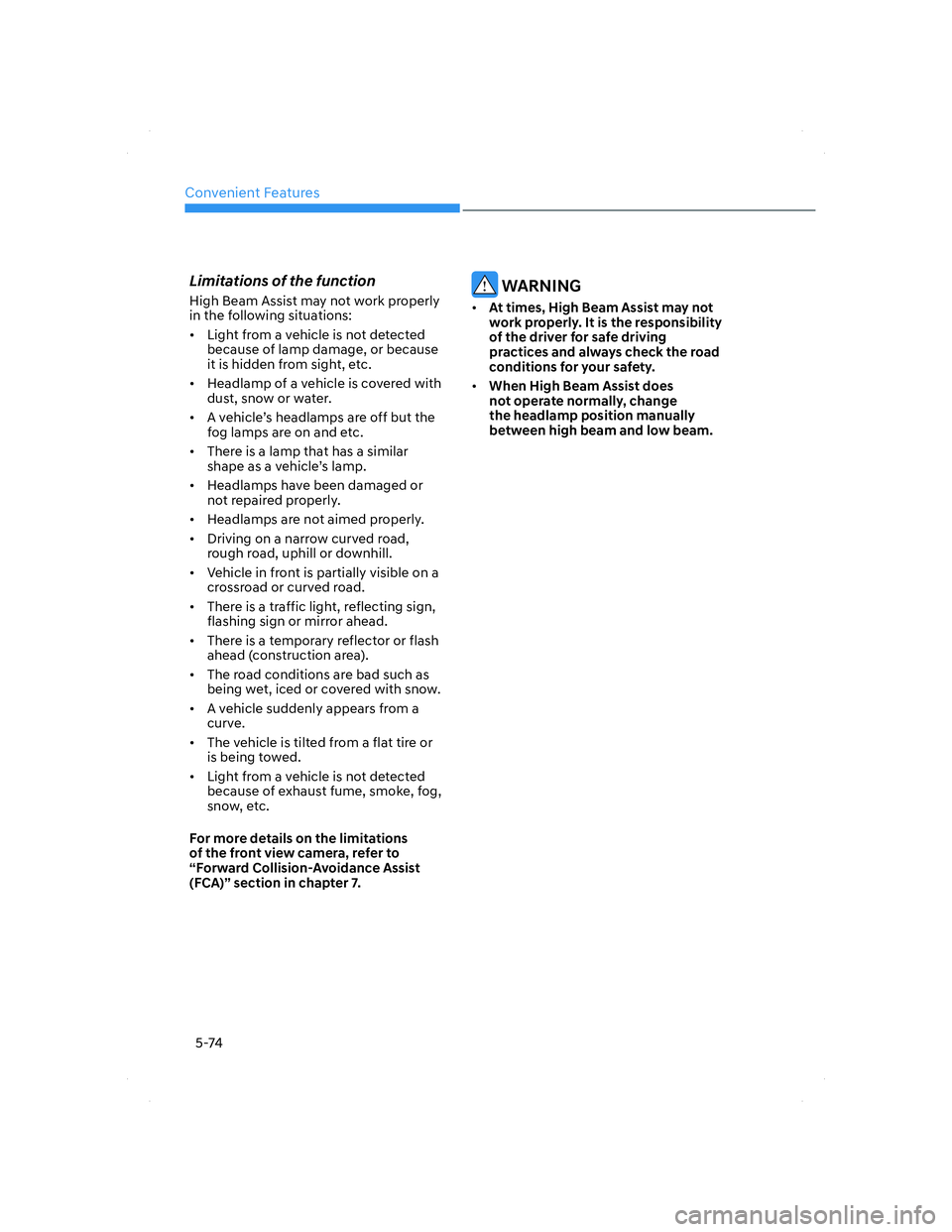

Limitations of the function
High Beam Assist may not work properly
in the following situations:
• Light from a vehicle is not detected
because of lamp damage, or because
it is hidden from sight, etc.
• Headlamp of a vehicle is covered with
dust, snow or water.
• A vehicle’s headlamps are off but the
fog lamps are on and etc.
• There is a lamp that has a similar
shape as a vehicle’s lamp.
• Headlamps have been damaged or
not repaired properly.
• Headlamps are not aimed properly.
• Driving on a narrow curved road,
rough road, uphill or downhill.
• Vehicle in front is partially visible on a
crossroad or curved road.
• There is a traffic light, reflecting sign,
flashing sign or mirror ahead.
• There is a temporary reflector or flash
ahead (construction area).
• The road conditions are bad such as
being wet, iced or covered with snow.
• A vehicle suddenly appears from a
curve.
• The vehicle is tilted from a flat tire or
is being towed.
• Light from a vehicle is not detected
because of exhaust fume, smoke, fog,
snow, etc.
For more details on the limitations
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7. WARNING
• At times, High Beam Assist may not
work properly. It is the responsibility
of the driver for safe driving
practices and always check the road
conditions for your safety.
• When High Beam Assist does
not operate normally, change
the headlamp position manually
between high beam and low beam.
CN7 HMA 5.indd 5-742020-12-03 9:21:00
Page 226 of 584
Convenient Features
5-90
$ L U F R Q G L W L R Q L Q J V \ V W H P R S H U D W L R Q W L S V
• If the vehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
• After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.
• To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.
• During air conditioning system
operation, you may occasionally
notice a slight change in engine speed
as the air conditioning compressor
cycles. This is a normal system
operation characteristic.
• Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.
• When using the air conditioning
system, you may notice clear water
dripping (or even puddling) on the
ground under the passenger side of
the vehicle. This is a normal system
operation characteristic.
• If you operate the air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield to
fog up, causing loss of visibility. In this
case, set the mode selection button to
the
position and set the fan speed
control knob to the lowest speed
setting.
System Maintenance
Cabin air filter
OIK047401LOIK047401L[A] : Outside air, [B] : Recirculated air
[C] : Cabin air filter, [D] : Blower
[E] : Evaporator core, [F] : Heater core
The cabin air filter is installed behind
the glove box. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
the maintenance schedule. If the vehicle
is being driven in severe conditions such
as dusty or rough roads, more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.
Information
• 5 H S O D F H W K H I L O W H U D F F R U G L Q J W R W K H
0 D L Q W H Q D Q F H 6 F K H G X O H
• , I W K H F D U L V E H L Q J G U L Y H Q L Q V H Y H U H
F R Q G L W L R Q V V X F K D V G X V W \ U R X J K
U R D G V P R U H I U H T X H Q W F D E L Q D L U I L O W H U
L Q V S H F W L R Q V D Q G F K D Q J H V D U H U H T X L U H G
• : K H Q W K H D L U I O R Z U D W H V X G G H Q O \
G H F U H D V H V Z H U H F R P P H Q G W K D W W K H
V \ V W H P E H F K H F N H G E \ D Q D X W K R U L ] H G
+ < 8 1 ' $ , G H D O H U
CN7 HMA 5.indd 5-902020-12-03 9:21:05
Page 236 of 584
Convenient Features
5-100
Air conditioning
OCN7050119OCN7050119
Push the A/C button to manually turn
the air conditioning system on (indicator
light will illuminate).
Push the button again to turn the air
conditioning system off.
OFF mode
OCN7050121OCN7050121
Push the OFF button of the front to
turn off the air climate control system.
However, you can still operate the mode
and air intake buttons as long as the
ignition switch is in the ON position.
System operation
Ventilation
1. Select the Face Level mode.
2. Set the air intake control to fresh
mode.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
Heating
1. Select the Floor Level mode.
2. Set the air intake control to fresh
mode.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
5. If desired, turn the air conditioning ON
with the temperature control knob set
to heat in order to dehumidify the air
before it enters into the cabin.
If the windshield fogs up, select the Front
& Deforst
mode or press the Front
Defrost mode.
2 S H U D W L R Q 7 L S V
• To help keep dust or unpleasant fumes
fr
om entering the vehicle through the
ventilation system, temporarily set the
air intake control to the recirculation
mode. Be sure to return the control
to fresh mode position when the
irritation has passed to keep fresh air
in the vehicle. This will help keep the
driver alert and comfortable.
• To help prevent interior fog on the
windshield, set the air intake control
to fresh mode and fan speed to
the desired position, turn on the
air conditioning system, and adjust
the temperature control to desired
temperature.
CN7 HMA 5.indd 5-1002020-12-03 9:21:08
Page 238 of 584
Convenient Features
5-102
$ L U F R Q G L W L R Q L Q J V \ V W H P R S H U D W L R Q W L S V
• If the vehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
• After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.
• To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.
• During air conditioning system
operation, you may occasionally
notice a slight change in engine speed
as the air conditioning compressor
cycles. This is a normal system
operation characteristic.
• Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.
• When using the air conditioning
system, you may notice clear water
dripping (or even puddling) on the
ground under the passenger side of
the vehicle. This is a normal system
operation characteristic.
• If you operate the air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield to
fog up, causing loss of visibility. In this
case, set the mode selection button to
the
position and set the fan speed
control knob to the lowest speed
setting.
System Maintenance
Cabin air filter
OIK047401LOIK047401L[A] : Outside air, [B] : Recirculated air
[C] : Cabin air filter, [D] : Blower
[E] : Evaporator core, [F] : Heater core
The cabin air filter is installed behind
the glove box. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
the maintenance schedule. If the vehicle
is being driven in severe conditions such
as dusty or rough roads, more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.
Information
• 5 H S O D F H W K H I L O W H U D F F R U G L Q J W R W K H
0 D L Q W H Q D Q F H 6 F K H G X O H
• , I W K H F D U L V E H L Q J G U L Y H Q L Q V H Y H U H
F R Q G L W L R Q V V X F K D V G X V W \ U R X J K
U R D G V P R U H I U H T X H Q W F D E L Q D L U I L O W H U
L Q V S H F W L R Q V D Q G F K D Q J H V D U H U H T X L U H G
• : K H Q W K H D L U I O R Z U D W H V X G G H Q O \
G H F U H D V H V Z H U H F R P P H Q G W K D W W K H
V \ V W H P E H F K H F N H G E \ D Q D X W K R U L ] H G
+ < 8 1 ' $ , G H D O H U
CN7 HMA 5.indd 5-1022020-12-03 9:21:09
Page 336 of 584
Driver assistance system
7-8
Function disabled
OCN7070032L
When the front windshield where the
front view camera is located or the
sensor is covered with foreign material,
such as snow or rain, it can reduce the
detecting performance and temporarily
limit or disable Forward Collision-
Avoidance Assist.
If this occurs the ‘Forward Safety system
G L V D E O H G & D P H U D R E V F X U H GT Z D U Q L Q J
message, and the
and warning
lights will illuminate on the cluster.
The system will operate normally when
such snow, rain or foreign material is
removed.
If the system does not operate normally
after obstruction (snow, rain, or foreign
material) is removed, we recommend
that the system be inspected by an
authorized HYUNDAI dealer.
WARNING
[ Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.
[ Forward Collision-Avoidance Assist
may not properly operate in an area
(e.g. open terrain), where any objects
are not detected after turning ON the
engine.
Limitations of the function
Forward Collision-Avoidance Assist may
not operate normally, OR the function
may operate unexpectedly under the
following circumstances:
[ The detecting sensor or the
surroundings are contaminated or
damaged
[ The temperature around the front
view camera is high or low
[ The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or foreign material
(sticker, bug, etc.) on the glass
[ Moisture is not removed or frozen on
the windshield
[ Washer fluid is continuously sprayed,
or the wiper is on
[ Driving in heavy rain or snow, or thick
fog
[ The field of view of the front view
camera is obstructed by sun glare
[ Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road
[ An object is placed on the dashboard
[ Your vehicle is being towed
[ The surrounding is very bright
[ The surrounding is very dark, such as
in a tunnel, etc.
[ The brightness changes suddenly, for
example when entering or exiting a
tunnel
[ The brightness outside is low, and the
headlamps are not on or are not bright
Page 351 of 584
07
7-23
System disabled
OCN7070032LOCN7070033L
When the front windshield where the
front view camera is located, front radar
cover, bumper or sensor is covered with
foreign material, such as snow or rain, it
can reduce the detecting performance
and temporarily limit or disable Forward
Collision-Avoidance Assist.
If this occurs the ‘Forward Safety
V \ V W H P V G L V D E O H G & D P H U D R E V F X U H GT R U
the ‘Forward Safety system(s) disabled.
5 D G D U E O R F N H GT Z D U Q L Q J P H V V D J H
and the
and warning lights will
illuminate on the cluster.
The function will operate normally when
when such snow, rain or foreign material
is removed.
If the function does not operate normally
after obstruction (snow, rain, or foreign
material) is removed, we recommend
that the function be inspected by an
authorized HYUNDAI dealer.
WARNING
[ Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.
[ Forward Collision-Avoidance Assist
may not properly operate in an area
(e.g. open terrain), where any objects
are not detected after turning ON the
engine.
Limitations of the function
Forward Collision-Avoidance Assist may
not operate normally, or the function
may operate unexpectedly under the
following circumstances:
[ The detecting sensor or the
surroundings are contaminated or
damaged
[ The temperature around the front
view camera is high or low
[ The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or stuck of foreign
material (sticker, bug, etc.) on the
glass
[ Moisture is not removed or frozen on
the windshield
[ Washer fluid is continuously sprayed,
or the wiper is on
[ Driving in heavy rain or snow, or thick
fog
[ The field of view of the front view
camera is obstructed by sun glare
[ Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road
[ An object is placed on the dashboard
