2022 HYUNDAI ELANTRA fuse replacement

Tires and Wheels ..........................................................................................9-30Tire Care .................................................................................................................. 9-30
Recommended Cold Tire Inflation Pressures ....................................................... 9-30
Check Tire Inflation Pressure .................................................................................. 9-31
Tire Rotation ........................................................................................................... 9-32
Wheel Alignment and Tire Balance ....................................................................... 9-33
Tire Replacement ................................................................................................... 9-33
Wheel Replacement ............................................................................................... 9-35
Tire Traction ............................................................................................................ 9-35
Tire Maintenance.................................................................................................... 9-35
Tire Sidewall Labeling ............................................................................................ 9-35
Tire Terminology and Definitions .......................................................................... 9-38
All Season Tires ........................................................................................................9-41
Summer Tires ..........................................................................................................9-41
Snow Tires................................................................................................................9-41
Radial-Ply Tires ........................................................................................................9-41
Low Aspect Ratio Tires ........................................................................................... 9-42
Fuses .............................................................................................................9-43
Instrument Panel Fuse Replacement ....................................................................9-44
Engine Compartment Panel Fuse Replacement .................................................. 9-45
Fuse/Relay Panel Description................................................................................9-46
Light Bulbs .................................................................................................... 9-53Headlamp, Parking Lamp, Daytime Running Light, Turn Signal Lamp and
Side Marker ............................................................................................................. 9-53
Side repeater lamp replacement .......................................................................... 9-56
Rear combination lamp bulb replacement .......................................................... 9-57
High mounted stop lamp replacement ............................................................... 9-60
License Plate Light Bulb Replacement ................................................................ 9-60
Interior Light Bulb Replacement ........................................................................... 9-61
Appearance Care .........................................................................................9-62
Exterior Care ........................................................................................................... 9-62
Interior Care ............................................................................................................9-68
Emission Control System .............................................................................. 9-71
California Perchlorate Notice ...................................................................... 9-74
9
CN7 HMA 9.indd 9-22020-12-03 9:42:17

09

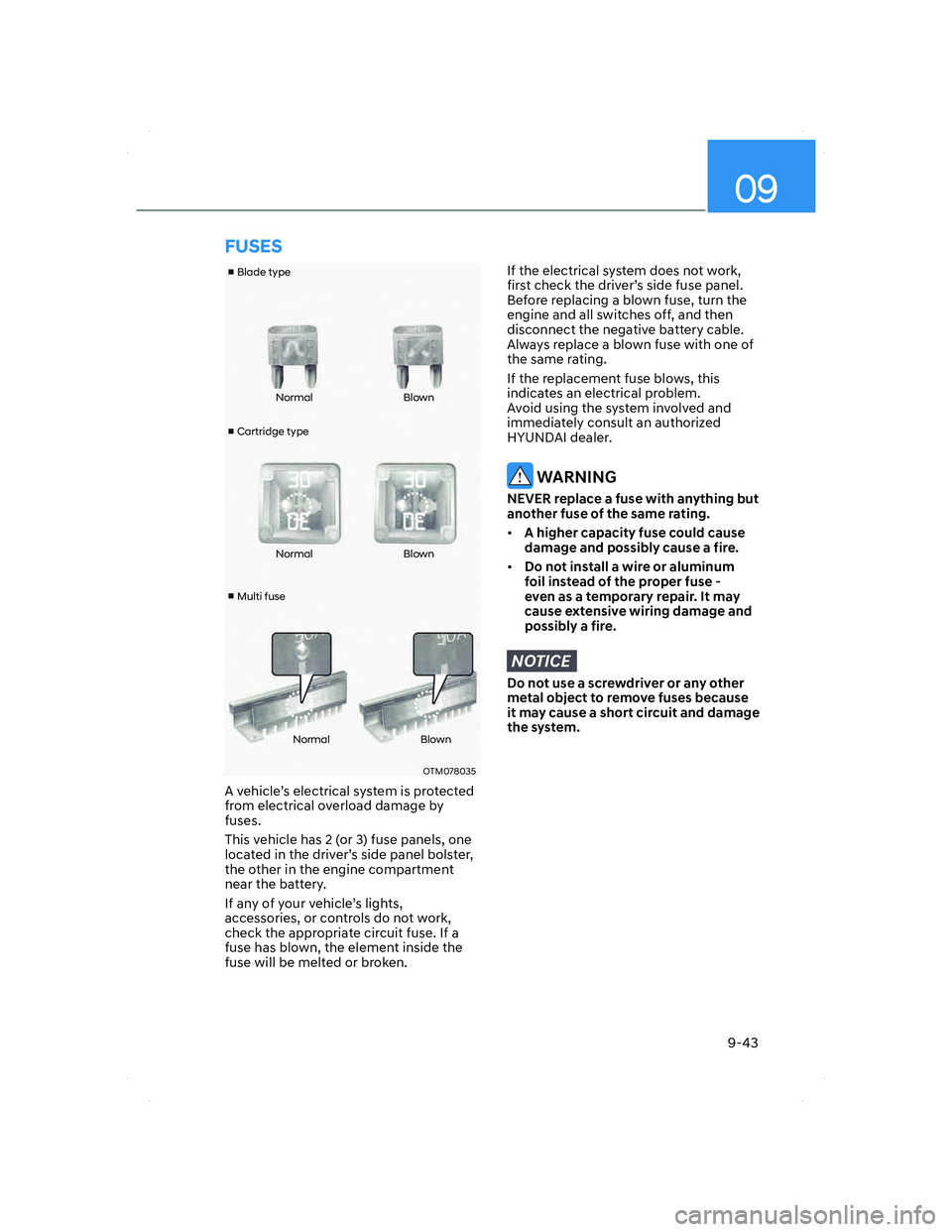

9-43

v
Cartridge type
v
Blade type

v
Multi fuseNormal Blown
Normal Blown
Normal Blown
OTM078035OTM078035
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 2 (or 3) fuse panels, one
located in the driver’s side panel bolster,
the other in the engine compartment
near the battery.
If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
engine and all switches off, and then
disconnect the negative battery cable.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
indicates an electrical problem.
Avoid using the system involved and
immediately consult an authorized
HYUNDAI dealer.
WARNING
NEVER replace a fuse with anything but
another fuse of the same rating.
• A higher capacity fuse could cause
damage and possibly cause a fire.
• Do not install a wire or aluminum
foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.
FUSES
CN7 HMA 9.indd 9-432020-12-03 9:42:26

Maintenance
9-44
Instrument Panel Fuse
Replacement
OCN7080017OCN7080017
1. Turn the vehicle off.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of
the fuse panel cover to locate the
suspected fuse location.
OCN7080018OCN7080018
5. Pull the suspected fuse straight out.
Use the removal tool provided in the
engine compartment fuse panel.
6. Check the removed fuse; replace it if
it is blown. Spare fuses are provided in
the engine compartment fuse panel.
7. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
In an emergency, if you do not have a
spare fuse, use a fuse of the same rating
from a circuit you may not need for
operating the vehicle.
If the other electrical components do
not work and the fuses are undamaged,
check the fuse panel in the engine
compartment. If a fuse is blown, it must
be replaced with the same rating.
If the headlamp, turn signal lamp, tail
lamp, interior lamp doesn’t work and
the fuses are undamaged, consult an
authorized HYUNDAI dealer.
CN7 HMA 9.indd 9-442020-12-03 9:42:27

09
9-45
Engine Compartment Panel Fuse
Replacement
„„Blade type fuseBlade type fuse
OCN7080021OCN7080021
„„Cartridge type fuseCartridge type fuse
OCN7080022OCN7080022
1. Turn the engine off.
2. Turn all other switches OFF.
3. Remove the fuse panel cover by
pressing the tap and pulling up.
4. Check the removed fuse; replace it
if it is blown. To remove or insert the
fuse, use the fuse puller in the engine
compartment fuse panel.
5. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
CAUTION
After checking the fuse box in the
engine compartment securely close
the fuse box cover inside the engine
compartment, until it clicks.
If the fuse box is not closed properly,
water may leak in side, possibly causing
a malfunction with the electrical
system.
Multi fuse (Main fuse)
OCN7080020OCN7080020
If the multi fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery
cable.
3. Remove the fuse panel cover by
pressing the tab and pulling it up.
4. Remove the nuts shown in the picture
above.
5. Replace the fuse with a new one of
the same rating.
6. Reinstall in the reverse order of
removal.
Information
,IWKHPXOWLIXVHLVEORZQFRQVXOWDQ
DXWKRUL]HG+<81'$,GHDOHU
CN7 HMA 9.indd 9-452020-12-03 9:42:28
