2022 HYUNDAI ELANTRA steering wheel adjustment

03
3-5
Front Seats
WARNING
Take the following precautions when
adjusting your seat:
• NEVER attempt to adjust the seat
while the vehicle is moving. The seat
could respond with unexpected
movement and may cause loss
of vehicle control resulting in an
accident.
• Do not place anything under the
front seats. Loose objects in the
driver’s foot area could interfere
with the operation of the foot pedals,
causing an accident.
• Do not allow anything to interfere
with the normal position and proper
locking of the seatback.
• Do not place a cigarette lighter on
the floor or seat. When you operate
the seat, gas may exit out of the
lighter causing a fire.
• Use extreme caution when picking
up small objects trapped under the
seats or between the seat and the
center console. Your hands might be
cut or injured by the sharp edges of
the seat mechanism.
• If there are occupants in the rear
seats, be careful while adjusting the
front seat position.
• Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.
CAUTION
To prevent injury:
• Do not adjust your seat while
wearing your seat belt. Moving the
seat cushion forward may cause
strong pressure on your abdomen.
• Do not allow your hands or fingers to
get caught in the seat mechanisms
while the seat is moving.
Manual adjustment (if equipped)
The front seat can be adjusted by using
the levers located on the outside of
the seat cushion. Before driving, adjust
the seat to the proper position so that
you can easily control the steering
wheel, foot pedals and controls on the
instrument panel.
OCN7030002OCN7030002
)RUZDUGDQGUHDUZDUGDGMXVWPHQW
To move the seat forward or rearward:
1. Pull up the seat slide adjustment lever
and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure the
seat is locked in place. Move forward
and rearward without using the lever.
If the seat moves, it is not locked
properly.
CN7 HMA 3.indd 3-52020-12-03 9:02:04

03
3-7
Power adjustment (if equipped)
The front seat can be adjusted by
using the control switches located on
the outside of the seat cushion.Before
driving, adjust the seat to the proper
position so that you can easily control
the steering wheel, foot pedals and
controls on the instrument panel.
WARNING
NEVER allow children in the vehicle
unattended. The power seats are
operable when the vehicle is turned off.
NOTICE
To prevent damage to the seats:
• Always stop adjusting the seats when
the seat has moved as far forward or
rearward as possible.
• Do not adjust the seats for longer
than necessary when the vehicle
is turned off. This may result in
unnecessary battery drain.
• Do not operate two or more seats at
the same time. This may result in an
electrical malfunction.
OCN7030005OCN7030005
)RUZDUGDQGUHDUZDUGDGMXVWPHQW
To move the seat forward or rearward:
1. Push the control switch forward or
rearward.
2. Release the switch once the seat
reaches the desired position.
OCN7030006OCN7030006
6HDWEDFNDQJOH
To adjust the seatback:
1. R
otate the top of control switch
forward or rearward.
2. Release the switch once the seatback
reaches the desired position.
CN7 HMA 3.indd 3-72020-12-03 9:02:05

07
7-33

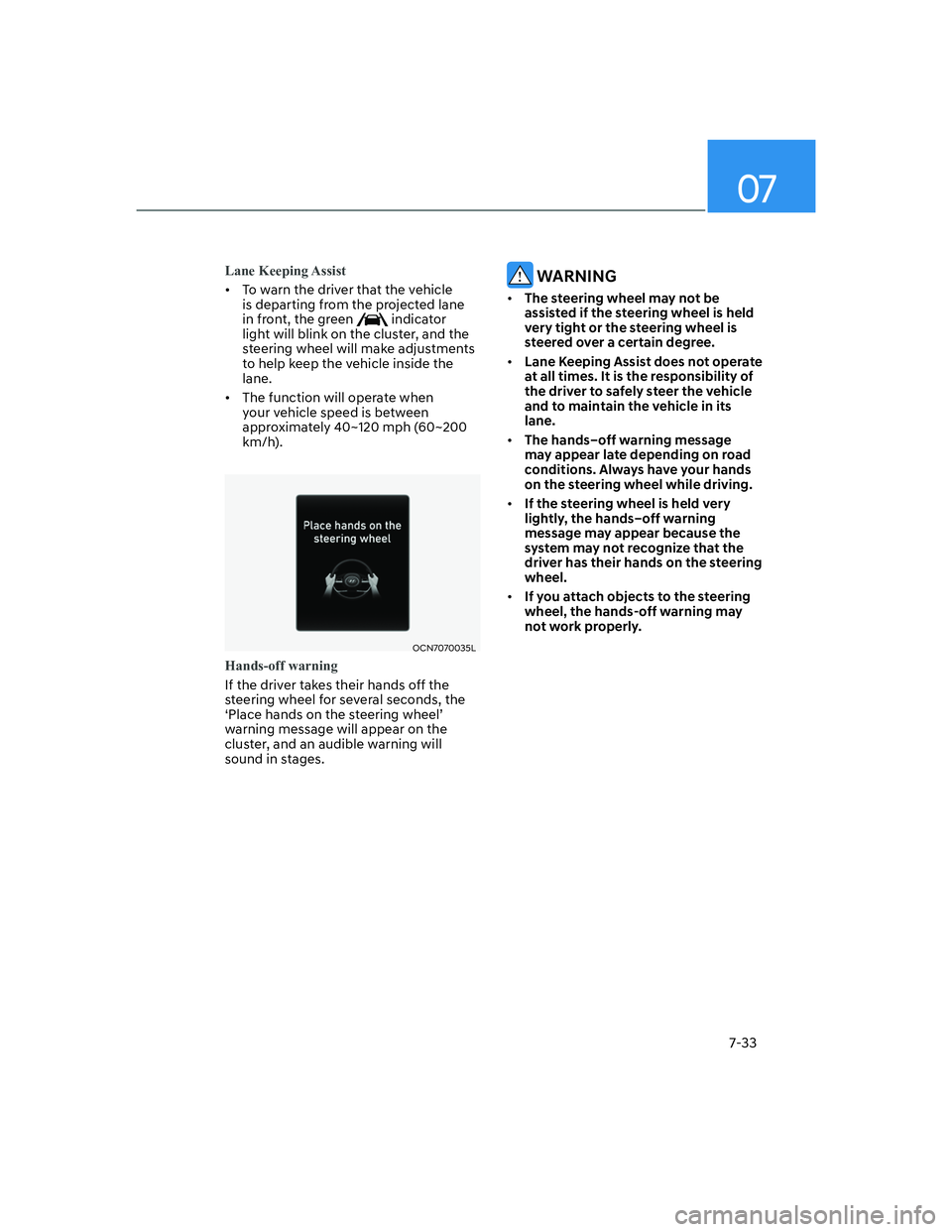

Lane Keeping Assist

[To warn the driver that the vehicle
is departing from the projected lane
in front, the green
indicator
light will blink on the cluster, and the
steering wheel will make adjustments
to help keep the vehicle inside the
lane.

[The function will operate when
your vehicle speed is between
approximately 40~120 mph (60~200
km/h).
OCN7070035L
Hands-off warning
If the driver takes their hands off the
steering wheel for several seconds, the

S3ODFHKDQGVRQWKHVWHHULQJZKHHO
T
warning message will appear on the
cluster, and an audible warning will
sound in stages.
WARNING

[The steering wheel may not be
assisted if the steering wheel is held
very tight or the steering wheel is
steered over a certain degree.

[Lane Keeping Assist does not operate
at all times. It is the responsibility of
the driver to safely steer the vehicle
and to maintain the vehicle in its
lane.

[The hands–off warning message
may appear late depending on road
conditions. Always have your hands
on the steering wheel while driving.

[If the steering wheel is held very
lightly, the hands–off warning
message may appear because the
system may not recognize that the
driver has their hands on the steering
wheel.

[If you attach objects to the steering
wheel, the hands-off warning may
not work properly.
