5. Convenient Features
Accessing Your Vehicle .................................................................................. 5-4Remote Key ............................................................................................................... 5-4
Smart Key ...................................................................................................................5-7
Immobilizer System ................................................................................................ 5-14
Hyundai Digital Key ................................................................................................. 5-15
Operating Door Locks from Outside the Vehicle .................................................. 5-31
Operating Door Locks from Inside the Vehicle .................................................... 5-33
Automatic Door Lock and Unlock Features .......................................................... 5-35
Child-Protector Rear Door Locks .......................................................................... 5-35
Rear Occupant Alert (ROA) System ....................................................................... 5-36
Steering Wheel ............................................................................................. 5-38Electric Power Steering (EPS) ................................................................................ 5-38
Tilt Steering / Telescope Steering ......................................................................... 5-39
Horn.........................................................................................................................5-40
Mirrors ...........................................................................................................5-41Inside Rearview Mirror ............................................................................................5-41
Side View Mirrors ................................................................................................... 5-49
Windows ........................................................................................................5-51
Power Windows ...................................................................................................... 5-52
Sunroof ......................................................................................................... 5-55Sunroof opening and closing ................................................................................ 5-56
Tilting the sunroof .................................................................................................. 5-57
Sunshade ................................................................................................................ 5-57
Resetting the sunroof ............................................................................................ 5-58
Sunroof open warning ........................................................................................... 5-58
Hood ............................................................................................................. 5-59
Trunk ............................................................................................................. 5-61
Emergency trunk safety release ............................................................................ 5-62
Smart Trunk release ............................................................................................... 5-63
Fuel filler door ..............................................................................................5-66
Exterior Lights ..............................................................................................5-68
Lighting control ......................................................................................................5-68
High beam operation ............................................................................................. 5-69
Turn signals and lane change signals ................................................................... 5-70
Battery saver function ............................................................................................. 5-71
Headlamp delay function ....................................................................................... 5-71
5
CN7 HMA 5.indd5-12020-12-03 9:20:36
Page 138 of 584
5
High Beam Assist (HBA) ............................................................................. 5-72Detecting sensor (Front view camera) ...................................................................5-72
Function settings .....................................................................................................5-72
Function operation ..................................................................................................5-73
Function malfunction and limitations ....................................................................5-73
Interior Lights ............................................................................................... 5-75Interior lamp AUTO cut ...........................................................................................5-75
Front lamps ..............................................................................................................5-75
Rear lamp ................................................................................................................ 5-76
Luggage compartment lamp ................................................................................. 5-77
Vanity mirror lamp ................................................................................................... 5-77
Welcome system .................................................................................................... 5-78
Wipers and Washers .................................................................................... 5-79
Windshield Wipers ................................................................................................. 5-79
Windshield Washers ...............................................................................................5-80
Manual Climate Control System ................................................................. 5-81Heating and Air Conditioning ................................................................................ 5-82
System operation ...................................................................................................5-88
System Maintenance .............................................................................................5-90
Automatic Climate Control System ............................................................ 5-92Automatic heating and air conditioning ............................................................... 5-93
Manual heating and air conditioning .................................................................... 5-94
System operation ................................................................................................. 5-100
System Maintenance ............................................................................................5-102
Windshield defrosting and defogging ...................................................... 5-104Manual climate control system ........................................................................... 5-104
Automatic climate control system .......................................................................5-105
Defogging logic ................................................................................................... 5-106
Auto defogging system (only for automatic climate control system) ............... 5-107
Defroster ............................................................................................................... 5-108
Climate control additional features .......................................................... 5-109
Sunroof inside air recirculation ........................................................................... 5-109
Auto comfort control (for driver’s seat) .............................................................. 5-109
Automatic ventilation ........................................................................................... 5-109
Storage compartment ................................................................................ 5-110
Center console storage ......................................................................................... 5-110
Glove box ............................................................................................................... 5-110
CN7 HMA 5.indd 5-22020-12-03 9:20:41

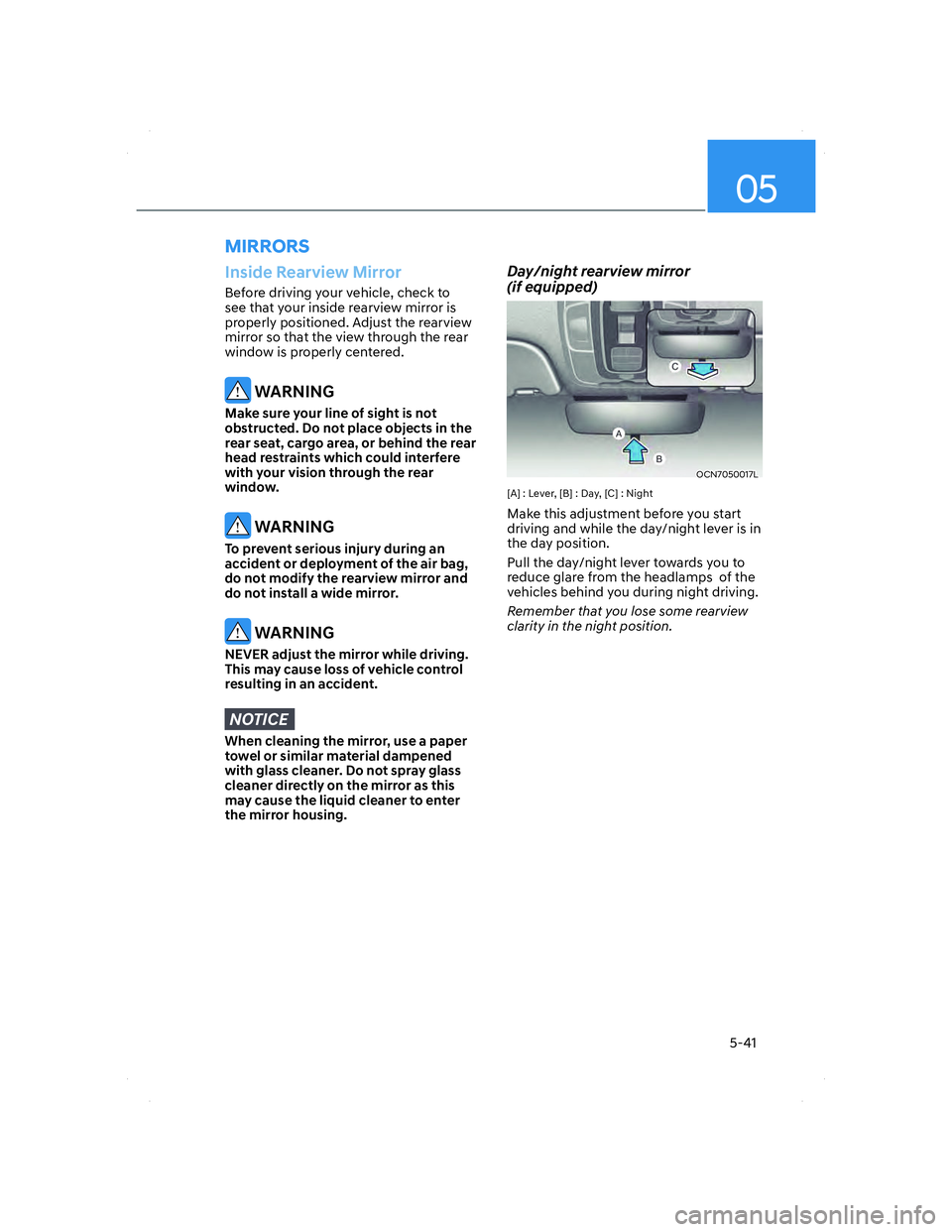

Page 177 of 584
05
5-41
MIRRORS
Inside Rearview Mirror
Before driving your vehicle, check to
see that your inside rearview mirror is
properly positioned. Adjust the rearview
mirror so that the view through the rear
window is properly centered.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in the
rear seat, cargo area, or behind the rear
head restraints which could interfere
with your vision through the rear
window.
WARNING
To prevent serious injury during an
accident or deployment of the air bag,
do not modify the rearview mirror and
do not install a wide mirror.
WARNING
NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
NOTICE
When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as this
may cause the liquid cleaner to enter
the mirror housing.
Day/night rearview mirror
(if equipped)
OCN7050017LOCN7050017L
[A] : Lever, [B] : Day, [C] : Night
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever towards you to
reduce glare from the headlamps of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.
CN7 HMA 5.indd 5-412020-12-03 9:20:48
Page 178 of 584
Convenient Features
5-42
Electrochromic mirror (ECM) with
HomeLink® system (if equipped)
OCN7050084NOCN7050084N
Your vehicle may be equipped with
a Gentex Automatic-Dimming Mirror
with an Integrated HomeLink® Wireless
Control System.
During nighttime driving, this feature will
automatically detect and help reduce
rearview mirror glare. The HomeLink®
Universal Transceiver allows you to
activate your garage door(s), electric
gate, home lighting, etc.
(1) HomeLink Channel 1
(2) HomeLink Channel 2
(3) HomeLink Channel 3
(4) Garage Door Opener Status Indicator :
Closing or Closed
(5) HomeLink Operation Indicator
(6) Garage Door Opener Status Indicator :
Opening or Opened
(7) HomeLink User Interface Indicator
$ X W R P D W L F ' L P P L Q J 1 L J K W 9 L V L R Q 6 D I H W \
Page 185 of 584
05
5-49
Side View Mirrors
OCN7050019OCN7050019
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
Your vehicle is equipped with both
left-hand and right-hand side view
mirrors. The mirrors can be adjusted
remotely with the remote switch. The
side view mirrors can be folded to help
prevent damage when going through
an automatic car wash or when passing
through a narrow street.
The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside rear view mirror or look
back directly to determine the actual
distance of other vehicles prior to
changing lanes.
WARNING
Do not adjust or fold the side view
mirrors while driving. This may cause
loss of vehicle control resulting in an
accident.
NOTICE
• Do not scrape ice off the mirror face;
this may damage the surface of the
glass.
• If the mirror is jammed with ice, do
not adjust the mirror by force. Use an
approved spray de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and
allow the ice to melt.
CN7 HMA 5.indd 5-492020-12-03 9:20:50
Page 240 of 584
Convenient Features
5-104
WARNING
Windshield heating
Do not use the
or position
during cooling operation in extremely
humid weather. The difference between
the temperature of the outside air and
that of the windshield could cause the
outer surface of the windshield to fog
up, causing loss of visibility. In this case,
set the mode selection knob or button
to the
position and fan speed control
knob or button to lower speed.
• For maximum defrost performance,
set the temperature control knob
to the highest temperature setting
(rotated all the way to the right) and
the fan speed control to the highest
setting.
• If warm air to the floor is desired while
defrosting or defogging, set the mode
to the floor-defrost position.
• Before driving, clear all snow and ice
from the windshield, rear window,
side view mirrors, and all side
windows.
• Clear all snow and ice from the
hood and air inlet in the cowl grill
to improve heater and defroster
efficiency and to reduce the
probability of fogging up inside of the
windshield.
Manual climate control system
To defog inside windshield
OCN7050122NOCN7050122N
[A] : Type A, [B] : Type B
1. Select any fan speed except “0”
position.
2. Select the desired temperature.
3. Select the
or position.
4. Fresh mode air will be selected
automatically. Additionally, the
air conditioning (if equipped) will
automatically operate if the mode is
selected to the
position.
If the air conditioning and fresh mode
are not selected automatically, press the
corresponding button manually.
WINDSHIELD DEFROSTING AND DEFOGGING
CN7 HMA 5.indd 5-1042020-12-03 9:21:09
Page 367 of 584
07
7-39
OTM070097N
When the engine is restarted with the
system off, the ‘Blind-Spot Safety System
L V 2 I IT P H V V D J H Z L O O D S S H D U R Q W K H
cluster.
, I \ R X F K D Q J H W K H V H W W L Q J I U R P S 2 I IT W R
S : D U Q L Q J 2 Q O \T W K H Z D U Q L Q J O L J K W R Q W K H
outside rearview mirror will blink for
three seconds.
In addition, if the engine is turned on,
Z K H Q W K H V \ V W H P L V V H W W R S : D U Q L Q J 2 Q O \T
the warning light on the outside rearview
mirror will blink for three seconds.
WARNING
[ If ‘Warning Only’ is selected, braking
is not assisted.
[ If ‘Off’ is selected, the driver should
always be aware of the surroundings
and drive safely.
Information
If the engine is restarted, Blind-Spot
Safety system will maintain the last
setting.
OTM070140N
Warning Timing
With the engine on, select ‘Driver
$ V V L V W D Q F H
Page 370 of 584
![HYUNDAI ELANTRA 2022 Owners Manual Driver assistance system
7-42
Function malfunction and
limitations
Function malfunction
OTM070099N
When Blind-Spot Safety system is not
working properly, the ‘Check Blind-Spot
6 D I H W \ V \](/manual-img/35/41167/w960_41167-369.png "HYUNDAI ELANTRA 2022 Owners Manual Driver assistance system
7-42
Function malfunction and
limitations
Function malfunction
OTM070099N
When Blind-Spot Safety system is not
working properly, the ‘Check Blind-Spot
6 D I H W \ V \")
Driver assistance system
7-42
Function malfunction and
limitations
Function malfunction
OTM070099N
When Blind-Spot Safety system is not
working properly, the ‘Check Blind-Spot
6 D I H W \ V \ V W H P V T Z D U Q L Q J P H V V D J H Z L O O
appear on the cluster, and the system
will turn off automatically, or the system
will be limited. We recommend that the
system be inspected by an authorized
HYUNDAI dealer.
OTM070100N
When the outside rearview mirror
warning light is not working properly, the
S & K H F N V L G H Y L H Z P L U U R U Z D U Q L Q J O L J K WT
warning message will appear on the
cluster. We recommend that the system
be inspected by an authorized HYUNDAI
dealer.
System disabled
OCN7070041L
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Blind-Spot
Safety system.
If this occurs, the ‘Blind-Spot Safety
V \ V W H P V G L V D E O H G 5 D G D U E O R F N H GT
warning message will appear on the
cluster.
The system will operate normally when
such foreign material or trailer, etc.
is removed, and then the engine is
restarted.
If the system does not operate normally
after it is removed, we recommend
that the system be inspected by an
authorized HYUNDAI dealer.
