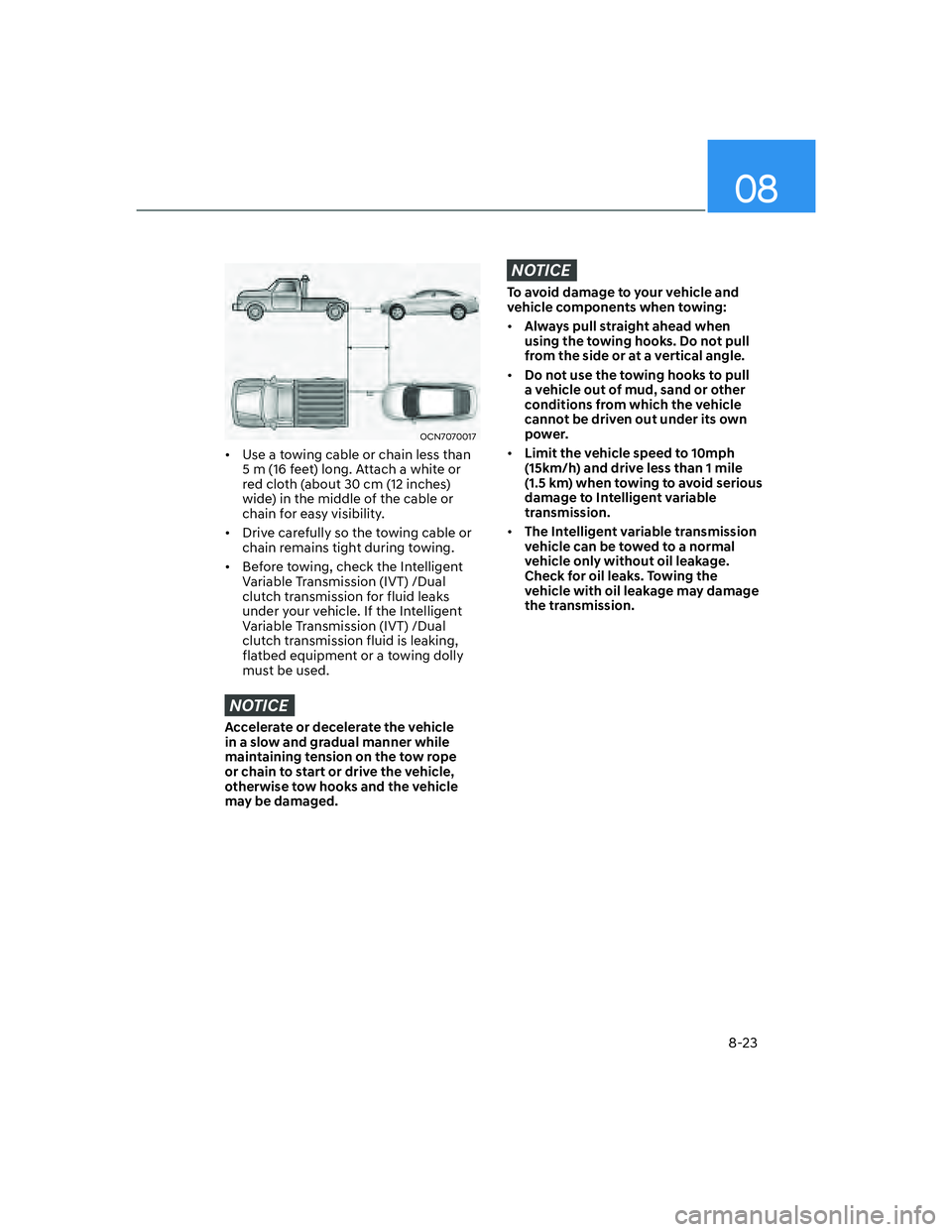

08
8-23
OCN7070017

[Use a towing cable or chain less than
5 m (16 feet) long. Attach a white or
red cloth (about 30 cm (12 inches)
wide) in the middle of the cable or
chain for easy visibility.

[Drive carefully so the towing cable or
chain remains tight during towing.

[Before towing, check the Intelligent
Variable Transmission (IVT) /Dual
clutch transmission for fluid leaks
under your vehicle. If the Intelligent
Variable Transmission (IVT) /Dual
clutch transmission fluid is leaking,
flatbed equipment or a towing dolly
must be used.
NOTICE
Accelerate or decelerate the vehicle
in a slow and gradual manner while
maintaining tension on the tow rope
or chain to start or drive the vehicle,
otherwise tow hooks and the vehicle
may be damaged.
NOTICE
To avoid damage to your vehicle and
vehicle components when towing:

[Always pull straight ahead when
using the towing hooks. Do not pull
from the side or at a vertical angle.

[Do not use the towing hooks to pull
a vehicle out of mud, sand or other
conditions from which the vehicle
cannot be driven out under its own
power.

[Limit the vehicle speed to 10mph
(15km/h) and drive less than 1 mile
(1.5 km) when towing to avoid serious
damage to Intelligent variable
transmission.

[The Intelligent variable transmission
vehicle can be towed to a normal
vehicle only without oil leakage.
Check for oil leaks. Towing the
vehicle with oil leakage may damage
the transmission.

Engine Compartment .................................................................................... 9-3
Maintenance Services ...................................................................................9-4
Owner’s Responsibility ............................................................................................ 9-4
Owner Maintenance Precautions ............................................................................ 9-4
Owner Maintenance ...................................................................................... 9-5Owner Maintenance Schedule ................................................................................ 9-5
Scheduled Maintenance Services ................................................................ 9-7
Normal Maintenance Schedule (Smartstream G2.0 Atkinson) ............................. 9-8
Maintenance Under Severe Usage Conditions ..................................................... 9-11
Explanation of Scheduled Maintenance Items ...........................................9-13Dual clutch transmission fluid ...............................................................................9-14
Engine Oil ......................................................................................................9-15Checking the Engine Oil Level ................................................................................ 9-15
Checking the Engine Oil and Filter ........................................................................9-16
Engine Coolant .............................................................................................. 9-17Checking the Engine Coolant Level ....................................................................... 9-17
Changing Engine Coolant .......................................................................................9-19
Brake/Clutch Fluid ....................................................................................... 9-20Checking the Brake/Clutch Fluid Level ................................................................ 9-20
Washer Fluid ..................................................................................................9-21
Checking the Washer Fluid Level ........................................................................... 9-21
Parking Brake ................................................................................................9-21Checking the Parking Brake ................................................................................... 9-21
Air Cleaner .................................................................................................... 9-22Filter Replacement ................................................................................................. 9-22
Cabin Air Filter .............................................................................................. 9-24Filter Inspection...................................................................................................... 9-24
Filter Replacement ................................................................................................. 9-24
Wiper Blades ................................................................................................ 9-25Blade Inspection .................................................................................................... 9-25
Blade Replacement ................................................................................................ 9-25
Battery .......................................................................................................... 9-27For Best Battery Service ........................................................................................ 9-28
Battery Capacity Label ........................................................................................... 9-28
Battery Recharging ................................................................................................ 9-29
Reset Items ............................................................................................................. 9-29
9. Maintenance
9
CN7 HMA 9.indd9-12020-12-03 9:42:11

Maintenance
9-6
While operating your vehicle:
• Note any changes in the sound of the
exhaust or any smell of exhaust fumes
in the vehicle.
• Check for vibrations in the steering
wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.
• Notice if your vehicle constantly turns
slightly or “pulls” to one side when
traveling on smooth, level road.
• When stopping, listen and check for
unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.
• If any slipping or changes in the
operation of your transmission occurs,
check the transmission fluid level.
• Check the intelligent variable
transmission P (Park) function.
• Check the parking brake.
• Check for fluid leaks under your
vehicle (water dripping from the air
conditioning system during or after
use is normal).
At least monthly:
• Check coolant level in the engine
coolant reservoir.
• Check the operation of all exterior
lights, including the brake lights, turn
signals and hazard warning flashers.
• Check the inflation pressures of all
tires including the spare for tires that
are worn, show uneven wear, or are
damaged.
• Check for loose wheel lug nuts.
At least twice a year:
(i.e., every Spring and Autumn)
• Check radiator, heater and air
conditioning hoses for leaks or
damage.
• Check windshield washer spray and
wiper operation. Clean wiper blades
with a clean cloth dampened with
washer a fluid.
• Check headlamp alignment.
• Check muffler, exhaust pipes, shields
and clamps.
• Check the seat belts for wear and
function.
At least once a year:
• Clean body and door drain holes.
• Lubricate door hinges and hood
hinges.
• Lubricate door and hood locks and
latches.
• Lubricate door rubber weather strips.
• Lubricate door checker.
• Check the air conditioning system.
• Inspect and lubricate intelligent
variable transmission linkage and
controls.
• Clean the battery and terminals.
• Check the brake fluid level.
CN7 HMA 9.indd 9-62020-12-03 9:42:18

09
9-9
Normal Maintenance Schedule (CONT)
MAINTENANCE
INTERVALS
MAINTENANCE
ITEMMonths 12 24 36 48 60 72 84 96 108 120 132 144 156
Miles×1,000 8 16 24 32 40 48 56 64 72 80 88 96 104
Km×1,000 13 26 39 52 65 78 91 104 117 130 143 156 169
Vacuum hose I I I I I I I I I I I I I
Engine coolantAt first, replace at 120,000 miles or 120 months.
Thereafter, replace every 30,000 miles or 24 months
Battery condition I I I I I I I I I I I I I
Brake lines, hoses and connections I I I I I I I I I I I I I
Disc brakes and pads I I I I I I I I I I I I I
Steering gear rack, linkage and boots / lower arm ball joint,
upper arm ball jointIIIIIIIIIIIII
Driveshaft and boots I I I I I I I I I I I I I
Suspension mounting bolts I I I I I I I I I I I I I
Air conditioner refrigerant I I I I I I I I I I I I I
Air conditioner compressor I I I I I I I I I I I I I
Exhaust pipe and muffler I I I I I I I I I I I I I
Manual transmission fluid (if equipped)
*1
Replace every 40,000miles or 4 years
Intelligent variable transmission fluid (if equipped)
*2
No check, No service required
Dual clutch transmission fluid (if equipped)
*1
III
Rear differential oil
*1
IIIIIIIIIIIII
R: Replace or change.
I : Inspect and if necessary, adjust, correct, clean or replace.*1 :
Manual transmission fluid/Dual clutch transmission fluid should be changed anytime they have been submerged in water.
*2 :
Use only the specified intelligent variable transmission fluid. (Refer to “Recommended lubricants and capacities” section in
chapter 2 or the label in the engine compartment.)
CN7 HMA 9.indd 9-92020-12-03 9:42:18

09
9-11
Maintenance Under Severe Usage Conditions
The following items must be serviced more frequently on cars mainly used under
severe driving conditions. Refer to the chart below for the appropriate maintenance
intervals.
R : Replace
I : Inspect and if necessary, adjust, correct, clean or replace
Maintenance itemMaintenance
operationMaintenance intervalsDriving
condition
Engine oil and
filter *1
Smartstream
G2.0 Atkinson
RReplace every 5,000 miles
(8,000 km) or 6 monthsA, B, C, D,
E, F, G, H, I,
J, K, L
Smartstream
G1.6 T-GDiA, B, C, D,
E, F, G, H, I,
J, K, L
Air cleaner filter IInspect more frequently
depending on the conditionC, E
Spark plugs RReplace more frequently
depending on the conditionA, B, F, G,
H, I, K
Steering gear rack, linkage and
bootsIInspect more frequently
depending on the conditionC, D, E, F, G
Front suspension ball joints IInspect more frequently
depending on the conditionC, D, E, F, G
Disc brakes and pads, calipers
and rotorsIInspect more frequently
depending on the conditionC, D, E, G, H
Parking brake IInspect more frequently
depending on the conditionC, D, G, H
Driveshaft and boots IInspect more frequently
depending on the conditionC, D, E, F,
G, H, I, J
Cabin air filter RReplace more frequently
depending on the conditionC, E, G
Manual transmission fluid
(if equipped)RReplace every 80,000miles
(120,000 km)C, D, E, F,
G, H, I, J
Intelligent variable transmission
fluid (if equipped)RReplace every 60,000miles
(90,000 km)A, C, D, E, F,
G, H, I, K
Dual clutch transmission fluid
(if equipped)RReplace every 80,000miles
(120,000km)C, D, E, F,
G, H, I, J
Rear differential oil RReplace every 72,000 miles
(120,000 km)C, D, E, G,
H, I, J
Transfer case oil No check, No service required
*1 : Requires grade engine oil. If a lower grade engine oil (mineral
oil) is used, then the engine oil and engine oil filter must be replaced as indicated for
severe maintenance condition.
CN7 HMA 9.indd 9-112020-12-03 9:42:18

Maintenance
9-14
Engine Coolant
The coolant should be changed at the
intervals specified in the maintenance
schedule.
Manual Transmission Fluid
(if equipped)
Inspect the manual transmission fluid
according to the maintenance schedule.
Intelligent variable transmission
fluid (if equipped)
Intelligent variable transmission fluid
should not be checked under normal
usage conditions.
We recommend that the Intelligent
variable transmission fluid is changed by
an authorized HYUNDAI dealer according
to the maintenance schedule.
Dual clutch transmission fluid (if
equipped)
Dual clutch transmission fluid should
not be checked under normal usage
conditions.
We recommend that the Intelligent
variable transmission fluid is changed by
an authorized HYUNDAI dealer according
to the maintenance schedule.
Brake Hoses and Lines
Visually check for proper installation,
chafing, cracks, deterioration and any
leakage. Replace any deteriorated or
damaged parts immediately.
Brake Fluid
Check the brake fluid level in the brake
fluid reservoir. The level should be
between the MIN and the MAX marks
on the side of the reservoir. Use only
hydraulic brake fluid conforming to DOT
4 specification..
Parking Brake
Inspect the parking brake system
including the parking brake pedal and
cables.
Brake Discs, Pads, Calipers and
Rotors
Check the pads for excessive wear, discs
for run out and wear, and calipers for
fluid leakage.
Suspension Mounting Bolts
Check the suspension connections for
looseness or damage. Retighten to the
specified torque.
Steering Gear Box, Linkage &
Boots/Lower Arm Ball Joint
With the vehicle stopped and the engine
off, check for excessive freeplay in the
steering wheel. Check the linkage for
bends or damage. Check the dust boots
and ball joints for deterioration, cracks,
or damage.
Replace any damaged parts.
Drive Shafts and Boots
Check the drive shafts, boots and clamps
for cracks, deterioration, or damage.
Replace any damaged parts and, if
necessary, repack the grease.
Air Conditioning Refrigerant
Check the air conditioning lines and
connections for leakage and damage.
CN7 HMA 9.indd 9-142020-12-03 9:42:18

I
I-5
E
Emission Control System .................................................................................... 9-71
Engine Compartment ..................................................................................... 2-8/ 9-3
Engine Coolant .................................................................................................... 9-17
Changing Engine Coolant ................................................................................ 9-19
Checking the Engine Coolant Level................................................................. 9-17
Engine Number .................................................................................................... 2-16
Engine Oil ............................................................................................................ 9-15
Checking the Engine Oil and Filter .................................................................. 9-16
Checking the Engine Oil Level ........................................................................ 9-15
Engine specification............................................................................................... 2-9
Explanation of Scheduled Maintenance Items .................................................... 9-13
Dual clutch transmission fluid ......................................................................... 9-14
Exterior Lights ..................................................................................................... 5-68
Battery saver function ...................................................................................... 5-71
Headlamp delay function ................................................................................. 5-71
High beam operation ........................................................................................ 5-69
Lighting control ................................................................................................ 5-68
Turn signals and lane change signals ............................................................... 5-70
Exterior Overview ................................................................................................. 2-2
F
Forward Collision–Avoidance Assist (FCA) (front view camera only) ............... 7-2
Function malfunction and limitations ................................................................ 7-7
Function operation.............................................................................................. 7-5
Function settings ................................................................................................ 7-3
Forward Collision–Avoidance Assist (FCA) (sensor fusion) ............................. 7-14
Function malfunction and limitations .............................................................. 7-22
Function operation............................................................................................ 7-18
Function settings .............................................................................................. 7-16
Fuel filler door ..................................................................................................... 5-66
Fuel Requirements ................................................................................................. 1-5
Detergent Fuel Additives.................................................................................... 1-7
Gasoline containing alcohol or methanol ........................................................... 1-6
Gasoline containing MMT ................................................................................. 1-6
Operation in foreign countries............................................................................ 1-7
Using Fuel Additives (except Detergent Fuel Additives)................................... 1-6
