1-5. Theft deterrent system
For safety and security

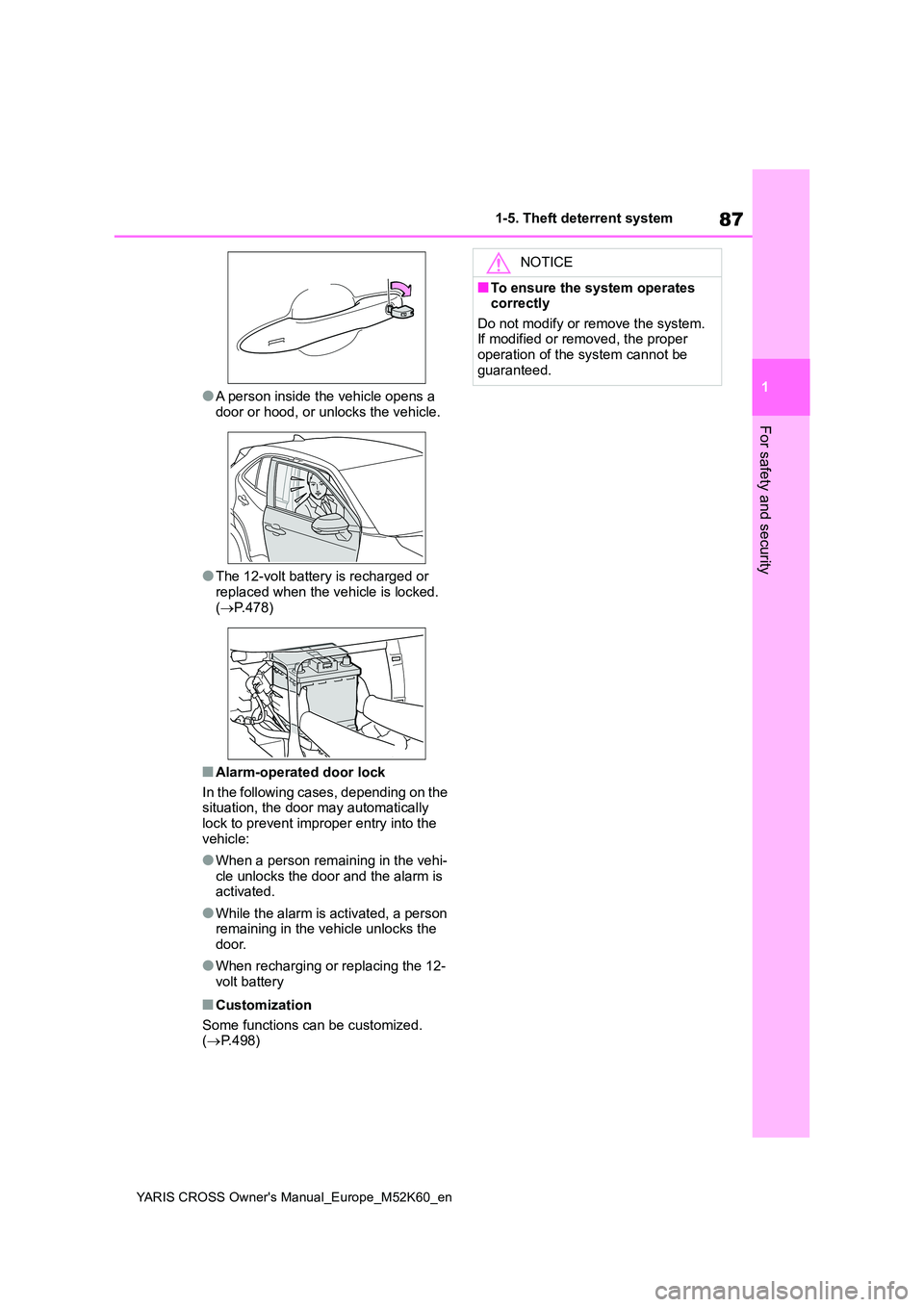

●A person inside the vehicle opens a
door or hood, or unlocks the vehicle.
●The 12-volt battery is recharged or
replaced when the vehicle is locked. ( P.478)
■Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:
●When a person remaining in the vehi-cle unlocks the door and the alarm is activated.
●While the alarm is activated, a person remaining in the vehicle unlocks the
door.
●When recharging or replacing the 12-
volt battery
■Customization
Some functions can be customized. ( P.498)
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of the system cannot be
guaranteed.

88
YARIS CROSS Owner's Manual_Europe_M52K60_en
1-5. Theft deterrent system

2
89
YARIS CROSS Owner's Manual_Europe_M52K60_en
2
Vehicle status information and indicators
Vehicle status informa-
tion and indicators

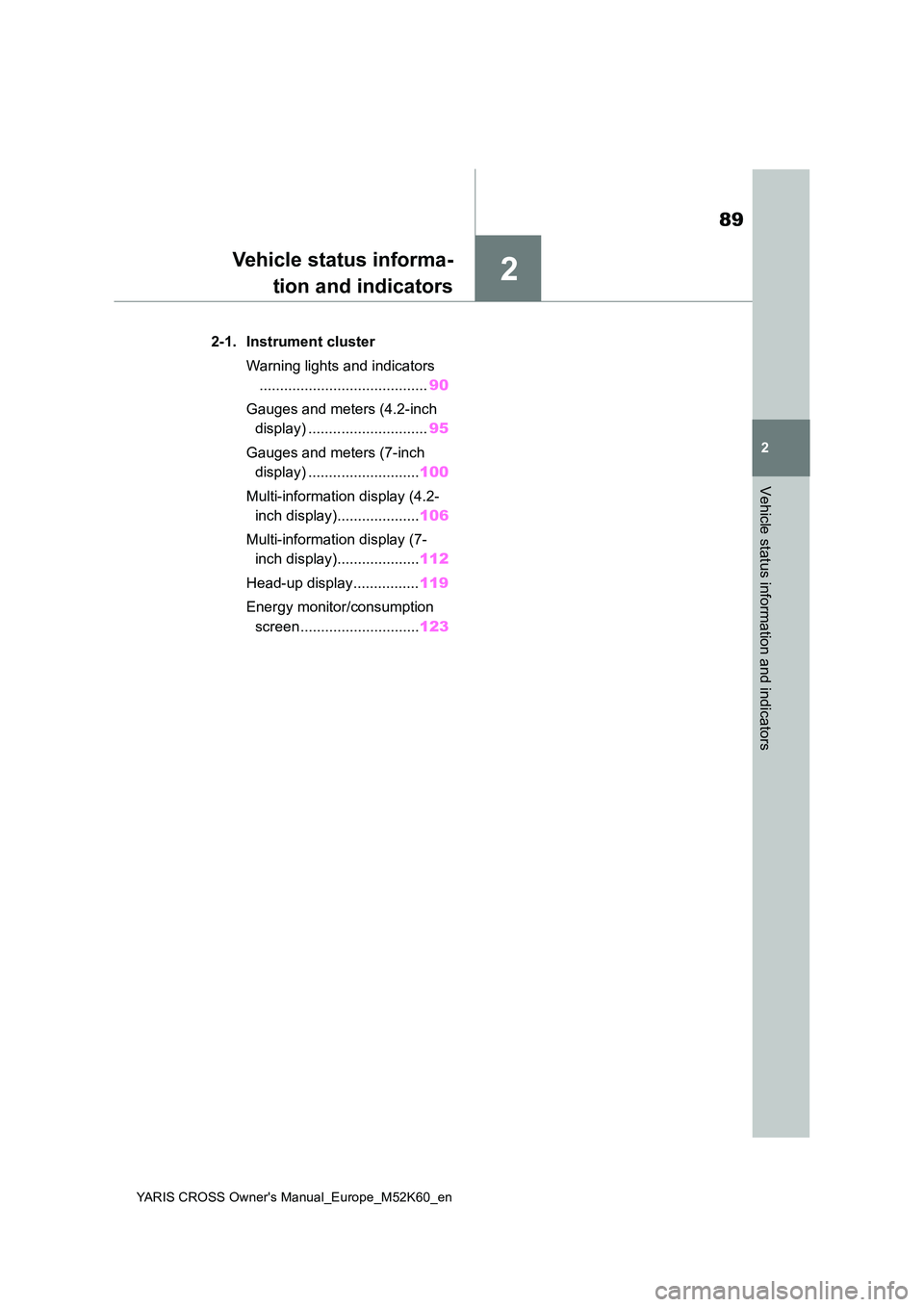

2-1. Instrument cluster
Warning lights and indicators
......................................... 90
Gauges and meters (4.2-inch
display) ............................. 95
Gauges and meters (7-inch
display) ........................... 100
Multi-information display (4.2-
inch display).................... 106
Multi-information display (7-
inch display).................... 112
Head-up display................ 119
Energy monitor/consumption
screen ............................. 123

90
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
2-1.In strument clu ste r
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.
Vehicles with 4.2-inch display
Vehicles with 7-inch display (when analog speedometer is displa yed)
Warning lights and indicators
The warning lights and indicators on the instrument cluster, center
panel and outside rear view mirrors inform the driver of the st atus of
the vehicle’s various systems.
Warning lights and indicators displayed on the instrument
cluster

91
2
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
Vehicle status information and indicators
Vehicles with 7-inch display (when digital speedometer is displayed)
Warning lights inform the driver of
malfunctions in the indicated vehi-
cle’s systems.
Warning lights
(Red)
Brake system warning light*1
( P.439)
(Yellow)
Brake system warning light*1
( P.439)
High coolant temperature
warning light*2 ( P.439)
Hybrid system overheat
warning light*2 ( P.440)
Charging system warning
light*2 ( P.440)
Low engine oil pressure
warning light*2 ( P.440)
Malfunction indicator lamp*1,
3 ( P.440)
SRS warning light*1
( P.441)
ABS warning light*1
( P.441)
Inappropriate pedal opera-
tion warning light*2 ( P. 4 4 1 )
(Red)
Electric power steering sys-
tem warning light*1, 3
( P.442)
(Yellow)
Electric power steering sys-
tem warning light*1, 3
( P.442)
Low fuel level warning light
( P.442)
Driver’s and front passen-
ger’s seat belt reminder light
( P.442)
Rear passengers’ seat
belt reminder lights*2
( P.442)
Tire pressure warning light*1,
3 ( P.443)
(Orange)
LTA i n d i c a t o r*2 (if equipped)
( P.443)
(Flashes)
Toyota parking assist-sensor
OFF indicator*1, 3 (if
equipped) ( P.444)

92
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
*1: These lights come on when the
power switch is turned to ON to indi-
cate that a system check is being
performed. They will turn off after the
hybrid system is started, or after a
few seconds. There may be a mal-
function in a system if the lights do
not come on, or turn off. Have the
vehicle inspected by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
*2: This light illuminates on the multi-
information display.
*3: This light illuminates on the multi-
information display (with 7-inch dis-
play only).
The indicators inform the driver of
the operating state of the vehicle’s
various systems.
(Flashes)
RCTA OFF indicator*1, 3 (if
equipped) ( P.444)
PKSB OFF indicator*1, 3 (if
equipped) ( P.445)
(Flashes or illuminates)
PCS warning light*1 (if
equipped) ( P.445)
Slip indicator*1 ( P.446)
(Flashes)
Parking brake indicator
( P.446)
(Flashes)
Brake hold operated indica-
tor*1 ( P.446)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when you start the hybrid
system, this could mean that these systems are not available to help pro-tect you in an accident, which could
result in death or serious injury. Have the vehicle inspected by any autho-rized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer immediately if this occurs.
Indicators
Turn signal indicator
( P.200)
Tail light indicator*1 ( P.206)
Headlight high beam indica-
tor ( P.208)
AHS indicator*1 (if equipped)
( P.212)
AHB indicator*1 (if equipped)
( P.215)
Front fog light indicator*1 (if
equipped) ( P.218)
Rear fog light indicator*1
( P.218)
PCS warning light*2, 3 (if
equipped) ( P.235)
Cruise control indicator*4 (if
equipped) ( P.252)
Dynamic radar cruise control
indicator*4 (if equipped)
( P.252)

93
2
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
Vehicle status information and indicators
*1: This light illuminates on the multi-
information display (with 7-inch dis-
play only).
*2: These lights come on when the
power switch is turned to ON to indi-
cate that a system check is being
performed. They will turn off after the
hybrid system is started, or after a
few seconds. There may be a mal-
function in a system if the lights do
not come on, or turn off. Have the
vehicle inspected by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
*3: This light comes on when the system
is turned off.
*4: This light illuminates on the multi-
information display.
*5: Depending on the operating condi-
tion, the color and illuminating/flash-
ing state of the light change.
*6: This light illuminates on the outside
rear view mirrors.
Cruise control “SET” indica-
tor*4 (if equipped) ( P.252)
*5
LTA indicator*4 (if equipped)
( P.232, 248)
BSM outside rear view mirror
indicators*2, 6 (if equipped)
( P.271, 285)
BSM OFF indicator*1, 3 (if
equipped) ( P.271)
Toyota parking assist-sensor
OFF indicator*1, 2, 3 (if
equipped) ( P.276)
RCTA OFF indicator*1, 2, 3 (if
equipped) ( P.286)
PKSB OFF indicator*1, 2, 3 (if
equipped) ( P.292)
Speed limiter indicator (if
equipped) ( P.264)
(Flashes)
Slip indicator*2 (P.337)
VSC OFF indicator*2, 3
( P.337)
Smart entry & start system
indicator*4 ( P.191)
“READY” indicator*1
( P.191)
EV drive mode indicator*1
( P.195)
Parking brake indicator
( P.200)
Brake hold standby indica-
tor*1, 2 ( P.203)
Brake hold operated indica-
tor*2 ( P.203)
EV indicator*1 ( P. 7 6 )
Low outside temperature
indicator*4, 7 ( P.95, 100)
Security indicator (P. 8 4 ,
86)
“PASSENGER AIR
BAG” indicator*2, 8
( P.47)
Eco drive mode indicator*4
( P.330)
Power mode indicator*4
( P.330)
Trail Mode indicator*4 (if
equipped) ( P.331)
Snow Mode indicator*4 (if
equipped) ( P.332)
(Illumi- nates or Flashes)
Downhill assist control sys-
tem indicator*1, 2 (if
equipped) ( P.333)

94
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster

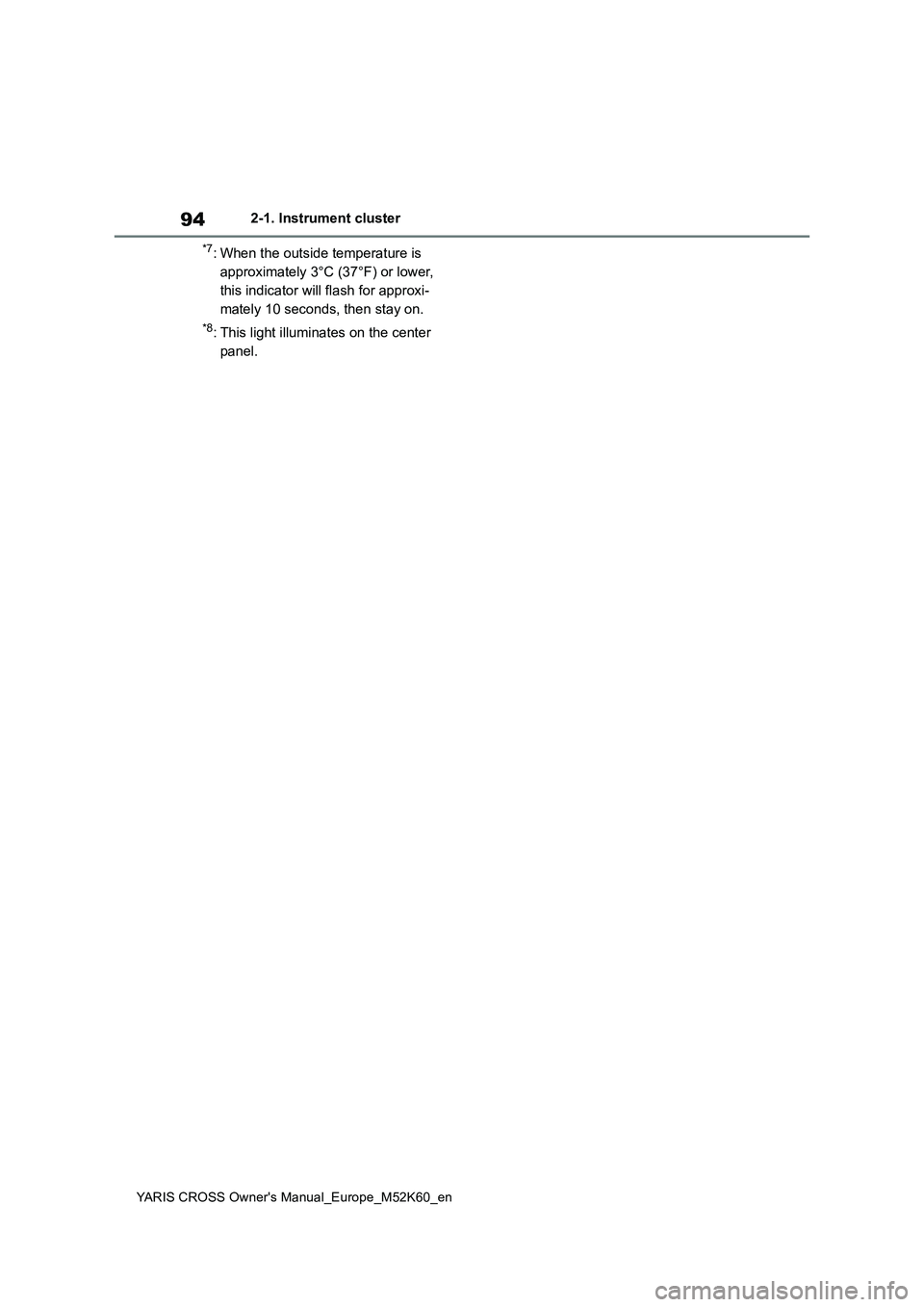

*7: When the outside temperature is
approximately 3°C (37°F) or lower,
this indicator will flash for approxi-
mately 10 seconds, then stay on.
*8: This light illuminates on the center
panel.
