2021 TOYOTA YARIS CROSS Owners Manual

495
8
YARIS CROSS Owner's Manual_Europe_M52K60_en

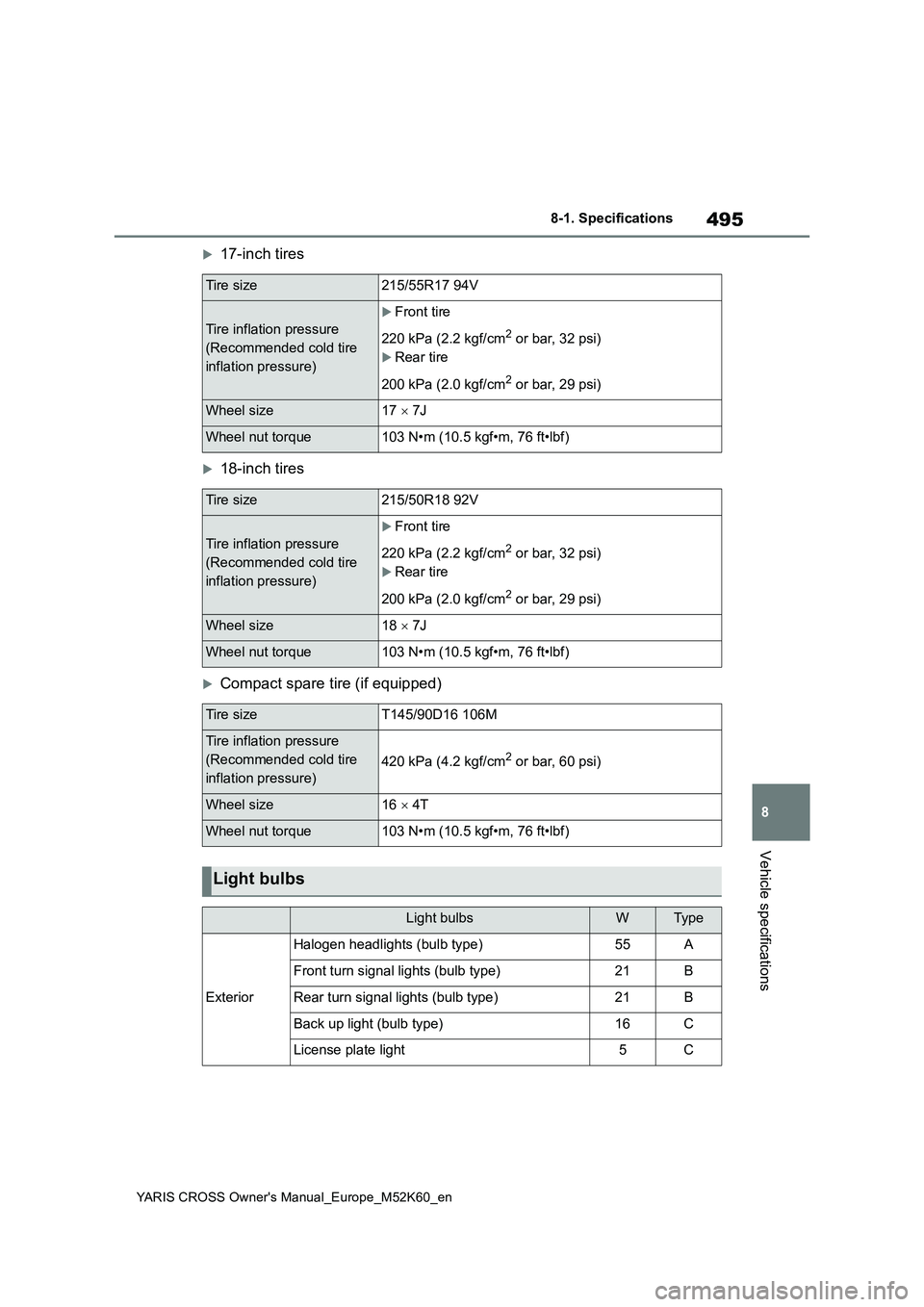

8-1. Specifications
Vehicle specifications
17-inch tires
18-inch tires
Compact spare tire (if equipped)
Tire size215/55R17 94V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Rear tire
200 kPa (2.0 kgf/cm2 or bar, 29 psi)
Wheel size17  7J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size215/50R18 92V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Rear tire
200 kPa (2.0 kgf/cm2 or bar, 29 psi)
Wheel size18  7J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT145/90D16 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size16  4T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWTyp e
Exterior
Halogen headlights (bulb type)55A
Front turn signal lights (bulb type)21B
Rear turn signal lights (bulb type)21B
Back up light (bulb type)16C
License plate light5C

496
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-1. Specifications
*: If equipped
A: HIR2 halogen bulbs
B: Wedge base bulbs (amber)
C: Wedge base bulbs (clear)
Interior
Vanity lights*8C
Interior lights/personal lights5C
Luggage compartment light5C
Light bulbsWTyp e

497
8
YARIS CROSS Owner's Manual_Europe_M52K60_en

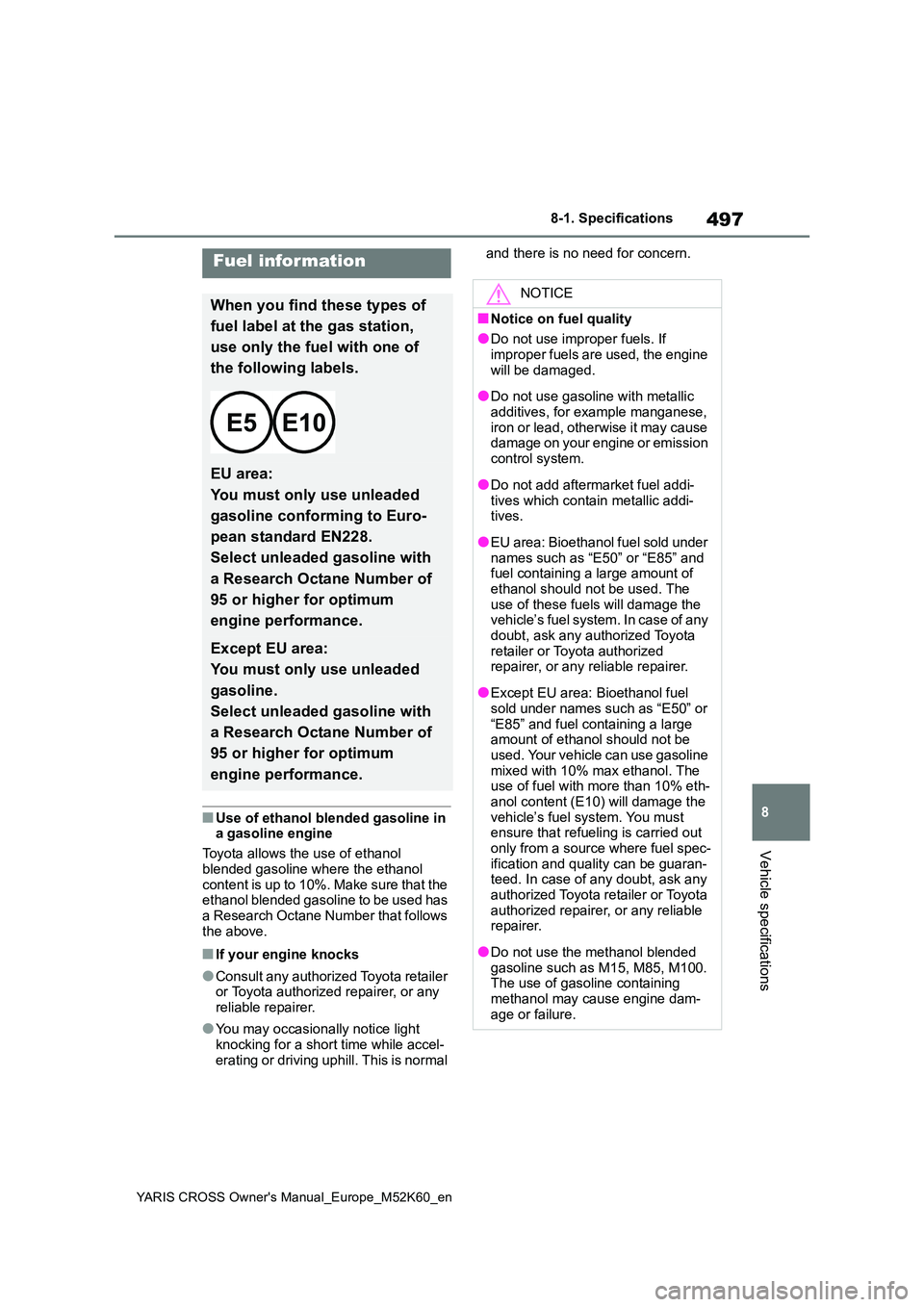

8-1. Specifications
Vehicle specifications
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol
blended gasoline where the ethanol content is up to 10%. Make sure that the ethanol blended gasoline to be used has
a Research Octane Number that follows the above.
■If your engine knocks
●Consult any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●You may occasionally notice light knocking for a short time while accel-
erating or driving uphill. This is normal
and there is no need for concern.Fuel information
When you find these types of
fuel label at the gas station,
use only the fuel with one of
the following labels.
EU area:
You must only use unleaded
gasoline conforming to Euro-
pean standard EN228.
Select unleaded gasoline with
a Research Octane Number of
95 or higher for optimum
engine performance.
Except EU area:
You must only use unleaded
gasoline.
Select unleaded gasoline with
a Research Octane Number of
95 or higher for optimum
engine performance.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine
will be damaged.
●Do not use gasoline with metallic
additives, for example manganese, iron or lead, otherwise it may cause damage on your engine or emission
control system.
●Do not add aftermarket fuel addi-
tives which contain metallic addi- tives.
●EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel containing a large amount of
ethanol should not be used. The use of these fuels will damage the vehicle’s fuel system. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●Except EU area: Bioethanol fuel sold under names such as “E50” or
“E85” and fuel containing a large amount of ethanol should not be used. Your vehicle can use gasoline
mixed with 10% max ethanol. The use of fuel with more than 10% eth-anol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only from a source where fuel spec-
ification and quality can be guaran- teed. In case of any doubt, ask any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
●Do not use the methanol blended gasoline such as M15, M85, M100. The use of gasoline containing
methanol may cause engine dam- age or failure.

498
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-2. Customization
8-2.Customiz ation
■Changing by using the naviga-
tion/multimedia system screen
(vehicles with 7-inch/8-inch
display multimedia system)
1 Press the “MENU” button.
2 Select “Setup” on the “Menu”
screen.
3 Select “Vehicle” on the “Setup”
screen.
4 Select “Vehicle customization”.
Various setting can be changed. Refer
to the list of settings that can be changed for details.
■Changing by using the meter
control switches
1 Press / (4.2-inch display)
or / (7-inch display) of
the meter control switch to
select .
2 Press / (4.2-inch display)
or / (7-inch display) of
the meter control switch to
select the desired item to be
customized.
3 Press or press and hold .
The available settings will differ
depending on if is pressed or
pressed and held. Follow the instruc-
tions on the display.
Customizable features
Your vehicle includes a variety
of electronic features that can
be personalized to suit your
preferences. The settings of
these features can be changed
using the multi-information
display, the nav igation/multi-
media system or at any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer.
Customizing vehicle fea-
tures
WARNING
■During customization
As the hybrid system needs to be operating during customization,
ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage,
exhaust gases including harmful car- bon monoxide (CO) may collect and enter the vehicle. This may lead to
death or a serious health hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while customizing features.

499
8
YARIS CROSS Owner's Manual_Europe_M52K60_en

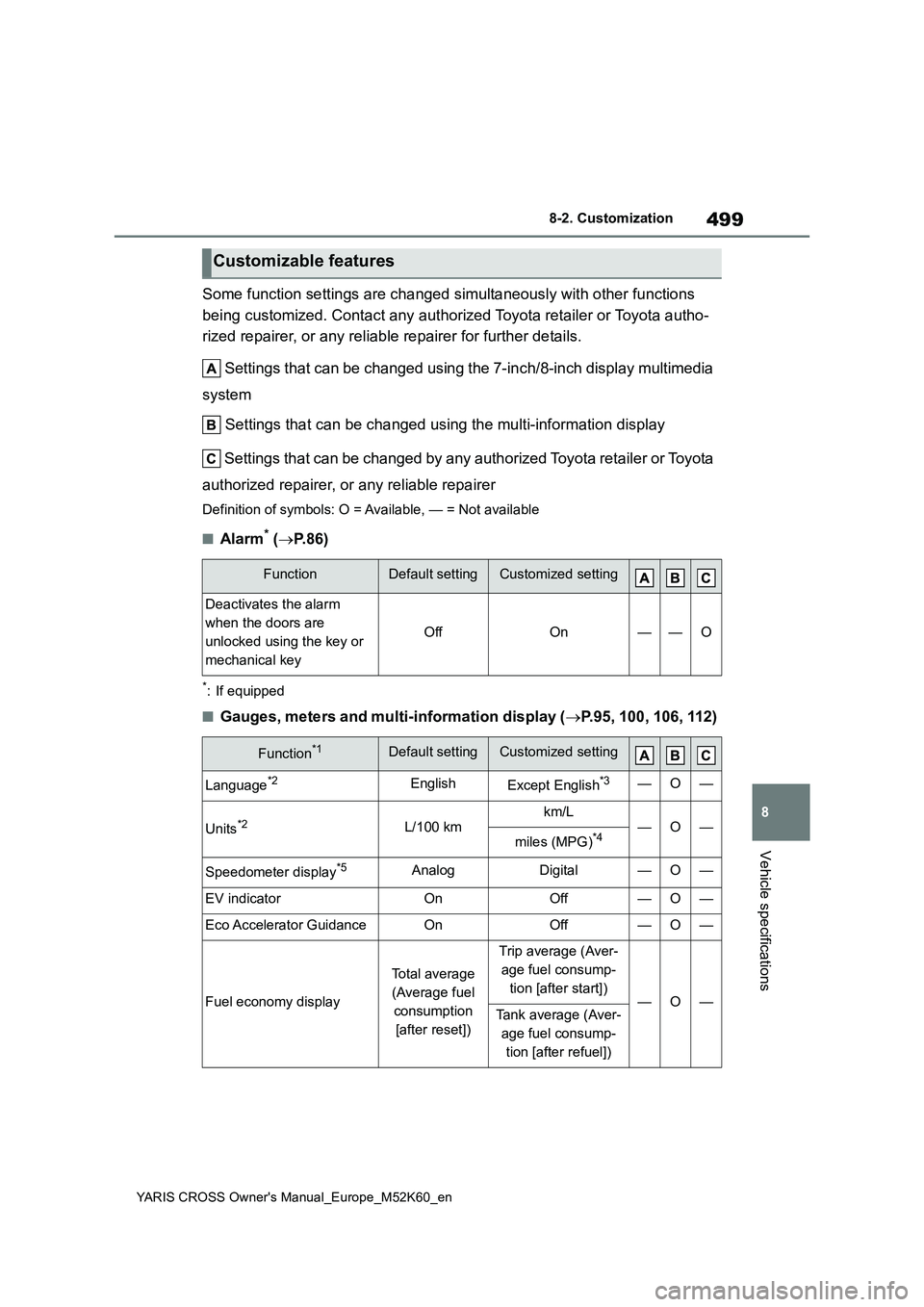

8-2. Customization
Vehicle specifications
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota retailer or Toy ota autho-
rized repairer, or any reliable repairer for further details.
Settings that can be changed using the 7-inch/8-inch display m ultimedia
system
Settings that can be changed using the multi-information displ ay
Settings that can be changed by any authorized Toyota retailer or Toy ota
authorized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
■Alarm* ( P.86)
*: If equipped
■Gauges, meters and multi-information display (P.95, 100, 106, 112)
Customizable features
FunctionDefault settingCustomized setting
Deactivates the alarm
when the doors are
unlocked using the key or
mechanical key
OffOn——O
Function*1Default settingCustomized setting
Language*2EnglishExcept English*3—O—
Units*2L/100 kmkm/L—O—miles (MPG)*4
Speedometer display*5AnalogDigital—O—
EV indicatorOnOff—O—
Eco Accelerator GuidanceOnOff—O—
Fuel economy display
Total average
(Average fuel
consumption
[after reset])
Trip average (Aver-
age fuel consump-
tion [after start])—O—Tank average (Aver-
age fuel consump-
tion [after refuel])

500
YARIS CROSS Owner's Manual_Europe_M52K60_en

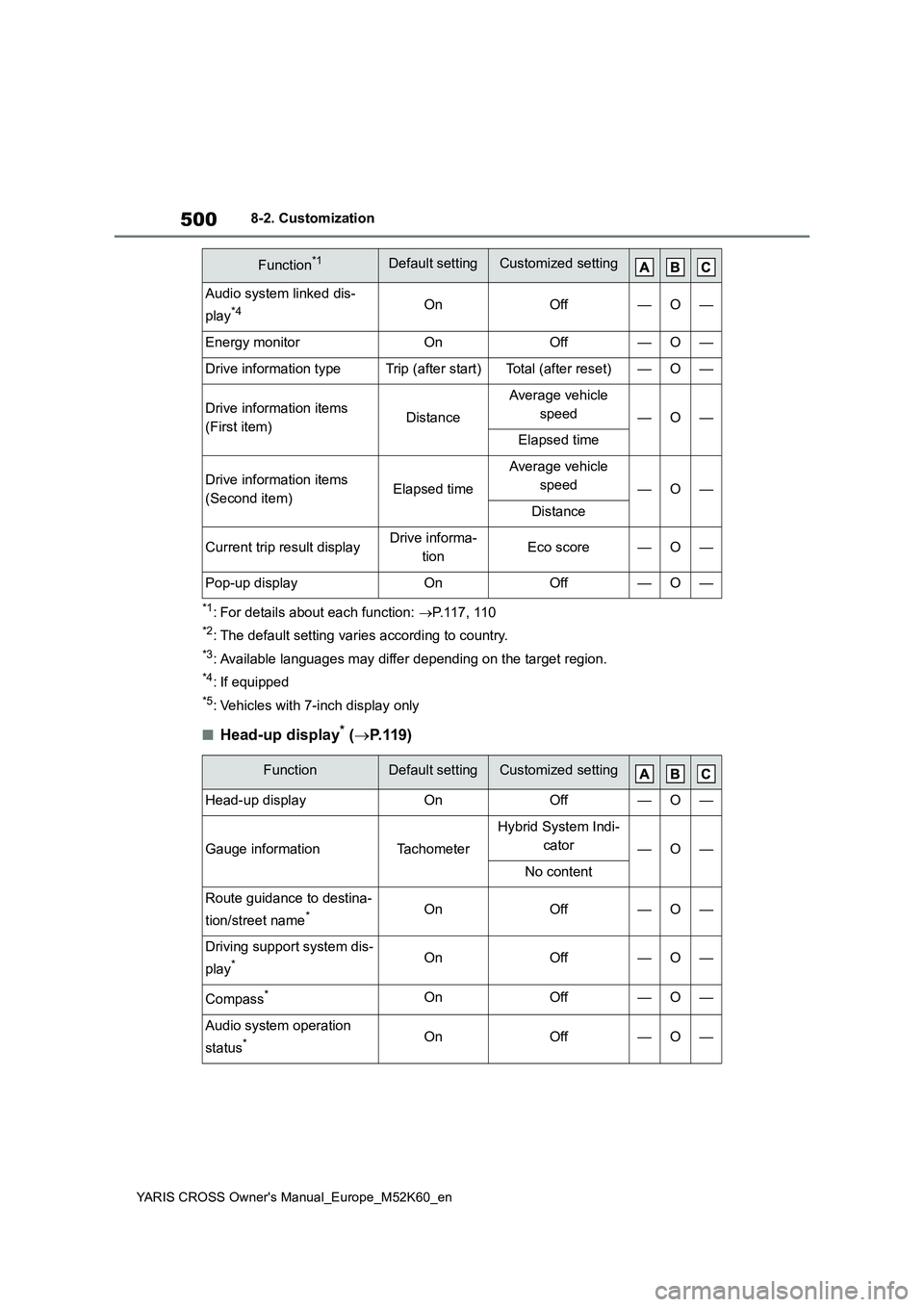

8-2. Customization
*1: For details about each function: P.117, 110
*2: The default setting varies according to country.
*3: Available languages may differ depending on the target region.
*4: If equipped
*5: Vehicles with 7-inch display only
■Head-up display* (P.119)
Audio system linked dis-
play*4OnOff—O—
Energy monitorOnOff—O—
Drive information typeTrip (after start)Total (after reset)—O—
Drive information items
(First item)Distance
Average vehicle
speed—O—
Elapsed time
Drive information items
(Second item)Elapsed time
Average vehicle
speed—O—
Distance
Current trip result displayDrive informa-
tionEco score—O—
Pop-up displayOnOff—O—
FunctionDefault settingCustomized setting
Head-up displayOnOff—O—
Gauge informationTachometer
Hybrid System Indi-
cator—O—
No content
Route guidance to destina-
tion/street name*OnOff—O—
Driving support system dis-
play*OnOff—O—
Compass*OnOff—O—
Audio system operation
status*OnOff—O—
Function*1Default settingCustomized setting

501
8
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-2. Customization
Vehicle specifications
*: If equipped
■Smart entry & start system* and wireless remote control (P.135,
152)
*: If equipped
■Smart entry & start system* ( P.135, 141, 152)
*: If equipped
■Wireless remote control (P.132, 135)
■Power back door* (P.142)
FunctionDefault settingCustomized setting
Operation signal (Emer-
gency flashers)OnOffO—O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning buzzerOnOff——O
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
Number of consecutive
door lock operations2 timesAs many as desired——O
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
FunctionDefault settingCustomized setting
Power back doorOnOff—O—
Power back door opening
position51 to 4—O—
User optional setting—O—
Buzzer volumeLevel 3Level 1—O—Level 2
Kick sensorOnOff—O—

502
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-2. Customization
*: If equipped
■Outside rear view mirrors (P.166)
*: If equipped
■Power windows (P.169)
*: If equipped
■Automatic light control system (P.206)
■Lights (P.207)
Kick sensor sensitivity+2+0——O+1
FunctionDefault settingCustomized setting
Automatic mirror folding
and extending operation*
Linked to the
locking/ unlock-
ing of the doors
Off
——OLinked to operation of
the power switch
FunctionDefault settingCustomized setting
Key (include mechanical
key*) linked operationOffOn——O
Wireless remote control
linked operationOffOn——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Extended headlight light-
ing function (Time elapsed
before headlights automati-
cally turn off)
30 seconds
60 seconds
——O90 seconds
120 seconds
FunctionDefault settingCustomized setting
Welcome lampOnOff——O
FunctionDefault settingCustomized setting
