2021 TOYOTA YARIS CROSS Owners Manual

135
3
YARIS CROSS Owner's Manual_Europe_M52K60_en
3-2. Opening, closing and locking the doors
Before driving
3-2.Opening, closing and lo cking th e d oors
■Using the entry function (vehi-
cles with a smart entry & start
system)
Carry the electronic key to enable
this function.
1 Grip the front door handle to
unlock all the doors.
Make sure to touch the sensor on the
back of the handle.
The doors cannot be unlocked for 3
seconds after the doors are locked.
2 Touch the lock sensor (the
indentation on the side of the
front door handle) to lock all the
doors.
Check that the door is securely locked.
■Wireless remote control
Vehicles without a smart entry &
start system
1 Locks all the doors
Check that the door is securely locked.
Press and hold to close the windows.*
2 Unlocks all the doors
Press and hold to open the windows.*
Vehicles with a smart entry &
start system
1 Locks all the doors
Check that the door is securely locked.
Press and hold to close the windows.*
2 Unlocks all the doors
Press and hold to open the windows.*
*: This setting must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
Side doors
Unlocking and locking the
doors from the outside

136
YARIS CROSS Owner's Manual_Europe_M52K60_en
3-2. Opening, closing and locking the doors
■Key
Turning the key operates the doors
as follows:
Vehicles without a smart entry &
start system
1 Locks all the doors
Turn and hold to close the windows.*
2Unlocks all the doors
Turn and hold to open the windows.*
*: This setting must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
Vehicles with a smart entry &
start system
The doors can also be locked and
unlocked with the mechanical key.
( P.474)
■Operation signals
Vehicles without a smart entry & start system
The emergency flashers flash to indicate
that the doors have been
locked/unlocked using the wireless
remote control. (Locked: Once;
Unlocked: Twice)
Vehicles with a smart entry & start system
The emergency flashers flash to indicate
that the doors have been
locked/unlocked using the entry function
or wireless remote control. (Locked:
Once; Unlocked: Twice)
A buzzer sounds to indicate that the win-
dows are operating.
■Security feature
Vehicles without a smart entry & start
system
If a door is not opened within approxi-
mately 30 seconds after the vehicle is
unlocked using the wireless remote con-
trol, the security feature automatically
locks the vehicle again.
Vehicles with a smart entry & start system
If a door is not opened within approxi-
mately 30 seconds after the vehicle is
unlocked using the entry function or
wireless remote control, the security fea-
ture automatically locks the vehicle
again. (However, depending on the loca-
tion of the electronic key, the key may
be detected as being in the vehicle. In
this case, vehicle may remain
unlocked.)
■When the door cannot be locked by
the lock sensor on the surface of the front door handle (vehicles with a smart entry & start system)
If the doors cannot be locked by touch- ing the lock sensor with a finger, touch the lock sensor with the palm of your
hand.
If you are wearing gloves, remove them.

137
3
YARIS CROSS Owner's Manual_Europe_M52K60_en
3-2. Opening, closing and locking the doors
Before driving
■Door lock buzzer (vehicles with a
smart entry & start system)
If an attempt to lock the doors using the entry function or wireless remote control
is made when a door is not fully closed, a buzzer will sound continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the doors again.
■Alarm (if equipped)
Locking the doors will set the alarm sys- tem. ( P.86)
■Conditions affecting the operation
of the smart entry & start system or wireless remote control
Vehicles without a smart entry & start
system
 P. 1 3 3
Vehicles with a smart entry & start system
 P. 1 5 4
■If the smart entry & start system or
the wireless remote control does not operate properly
Vehicles without a smart entry & start
system
Replace the key battery with a new one
if it is depleted. ( P.415)
Vehicles with a smart entry & start system
Use the mechanical key to lock and
unlock the doors. ( P.474)
Replace the key battery with a new one
if it is depleted. ( P.415)
■If the 12-volt battery is discharged
(vehicles with a smart entry & start system)
The doors cannot be locked and
unlocked using the entry function or wireless remote control. Lock or unlock the doors using the mechanical key.
( P.474)
■Rear seat reminder function
●In order to remind you not to forget
luggage, etc., in the rear seat, when the power switch is turned to OFF
after any of the following conditions
are met, a buzzer will sound and a message will be displayed on the multi-information display for approxi-
mately 6 seconds. • The hybrid system is started within 10 minutes after opening and closing a
rear door. • A rear door has been opened and closed after the hybrid system was
started.
However, if a rear door is opened and
then closed within approximately 2 sec-
onds, the rear seat reminder function
may not operate.
●The rear seat reminder function deter-
mines that luggage, etc., has been placed in a rear seat based on open-ing and closing of a rear door. There-
fore, depending on the situation, the rear seat reminder function may not operate and you may still forget lug-
gage, etc., in the rear seat, or it may operate unnecessarily.
●The rear seat reminder function can be enabled/disabled. ( P.498)
■Customization
Some functions can be customized.
( P.498)
WARNING
■To prevent an accident
Observe the following precautions
while driving the vehicle. Failure to do so may result in a door opening and an occupant being
thrown out of the vehicle, resulting in death or serious injury.
●Ensure that all doors are properly closed and locked.
●Do not pull the inside door handle while driving.Be especially careful of the front
doors, as the doors may be opened even if the inside lock buttons are in the locked position.

138
YARIS CROSS Owner's Manual_Europe_M52K60_en
3-2. Opening, closing and locking the doors
■Door lock switches (to
lock/unlock)
1 Locks all the doors
2 Unlocks all the doors
■Inside lock buttons
1 Locks the door
2 Unlocks the door
The front doors can be opened by pull-
ing the inside handle even if the lock
buttons are in the lock position.
■Locking the front doors from the outside without a key
1 Move the inside lock button to the
lock position.
2 Close the door while pulling the door handle.
Vehicles without a smart entry & start
system
The door cannot be locked if the key is
in the power switch.
Vehicles with a smart entry & start system
The door cannot be locked if the power
switch is in ACC or ON, or the electronic
key is left inside the vehicle.
The key may not be detected correctly
and the door may be locked.
■Open door warning buzzer
If a door or the back door is not fully closed, a buzzer will sound when the vehicle speed reaches 5 km/h (3 mph).
The open door(s) or back door is indi- cated on the multi-information display.
WARNING
●Set the rear door child-protector locks when children are seated in
the rear seats.
■When opening or closing a door
Check the surroundings of the vehicle such as whether the vehicle is on an incline, whether there is enough
space for a door to open and whether a strong wind is blowing. When open-ing or closing the door, hold the door
handle tightly to prepare for any unpredictable movement.
■When using the wireless remote control or the key and operating the power windows
Operate the power windows after checking to make sure that there is no possibility of any passenger having
any of their body parts caught in the windows. Also, do not allow children to operate the wireless remote control
or the key. It is possible for children and other passengers to get caught in the power windows.
Unlocking and locking the
doors from the inside

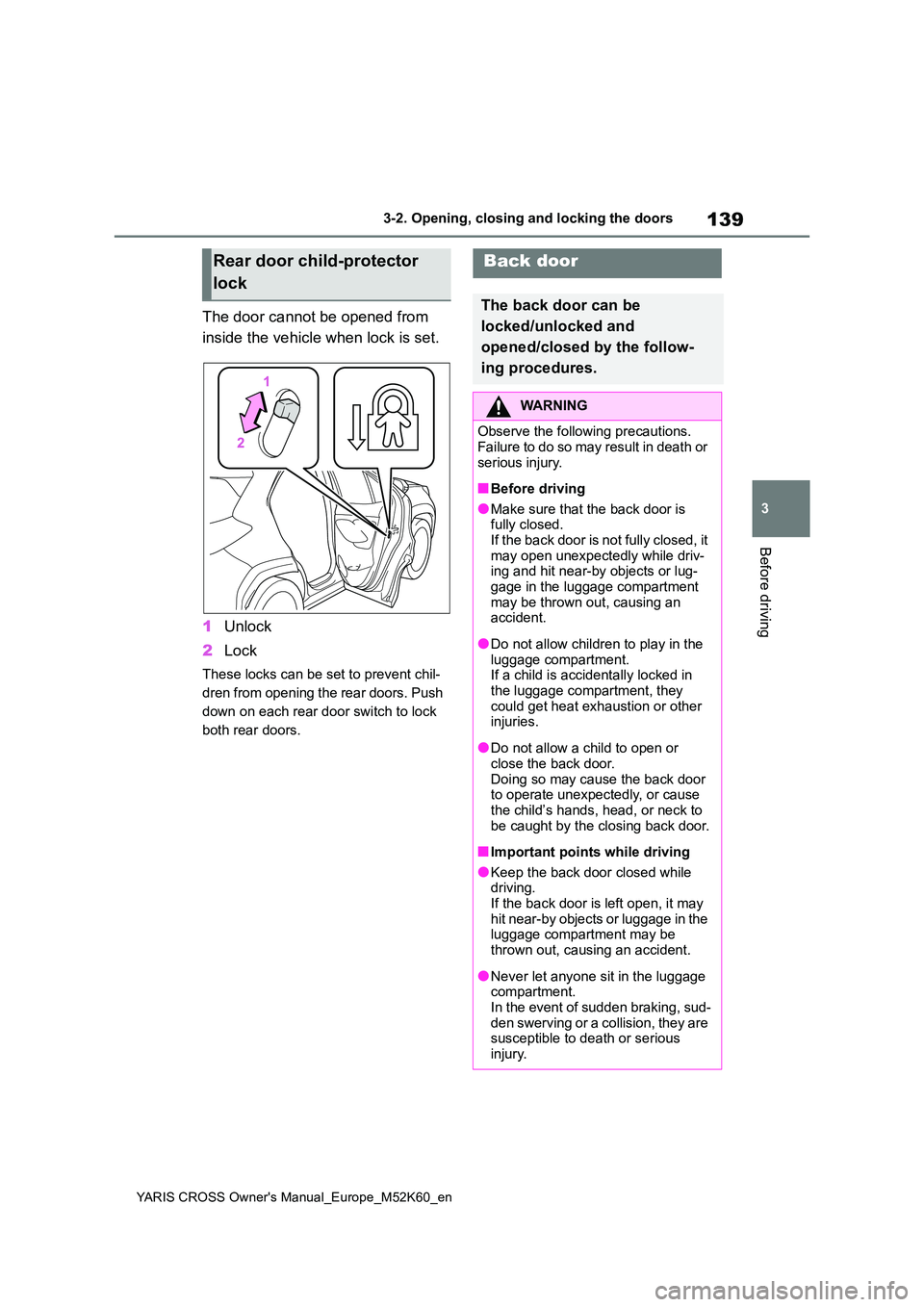

139
3
YARIS CROSS Owner's Manual_Europe_M52K60_en
3-2. Opening, closing and locking the doors
Before driving
The door cannot be opened from
inside the vehicle when lock is set.
1 Unlock
2 Lock
These locks can be set to prevent chil-
dren from opening the rear doors. Push
down on each rear door switch to lock
both rear doors.
Rear door child-protector
lock
Back door
The back door can be
locked/unlocked and
opened/closed by the follow-
ing procedures.
WARNING
Observe the following precautions. Failure to do so may result in death or
serious injury.
■Before driving
●Make sure that the back door is fully closed. If the back door is not fully closed, it
may open unexpectedly while driv- ing and hit near-by objects or lug-gage in the luggage compartment
may be thrown out, causing an accident.
●Do not allow children to play in the luggage compartment.If a child is accidentally locked in
the luggage compartment, they could get heat exhaustion or other injuries.
●Do not allow a child to open or close the back door.
Doing so may cause the back door to operate unexpectedly, or cause the child’s hands, head, or neck to
be caught by the closing back door.
■Important points while driving
●Keep the back door closed while driving.If the back door is left open, it may
hit near-by objects or luggage in the luggage compartment may be thrown out, causing an accident.
●Never let anyone sit in the luggage compartment.
In the event of sudden braking, sud- den swerving or a collision, they are susceptible to death or serious
injury.

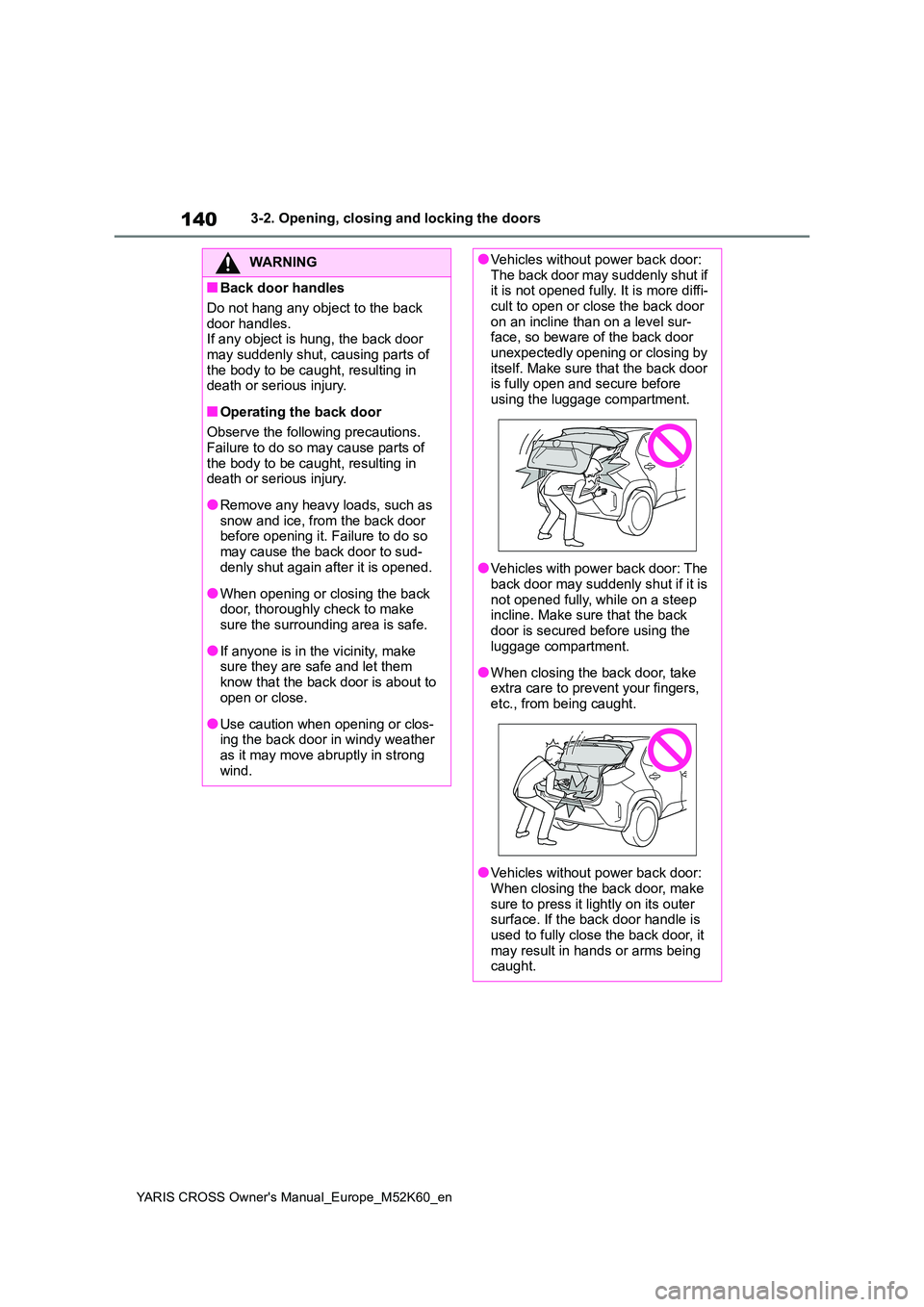

140
YARIS CROSS Owner's Manual_Europe_M52K60_en
3-2. Opening, closing and locking the doors
WARNING
■Back door handles
Do not hang any object to the back
door handles. If any object is hung, the back door may suddenly shut, causing parts of
the body to be caught, resulting in death or serious injury.
■Operating the back door
Observe the following precautions. Failure to do so may cause parts of
the body to be caught, resulting in death or serious injury.
●Remove any heavy loads, such as snow and ice, from the back door before opening it. Failure to do so
may cause the back door to sud- denly shut again after it is opened.
●When opening or closing the back door, thoroughly check to make sure the surrounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them
know that the back door is about to open or close.
●Use caution when opening or clos-ing the back door in windy weather as it may move abruptly in strong
wind.
●Vehicles without power back door: The back door may suddenly shut if it is not opened fully. It is more diffi-
cult to open or close the back door on an incline than on a level sur-face, so beware of the back door
unexpectedly opening or closing by itself. Make sure that the back door is fully open and secure before
using the luggage compartment.
●Vehicles with power back door: The
back door may suddenly shut if it is not opened fully, while on a steep incline. Make sure that the back
door is secured before using the luggage compartment.
●When closing the back door, take extra care to prevent your fingers, etc., from being caught.
●Vehicles without power back door: When closing the back door, make
sure to press it lightly on its outer surface. If the back door handle is used to fully close the back door, it
may result in hands or arms being caught.

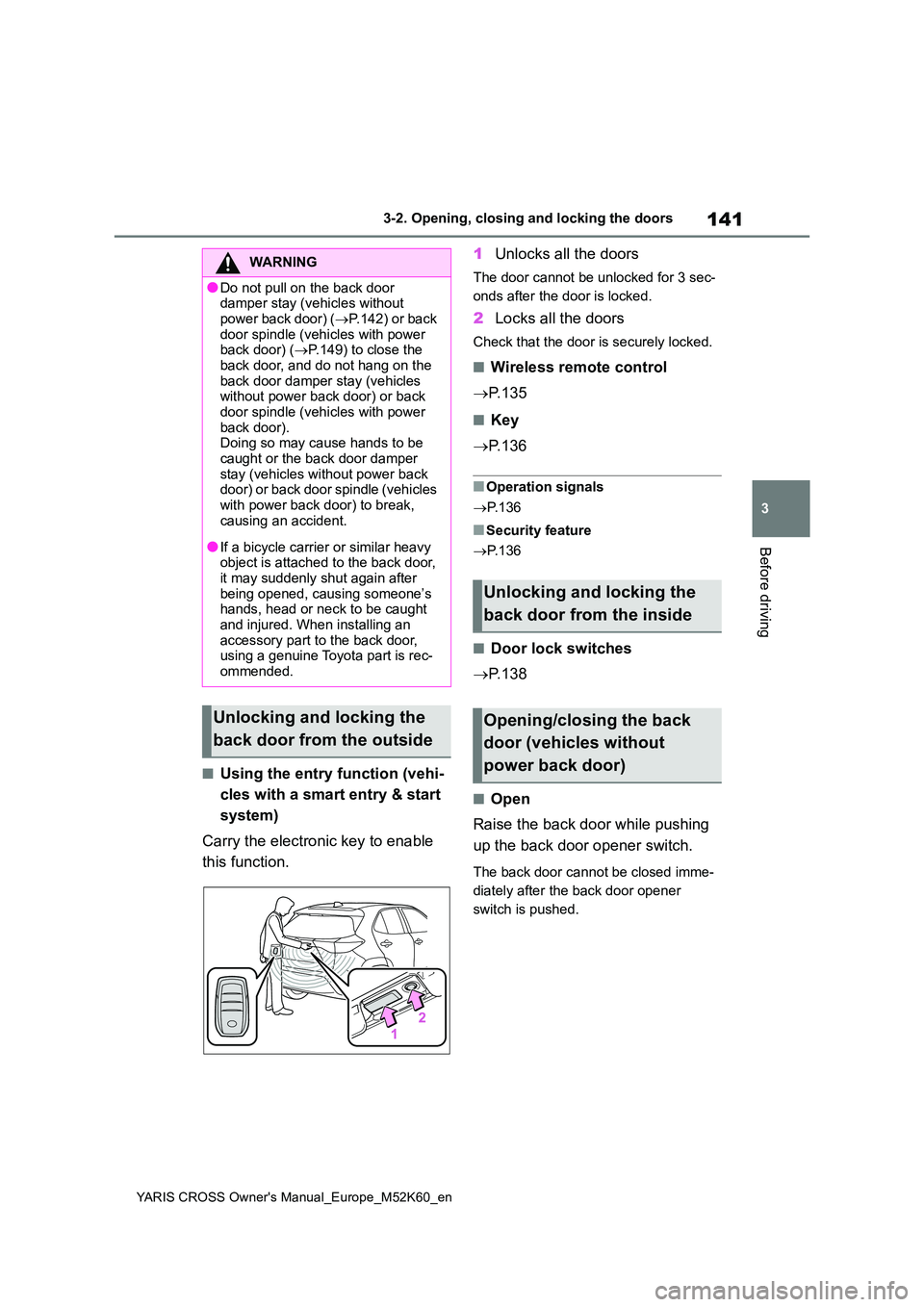

141
3
YARIS CROSS Owner's Manual_Europe_M52K60_en
3-2. Opening, closing and locking the doors
Before driving
■Using the entry function (vehi-
cles with a smart entry & start
system)
Carry the electronic key to enable
this function.
1 Unlocks all the doors
The door cannot be unlocked for 3 sec-
onds after the door is locked.
2 Locks all the doors
Check that the door is securely locked.
■Wireless remote control
 P. 1 3 5
■Key
 P. 1 3 6
■Operation signals
 P. 1 3 6
■Security feature
 P. 1 3 6
■Door lock switches
 P. 1 3 8
■Open
Raise the back door while pushing
up the back door opener switch.
The back door cannot be closed imme-
diately after the back door opener
switch is pushed.
WARNING
●Do not pull on the back door damper stay (vehicles without
power back door) ( P.142) or back door spindle (vehicles with power back door) ( P.149) to close the
back door, and do not hang on the back door damper stay (vehicles without power back door) or back
door spindle (vehicles with power back door).Doing so may cause hands to be
caught or the back door damper stay (vehicles without power back door) or back door spindle (vehicles
with power back door) to break, causing an accident.
●If a bicycle carrier or similar heavy object is attached to the back door, it may suddenly shut again after
being opened, causing someone’s hands, head or neck to be caught and injured. When installing an
accessory part to the back door, using a genuine Toyota part is rec-ommended.
Unlocking and locking the
back door from the outside
Unlocking and locking the
back door from the inside
Opening/closing the back
door (vehicles without
power back door)

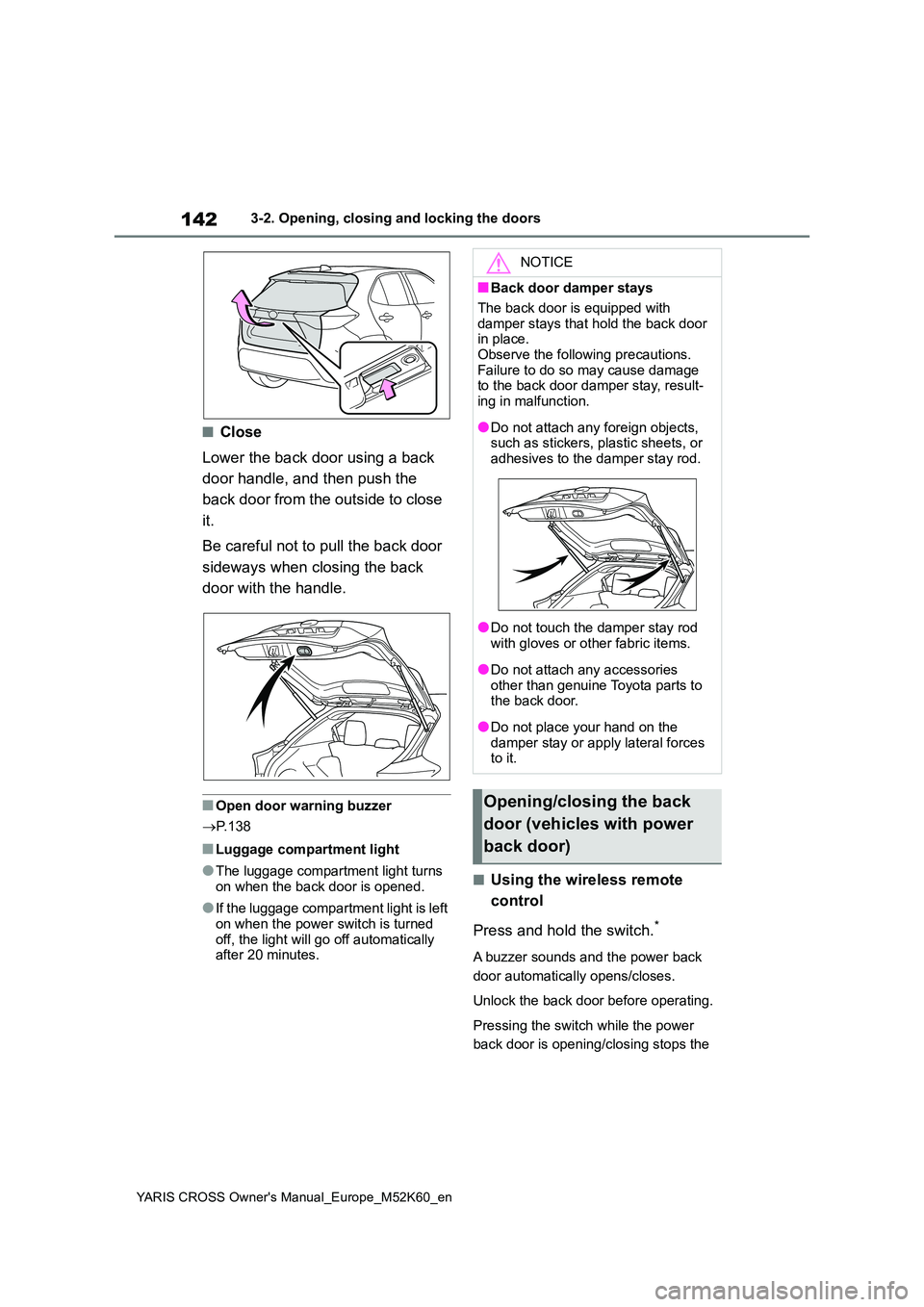

142
YARIS CROSS Owner's Manual_Europe_M52K60_en
3-2. Opening, closing and locking the doors
■Close
Lower the back door using a back
door handle, and then push the
back door from the outside to close
it.
Be careful not to pull the back door
sideways when closing the back
door with the handle.
■Open door warning buzzer
 P. 1 3 8
■Luggage compartment light
●The luggage compartment light turns
on when the back door is opened.
●If the luggage compartment light is left
on when the power switch is turned off, the light will go off automatically after 20 minutes.
■Using the wireless remote
control
Press and hold the switch.*
A buzzer sounds and the power back
door automatically opens/closes.
Unlock the back door before operating.
Pressing the switch while the power
back door is opening/closing stops the
NOTICE
■Back door damper stays
The back door is equipped with
damper stays that hold the back door in place.Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, result-ing in malfunction.
●Do not attach any foreign objects, such as stickers, plastic sheets, or
adhesives to the damper stay rod.
●Do not touch the damper stay rod
with gloves or other fabric items.
●Do not attach any accessories
other than genuine Toyota parts to the back door.
●Do not place your hand on the damper stay or apply lateral forces to it.
Opening/closing the back
door (vehicles with power
back door)
