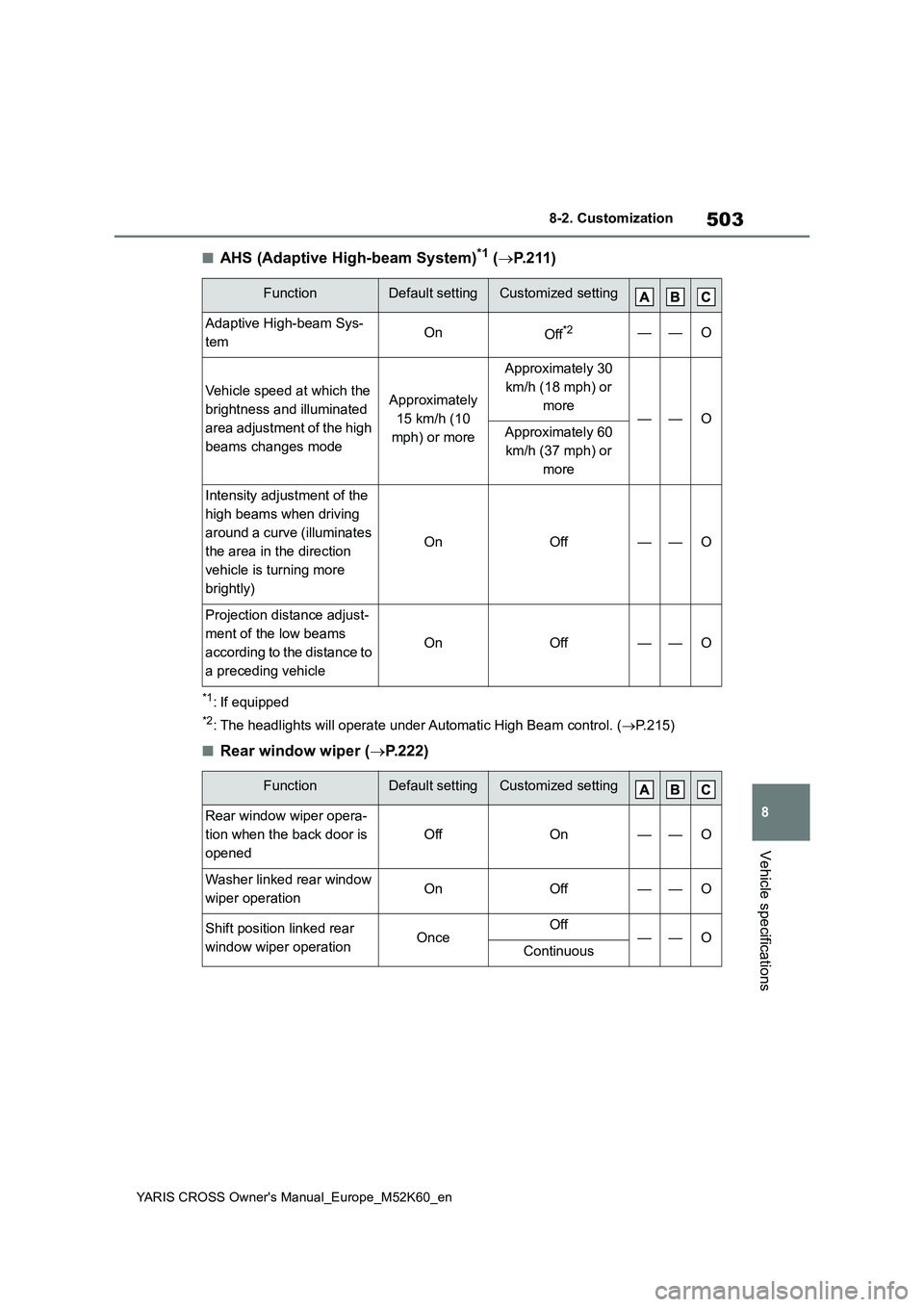

2021 TOYOTA YARIS CROSS Owners Manual

503
8
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-2. Customization
Vehicle specifications
■AHS (Adaptive High-beam System)*1 (P.211)
*1: If equipped
*2: The headlights will operate under Automatic High Beam control. (P.215)
■Rear window wiper (P.222)
FunctionDefault settingCustomized setting
Adaptive High-beam Sys-
temOnOff*2——O
Vehicle speed at which the
brightness and illuminated
area adjustment of the high
beams changes mode
Approximately
15 km/h (10
mph) or more
Approximately 30
km/h (18 mph) or
more——OApproximately 60
km/h (37 mph) or
more
Intensity adjustment of the
high beams when driving
around a curve (illuminates
the area in the direction
vehicle is turning more
brightly)
OnOff——O
Projection distance adjust-
ment of the low beams
according to the distance to
a preceding vehicle
OnOff——O
FunctionDefault settingCustomized setting
Rear window wiper opera-
tion when the back door is
opened
OffOn——O
Washer linked rear window
wiper operationOnOff——O
Shift position linked rear
window wiper operationOnceOff——OContinuous

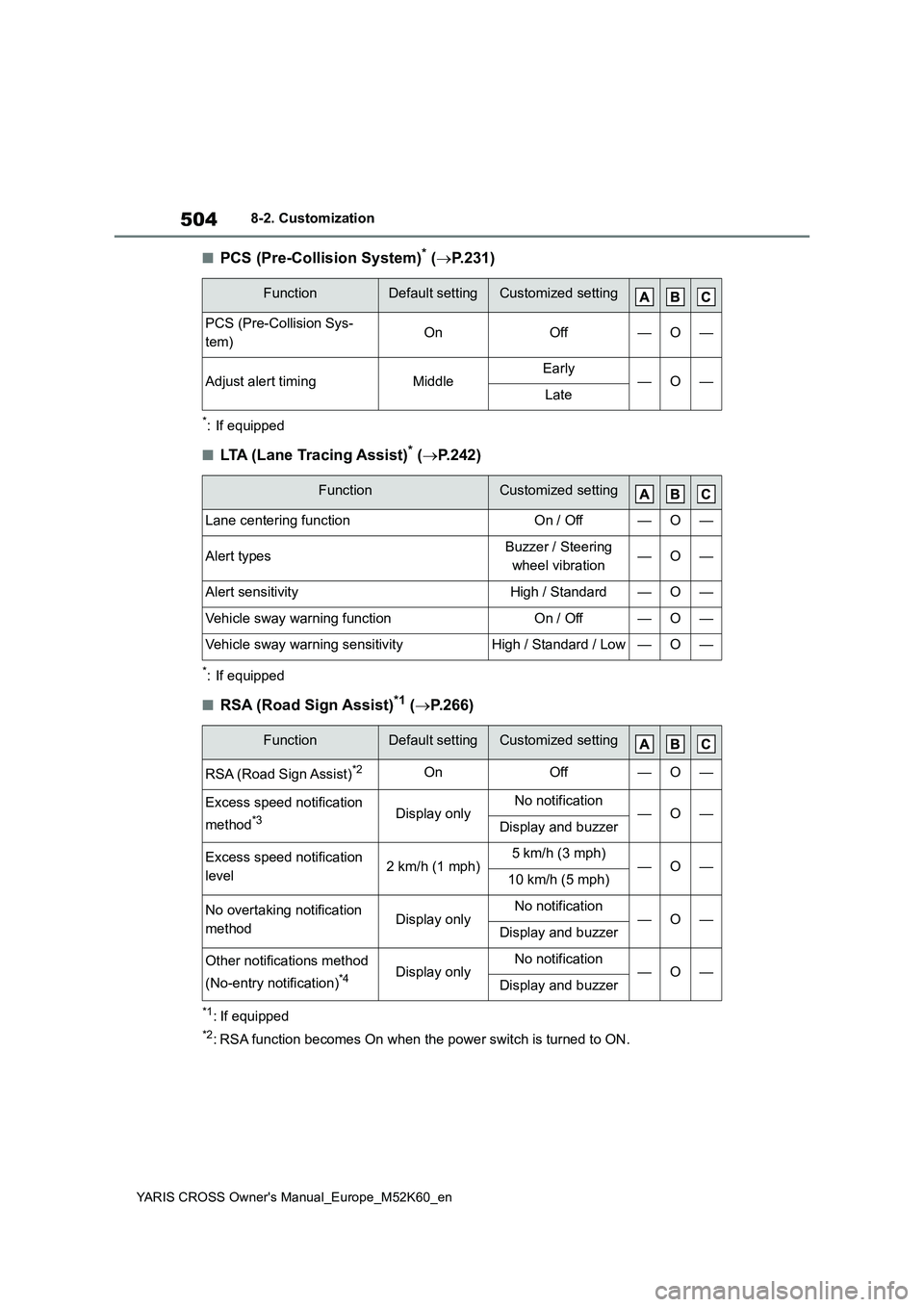

504
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-2. Customization
■PCS (Pre-Collision System)* (P.231)
*: If equipped
■LTA (Lane Tracing Assist)* (P.242)
*: If equipped
■RSA (Road Sign Assist)*1 (P.266)
*1: If equipped
*2: RSA function becomes On when the power switch is turned to ON.
FunctionDefault settingCustomized setting
PCS (Pre-Collision Sys-
tem)OnOff—O—
Adjust alert timingMiddleEarly—O—Late
FunctionCustomized setting
Lane centering functionOn / Off—O—
Alert typesBuzzer / Steering
wheel vibration—O—
Alert sensitivityHigh / Standard—O—
Vehicle sway warning functionOn / Off—O—
Vehicle sway warning sensitivityHigh / Standard / Low—O—
FunctionDefault settingCustomized setting
RSA (Road Sign Assist)*2OnOff—O—
Excess speed notification
method*3Display onlyNo notification—O—Display and buzzer
Excess speed notification
level2 km/h (1 mph)5 km/h (3 mph)—O—10 km/h (5 mph)
No overtaking notification
methodDisplay onlyNo notification—O—Display and buzzer
Other notifications method
(No-entry notification)*4Display onlyNo notification—O—Display and buzzer

505
8
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-2. Customization
Vehicle specifications
*3: If a speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
*4: Vehicles with 7-inch/8-inch display navigation system
■Dynamic radar cruise control with full-speed range* ( P. 2 5 2 )
*: If equipped
■BSM (Blind Spot Monitor)* (P.270)
*: If equipped
■Toyota parking assist-sensor* (P.275)
*: If equipped
FunctionDefault settingCustomized setting
Radar Cruise Control with
Road Sign AssistOffOn—O—
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)
functionOnOff—O—
Outside rear view mirror
indicator brightnessBrightDim—O—
Alert timing for presence of
approaching vehicle (sensi-
tivity)
Intermediate
Early
—O—Late
Only when vehicle
detected in blind spot
FunctionDefault settingCustomized setting
Toyota parking assist-sen-
sorOnOff—O—
Buzzer volumeLevel 2Level 1—O—Level 3
Detection distance of the
front center sensorFarNear—OO
Detection distance of the
rear center sensorFarNear—OO
Detection distance of the
corner sensorFarNear——O

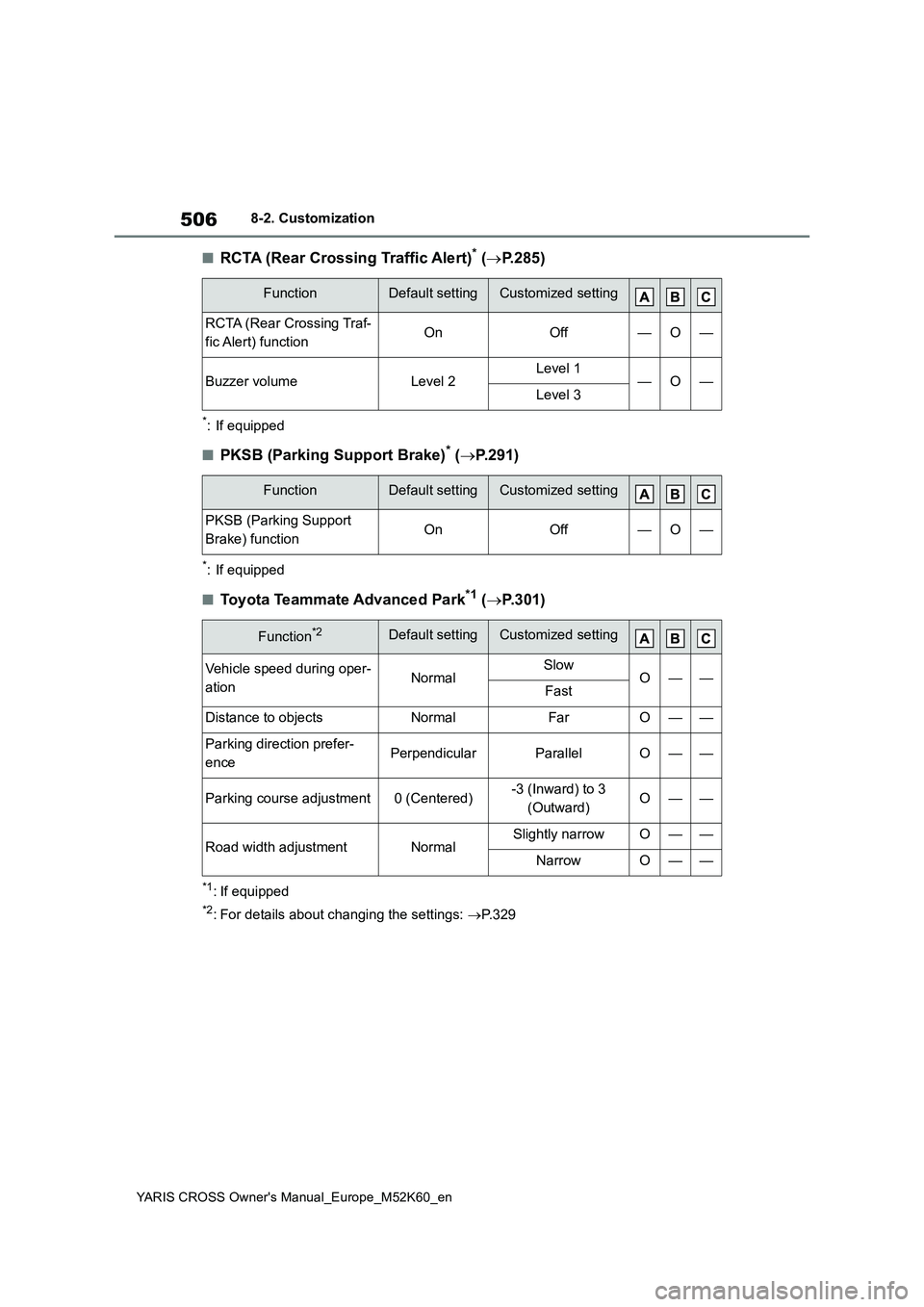

506
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-2. Customization
■RCTA (Rear Crossing Traffic Alert)* (P.285)
*: If equipped
■PKSB (Parking Support Brake)* (P.291)
*: If equipped
■Toyota Teammate Advanced Park*1 (P.301)
*1: If equipped
*2: For details about changing the settings: P. 3 2 9
FunctionDefault settingCustomized setting
RCTA (Rear Crossing Traf-
fic Alert) functionOnOff—O—
Buzzer volumeLevel 2Level 1—O—Level 3
FunctionDefault settingCustomized setting
PKSB (Parking Support
Brake) functionOnOff—O—
Function*2Default settingCustomized setting
Vehicle speed during oper-
ationNormalSlowO——Fast
Distance to objectsNormalFarO——
Parking direction prefer-
encePerpendicularParallelO——
Parking course adjustment0 (Centered)-3 (Inward) to 3
(Outward)O——
Road width adjustmentNormalSlightly narrowO——
NarrowO——

507
8
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-2. Customization
Vehicle specifications
■Automatic air conditioning system (P.350)
■Rear seat reminder (P.137)
■Illumination (P.358)
*: If equipped
■Vehicle customization
When the smart entry & start system is off, Smart door unlocking cannot be cus-tomized.
■In the following situations, custom-
ize mode in which the settings can be changed through the multi-infor-mation display will automatically
be turned off
●A warning message appears after the
customize mode screen is displayed
FunctionDefault settingCustomized setting
Switching between outside
air and recirculated air
mode linked to automatic
mode switch operation
OnOffO—O
FunctionDefault settingCustomized setting
Indication to prevent mis-
placement in the rear seatOnOff—O—
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person*
OnOff——O
Footwell lights*, front con-
sole light and door trim
lights*
OnOff——O

508
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-2. Customization
●The power switch is turned off.
●The vehicle begins to move while the customize mode screen is displayed.

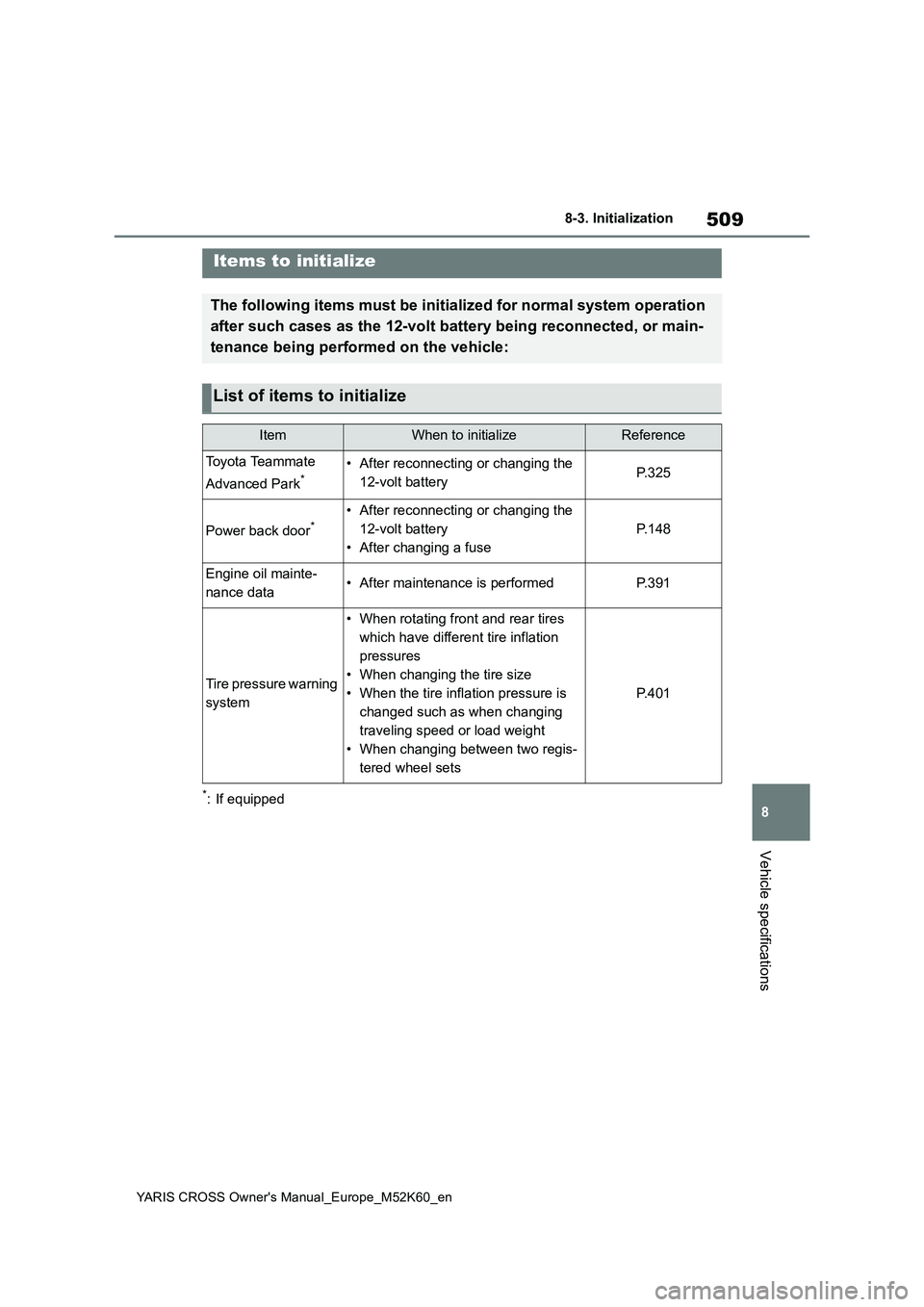

509
8
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-3. Initialization
Vehicle specifications
8- 3. In it ia li za ti on
*: If equipped
Items to initialize
The following items must be initialized for normal system operation
after such cases as the 12-volt battery being reconnected, or m ain-
tenance being performed on the vehicle:
List of items to initialize
ItemWhen to initializeReference
Toyota Teammate
Advanced Park*• After reconnecting or changing the
12-volt batteryP. 3 2 5
Power back door*• After reconnecting or changing the
12-volt battery
• After changing a fuse
P. 1 4 8
Engine oil mainte-
nance data• After maintenance is performedP. 3 9 1
Tire pressure warning
system
• When rotating front and rear tires
which have different tire inflation
pressures
• When changing the tire size
• When the tire inflation pressure is
changed such as when changing
traveling speed or load weight
• When changing between two regis-
tered wheel sets
P. 4 0 1

510
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-3. Initialization
