2021 TOYOTA YARIS CROSS Owners Manual

359
5
YARIS CROSS Owner's Manual_Europe_M52K60_en
5-2. Using the interior lights
Interior features
Turns the lights on/off
■Illuminated entry system
The lights automatically turn on/off according to the power switch mode, the presence of the electronic key (vehicles
with entry function), whether the doors are locked/unlocked, and whether the doors are opened/closed.
■To prevent the 12-volt battery from
being discharged
If the interior lights remain on when the power switch is turned off, the lights will
go off automatically after 20 minutes.
■The interior lights may turn on automatically when
If any of the SRS airbags deploy (inflate)
or in the event of a strong rear impact, the interior lights will turn on automati-cally.
The interior lights will turn off automati- cally after approximately 20 minutes.The interior lights can be turned off man-
ually. However, in order to help prevent further collisions, it is recommended that they be left on until safety can be
ensured. (The interior lights may not turn on auto-matically depending on the force of the
impact and conditions of the collision.)
■Customization
Some functions can be customized. ( P.498)
Operating the personal
lights
NOTICE
■To prevent 12-volt battery dis- charge
Do not leave the lights on longer than necessary when the hybrid system is off.

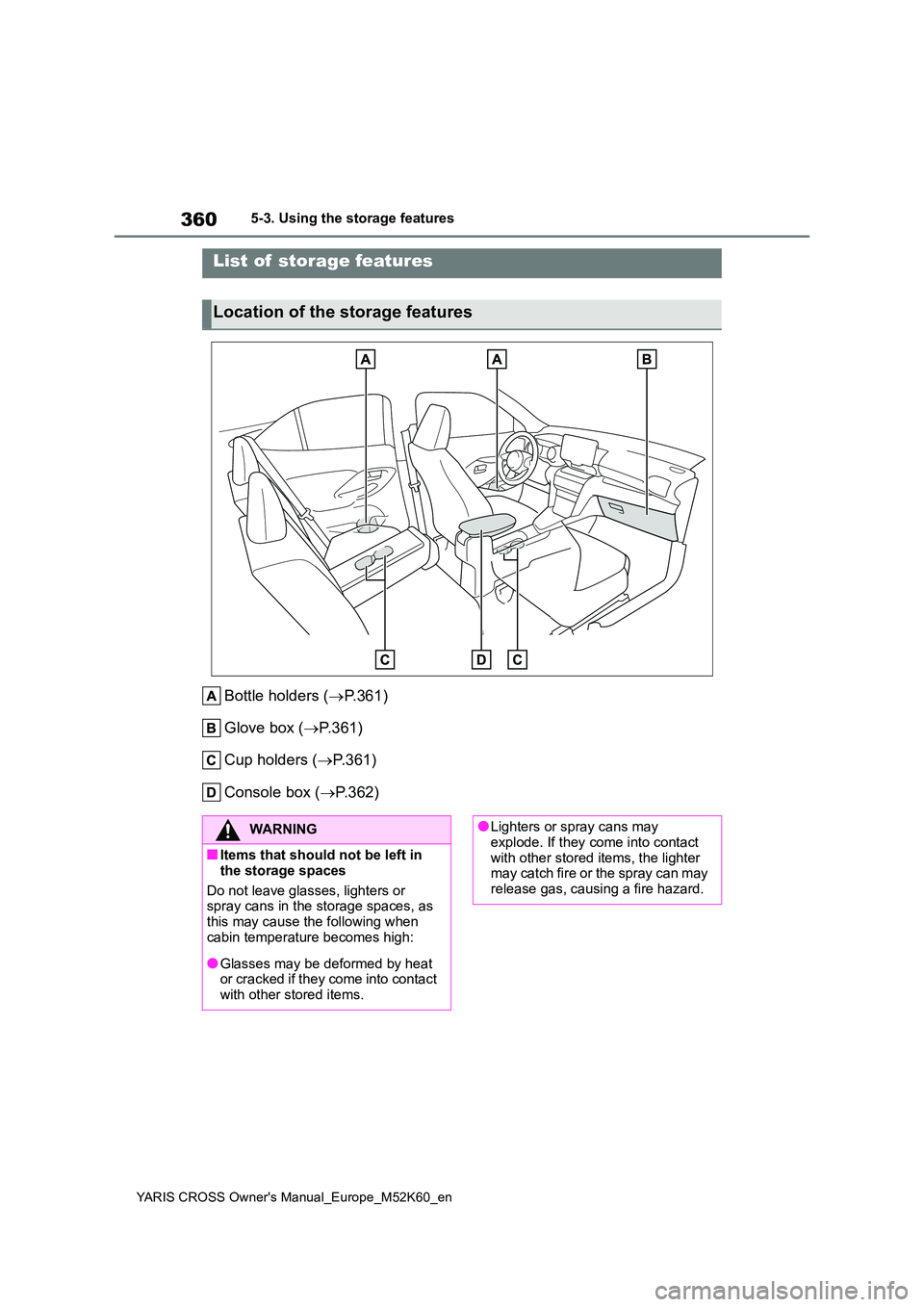

360
YARIS CROSS Owner's Manual_Europe_M52K60_en
5-3. Using the storage features
5-3.Using the s torage feature s
Bottle holders (P.361)
Glove box ( P.361)
Cup holders ( P.361)
Console box ( P.362)
List of storage features
Location of the storage features
WARNING
■Items that should not be left in
the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as
this may cause the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact with other stored items.
●Lighters or spray cans may explode. If they come into contact
with other stored items, the lighter may catch fire or the spray can may release gas, causing a fire hazard.

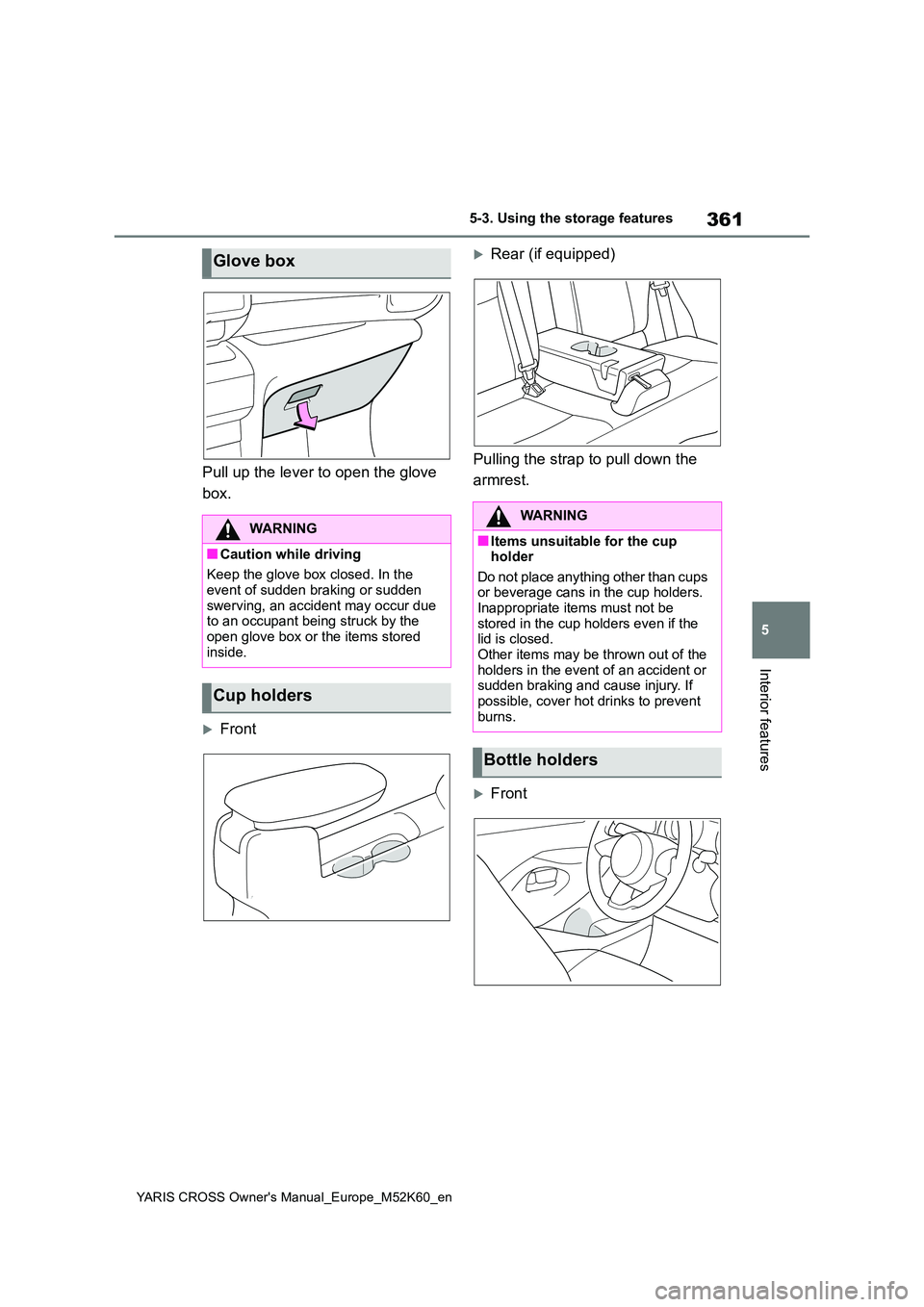

361
5
YARIS CROSS Owner's Manual_Europe_M52K60_en
5-3. Using the storage features
Interior features
Pull up the lever to open the glove
box.
Front
Rear (if equipped)
Pulling the strap to pull down the
armrest.
Front
Glove box
WARNING
■Caution while driving
Keep the glove box closed. In the
event of sudden braking or sudden swerving, an accident may occur due to an occupant being struck by the
open glove box or the items stored inside.
Cup holders
WARNING
■Items unsuitable for the cup holder
Do not place anything other than cups or beverage cans in the cup holders.
Inappropriate items must not be stored in the cup holders even if the lid is closed.
Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury. If
possible, cover hot drinks to prevent burns.
Bottle holders

362
YARIS CROSS Owner's Manual_Europe_M52K60_en
5-3. Using the storage features
Rear
■Bottle holders
●When storing a bottle, close the cap.
●The bottle may not be stored depend-
ing on its size or shape.
Lift the lid while pulling up the knob.
■When not in use
The console box can be raised to reveal a secondary console box.
WARNING
■Items unsuitable for the bottle holders
Do not place anything other than a bottle in the bottle holders.Other items may be thrown out of the
holders in the event of an accident or sudden braking and cause injury.
Console box
WARNING
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.

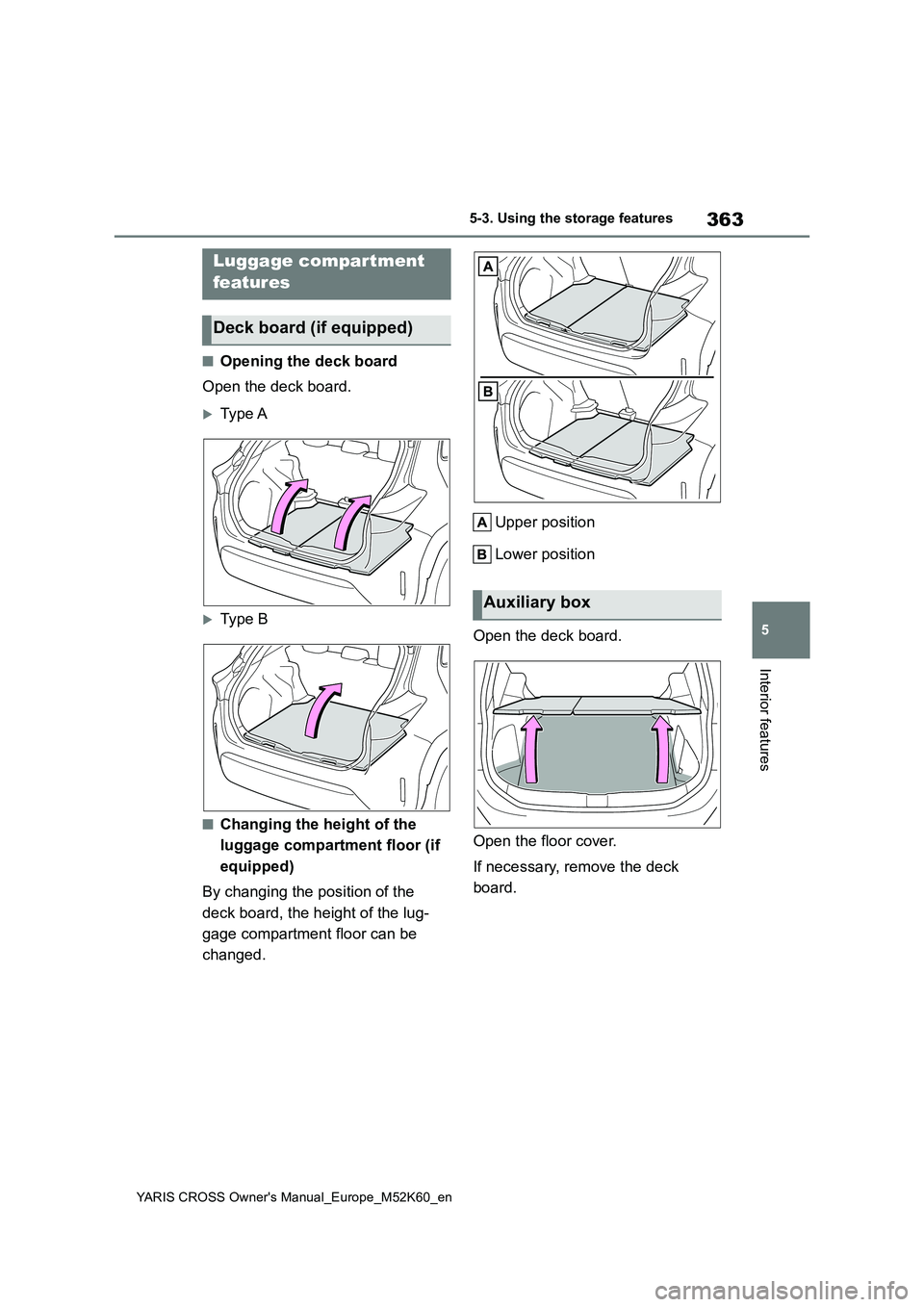

363
5
YARIS CROSS Owner's Manual_Europe_M52K60_en
5-3. Using the storage features
Interior features
■Opening the deck board
Open the deck board.
Type A
Type B
■Changing the height of the
luggage compartment floor (if
equipped)
By changing the position of the
deck board, the height of the lug-
gage compartment floor can be
changed.
Upper position
Lower position
Open the deck board.
Open the floor cover.
If necessary, remove the deck
board.
Luggage compartment
features
Deck board (if equipped)
Auxiliary box

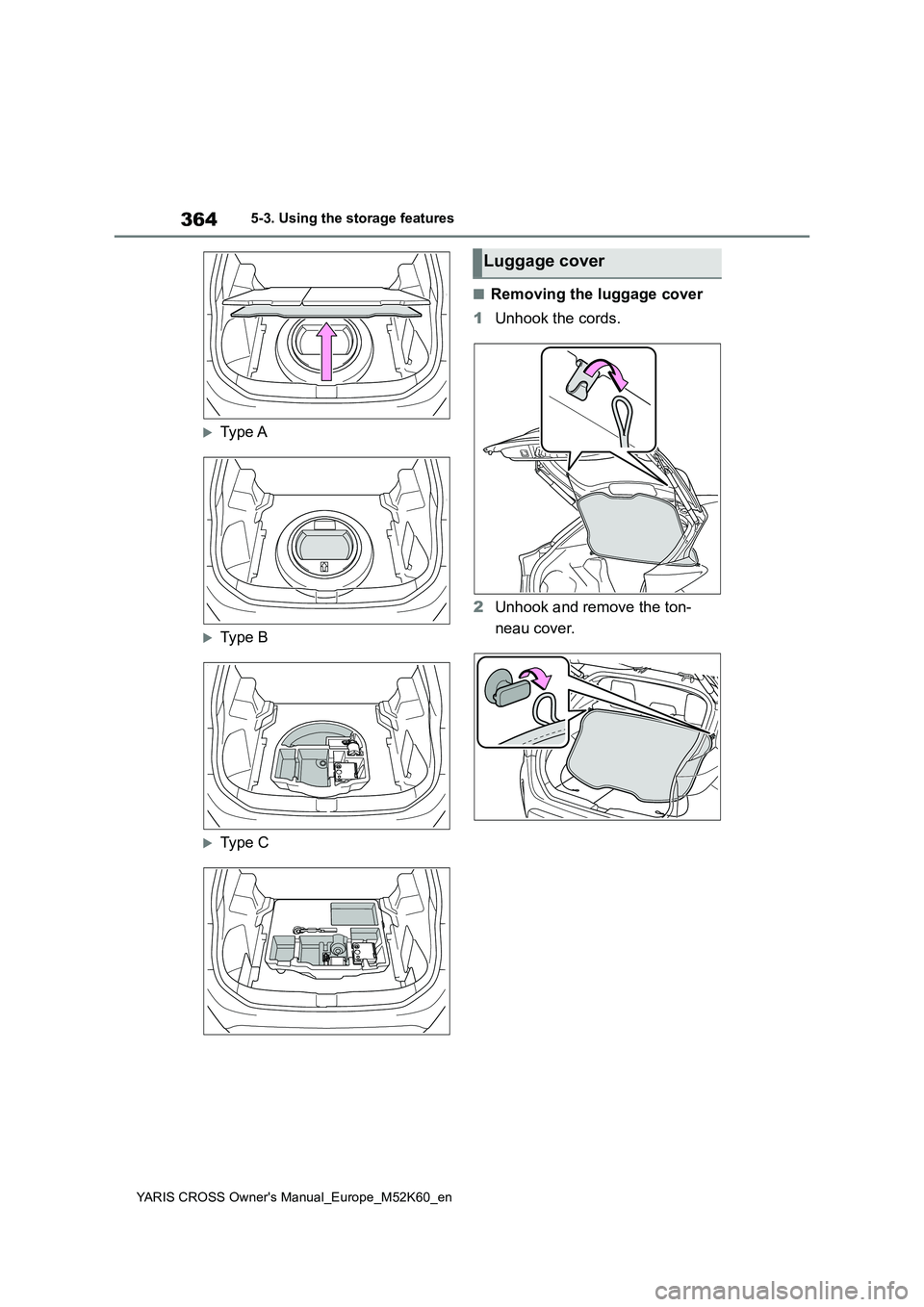

364
YARIS CROSS Owner's Manual_Europe_M52K60_en
5-3. Using the storage features
Type A
Type B
Type C
■Removing the luggage cover
1 Unhook the cords.
2 Unhook and remove the ton-
neau cover.
Luggage cover

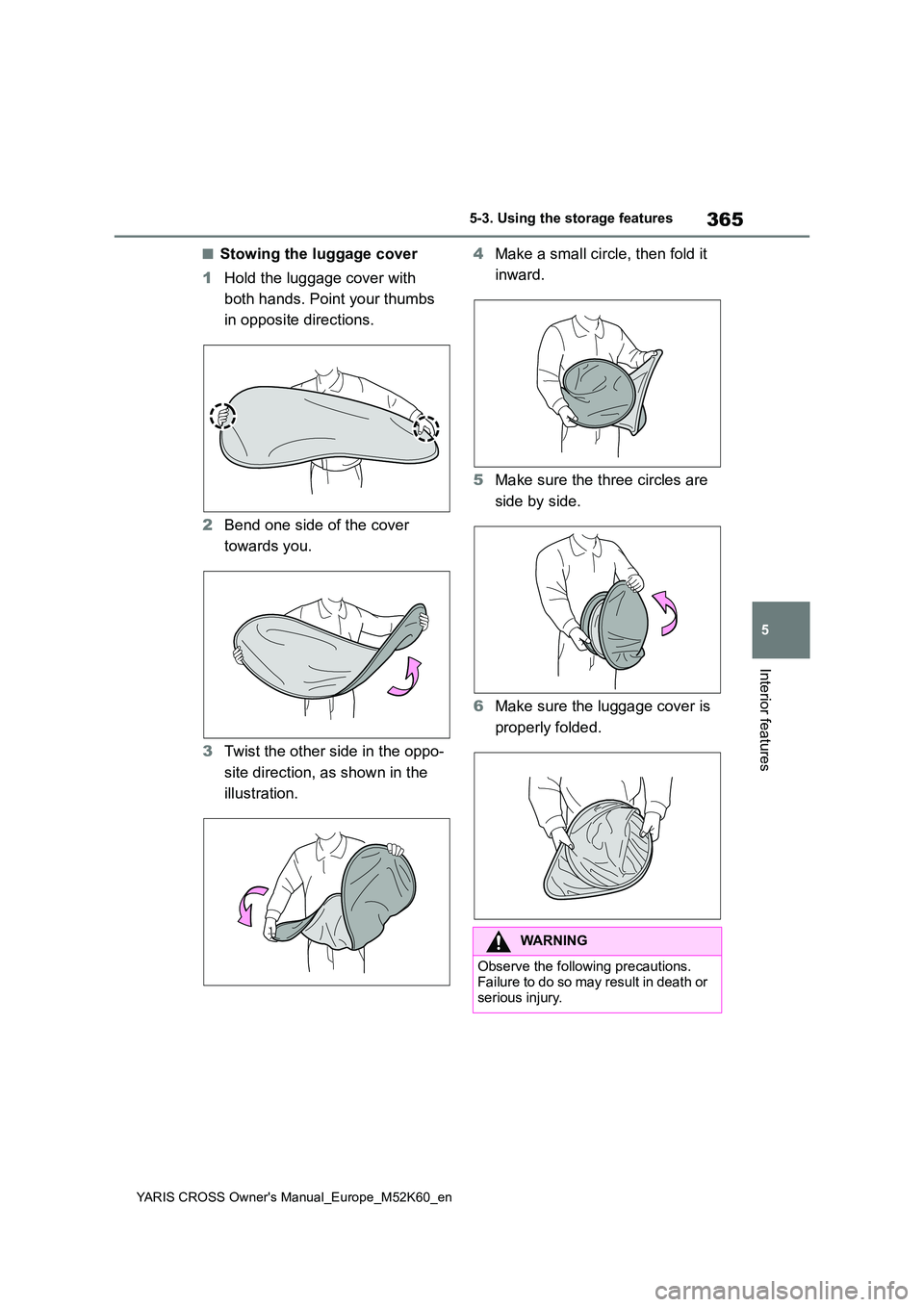

365
5
YARIS CROSS Owner's Manual_Europe_M52K60_en
5-3. Using the storage features
Interior features
■Stowing the luggage cover
1 Hold the luggage cover with
both hands. Point your thumbs
in opposite directions.
2 Bend one side of the cover
towards you.
3 Twist the other side in the oppo-
site direction, as shown in the
illustration.
4 Make a small circle, then fold it
inward.
5 Make sure the three circles are
side by side.
6 Make sure the luggage cover is
properly folded.
WARNING
Observe the following precautions. Failure to do so may result in death or
serious injury.

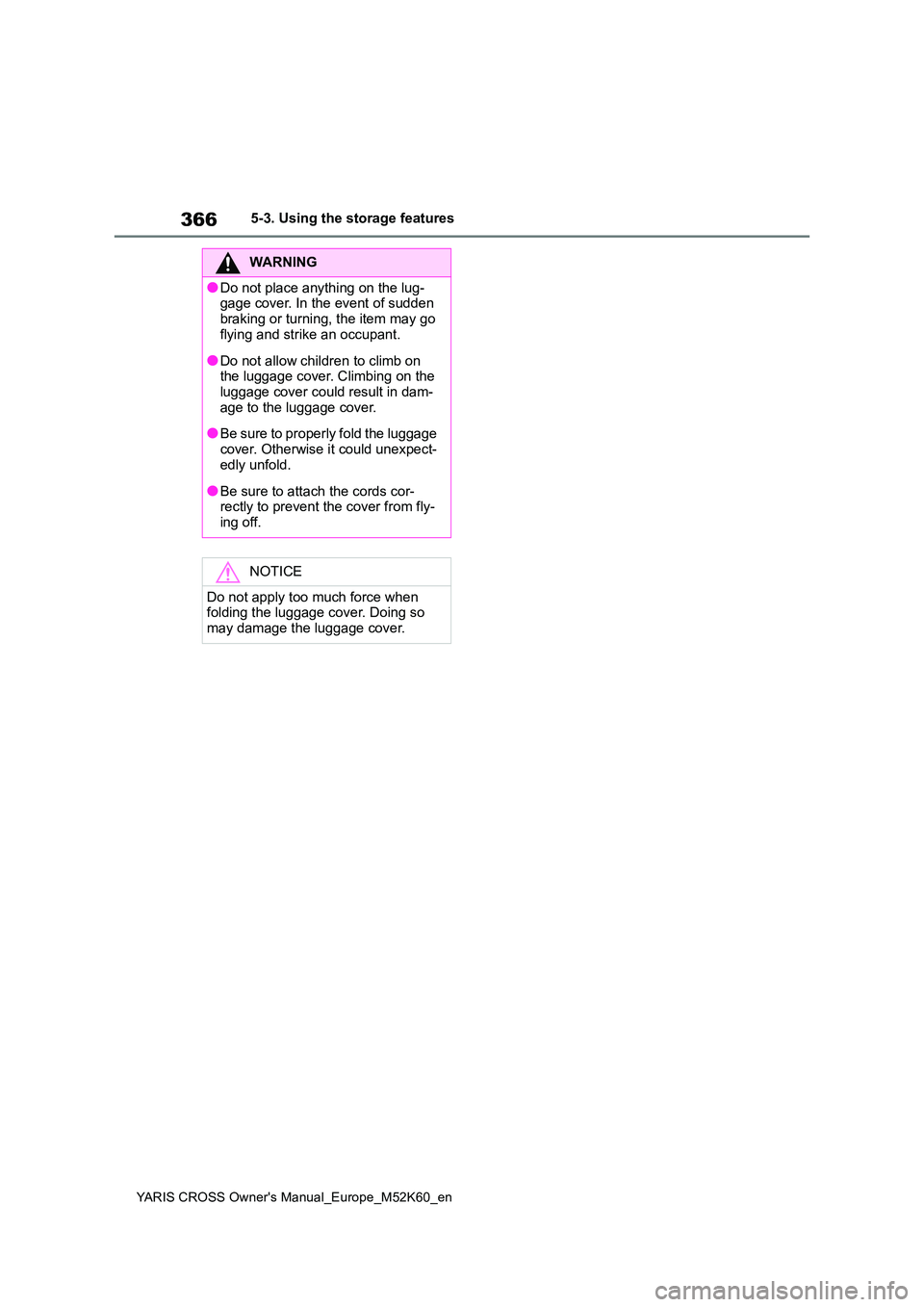

366
YARIS CROSS Owner's Manual_Europe_M52K60_en
5-3. Using the storage features
WARNING
●Do not place anything on the lug- gage cover. In the event of sudden
braking or turning, the item may go flying and strike an occupant.
●Do not allow children to climb on the luggage cover. Climbing on the luggage cover could result in dam-
age to the luggage cover.
●Be sure to properly fold the luggage
cover. Otherwise it could unexpect- edly unfold.
●Be sure to attach the cords cor-rectly to prevent the cover from fly-ing off.
NOTICE
Do not apply too much force when folding the luggage cover. Doing so may damage the luggage cover.
