Maintenance and care

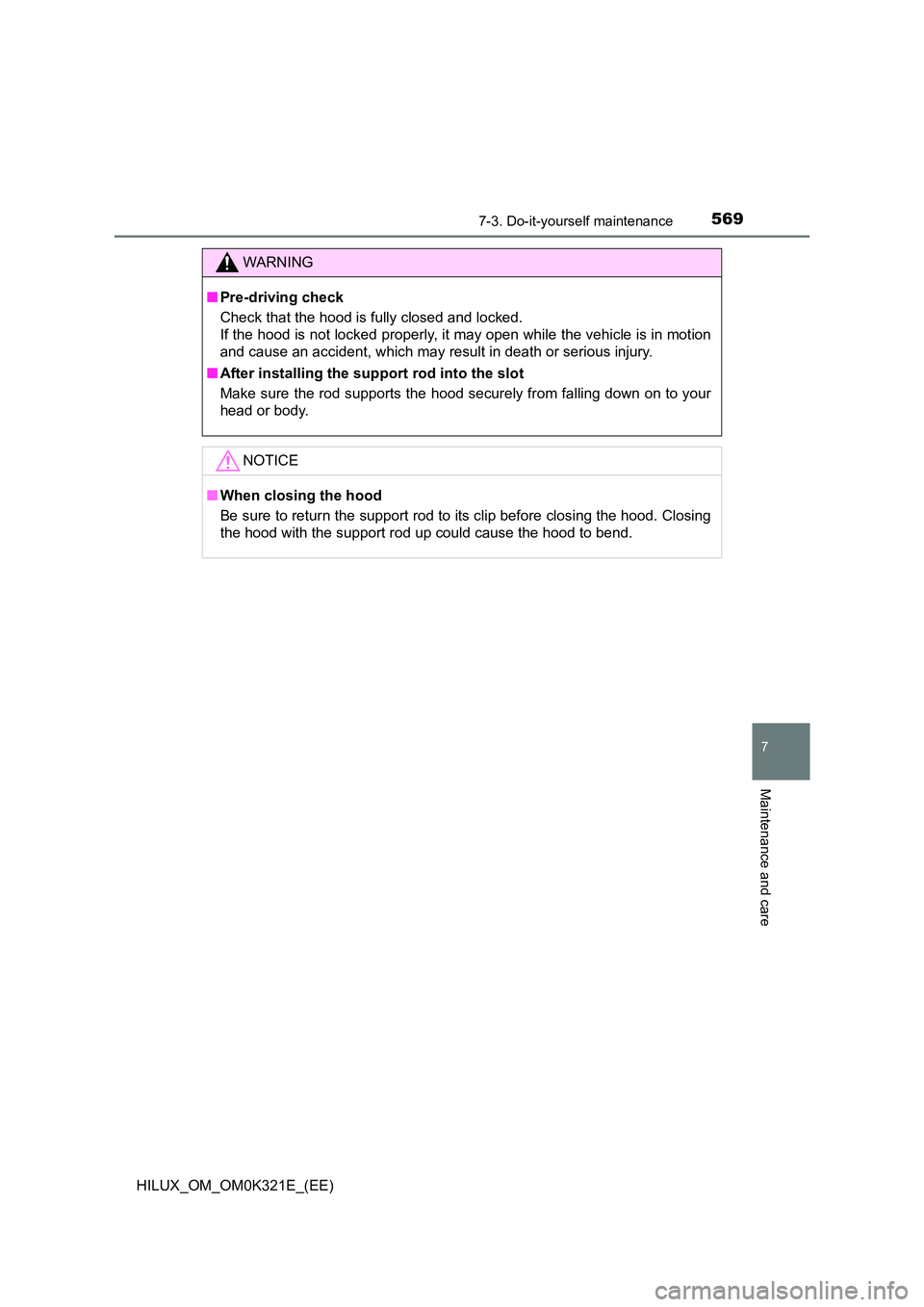

WARNING
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
NOTICE
■ When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.

5707-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
Engine compartment
Gasoline engine
Engine coolant reservoir
( P. 576)
Engine oil level dipstick
( P. 573)
Engine oil filler cap ( P. 574)
Fuse box ( P. 602)
Battery ( P. 578)
Washer fluid tank ( P. 582)
Condenser ( P. 577)
Radiator ( P. 577)
1
2
3
4
5
6
7
8

5717-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
7
Maintenance and care

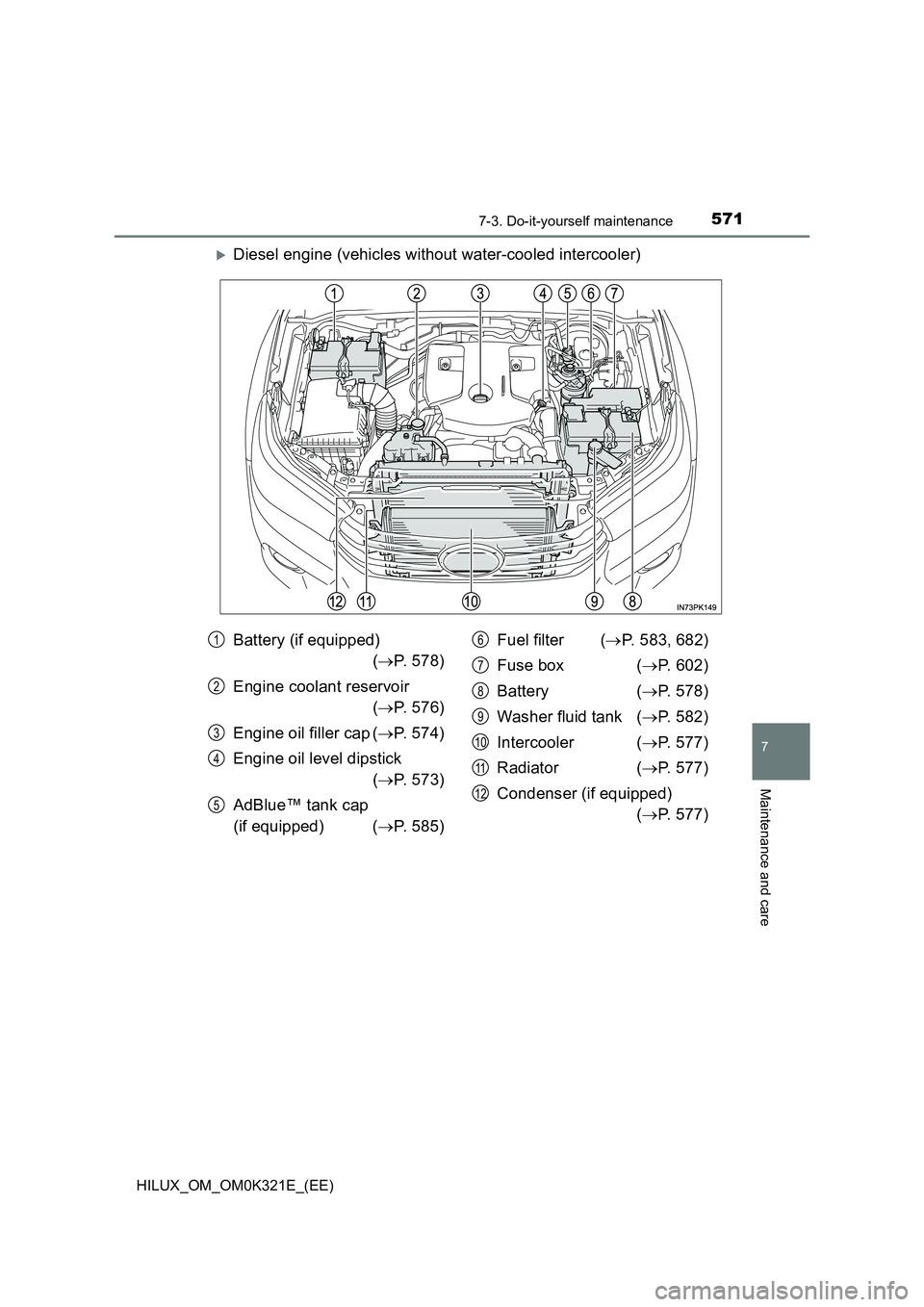

Diesel engine (vehicles without water-cooled intercooler)
Battery (if equipped)
( P. 578)
Engine coolant reservoir
( P. 576)
Engine oil filler cap ( P. 574)
Engine oil level dipstick
( P. 573)
AdBlue™ tank cap
(if equipped) ( P. 585)
Fuel filter ( P. 583, 682)
Fuse box ( P. 602)
Battery ( P. 578)
Washer fluid tank ( P. 582)
Intercooler ( P. 577)
Radiator ( P. 577)
Condenser (if equipped)
( P. 577)
1
2
3
4
5
6
7
8
9
10
11
12

5727-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)

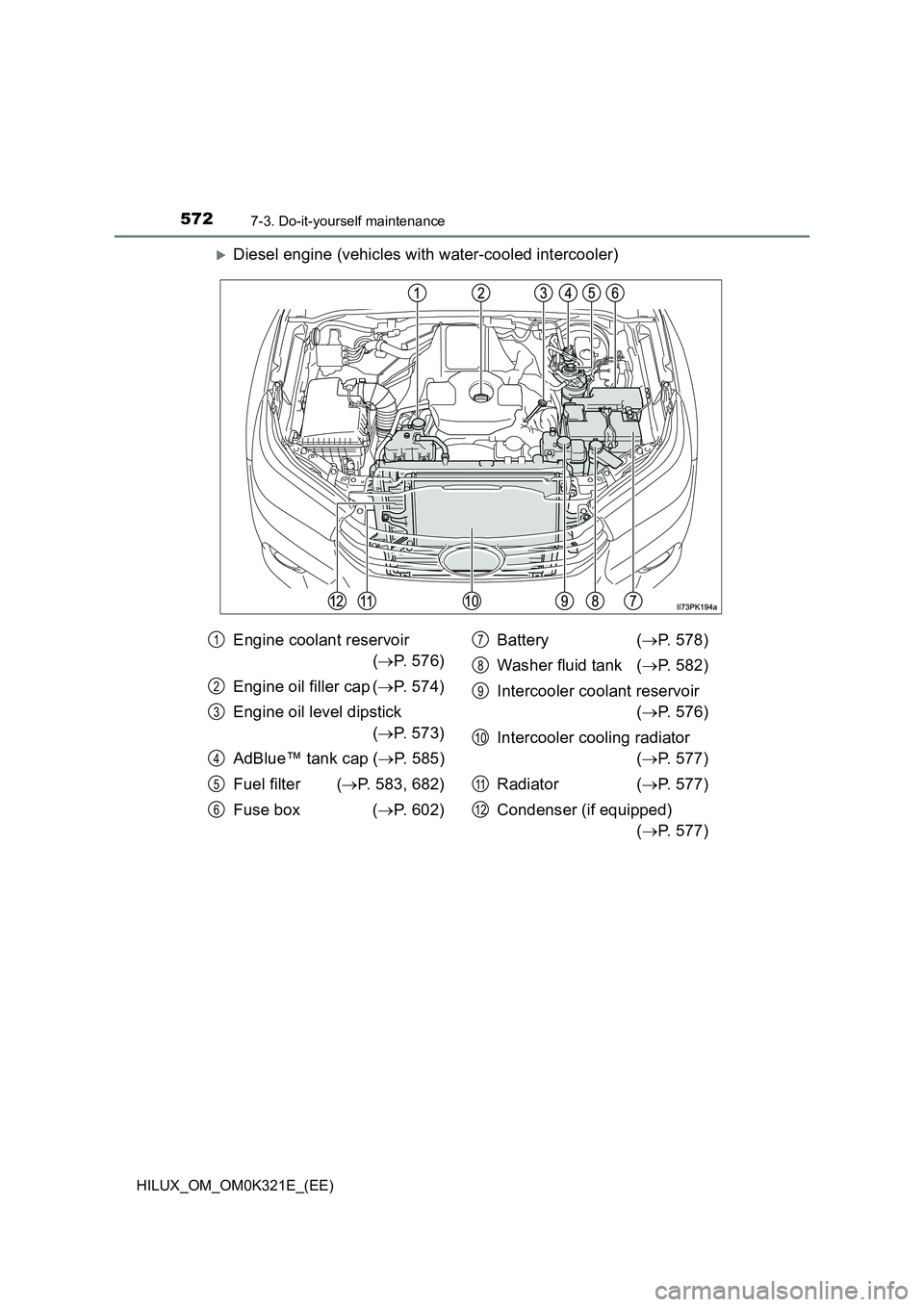

Diesel engine (vehicles with water-cooled intercooler)
Engine coolant reservoir
( P. 576)
Engine oil filler cap ( P. 574)
Engine oil level dipstick
( P. 573)
AdBlue™ tank cap ( P. 585)
Fuel filter ( P. 583, 682)
Fuse box ( P. 602)
Battery ( P. 578)
Washer fluid tank ( P. 582)
Intercooler coolant reservoir
( P. 576)
Intercooler cooling radiator
( P. 577)
Radiator ( P. 577)
Condenser (if equipped)
( P. 577)
1
2
3
4
5
6
7
8
9
10
11
12

5737-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
7
Maintenance and care
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than 5 minutes for the oil to drain
back into the bottom of the engine.
Remove the sand and dust from around the dipstick.
Holding a rag under the end,
pull the dipstick out.
Wipe the dipstick clean.
Make sure that the inlet of the oil level gauge guide and O-ring of the
dipstick are free from sand and dust.
If the O-ring is damaged, replace it with a new one.
Reinsert the dipstick fully.
Holding a rag under the end,
pull the dipstick out and
check the oil level.
Low
Normal
Excessive
The shape of the dipstick may
differ depending on the type
of vehicle or engine.
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
3
4
5
6
1
2
3
7

5747-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
■Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
Remove the sand and dust from around the oil filler cap.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
■ Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
● When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, when towing
(models for model code destination W*), or when driving while accelerating
or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 12)
Engine oil selectionP. 696
Oil quantity (Low  Full) 1.5 L (1.6 qt., 1.3 Imp.qt.)
Items Clean funnel
1
2
3
4

5757-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)
7
Maintenance and care
■After changing the engine oil (models for model code destination W*)
The engine oil maintenance data should be reset. Perform the following pro-
cedures:
Switch the display to the trip meter A ( P. 144) when the engine switch is
in the “ON” position (vehicles without smart entry & start system) or IGNI-
TION ON mode (vehicles with smart entry & start system).
Turn the engine switch to the “LOCK” position (vehicles without smart entry
& start system) or off (vehicles with smart entry & start system).
While pressing the odometer/trip meter display change button ( P. 144),
turn the engine switch to the “ON” position (vehicles without smart entry &
start system) or IGNITION ON mode (vehicles with smart entry & start sys-
tem). (Do not start the engine because reset mode will be canceled.) Con-
tinue to press and hold the button for more than one second after the trip
meter displays “000000”.
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 2 )
WARNING
■Used engine oil
● Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Toyota reta iler or Toyota authorized repairer,
or any reliable repairer, service station or auto parts store for information
concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
● Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.
1
2
3

5767-3. Do-it-yourself maintenance
HILUX_OM_OM0K321E_(EE)

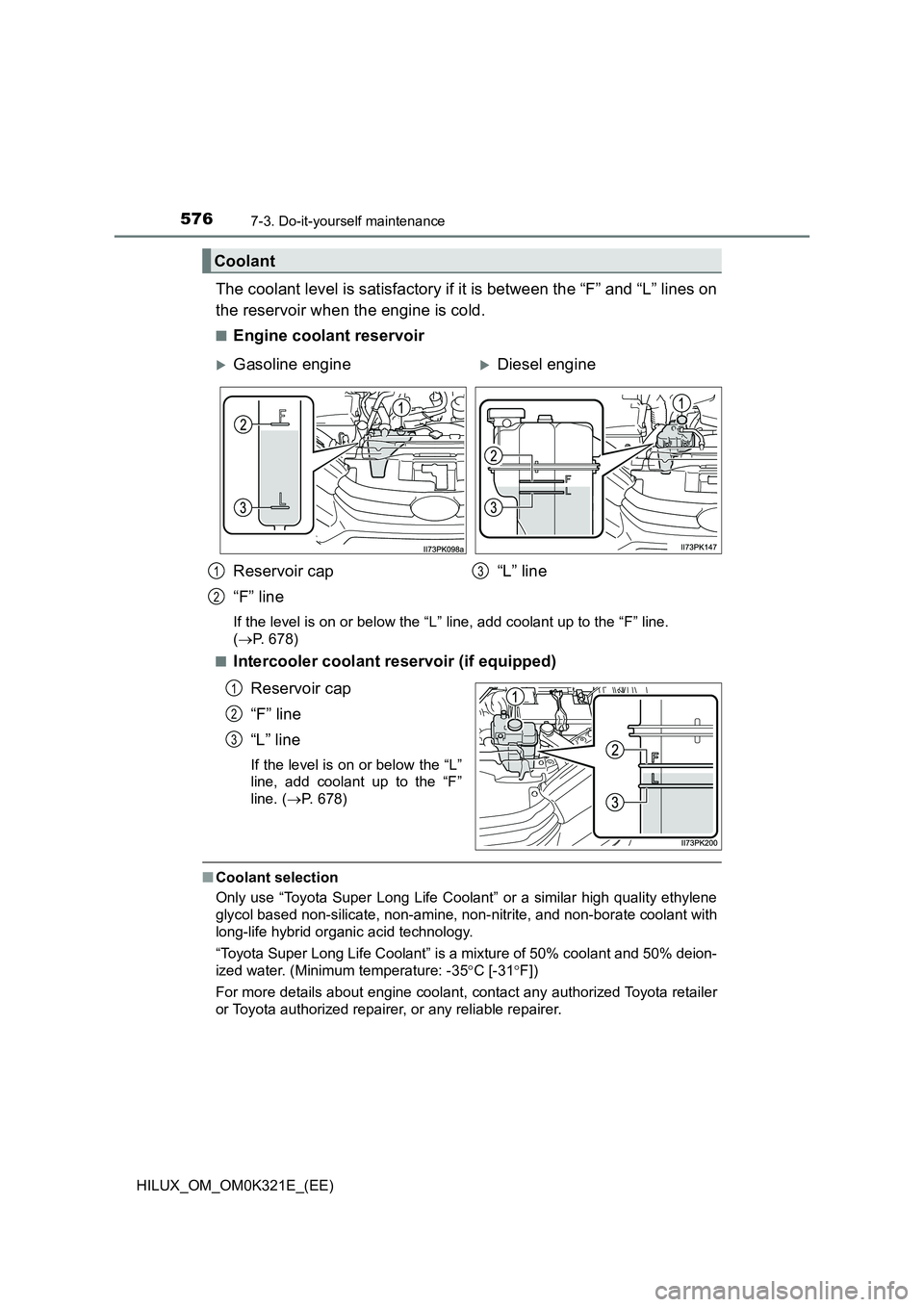

The coolant level is satisfactory if it is between the “F” and “L” lines on
the reservoir when the engine is cold.
■Engine coolant reservoir
If the level is on or below the “L” line, add coolant up to the “F” line.
( P. 678)
■Intercooler coolant reservoir (if equipped)
Reservoir cap
“F” line
“L” line
If the level is on or below the “L”
line, add coolant up to the “F”
line. ( P. 678)
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non- nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35 C [-31F])
For more details about engine coolant, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
Coolant
Gasoline engineDiesel engine
Reservoir cap
“F” line
“L” line1
2
3
1
2
