2020 TOYOTA HILUX Owners Manual (in English)

891-2. Child safety
1
HILUX_OM_OM0K321E_(EE)
For safety and security
Double-cab models
Mass
groups
Recom-
mended
Child
Restraint
System
Seating position
Vehicles
without
front pas-
senger
occupant
classifica-
tion sys-
tem or
airbag
manual
on-off
switch
Vehicles
with airbag
manual on-
off switch
Vehicles with
front passen-
ger occupant
classification
system
Airbag
manual on-
off switch
“PASSEN-
GER AIR
BAG” indica-
tor
ONOFFONOFF*
0, 0+
Up to
13 kg
(28 lb.)
G0+, BABY
SAFE PLUS
(Yes/No)
No No Yes No Yes Yes Yes
G0+ BABY
SAFE PLUS
with SEAT
BELT
FIXATION,
BASE
PLATFORM
(Yes/No)
No No Yes No Yes Yes Yes
I
9 to 18
kg
(20 to
39 lb.)
DUO PLUS
(Yes/No)
Ye s
Belt fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Ye s
Belt
fix
only
II, III
15 to
36 kg
(34 to
79 lb.)
KIDFIX XP
SICT (Yes/
No)
Ye s
Belt fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Ye s
Belt
fix
only
MAXI PLUS
(Yes/No)
Ye s
Belt fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Belt
fix
only
Ye s
Ye s
Belt
fix
only

901-2. Child safety
HILUX_OM_OM0K321E_(EE)
*: When it is unavoidable to install a rear-facing child restraint system on the
front passenger seat, a child restraint system can be installed if “OFF” of
the “PASSENGER AIR BAG” indicator is illuminated.
The child restraint systems mentioned in the table may not be avail-
able outside the EU area.
When securing some types of child restraint systems in rear seat, it
may not be possible to properly use the seat belts in positions next
to the child restraint without interfering with it or affecting seat belt
effectiveness. Be sure your seat belt fits snugly across your shoul-
der and low on your hips. If it does not, or if it interferes with the
child restraint, move to a different position.
Failure to do so may result in death or serious injury.
● When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child restraint
system (if equipped).
● When installing a child seat with support base in the front seats, if
the child seat interferes with the seatback when latching it into
the support base, adjust the seatback rearward until there is no
interference.
● Vehicles without the bench
type front seat: If the seat
belt shoulder anchor is
ahead of the child seat belt
guide, move the seat cushion
forward.
● When installing a junior seat in the front seats, if the child in your
child restraint system is in a very upright position, adjust the seat-
back angle to the most comfortable position. And if the seat belt
shoulder anchor is ahead of the child seat belt guide, move the
seat cushion forward.

911-2. Child safety
1
HILUX_OM_OM0K321E_(EE)
For safety and security
Confirm with the operation manual enclosed with the child restraint
system about the installation of the child restraint system.
Child restraint system installation method
Installation methodPage
Seat belt attach-
ment P. 9 2
ISOFIX lower
anchorage
attachment
P. 9 4
Top tether
anchorage
attachment
P. 9 7

921-2. Child safety
HILUX_OM_OM0K321E_(EE)
■Installing child restraint system using a seat belt
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.
If the child restraint system on hand is not within the “universal” cat-
egory (or the necessary information is not in the table), refer to the
“Vehicle List” provided by the child restraint system maker for vari-
ous possible installation positions, or check the compatibility after
asking the retailer of the child restraint system. ( P. 75, 76)
If installing the child restraint system to the front passenger seat
is unavoidable, refer to P. 70 for front passenger seat adjustment.
Double-cab models: If the head restraint interferes with the child
restraint system installation and the head restraint can be
removed, remove the head restraint. Otherwise, put the head
restraint in the upper most position. ( P. 239)
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted. Securely
fix the seat belt to the child
restraint system in accor-
dance to the directions
enclosed with the child
restraint system.
If your child restraint system
is not equipped with a lock-
off (a seat belt locking fea-
ture), secure the child
restraint system using a lock-
ing clip.
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. ( P. 9 3 )
Child restraint system fixed with a seat belt
1
2
3
4
5

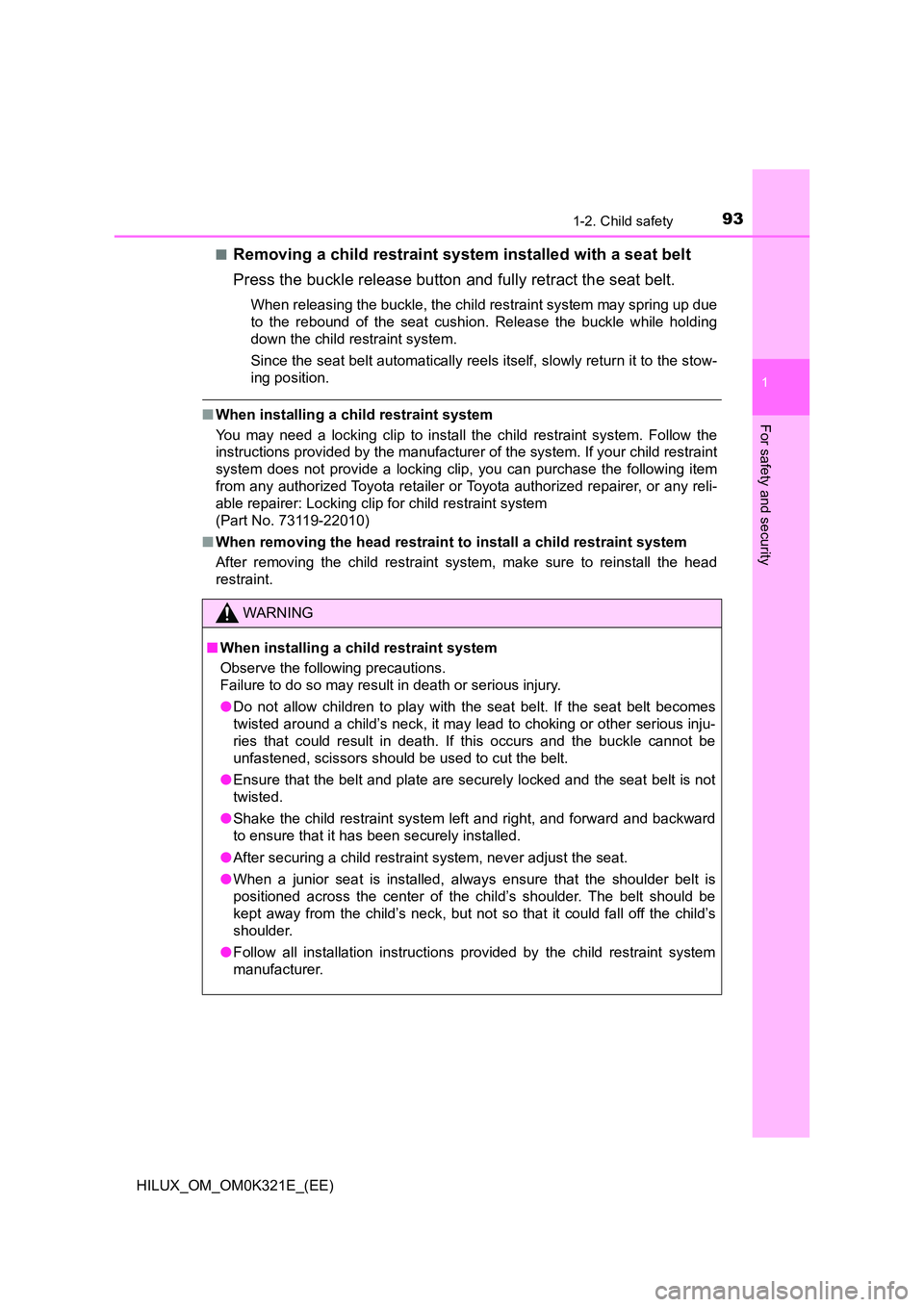

931-2. Child safety
1
HILUX_OM_OM0K321E_(EE)
For safety and security
■Removing a child restraint system installed with a seat belt
Press the buckle release button and fully retract the seat belt.
When releasing the buckle, the chil d restraint system may spring up due
to the rebound of the seat cushion. Release the buckle while holding
down the child restraint system.
Since the seat belt automatically reels itself, slowly return it to the stow-
ing position.
■ When installing a child restraint system
You may need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child restraint
system does not provide a locking clip, you can purchase the following item
from any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer: Locking clip for child restraint system
(Part No. 73119-22010)
■ When removing the head restraint to install a child restraint system
After removing the child restraint system, make sure to reinstall the head
restraint.
WARNING
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death. If this occurs and the buckle cannot be
unfastened, scissors should be used to cut the belt.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Follow all installation instructions provided by the child restraint system
manufacturer.

941-2. Child safety
HILUX_OM_OM0K321E_(EE)
■ISOFIX lower anchorages (ISOFIX child restraint system)
Lower anchorages are provided
for the outboard rear seats.
(Tags displaying the location of
the anchorages are attached to
the seats.)
Child restraint system fixed with an ISOFIX lower anchorage (if
equipped)

951-2. Child safety
1
HILUX_OM_OM0K321E_(EE)
For safety and security
■Installation with ISOFIX lower anchorage (ISOFIX child
restraint system)
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.
If the child restraint system on hand is not within the “universal” cat-
egory (or the necessary information is not in the table), refer to the
“Vehicle List” provided by the child restraint system maker for vari-
ous possible installation positions, or check the compatibility after
asking the retailer of the child restraint system. ( P. 75, 76)
If the head restraint interferes with the child restraint system
installation and the head restraint can be removed, remove the
head restraint. Otherwise, put the head restraint in the upper
most position. ( P. 239)
Check the positions of the
exclusive fixing bars, and
install the child restraint sys-
tem to the seat.
The bars are installed in the
clearance between the seat
cushion and seatback.
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. ( P. 9 3 )
1
2
3

961-2. Child safety
HILUX_OM_OM0K321E_(EE)
■When removing the head restraint to install a child restraint system
After removing the child restraint system, make sure to reinstall the head
restraint.
WARNING
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● After securing a child restraint system, never adjust the seat.
● When using the lower anchorages, be sure that there are no foreign
objects around the anchorages and that the seat belt is not caught behind
the child restraint system.
● Follow all installation instructions provided by the child restraint system
manufacturer.
