5216-1. Using the air conditioning system and defogger
6
Interior features
HILUX_OM_OM0K321E_(EE)

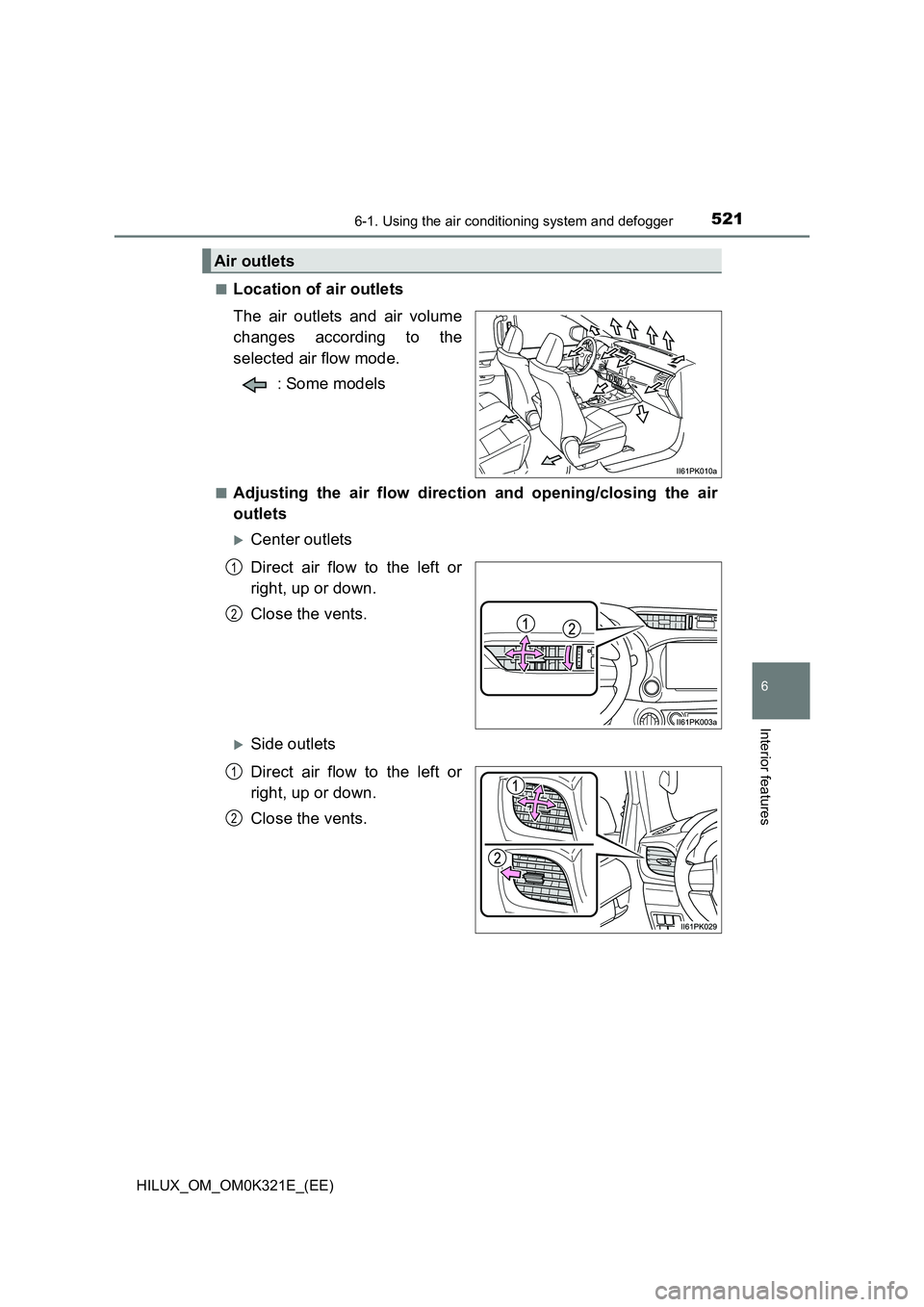

■Location of air outlets
The air outlets and air volume
changes according to the
selected air flow mode.
: Some models
■Adjusting the air flow direction and opening/closing the air
outlets
Center outlets
Direct air flow to the left or
right, up or down.
Close the vents.
Side outlets
Direct air flow to the left or
right, up or down.
Close the vents.
Air outlets
1
2
1
2

5226-1. Using the air conditioning system and defogger
HILUX_OM_OM0K321E_(EE)

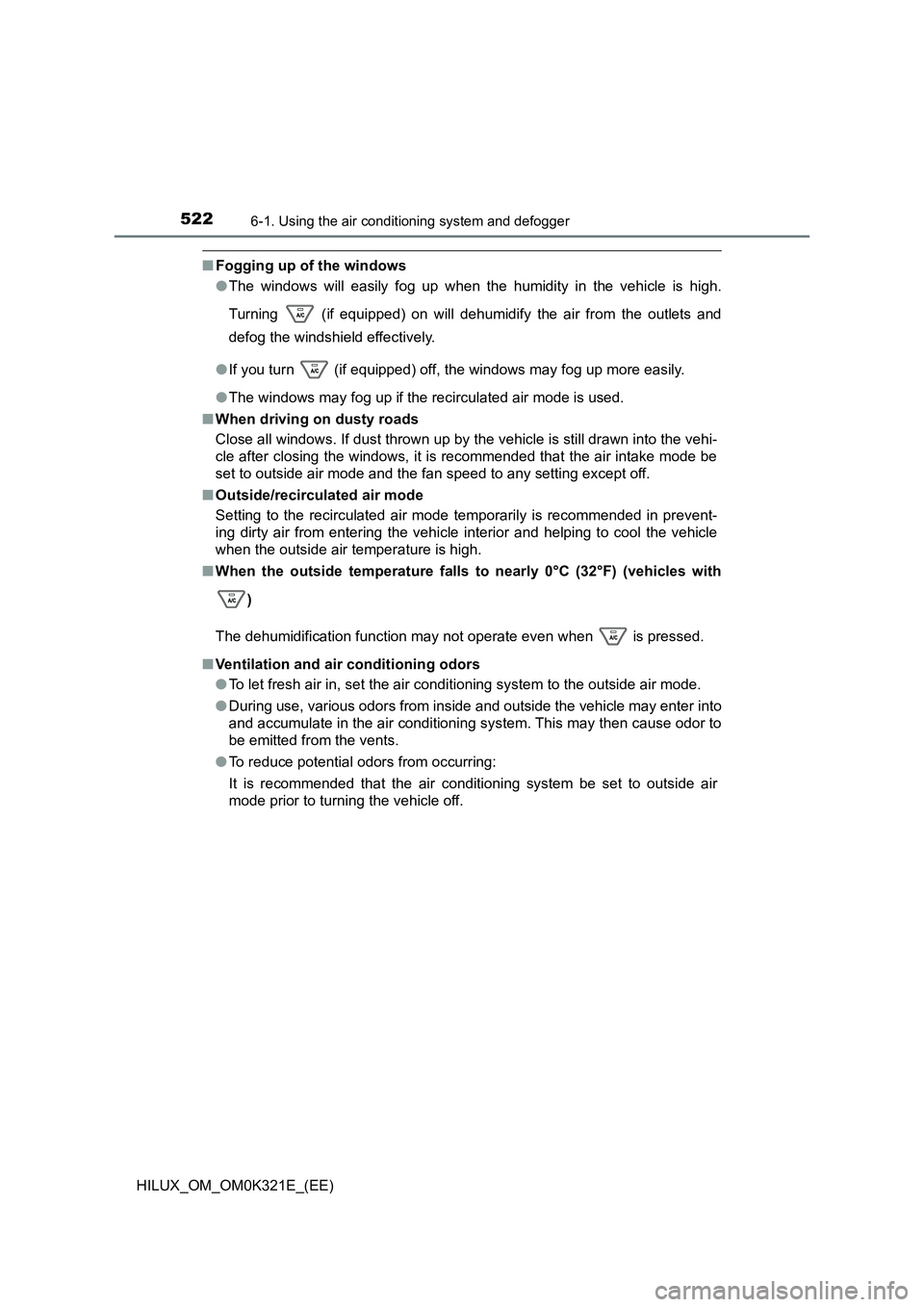

■Fogging up of the windows
● The windows will easily fog up when the humidity in the vehicle is high.
Turning (if equipped) on will dehumidify the air from the outlets and
defog the windshield effectively.
● If you turn (if equipped) off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
■ When driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still drawn into the vehi-
cle after closing the windows, it is recommended that the air intake mode be
set to outside air mode and the fan speed to any setting except off.
■ Outside/recirculated air mode
Setting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.
■ When the outside temperature falls to nearly 0°C (32°F) (vehicles with
)
The dehumidification function may not operate even when is pressed.
■ Ventilation and air conditioning odors
● To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.

5236-1. Using the air conditioning system and defogger
6
Interior features
HILUX_OM_OM0K321E_(EE)

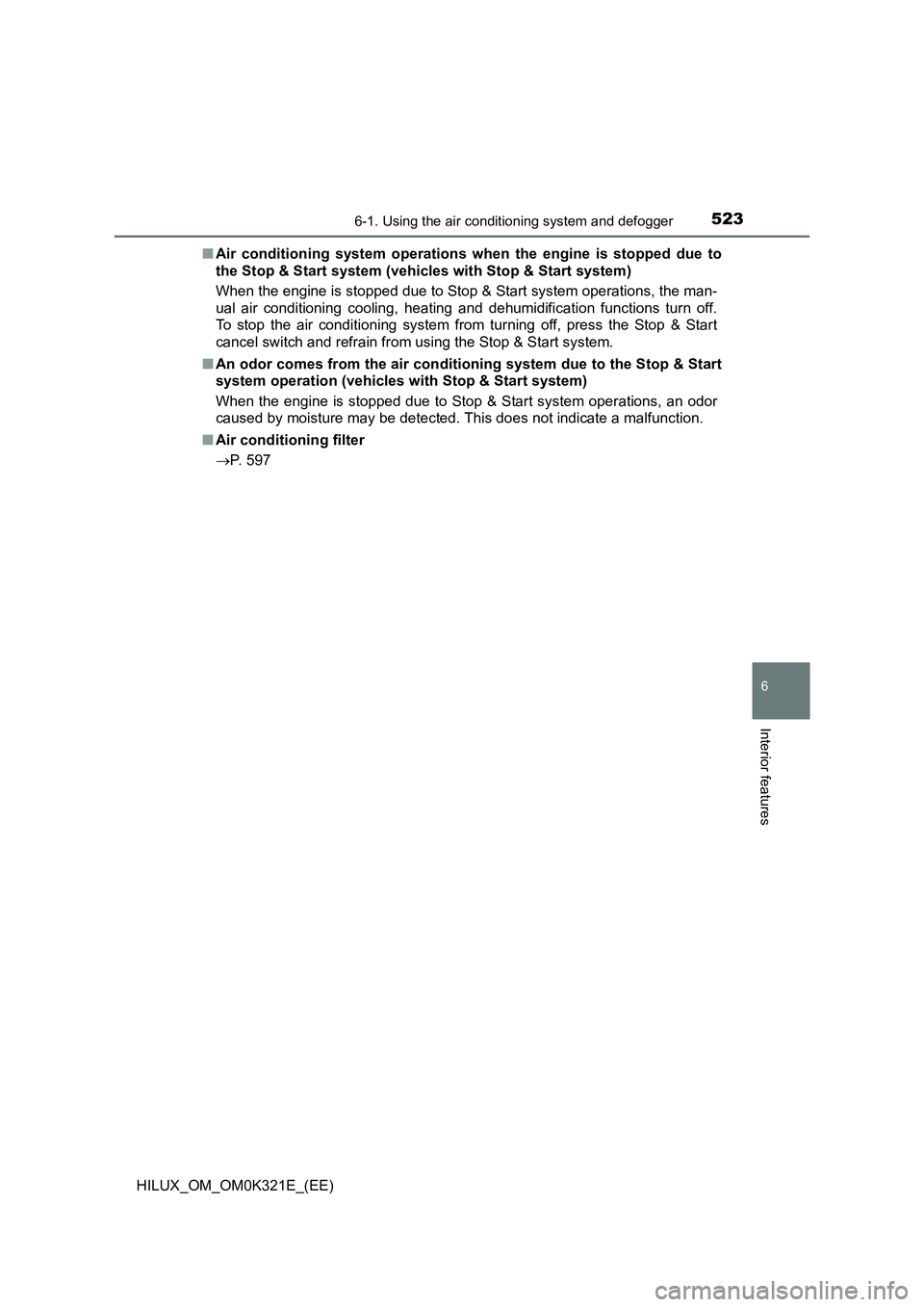

■ Air conditioning system operations when the engine is stopped due to
the Stop & Start system (vehicles with Stop & Start system)
When the engine is stopped due to Stop & Start system operations, the man-
ual air conditioning cooling, heating and dehumidification functions turn off.
To stop the air conditioning system from turning off, press the Stop & Start
cancel switch and refrain from using the Stop & Start system.
■ An odor comes from the air conditioning system due to the Stop & Start
system operation (vehicles with Stop & Start system)
When the engine is stopped due to Stop & Start system operations, an odor
caused by moisture may be detected. This does not indicate a malfunction.
■ Air conditioning filter
 P. 597

5246-1. Using the air conditioning system and defogger
HILUX_OM_OM0K321E_(EE)

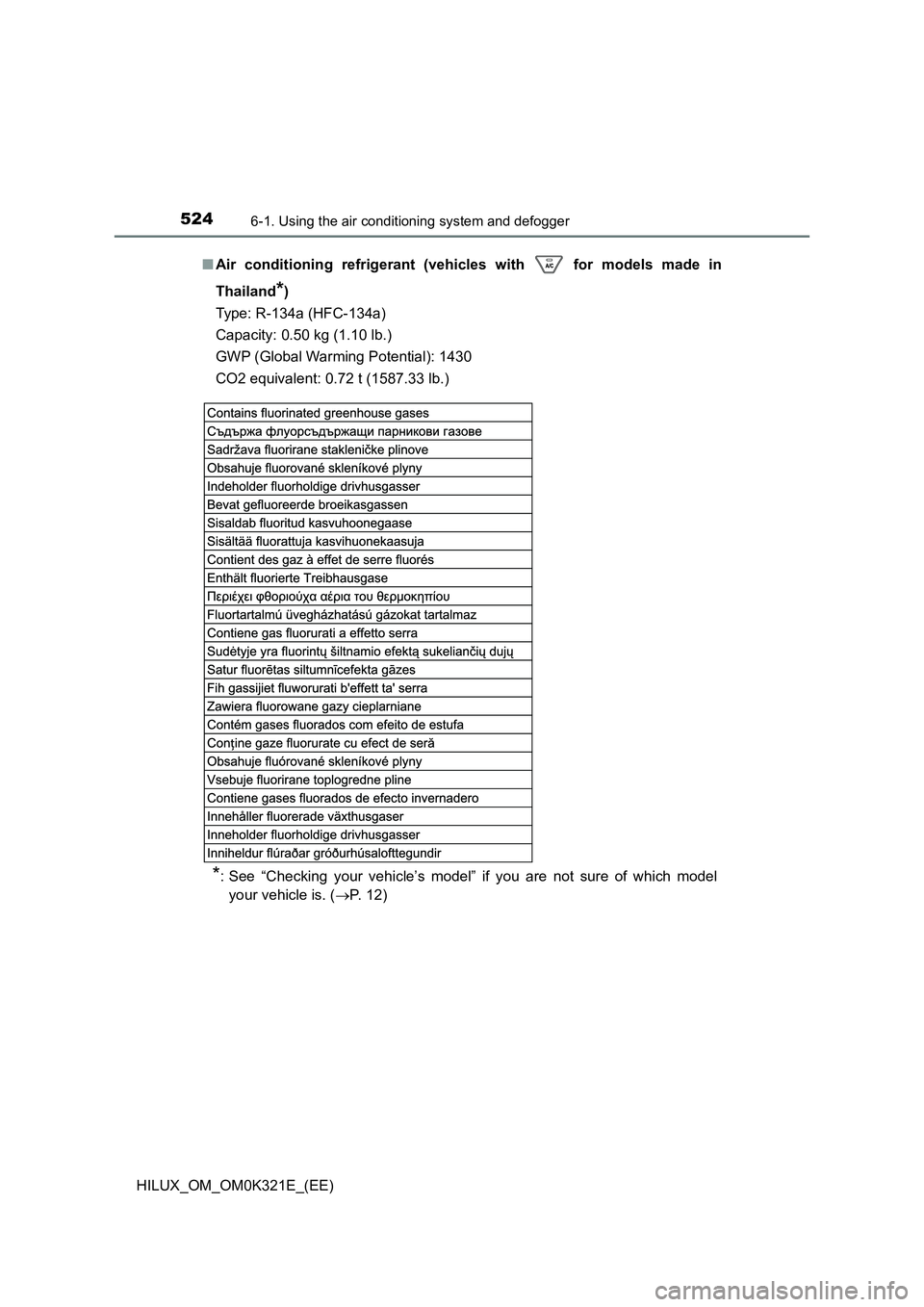

■ Air conditioning refrigerant (vehicles with for models made in
Thailand*)
Type: R-134a (HFC-134a)
Capacity: 0.50 kg (1.10 lb.)
GWP (Global Warming Potential): 1430
CO2 equivalent: 0.72 t (1587.33 lb.)
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 12)

5256-1. Using the air conditioning system and defogger
6
Interior features
HILUX_OM_OM0K321E_(EE)
WARNING

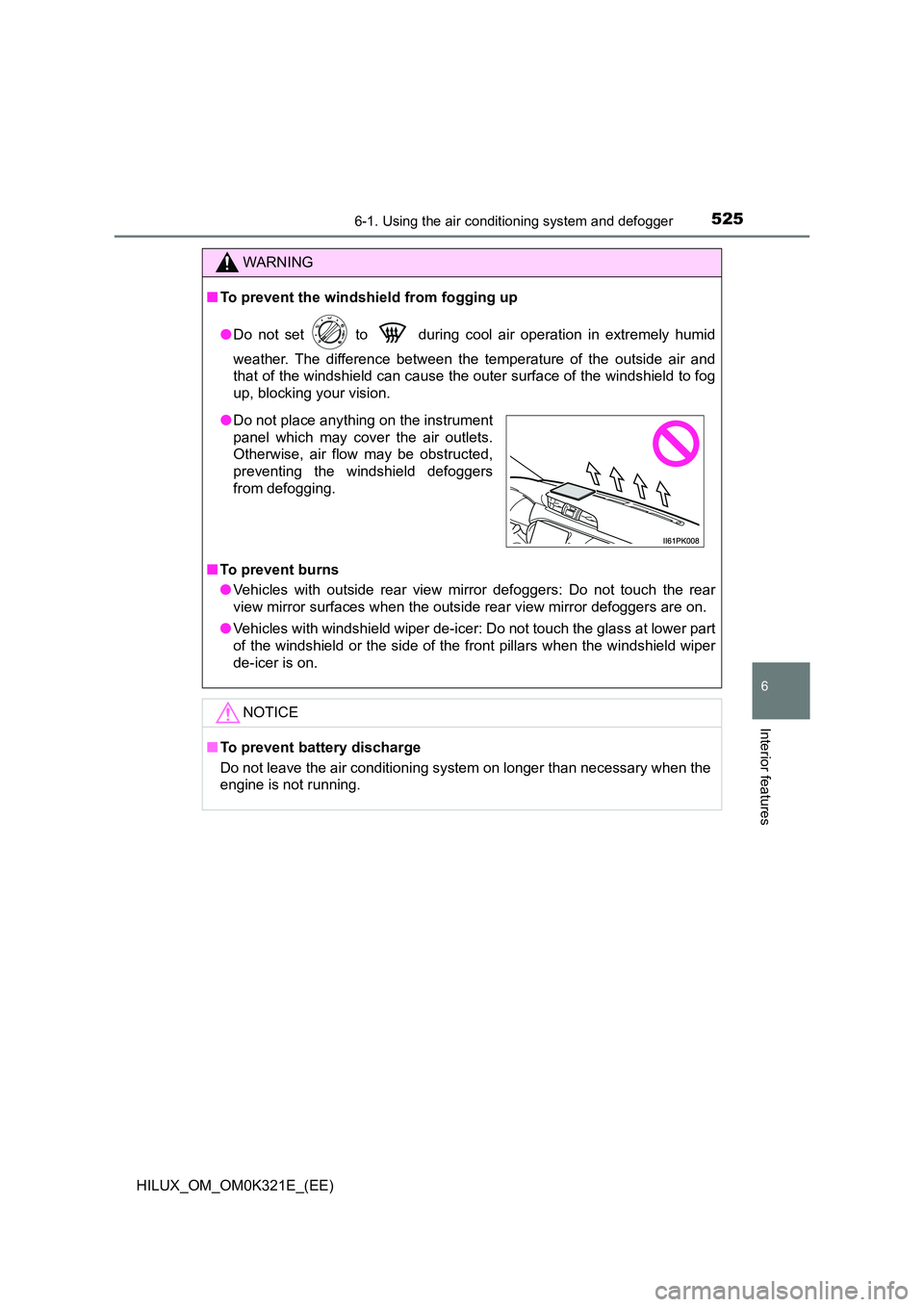

■To prevent the windshield from fogging up
● Do not set to during cool air operation in extremely humid
weather. The difference between the temperature of the outside air and
that of the windshield can cause the outer surface of the windshield to fog
up, blocking your vision.
■ To prevent burns
● Vehicles with outside rear view mirror defoggers: Do not touch the rear
view mirror surfaces when the outsi de rear view mirror defoggers are on.
● Vehicles with windshield wiper de-icer: Do not touch the glass at lower part
of the windshield or the side of the front pillars when the windshield wiper
de-icer is on.
NOTICE
■ To prevent battery discharge
Do not leave the air conditioning syst em on longer than necessary when the
engine is not running.
● Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers
from defogging.

5266-1. Using the air conditioning system and defogger
HILUX_OM_OM0K321E_(EE)
Automatic air conditioning system
This illustration is for a left-hand drive vehicle. Some button positions
differ for right-hand drive vehicles.
■Adjusting the fan speed setting
Turn clockwise (increase) or counterclockwise (decrease).
Press to turn the fan off.
■Adjusting the temperature setting
Turn clockwise (warm) or counterclockwise (cool).
If is not pressed, the system will blow ambient temperature air or
heated air.
: If equipped
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Air conditioning controls

5276-1. Using the air conditioning system and defogger
6
Interior features
HILUX_OM_OM0K321E_(EE)
■Changing the air flow mode
Press to change the air
outlets.
The air outlets used are
switched each time the button is
pressed.
Air flows to the upper body.
Air flows to the upper body
and feet.
Mainly air flows to the feet.
Air flows to the feet and the
windshield defogger oper-
ates.
Press .
The dehumidification function begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Turn clockwise (warm) or counterclockwise (cool) to adjust
the temperature.
Press .
The cooling and dehumidification function switches between on and off
each time is pressed.
To stop the operation, press .
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.
1
2
3
4
Using automatic mode
1
2
3

5286-1. Using the air conditioning system and defogger
HILUX_OM_OM0K321E_(EE)

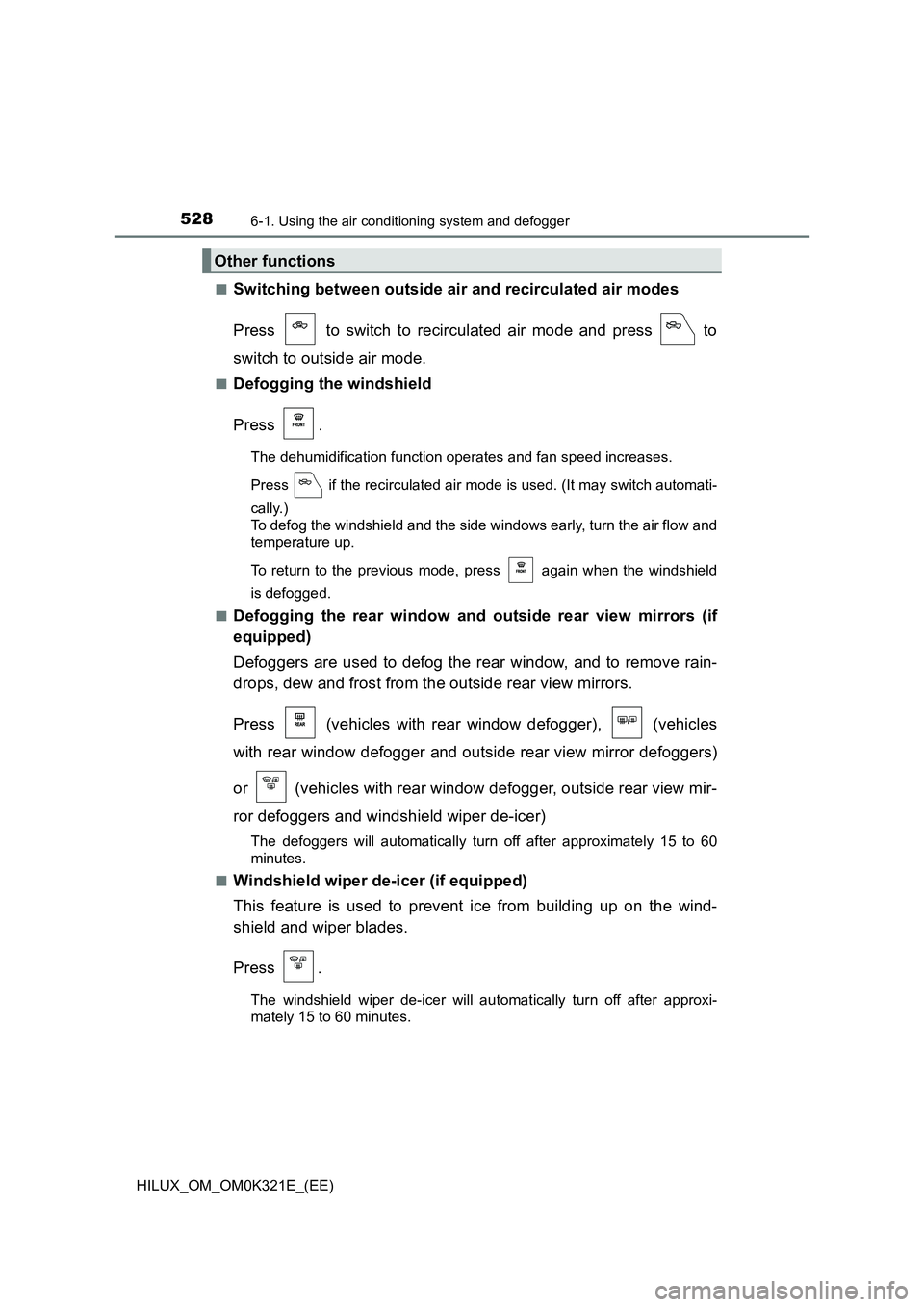

■Switching between outside air and recirculated air modes
Press to switch to recirculated air mode and press to
switch to outside air mode.
■Defogging the windshield
Press .
The dehumidification function operates and fan speed increases.
Press if the recirculated air mode is used. (It may switch automati-
cally.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
To return to the previous mode, press again when the windshield
is defogged.
■Defogging the rear window and outside rear view mirrors (if
equipped)
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press (vehicles with rear window defogger), (vehicles
with rear window defogger and outside rear view mirror defoggers)
or (vehicles with rear window defogger, outside rear view mir-
ror defoggers and windshield wiper de-icer)
The defoggers will automatically turn off after approximately 15 to 60
minutes.
■Windshield wiper de-icer (if equipped)
This feature is used to prevent ice from building up on the wind-
shield and wiper blades.
Press .
The windshield wiper de-icer will automatically turn off after approxi-
mately 15 to 60 minutes.
Other functions
