1-4. Theft deterrent system
HILUX_OM_OM0K321E_(EE)
For safety and security
Alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
Except for Kazakhstan, Armenia and Morocco
● A locked door is opened in any way other than using the entry func-
tion (vehicles with smart entry & start system), wireless remote con-
trol or mechanical key.
● The hood is opened.
For Kazakhstan, Armenia and Morocco
● A locked door is opened in any way other than using the entry func-
tion (vehicles with smart entry & start system) or wireless remote
control.
● The hood is opened.
Close the doors and hood, and
lock all the doors using the entry
function (vehicles with smart entry
& start system) or wireless remote
control. The system will be set
automatically after 30 seconds.
Except for Kazakhstan, Armenia
and Morocco: The alarm can also
be set using the mechanical key.
The indicator light changes from being on to flashing when the system is
set.
: If equipped
The alarm
Setting the alarm system

1301-4. Theft deterrent system
HILUX_OM_OM0K321E_(EE)
Do one of the following to deactivate or stop the alarms:
Except for Kazakhstan, Armenia and Morocco
● Unlock the doors.
● Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
For Kazakhstan, Armenia and Morocco
● Unlock the doors using the entry function (vehicles with smart
entry & start system) or the wireless remote control.
● Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
■ System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
● Nobody is in the vehicle.
● The windows are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm

1311-4. Theft deterrent system
1
HILUX_OM_OM0K321E_(EE)
For safety and security

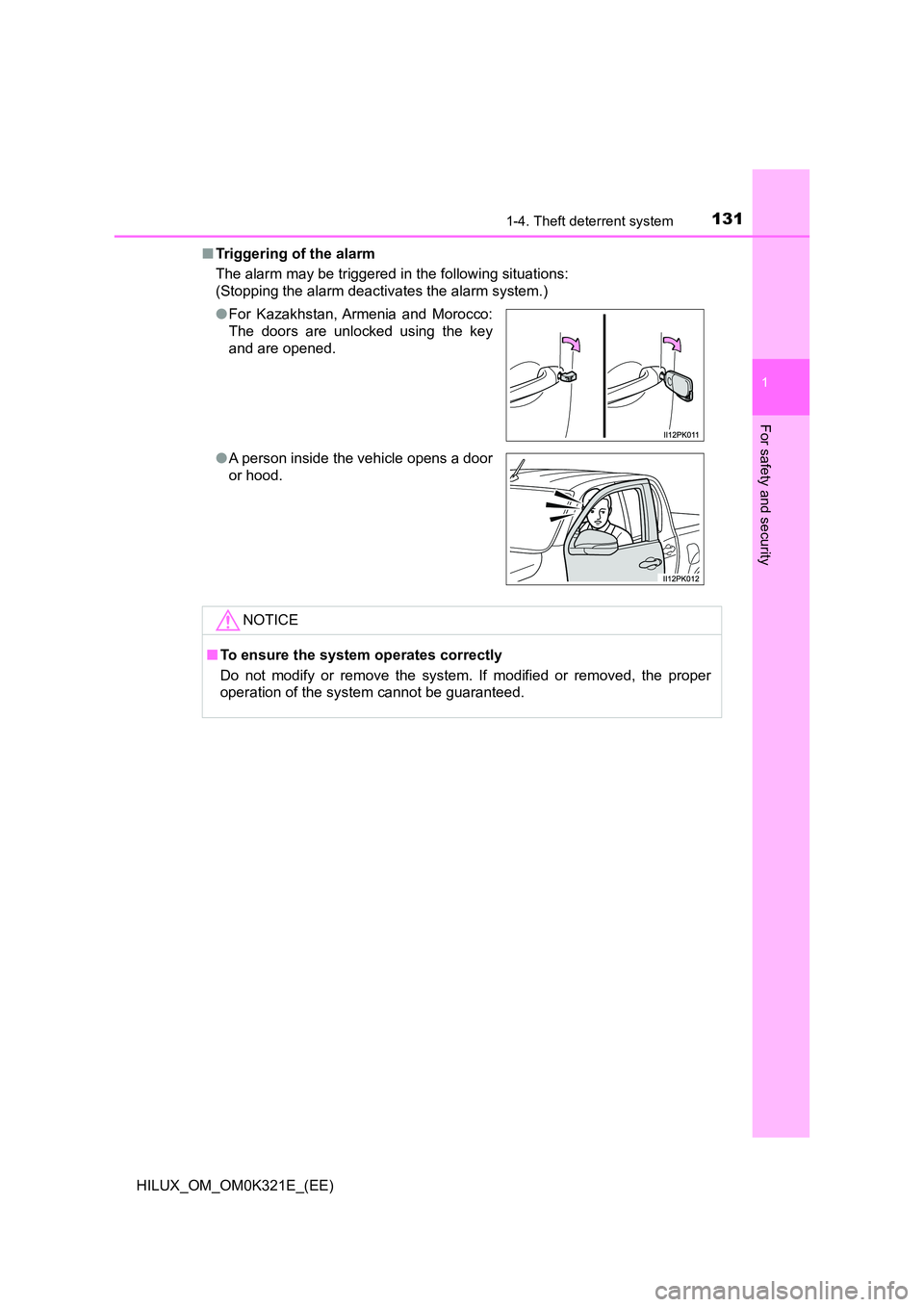

■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
● For Kazakhstan, Armenia and Morocco:
The doors are unlocked using the key
and are opened.
● A person inside the vehicle opens a door
or hood.
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

1321-4. Theft deterrent system
HILUX_OM_OM0K321E_(EE)

133
2Instrument cluster
HILUX_OM_OM0K321E_(EE)
2. Instrument cluster
Warning lights
and indicators .................. 134
Gauges and meters ........... 142
Multi-information display
(Type A) ........................... 147
Multi-information display
(Type B) ........................... 151
Fuel consumption
information ....................... 160

1342. Instrument cluster
HILUX_OM_OM0K321E_(EE)
Warning lights and indicators
Vehicles without multi-information display
Vehicles with multi-information display type A
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustrations dis-
play all warning lights and indicators illuminated.

1352. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K321E_(EE)
Vehicles with multi-information display type B
The positions of some warning lights and indicators differ depending on
vehicles.
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1Brake system warning
light ( P. 634)
*1SRS warning light
( P. 635)
*1
(if equipped)
Charging system
warning light ( P. 634)
*1ABS warning light
( P. 635)
*1
(if equipped)
Low engine oil pressure
warning light ( P. 634)
*1
(if equipped)
Power steering system
warning light ( P. 635)
*1, 2Malfunction indicator
lamp ( P. 635)
*1
(if equipped)
Slip indicator (P. 636)

1362. Instrument cluster
HILUX_OM_OM0K321E_(EE)
*3
(if equipped)
Four-wheel drive
indicator light ( P. 636)
Driver’s and front
passenger’s seat belt
reminder light ( P. 638)
*3
(if equipped)
Low speed four-wheel
drive indicator light
( P. 636)
*5
(Flashes or
illuminates)
(if equipped)
Rear passengers’ seat
belt reminder lights
( P. 638)
*3
(if equipped)
Rear differential lock
indicator light ( P. 636)
Low fuel level warning
light ( P. 638)
*1
(if equipped)
Fuel system warning
light ( P. 637)
*1
(if equipped)
Low engine oil level
warning light ( P. 639)
*1
(if equipped)
DPF system warning
light ( P. 637)
*1
(if equipped)
Master warning light
( P. 639)
*1, 4
(if equipped)
Brake Override System
warning light ( P. 637)(if equipped)
Go to service warning
light ( P. 639)
*1
(Flashes or
illuminates)
(if equipped)
PCS warning light
( P. 638)
*1, 4
(if equipped)
Stop & Start cancel
indicator ( P. 639)
(Yellow)
(if equipped)
LDA indicator (P. 638) Parking brake indicator
light ( P. 639)
(if equipped)
Open door warning light
( P. 638)(if equipped)
Low AdBlue™ level
warning light ( P. 639)
