■Shifting from H4 to L4
Stop the vehicle.
The transfer mode cannot be
switched if the vehicle is mov-
ing.
Shift the shift lever to N.
Keep the shift lever in N until
switching the transfer mode is
completed (indicator on).
The transfer mode cannot be
switched if the shift lever is in
other than N.
Push and turn the front-
wheel drive control switch to
L4.
The low speed four-wheel drive
indicator light flashes while
switching.
If turning the front-wheel drive
control switch without following
steps and , the low speed
four-wheel drive indicator light
flashes and a buzzer sounds.
Return the front-wheel drive
control switch to H4 and try
steps and again.
If the shift lever is shifted to other than N while the low speed four-wheel
drive indicator light is flashing, gear noise may be caused. Immediately
shift the shift lever to N and wait until switching the transfer mode is
completed.
Shifting between H4 and L4 (automatic transmission)
0 km/h (0 mph)
1
2
(Flashes)
3
12
12

4024-5. Using the driving support systems
HILUX_OM_OM0K321E_(EE)
Check that the low speed
four-wheel drive indicator
light comes on.
The low speed four-wheel drive
indicator light comes on when
switching the transfer mode is
completed.
Shift the shift lever from N to D
or R to drive the vehicle.

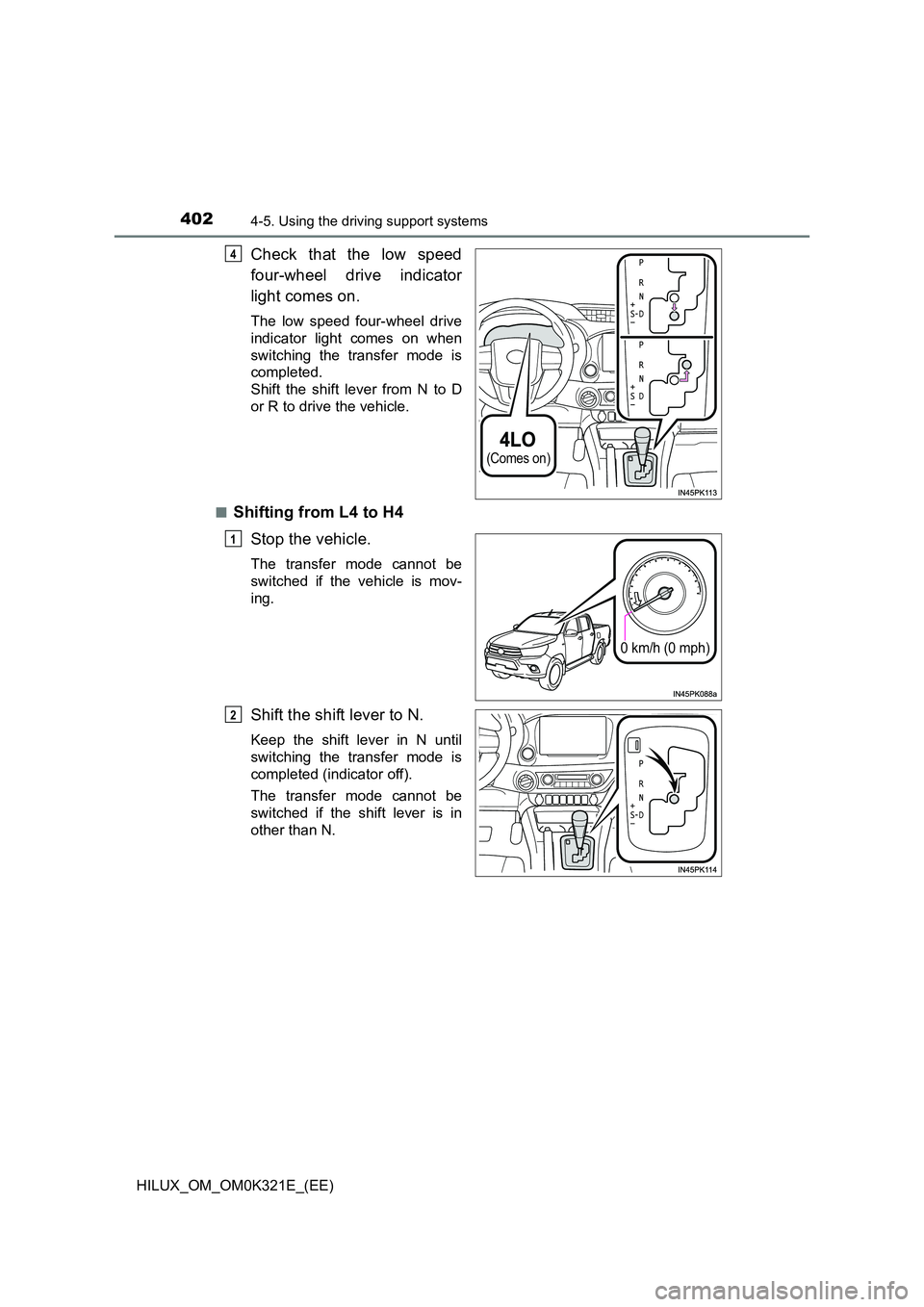

■Shifting from L4 to H4
Stop the vehicle.
The transfer mode cannot be
switched if the vehicle is mov-
ing.
Shift the shift lever to N.
Keep the shift lever in N until
switching the transfer mode is
completed (indicator off).
The transfer mode cannot be
switched if the shift lever is in
other than N.
(Comes on)
4
0 km/h (0 mph)
1
2

4034-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K321E_(EE)

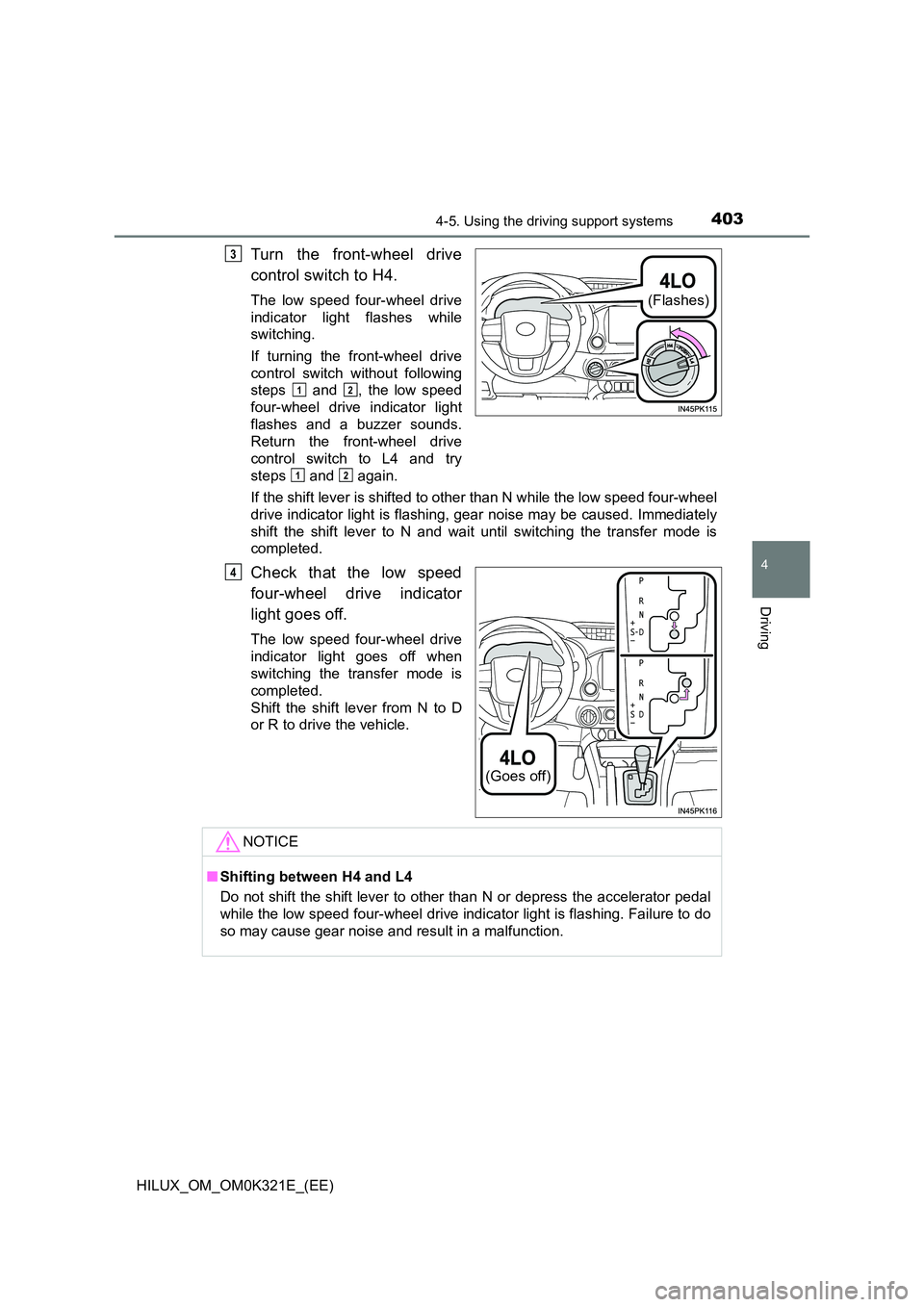

Turn the front-wheel drive
control switch to H4.
The low speed four-wheel drive
indicator light flashes while
switching.
If turning the front-wheel drive
control switch without following
steps and , the low speed
four-wheel drive indicator light
flashes and a buzzer sounds.
Return the front-wheel drive
control switch to L4 and try
steps and again.
If the shift lever is shifted to other than N while the low speed four-wheel
drive indicator light is flashing, gear noise may be caused. Immediately
shift the shift lever to N and wait until switching the transfer mode is
completed.
Check that the low speed
four-wheel drive indicator
light goes off.
The low speed four-wheel drive
indicator light goes off when
switching the transfer mode is
completed.
Shift the shift lever from N to D
or R to drive the vehicle.
(Flashes)
3
12
12
(Goes off)
4
NOTICE
■ Shifting between H4 and L4
Do not shift the shift lever to other than N or depress the accelerator pedal
while the low speed four-wheel drive indicator light is flashing. Failure to do
so may cause gear noise and result in a malfunction.

4044-5. Using the driving support systems
HILUX_OM_OM0K321E_(EE)

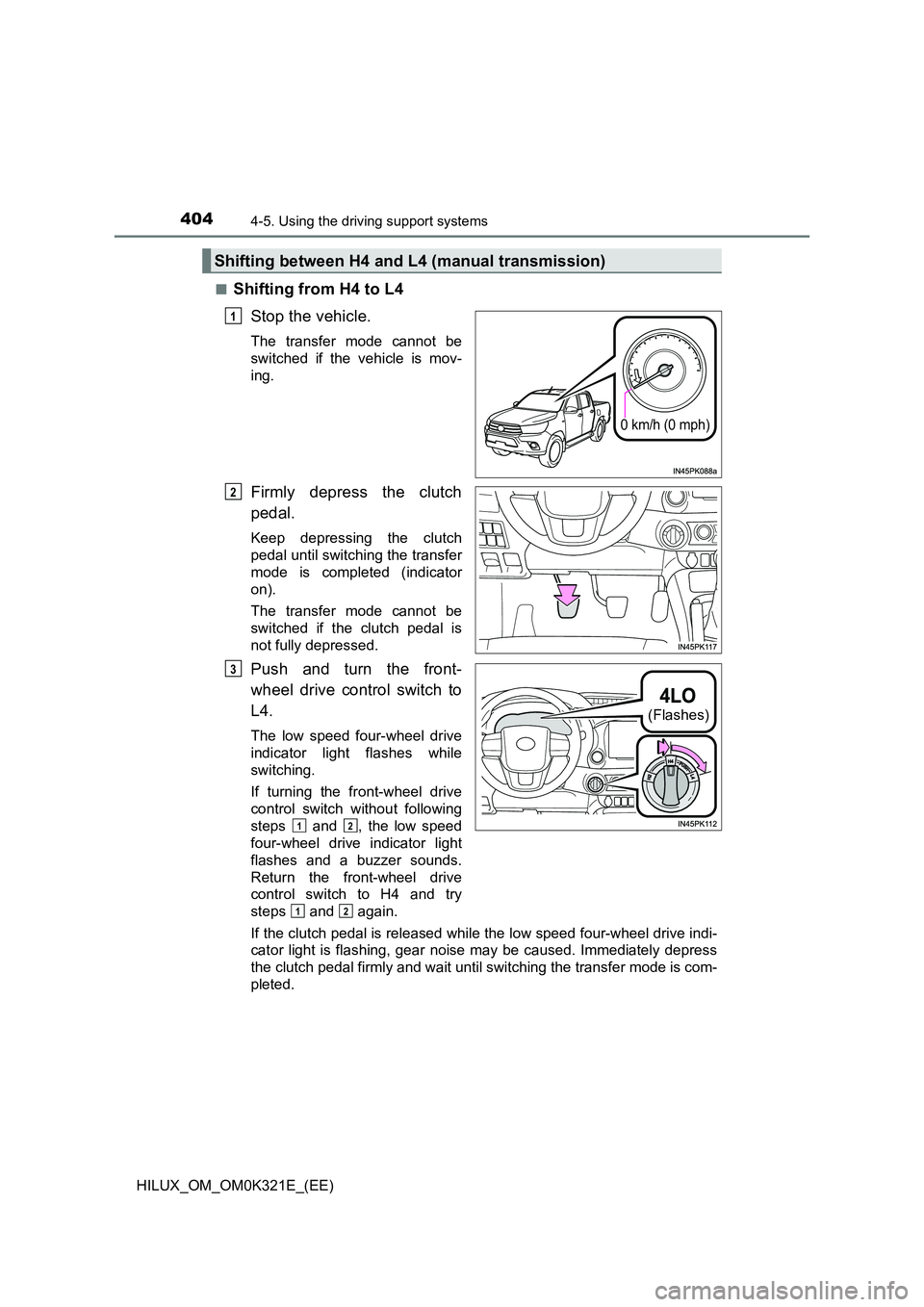

■Shifting from H4 to L4
Stop the vehicle.
The transfer mode cannot be
switched if the vehicle is mov-
ing.
Firmly depress the clutch
pedal.
Keep depressing the clutch
pedal until switching the transfer
mode is completed (indicator
on).
The transfer mode cannot be
switched if the clutch pedal is
not fully depressed.
Push and turn the front-
wheel drive control switch to
L4.
The low speed four-wheel drive
indicator light flashes while
switching.
If turning the front-wheel drive
control switch without following
steps and , the low speed
four-wheel drive indicator light
flashes and a buzzer sounds.
Return the front-wheel drive
control switch to H4 and try
steps and again.
If the clutch pedal is released while the low speed four-wheel drive indi-
cator light is flashing, gear noise may be caused. Immediately depress
the clutch pedal firmly and wait until switching the transfer mode is com-
pleted.
Shifting between H4 and L4 (manual transmission)
0 km/h (0 mph)
1
2
(Flashes)
3
12
12

4054-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K321E_(EE)
Check that the low speed
four-wheel drive indicator
light comes on.
The low speed four-wheel drive
indicator light comes on when
switching the transfer mode is
completed.
Release the clutch pedal to
drive the vehicle.

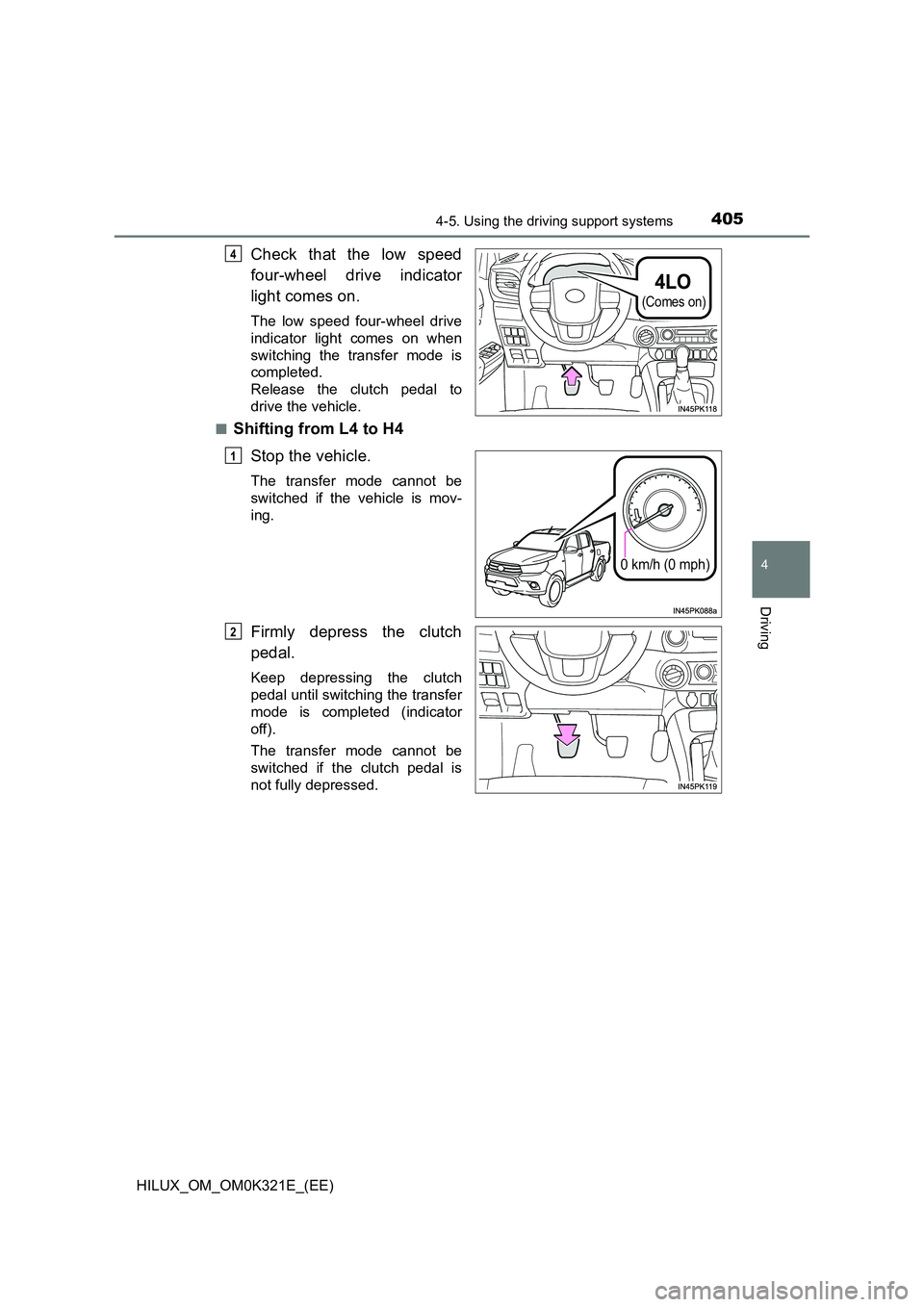

■Shifting from L4 to H4
Stop the vehicle.
The transfer mode cannot be
switched if the vehicle is mov-
ing.
Firmly depress the clutch
pedal.
Keep depressing the clutch
pedal until switching the transfer
mode is completed (indicator
off).
The transfer mode cannot be
switched if the clutch pedal is
not fully depressed.
(Comes on)
4
0 km/h (0 mph)
1
2

4064-5. Using the driving support systems
HILUX_OM_OM0K321E_(EE)

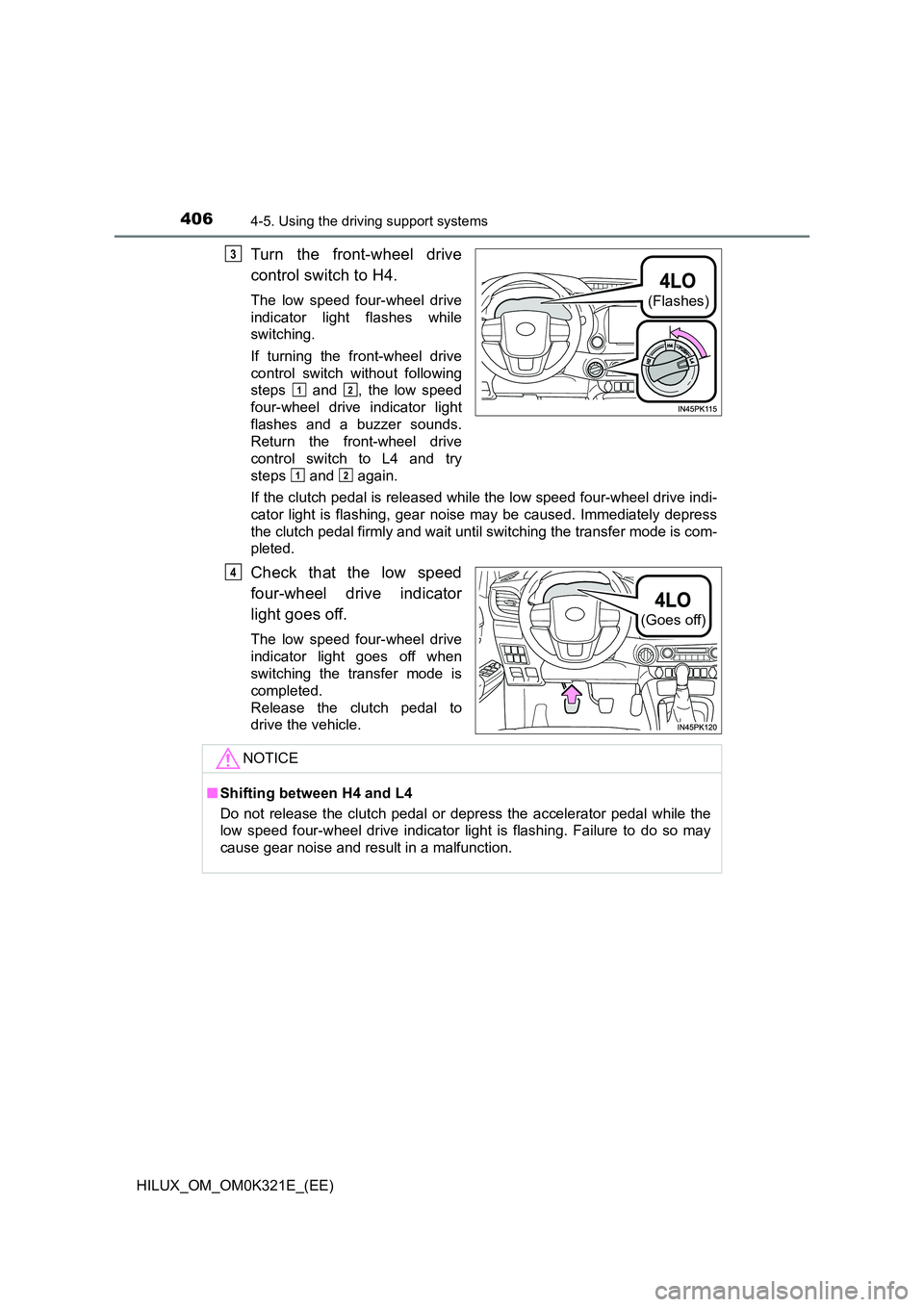

Turn the front-wheel drive
control switch to H4.
The low speed four-wheel drive
indicator light flashes while
switching.
If turning the front-wheel drive
control switch without following
steps and , the low speed
four-wheel drive indicator light
flashes and a buzzer sounds.
Return the front-wheel drive
control switch to L4 and try
steps and again.
If the clutch pedal is released while the low speed four-wheel drive indi-
cator light is flashing, gear noise may be caused. Immediately depress
the clutch pedal firmly and wait until switching the transfer mode is com-
pleted.
Check that the low speed
four-wheel drive indicator
light goes off.
The low speed four-wheel drive
indicator light goes off when
switching the transfer mode is
completed.
Release the clutch pedal to
drive the vehicle.
(Flashes)
3
12
12
(Goes off)
4
NOTICE
■ Shifting between H4 and L4
Do not release the clutch pedal or depress the accelerator pedal while the
low speed four-wheel drive indicator light is flashing. Failure to do so may
cause gear noise and result in a malfunction.

4074-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K321E_(EE)
■Four-wheel drive usage frequency (vehicles with A.D.D.)
You should drive in four-wheel drive for at least 16 km (10 miles) each month.
This will assure that the front drive components are lubricated.
■ Shifting between H2 and H4
If you have trouble shifting in cold w eather, reduce your speed or stop the
vehicle and reshift.
■ Shifting to L4 (vehicles with VSC)
VSC is automatically turned off.
■ When driving on dry paved surface roads and expressway
Use H2 position. If the vehicle is driven in H4 or L4 position for a long time, a
warning buzzer sounds, and the four-wheel drive indicator light flashes rap-
idly or a warning message is shown on the multi-information display. If the
warning message is shown on the multi-information display, follow the mes-
sage.
WARNING
■ While driving
● Never turn the front-wheel drive control switch from H2 to H4 if the wheels
are slipping. Stop the slipping or spinning before shifting.
● For normal driving on dry and hard surface roads, use H2 position. Driving
on dry and hard surface roads in H4 or L4 position may cause drive com-
ponent oil leakage, seizure, or other problems resulting in an accident.
Further, it may cause tire wear and increased fuel consumption.
● Avoid turning suddenly in H4 or L4 position. If you do turn suddenly, the
difference in turning speeds between the front and rear wheels may have
a similar effect to braking, thus making driving difficult.

4084-5. Using the driving support systems
HILUX_OM_OM0K321E_(EE)

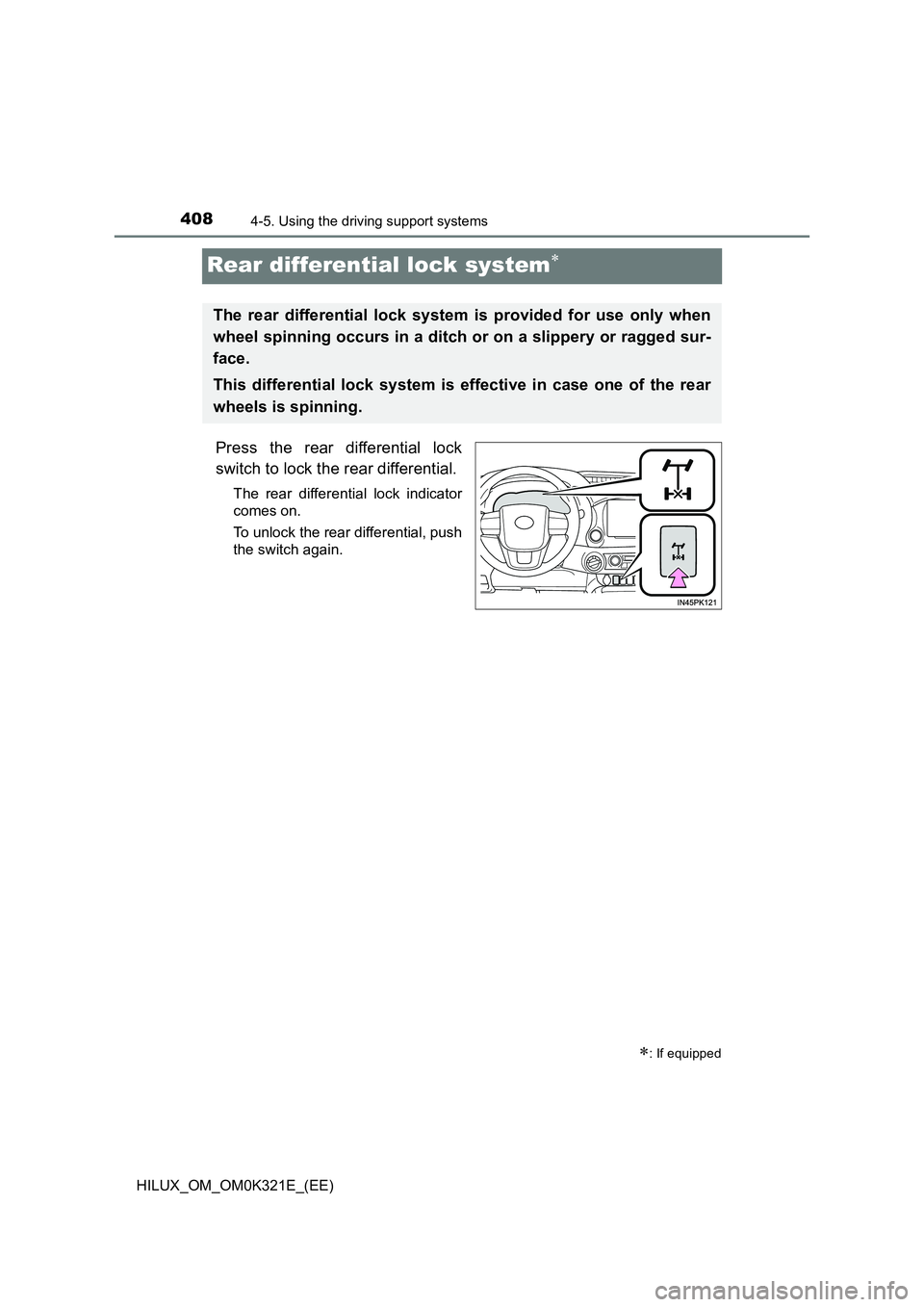

Rear differential lock system
Press the rear differential lock
switch to lock the rear differential.
The rear differential lock indicator
comes on.
To unlock the rear differential, push
the switch again.
: If equipped
The rear differential lock system is provided for use only when
wheel spinning occurs in a ditch or on a slippery or ragged sur-
face.
This differential lock system is effective in case one of the rear
wheels is spinning.
