4495-2. Using the audio system
5
Audio system
HILUX_OM_OM0K321E_(EE)

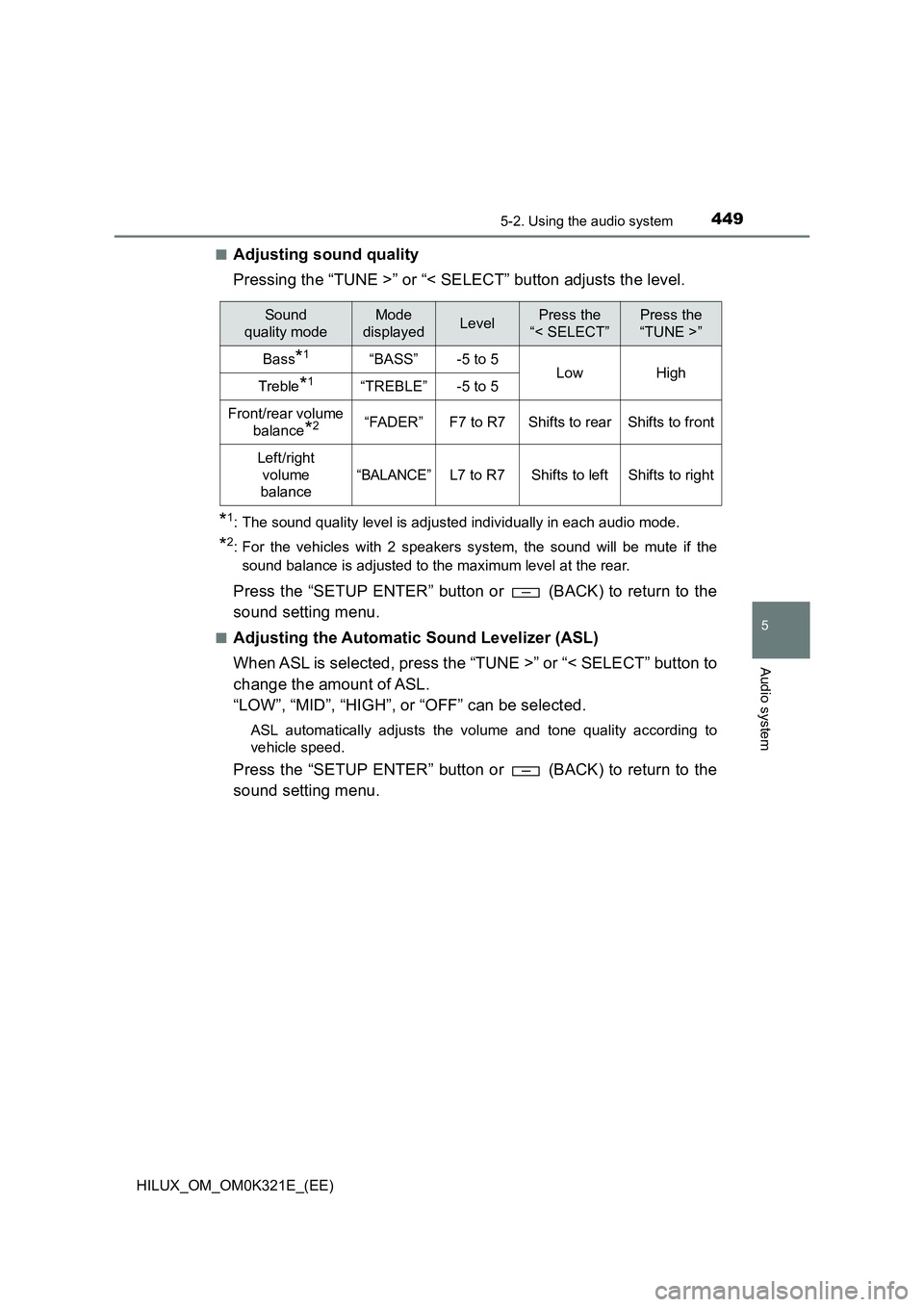

■Adjusting sound quality
Pressing the “TUNE >” or “< SELECT” button adjusts the level.
*1: The sound quality level is adjusted individually in each audio mode.
*2: For the vehicles with 2 speakers system, the sound will be mute if the
sound balance is adjusted to the maximum level at the rear.
Press the “SETUP ENTER” button or (BACK) to return to the
sound setting menu.
■Adjusting the Automatic Sound Levelizer (ASL)
When ASL is selected, press the “TUNE >” or “< SELECT” button to
change the amount of ASL.
“LOW”, “MID”, “HIGH”, or “OFF” can be selected.
ASL automatically adjusts the volume and tone quality according to
vehicle speed.
Press the “SETUP ENTER” button or (BACK) to return to the
sound setting menu.
Sound
quality mode
Mode
displayedLevelPress the
“< SELECT”
Press the
“TUNE >”
Bass*1“BASS”-5 to 5LowHighTreble*1“TREBLE”-5 to 5
Front/rear volume
balance*2“FADER”F7 to R7Shifts to rearShifts to front
Left/right
volume
balance
“BALANCE”L7 to R7Shifts to leftShifts to right

4505-3. Using the radio
HILUX_OM_OM0K321E_(EE)

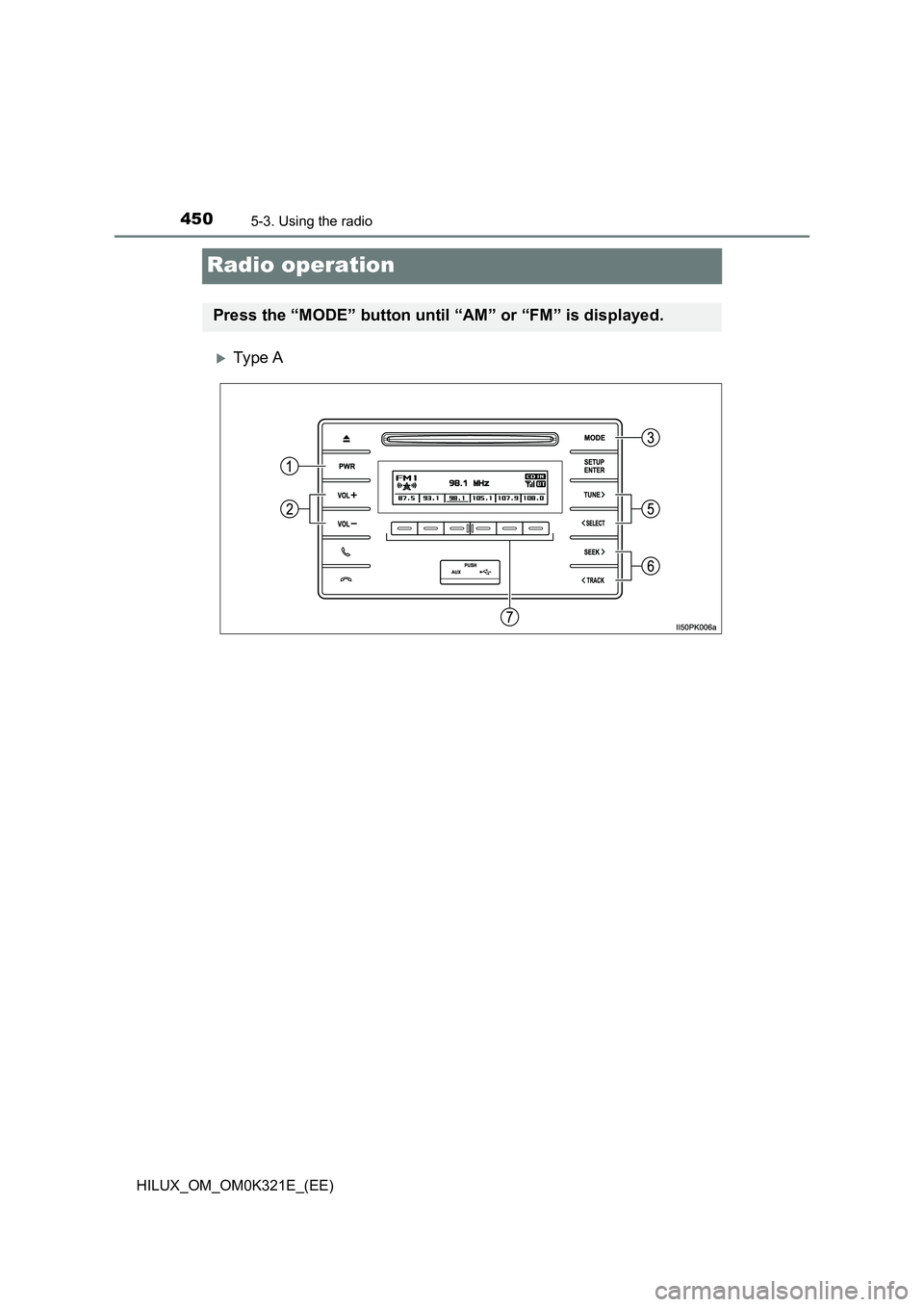

Radio operation
Ty pe A
Press the “MODE” button until “AM” or “FM” is displayed.

4515-3. Using the radio
5
Audio system
HILUX_OM_OM0K321E_(EE)

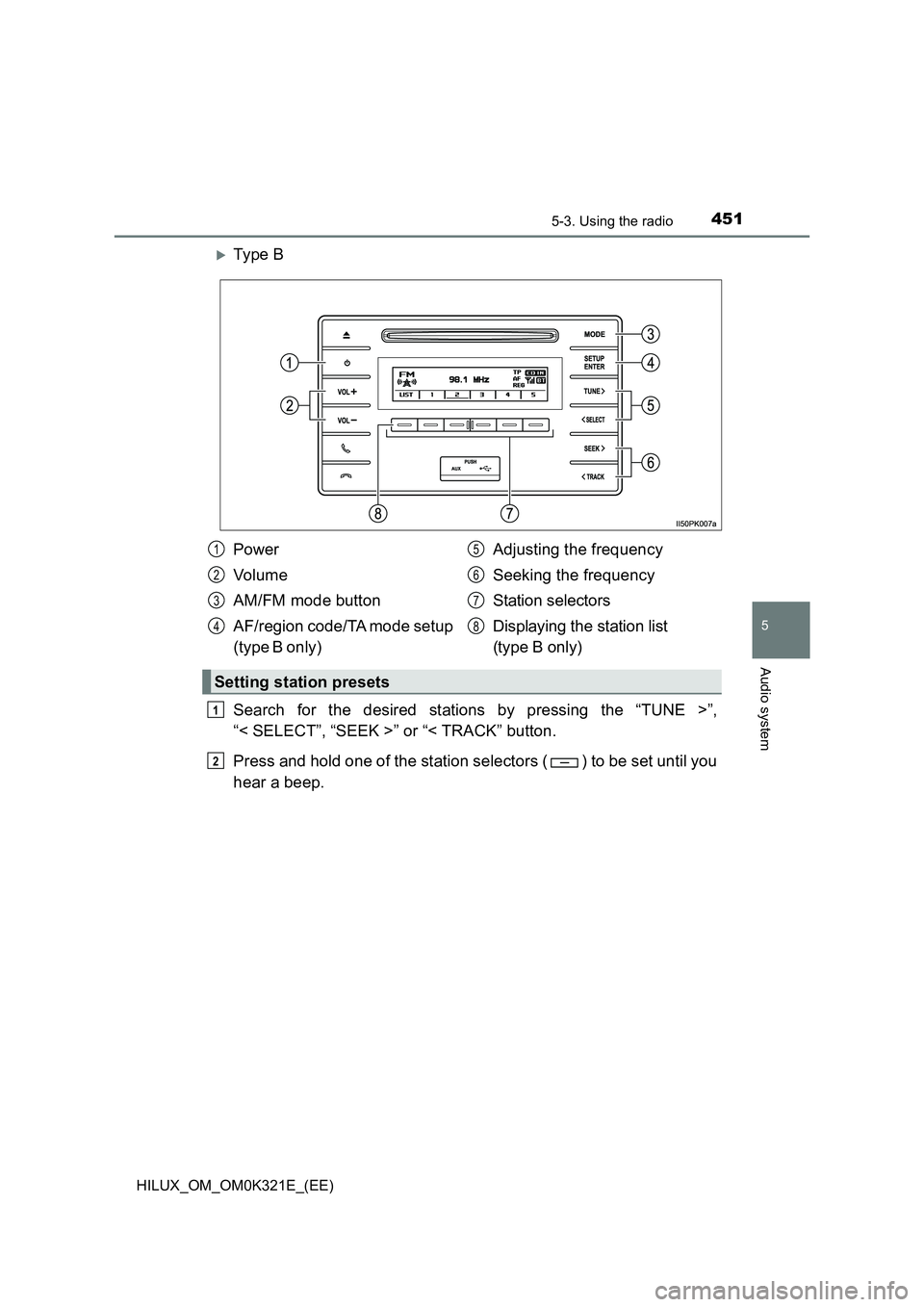

Ty pe B
Search for the desired stations by pressing the “TUNE >”,
“< SELECT”, “SEEK >” or “< TRACK” button.
Press and hold one of the station selectors ( ) to be set until you
hear a beep.
Power
Vo lu m e
AM/FM mode button
AF/region code/TA mode setup
(type B only)
Adjusting the frequency
Seeking the frequency
Station selectors
Displaying the station list
(type B only)
Setting station presets
1
2
3
4
5
6
7
8
1
2

4525-3. Using the radio
HILUX_OM_OM0K321E_(EE)

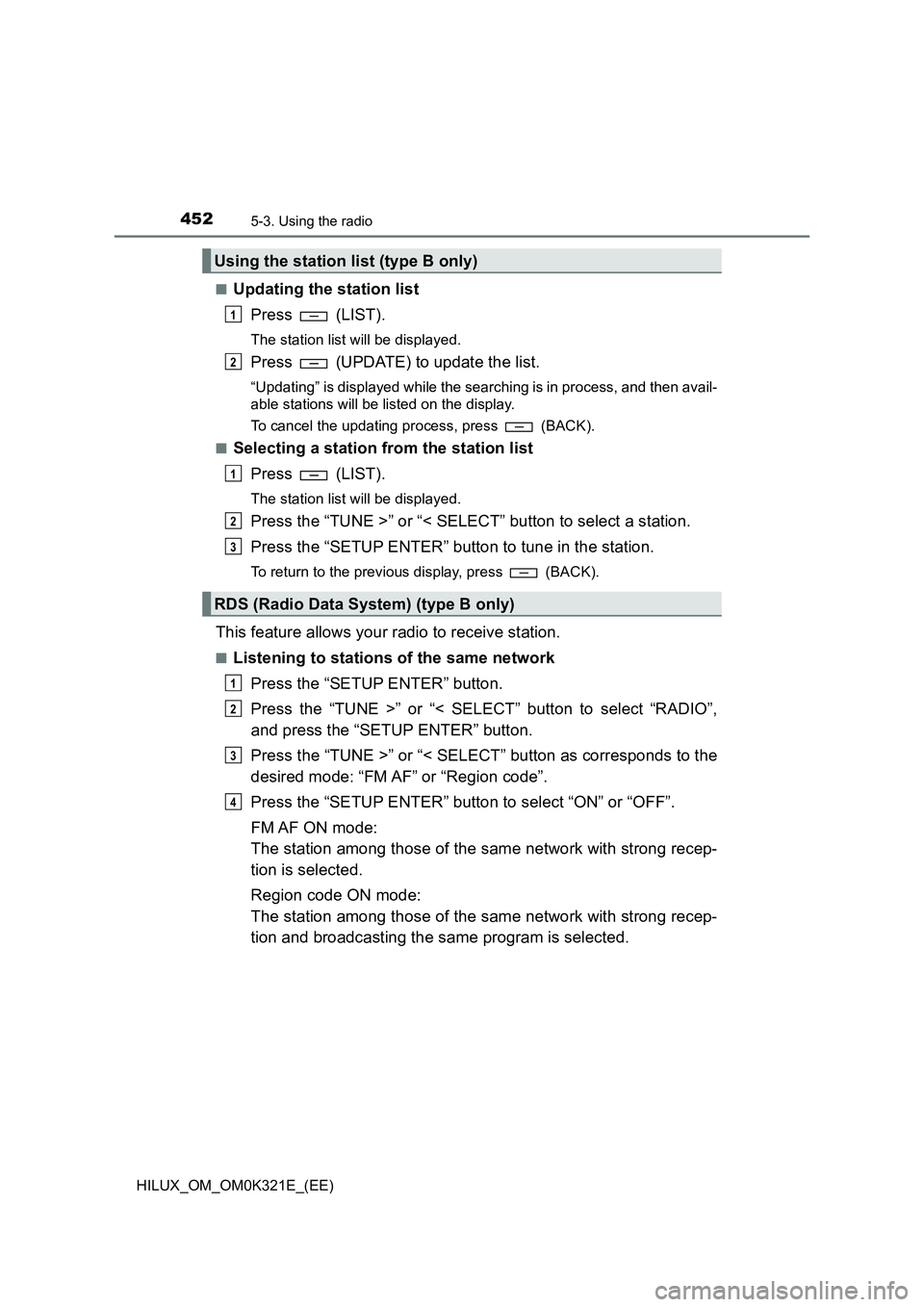

■Updating the station list
Press (LIST).
The station list will be displayed.
Press (UPDATE) to update the list.
“Updating” is displayed while the searching is in process, and then avail-
able stations will be listed on the display.
To cancel the updating process, press (BACK).
■Selecting a station from the station list
Press (LIST).
The station list will be displayed.
Press the “TUNE >” or “< SELECT” button to select a station.
Press the “SETUP ENTER” button to tune in the station.
To return to the previous display, press (BACK).
This feature allows your radio to receive station.
■Listening to stations of the same network
Press the “SETUP ENTER” button.
Press the “TUNE >” or “< SELECT” button to select “RADIO”,
and press the “SETUP ENTER” button.
Press the “TUNE >” or “< SELECT” button as corresponds to the
desired mode: “FM AF” or “Region code”.
Press the “SETUP ENTER” button to select “ON” or “OFF”.
FM AF ON mode:
The station among those of the same network with strong recep-
tion is selected.
Region code ON mode:
The station among those of the same network with strong recep-
tion and broadcasting the same program is selected.
Using the station list (type B only)
RDS (Radio Data System) (type B only)
1
2
1
2
3
1
2
3
4

4535-3. Using the radio
5
Audio system
HILUX_OM_OM0K321E_(EE)

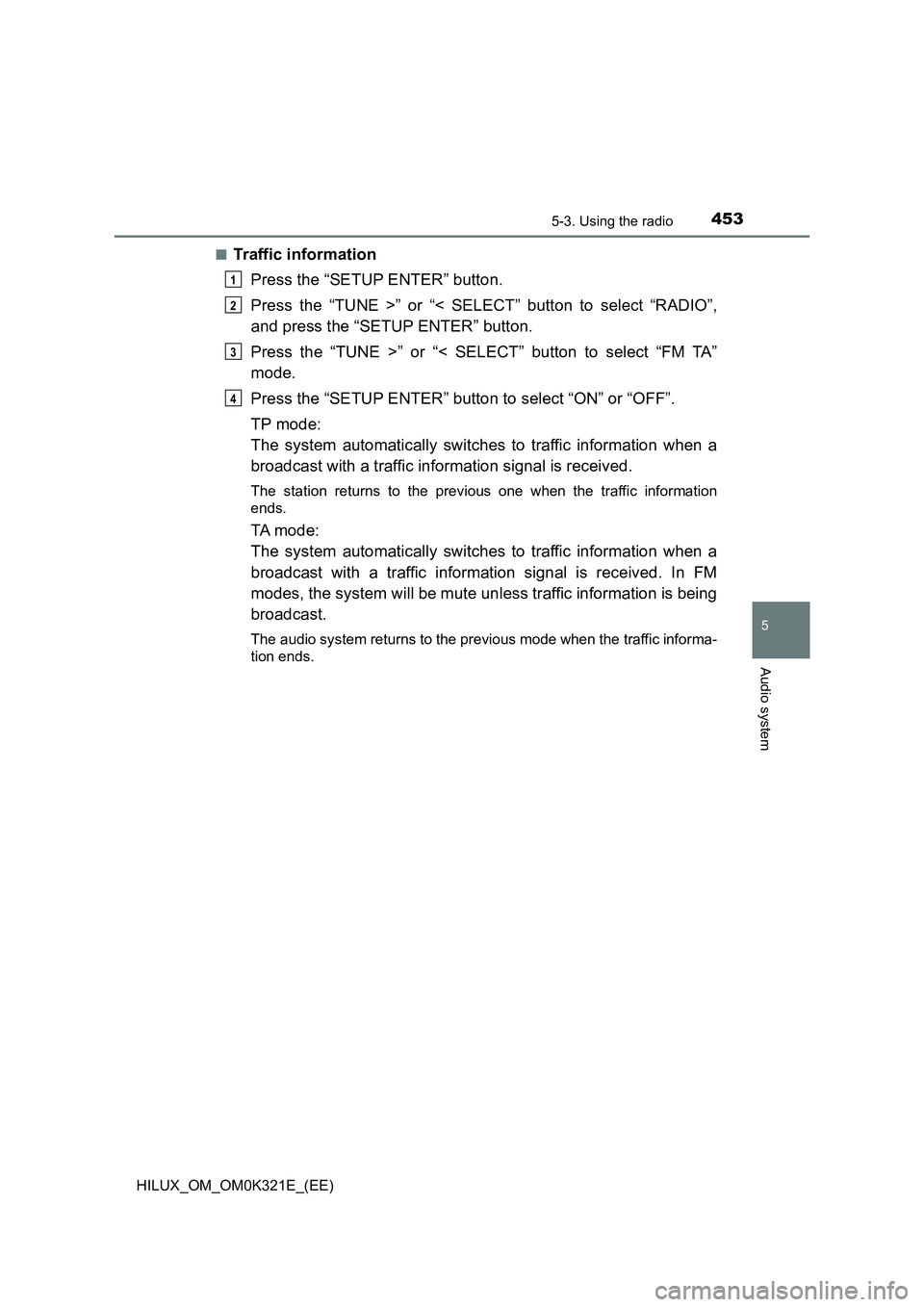

■Traffic information
Press the “SETUP ENTER” button.
Press the “TUNE >” or “< SELECT” button to select “RADIO”,
and press the “SETUP ENTER” button.
Press the “TUNE >” or “< SELECT” button to select “FM TA”
mode.
Press the “SETUP ENTER” button to select “ON” or “OFF”.
TP mode:
The system automatically switches to traffic information when a
broadcast with a traffic information signal is received.
The station returns to the previous one when the traffic information
ends.
TA mode:
The system automatically switches to traffic information when a
broadcast with a traffic information signal is received. In FM
modes, the system will be mute unless traffic information is being
broadcast.
The audio system returns to the previous mode when the traffic informa-
tion ends.
1
2
3
4

4545-3. Using the radio
HILUX_OM_OM0K321E_(EE)

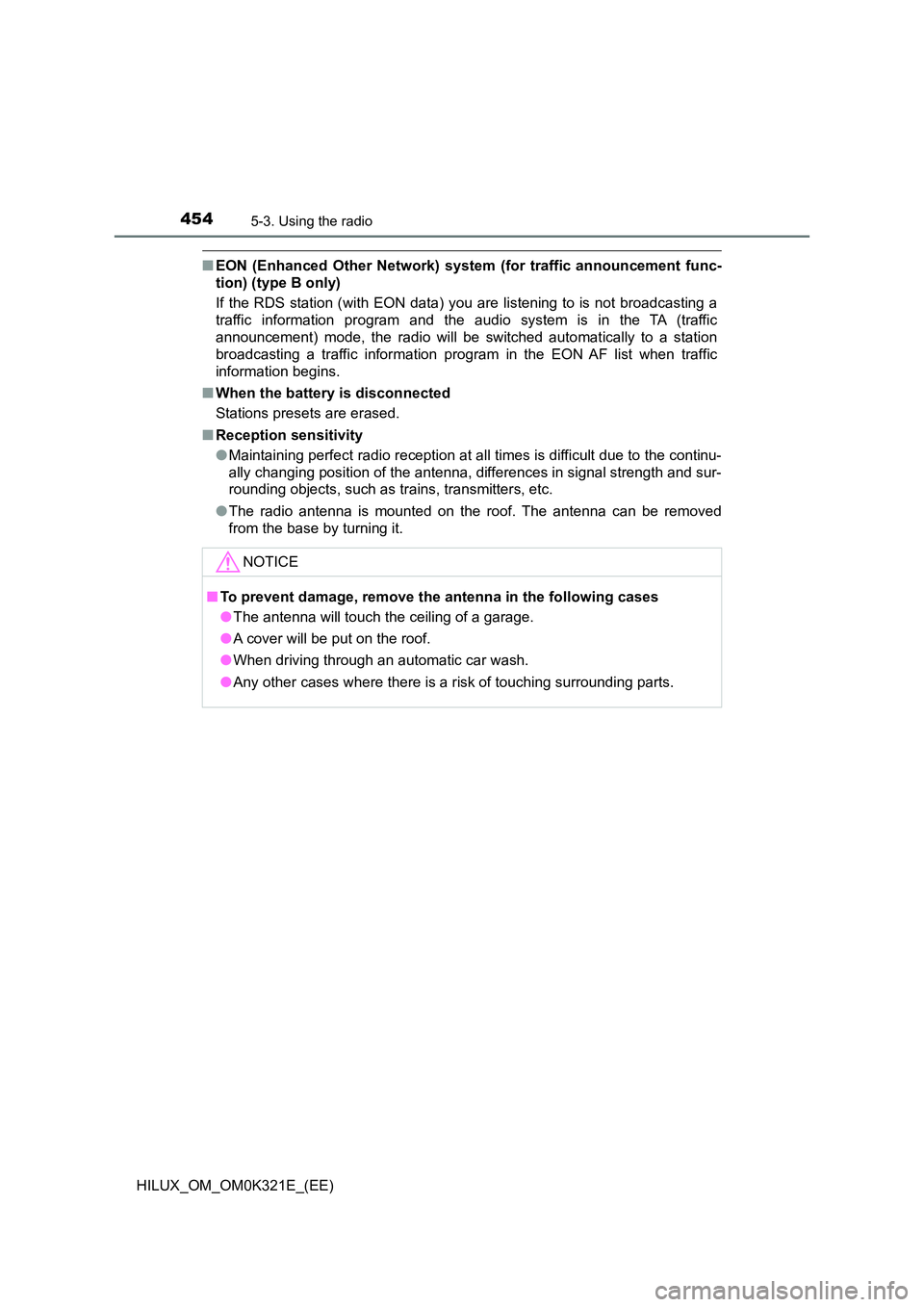

■EON (Enhanced Other Network) system (for traffic announcement func-
tion) (type B only)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
■ When the battery is disconnected
Stations presets are erased.
■ Reception sensitivity
● Maintaining perfect radio reception at all times is difficult due to the continu-
ally changing position of the antenna, differences in signal strength and sur-
rounding objects, such as trains, transmitters, etc.
● The radio antenna is mounted on the roof. The antenna can be removed
from the base by turning it.
NOTICE
■ To prevent damage, remove the antenna in the following cases
● The antenna will touch the ceiling of a garage.
● A cover will be put on the roof.
● When driving through an automatic car wash.
● Any other cases where there is a risk of touching surrounding parts.

455
5
5-4. Playing an audio CD and MP3/WMA discs
Audio system
HILUX_OM_OM0K321E_(EE)

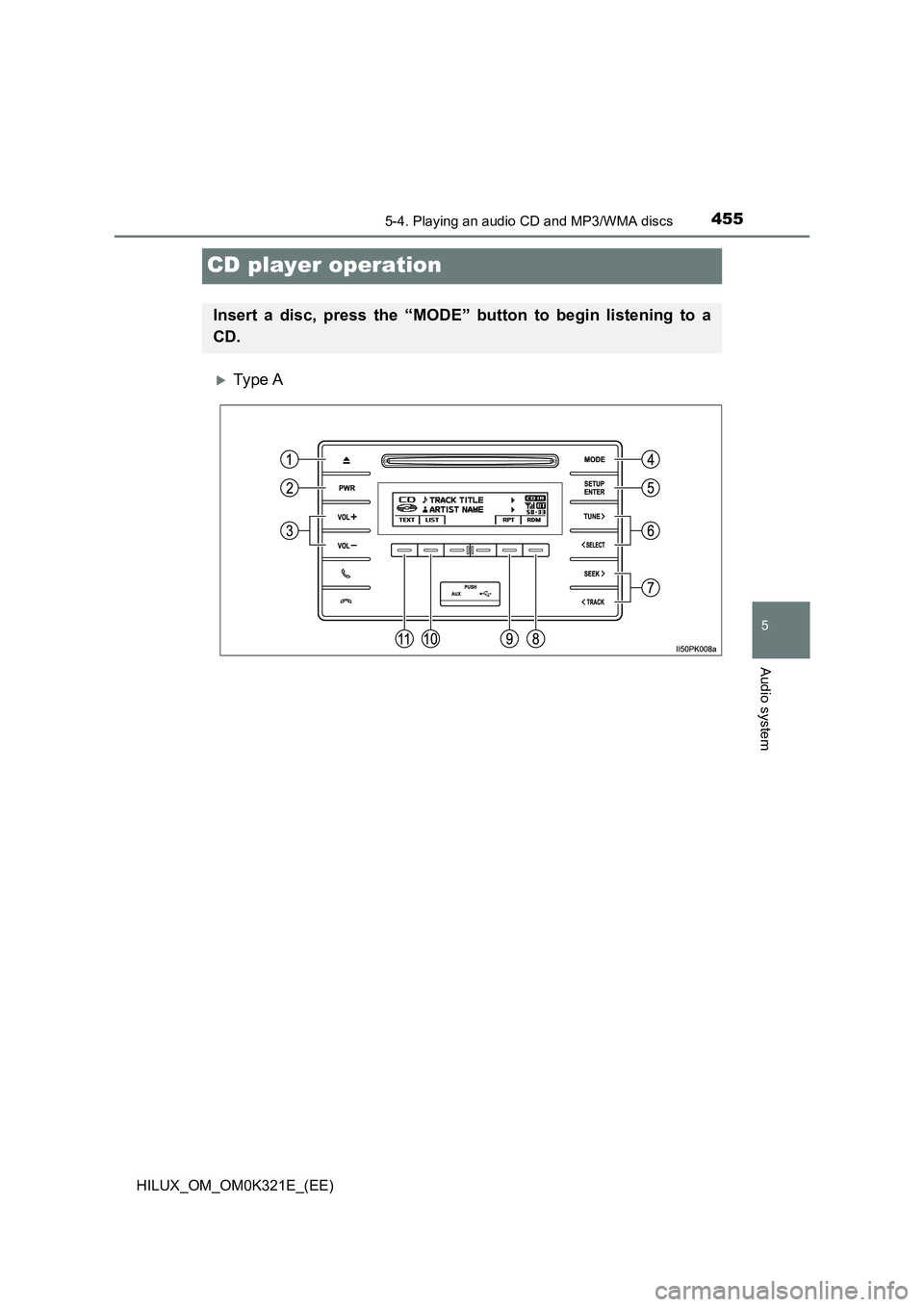

CD player operation
Ty pe A
Insert a disc, press the “MODE” button to begin listening to a
CD.

4565-4. Playing an audio CD and MP3/WMA discs
HILUX_OM_OM0K321E_(EE)

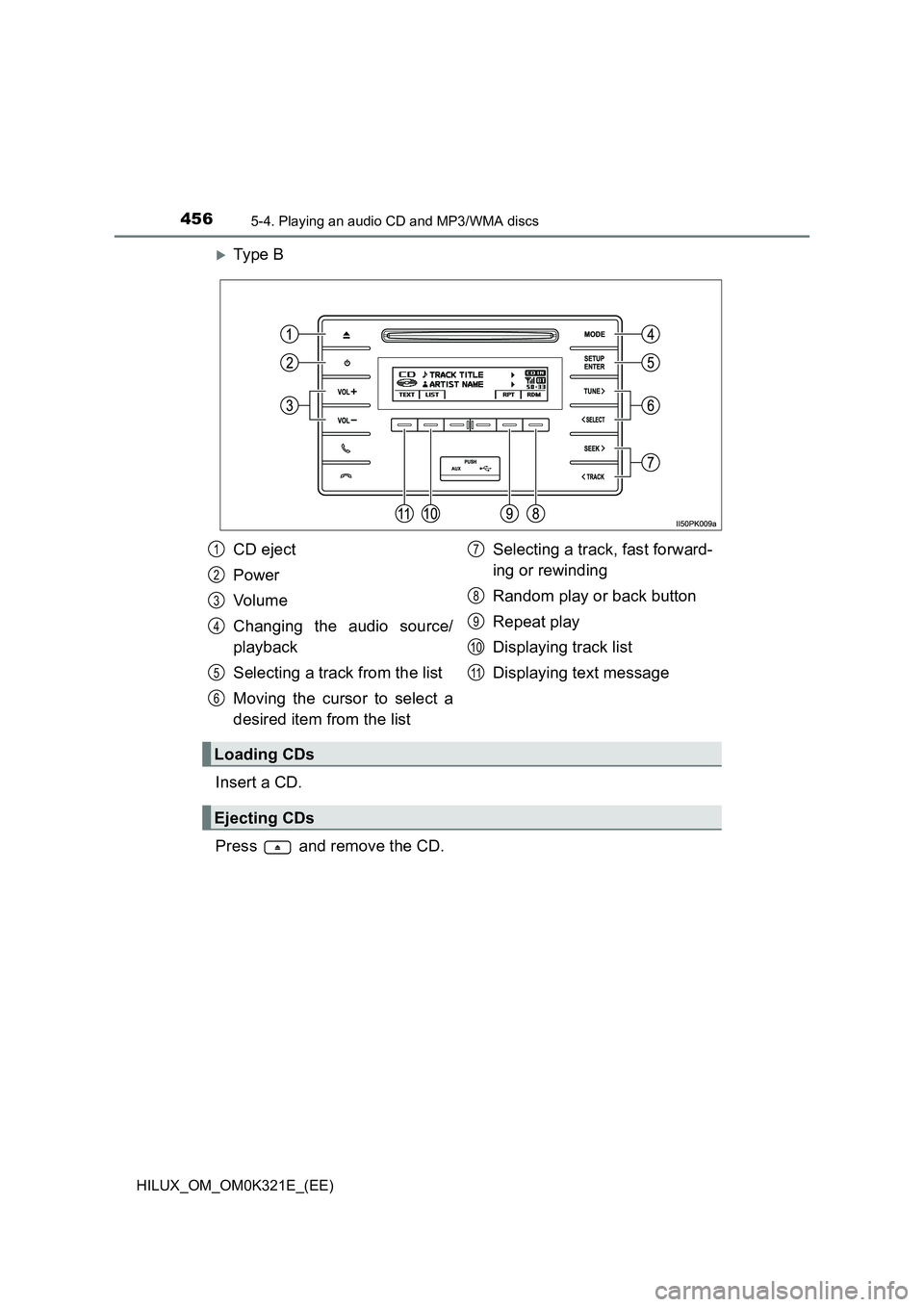

Ty pe B
Insert a CD.
Press and remove the CD.
CD eject
Power
Vo lu m e
Changing the audio source/
playback
Selecting a track from the list
Moving the cursor to select a
desired item from the list
Selecting a track, fast forward-
ing or rewinding
Random play or back button
Repeat play
Displaying track list
Displaying text message
Loading CDs
Ejecting CDs
1
2
3
4
5
6
7
8
9
10
11
