2020 TOYOTA HILUX Owners Manual (in English)

1372. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K321E_(EE)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*2: The light turns on or flashes to indicate a malfunction.
*3: The light flashes rapidly to indicate a malfunction.
*4: The light flashes to indicate a malfunction.
*5: The lights illuminate on the center panel.

1382. Instrument cluster
HILUX_OM_OM0K321E_(EE)
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 306)(if equipped)
Dynamic radar cruise
control indicator
( P. 367)
Headlight high beam
indicator ( P. 310)(if equipped)
Cruise control “SET”
indicator ( P. 367, 383)
Tail light indicator
( P. 308)(if equipped)
“ECO MODE” indicator
( P. 295, 301)
(if equipped)
Front fog light indicator
( P. 315)(if equipped)
“PWR MODE” indicator
( P. 295, 301)
(if equipped)
Rear fog light indicator
( P. 316)
*1
(if equipped)
Downhill assist control
system indicator
( P. 430)
*1Eco Driving Indicator
Light ( P. 140)
*1, 2
(if equipped)
Slip indicator (P. 423)
*1
(if equipped)
Stop & Start indicator
( P. 412)
*1, 3
(if equipped)
VSC OFF indicator
( P. 424)
*1
(if equipped)
Stop & Start cancel
indicator ( P. 413)
*1, 3
(if equipped)
“TRC OFF” indicator
( P. 424)
(diesel engine)
Engine preheating
indicator ( P. 282, 285)(4WD models)
Four-wheel drive
indicator ( P. 398)
(if equipped)
Cruise control indicator
( P. 367, 383)(4WD models)
Low speed four-wheel
drive indicator light
( P. 398)

1392. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K321E_(EE)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turned off.
*4: Depending on the operating condition, the color and illuminating/flashing
state of the light change.
*5: The light illuminates on the center panel.
(if equipped)
Rear differential lock
indicator ( P. 408)(if equipped)
Low outside
temperature indicator
( P. 143)
*1, 3
(if equipped)
PCS warning light
( P. 339)
Parking brake indicator
light ( P. 307)
*4
(if equipped)
LDA indicator (P. 356)
*1, 5
(if equipped)
“PASSENGER AIR
BAG” indicator
( P. 59, 64)

1402. Instrument cluster
HILUX_OM_OM0K321E_(EE)
■Eco Driving Indicator
If the vehicle exceeds Zone of Eco driving, the right side of Eco Driving Indi-
cator Zone Display will blink (vehicles with multi-information display type A)
or illuminate (vehicles with multi-information display type B).
Eco Driving Indicator Light and Eco Driving Indicator Zone Display will not
operate in the following conditions:
● The shift lever is in anything other than D. (vehicles with automatic transmis-
sion)
● The shift lever is in R. (vehicles with manual transmission)
● The vehicle is in the power mode. (if equipped) (P. 295, 301)
● Downhill assist control system is operating. (if equipped) (P. 430)
● Front-wheel drive control switch is in L4. (if equipped) (P. 398)
● The vehicle speed is approximately 130 km/h (81 mph) or higher.
Eco Driving Indicator Light
Vehicles with automatic transmission:
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the accelerator pedal is
depressed excessively, or when the
vehicle is stopped, the light turns off.
Vehicles with manual transmission:
During Eco-friendly acceleration or in
Eco-friendly shift position (Eco driving),
Eco Driving Indicator Light will turn on.
When the accelerator pedal is
depressed excessively, or when the
vehicle is stopped, the light turns off.
Eco Driving Indicator Zone Display (if
equipped)
Suggests Zone of Eco driving with cur-
rent Eco driving ratio based on acceler-
ation.
Zone of Eco driving
Eco driving ratio based on acceleration
1
2
3
4

1412. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K321E_(EE)
Eco Driving Indicator Light can be activated or deactivated.
Vehicles without multi-information display:
Press and hold the odometer/trip meter display change button for more than
2 seconds to complete the setting.
Vehicles with multi-information display: P. 719
While the odometer is being displayed,
press and hold the odometer/trip meter
display change button to display the Eco
Driving Indicator Light customization
screen.
Press the odometer/trip meter display
change button to set Eco Driving Indicator
Light to on or off.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer immediately if
this occurs.

1422. Instrument cluster
HILUX_OM_OM0K321E_(EE)

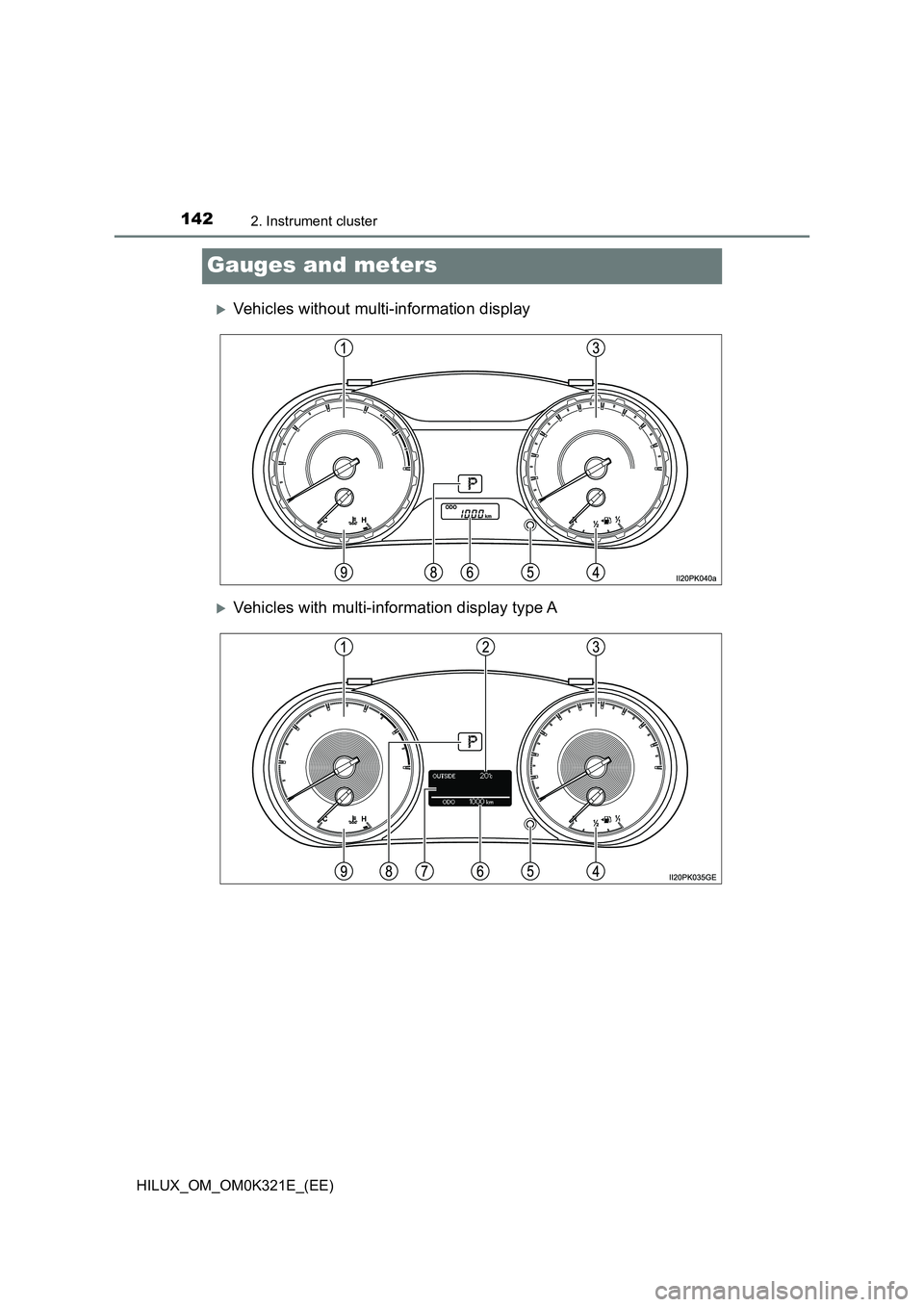

Gauges and meters
Vehicles without multi-information display
Vehicles with multi-information display type A

1432. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K321E_(EE)
Vehicles with multi-information display type B
The units used on the speedometer may differ depending on the target
region, and the positions of the outside temperature and shift position indi-
cators differ depending on vehicles.
Tachometer
Displays the engine speed in revolutions per minute.
Outside temperature
Displays the outside temperature. The temperature range that can be dis-
played is from -40 C (-40F) to 50C (122F). The low outside temperature
indicator comes on when the ambient temperature is approximately 3 C
(37 F) or lower, and goes off when approximately 5C (41F) or higher.
( P. 139)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer/trip meter display change button
P. 144
1
2
3
4
5

1442. Instrument cluster
HILUX_OM_OM0K321E_(EE)
Odometer and trip meter
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Multi-information display
Presents the driver with a variety of driving-related data. ( P. 147, 151)
Shift position and shift range (automatic transmission)
Displays the selected shift position or selected shift range. (P. 293)
Engine coolant temperature gauge
Displays the engine coolant temperature.
Vehicles without multi-information display
Pressing this button switches between odometer and trip meter dis-
plays.
Odometer
Trip meter A*
Trip meter B*
*: Pressing and holding the button
will reset the trip meter.
Changing the display
6
7
8
9
1
2
3
