2020 TOYOTA HILUX Owners Manual (in English)

2413-3. Adjusting the seats
3
Operation of each component
HILUX_OM_OM0K321E_(EE)
WARNING
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.

2423-4. Adjusting the steering wheel and mirrors
HILUX_OM_OM0K321E_(EE)
Steering wheel
Hold the steering wheel and
push the lever down.
Ty pe A
Adjust to the ideal position by
moving the steering wheel verti-
cally.
After adjustment, pull the lever up
to secure the steering wheel.
Ty pe B
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
Adjustment procedure
1
2
2

2433-4. Adjusting the steering wheel and mirrors
3
Operation of each component
HILUX_OM_OM0K321E_(EE)
To sound the horn, press on or
close to the mark.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
Horn
WARNING
■ Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury.

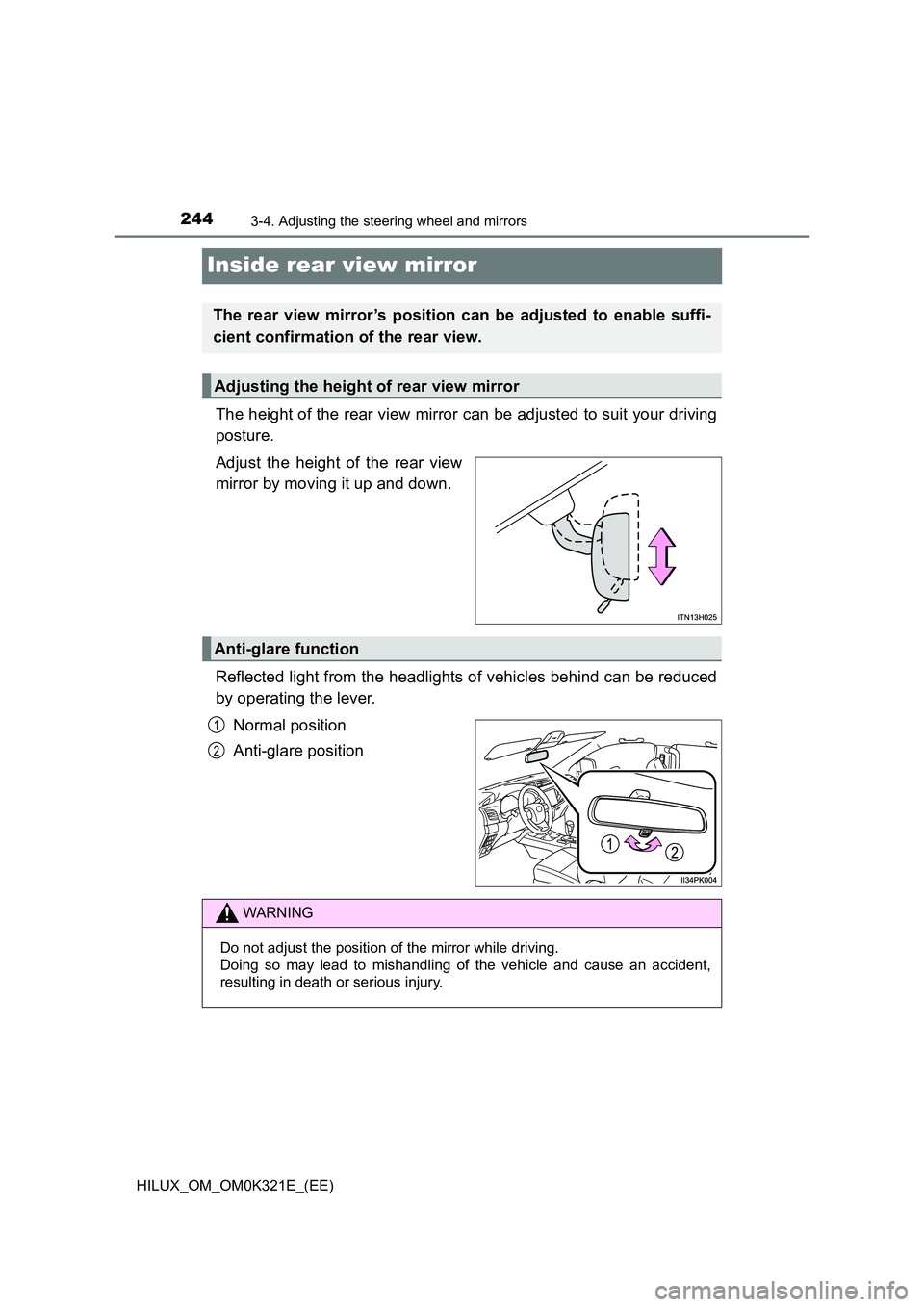

2443-4. Adjusting the steering wheel and mirrors
HILUX_OM_OM0K321E_(EE)
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
1
2
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

245
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
HILUX_OM_OM0K321E_(EE)
Outside rear view mirrors
Manual adjustable type
Adjust a mirror.
Power adjustable type
To select a mirror to adjust, turn
the switch.
Left
Right
To adjust the mirror, move the
switch.
Up
Right
Down
Left
Adjustment procedure
1
1
2
2
1
2
3
4

2463-4. Adjusting the steering wheel and mirrors
HILUX_OM_OM0K321E_(EE)
Manual folding type
Push the mirror back in the direc-
tion of the vehicle’s rear.
Power folding type
Press the switch.
Folding
Extending
■ Mirror angle can be adjusted when (power adjustable type)
Vehicles without smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with smart entry & start system
The engine switch is in ACCESSORY or IGNITION ON mode.
■ When the mirrors are fogged up (vehicles with outside rear view mirror
defoggers)
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defog-
gers. ( P. 519, 528)
Folding the mirrors
1
2

2473-4. Adjusting the steering wheel and mirrors
3
Operation of each component
HILUX_OM_OM0K321E_(EE)
WARNING
■Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
● Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving (power adjustable type)
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating (vehicles with outside rear
view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.
NOTICE
■ If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.

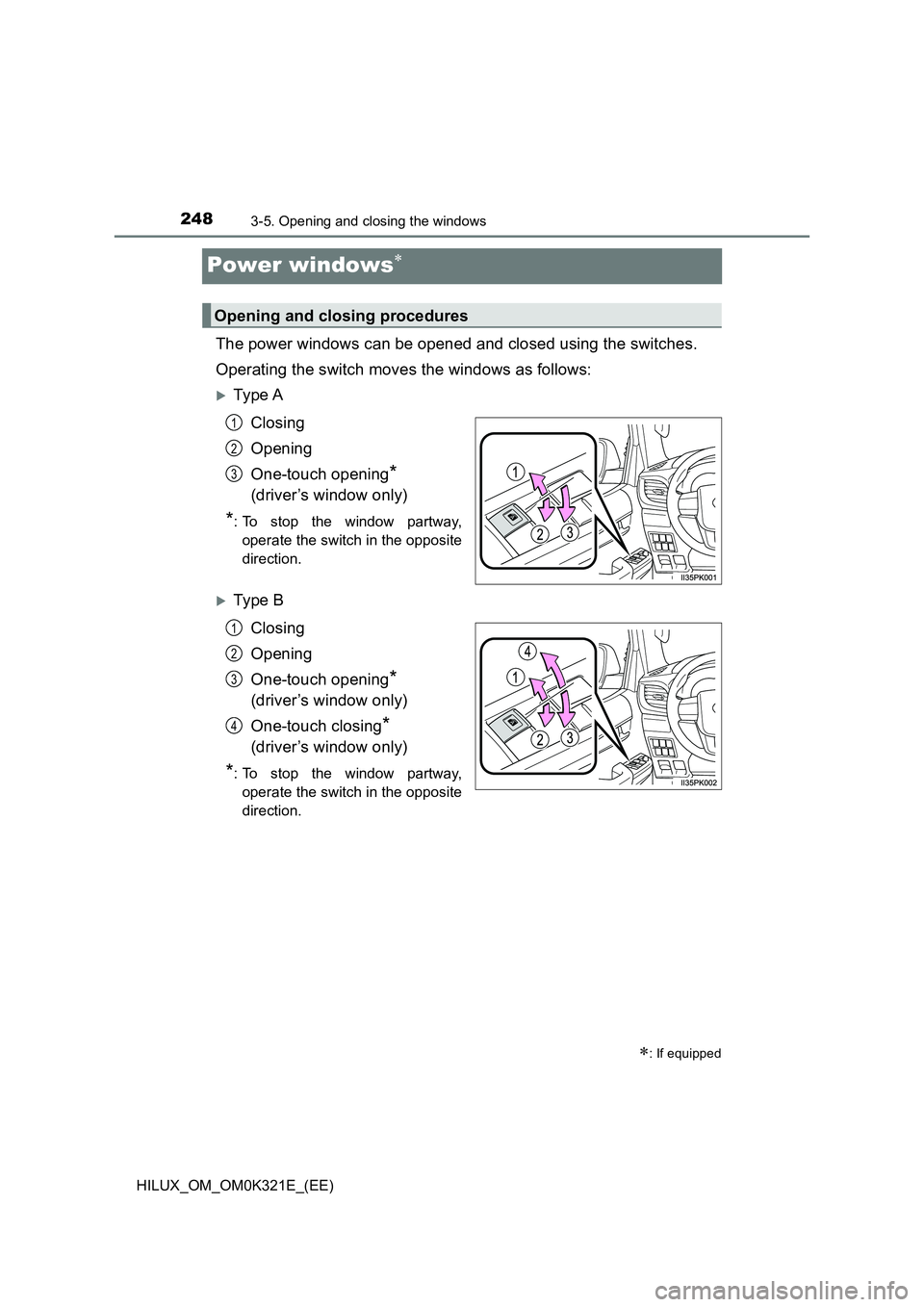

2483-5. Opening and closing the windows
HILUX_OM_OM0K321E_(EE)
Power windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Ty pe A
Closing
Opening
One-touch opening*
(driver’s window only)
*: To stop the window partway,
operate the switch in the opposite
direction.
Ty pe B
Closing
Opening
One-touch opening*
(driver’s window only)
One-touch closing*
(driver’s window only)
*: To stop the window partway,
operate the switch in the opposite
direction.
: If equipped
Opening and closing procedures
1
2
3
1
2
3
4
