2020 TOYOTA HILUX Owners Manual (in English)

689
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K321E_(EE)
*1: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 12)
*2: Models made in South Africa*1
*3: Models made in Thailand*1
*4: The model code is indicated on the manufacturer’s plate or label.
( P. 691)
*5: Without rear seat cushion
*6: With rear seat cushion
*7: Except for GUN125R-DNFSXW3, GUN125L-DNFSXW3,
GUN125L-DTFSHW, GUN125L-DTFMHW, GUN125L-DTTMHW,
GUN125L-DTTHHW, GUN126L-DTTMHW and GUN126L-DTTHHW
models*4.
*8: For GUN125R-DNFSXW3, GUN125L-DNFSXW3, GUN125L-DTFSHW,
GUN125L-DTFMHW, GUN125L-DTTMHW, GUN125L-DTTHHW,
GUN126L-DTTMHW and GUN126L-DTTHHW models*4.

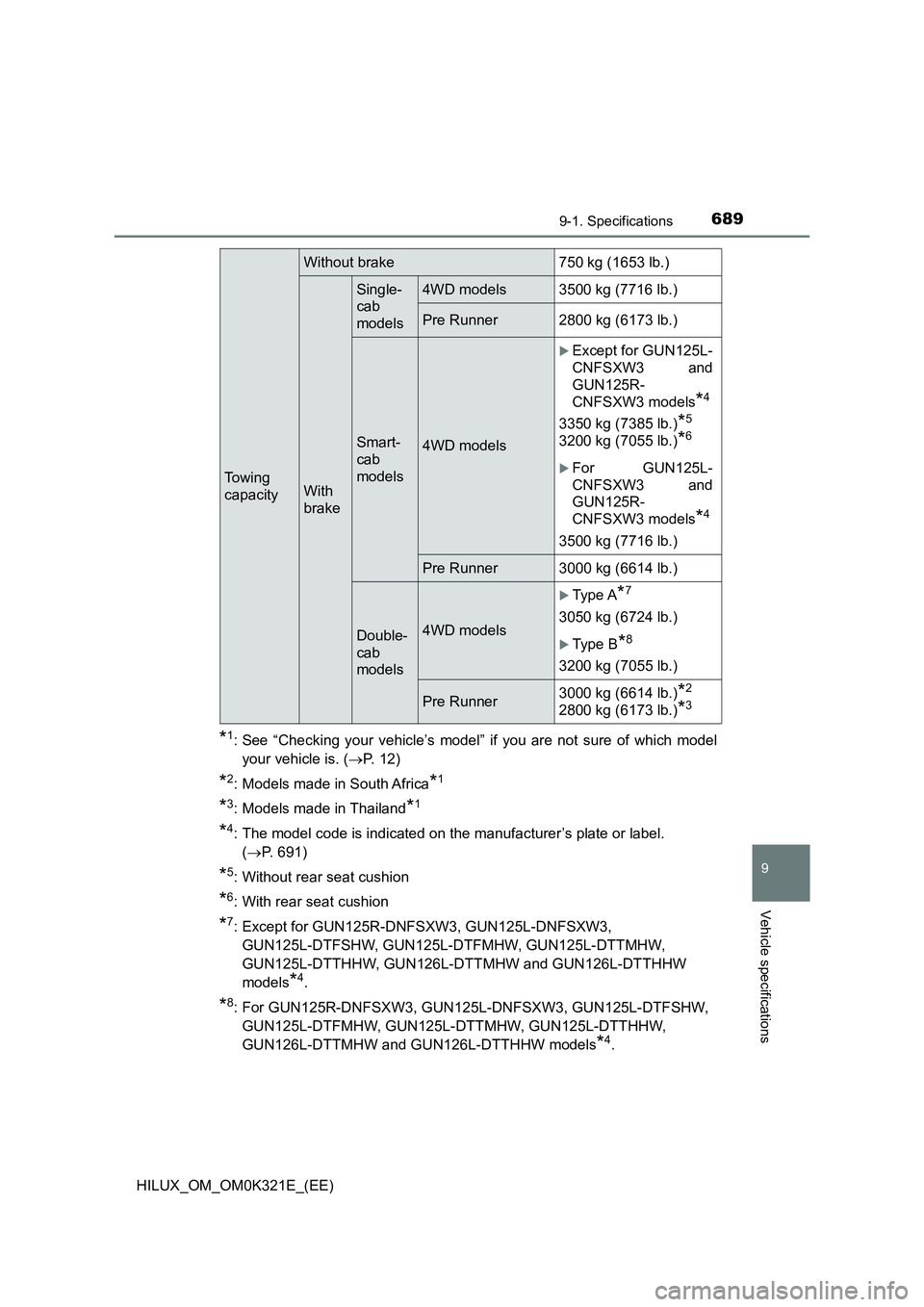

To w i n g
capacity
Without brake 750 kg (1653 lb.)
With
brake
Single-
cab
models
4WD models 3500 kg (7716 lb.)
Pre Runner 2800 kg (6173 lb.)
Smart-
cab
models
4WD models
Except for GUN125L-
CNFSXW3 and
GUN125R-
CNFSXW3 models*4
3350 kg (7385 lb.)*5
3200 kg (7055 lb.)*6
For GUN125L-
CNFSXW3 and
GUN125R-
CNFSXW3 models*4
3500 kg (7716 lb.)
Pre Runner 3000 kg (6614 lb.)
Double-
cab
models
4WD models
Type A*7
3050 kg (6724 lb.)
Type B*8
3200 kg (7055 lb.)
Pre Runner 3000 kg (6614 lb.)*2
2800 kg (6173 lb.)*3

6909-1. Specifications
HILUX_OM_OM0K321E_(EE)

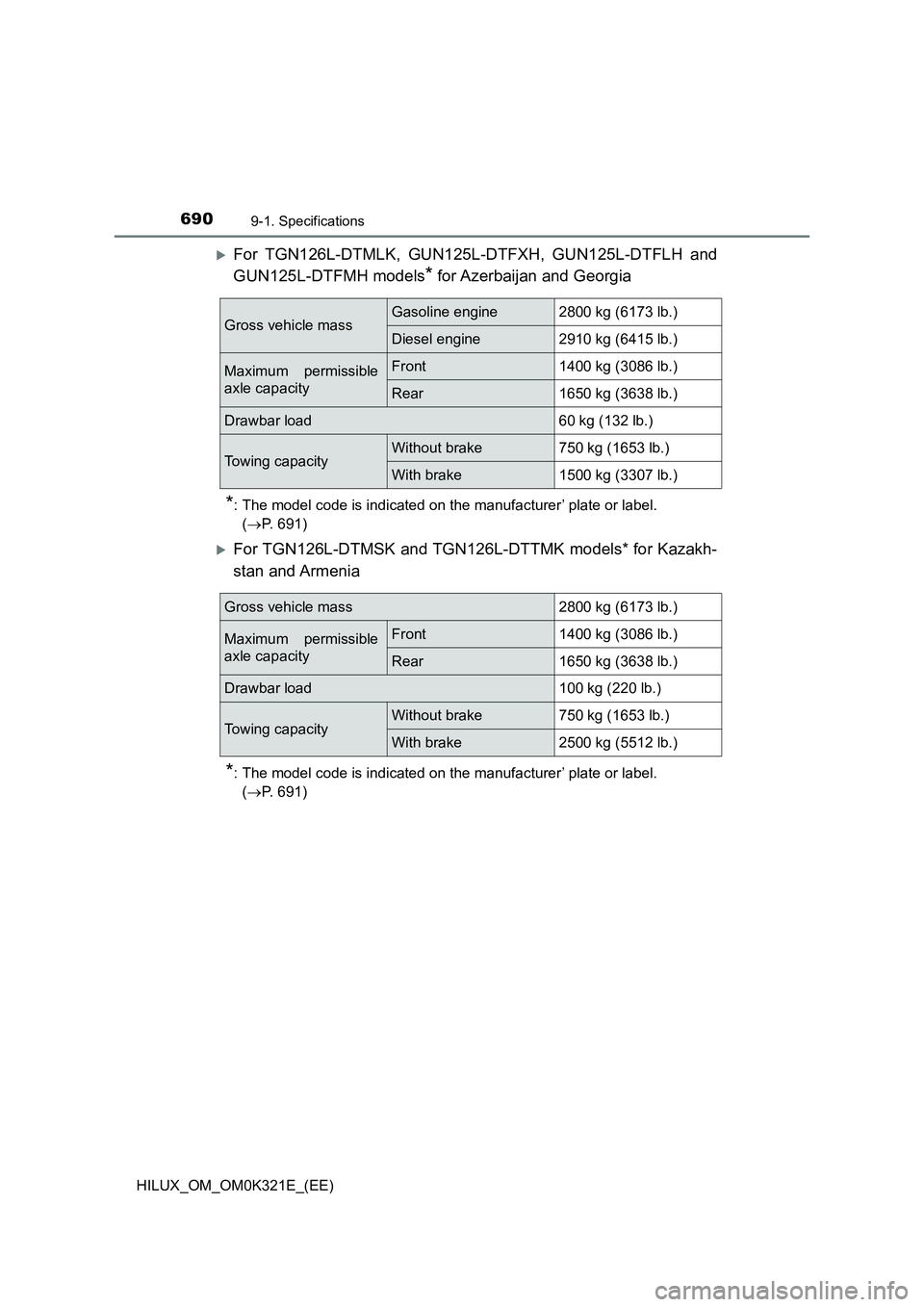

For TGN126L-DTMLK, GUN125L-DTFXH, GUN125L-DTFLH and
GUN125L-DTFMH models* for Azerbaijan and Georgia
*: The model code is indicated on the manufacturer’ plate or label.
( P. 691)
For TGN126L-DTMSK and TGN126L-DTTMK models* for Kazakh-
stan and Armenia
*: The model code is indicated on the manufacturer’ plate or label.
( P. 691)
Gross vehicle massGasoline engine2800 kg (6173 lb.)
Diesel engine2910 kg (6415 lb.)
Maximum permissible
axle capacity
Front1400 kg (3086 lb.)
Rear1650 kg (3638 lb.)
Drawbar load60 kg (132 lb.)
Towing capacityWithout brake750 kg (1653 lb.)
With brake1500 kg (3307 lb.)
Gross vehicle mass2800 kg (6173 lb.)
Maximum permissible
axle capacity
Front1400 kg (3086 lb.)
Rear1650 kg (3638 lb.)
Drawbar load100 kg (220 lb.)
Towing capacityWithout brake750 kg (1653 lb.)
With brake2500 kg (5512 lb.)

691
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K321E_(EE)

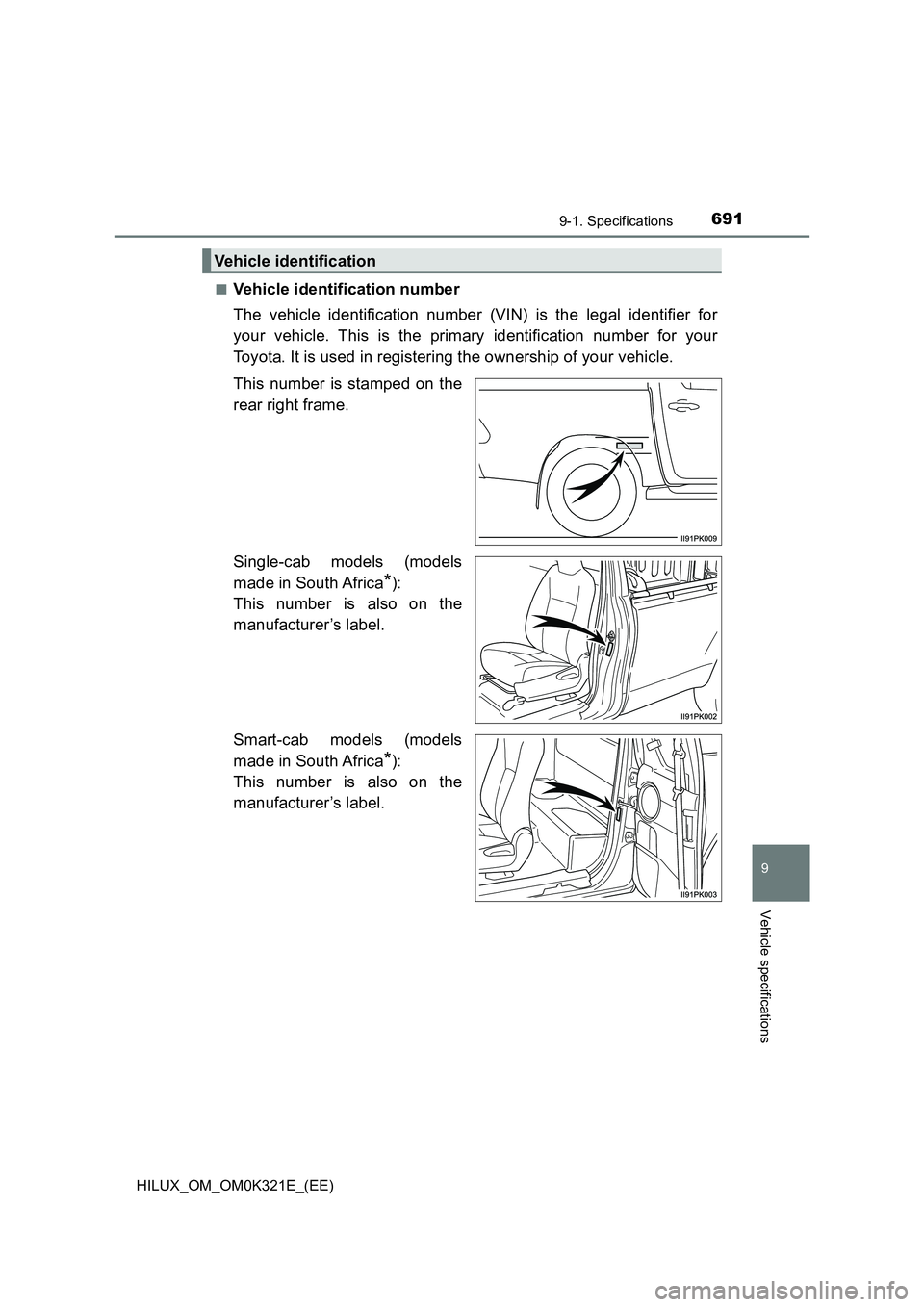

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
rear right frame.
Single-cab models (models
made in South Africa*):
This number is also on the
manufacturer’s label.
Smart-cab models (models
made in South Africa*):
This number is also on the
manufacturer’s label.
Vehicle identification

6929-1. Specifications
HILUX_OM_OM0K321E_(EE)

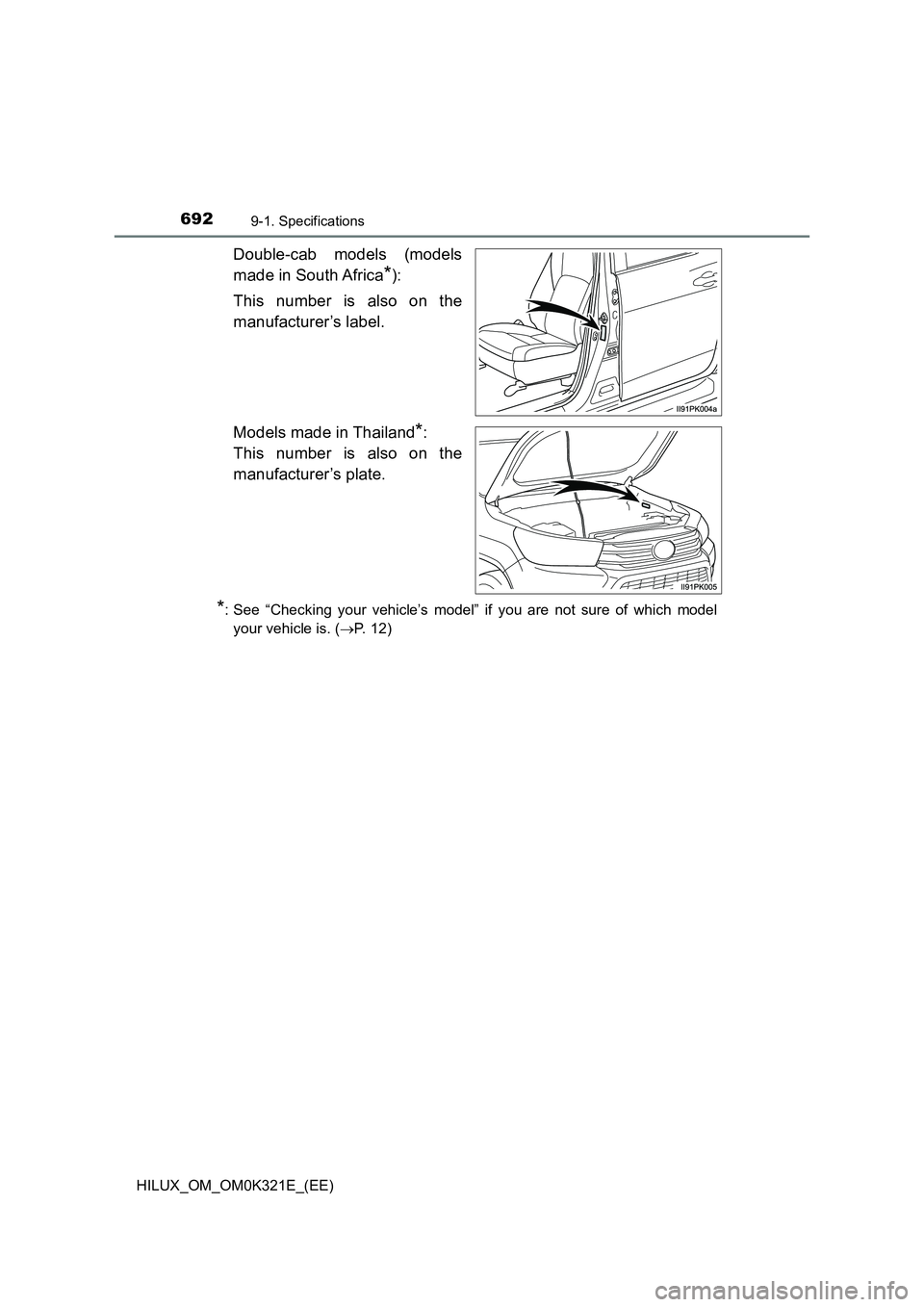

Double-cab models (models
made in South Africa*):
This number is also on the
manufacturer’s label.
Models made in Thailand*:
This number is also on the
manufacturer’s plate.
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 2 )

693
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K321E_(EE)

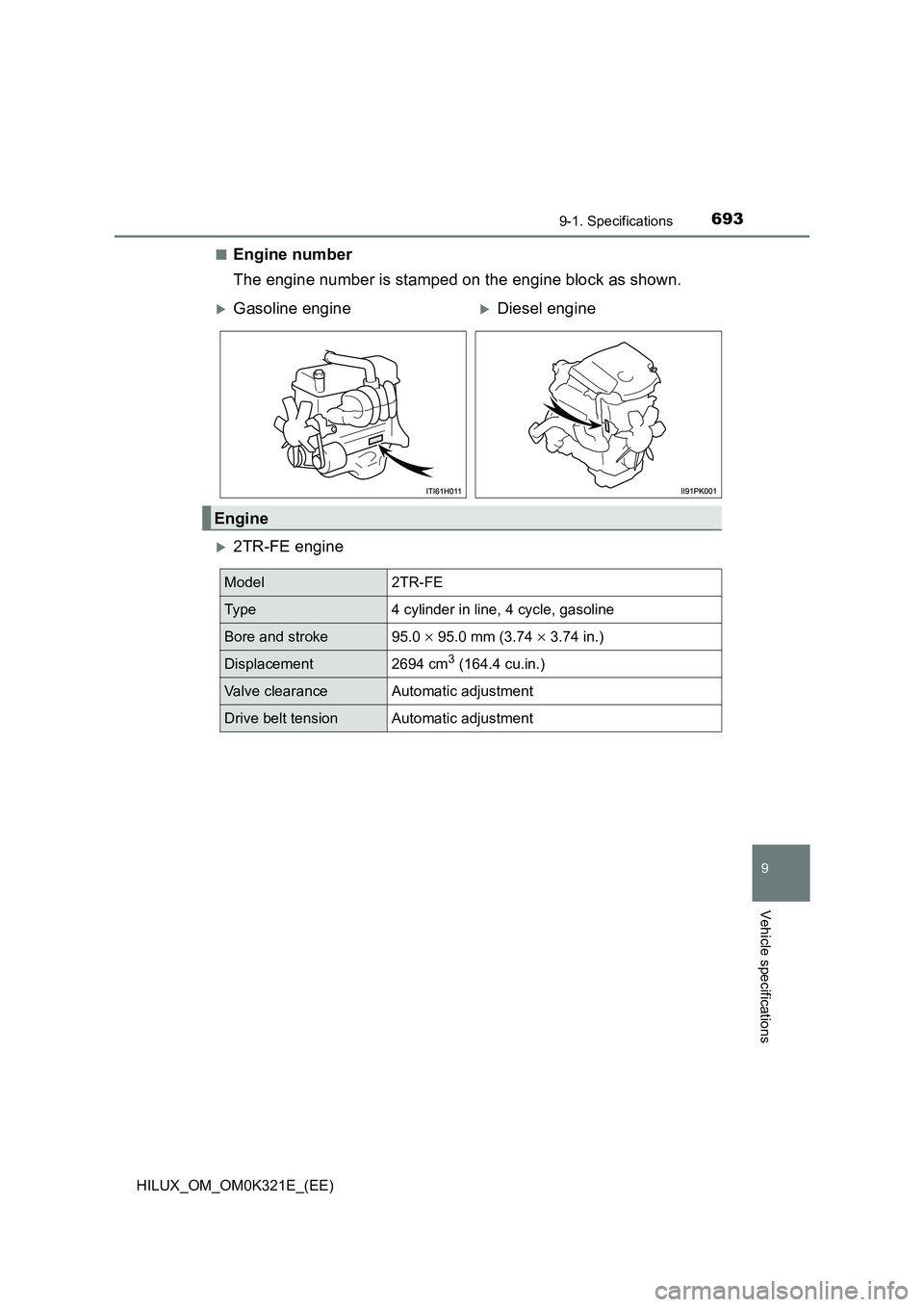

■Engine number
The engine number is stamped on the engine block as shown.
2TR-FE engine
Gasoline engineDiesel engine
Engine
Model2TR-FE
Ty p e4 cylinder in line, 4 cycle, gasoline
Bore and stroke95.0  95.0 mm (3.74  3.74 in.)
Displacement2694 cm3 (164.4 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment

6949-1. Specifications
HILUX_OM_OM0K321E_(EE)

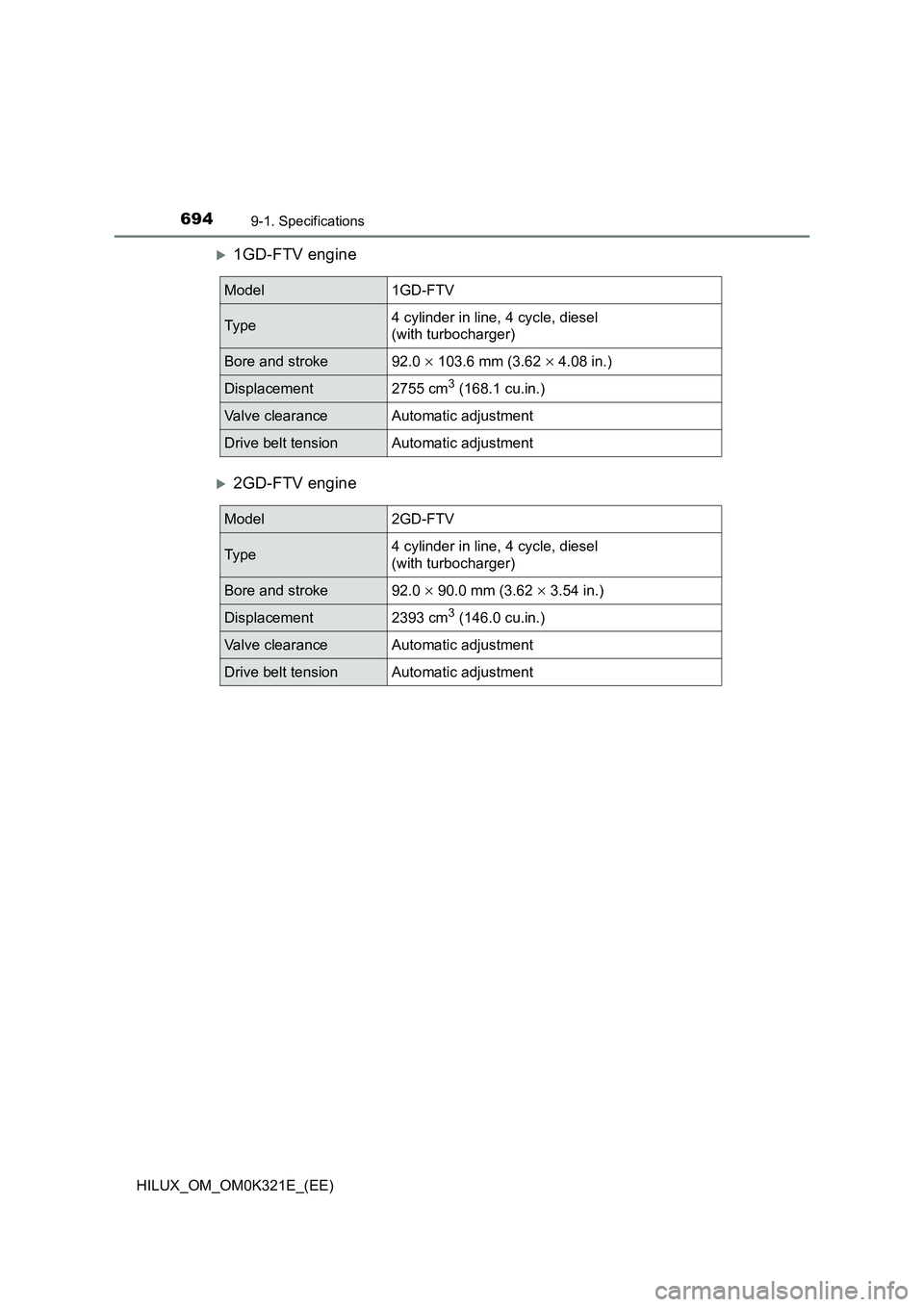

1GD-FTV engine
2GD-FTV engine
Model1GD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0  103.6 mm (3.62  4.08 in.)
Displacement2755 cm3 (168.1 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Model2GD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0  90.0 mm (3.62  3.54 in.)
Displacement2393 cm3 (146.0 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment

695
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K321E_(EE)

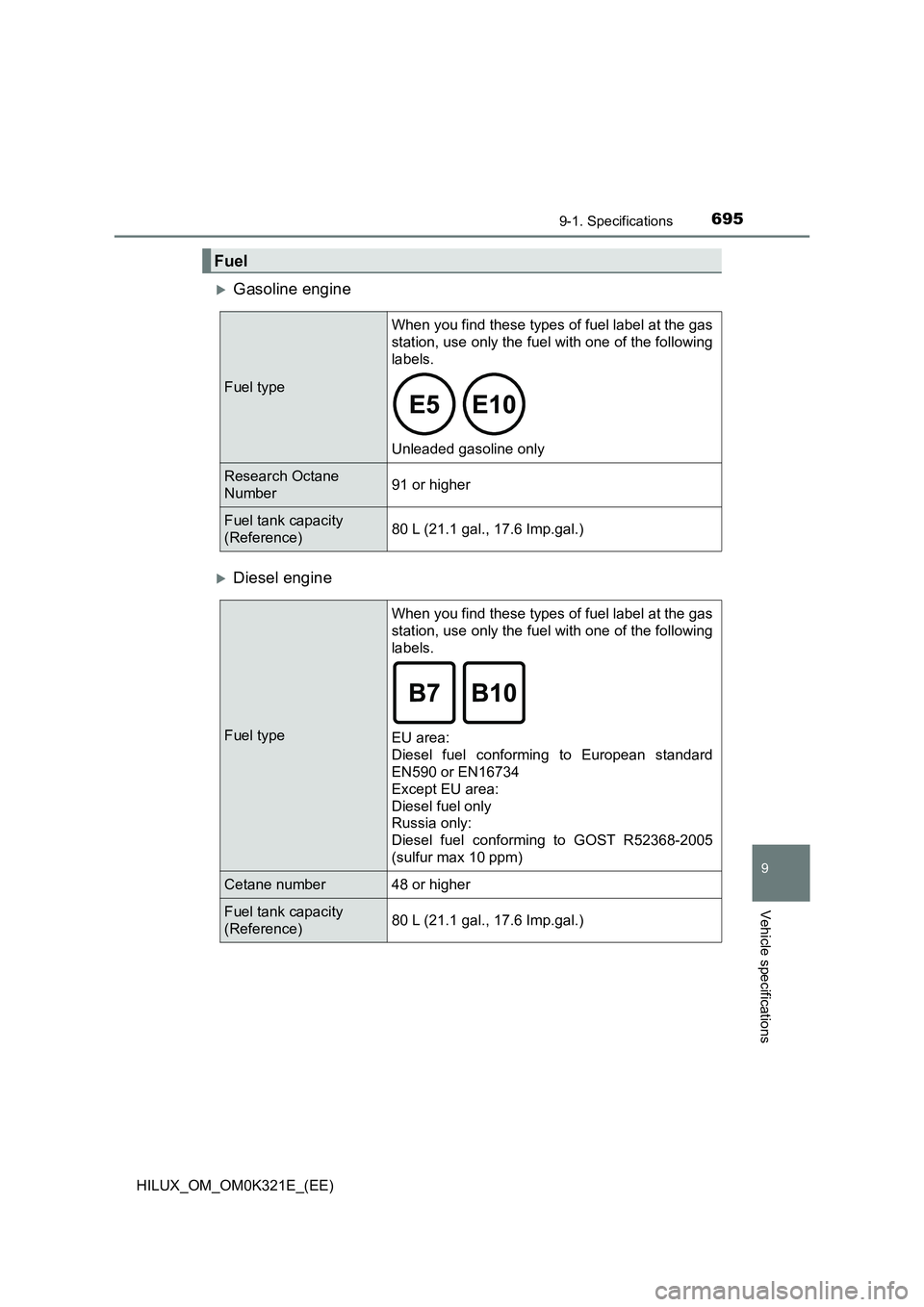

Gasoline engine
Diesel engine
Fuel
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

Unleaded gasoline only
Research Octane
Number 91 or higher
Fuel tank capacity
(Reference)80 L (21.1 gal., 17.6 Imp.gal.)
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

EU area:
Diesel fuel conforming to European standard
EN590 or EN16734
Except EU area:
Diesel fuel only
Russia only:
Diesel fuel conforming to GOST R52368-2005
(sulfur max 10 ppm)
Cetane number 48 or higher
Fuel tank capacity
(Reference)80 L (21.1 gal., 17.6 Imp.gal.)

6969-1. Specifications
HILUX_OM_OM0K321E_(EE)
Gasoline engine (except for EURO V models*1)
*1: EURO V is an emission standard. If it is not clear that your vehicle meets
relevant standards, contact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
*2: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or SN PLUS “Resource-Conserving”; or
ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM, SN or SN PLUS multigrade engine oil
Recommended viscosity (SAE):
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20, 5W-20
or 5W-30 engine oil is recom-
mended.
Lubrication system
Oil capacity
(Drain and refill  reference*2)
With filter
Without filter
5.6 L (5.9 qt., 4.9 Imp.qt.)
5.3 L (5.6 qt., 4.7 Imp.qt.)
Temperature range anticipated
before next oil change
