2020 TOYOTA HILUX Owners Manual (in English)

505
5
5-9. Bluetooth® Phone
Audio system
HILUX_OM_OM0K321E_(EE)

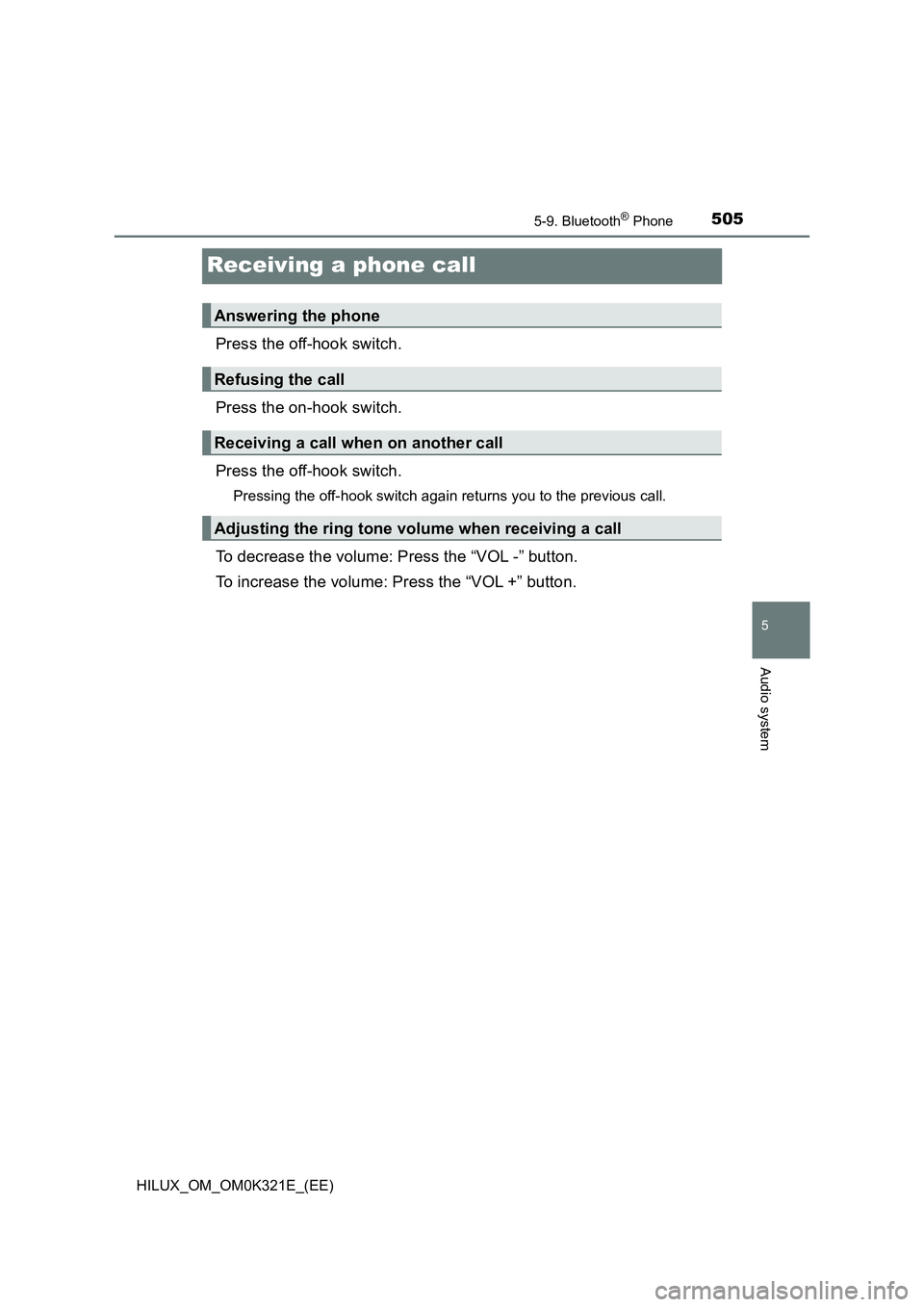

Receiving a phone call
Press the off-hook switch.
Press the on-hook switch.
Press the off-hook switch.
Pressing the off-hook switch again returns you to the previous call.
To decrease the volume: Press the “VOL -” button.
To increase the volume: Press the “VOL +” button.
Answering the phone
Refusing the call
Receiving a call when on another call
Adjusting the ring tone volume when receiving a call

5065-9. Bluetooth® Phone
HILUX_OM_OM0K321E_(EE)

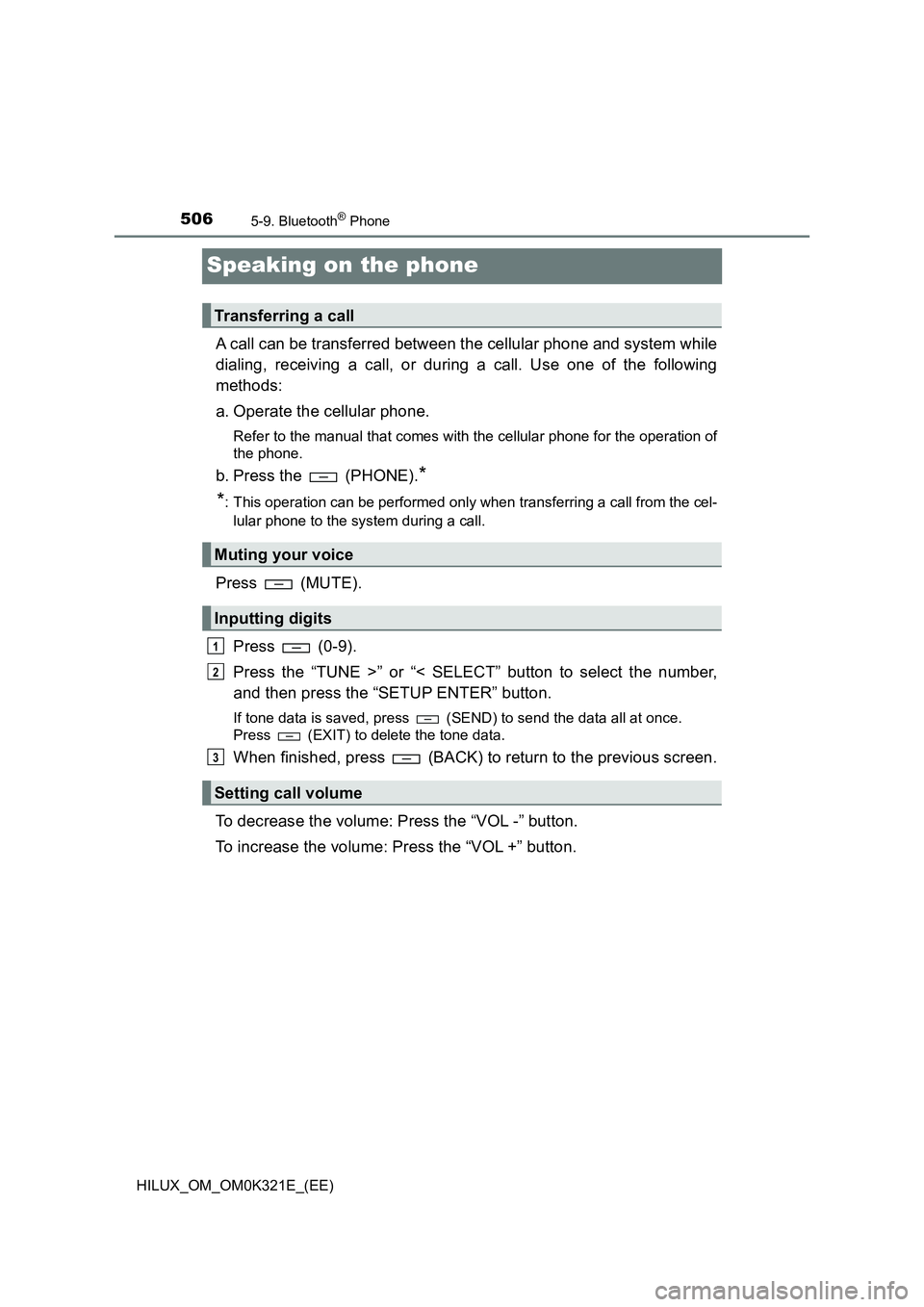

Speaking on the phone
A call can be transferred between the cellular phone and system while
dialing, receiving a call, or during a call. Use one of the following
methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the operation of
the phone.
b. Press the (PHONE).*
*: This operation can be performed only when transferring a call from the cel-
lular phone to the system during a call.
Press (MUTE).
Press (0-9).
Press the “TUNE >” or “< SELECT” button to select the number,
and then press the “SETUP ENTER” button.
If tone data is saved, press (SEND) to send the data all at once.
Press (EXIT) to delete the tone data.
When finished, press (BACK) to return to the previous screen.
To decrease the volume: Press the “VOL -” button.
To increase the volume: Press the “VOL +” button.
Transferring a call
Muting your voice
Inputting digits
Setting call volume
1
2
3

5075-9. Bluetooth® Phone
5
Audio system
HILUX_OM_OM0K321E_(EE)

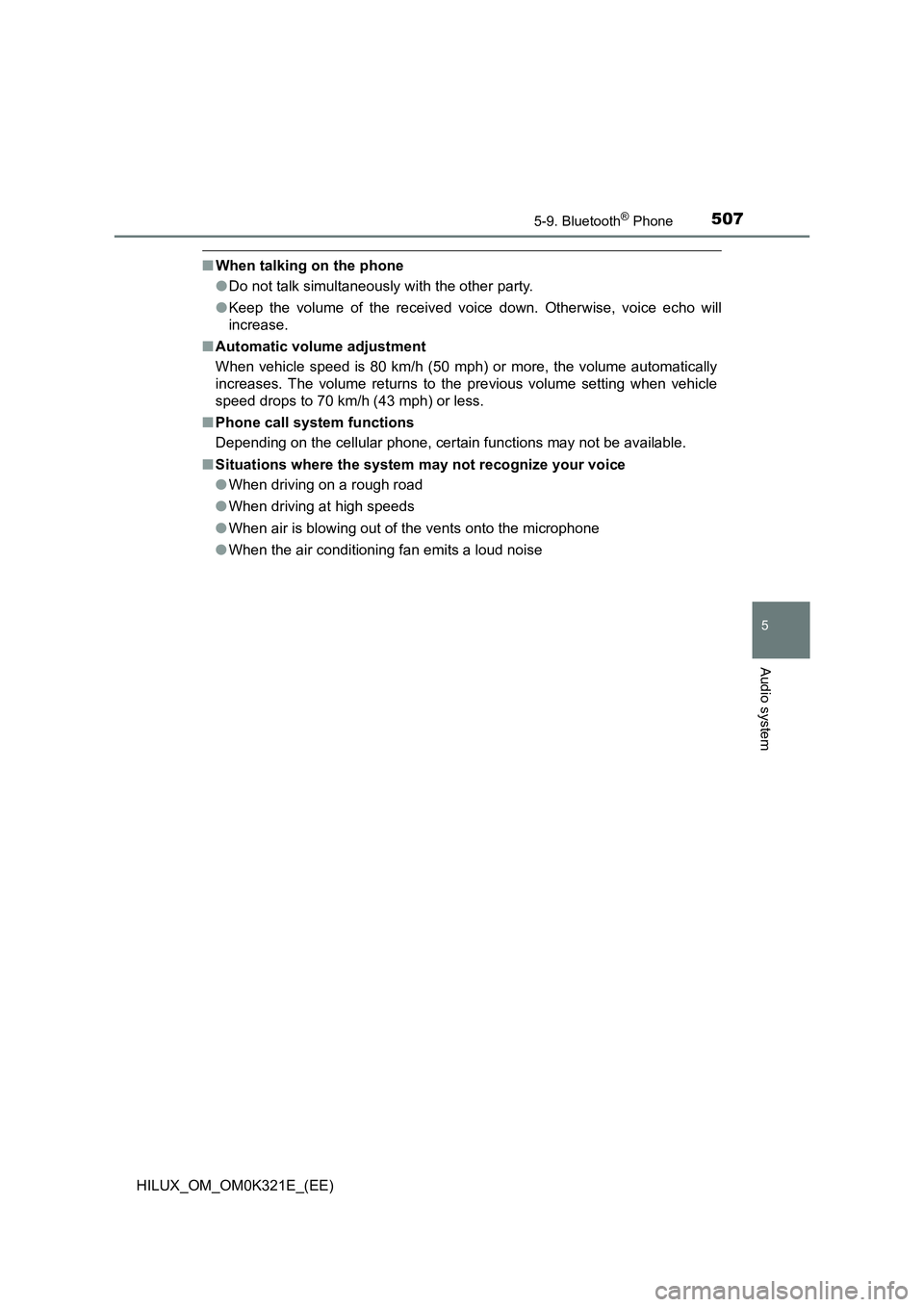

■When talking on the phone
● Do not talk simultaneously with the other party.
● Keep the volume of the received voice down. Otherwise, voice echo will
increase.
■ Automatic volume adjustment
When vehicle speed is 80 km/h (50 mph) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 70 km/h (43 mph) or less.
■ Phone call system functions
Depending on the cellular phone, certain functions may not be available.
■ Situations where the system may not recognize your voice
● When driving on a rough road
● When driving at high speeds
● When air is blowing out of the vents onto the microphone
● When the air conditioning fan emits a loud noise

5085-10. Bluetooth®
HILUX_OM_OM0K321E_(EE)

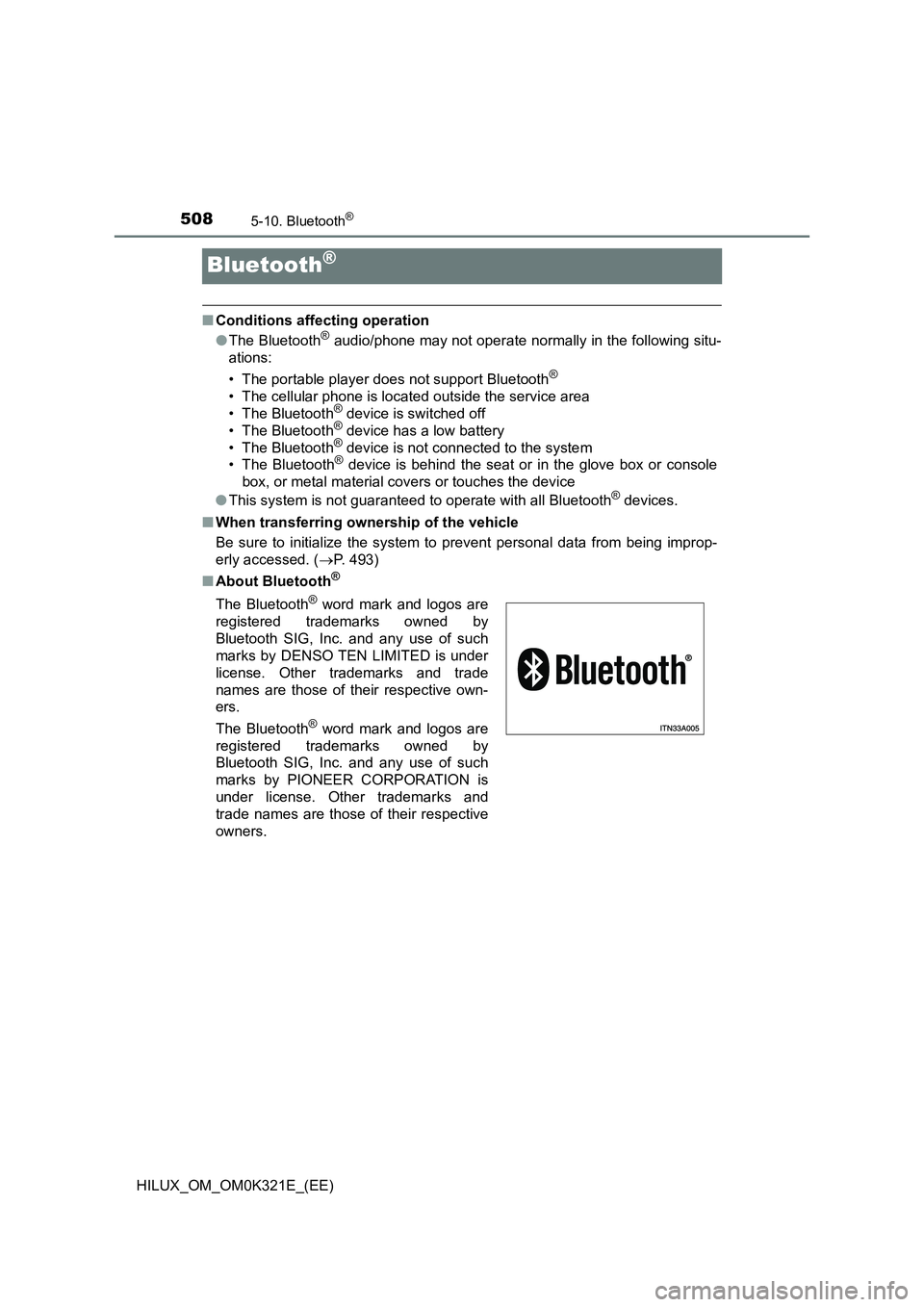

Bluetooth®
■Conditions affecting operation
● The Bluetooth® audio/phone may not operate normally in the following situ-
ations:
• The portable player does not support Bluetooth®
• The cellular phone is located outside the service area
• The Bluetooth® device is switched off
• The Bluetooth® device has a low battery
• The Bluetooth® device is not connected to the system
• The Bluetooth® device is behind the seat or in the glove box or console
box, or metal material covers or touches the device
● This system is not guaranteed to operate with all Bluetooth® devices.
■ When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. ( P. 493)
■ About Bluetooth®
The Bluetooth® word mark and logos are
registered trademarks owned by
Bluetooth SIG, Inc. and any use of such
marks by DENSO TEN LIMITED is under
license. Other trademarks and trade
names are those of their respective own-
ers.
The Bluetooth® word mark and logos are
registered trademarks owned by
Bluetooth SIG, Inc. and any use of such
marks by PIONEER CORPORATION is
under license. Other trademarks and
trade names are those of their respective
owners.

5095-10. Bluetooth®
5
Audio system
HILUX_OM_OM0K321E_(EE)

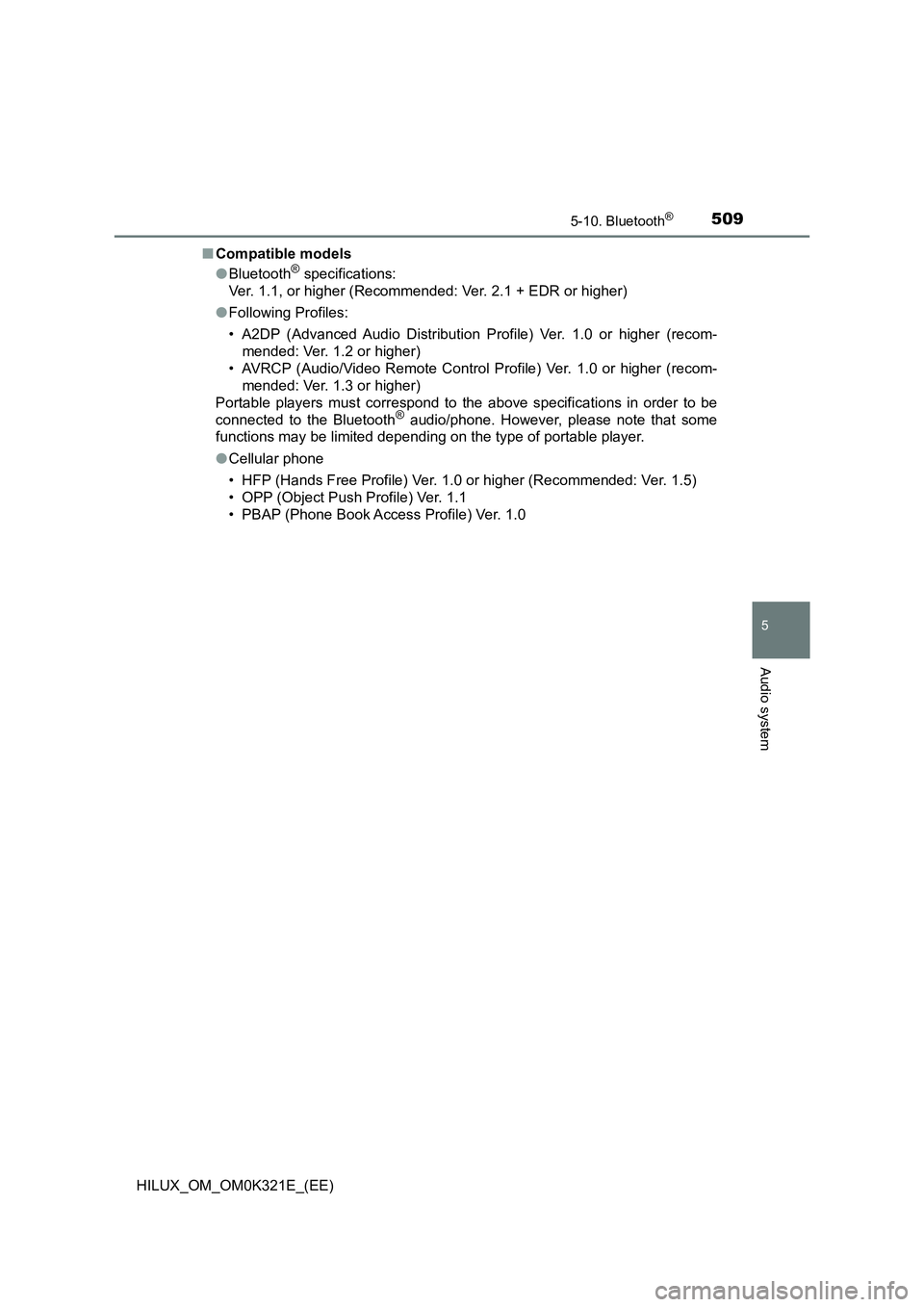

■ Compatible models
● Bluetooth® specifications:
Ver. 1.1, or higher (Recommended: Ver. 2.1 + EDR or higher)
● Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher (recom-
mended: Ver. 1.2 or higher)
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (recom-
mended: Ver. 1.3 or higher)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth® audio/phone. However, please note that some
functions may be limited depending on the type of portable player.
● Cellular phone
• HFP (Hands Free Profile) Ver. 1.0 or higher (Recommended: Ver. 1.5)
• OPP (Object Push Profile) Ver. 1.1
• PBAP (Phone Book Access Profile) Ver. 1.0

5105-10. Bluetooth®
HILUX_OM_OM0K321E_(EE)

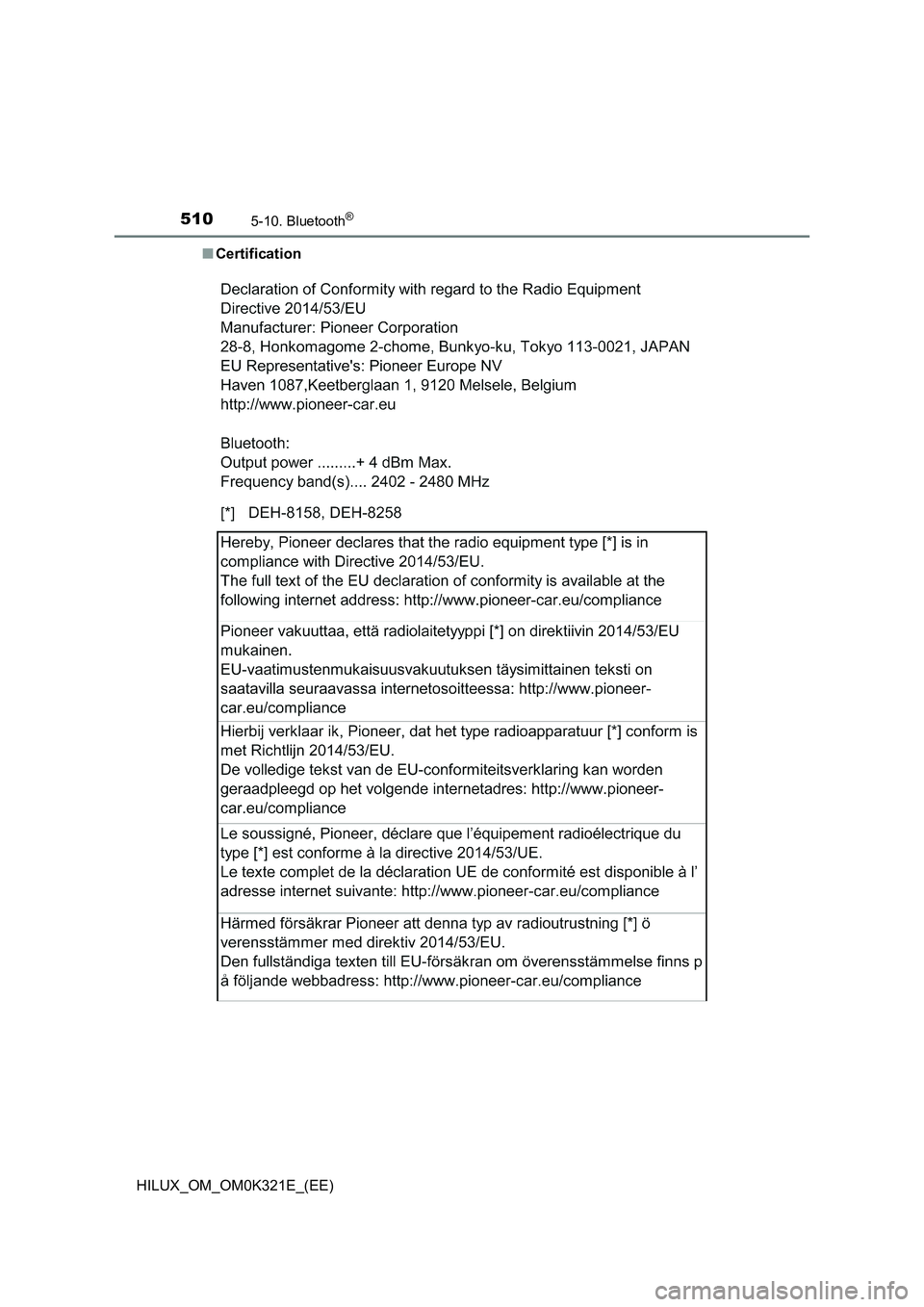

■ Certification

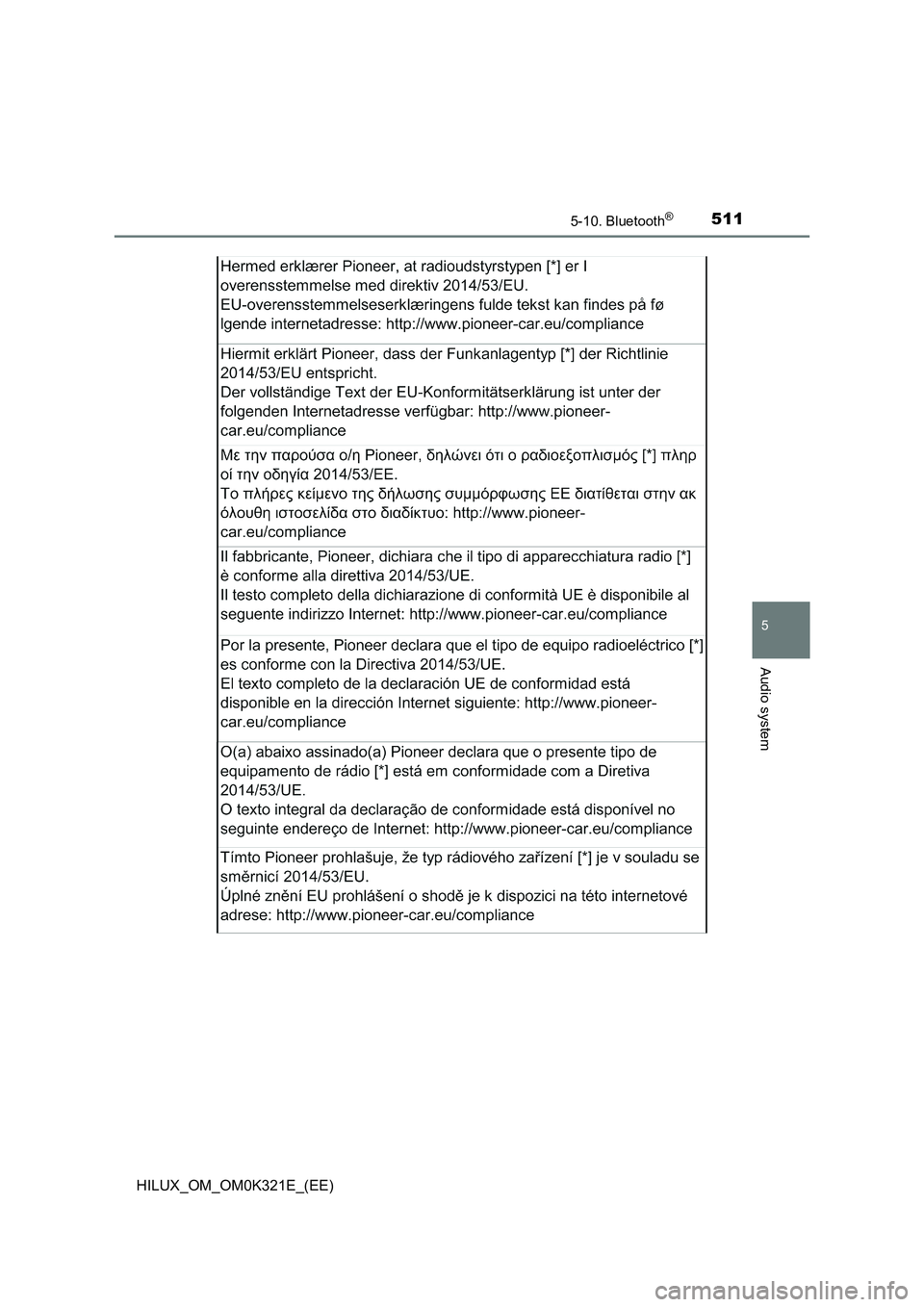

5115-10. Bluetooth®
5
Audio system
HILUX_OM_OM0K321E_(EE)

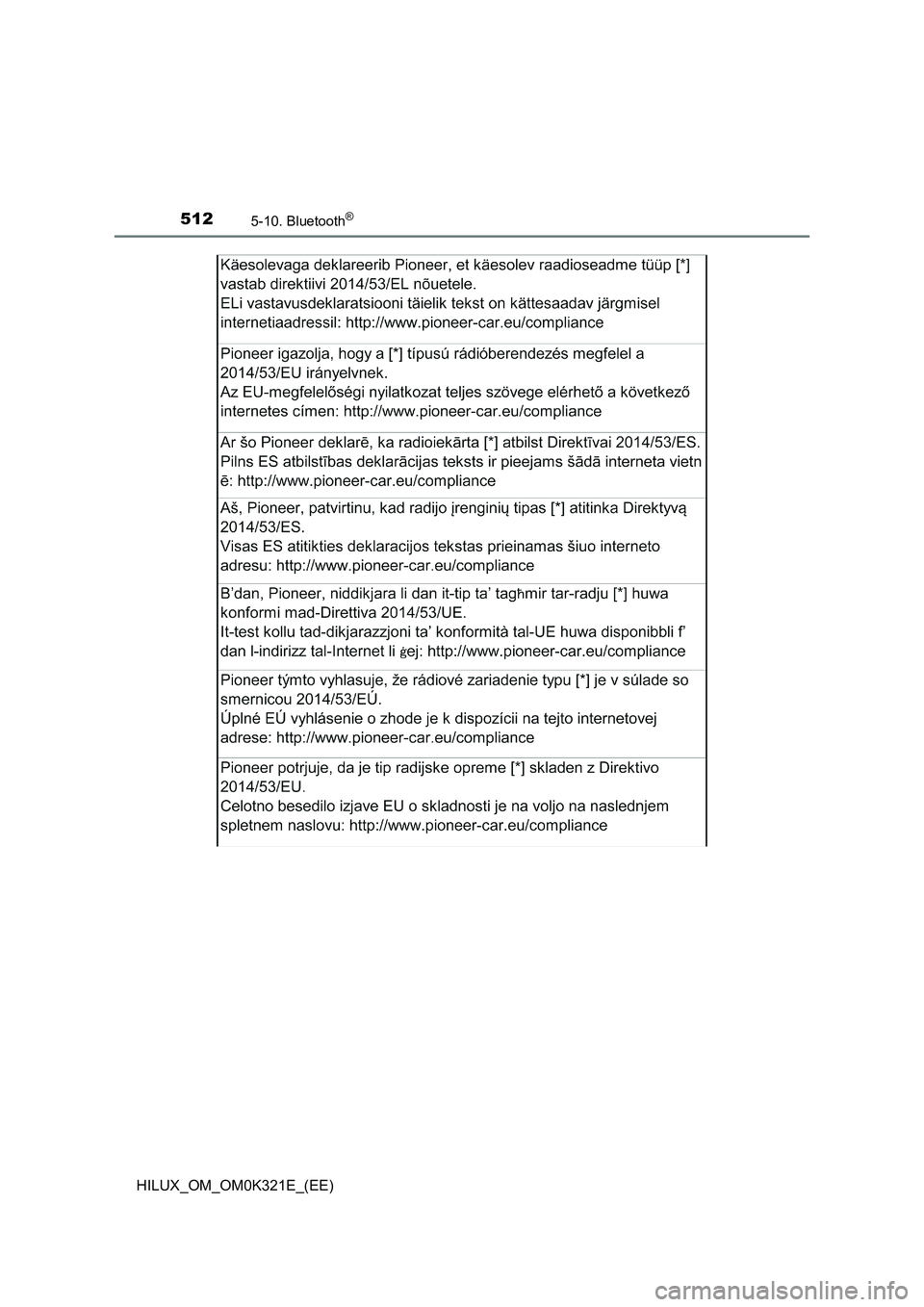

5125-10. Bluetooth®
HILUX_OM_OM0K321E_(EE)
