2020 TOYOTA HILUX Owners Manual (in English)

1933-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K321E_(EE)

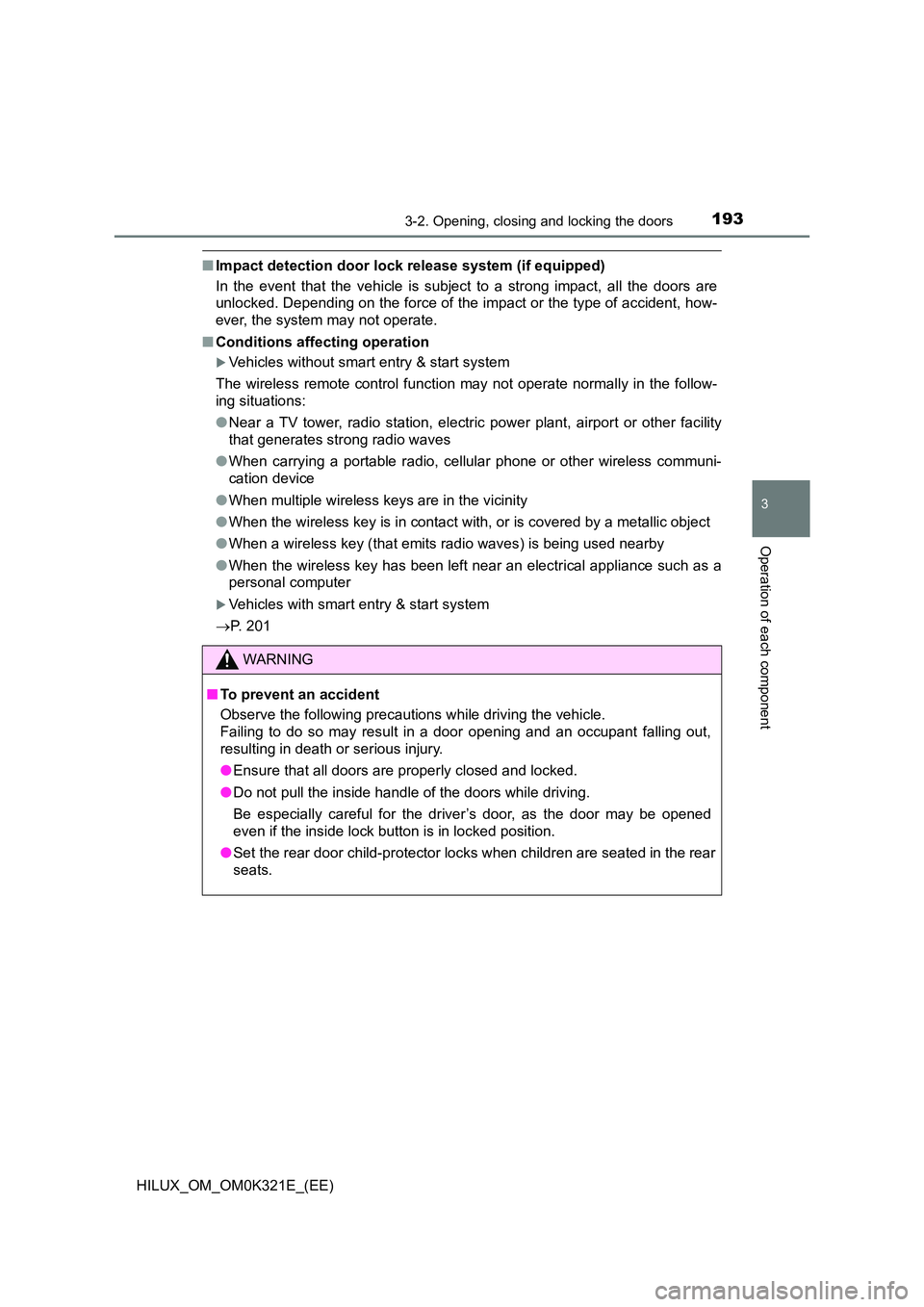

■Impact detection door lock release system (if equipped)
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident, how-
ever, the system may not operate.
■ Conditions affecting operation
Vehicles without smart entry & start system
The wireless remote control function may not operate normally in the follow-
ing situations:
● Near a TV tower, radio station, electric power plant, airport or other facility
that generates strong radio waves
● When carrying a portable radio, cellular phone or other wireless communi-
cation device
● When multiple wireless keys are in the vicinity
● When the wireless key is in contact with, or is covered by a metallic object
● When a wireless key (that emits radio waves) is being used nearby
● When the wireless key has been left near an electrical appliance such as a
personal computer
Vehicles with smart entry & start system
 P. 201
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Ensure that all doors are properly closed and locked.
● Do not pull the inside handle of the doors while driving.
Be especially careful for the driver’s door, as the door may be opened
even if the inside lock button is in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seats.

1943-2. Opening, closing and locking the doors
HILUX_OM_OM0K321E_(EE)

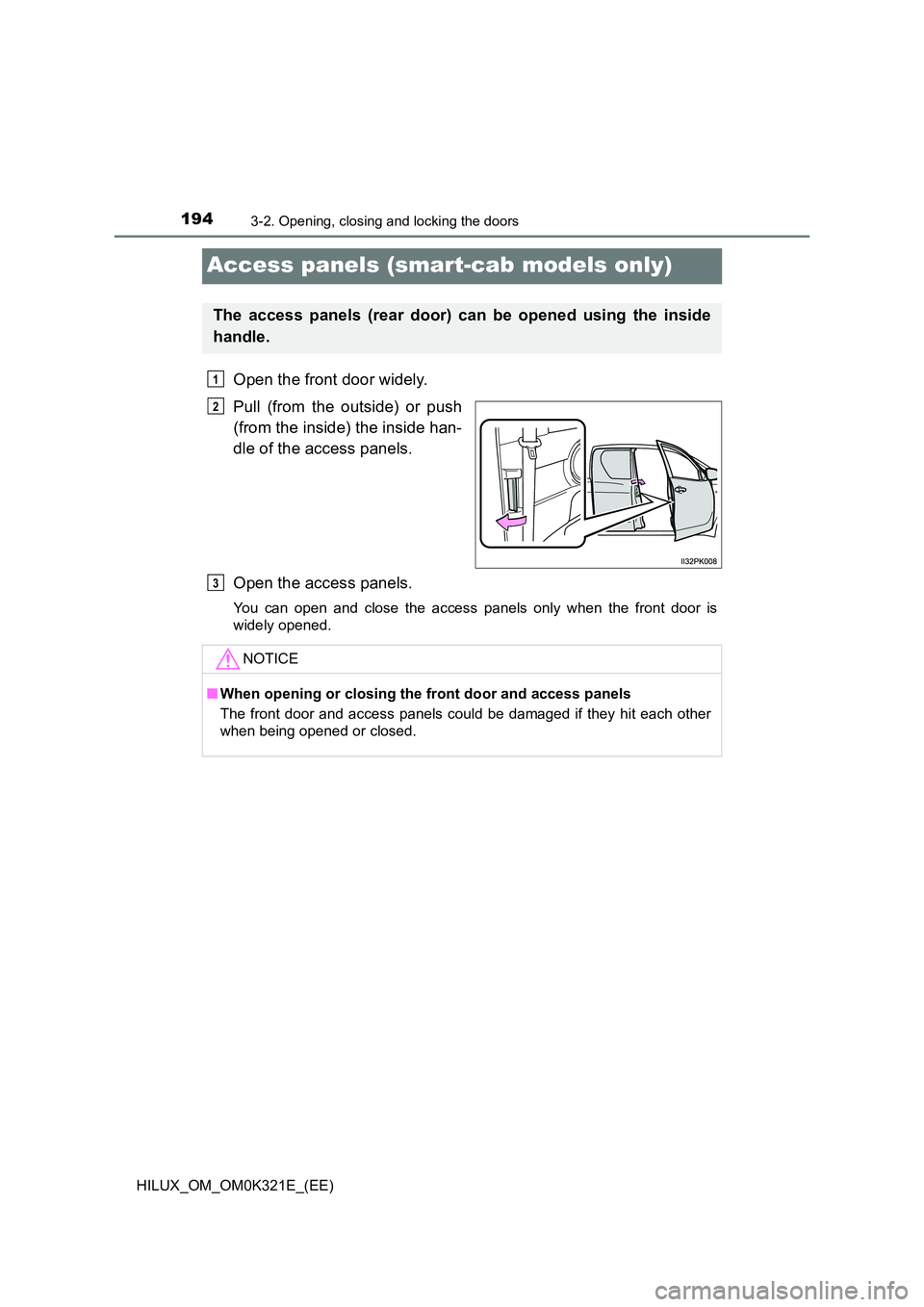

Access panels (smart-cab models only)
Open the front door widely.
Pull (from the outside) or push
(from the inside) the inside han-
dle of the access panels.
Open the access panels.
You can open and close the access panels only when the front door is
widely opened.
The access panels (rear door) can be opened using the inside
handle.
1
2
NOTICE
■ When opening or closing the front door and access panels
The front door and access panels could be damaged if they hit each other
when being opened or closed.
3

195
3
3-2. Opening, closing and locking the doors
Operation of each component
HILUX_OM_OM0K321E_(EE)
Tailgate
Lock with the master key or the
mechanical key
Unlock with the master key or
the mechanical key
Ty pe A
Unlock the latches and open the
tailgate slowly.
The support stays will hold the tail-
gate horizontal.
After closing the tailgate, try pulling
it toward you to make sure it is
securely locked.
: If equipped
The tailgate can be locked/unlocked and opened by the follow-
ing procedures.
Locking and unlocking the tailgate (vehicles with key hole)
1
2
Opening the tailgate

1963-2. Opening, closing and locking the doors
HILUX_OM_OM0K321E_(EE)

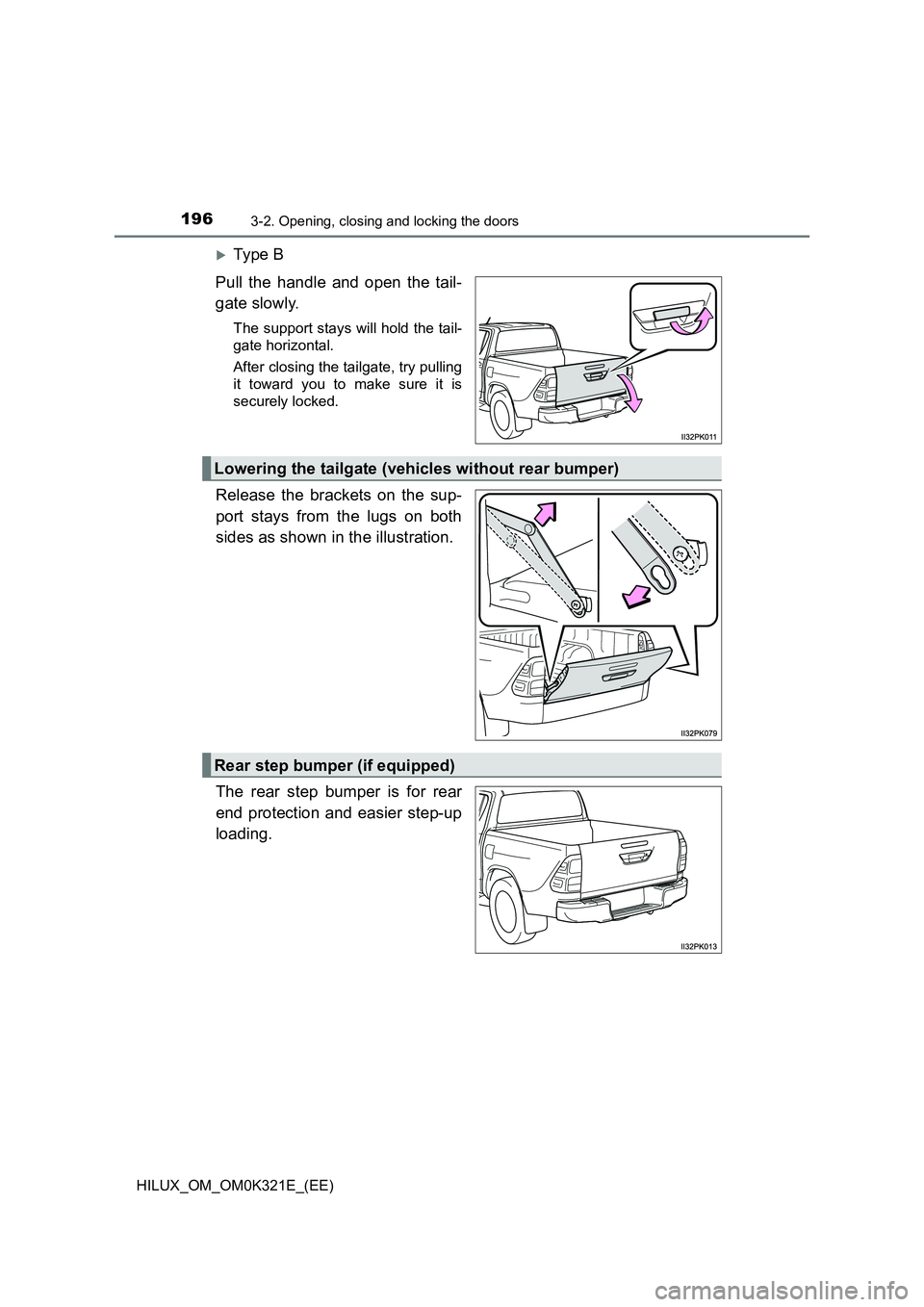

Ty pe B
Pull the handle and open the tail-
gate slowly.
The support stays will hold the tail-
gate horizontal.
After closing the tailgate, try pulling
it toward you to make sure it is
securely locked.
Release the brackets on the sup-
port stays from the lugs on both
sides as shown in the illustration.
The rear step bumper is for rear
end protection and easier step-up
loading.
Lowering the tailgate (vehicles without rear bumper)
Rear step bumper (if equipped)

1973-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K321E_(EE)

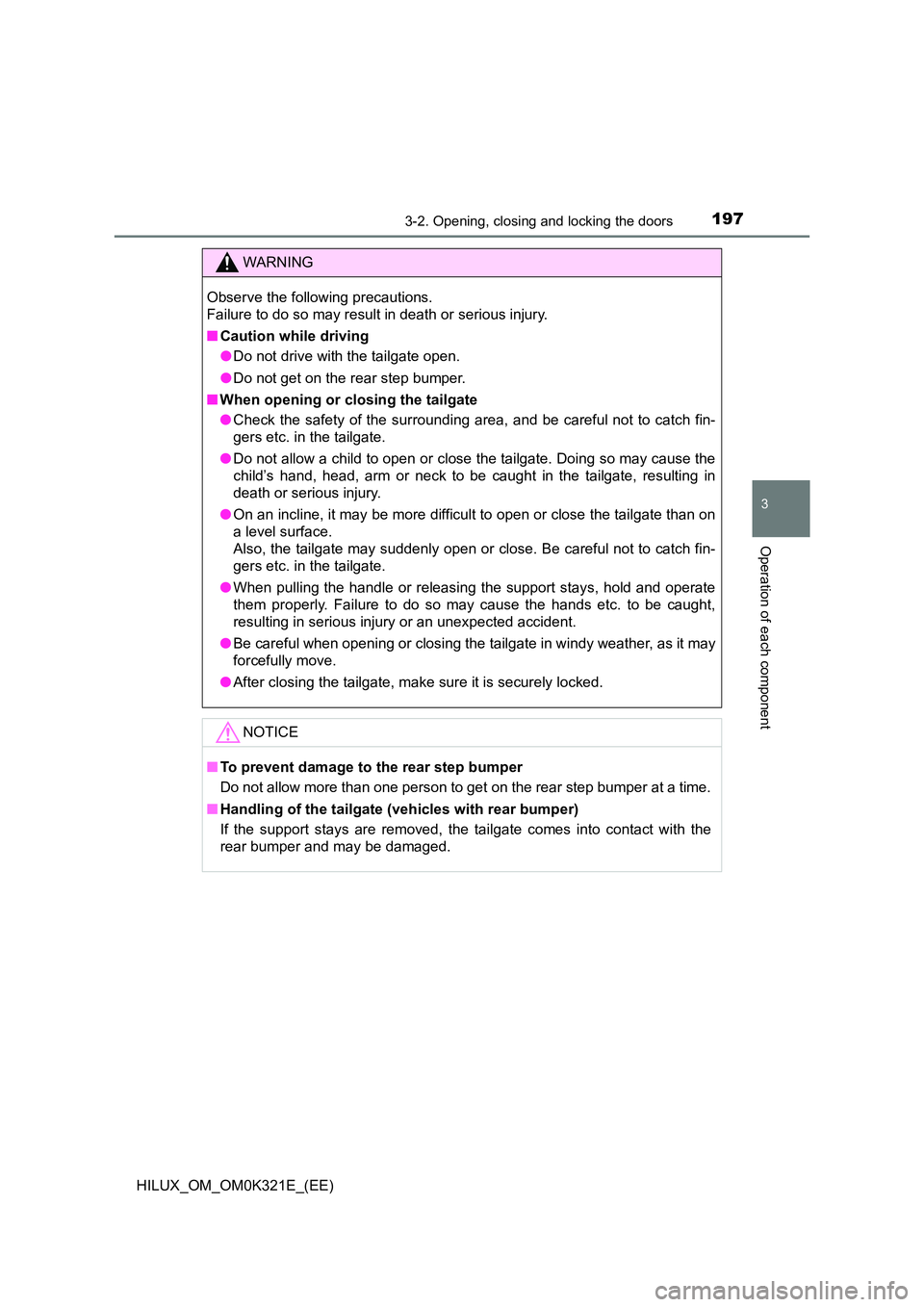

WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Caution while driving
● Do not drive with the tailgate open.
● Do not get on the rear step bumper.
■ When opening or closing the tailgate
● Check the safety of the surrounding area, and be careful not to catch fin-
gers etc. in the tailgate.
● Do not allow a child to open or close the tailgate. Doing so may cause the
child’s hand, head, arm or neck to be caught in the tailgate, resulting in
death or serious injury.
● On an incline, it may be more difficult to open or close the tailgate than on
a level surface.
Also, the tailgate may suddenly open or close. Be careful not to catch fin-
gers etc. in the tailgate.
● When pulling the handle or releasing the support stays, hold and operate
them properly. Failure to do so may cause the hands etc. to be caught,
resulting in serious injury or an unexpected accident.
● Be careful when opening or closing the tailgate in windy weather, as it may
forcefully move.
● After closing the tailgate, make sure it is securely locked.
NOTICE
■To prevent damage to the rear step bumper
Do not allow more than one person to get on the rear step bumper at a time.
■ Handling of the tailgate (vehicles with rear bumper)
If the support stays are removed, the tailgate comes into contact with the
rear bumper and may be damaged.

1983-2. Opening, closing and locking the doors
HILUX_OM_OM0K321E_(EE)

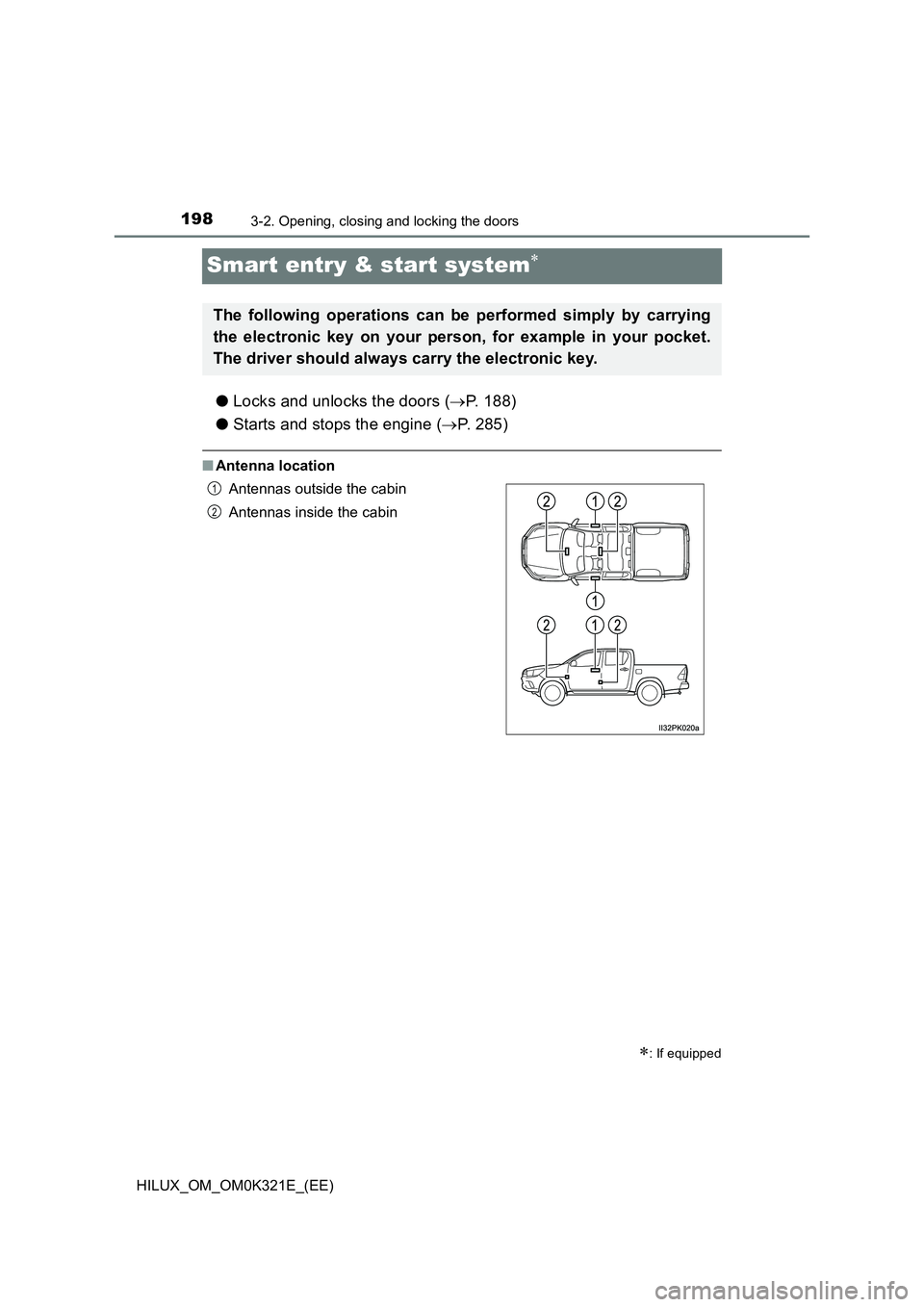

Smart entry & start system
●Locks and unlocks the doors (P. 188)
● Starts and stops the engine (P. 285)
■Antenna location
: If equipped
The following operations can be performed simply by carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.
Antennas outside the cabin
Antennas inside the cabin
1
2

1993-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K321E_(EE)

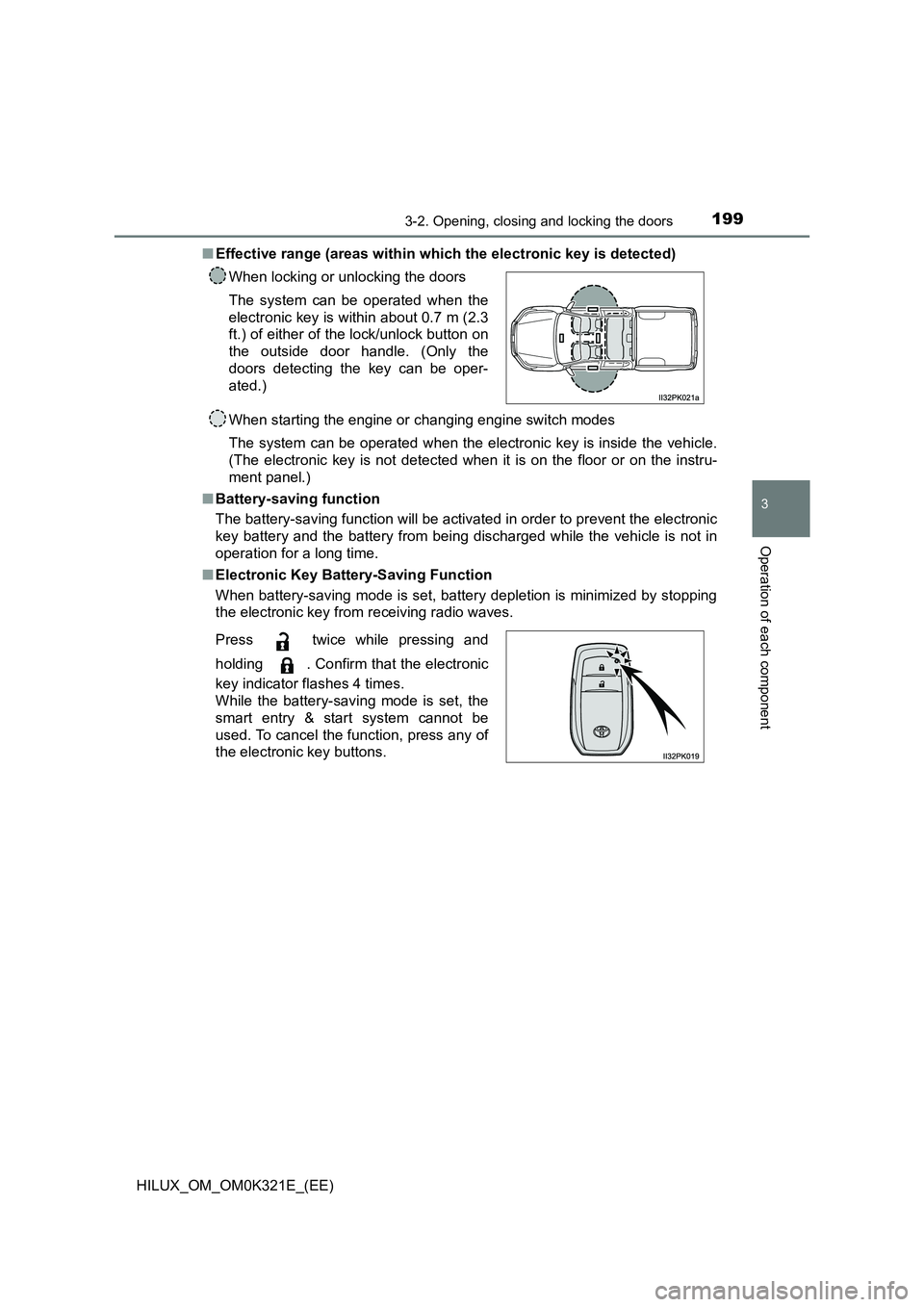

■ Effective range (areas within which the electronic key is detected)
When starting the engine or changing engine switch modes
The system can be operated when the electronic key is inside the vehicle.
(The electronic key is not detected when it is on the floor or on the instru-
ment panel.)
■ Battery-saving function
The battery-saving function will be activated in order to prevent the electronic
key battery and the battery from being discharged while the vehicle is not in
operation for a long time.
■ Electronic Key Battery-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.
When locking or unlocking the doors
The system can be operated when the
electronic key is within about 0.7 m (2.3
ft.) of either of the lock/unlock button on
the outside door handle. (Only the
doors detecting the key can be oper-
ated.)
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be
used. To cancel the function, press any of
the electronic key buttons.

2003-2. Opening, closing and locking the doors
HILUX_OM_OM0K321E_(EE)

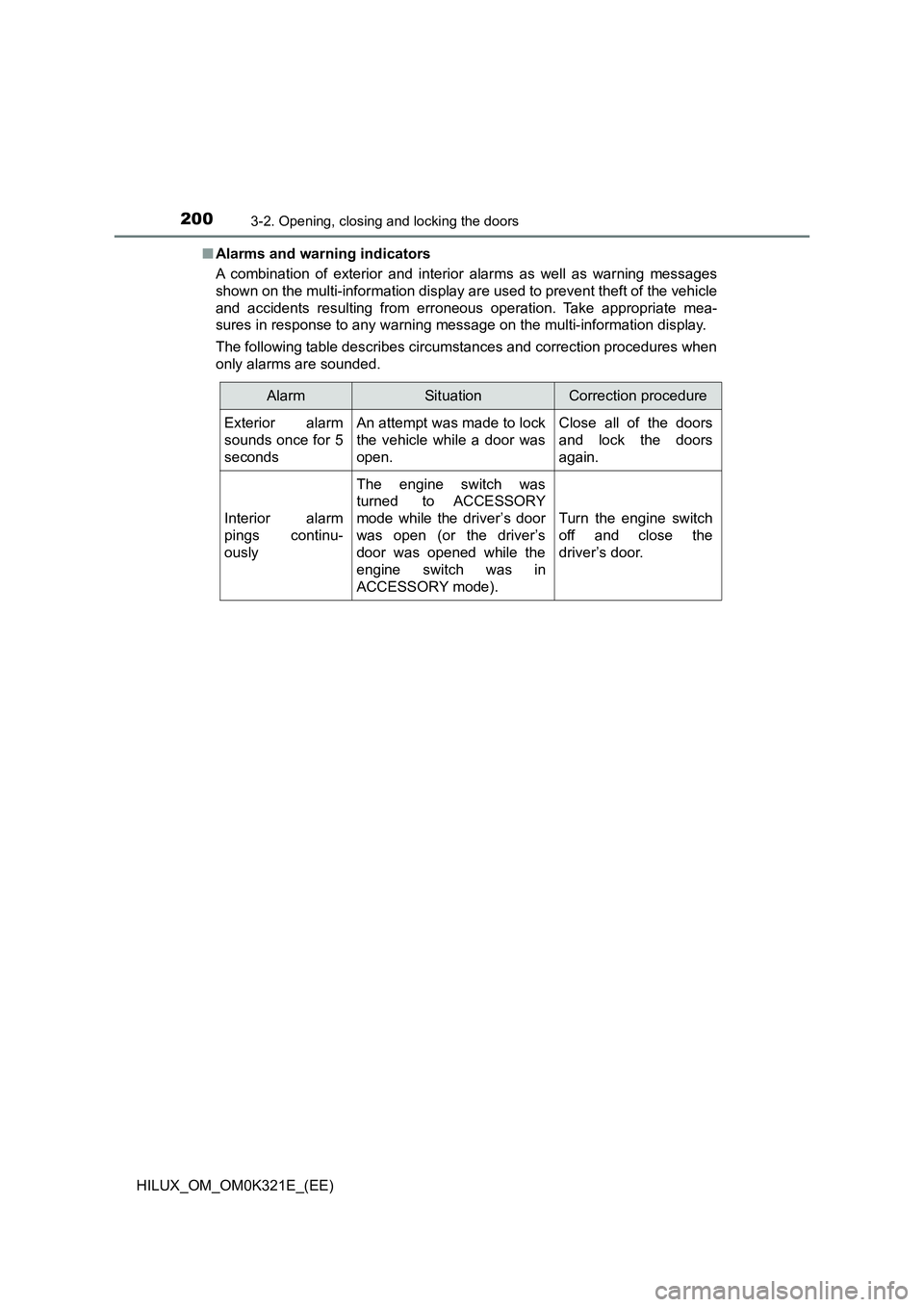

■ Alarms and warning indicators
A combination of exterior and interior alarms as well as warning messages
shown on the multi-information display are used to prevent theft of the vehicle
and accidents resulting from erroneous operation. Take appropriate mea-
sures in response to any warning message on the multi-information display.
The following table describes circumstances and correction procedures when
only alarms are sounded.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for 5
seconds
An attempt was made to lock
the vehicle while a door was
open.
Close all of the doors
and lock the doors
again.
Interior alarm
pings continu-
ously
The engine switch was
turned to ACCESSORY
mode while the driver’s door
was open (or the driver’s
door was opened while the
engine switch was in
ACCESSORY mode).
Turn the engine switch
off and close the
driver’s door.
