2019 TOYOTA YARIS Owners Manual

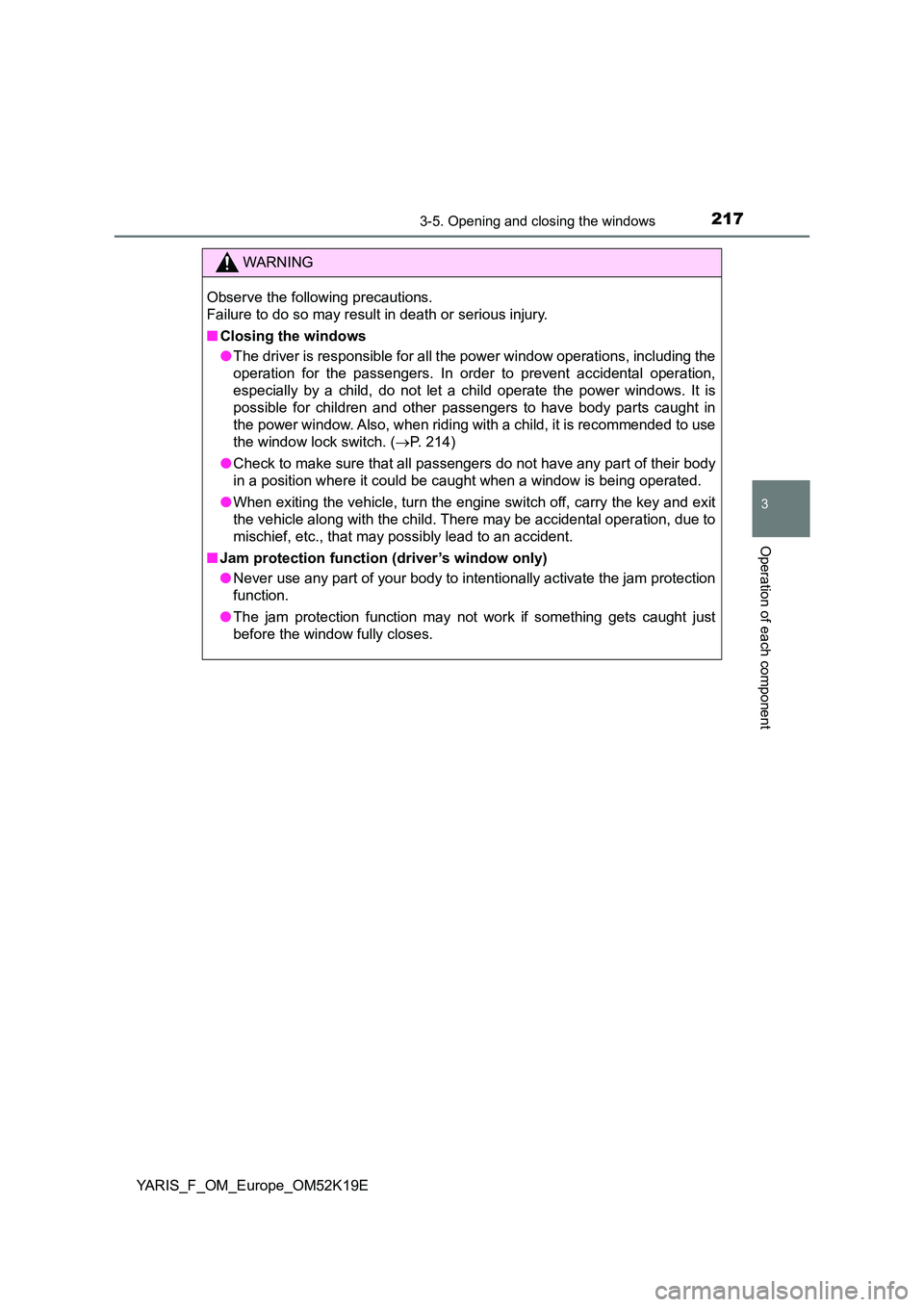

2173-5. Opening and closing the windows
3
Operation of each component
YARIS_F_OM_Europe_OM52K19E
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Closing the windows
● The driver is responsible for all the power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. ( P. 214)
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. T here may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
■ Jam protection function (driver’s window only)
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the window fully closes.

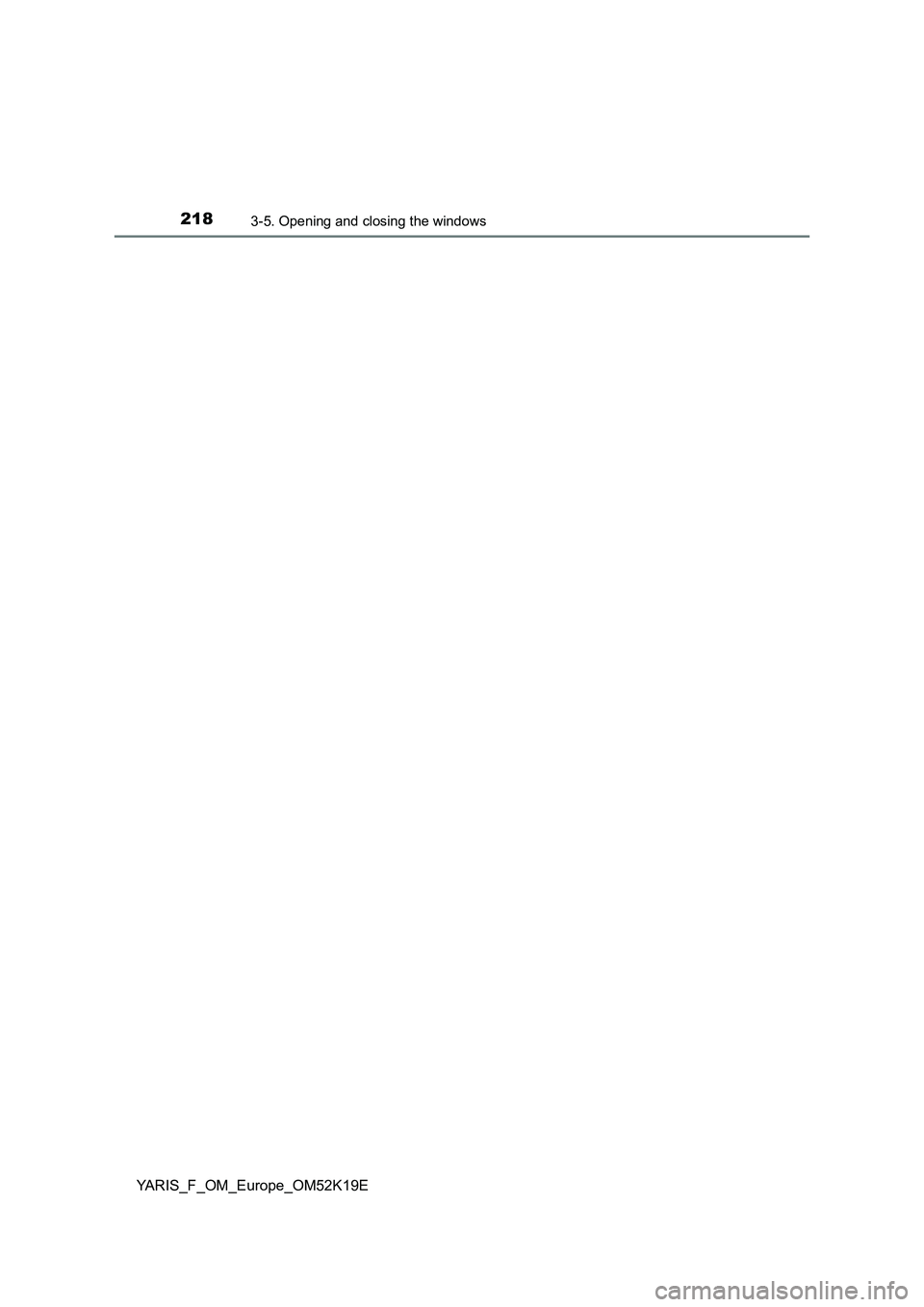

2183-5. Opening and closing the windows
YARIS_F_OM_Europe_OM52K19E

219
4Driving
YARIS_F_OM_Europe_OM52K19E
4-1. Before driving
Driving the vehicle ............. 220
Cargo and luggage ............ 231
Trailer towing ..................... 233
4-2. Driving procedures
Engine (ignition) switch
(vehicles without
a smart entry &
start system) .................... 243
Engine (ignition) switch
(vehicles with
a smart entry &
start system) .................... 246
Multidrive ........................... 255
Manual transmission.......... 263
Turn signal lever ................ 267
Parking brake .................... 268
4-3. Operating the lights
and wipers
Headlight switch ................ 269
Fog light switch .................. 274
Windshield wiper and
washer ............................. 276
Rear window wiper and
washer ............................. 280
4-4. Refueling
Opening the fuel tank
cap ................................... 282
4-5. Toyota Safety Sense
Toyota Safety Sense ......... 285
PCS
(Pre-Crash Safety
system) ............................ 293
LDA
(Lane Departure Alert) ..... 310
Automatic High Beam ........ 317
RSA (Road Sign Assist)..... 322
4-6. Using the driving support
systems
Cruise control..................... 328
Speed limiter ...................... 332
Stop & start system............ 337
Driving assist systems ....... 348
4-7. Driving tips
Winter driving tips .............. 355

2204-1. Before driving
YARIS_F_OM_Europe_OM52K19E
Driving the vehicle
P. 243, 246
Vehicles with a Multidrive
With the brake pedal depressed, shift the shift lever to D.
( P. 255)
Release the parking brake. ( P. 268)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
Vehicles with a manual transmission
While depressing the clutch pedal, shift the shift lever to 1.
( P. 263)
Release the parking brake. ( P. 268)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
The following procedures should be observed to ensure safe
driving:
Starting the engine
Driving
1
2
3
1
2
3

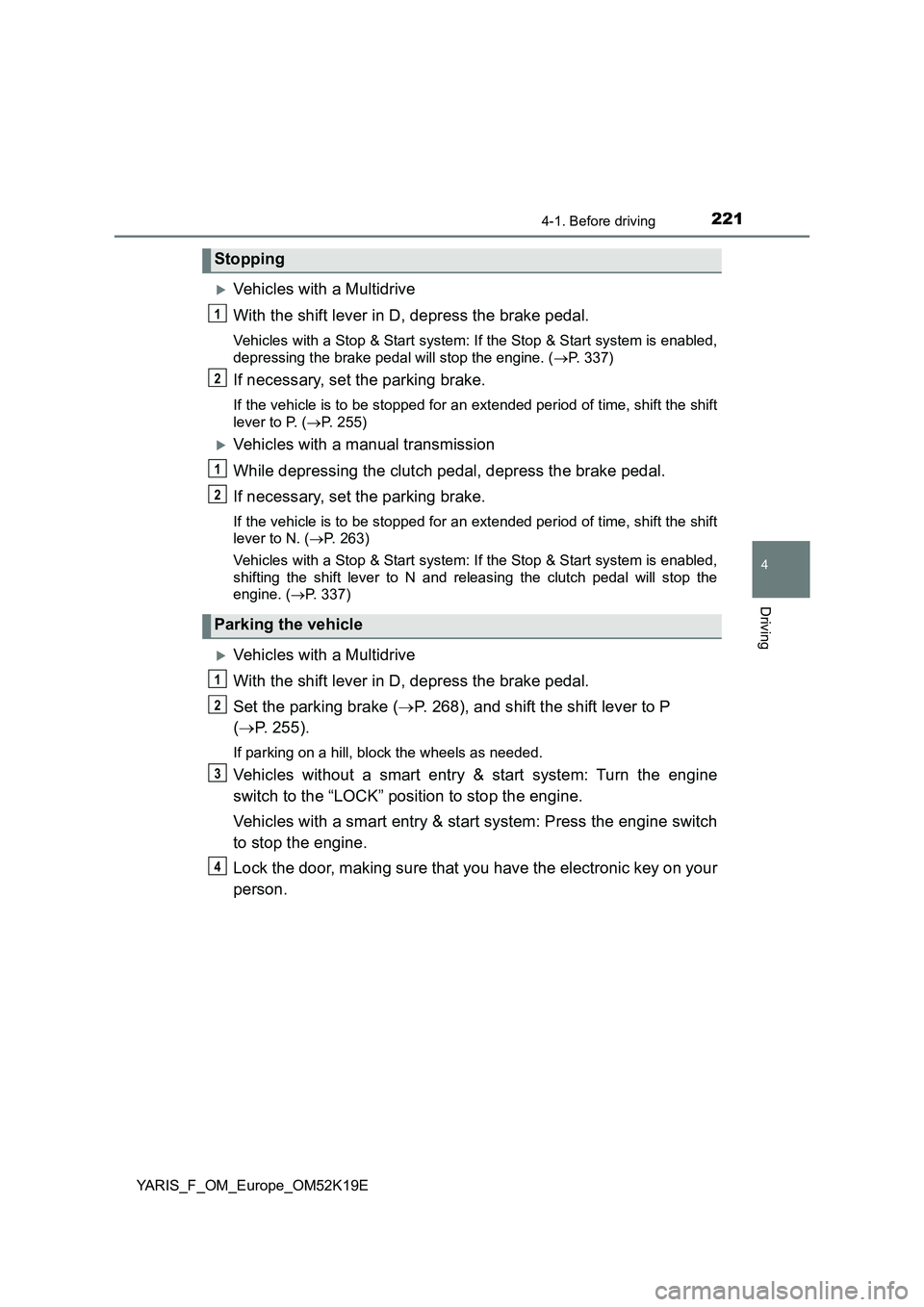

2214-1. Before driving
4
Driving
YARIS_F_OM_Europe_OM52K19E
Vehicles with a Multidrive
With the shift lever in D, depress the brake pedal.
Vehicles with a Stop & Start system: If the Stop & Start system is enabled,
depressing the brake pedal will stop the engine. ( P. 337)
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to P. ( P. 255)
Vehicles with a manual transmission
While depressing the clutch pedal, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to N. ( P. 263)
Vehicles with a Stop & Start system: If the Stop & Start system is enabled,
shifting the shift lever to N and releasing the clutch pedal will stop the
engine. ( P. 337)
Vehicles with a Multidrive
With the shift lever in D, depress the brake pedal.
Set the parking brake ( P. 268), and shift the shift lever to P
( P. 255).
If parking on a hill, block the wheels as needed.
Vehicles without a smart entry & start system: Turn the engine
switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system: Press the engine switch
to stop the engine.
Lock the door, making sure that you have the electronic key on your
person.
Stopping
Parking the vehicle
1
2
1
2
1
2
3
4

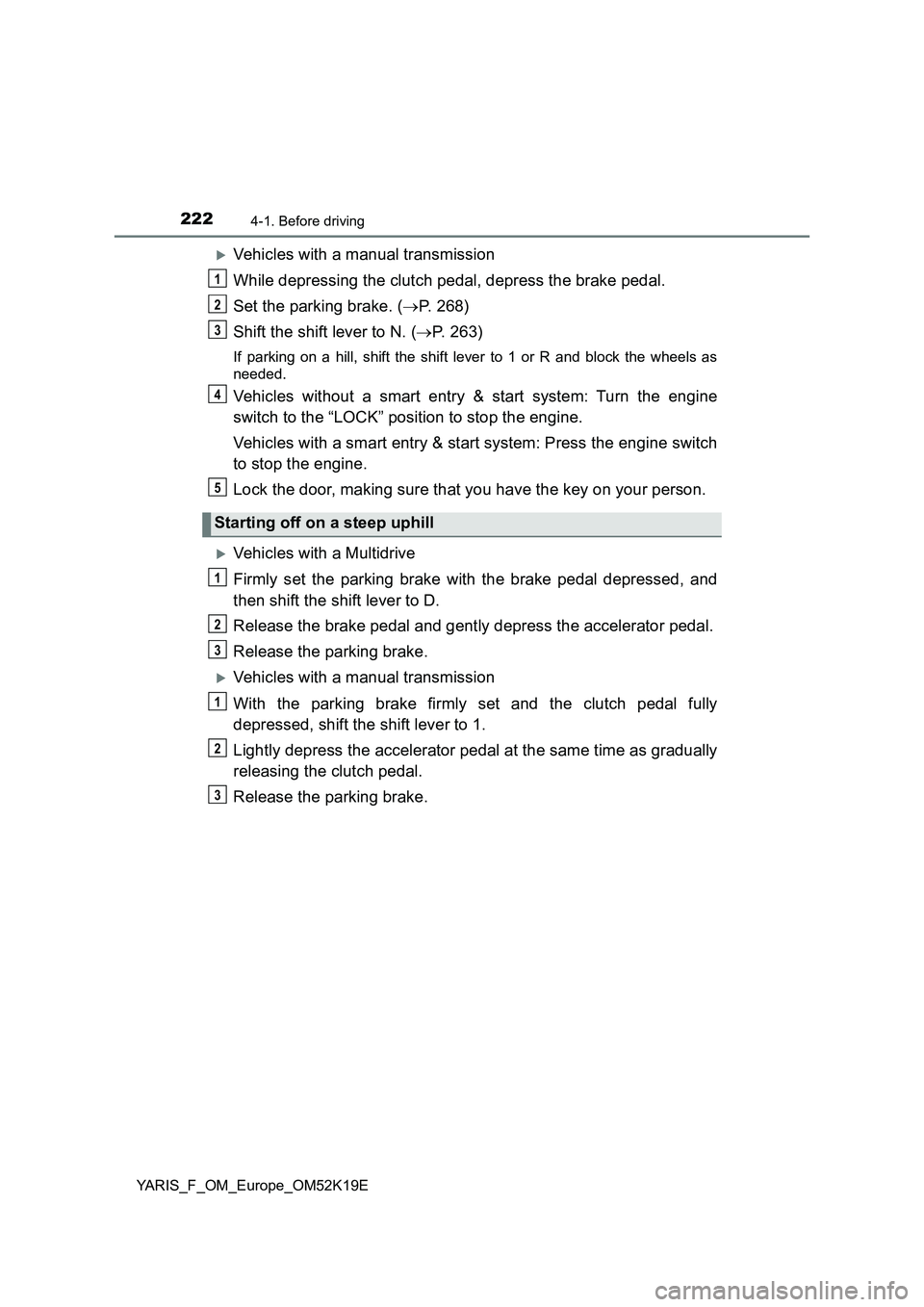

2224-1. Before driving
YARIS_F_OM_Europe_OM52K19E
Vehicles with a manual transmission
While depressing the clutch pedal, depress the brake pedal.
Set the parking brake. ( P. 268)
Shift the shift lever to N. ( P. 263)
If parking on a hill, shift the shift lever to 1 or R and block the wheels as
needed.
Vehicles without a smart entry & start system: Turn the engine
switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system: Press the engine switch
to stop the engine.
Lock the door, making sure that you have the key on your person.
Vehicles with a Multidrive
Firmly set the parking brake with the brake pedal depressed, and
then shift the shift lever to D.
Release the brake pedal and gently depress the accelerator pedal.
Release the parking brake.
Vehicles with a manual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as gradually
releasing the clutch pedal.
Release the parking brake.
Starting off on a steep uphill
1
2
3
4
5
1
2
3
1
2
3

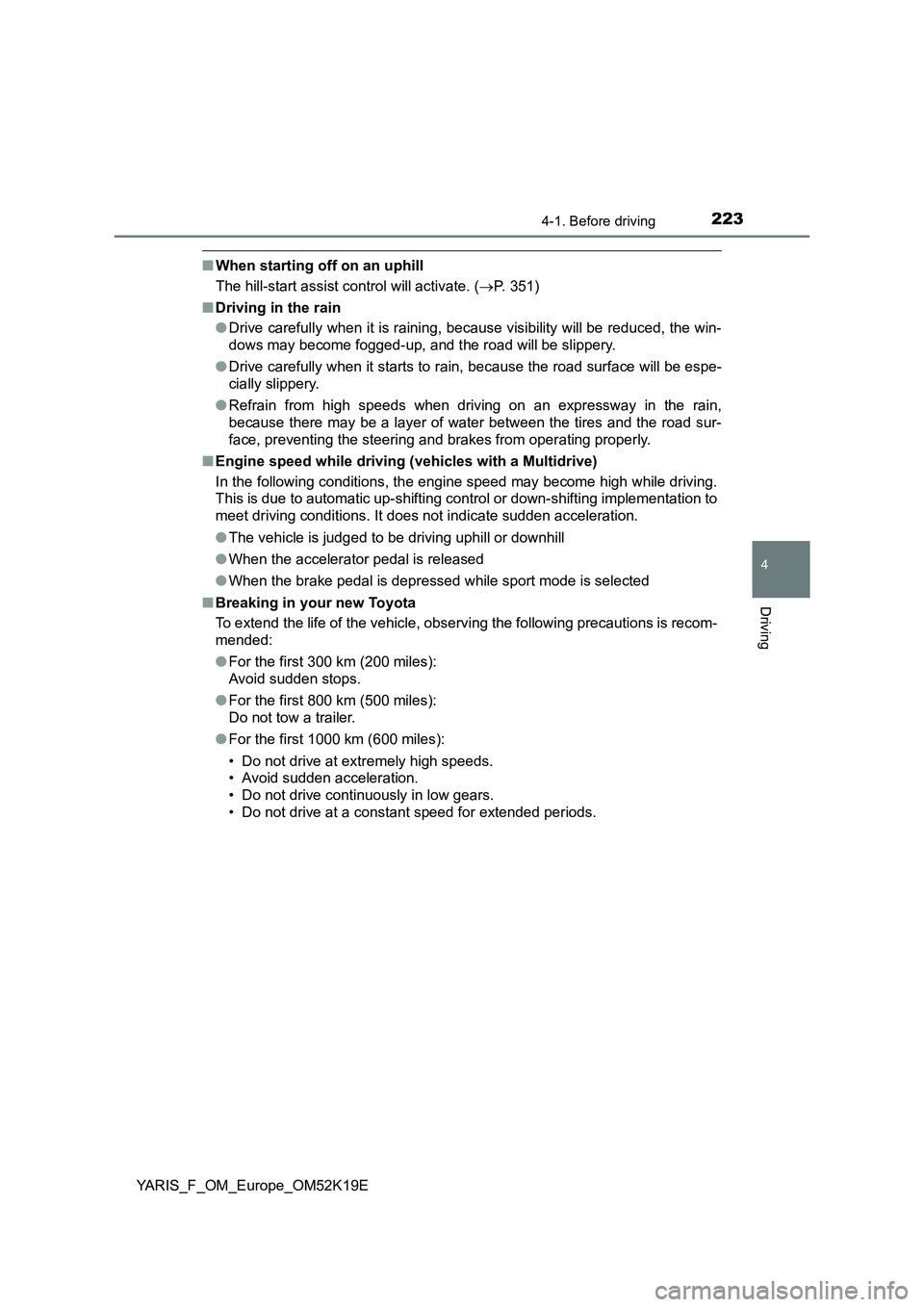

2234-1. Before driving
4
Driving
YARIS_F_OM_Europe_OM52K19E
■When starting off on an uphill
The hill-start assist control will activate. ( P. 351)
■ Driving in the rain
● Drive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
■ Engine speed while driving (vehicles with a Multidrive)
In the following conditions, the engine speed may become high while driving.
This is due to automatic up-shifting c ontrol or down-shifting implementation to
meet driving conditions. It does not indicate sudden acceleration.
● The vehicle is judged to be driving uphill or downhill
● When the accelerator pedal is released
● When the brake pedal is depressed while sport mode is selected
■ Breaking in your new Toyota
To extend the life of the vehicle, observing the following precautions is recom-
mended:
● For the first 300 km (200 miles):
Avoid sudden stops.
● For the first 800 km (500 miles):
Do not tow a trailer.
● For the first 1000 km (600 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for extended periods.

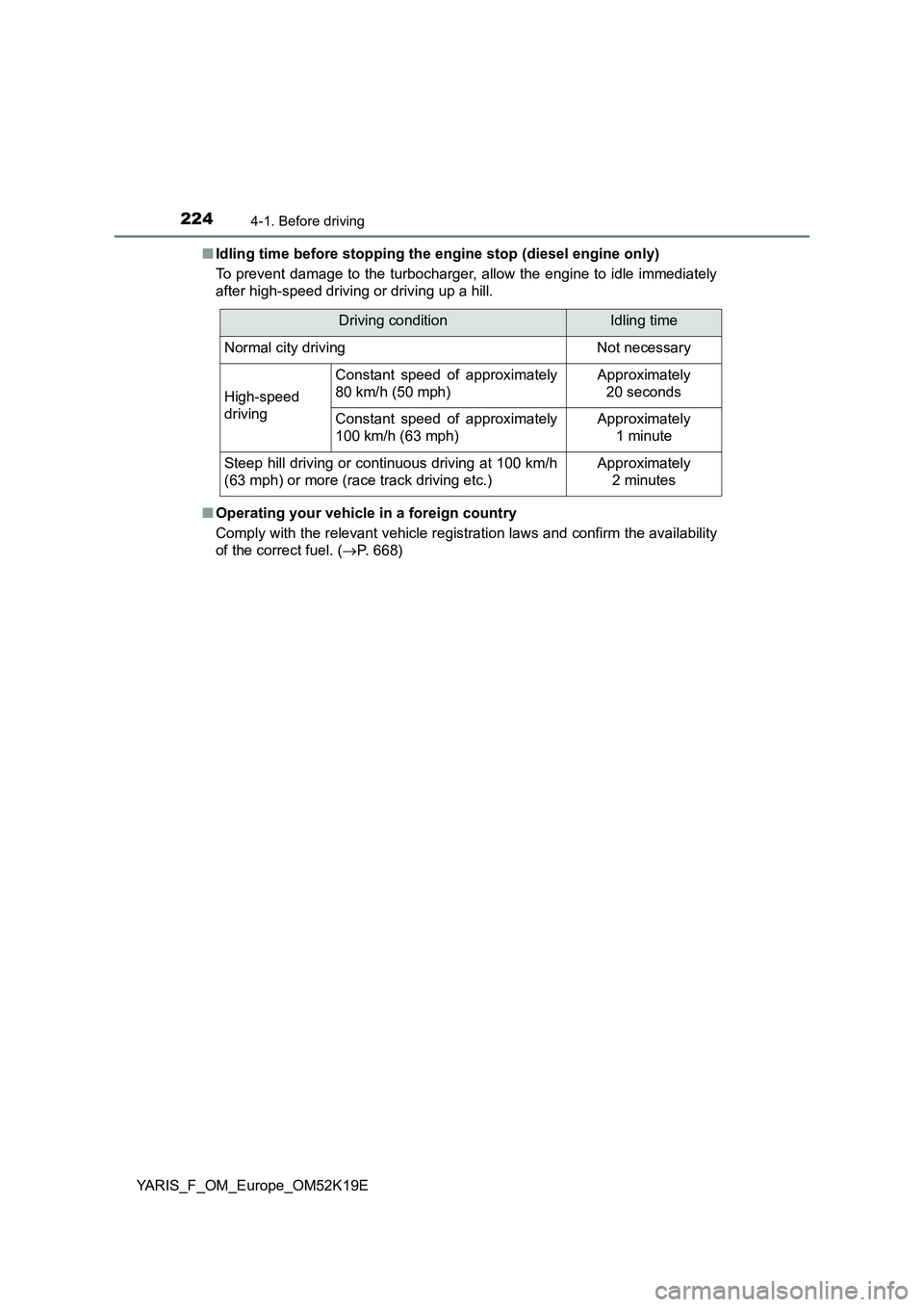

2244-1. Before driving
YARIS_F_OM_Europe_OM52K19E
■ Idling time before stopping the engine stop (diesel engine only)
To prevent damage to the turbocharger, allow the engine to idle immediately
after high-speed driving or driving up a hill.
■ Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. ( P. 668)
Driving conditionIdling time
Normal city drivingNot necessary
High-speed
driving
Constant speed of approximately
80 km/h (50 mph)
Approximately
20 seconds
Constant speed of approximately
100 km/h (63 mph)
Approximately
1 minute
Steep hill driving or continuous driving at 100 km/h
(63 mph) or more (race track driving etc.)
Approximately
2 minutes
