2019 TOYOTA YARIS Owners Manual

5457-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E

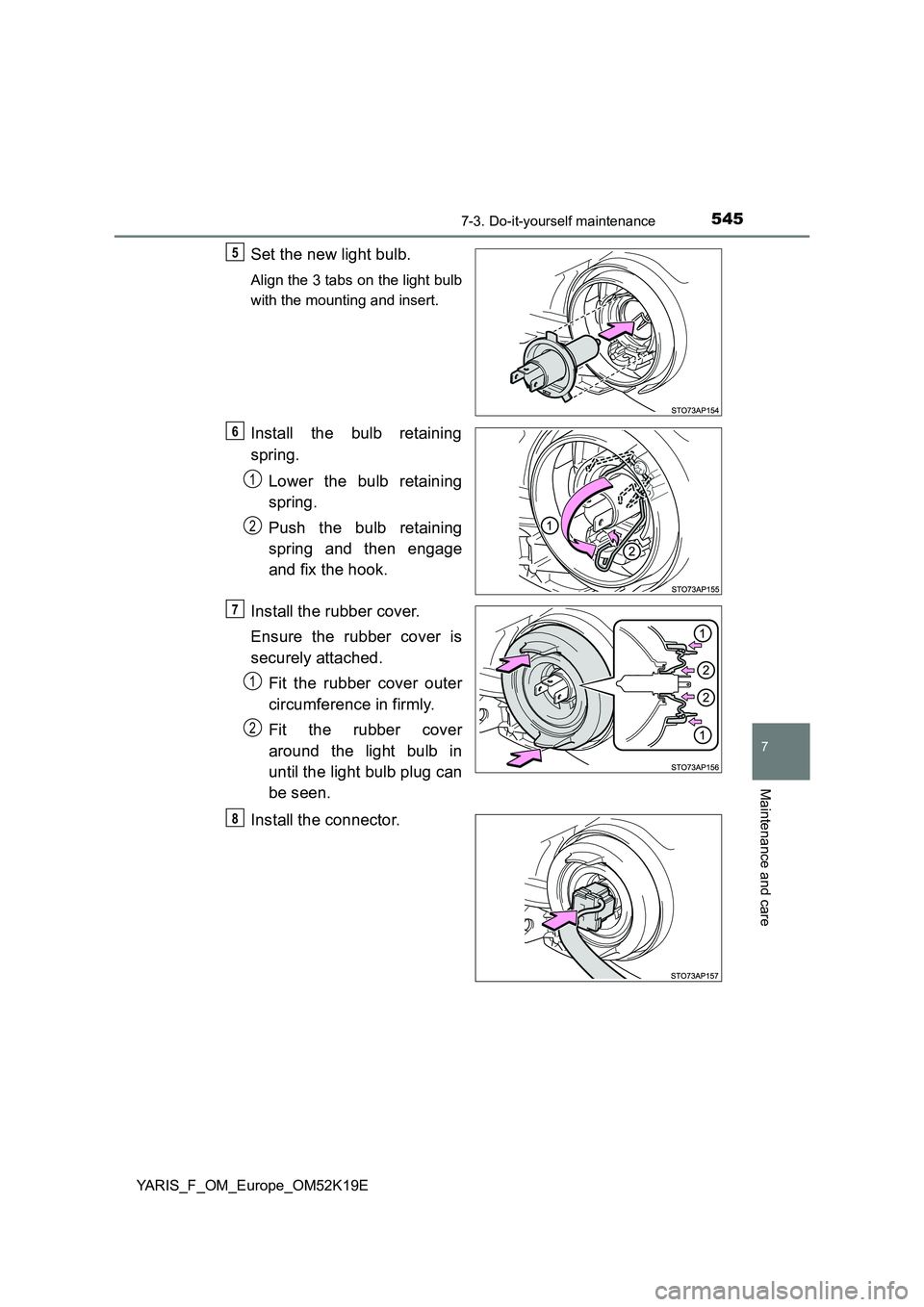

Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Install the bulb retaining
spring.
Lower the bulb retaining
spring.
Push the bulb retaining
spring and then engage
and fix the hook.
Install the rubber cover.
Ensure the rubber cover is
securely attached.
Fit the rubber cover outer
circumference in firmly.
Fit the rubber cover
around the light bulb in
until the light bulb plug can
be seen.
Install the connector.
5
6
1
2
7
1
2
8

5467-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E
Projector type
Turn the bulb base counter-
clockwise.
Pull the bulb out while press-
ing the lock release of the
connector.
Replace the light bulb, plug
the connector, and then
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
1
2
3
14

5477-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E

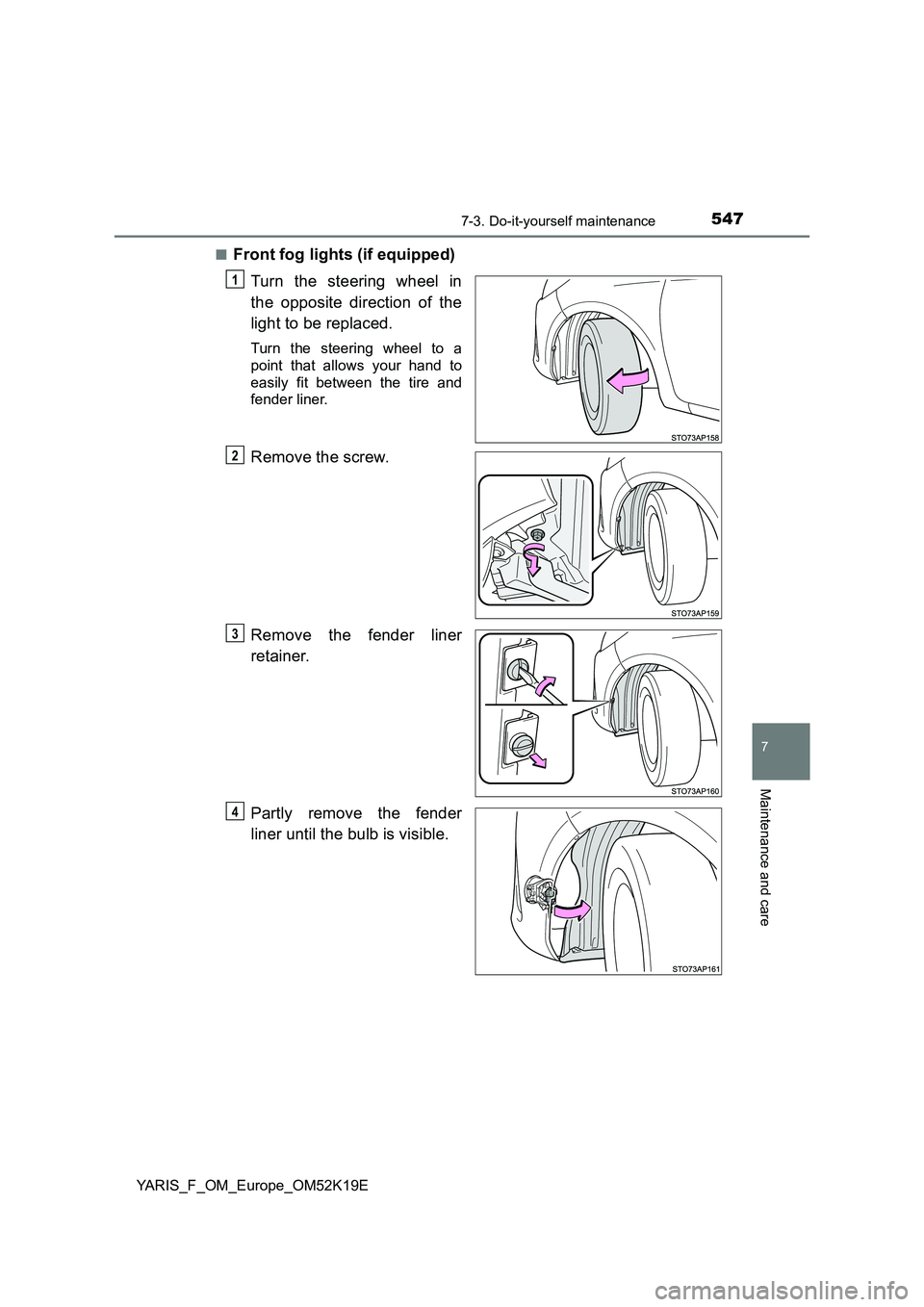

■Front fog lights (if equipped)
Turn the steering wheel in
the opposite direction of the
light to be replaced.
Turn the steering wheel to a
point that allows your hand to
easily fit between the tire and
fender liner.
Remove the screw.
Remove the fender liner
retainer.
Partly remove the fender
liner until the bulb is visible.
1
2
3
4

5487-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

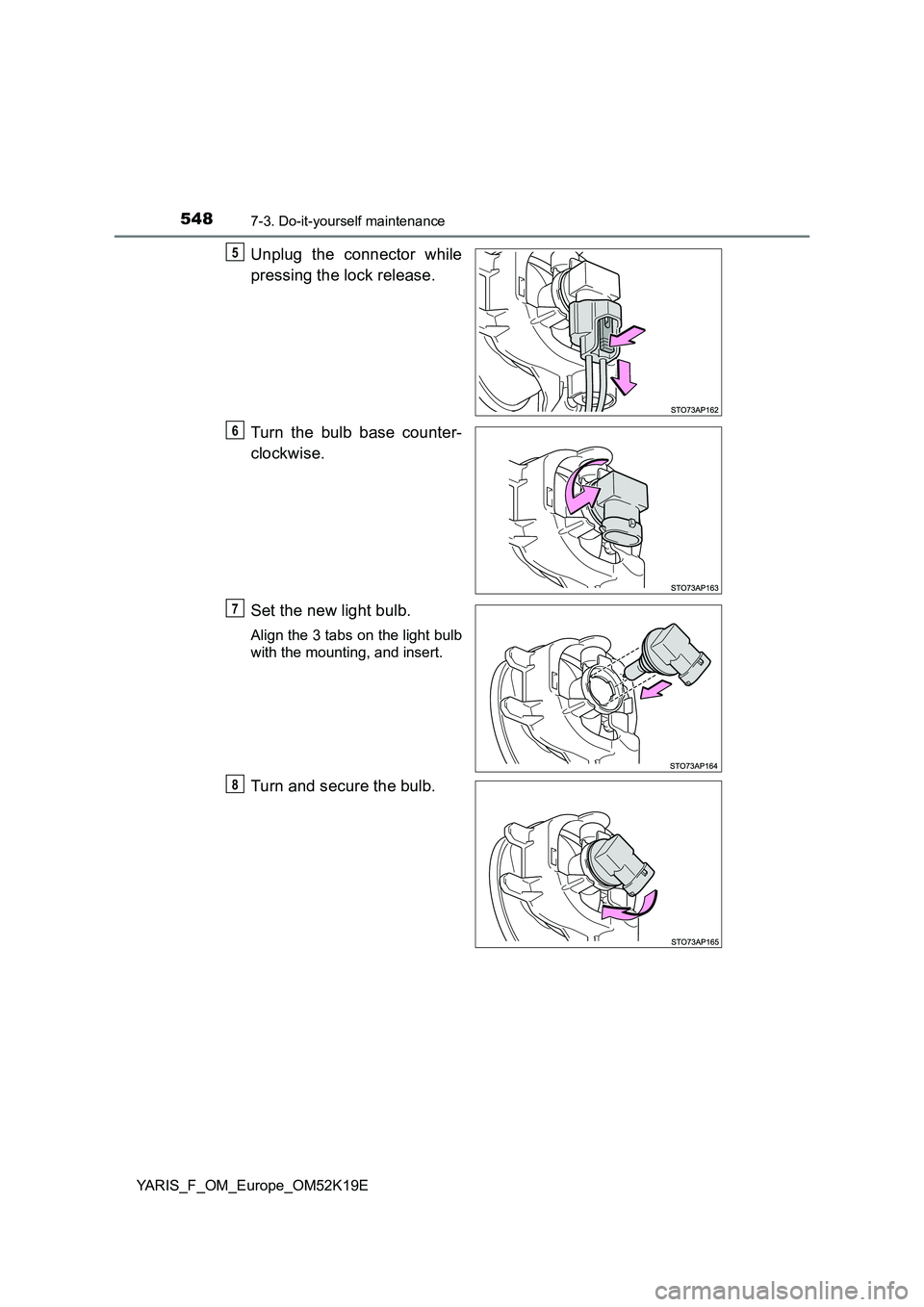

Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb.
5
6
7
8

5497-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E

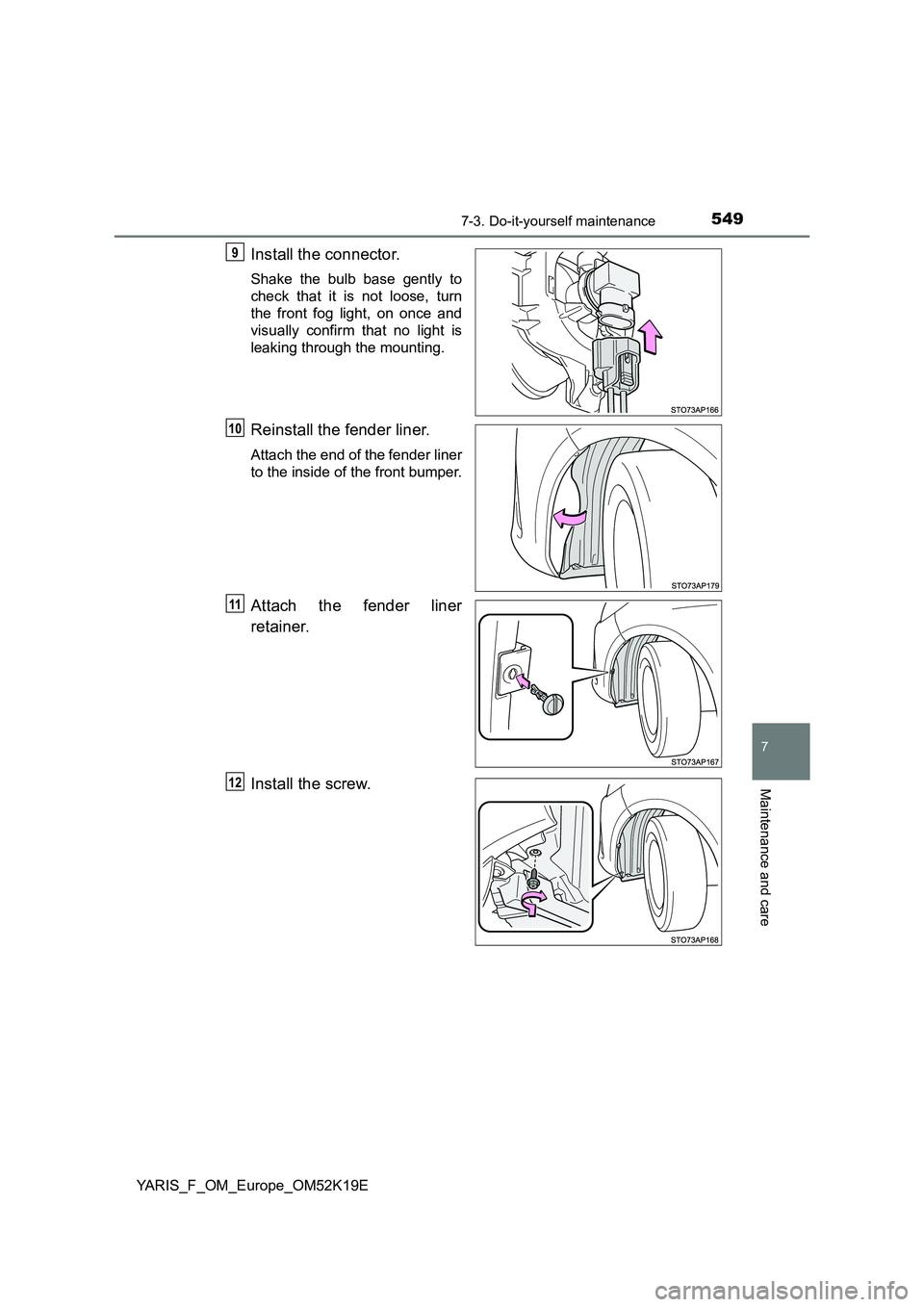

Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog light, on once and
visually confirm that no light is
leaking through the mounting.
Reinstall the fender liner.
Attach the end of the fender liner
to the inside of the front bumper.
Attach the fender liner
retainer.
Install the screw.
9
10
11
12

5507-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

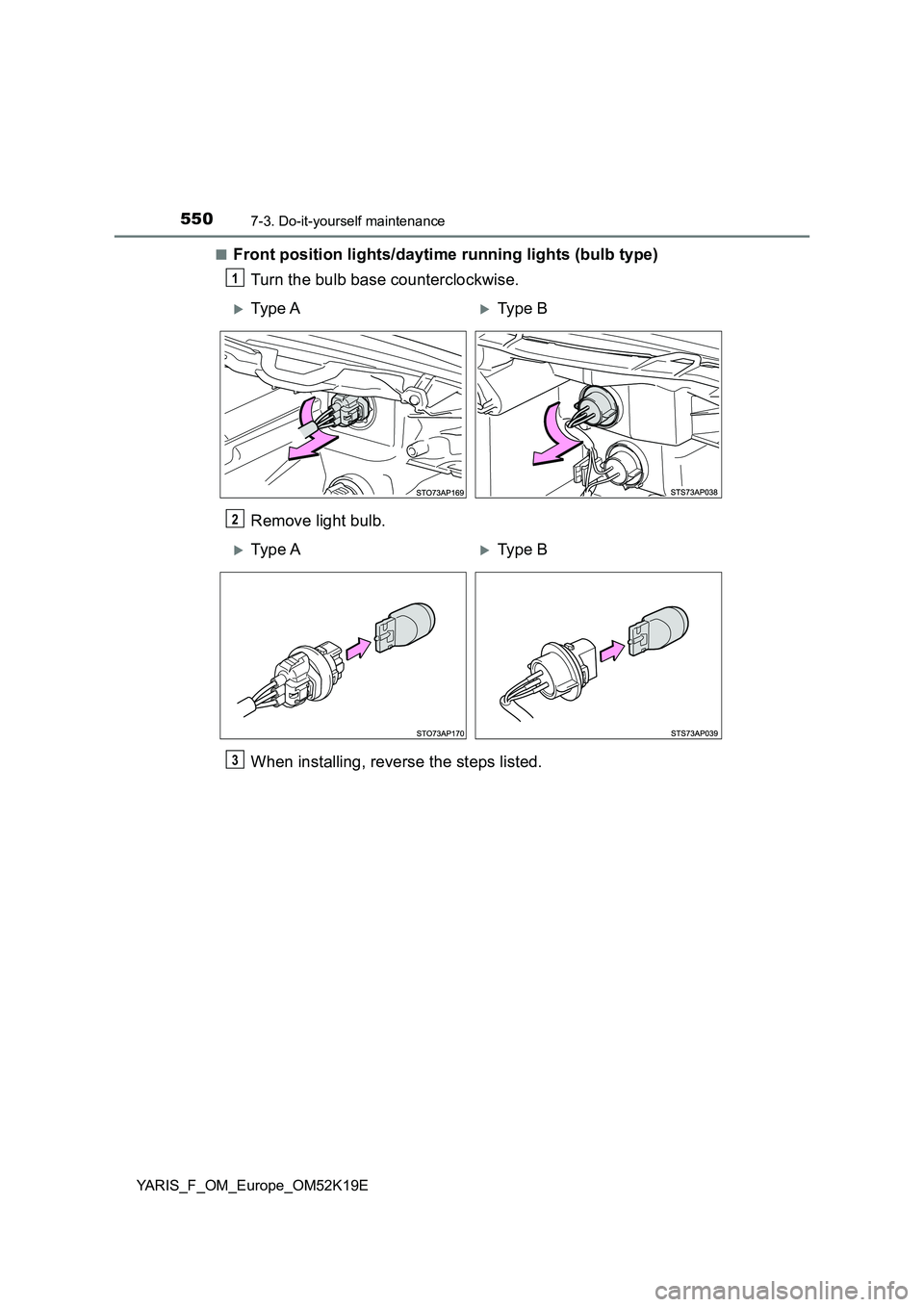

■Front position lights/daytime running lights (bulb type)
Turn the bulb base counterclockwise.
Remove light bulb.
When installing, reverse the steps listed.
1
Type AType B
2
Type AType B
3

5517-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E
■Front turn signal lights
Turn the bulb base counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
Type AType B
2
Type AType B
3

5527-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E
■Side turn signal lights
Depress the mirror.
Remove the mirror.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Remove the bulb base.
Remove the light bulb.
1
2
3
4
