Vehicle specifications
YARIS_F_OM_Europe_OM52K19E

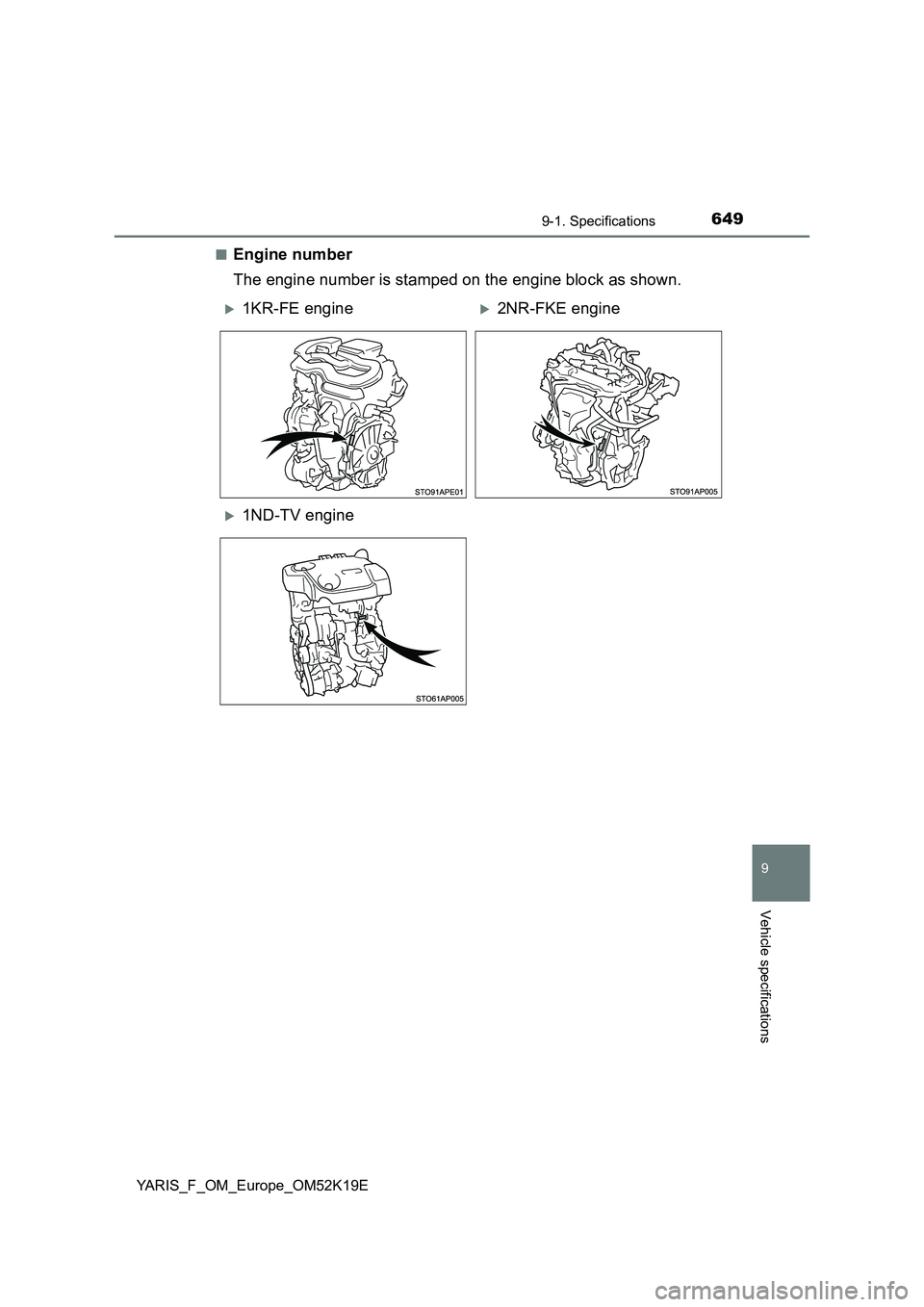

■Engine number
The engine number is stamped on the engine block as shown.
1KR-FE engine2NR-FKE engine
1ND-TV engine

6509-1. Specifications
YARIS_F_OM_Europe_OM52K19E

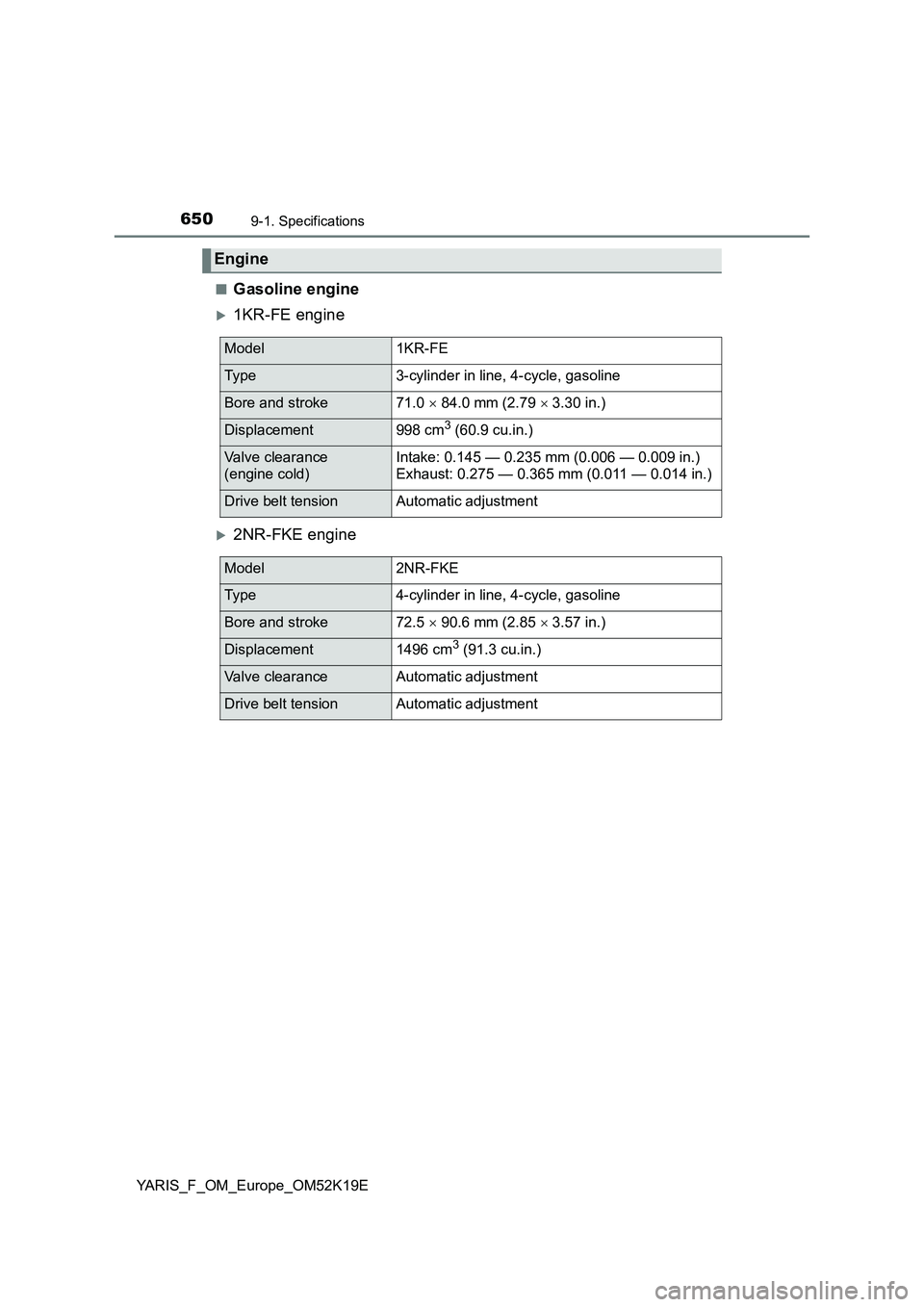

■Gasoline engine
1KR-FE engine
2NR-FKE engine
Engine
Model1KR-FE
Ty p e3-cylinder in line, 4-cycle, gasoline
Bore and stroke71.0  84.0 mm (2.79  3.30 in.)
Displacement998 cm3 (60.9 cu.in.)
Valve clearance
(engine cold)
Intake: 0.145 — 0.235 mm (0.006 — 0.009 in.)
Exhaust: 0.275 — 0.365 mm (0.011 — 0.014 in.)
Drive belt tensionAutomatic adjustment
Model2NR-FKE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke72.5  90.6 mm (2.85  3.57 in.)
Displacement1496 cm3 (91.3 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment

6519-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52K19E

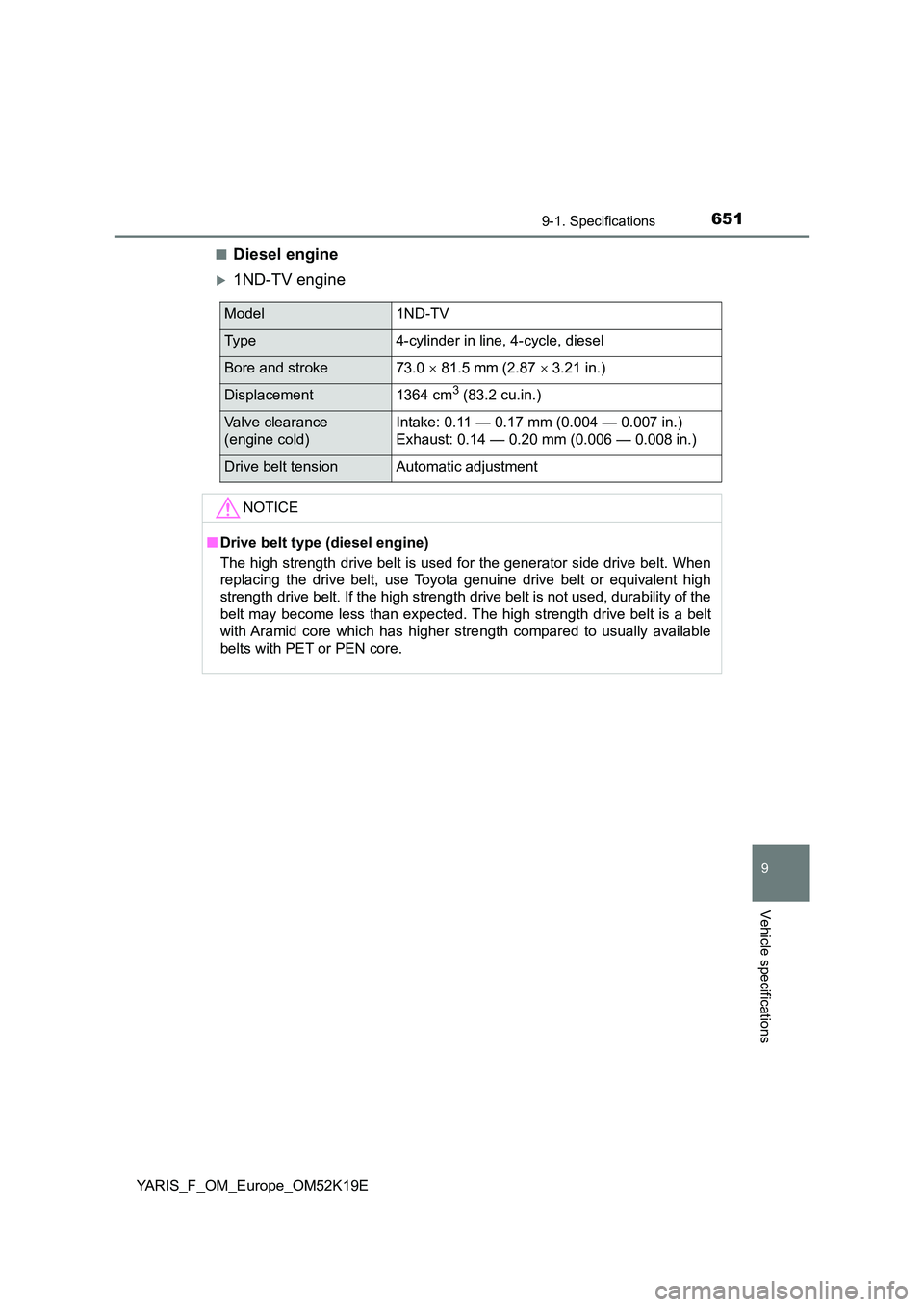

■Diesel engine
1ND-TV engine
Model1ND-TV
Ty p e4-cylinder in line, 4-cycle, diesel
Bore and stroke73.0  81.5 mm (2.87  3.21 in.)
Displacement1364 cm3 (83.2 cu.in.)
Valve clearance
(engine cold)
Intake: 0.11 — 0.17 mm (0.004 — 0.007 in.)
Exhaust: 0.14 — 0.20 mm (0.006 — 0.008 in.)
Drive belt tensionAutomatic adjustment
NOTICE
■ Drive belt type (diesel engine)
The high strength drive belt is used fo r the generator side drive belt. When
replacing the drive belt, use Toyota genuine drive belt or equivalent high
strength drive belt. If the high strength dr ive belt is not used, durability of the
belt may become less than expected. The high strength drive belt is a belt
with Aramid core which has higher st rength compared to usually available
belts with PET or PEN core.

6529-1. Specifications
YARIS_F_OM_Europe_OM52K19E
■Gasoline engine
■Diesel engine

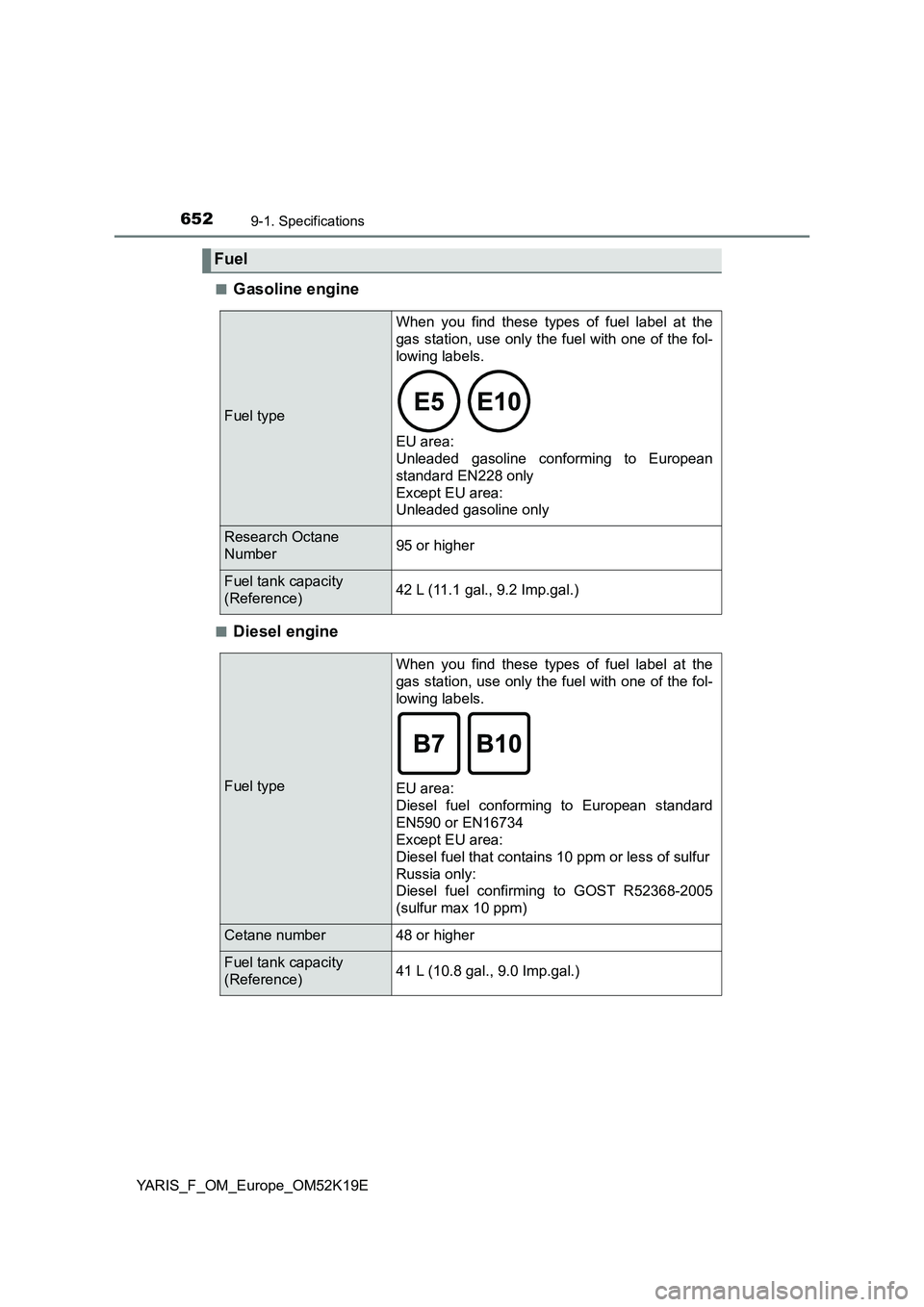

Fuel
Fuel type
When you find these types of fuel label at the
gas station, use only the fuel with one of the fol-
lowing labels.

EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)42 L (11.1 gal., 9.2 Imp.gal.)
Fuel type
When you find these types of fuel label at the
gas station, use only the fuel with one of the fol-
lowing labels.

EU area:
Diesel fuel conforming to European standard
EN590 or EN16734
Except EU area:
Diesel fuel that contains 10 ppm or less of sulfur
Russia only:
Diesel fuel confirming to GOST R52368-2005
(sulfur max 10 ppm)
Cetane number48 or higher
Fuel tank capacity
(Reference)41 L (10.8 gal., 9.0 Imp.gal.)

6539-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52K19E

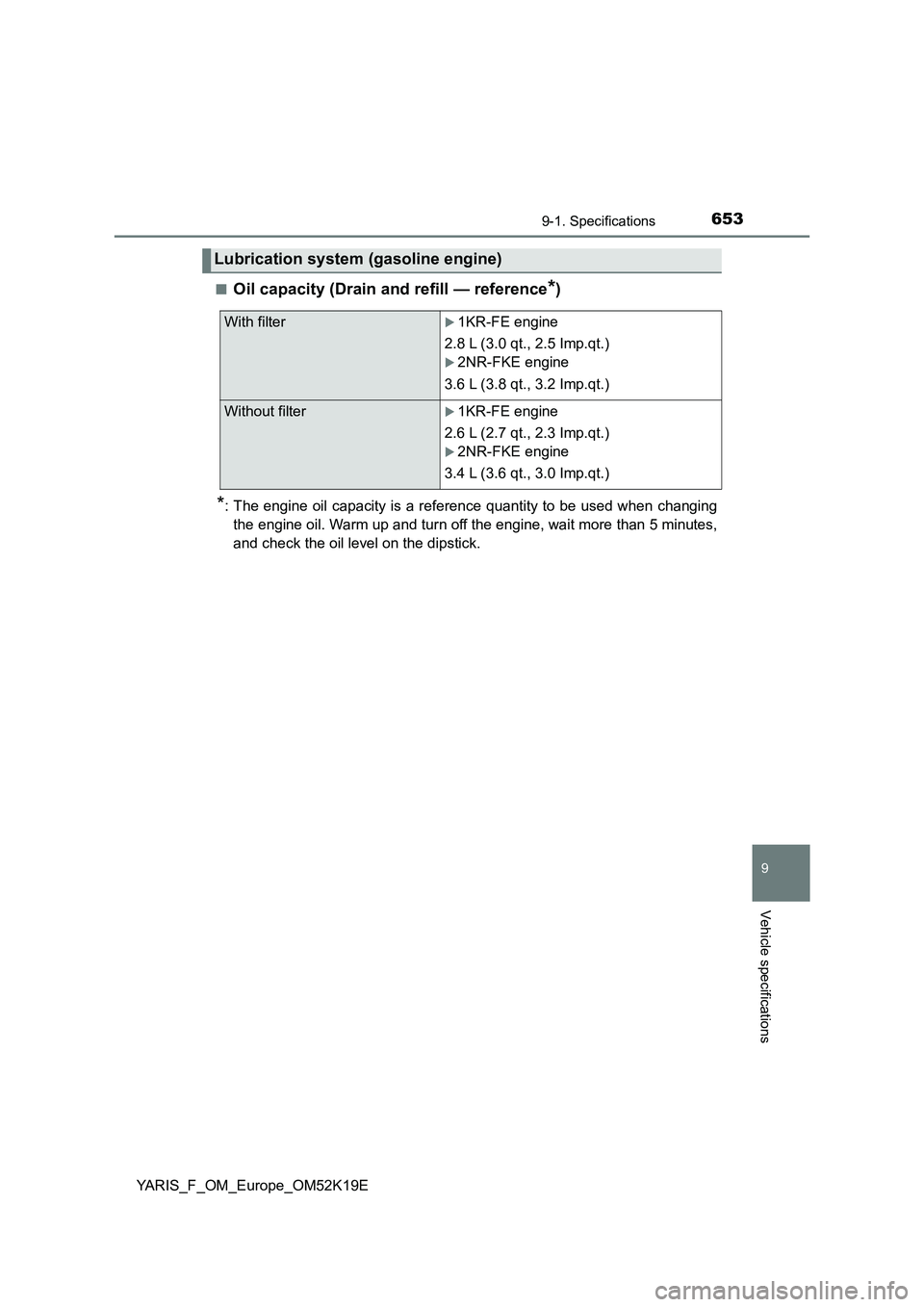

■Oil capacity (Drain and refill — reference*)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Lubrication system (gasoline engine)
With filter1KR-FE engine
2.8 L (3.0 qt., 2.5 Imp.qt.)
2NR-FKE engine
3.6 L (3.8 qt., 3.2 Imp.qt.)
Without filter1KR-FE engine
2.6 L (2.7 qt., 2.3 Imp.qt.)
2NR-FKE engine
3.4 L (3.6 qt., 3.0 Imp.qt.)

6549-1. Specifications
YARIS_F_OM_Europe_OM52K19E

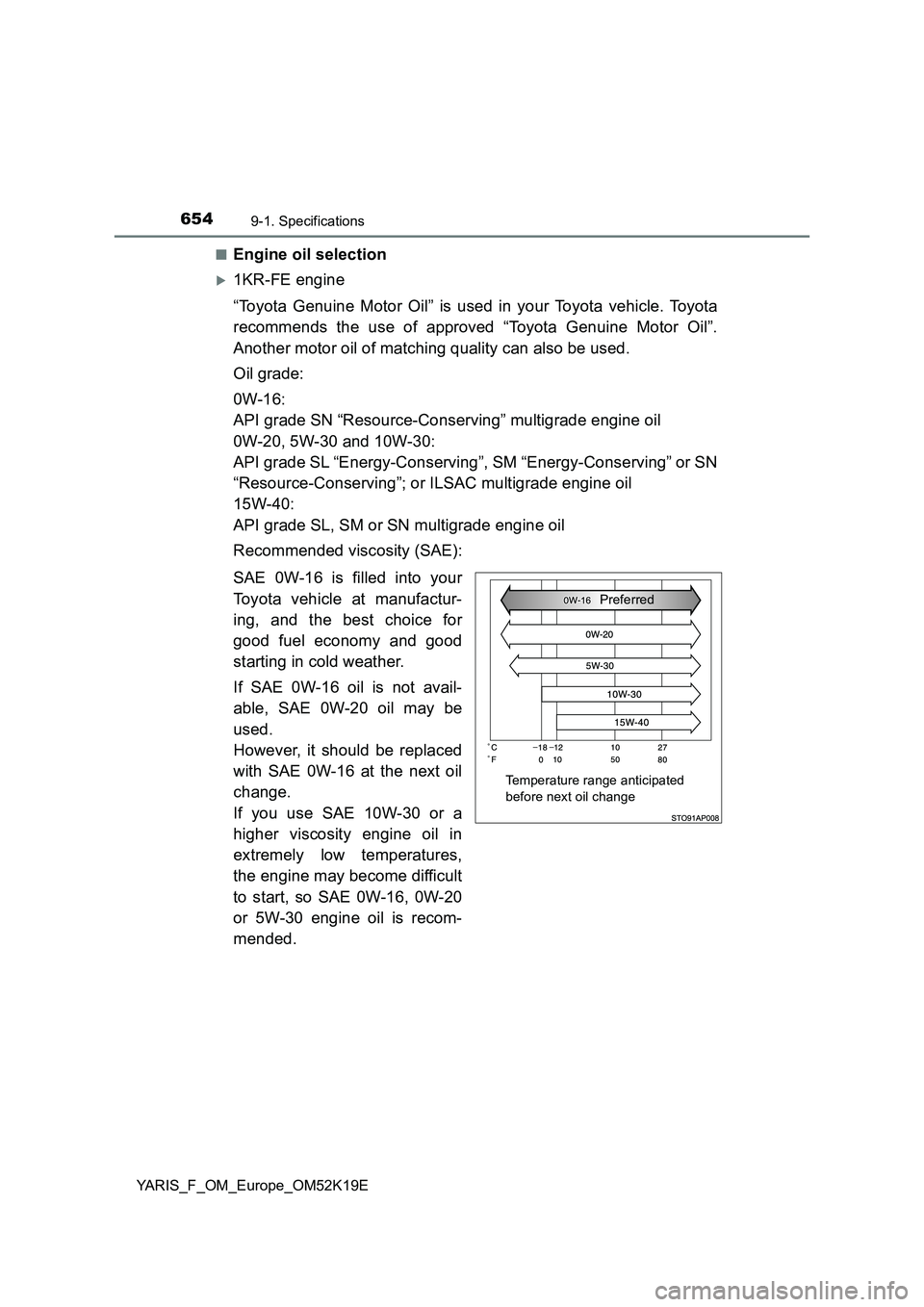

■Engine oil selection
1KR-FE engine
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserving” multigrade engine oil
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-16 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-16 oil is not avail-
able, SAE 0W-20 oil may be
used.
However, it should be replaced
with SAE 0W-16 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-16, 0W-20
or 5W-30 engine oil is recom-
mended.
Preferred
Temperature range anticipated
before next oil change

6559-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52K19E
Oil viscosity (0W-16 is explained here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.

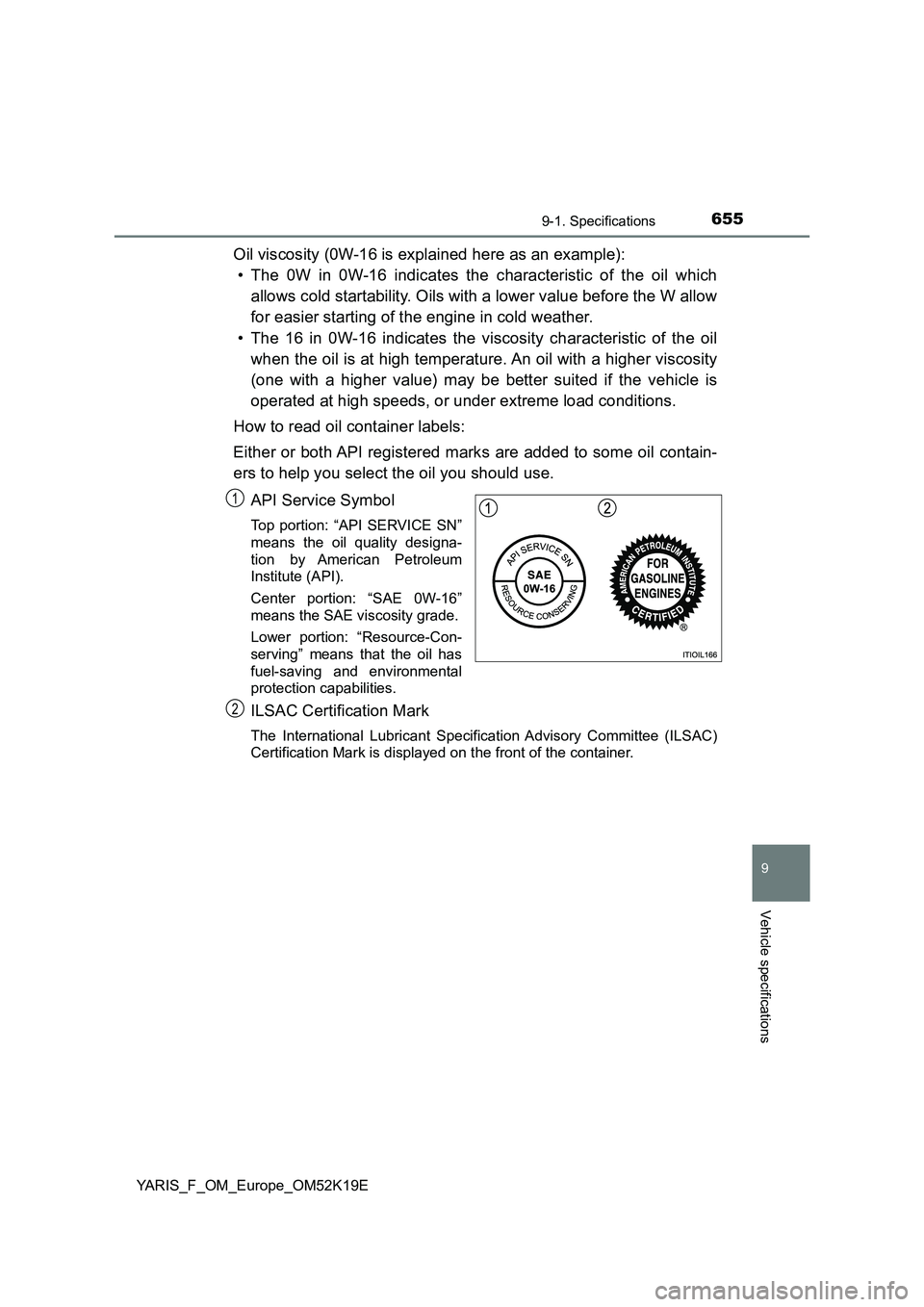

How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-16”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

6569-1. Specifications
YARIS_F_OM_Europe_OM52K19E

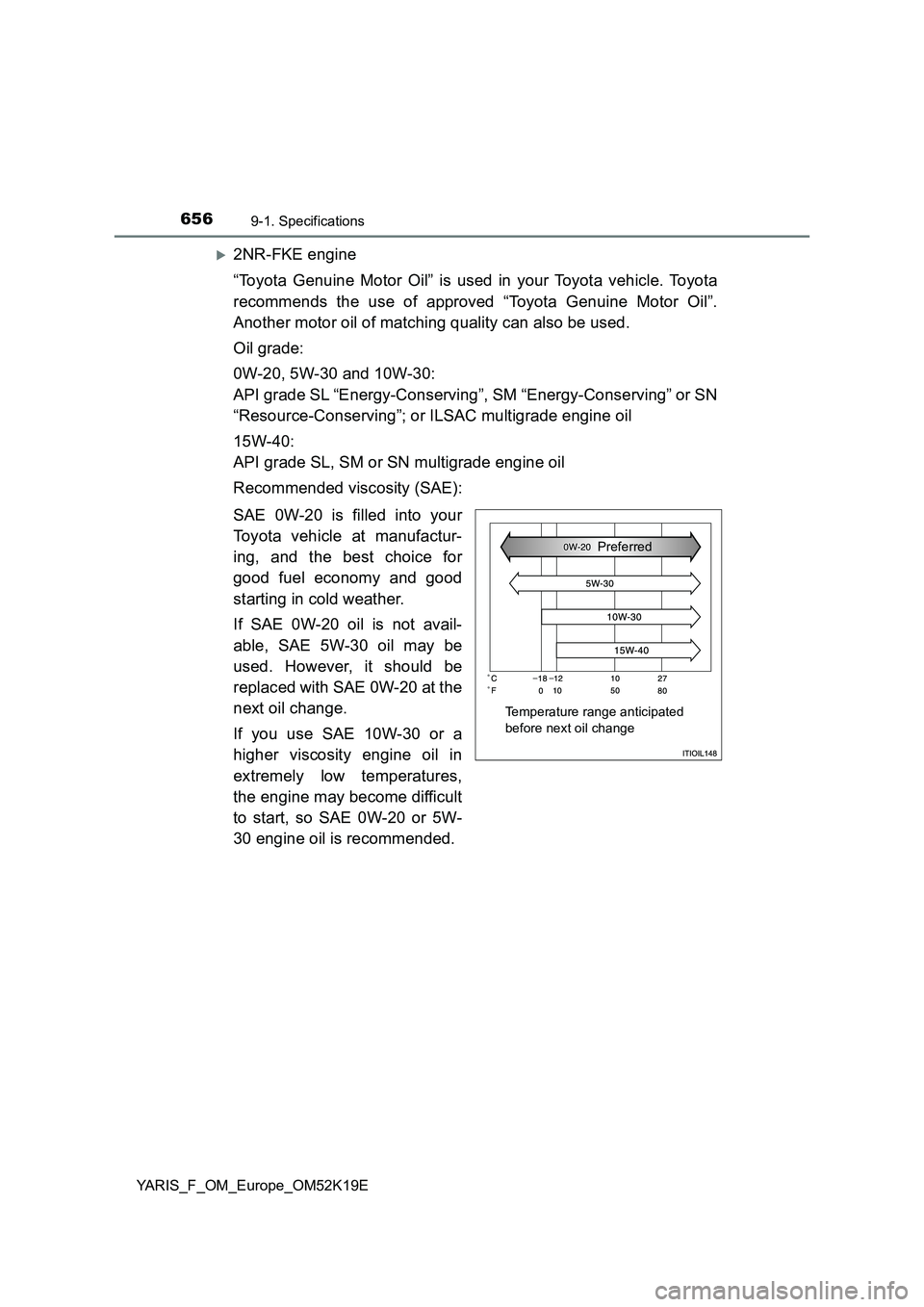

2NR-FKE engine
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
Temperature range anticipated
before next oil change
Preferred
