2Instrument cluster
YARIS_F_OM_Europe_OM52K19E

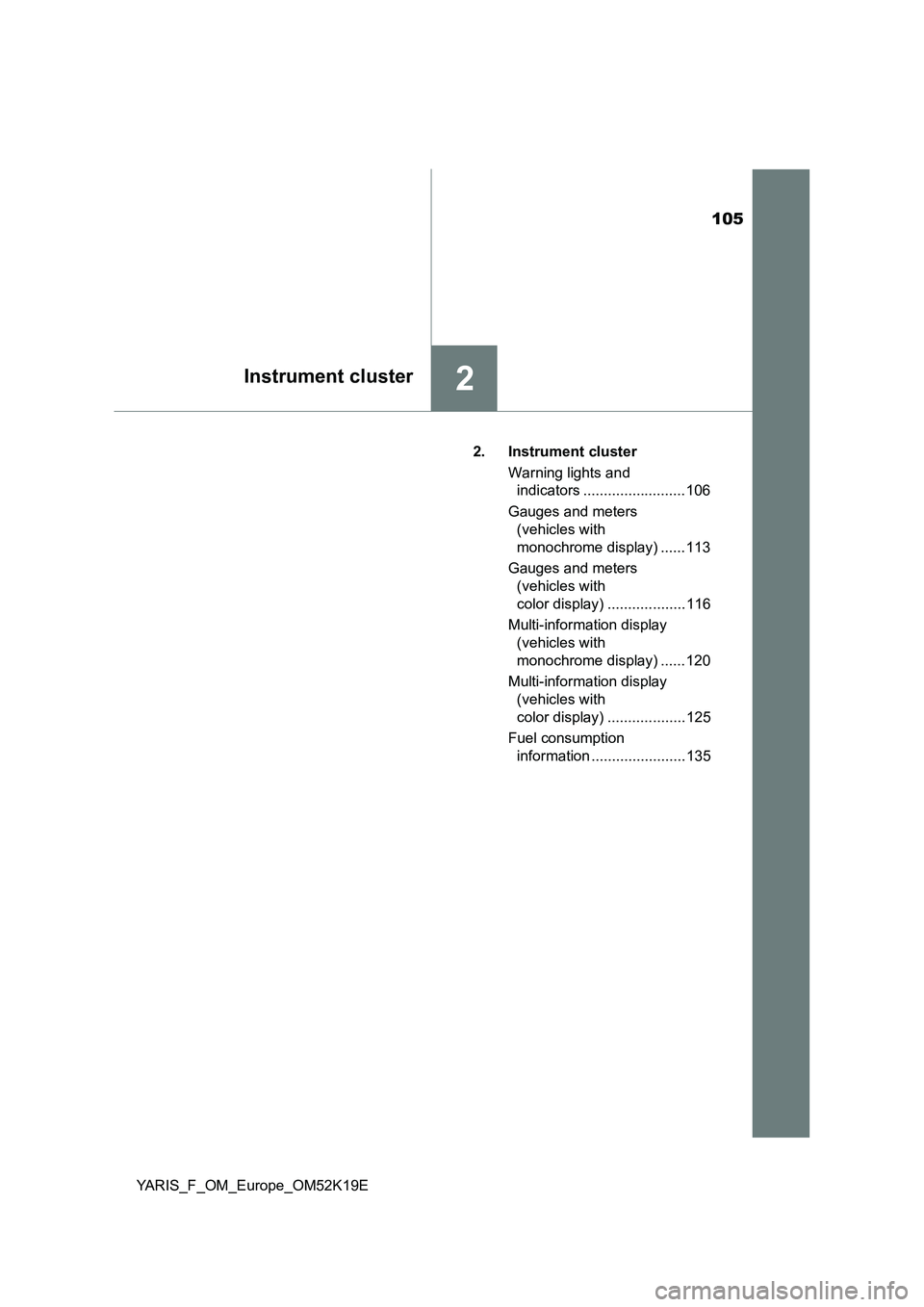

2. Instrument cluster
Warning lights and
indicators ......................... 106
Gauges and meters
(vehicles with
monochrome display) ...... 113
Gauges and meters
(vehicles with
color display) ................... 116
Multi-information display
(vehicles with
monochrome display) ...... 120
Multi-information display
(vehicles with
color display) ................... 125
Fuel consumption
information ....................... 135

1062. Instrument cluster
YARIS_F_OM_Europe_OM52K19E
Warning lights and indicators
Vehicles with monochrome display type A
Vehicles with monochrome display type B
This illustration represents a meter with a tachometer and may differ
from the look of the meter without a tachometer.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

1072. Instrument cluster
2
Instrument cluster
YARIS_F_OM_Europe_OM52K19E

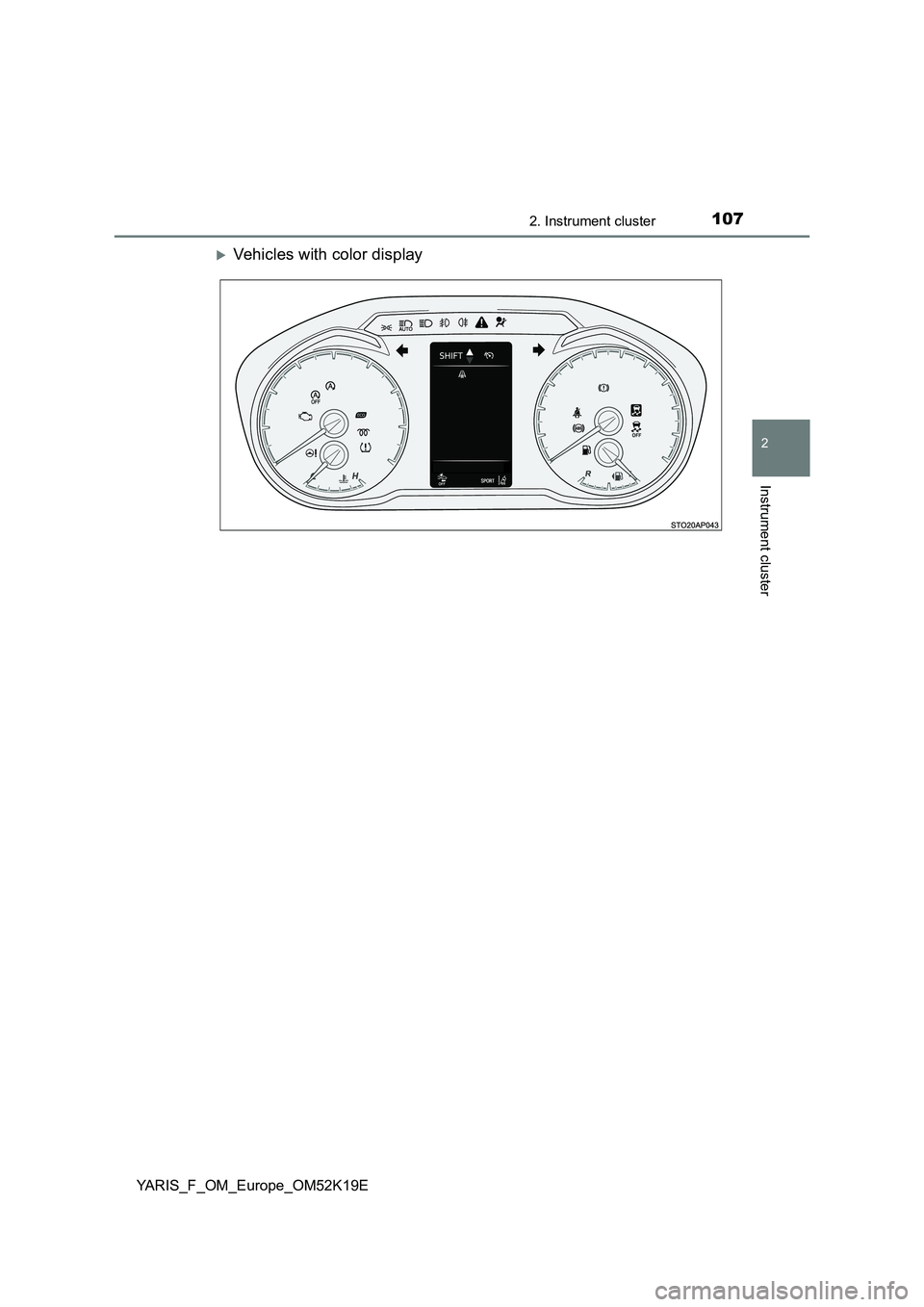

Vehicles with color display

1082. Instrument cluster
YARIS_F_OM_Europe_OM52K19E
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1, 4Brake system warning
light ( P. 576)
*1Electric power steering
system warning light
( P. 577)
*1, 9
Charging system warn-
ing light ( P. 576)
*1, 2, 5
PCS warning light
( P. 578)
*10, 11
Charging system warn-
ing light ( P. 576)
*1, 2, 4
Slip indicator
( P. 578)
*1, 9
Low engine oil pressure
warning light ( P. 576)
*2, 9
(Yellow)
Automatic High Beam
indicator ( P. 579)
*10, 11Low engine oil pressure
warning light ( P. 576)
*2, 9
(Yellow)
Cruise control indicator
( P. 579)
*1, 9
(Red)
High engine coolant
temperature warning
light ( P. 577)
*2, 9
(Yellow)
LDA indicator
( P. 579)
*10, 11High engine coolant
temperature warning
light ( P. 577)
*2, 8, 9
(Yellow)
Lane marker indicators
( P. 579)
*1
Malfunction indicator
lamp ( P. 577)
*9
(Yellow)
Speed limiter indicator
( P. 579)
*1SRS warning light
( P. 577)
*1, 2, 5
Stop & Start cancel indi-
cator ( P. 579)
*1, 4ABS warning light
( P. 577)
*1, 6, 9
Fuel filter warning light
( P. 579)

1092. Instrument cluster
2
Instrument cluster
YARIS_F_OM_Europe_OM52K19E
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
*2: If equipped
*3: The light flashes in yellow to indicate a malfunction. The light flashes
quickly in green to indicate that the steering lock has not been released.
*4: The light turns on to indicate a malfunction.
*5: The light flashes to indicate a malfunction.
*6: Diesel engine
*7: The light illuminate on the center panel.
*8: The lights turn on with LDA indicator to indicate a malfunction.
*9: Vehicles with monochrome display.
*10: Vehicles with color display.
*11: The light illuminates on the multi-information display.
*2, 3, 9
(Yellow)
Smart entry & start sys-
tem indicator
( P. 579)
*1, 2
Tire pressure warning
light ( P. 580)
*9
Open door warning light
( P. 580)
*1, 10
Master warning light
( P. 581)
Low fuel level warning
light ( P. 580)
*1, 6, 9Low engine oil level
warning light ( P. 581)
Driver’s and front pas-
senger’s seat belt
reminder light ( P. 580)
*1, 6, 9
Engine oil change
reminder light ( P. 581)
*2, 7Rear passenger’s seat
belt reminder lights
( P. 580)

1102. Instrument cluster
YARIS_F_OM_Europe_OM52K19E
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 267)
*1, 5, 6Eco Driving Indicator
Light ( P. 112)
Headlight high beam
indicator ( P. 270)
*5
“SPORT” indicator
( P. 256)
*2
(Green)
Automatic High Beam
indicator ( P. 317)
*1, 7, 13
Gear Shift Indicator
( P. 265)
Tail light indicator
( P. 269)
*1, 7, 14
Gear Shift Indicator
( P. 265)
*2
Front fog light indicator
( P. 274)
*2
(Green)
Cruise control indicator
( P. 328)
Rear fog light indicator
( P. 274)
*2
“SET” indicator
( P. 328)
*2, 13
(Green)
Smart entry & start sys-
tem indicator
( P. 246)
*2
(Green)
LDA indicator
( P. 311)
*3, 13
(Blue)
Low engine coolant tem-
perature indicator
( P. 574)
*2, 12, 13
(Green)
Lane marker indicators
( P. 312)
*4
Engine preheating indi-
cator ( P. 243, 246)
*2
(Green)
Speed limiter indicator
( P. 332)
*1, 2Stop & Start indicator
( P. 337)
*2, 8, 11, 13PCS activation indicator
( P. 293)

1112. Instrument cluster
2
Instrument cluster
YARIS_F_OM_Europe_OM52K19E
*1: Vehicles without a smart entry & start system:
These lights turn on when the engine switch is turned to the “ON” position
to indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
Vehicles with a smart entry & start system:
These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or if the lights do not turn
off. Have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
*2: If equipped
*3: This indicator turns on in blue when the engine coolant temperature is low.
*4: Diesel engine
*5: Vehicles with a Multidrive
*6: The light does not turn on when the system is disable.
*7: Vehicles with a manual transmission
*8: The light flashes to indicate that the system is operating.
*9: This light illuminates on the center panel.
*10: The light comes on when the system is turned off.
*11: The light comes on when system settings are changed.
*1, 2
Stop & Start cancel indi-
cator ( P. 338)
*1, 2, 10PCS warning light
( P. 297)
*1, 2, 8
Slip indicator (P. 349)
*14, 15Ice warning indicator
( P. 116)
*1, 2 , 13
“TRC OFF” indicator
( P. 349)
*9
*1, 2
VSC OFF indicator
( P. 350)
“PASSENGER AIR BAG” indicator
( P. 5 6 )

1122. Instrument cluster
YARIS_F_OM_Europe_OM52K19E
*12: The light flashes in yellow to indicate that the vehicle is deviating from the
lane.
*13: Vehicles with monochrome display.
*14: Vehicles with color display.
*15: When the outside temperature is approximately 3°C (37°F) or lower, the
indicator will flash for approximately 10 seconds, then stay on.

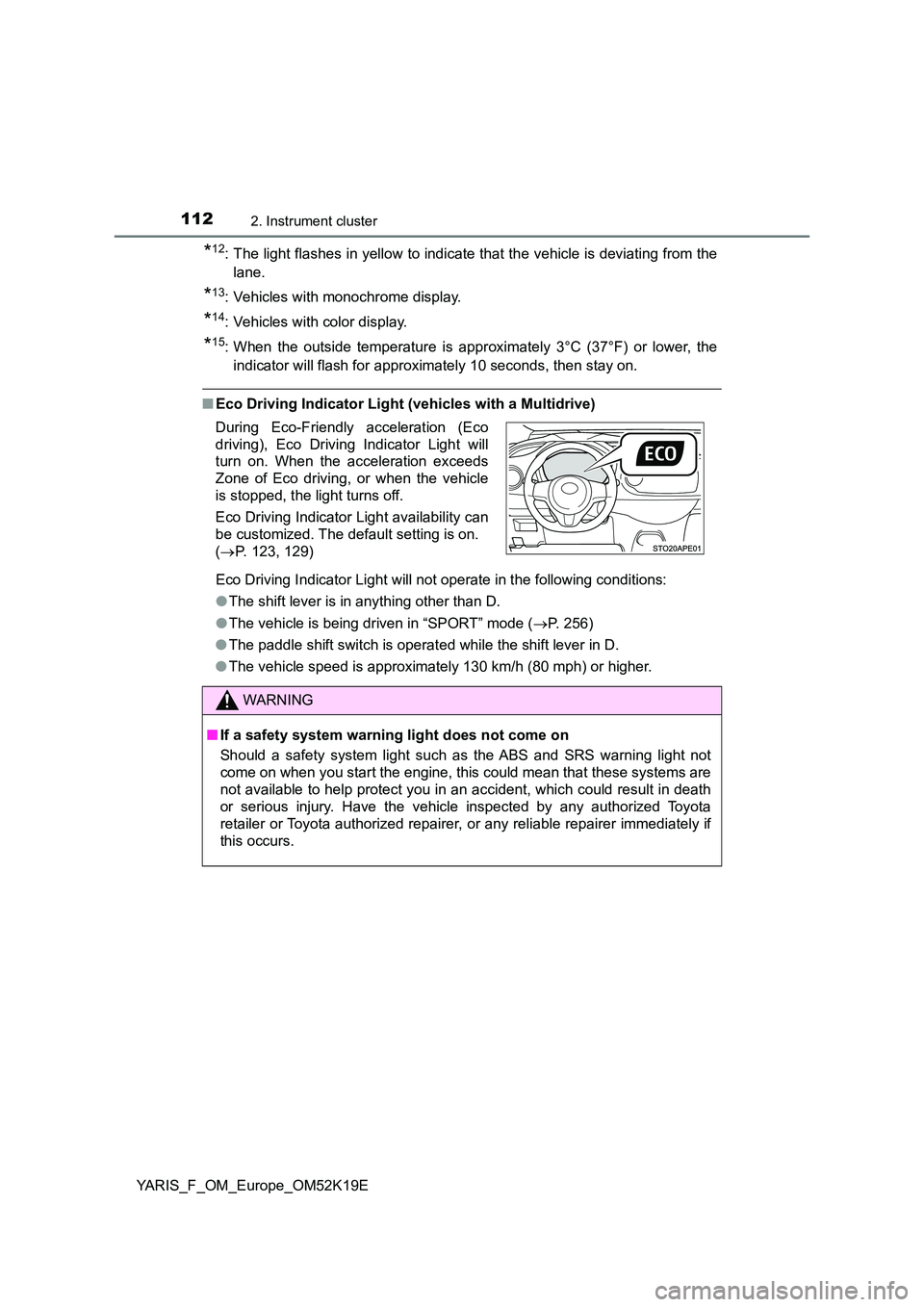

■ Eco Driving Indicator Light (vehicles with a Multidrive)
Eco Driving Indicator Light will not operate in the following conditions:
● The shift lever is in anything other than D.
● The vehicle is being driven in “SPORT” mode (P. 256)
● The paddle shift switch is operated while the shift lever in D.
● The vehicle speed is approximately 130 km/h (80 mph) or higher.
During Eco-Friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the acceleration exceeds
Zone of Eco driving, or when the vehicle
is stopped, the light turns off.
Eco Driving Indicator Light availability can
be customized. The default setting is on.
( P. 123, 129)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer immediately if
this occurs.
