2019 TOYOTA YARIS Owners Manual

5377-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E
Engine compartment: type C fuse box (left-hand drive vehicles)
Pull the rubber strip on the
edge to unhook it from the
cover, and then push the
tabs in and lift the cover off.
Remove the battery terminal
cover and then the fuse box
cover.
Engine compartment: type C fuse box (right-hand drive vehicles)
Pull the rubber strip on the
edge to unhook it from the
cover, and then push the
tabs in and lift the cover off.
Remove the battery terminal
cover and then the fuse box
cover.
1
2
1
2

5387-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

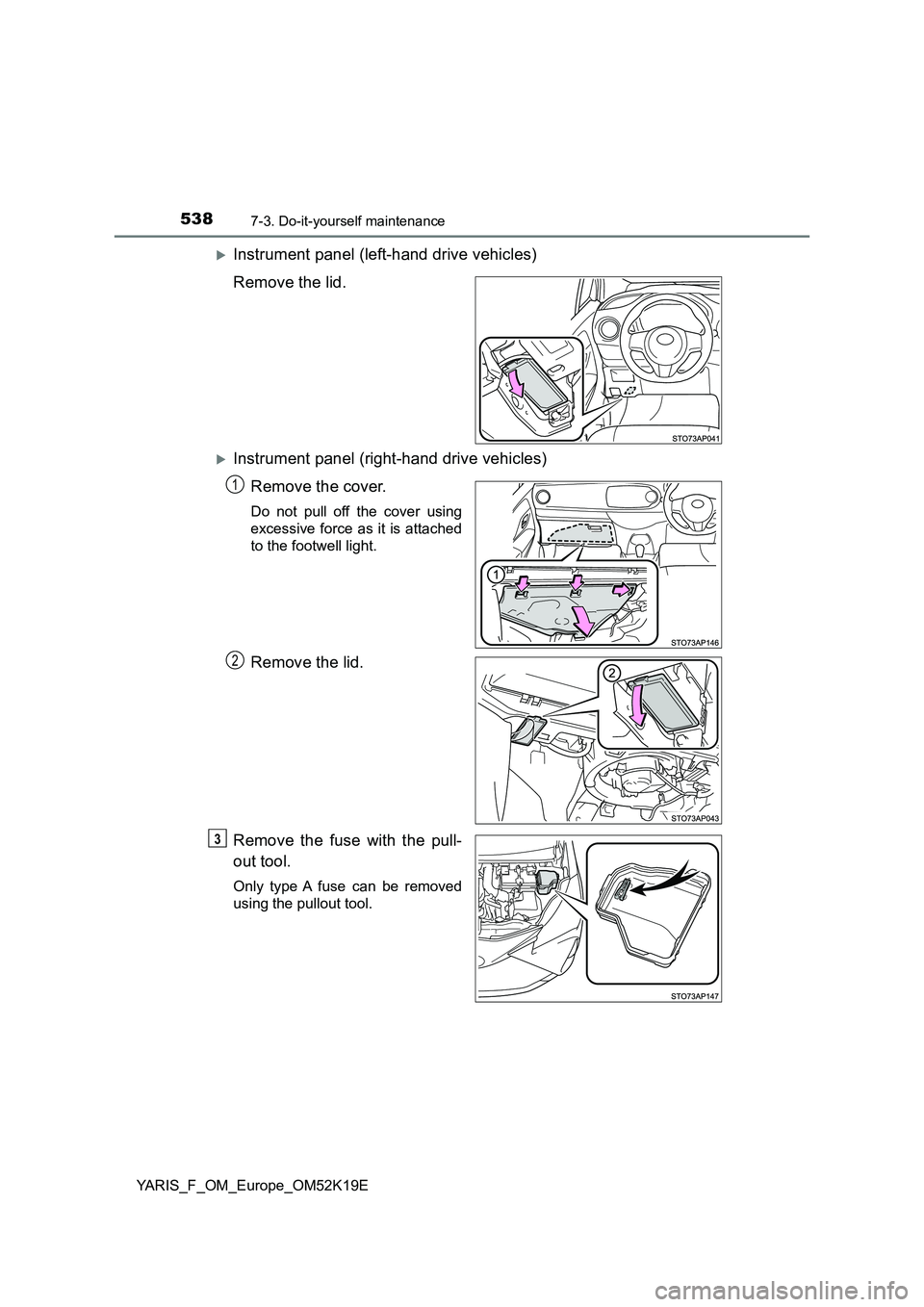

Instrument panel (left-hand drive vehicles)
Remove the lid.
Instrument panel (right-hand drive vehicles)
Remove the cover.
Do not pull off the cover using
excessive force as it is attached
to the footwell light.
Remove the lid.
Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.
1
2
3

5397-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E
Check if the fuse is blown.
Normal fuse
Blown fuse
From Type A to F:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type G:
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
4
1
2
Ty pe AType B
Ty pe CType D

5407-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 542)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
Ty pe EType F
Ty pe G

5417-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E
■ When reinstalling the cover (type C fuse box)
Left-hand drive vehicles
Right-hand drive vehicles
Reinstall the cover, and then hook the
rubber strip’s groove onto the cover.
Reinstall the cover, and then hook the
rubber strip’s groove onto the cover.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.

5427-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 667)
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
For more information about replacing other light bulbs, contact
any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
Preparing for light bulb replacement
Bulb locations
Front position lights/daytime
running lights (bulb type)
Front turn signal lights
Headlights
Front fog lights (if equipped)
Side turn signal lights
1
2
3
4
5

5437-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52K19E
■Rear
License plate lights
Back-up light
Stop/tail lights (bulb type)
Rear turn signal lights
1
2
3
4

5447-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52K19E

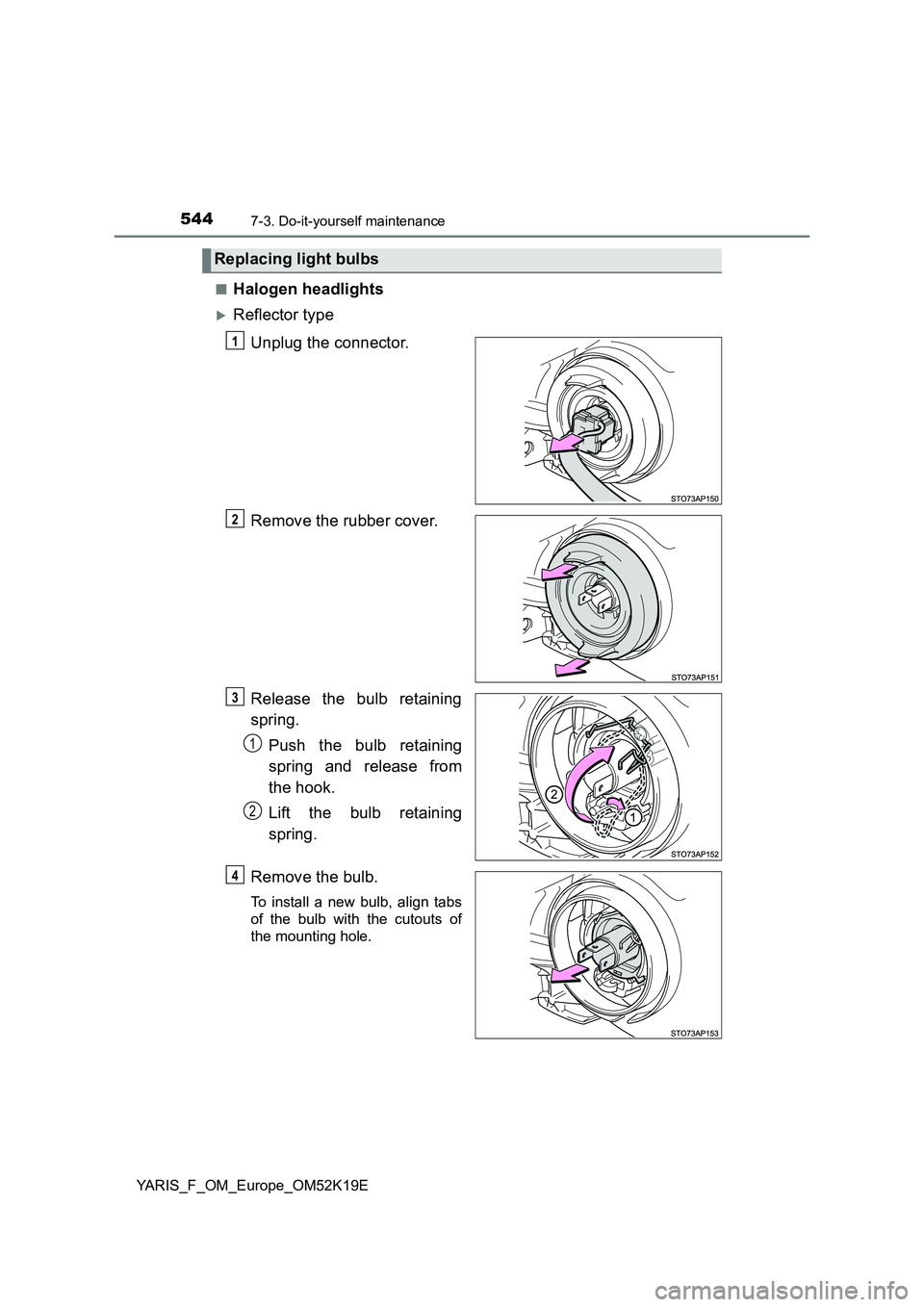

■Halogen headlights
Reflector type
Unplug the connector.
Remove the rubber cover.
Release the bulb retaining
spring.
Push the bulb retaining
spring and release from
the hook.
Lift the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align tabs
of the bulb with the cutouts of
the mounting hole.
Replacing light bulbs
1
2
3
1
2
4
