2019 TOYOTA YARIS Owners Manual

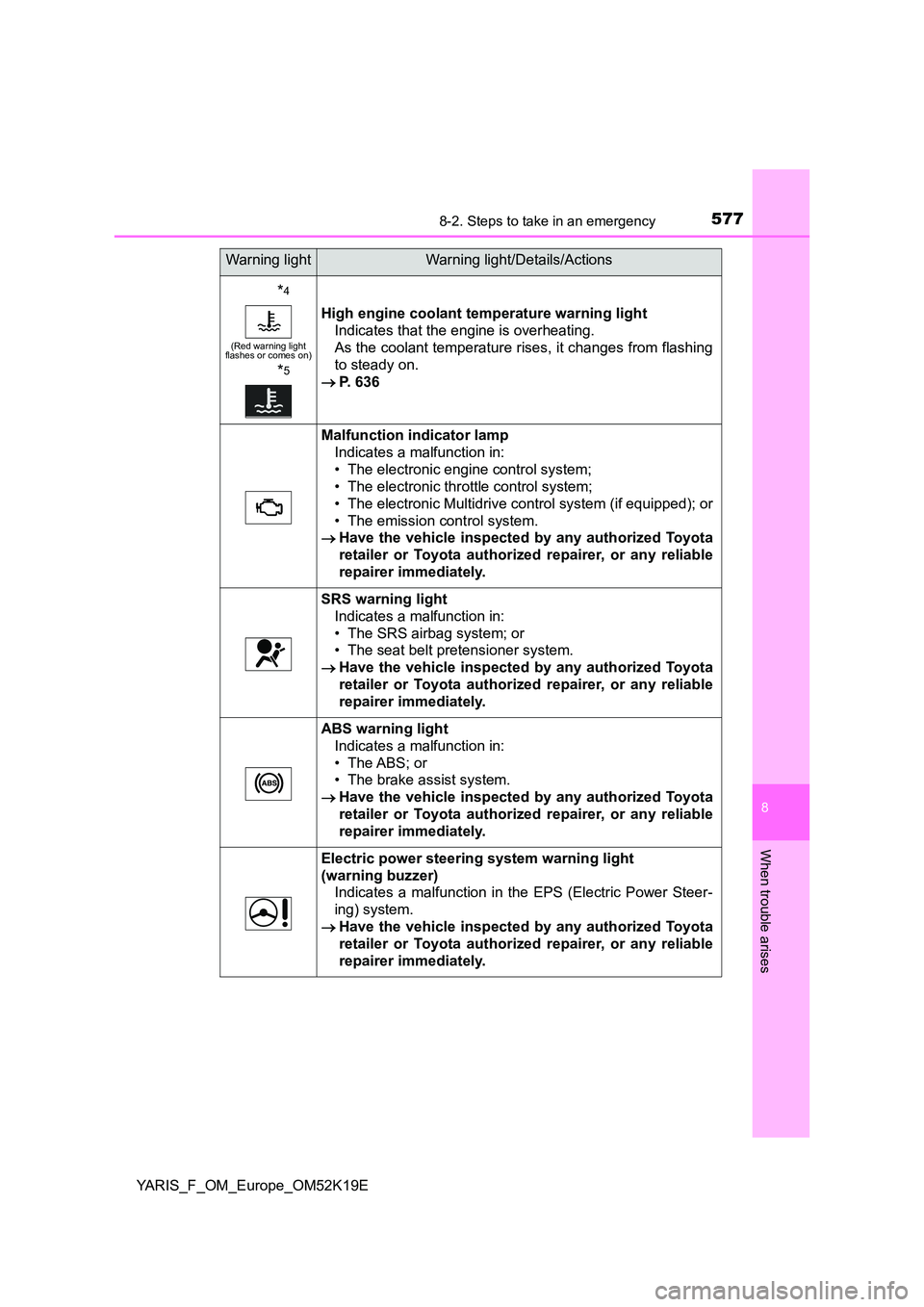

5778-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52K19E
*4
(Red warning light flashes or comes on)
*5
High engine coolant temperature warning light
Indicates that the engine is overheating.
As the coolant temperature rises, it changes from flashing
to steady on.
 P. 636
Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system;
• The electronic Multidrive control system (if equipped); or
• The emission control system.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Electric power steering system warning light
(warning buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightWarning light/Details/Actions

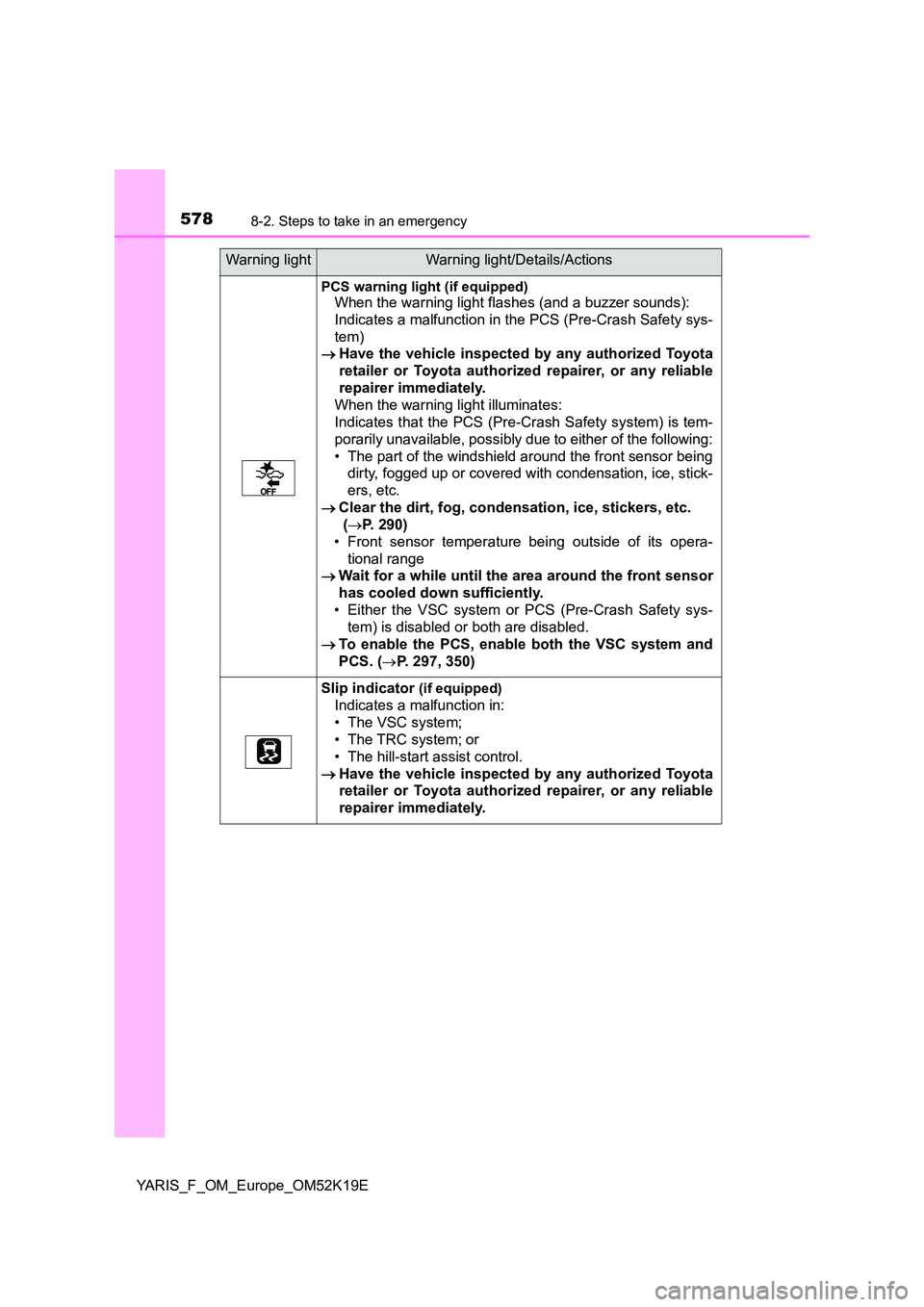

5788-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52K19E
PCS warning light (if equipped)
When the warning light flashes (and a buzzer sounds):
Indicates a malfunction in the PCS (Pre-Crash Safety sys-
tem)
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
When the warning light illuminates:
Indicates that the PCS (Pre-Crash Safety system) is tem-
porarily unavailable, possibly due to either of the following:
• The part of the windshield around the front sensor being
dirty, fogged up or covered with condensation, ice, stick-
ers, etc.
 Clear the dirt, fog, condensation, ice, stickers, etc.
( P. 290)
• Front sensor temperature being outside of its opera-
tional range
 Wait for a while until the area around the front sensor
has cooled down sufficiently.
• Either the VSC system or PCS (Pre-Crash Safety sys-
tem) is disabled or both are disabled.
 To enable the PCS, enable both the VSC system and
PCS. ( P. 297, 350)
Slip indicator (if equipped)
Indicates a malfunction in:
• The VSC system;
• The TRC system; or
• The hill-start assist control.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightWarning light/Details/Actions

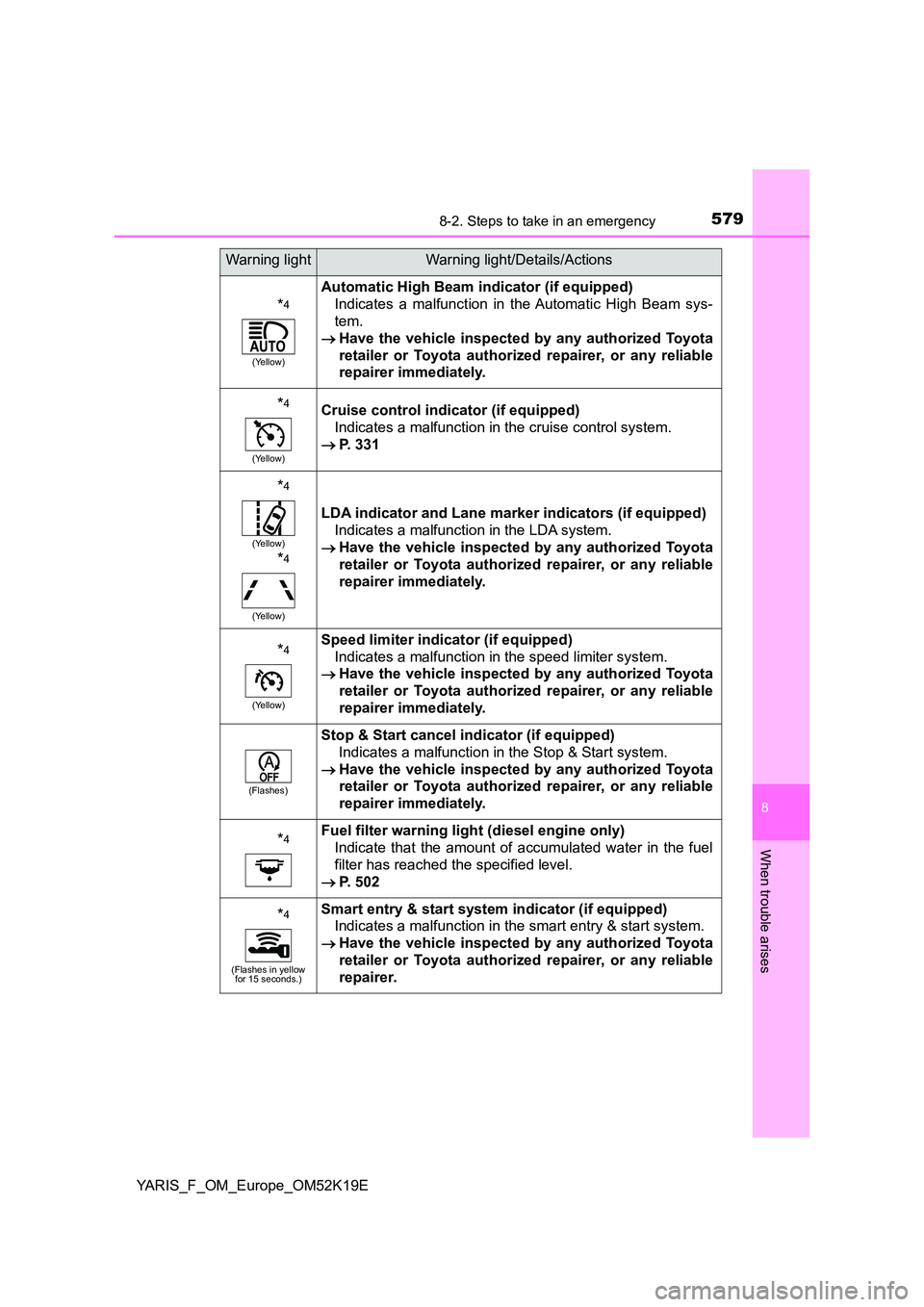

5798-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52K19E
*4
(Yellow)
Automatic High Beam indicator (if equipped)
Indicates a malfunction in the Automatic High Beam sys-
tem.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
*4
(Yellow)
Cruise control indicator (if equipped)
Indicates a malfunction in the cruise control system.
 P. 331
*4
(Yellow)
*4
(Yellow)
LDA indicator and Lane marker indicators (if equipped)
Indicates a malfunction in the LDA system.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
*4
(Yellow)
Speed limiter indicator (if equipped)
Indicates a malfunction in the speed limiter system.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
(Flashes)
Stop & Start cancel indicator (if equipped)
Indicates a malfunction in the Stop & Start system.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
*4Fuel filter warning light (diesel engine only)
Indicate that the amount of accumulated water in the fuel
filter has reached the specified level.
 P. 502
*4
(Flashes in yellow for 15 seconds.)
Smart entry & start system indicator (if equipped)
Indicates a malfunction in the smart entry & start system.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer.
Warning lightWarning light/Details/Actions

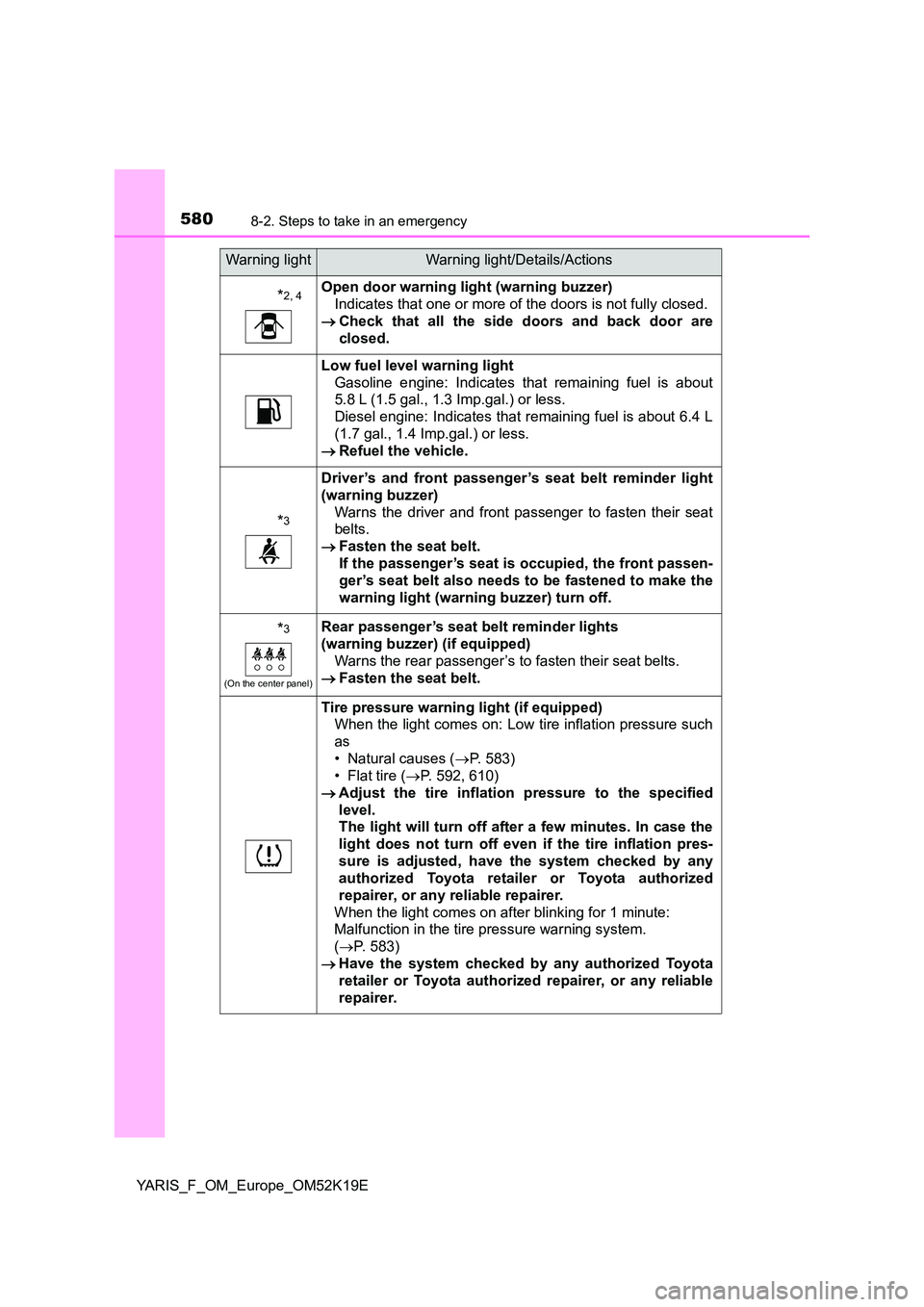

5808-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52K19E
*2, 4Open door warning light (warning buzzer)
Indicates that one or more of the doors is not fully closed.
 Check that all the side doors and back door are
closed.
Low fuel level warning light
Gasoline engine: Indicates that remaining fuel is about
5.8 L (1.5 gal., 1.3 Imp.gal.) or less.
Diesel engine: Indicates that remaining fuel is about 6.4 L
(1.7 gal., 1.4 Imp.gal.) or less.
 Refuel the vehicle.
*3
Driver’s and front passenger’s seat belt reminder light
(warning buzzer)
Warns the driver and front passenger to fasten their seat
belts.
 Fasten the seat belt.
If the passenger’s seat is occupied, the front passen-
ger’s seat belt also needs to be fastened to make the
warning light (warning buzzer) turn off.
*3
(On the center panel)
Rear passenger’s seat belt reminder lights
(warning buzzer) (if equipped)
Warns the rear passenger’s to fasten their seat belts.
 Fasten the seat belt.
Tire pressure warning light (if equipped)
When the light comes on: Low tire inflation pressure such
as
• Natural causes ( P. 583)
• Flat tire ( P. 592, 610)
 Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case the
light does not turn off even if the tire inflation pres-
sure is adjusted, have the system checked by any
authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system.
( P. 583)
 Have the system checked by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer.
Warning lightWarning light/Details/Actions

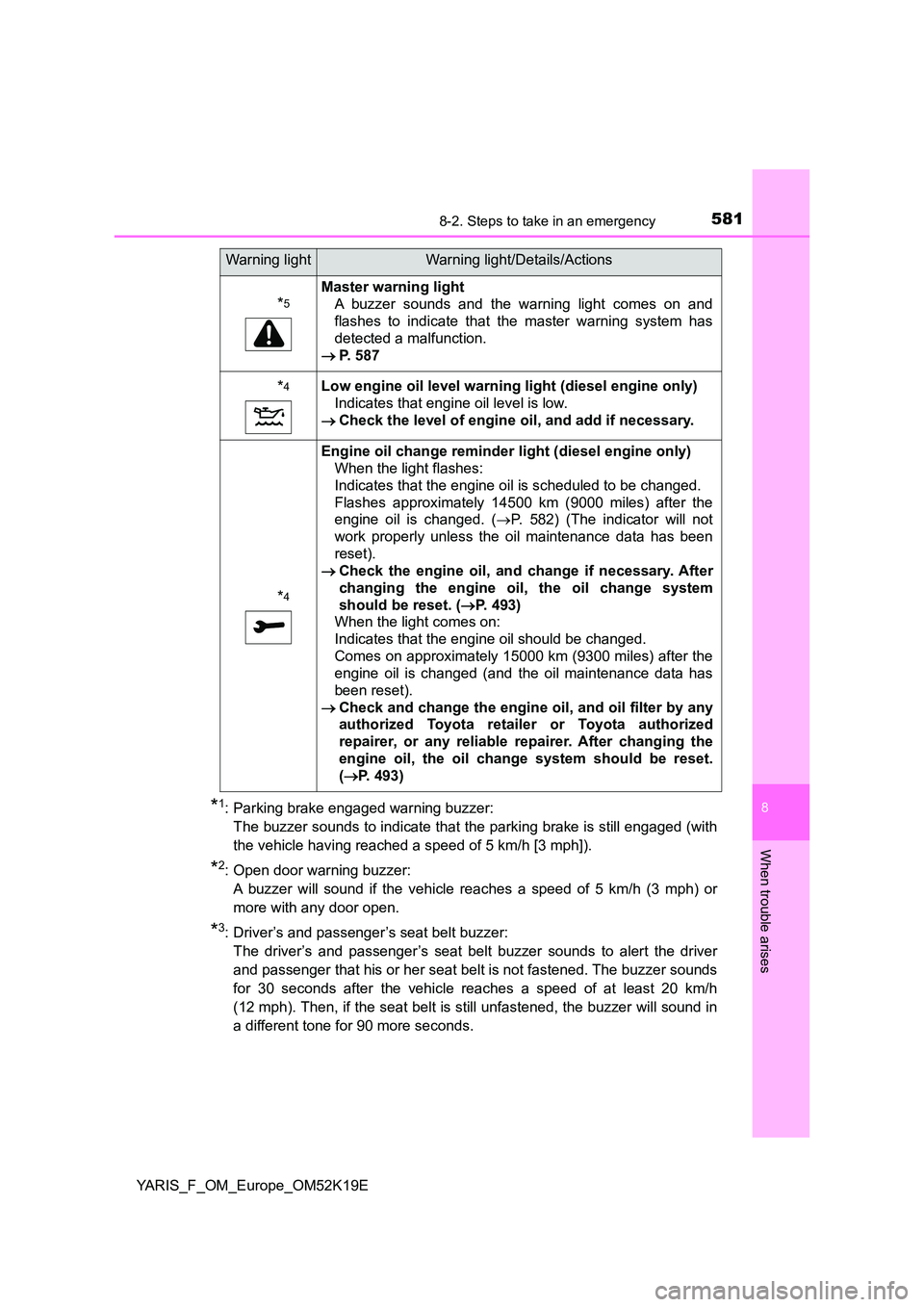

5818-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52K19E
*1: Parking brake engaged warning buzzer:
The buzzer sounds to indicate that the parking brake is still engaged (with
the vehicle having reached a speed of 5 km/h [3 mph]).
*2: Open door warning buzzer:
A buzzer will sound if the vehicle reaches a speed of 5 km/h (3 mph) or
more with any door open.
*3: Driver’s and passenger’s seat belt buzzer:
The driver’s and passenger’s seat belt buzzer sounds to alert the driver
and passenger that his or her seat belt is not fastened. The buzzer sounds
for 30 seconds after the vehicle reaches a speed of at least 20 km/h
(12 mph). Then, if the seat belt is still unfastened, the buzzer will sound in
a different tone for 90 more seconds.
*5
Master warning light
A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
detected a malfunction.
 P. 587
*4Low engine oil level warning light (diesel engine only)
Indicates that engine oil level is low.
 Check the level of engine oil, and add if necessary.
*4
Engine oil change reminder light (diesel engine only)
When the light flashes:
Indicates that the engine oil is scheduled to be changed.
Flashes approximately 14500 km (9000 miles) after the
engine oil is changed. ( P. 582) (The indicator will not
work properly unless the oil maintenance data has been
reset).
 Check the engine oil, and change if necessary. After
changing the engine oil, the oil change system
should be reset. ( P. 493)
When the light comes on:
Indicates that the engine oil should be changed.
Comes on approximately 15000 km (9300 miles) after the
engine oil is changed (and the oil maintenance data has
been reset).
 Check and change the engine oil, and oil filter by any
authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer. After changing the
engine oil, the oil change system should be reset.
( P. 493)
Warning lightWarning light/Details/Actions

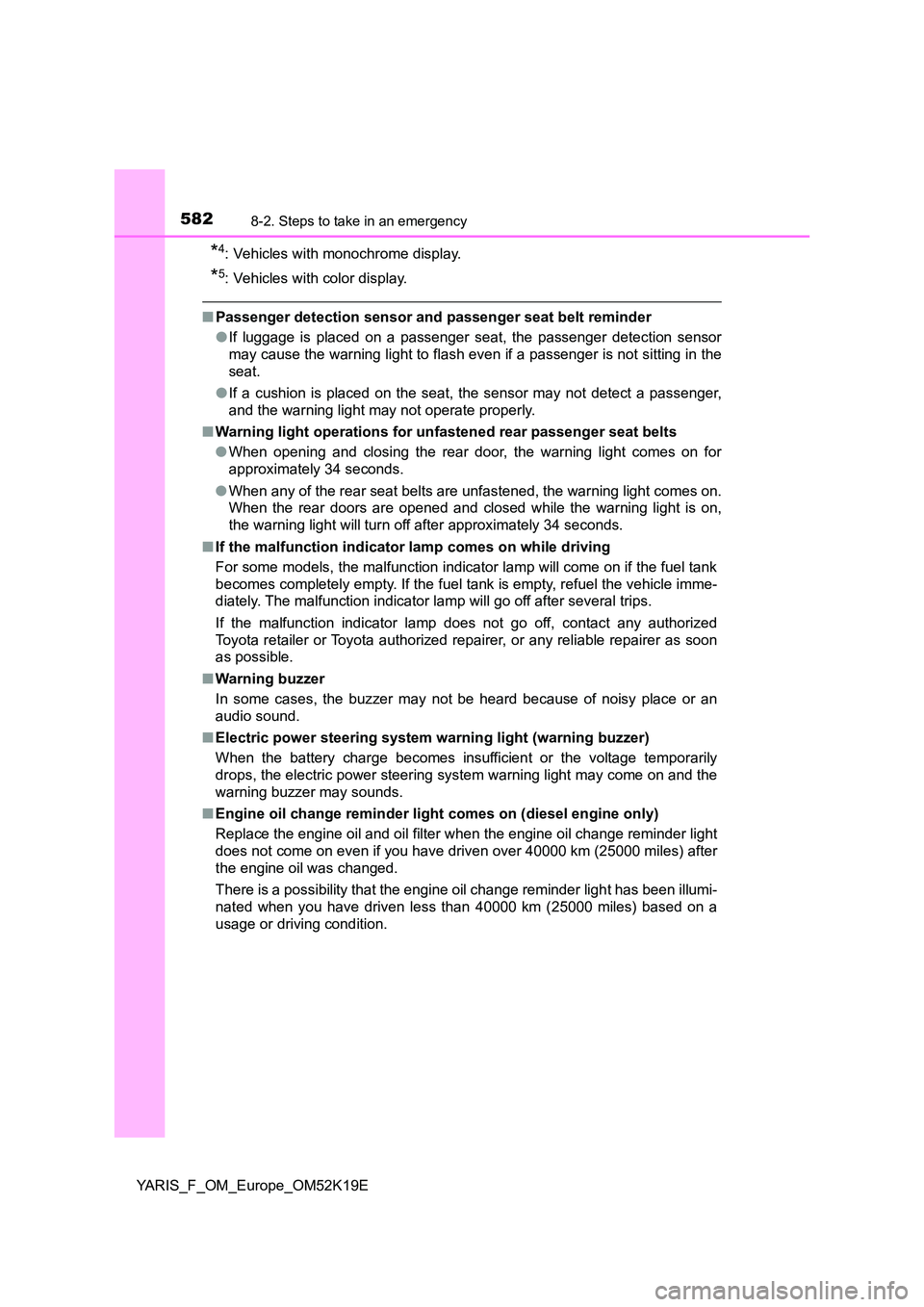

5828-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52K19E
*4: Vehicles with monochrome display.
*5: Vehicles with color display.
■Passenger detection sensor and passenger seat belt reminder
● If luggage is placed on a passenger seat, the passenger detection sensor
may cause the warning light to flash even if a passenger is not sitting in the
seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ Warning light operations for unfastened rear passenger seat belts
● When opening and closing the rear door, the warning light comes on for
approximately 34 seconds.
● When any of the rear seat belts are unfastened, the warning light comes on.
When the rear doors are opened and closed while the warning light is on,
the warning light will turn off after approximately 34 seconds.
■ If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle imme-
diately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota retailer or Toyota authorized repai rer, or any reliable repairer as soon
as possible.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
■ Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sounds.
■ Engine oil change reminder light comes on (diesel engine only)
Replace the engine oil and oil filter when the engine oil change reminder light
does not come on even if you have driven over 40000 km (25000 miles) after
the engine oil was changed.
There is a possibility that the engine oil change reminder light has been illumi-
nated when you have driven less than 40000 km (25000 miles) based on a
usage or driving condition.

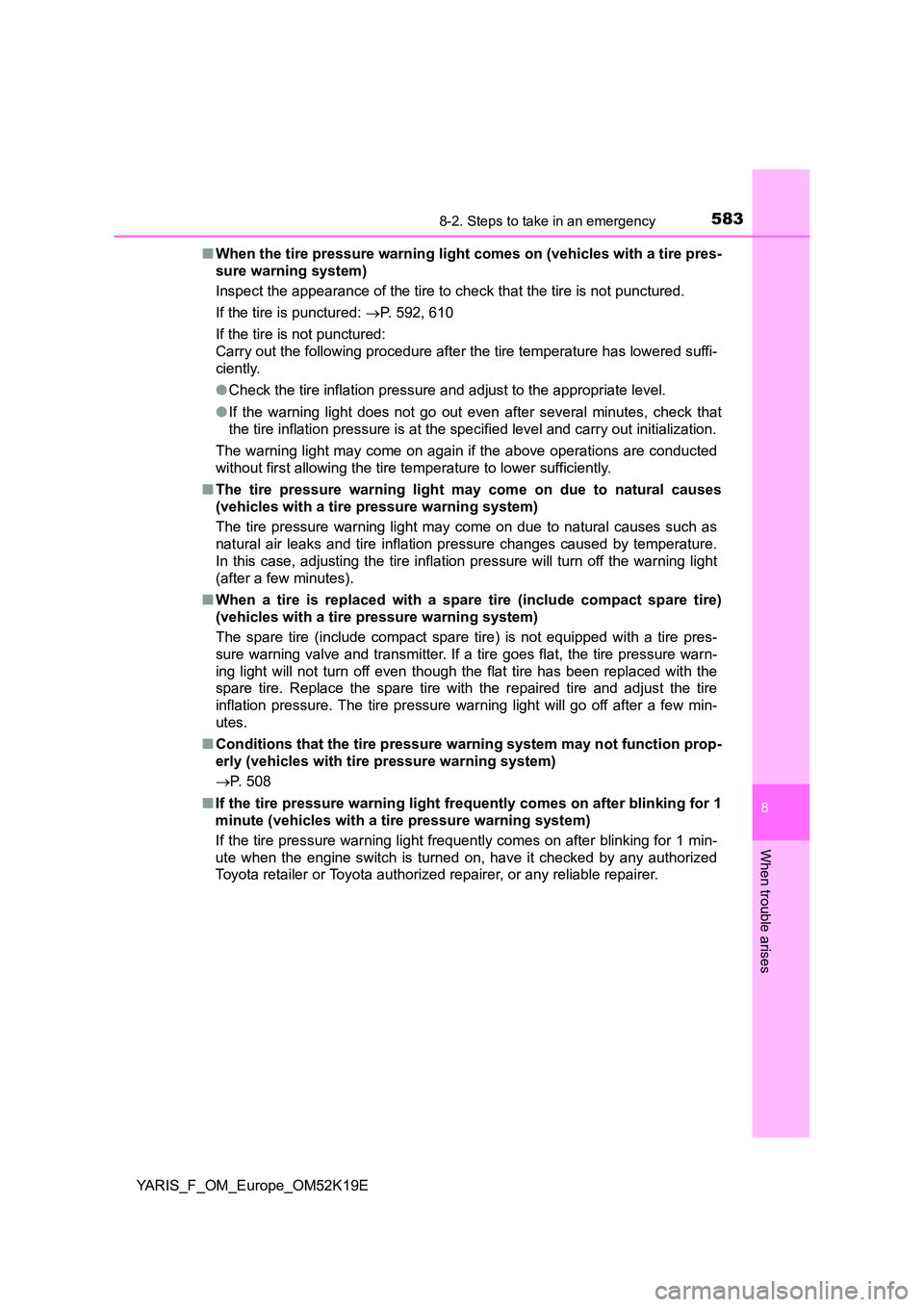

5838-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52K19E
■ When the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured: P. 592, 610
If the tire is not punctured:
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
● Check the tire inflation pressure and adjust to the appropriate level.
● If the warning light does not go out even after several minutes, check that
the tire inflation pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
■ The tire pressure warning light may come on due to natural causes
(vehicles with a tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).
■ When a tire is replaced with a spare tire (include compact spare tire)
(vehicles with a tire pressure warning system)
The spare tire (include compact spare tire) is not equipped with a tire pres-
sure warning valve and transmitter. If a tire goes flat, the tire pressure warn-
ing light will not turn off even though the flat tire has been replaced with the
spare tire. Replace the spare tire wi th the repaired tire and adjust the tire
inflation pressure. The tire pressure warning light will go off after a few min-
utes.
■ Conditions that the tire pressure warning system may not function prop-
erly (vehicles with tire pressure warning system)
 P. 508
■ If the tire pressure warning light frequently comes on after blinking for 1
minute (vehicles with a tire pressure warning system)
If the tire pressure warning light frequently comes on after blinking for 1 min-
ute when the engine switch is turned on, have it checked by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.

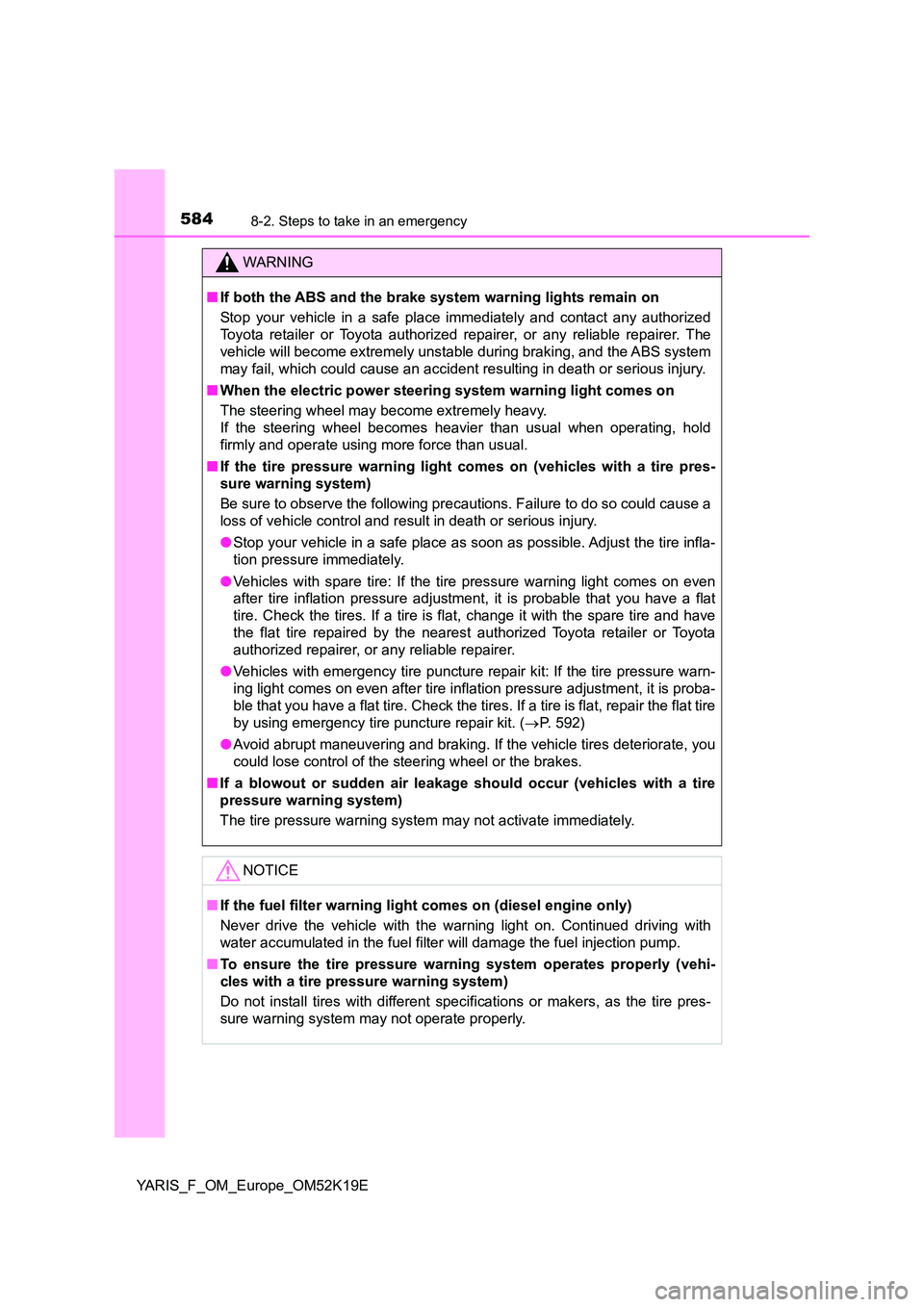

5848-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52K19E
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota retailer or Toyota authorized r epairer, or any reliable repairer. The
vehicle will become extremely unstable during braking, and the ABS system
may fail, which could cause an accident resulting in death or serious injury.
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■ If the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● Vehicles with spare tire: If the tire pressure warning light comes on even
after tire inflation pressure adjustment, it is probable that you have a flat
tire. Check the tires. If a tire is flat, change it with the spare tire and have
the flat tire repaired by the nearest authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
● Vehicles with emergency tire puncture repair kit: If the tire pressure warn-
ing light comes on even after tire inflat ion pressure adjustment, it is proba-
ble that you have a flat tire. Check the tire s. If a tire is flat, repair the flat tire
by using emergency tire puncture repair kit. ( P. 592)
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.
NOTICE
■ If the fuel filter warning light comes on (diesel engine only)
Never drive the vehicle with the warning light on. Continued driving with
water accumulated in the fuel filter will damage the fuel injection pump.
■ To ensure the tire pressure warning system operates properly (vehi-
cles with a tire pressure warning system)
Do not install tires with different specif ications or makers, as the tire pres-
sure warning system may not operate properly.
