2019 TOYOTA YARIS Owners Manual

5858-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52K19E

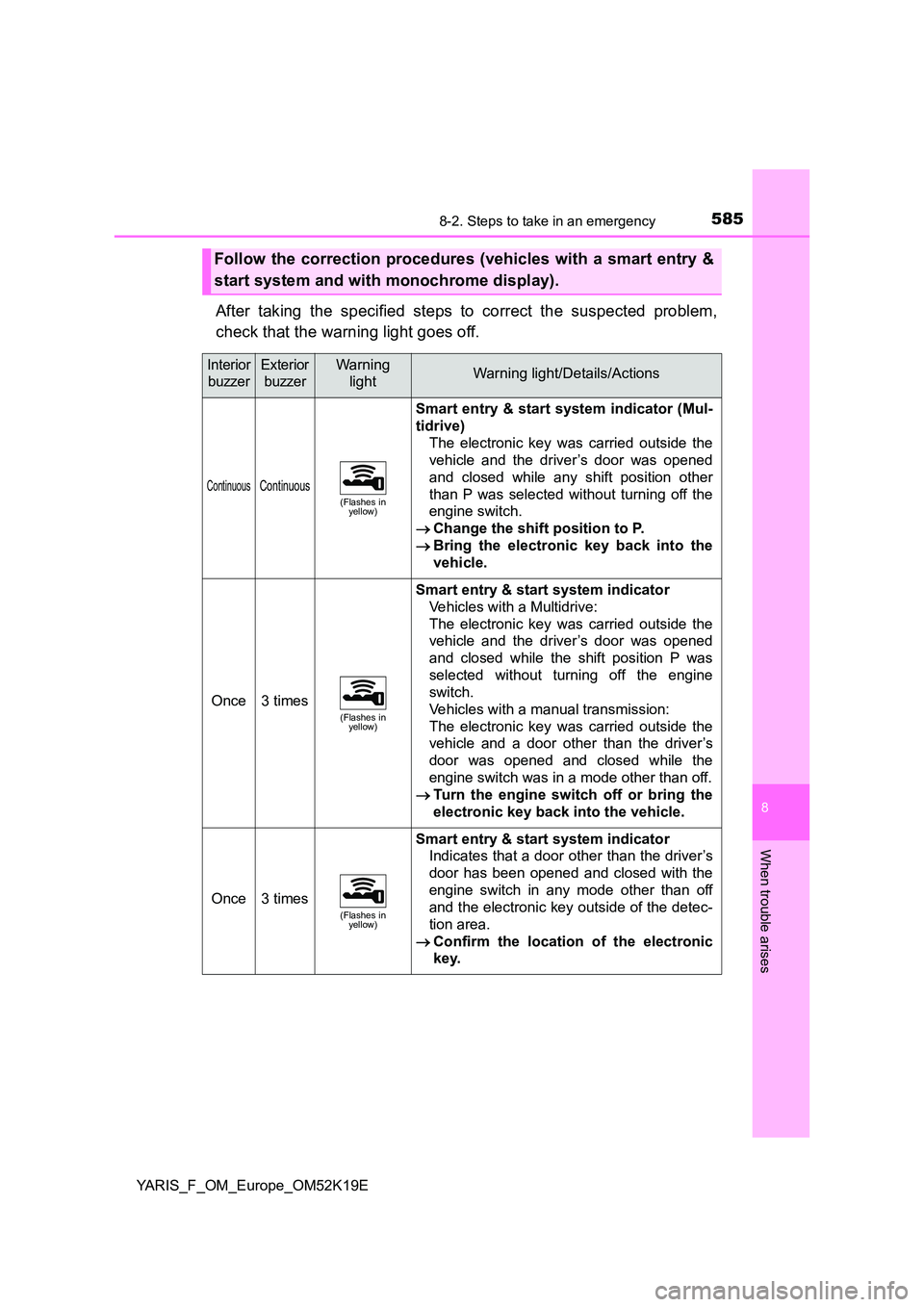

After taking the specified steps to correct the suspected problem,
check that the warning light goes off.
Follow the correction procedures (vehicles with a smart entry &
start system and with monochrome display).
Interior
buzzer
Exterior
buzzer
Warning
lightWarning light/Details/Actions
ContinuousContinuous(Flashes in yellow)
Smart entry & start system indicator (Mul-
tidrive)
The electronic key was carried outside the
vehicle and the driver’s door was opened
and closed while any shift position other
than P was selected without turning off the
engine switch.
 Change the shift position to P.
 Bring the electronic key back into the
vehicle.
Once3 times(Flashes in yellow)
Smart entry & start system indicator
Vehicles with a Multidrive:
The electronic key was carried outside the
vehicle and the driver’s door was opened
and closed while the shift position P was
selected without turning off the engine
switch.
Vehicles with a manual transmission:
The electronic key was carried outside the
vehicle and a door other than the driver’s
door was opened and closed while the
engine switch was in a mode other than off.
 Turn the engine switch off or bring the
electronic key back into the vehicle.
Once3 times(Flashes in yellow)
Smart entry & start system indicator
Indicates that a door other than the driver’s
door has been opened and closed with the
engine switch in any mode other than off
and the electronic key outside of the detec-
tion area.
 Confirm the location of the electronic
key.

5868-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52K19E

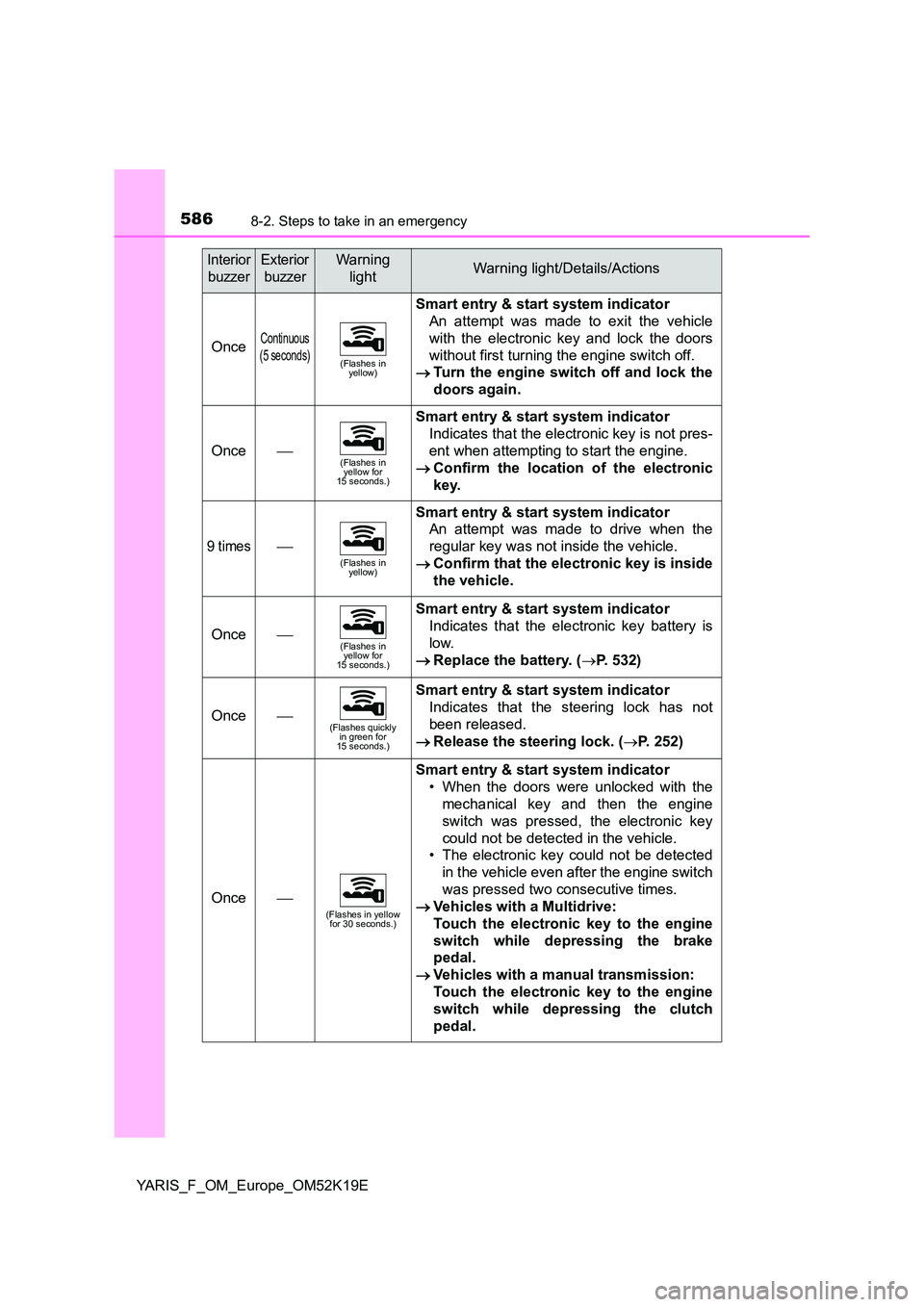

OnceContinuous
(5 seconds)(Flashes in yellow)
Smart entry & start system indicator
An attempt was made to exit the vehicle
with the electronic key and lock the doors
without first turning the engine switch off.
 Turn the engine switch off and lock the
doors again.
Once(Flashes in yellow for 15 seconds.)
Smart entry & start system indicator
Indicates that the electronic key is not pres-
ent when attempting to start the engine.
 Confirm the location of the electronic
key.
9 times(Flashes in yellow)
Smart entry & start system indicator
An attempt was made to drive when the
regular key was not inside the vehicle.
 Confirm that the electronic key is inside
the vehicle.
Once(Flashes in yellow for 15 seconds.)
Smart entry & start system indicator
Indicates that the electronic key battery is
low.
 Replace the battery. (P. 532)
Once(Flashes quickly in green for 15 seconds.)
Smart entry & start system indicator
Indicates that the steering lock has not
been released.
 Release the steering lock. (P. 252)
Once(Flashes in yellow for 30 seconds.)
Smart entry & start system indicator
• When the doors were unlocked with the
mechanical key and then the engine
switch was pressed, the electronic key
could not be detected in the vehicle.
• The electronic key could not be detected
in the vehicle even after the engine switch
was pressed two consecutive times.
 Vehicles with a Multidrive:
Touch the electronic key to the engine
switch while depressing the brake
pedal.
 Vehicles with a manual transmission:
Touch the electronic key to the engine
switch while depressing the clutch
pedal.
Interior
buzzer
Exterior
buzzer
Warning
lightWarning light/Details/Actions

5878-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52K19E

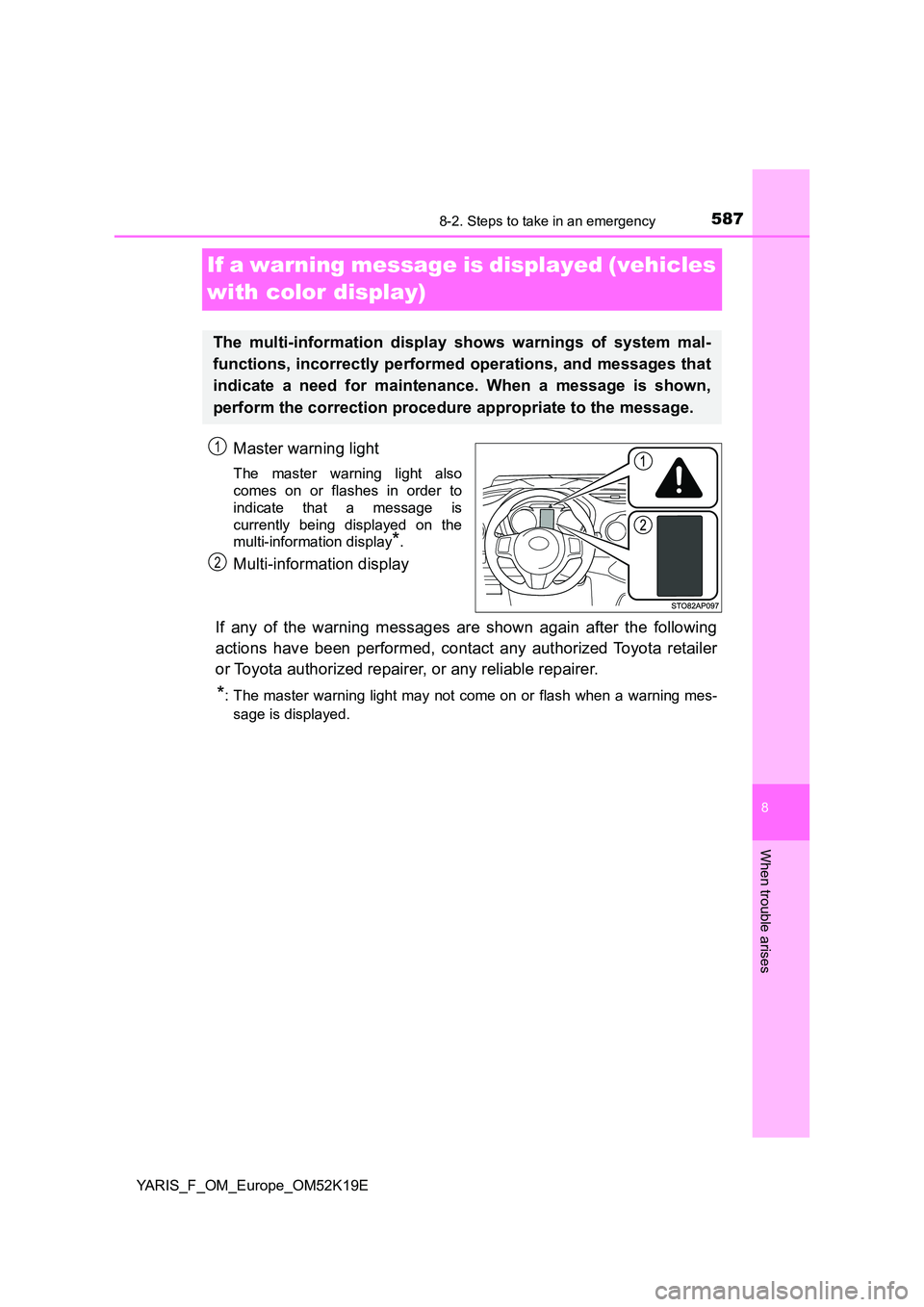

If a warning message is displayed (vehicles
with color display)
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is
currently being displayed on the
multi-information display*.
Multi-information display
If any of the warning messages are shown again after the following
actions have been performed, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
*: The master warning light may not come on or flash when a warning mes-
sage is displayed.
The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.
1
2

5888-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52K19E

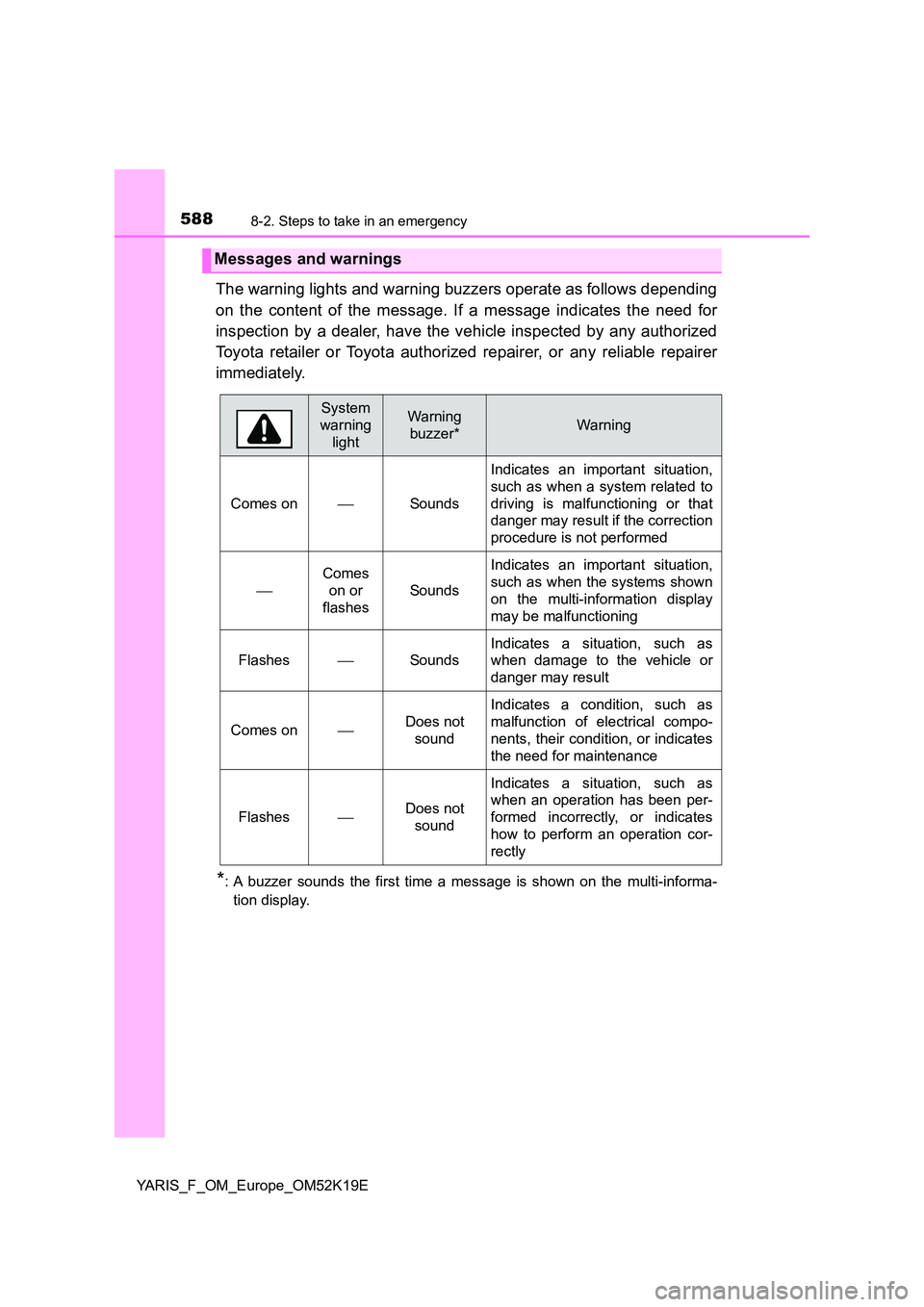

The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
immediately.
*: A buzzer sounds the first time a message is shown on the multi-informa-
tion display.
Messages and warnings
System
warning
light
Warning
buzzer*Warning
Comes on Sounds
Indicates an important situation,
such as when a system related to
driving is malfunctioning or that
danger may result if the correction
procedure is not performed

Comes
on or
flashes
Sounds
Indicates an important situation,
such as when the systems shown
on the multi-information display
may be malfunctioning
FlashesSounds
Indicates a situation, such as
when damage to the vehicle or
danger may result
Comes onDoes not
sound
Indicates a condition, such as
malfunction of electrical compo-
nents, their condition, or indicates
the need for maintenance
FlashesDoes not
sound
Indicates a situation, such as
when an operation has been per-
formed incorrectly, or indicates
how to perform an operation cor-
rectly

5898-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52K19E

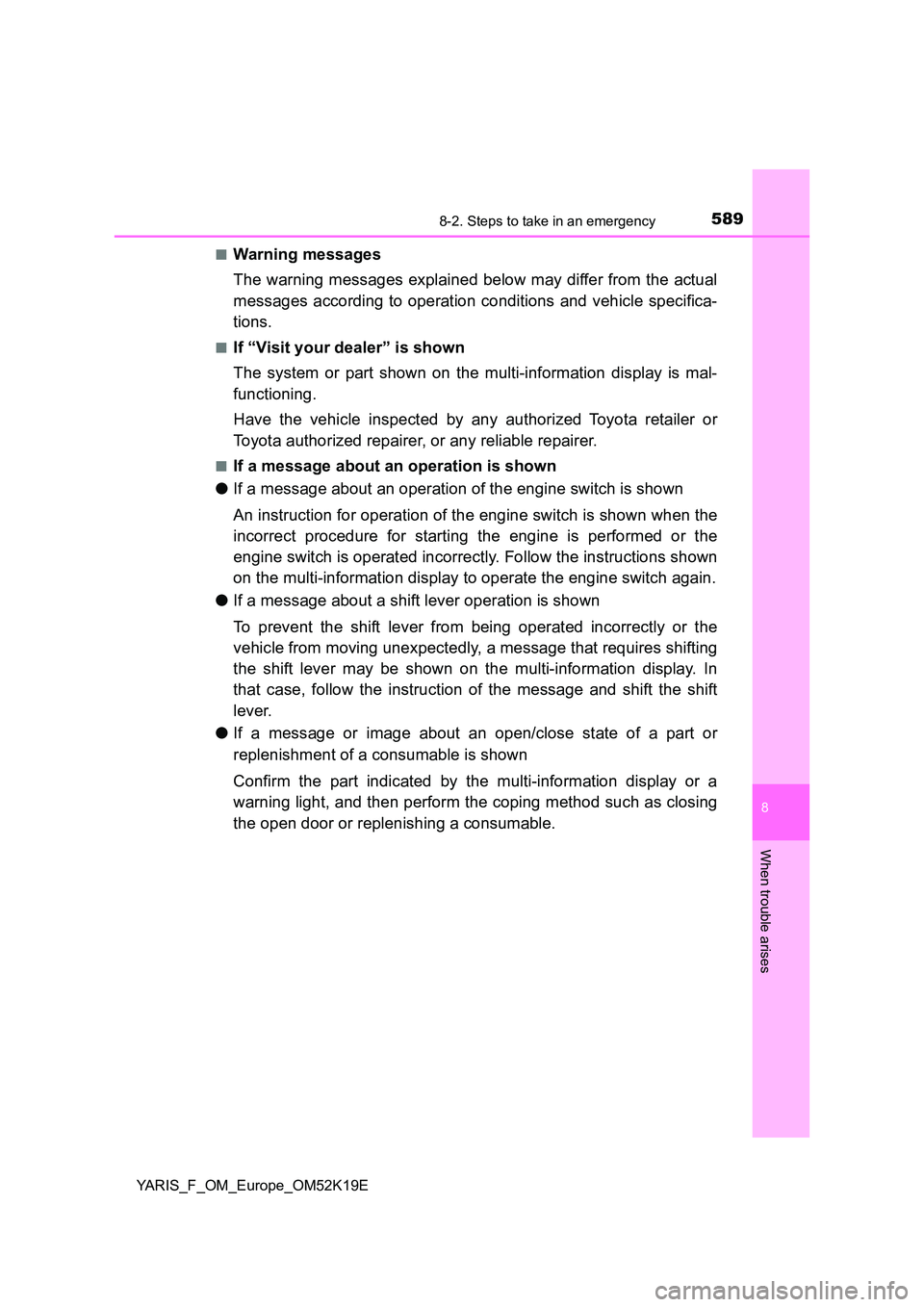

■Warning messages
The warning messages explained below may differ from the actual
messages according to operation conditions and vehicle specifica-
tions.
■If “Visit your dealer” is shown
The system or part shown on the multi-information display is mal-
functioning.
Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
■If a message about an operation is shown
● If a message about an operation of the engine switch is shown
An instruction for operation of the engine switch is shown when the
incorrect procedure for starting the engine is performed or the
engine switch is operated incorrectly. Follow the instructions shown
on the multi-information display to operate the engine switch again.
● If a message about a shift lever operation is shown
To prevent the shift lever from being operated incorrectly or the
vehicle from moving unexpectedly, a message that requires shifting
the shift lever may be shown on the multi-information display. In
that case, follow the instruction of the message and shift the shift
lever.
● If a message or image about an open/close state of a part or
replenishment of a consumable is shown
Confirm the part indicated by the multi-information display or a
warning light, and then perform the coping method such as closing
the open door or replenishing a consumable.

5908-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52K19E
■If “Charging system malfunction. Stop in a safe place. See
owner's manual.” is shown
Indicates a malfunction in the vehicle’s charging system. Immedi-
ately stop the vehicle in a safe place and contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable
repairer. Continuing to drive the vehicle may be dangerous.
■If “Engine oil pressure low” is shown
Indicates that the engine oil pressure is too low. Immediately stop
the vehicle in a safe place and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
■If “Drain water from fuel filter.” is displayed (diesel engine)
Indicates that the amount of water that has accumulated in the fuel
filter has reached a specified level.
 P. 5 0 2
■If “Engine oil low” is shown
Indicates that the engine oil level may be low. Check the engine oil
level and add oil if necessary.
■If “Oil maintenance required soon” is shown
Indicates that the engine oil is scheduled to be changed. (The indi-
cator will not work properly unless the message has been reset.)
Check the engine oil, and change if necessary. After changing the
engine oil, the message should be reset. ( P. 493)
■If “Oil maintenance required.” is shown
Indicates that the engine oil should be changed. (After the engine
oil is changed and the message has been reset.)
Check and change the engine oil, and oil filter by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable
repairer. After changing the engine oil, the message should be
reset. ( P. 493)

5918-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52K19E

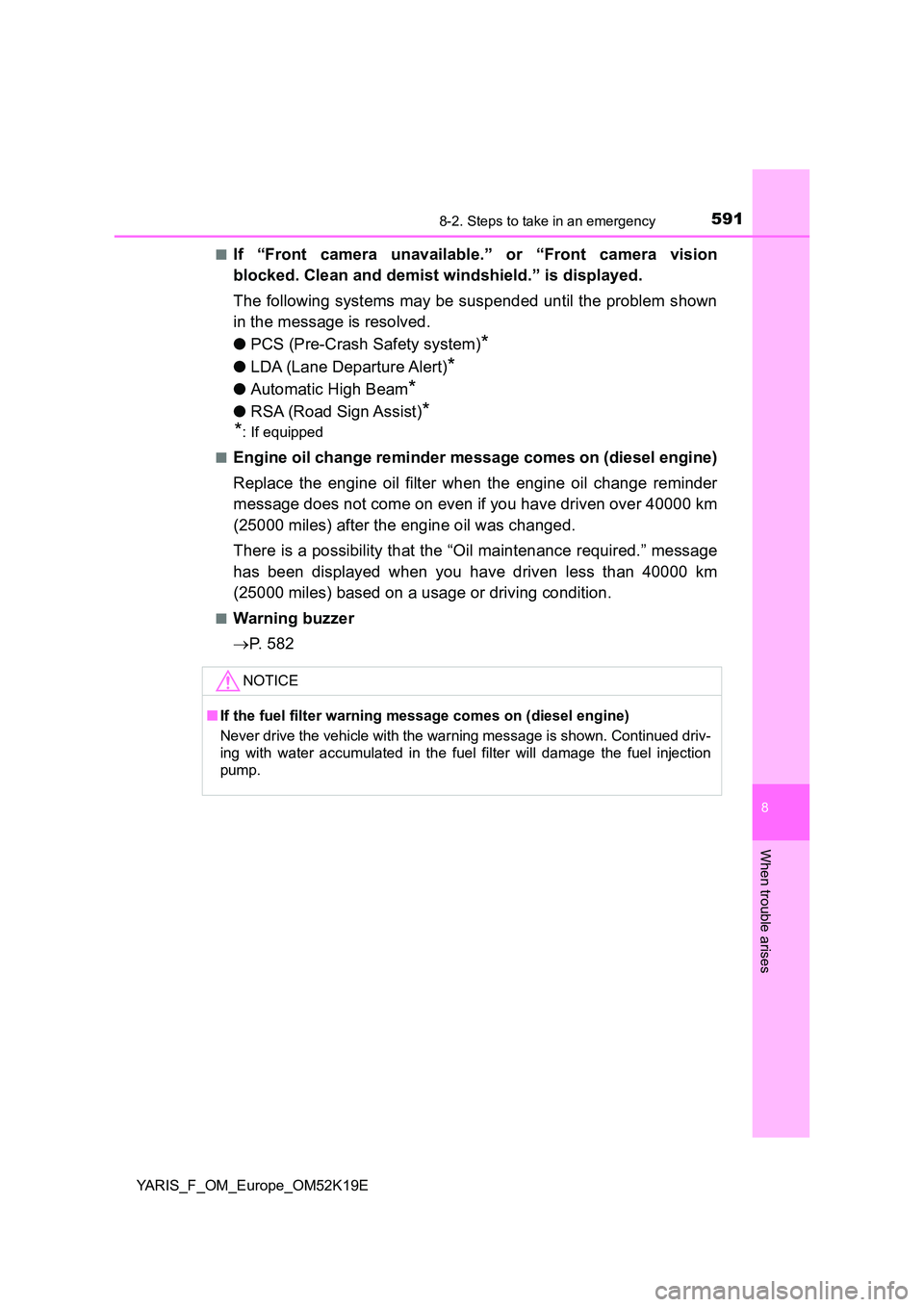

■If “Front camera unavailable.” or “Front camera vision
blocked. Clean and demist windshield.” is displayed.
The following systems may be suspended until the problem shown
in the message is resolved.
● PCS (Pre-Crash Safety system)*
●LDA (Lane Departure Alert)*
●Automatic High Beam*
●RSA (Road Sign Assist)*
*: If equipped
■Engine oil change reminder message comes on (diesel engine)
Replace the engine oil filter when the engine oil change reminder
message does not come on even if you have driven over 40000 km
(25000 miles) after the engine oil was changed.
There is a possibility that the “Oil maintenance required.” message
has been displayed when you have driven less than 40000 km
(25000 miles) based on a usage or driving condition.
■Warning buzzer
 P. 5 8 2
NOTICE
■If the fuel filter warning message comes on (diesel engine)
Never drive the vehicle with the warning message is shown. Continued driv-
ing with water accumulated in the fuel filter will damage the fuel injection
pump.

5928-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52K19E

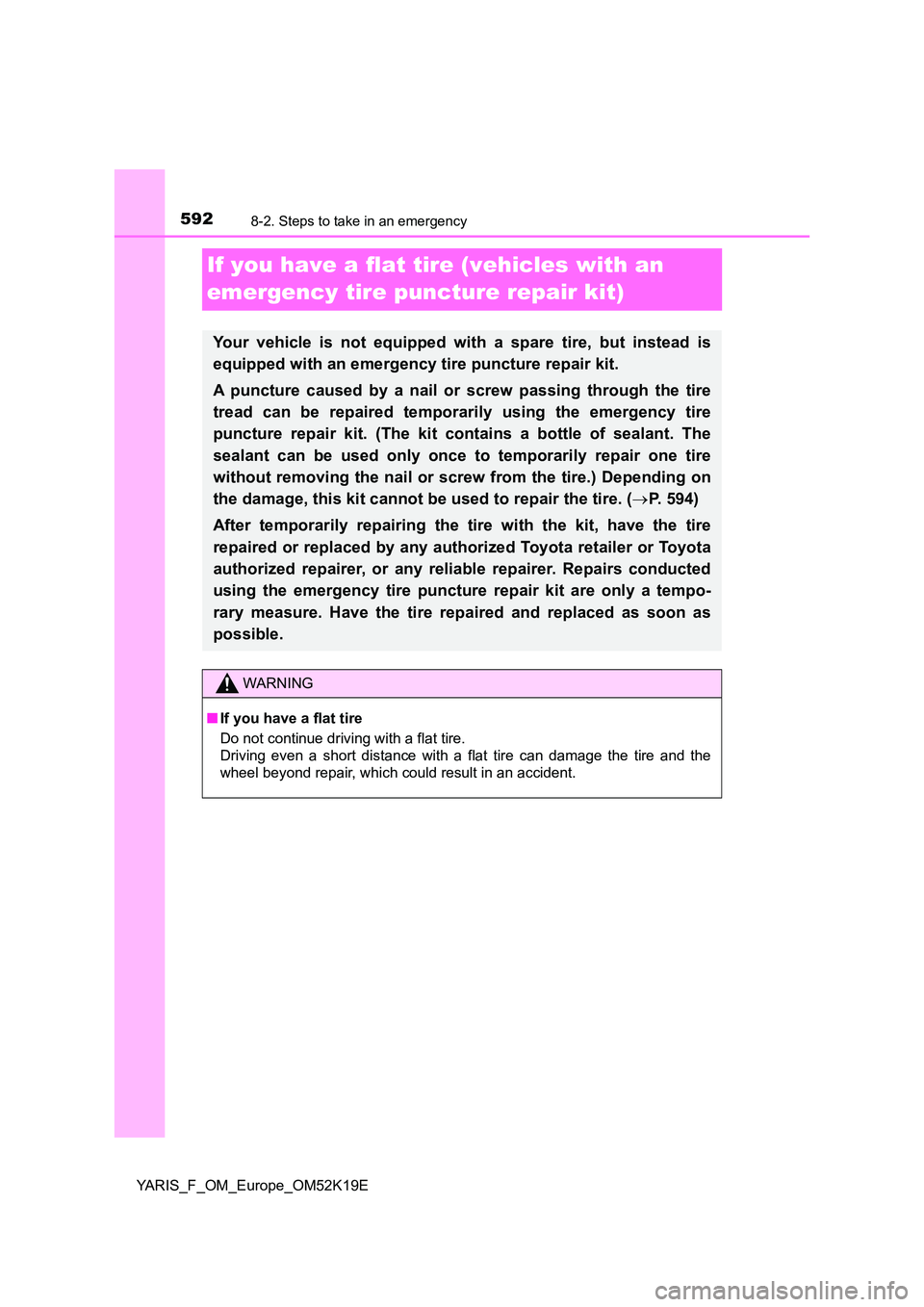

If you have a flat tire (vehicles with an
emergency tire puncture repair kit)
Your vehicle is not equipped with a spare tire, but instead is
equipped with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire
tread can be repaired temporarily using the emergency tire
puncture repair kit. (The kit contains a bottle of sealant. The
sealant can be used only once to temporarily repair one tire
without removing the nail or screw from the tire.) Depending on
the damage, this kit cannot be used to repair the tire. ( P. 594)
After temporarily repairing the tire with the kit, have the tire
repaired or replaced by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer. Repairs conducted
using the emergency tire puncture repair kit are only a tempo-
rary measure. Have the tire repaired and replaced as soon as
possible.
WARNING
■ If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
