2019 TOYOTA YARIS Owners Manual

4496-1. Using the air conditioning system and defogger
6
Interior features
YARIS_F_OM_Europe_OM52K19E

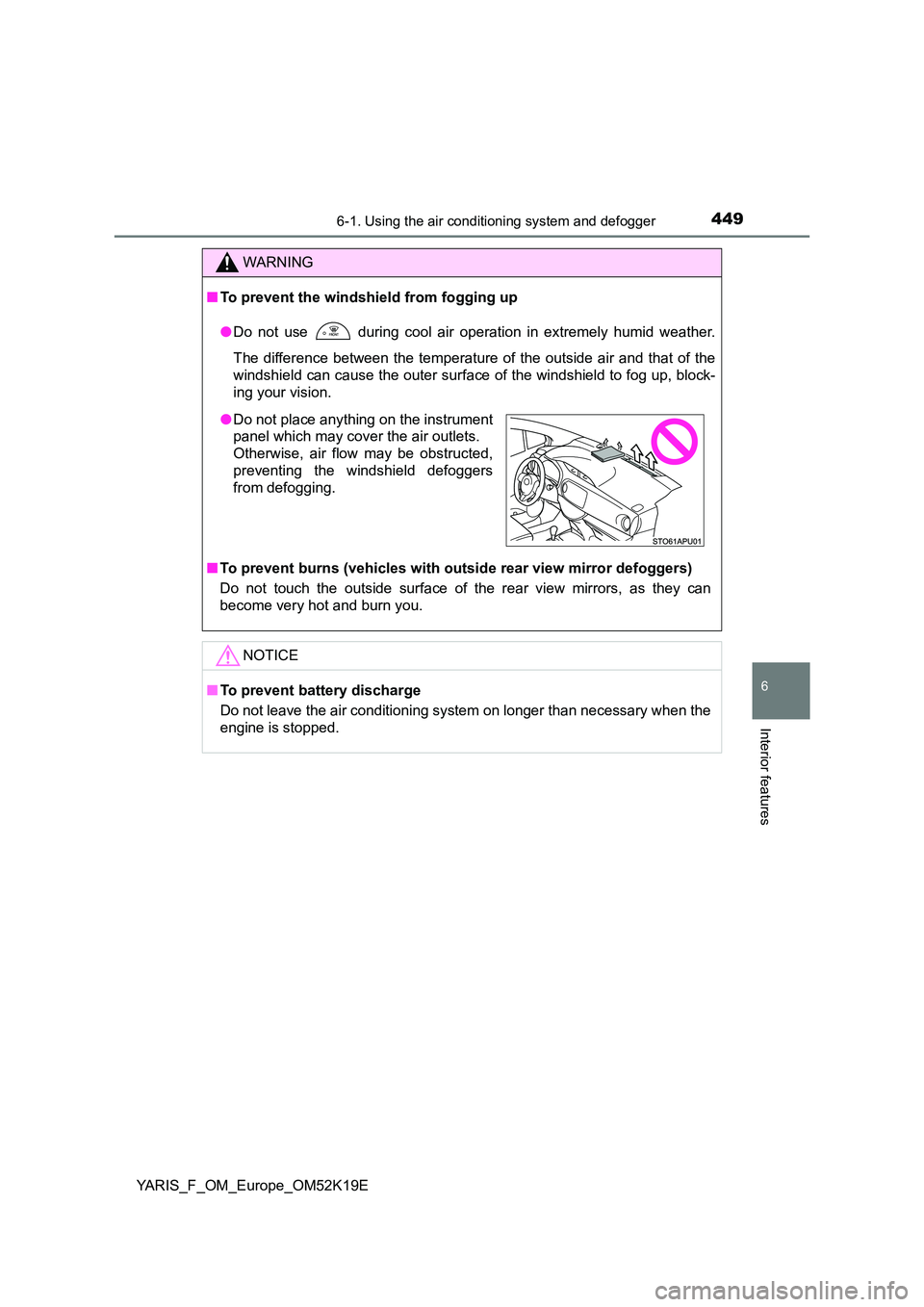

WARNING
■To prevent the windshield from fogging up
● Do not use during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, block-
ing your vision.
■ To prevent burns (vehicles with outside rear view mirror defoggers)
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.
NOTICE
■ To prevent battery discharge
Do not leave the air conditioning syst em on longer than necessary when the
engine is stopped.
● Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers
from defogging.

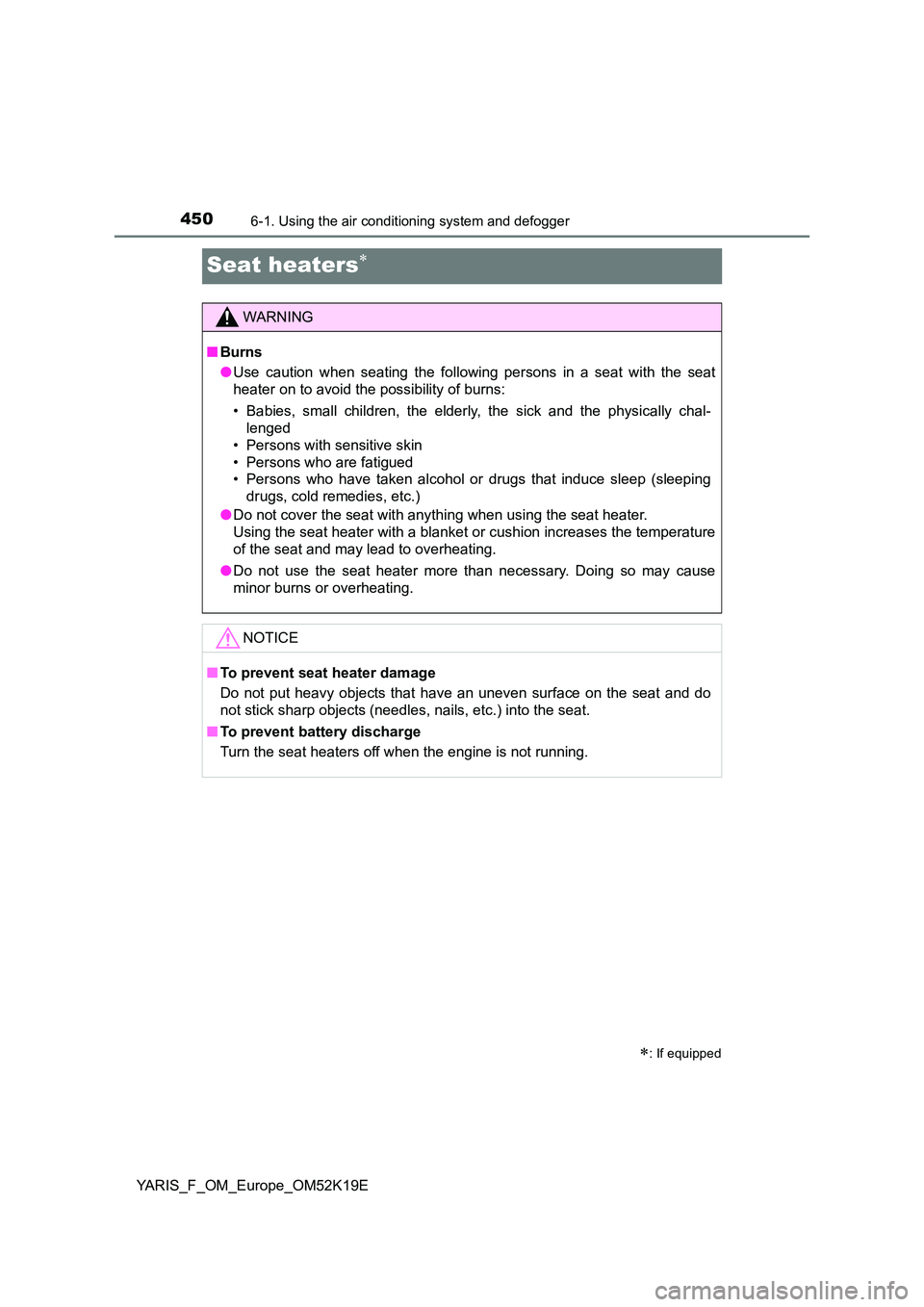

4506-1. Using the air conditioning system and defogger
YARIS_F_OM_Europe_OM52K19E
Seat heaters
: If equipped
WARNING
■Burns
● Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
● Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
■ To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the seat heaters off when the engine is not running.

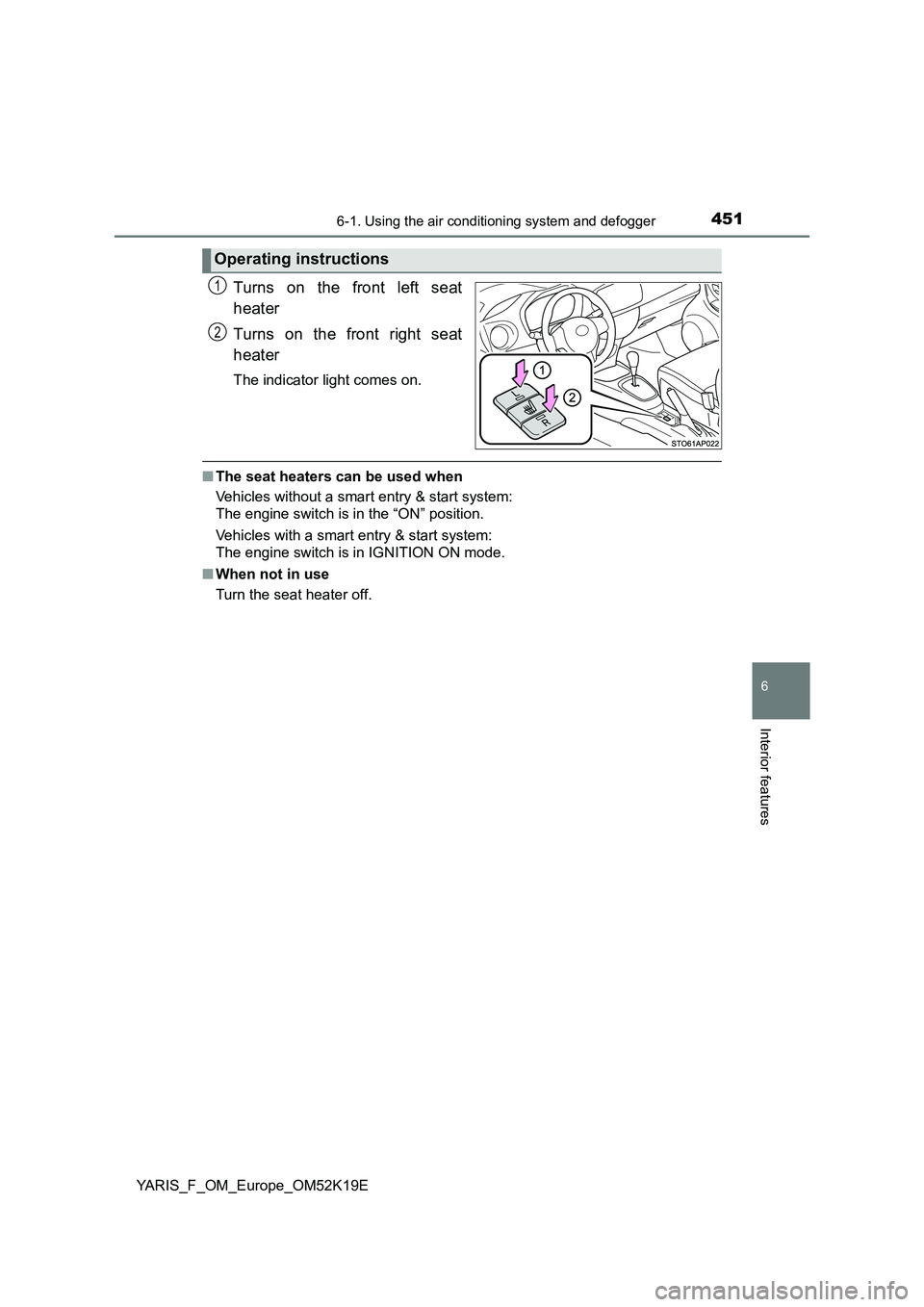

4516-1. Using the air conditioning system and defogger
6
Interior features
YARIS_F_OM_Europe_OM52K19E
Turns on the front left seat
heater
Turns on the front right seat
heater
The indicator light comes on.
■ The seat heaters can be used when
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The engine switch is in IGNITION ON mode.
■ When not in use
Turn the seat heater off.
Operating instructions
1
2

4526-2. Using the interior lights
YARIS_F_OM_Europe_OM52K19E
Interior lights list
Off
Door position
On
Interior light ( P. 452)
Personal lights ( P. 453)
Footwell lights (if equipped)
Engine switch light (vehicles with a smart entry & start system)
Interior light
1
2
3
4
1
2
3

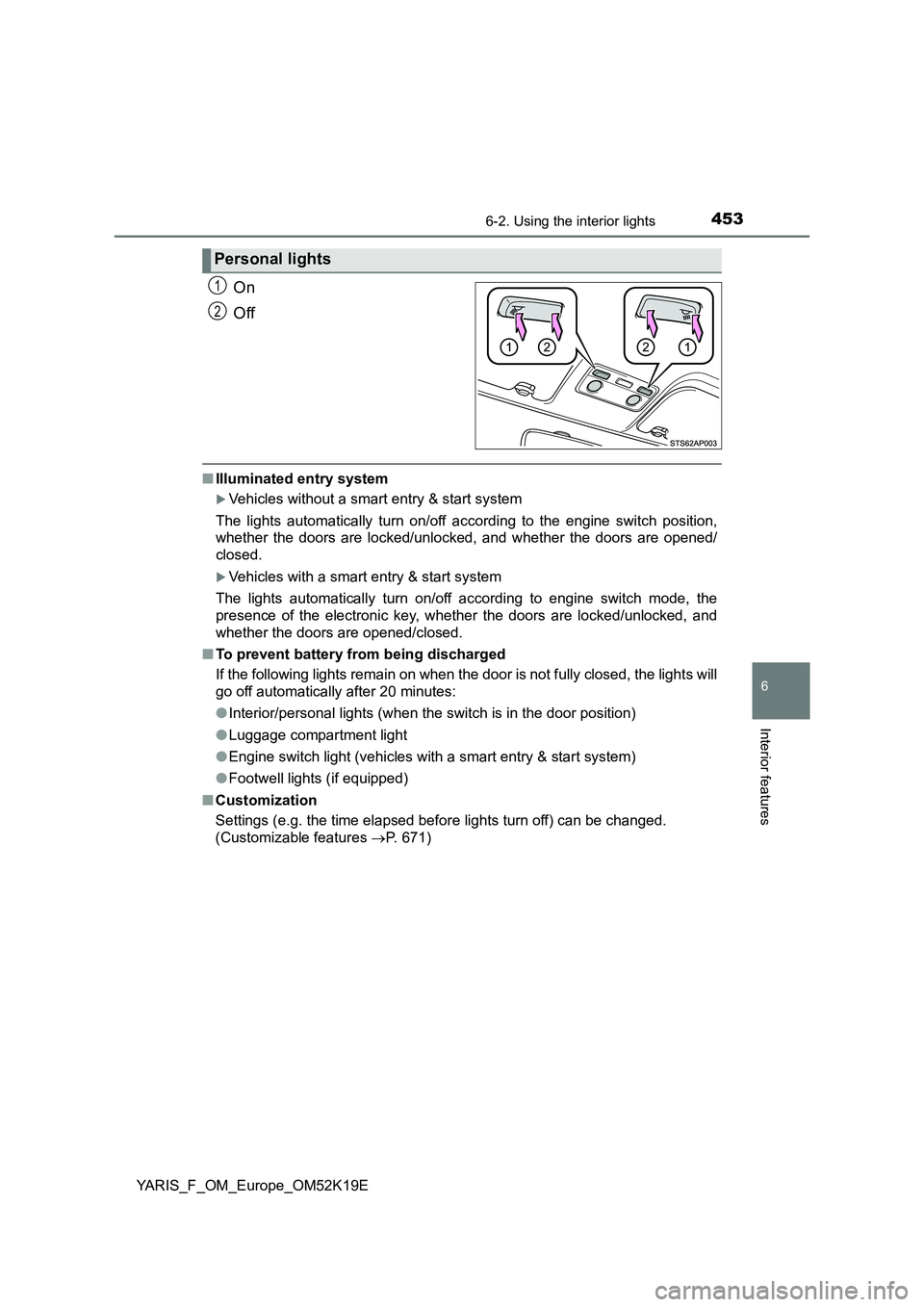

4536-2. Using the interior lights
6
Interior features
YARIS_F_OM_Europe_OM52K19E
On
Off
■ Illuminated entry system
Vehicles without a smart entry & start system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unloc ked, and whether the doors are opened/
closed.
Vehicles with a smart entry & start system
The lights automatically turn on/off according to engine switch mode, the
presence of the electronic key, whet her the doors are locked/unlocked, and
whether the doors are opened/closed.
■ To prevent battery from being discharged
If the following lights remain on when the door is not fully closed, the lights will
go off automatically after 20 minutes:
● Interior/personal lights (when the switch is in the door position)
● Luggage compartment light
● Engine switch light (vehicles with a smart entry & start system)
● Footwell lights (if equipped)
■ Customization
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features P. 671)
Personal lights
1
2

4546-3. Using the storage features
YARIS_F_OM_Europe_OM52K19E
List of storage features
Glove box (P. 455)
Cup holders ( P. 456)
Bottle holders ( P. 457)
Auxiliary box ( P. 458)
WARNING
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may result in the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
1
2
3
4

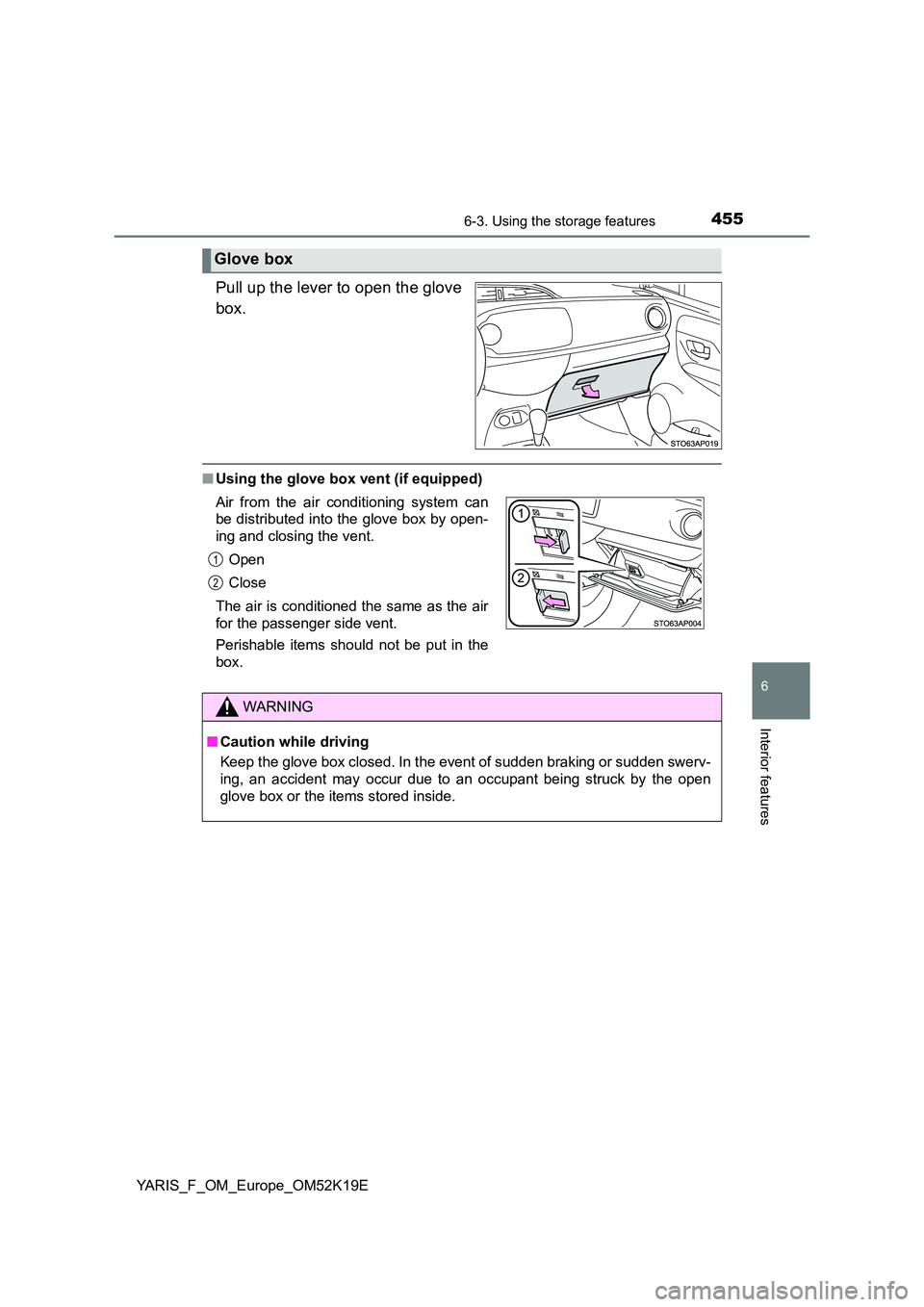

4556-3. Using the storage features
6
Interior features
YARIS_F_OM_Europe_OM52K19E
Pull up the lever to open the glove
box.
■ Using the glove box vent (if equipped)
Glove box
Air from the air conditioning system can
be distributed into the glove box by open-
ing and closing the vent.
Open
Close
The air is conditioned the same as the air
for the passenger side vent.
Perishable items should not be put in the
box.
WARNING
■ Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
glove box or the items stored inside.
1
2

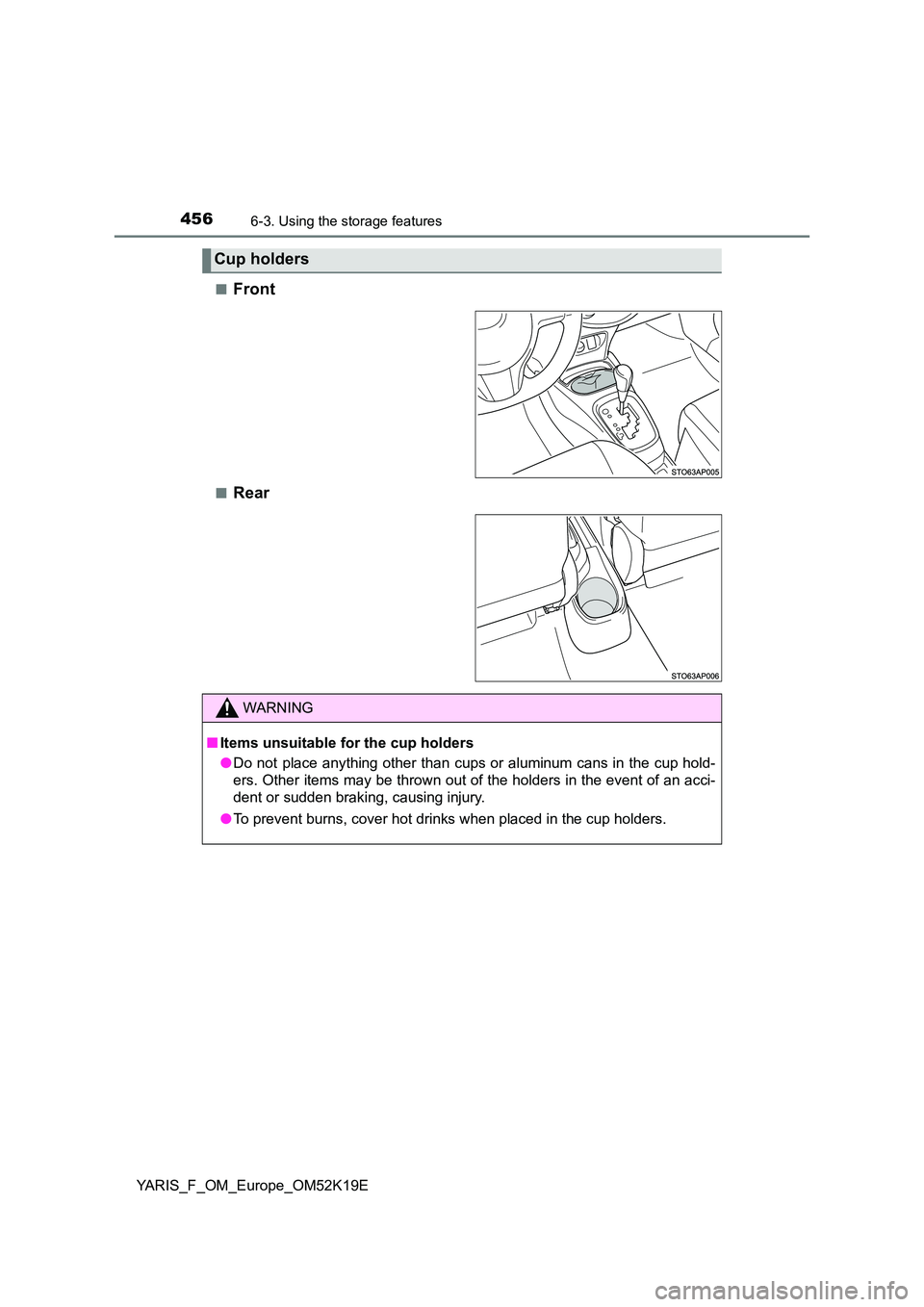

4566-3. Using the storage features
YARIS_F_OM_Europe_OM52K19E
■Front
■Rear
Cup holders
WARNING
■ Items unsuitable for the cup holders
● Do not place anything other than cups or aluminum cans in the cup hold-
ers. Other items may be thrown out of the holders in the event of an acci-
dent or sudden braking, causing injury.
● To prevent burns, cover hot drinks when placed in the cup holders.
