2019 TOYOTA YARIS Owners Manual

731-2. Child safety
1
For safety and security
YARIS_F_OM_Europe_OM52K19E
■Recommended child restraint systems and Compatibility table
Mass groups
Recommended
Child
Restraint System
Seating position
Airbag manual
on-off switch
ONOFF
0,0+
Up to 13kg
(28 lb.)
G0+ BABY SAFE
PLUS (Yes/No) No Yes Yes Yes
G0+ BABY SAFE
PLUS with SEAT
BELT FIXATION,
BASE PLATFORM
(Yes/No)
No Yes Yes Yes
TOYOTA MINI
(Yes/No) No Yes Yes Yes
TOYOTA MINI with
ISO-BASE (Yes/No) No No Yes Yes
TOYOTA MIDI
(Yes/No) No No Yes Yes
I
9 to 18kg
(20 to 39lb.)
TOYOTA DUO
PLUS (Yes/No)
Ye s
Belt fix
only
Ye s
Belt fix
only
Ye s Ye s
TOYOTA MIDI
(Yes/No) No No Yes Yes
II, III
15 to 36kg
(34 to 79lb.)
KIDFIX XP SICT
(Yes/No)
Ye s
Belt fix
only
Ye s
Belt fix
only
Ye s Ye s
MAXI PLUS
(Yes/No)
Ye s
Belt fix
only
Ye s
Belt fix
only
Ye s Ye s
1
23

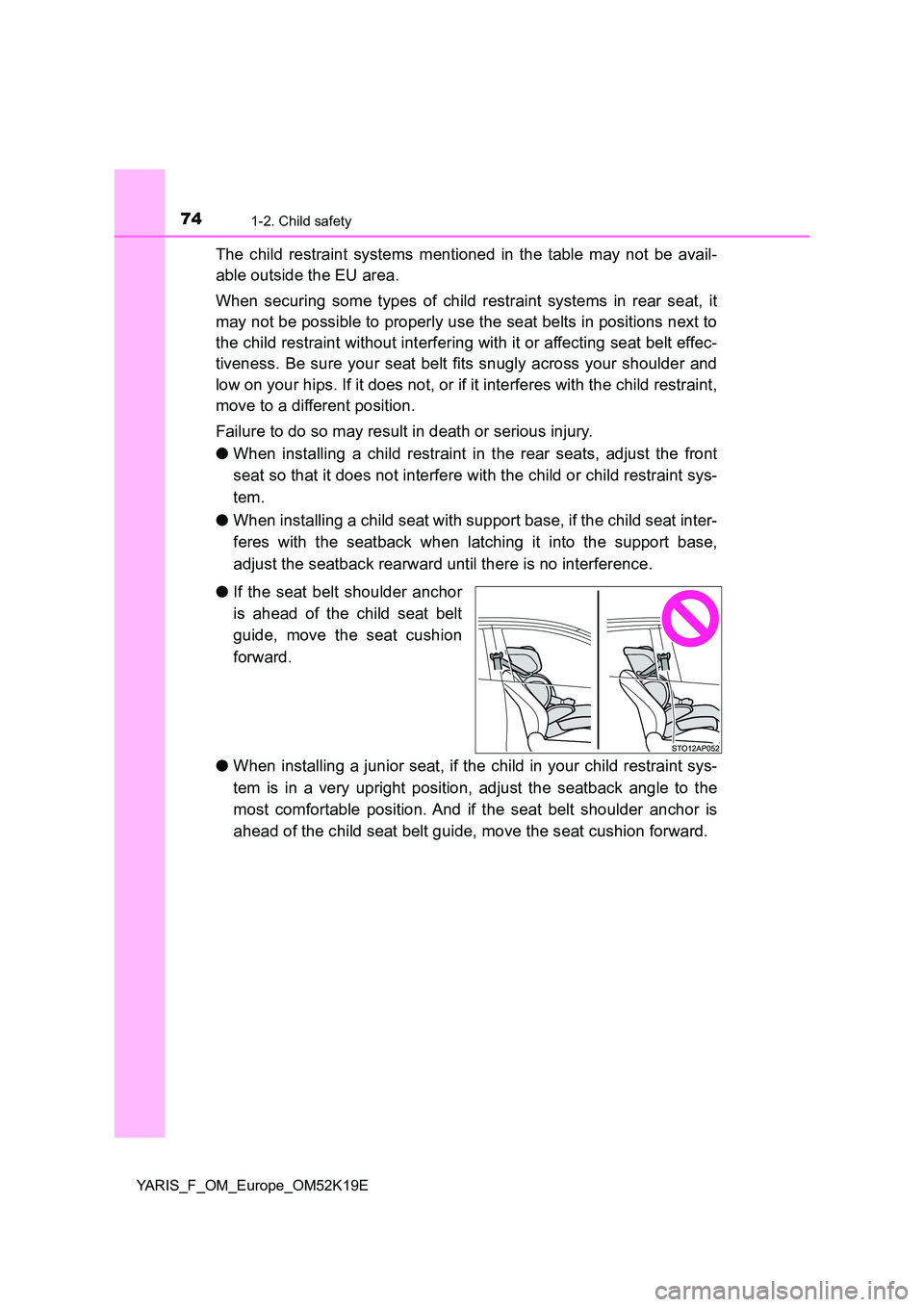

741-2. Child safety
YARIS_F_OM_Europe_OM52K19E
The child restraint systems mentioned in the table may not be avail-
able outside the EU area.
When securing some types of child restraint systems in rear seat, it
may not be possible to properly use the seat belts in positions next to
the child restraint without interfering with it or affecting seat belt effec-
tiveness. Be sure your seat belt fits snugly across your shoulder and
low on your hips. If it does not, or if it interferes with the child restraint,
move to a different position.
Failure to do so may result in death or serious injury.
● When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child restraint sys-
tem.
● When installing a child seat with support base, if the child seat inter-
feres with the seatback when latching it into the support base,
adjust the seatback rearward until there is no interference.
● If the seat belt shoulder anchor
is ahead of the child seat belt
guide, move the seat cushion
forward.
● When installing a junior seat, if the child in your child restraint sys-
tem is in a very upright position, adjust the seatback angle to the
most comfortable position. And if the seat belt shoulder anchor is
ahead of the child seat belt guide, move the seat cushion forward.

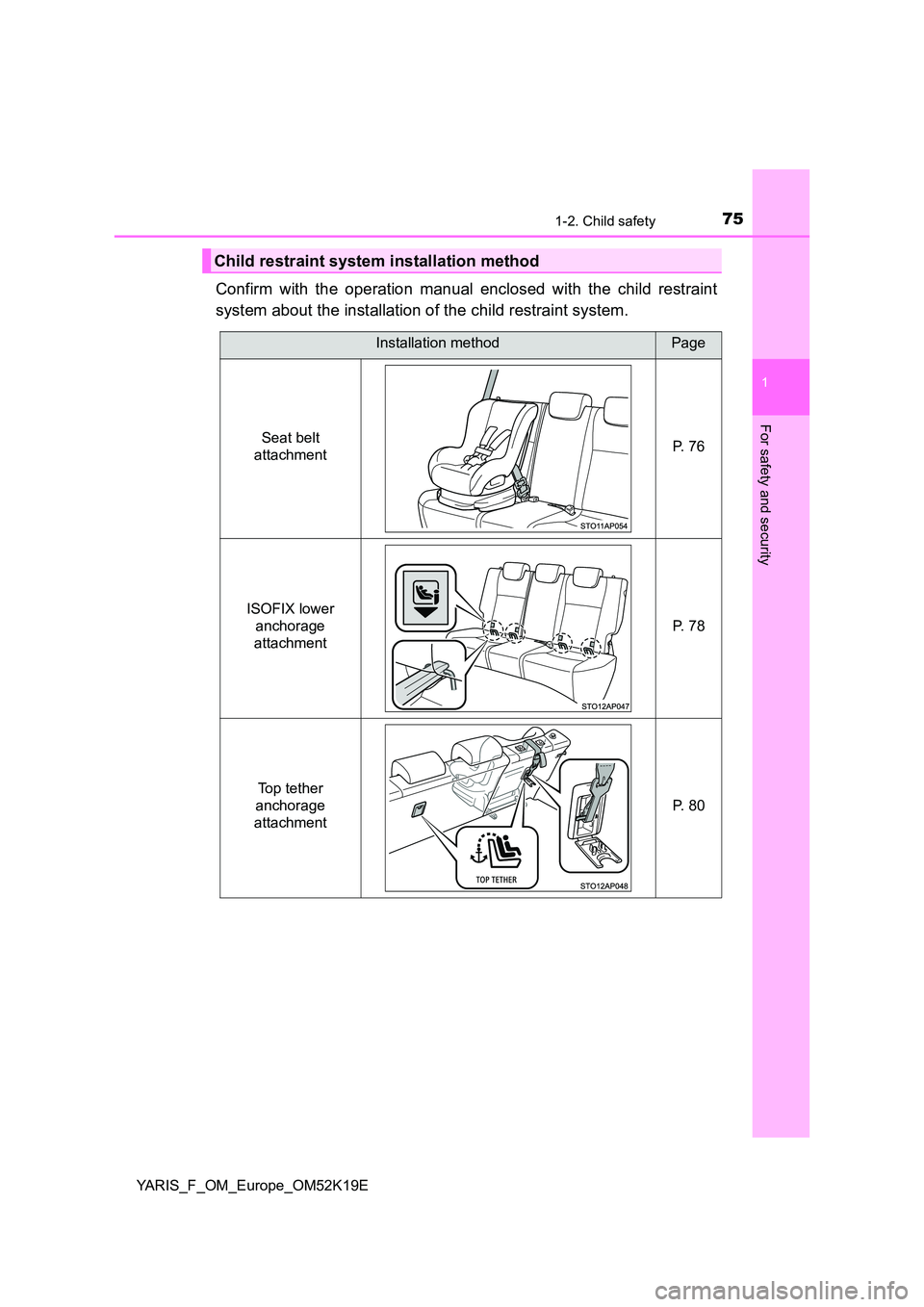

751-2. Child safety
1
For safety and security
YARIS_F_OM_Europe_OM52K19E
Confirm with the operation manual enclosed with the child restraint
system about the installation of the child restraint system.
Child restraint system installation method
Installation methodPage
Seat belt
attachment P. 7 6
ISOFIX lower
anchorage
attachment
P. 7 8
Top tether
anchorage
attachment
P. 8 0

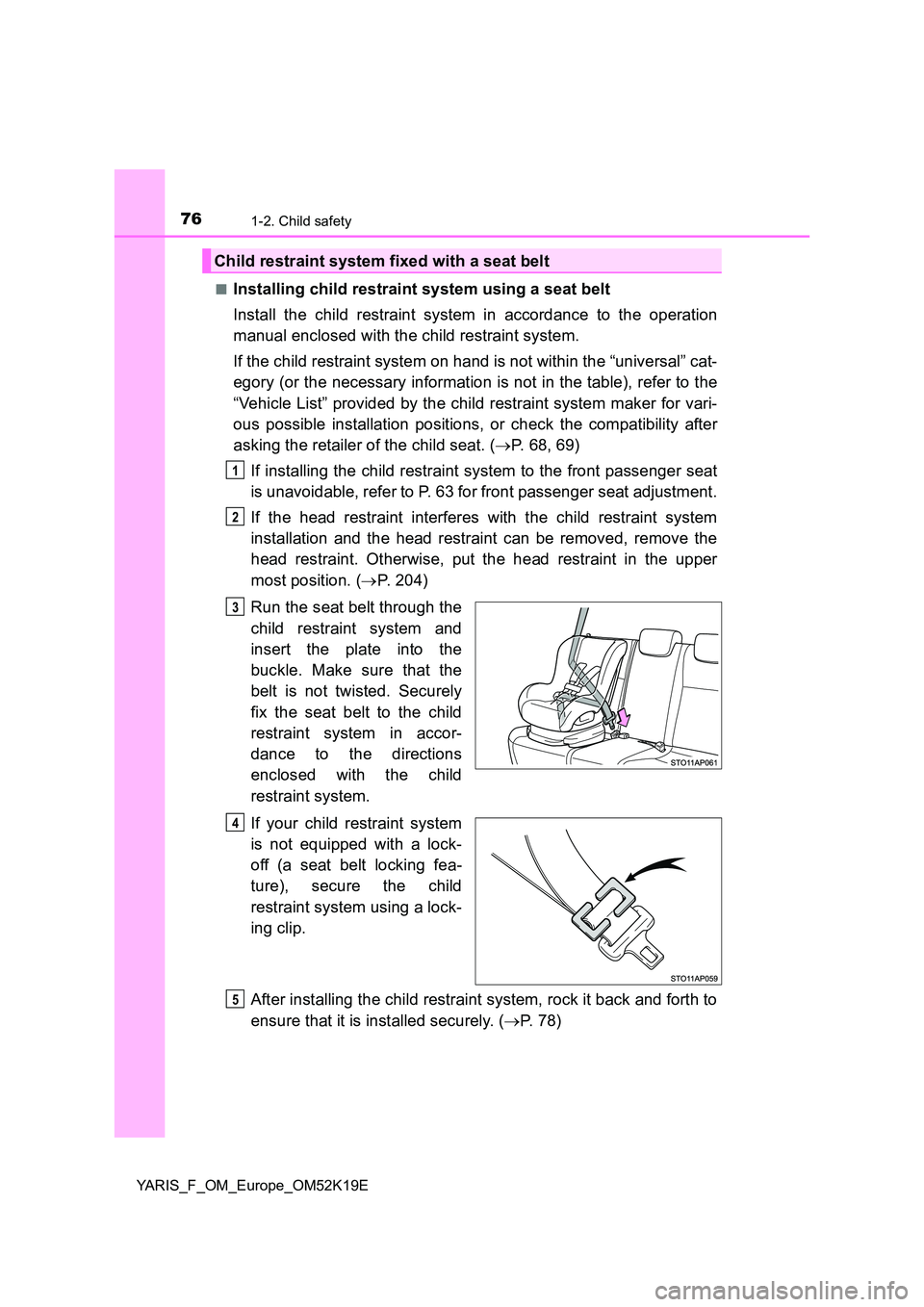

761-2. Child safety
YARIS_F_OM_Europe_OM52K19E
■Installing child restraint system using a seat belt
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.
If the child restraint system on hand is not within the “universal” cat-
egory (or the necessary information is not in the table), refer to the
“Vehicle List” provided by the child restraint system maker for vari-
ous possible installation positions, or check the compatibility after
asking the retailer of the child seat. ( P. 68, 69)
If installing the child restraint system to the front passenger seat
is unavoidable, refer to P. 63 for front passenger seat adjustment.
If the head restraint interferes with the child restraint system
installation and the head restraint can be removed, remove the
head restraint. Otherwise, put the head restraint in the upper
most position. ( P. 204)
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted. Securely
fix the seat belt to the child
restraint system in accor-
dance to the directions
enclosed with the child
restraint system.
If your child restraint system
is not equipped with a lock-
off (a seat belt locking fea-
ture), secure the child
restraint system using a lock-
ing clip.
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. ( P. 7 8 )
Child restraint system fixed with a seat belt
1
2
3
4
5

771-2. Child safety
1
For safety and security
YARIS_F_OM_Europe_OM52K19E
■Removing a child restraint system installed with a seat belt
Press the buckle release button and fully retract the seat belt.
When releasing the buckle, the chil d restraint system may spring up due
to the rebound of the seat cushion. Release the buckle while holding
down the child restraint system.
Since the seat belt automatically reels itself, slowly return it to the stow-
ing position.
■ When installing a child restraint system
You may need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child restraint
system does not provide a locking clip, you can purchase the following item
from any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer: Locking clip for child restraint system
(Part No. 73119-22010)

781-2. Child safety
YARIS_F_OM_Europe_OM52K19E
■ ISOFIX lower anchorages (ISOFIX child restraint system)
Lower anchorages are provided
for the rear outboard seats.
(Tags displaying the location of
the anchorages are attached to
the seats.)
WARNING
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death. If this occurs and the buckle cannot be
unfastened, scissors should be used to cut the belt.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Follow all installation instructions provided by the child restraint system
manufacturer.
Child restraint system fixed with an ISOFIX lower anchorage
(vehicles with rear seats)

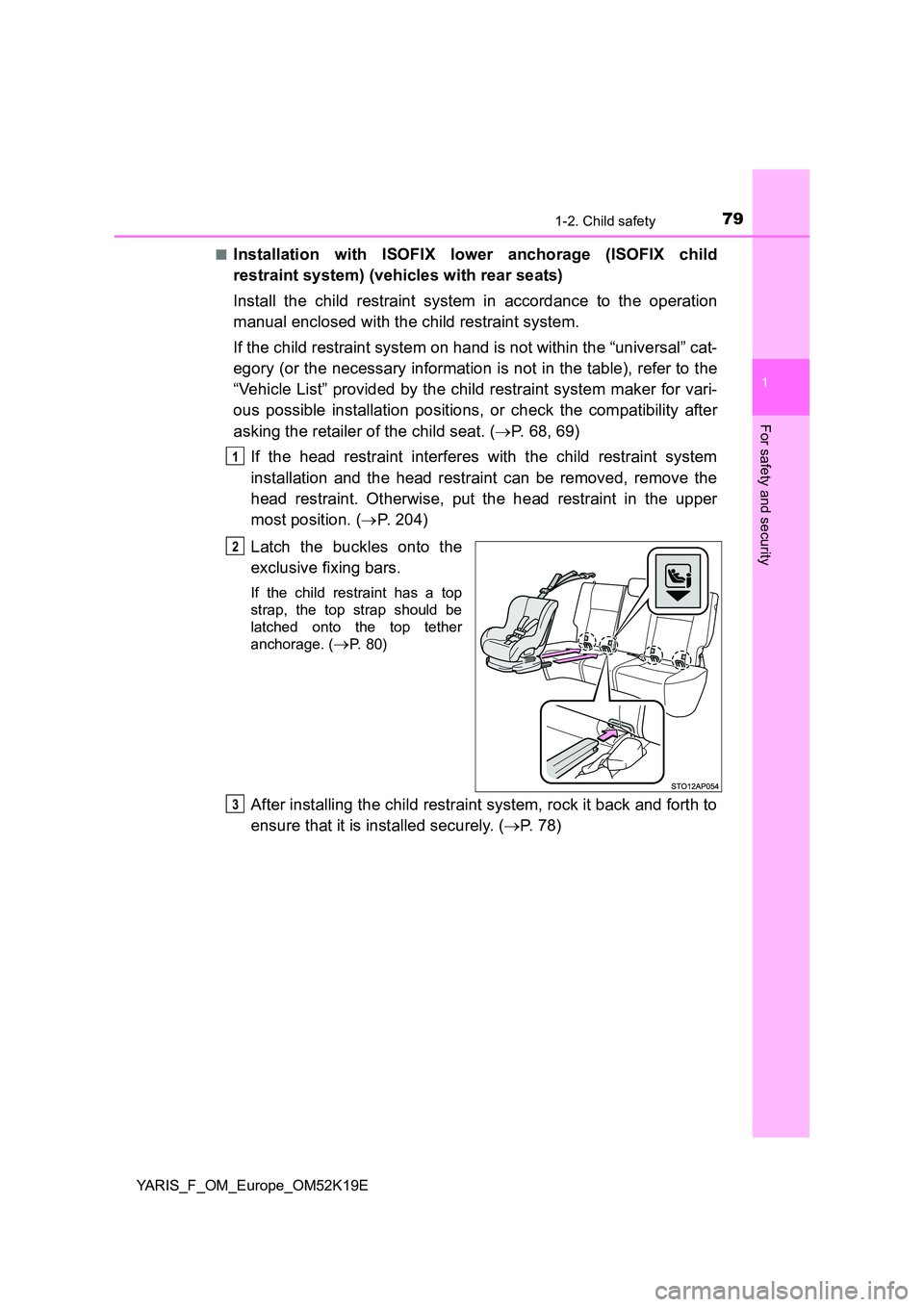

791-2. Child safety
1
For safety and security
YARIS_F_OM_Europe_OM52K19E
■Installation with ISOFIX lower anchorage (ISOFIX child
restraint system) (vehicles with rear seats)
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.
If the child restraint system on hand is not within the “universal” cat-
egory (or the necessary information is not in the table), refer to the
“Vehicle List” provided by the child restraint system maker for vari-
ous possible installation positions, or check the compatibility after
asking the retailer of the child seat. ( P. 68, 69)
If the head restraint interferes with the child restraint system
installation and the head restraint can be removed, remove the
head restraint. Otherwise, put the head restraint in the upper
most position. ( P. 204)
Latch the buckles onto the
exclusive fixing bars.
If the child restraint has a top
strap, the top strap should be
latched onto the top tether
anchorage. (P. 80)
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. ( P. 7 8 )
1
2
3

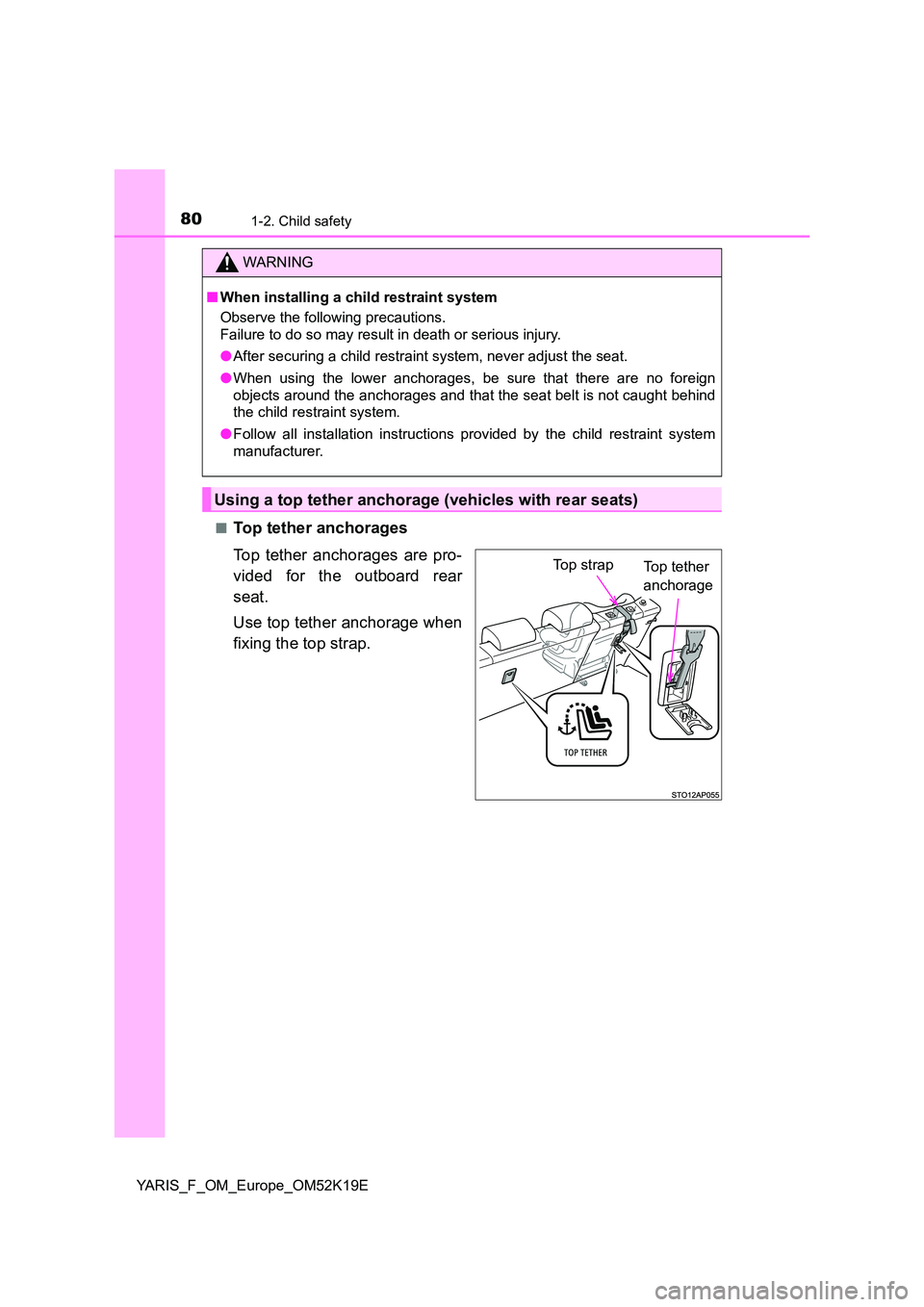

801-2. Child safety
YARIS_F_OM_Europe_OM52K19E
■Top tether anchorages
Top tether anchorages are pro-
vided for the outboard rear
seat.
Use top tether anchorage when
fixing the top strap.
WARNING
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● After securing a child restraint system, never adjust the seat.
● When using the lower anchorages, be sure that there are no foreign
objects around the anchorages and that the seat belt is not caught behind
the child restraint system.
● Follow all installation instructions provided by the child restraint system
manufacturer.
Using a top tether anchorage (vehicles with rear seats)
Top tether
anchorage
Top strap
