651-2. Child safety
1
For safety and security
YARIS_F_OM_Europe_OM52K19E
WARNING
■When using a child restraint system
●Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint on the front passenger
seat, move the seat as far back as pos-
sible. Failing to do so may result in
death or serious injury if the airbags
deploy (inflate).
● Vehicles with SRS side airbags and
SRS curtain shield airbags: Do not
allow the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front or rear
pillars, or roof side rails from which the
SRS side airbags or SRS curtain shield
airbags deploy even if the child is
seated in the child restraint system. It is
dangerous if the SRS side airbags and
curtain shield airbags inflate, and the
impact could cause death or serious
injury to the child.

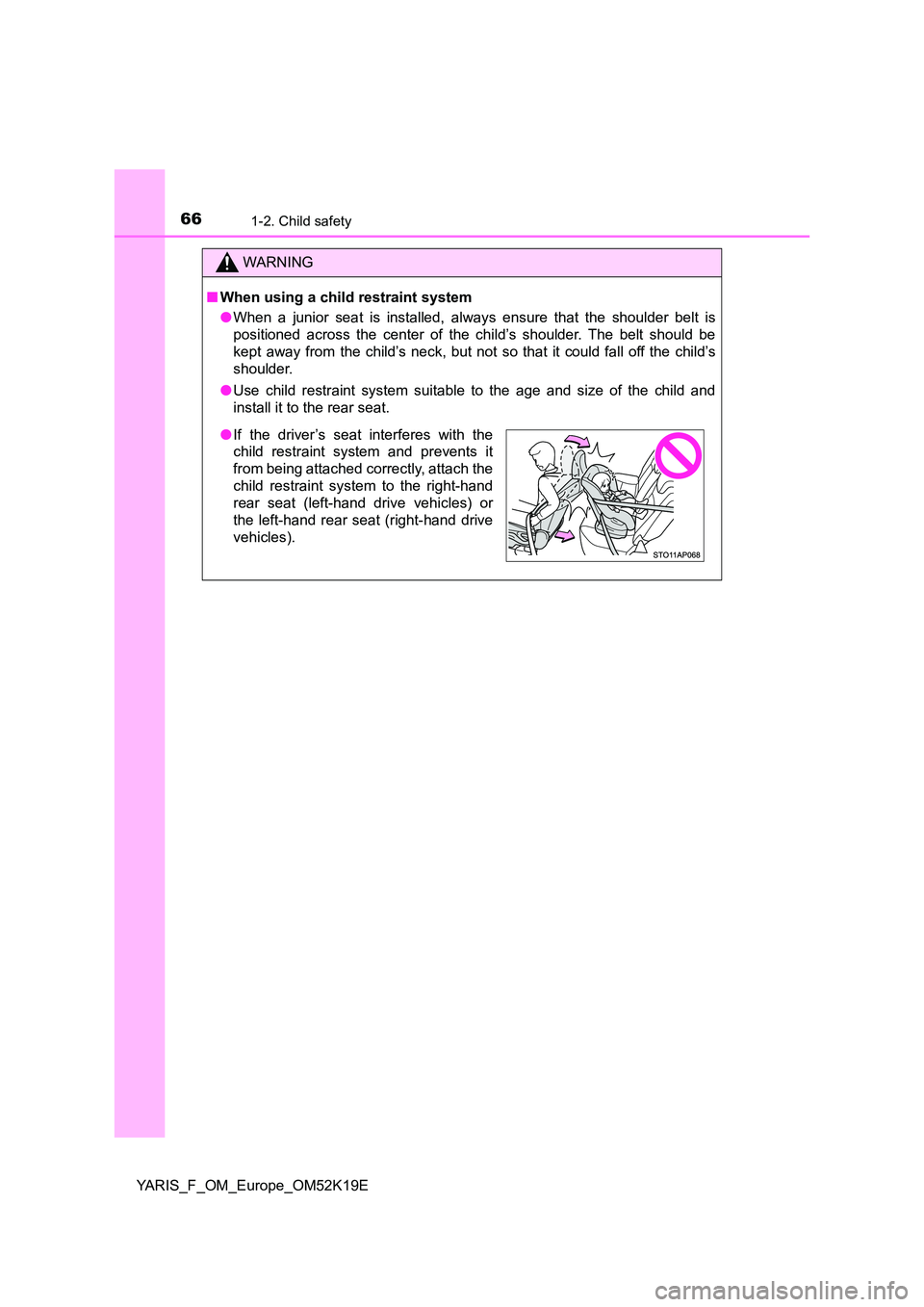

661-2. Child safety
YARIS_F_OM_Europe_OM52K19E
WARNING
■When using a child restraint system
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Use child restraint system suitable to the age and size of the child and
install it to the rear seat.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat (left-hand drive vehicles) or
the left-hand rear seat (right-hand drive
vehicles).

671-2. Child safety
1
For safety and security
YARIS_F_OM_Europe_OM52K19E
■Child restraint system compatibility for each seating position
Compatibility of each seating position with child restraint systems
( P. 69) displays the type of child restraint systems that can be
used and possible seating positions for installation using symbols.
Also, the recommended child restraint system that is suitable for
your child can be selected.
Otherwise, check [Recommended child restraint systems and Com-
patibility table] for recommended child restraint systems. ( P. 7 3 )
Check the selected child restraint system together with the follow-
ing [Before confirming the compatibility of each seating position
with child restraint systems].
■Before confirming the compatibility of each seating position
with child restraint systems
Checking the child restraint system standards.
Use a child restraint system that conforms to UN(ECE) R44*1 or
UN(ECE) R129*1, 2.
The following approval mark is displayed on child restraint sys-
tems which are conformed.
Check for an approval mark attached to the child restraint sys-
tem.
Example of the displayed
regulation number
UN(ECE) R44 approval
mark*3
The weight range of the
child who is applicable for
an UN(ECE) R44 approval
mark is indicated.
UN(ECE) R129 approval
mark*3
The height range of the
child who is applicable as
well as available weights
for an UN(ECE) R129
approval mark is indicated.
Child restraint system compatibility for each seating position
1
1
2

681-2. Child safety
YARIS_F_OM_Europe_OM52K19E
*1: UN(ECE) R44 and UN(ECE) R129 are U.N. regulations for child
restraint systems.
*2: The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
*3: The displayed mark may differ depending on the product.
Checking the category of the child restraint system.
Check the approval mark of the child restraint system for which
of the following categories the child restraint system is suitable.
Also, if there are any uncertainties, check the user’s guide
included with the child restraint system or contact the retailer of
the child restraint system.
•“universal”
• “semi-universal”
• “restricted”
• “vehicle specific”
2

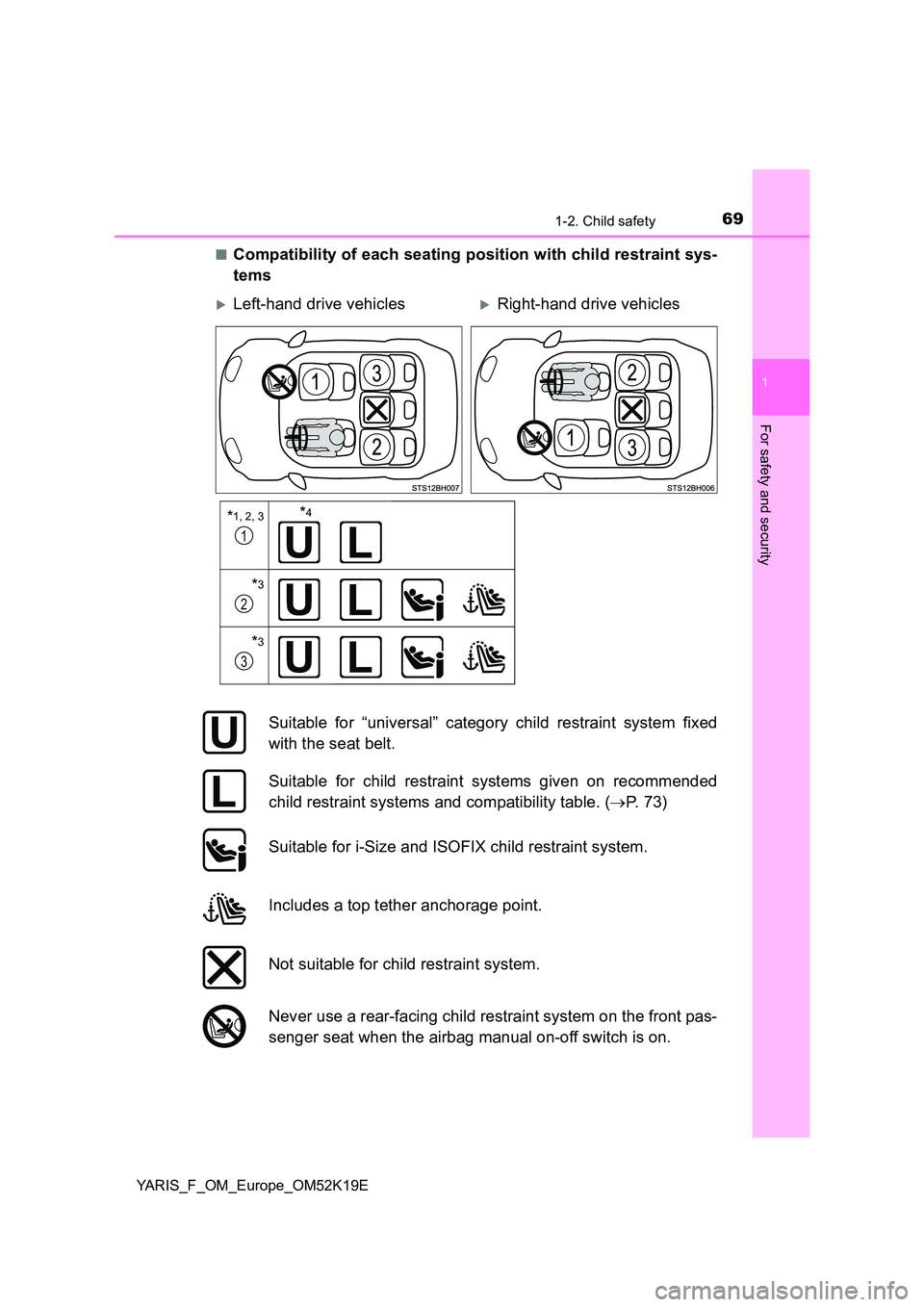

691-2. Child safety
1
For safety and security
YARIS_F_OM_Europe_OM52K19E
■Compatibility of each seating position with child restraint sys-
tems
Left-hand drive vehiclesRight-hand drive vehicles
*1, 2, 3
*3
*3
Suitable for “universal” category child restraint system fixed
with the seat belt.
Suitable for child restraint systems given on recommended
child restraint systems and compatibility table. ( P. 73)
Suitable for i-Size and ISOFIX child restraint system.
Includes a top tether anchorage point.
Not suitable for child restraint system.
Never use a rear-facing child restraint system on the front pas-
senger seat when the airbag manual on-off switch is on.
1
2
3
*4

701-2. Child safety
YARIS_F_OM_Europe_OM52K19E
*1: Move the front seat fully rearward. If the passenger seat height can be
adjusted, move it to the upper most position.
*2: Adjust the seatback angle to the
most upright position.
When installing a forward-facing
child seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.
*3: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
*4: Use only a front-facing child restraint system when the airbag manual on-
off switch is on.

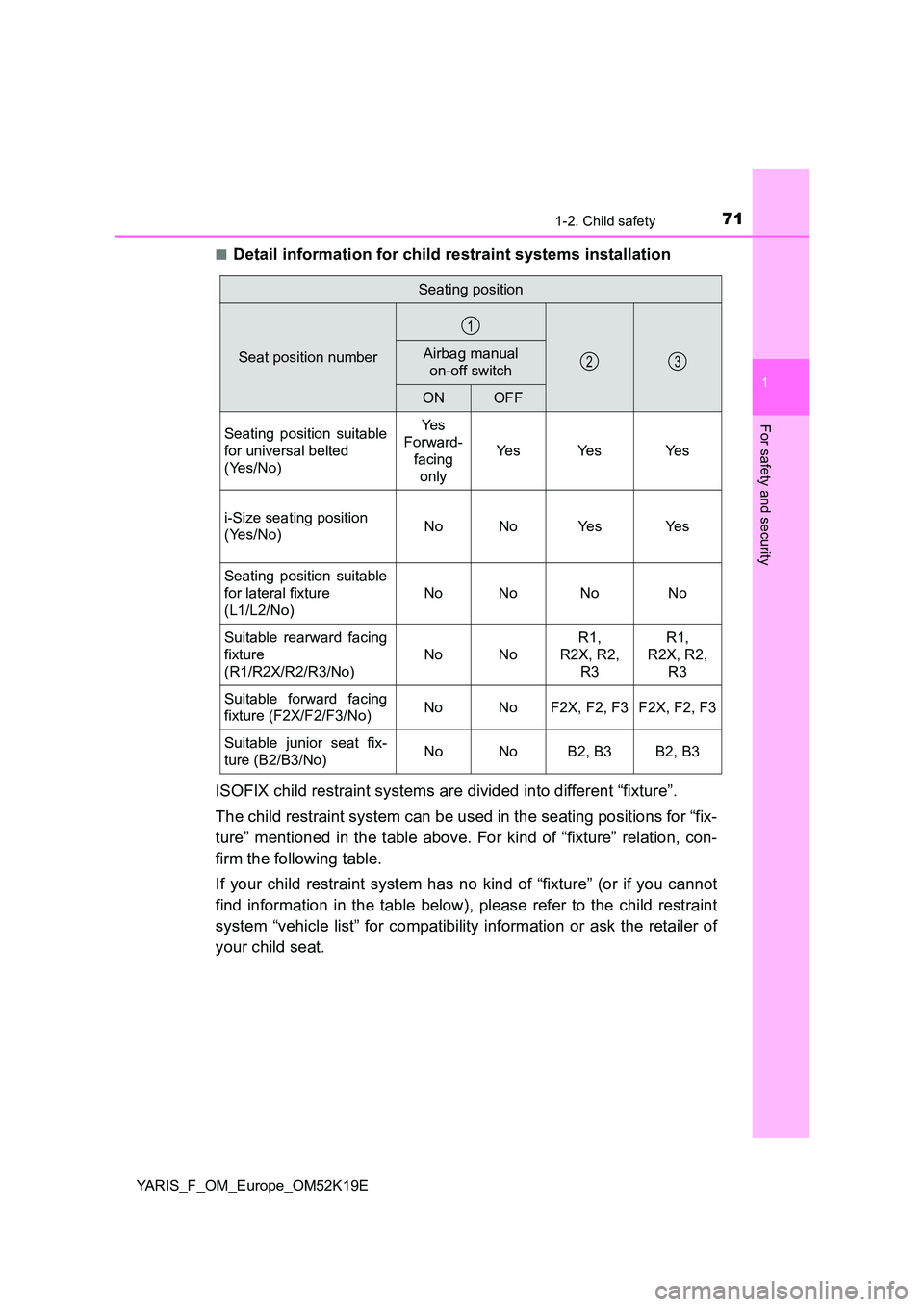

711-2. Child safety
1
For safety and security
YARIS_F_OM_Europe_OM52K19E
■Detail information for child restraint systems installation
ISOFIX child restraint systems are divided into different “fixture”.
The child restraint system can be used in the seating positions for “fix-
ture” mentioned in the table above. For kind of “fixture” relation, con-
firm the following table.
If your child restraint system has no kind of “fixture” (or if you cannot
find information in the table below), please refer to the child restraint
system “vehicle list” for compatibility information or ask the retailer of
your child seat.
Seating position
Seat position numberAirbag manual
on-off switch
ONOFF
Seating position suitable
for universal belted
(Yes/No)
Ye s
Forward-
facing
only
Ye s Ye s Ye s
i-Size seating position
(Yes/No) No No Yes Yes
Seating position suitable
for lateral fixture
(L1/L2/No)
No No No No
Suitable rearward facing
fixture
(R1/R2X/R2/R3/No)
No No
R1,
R2X, R2,
R3
R1,
R2X, R2,
R3
Suitable forward facing
fixture (F2X/F2/F3/No) No No F2X, F2, F3 F2X, F2, F3
Suitable junior seat fix-
ture (B2/B3/No) No No B2, B3 B2, B3
1
23

721-2. Child safety
YARIS_F_OM_Europe_OM52K19E
FixtureDescription
F3Full-height, forward-facing child restraint systems
F2Reduced-height forward-facing child restraint systems
F2XReduced-height forward-facing child restraint systems
R3Full-size, rearward-facing child restraint systems
R2Reduced-size, rearward-facing child restraint systems
R2XReduced-size, rearward-facing child restraint systems
R1Rearward-facing infant seat
L1Left lateral-facing (carrycot) infant seat
L2Right lateral-facing (carrycot) infant seat
B2Junior seat
B3Junior seat
