2019 TOYOTA YARIS steering

3
1
7
8
6
5
4
3
2
9
YARIS_F_OM_Europe_OM52K19E
3-1. Key information
Keys ...................................140
3-2. Opening, closing
and locking the doors
Side doors..........................152
Back door...........................159
Smart entry & start
system .............................165
3-3. Adjusting the seats
Front seats .........................198
Rear seats .........................201
Head restraints ..................204
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ...................207
Inside rear view mirror .......209
Outside rear view
mirrors .............................211
3-5. Opening and closing
the windows
Power windows ..................214
4-1. Before driving
Driving the vehicle ............. 220
Cargo and luggage............ 231
Trailer towing..................... 233
4-2. Driving procedures
Engine (ignition) switch
(vehicles without
a smart entry &
start system) ................... 243
Engine (ignition) switch
(vehicles with
a smart entry &
start system) ................... 246
Multidrive ........................... 255
Manual transmission ......... 263
Turn signal lever................ 267
Parking brake .................... 268
4-3. Operating the lights
and wipers
Headlight switch ................ 269
Fog light switch ................. 274
Windshield wiper and
washer ............................ 276
Rear window wiper and
washer ............................ 280
4-4. Refueling
Opening the fuel tank
cap .................................. 282
3Operation of
each component4Driving

TABLE OF CONTENTS4
YARIS_F_OM_Europe_OM52K19E
4-5. Toyota Safety Sense
Toyota Safety Sense .........285
PCS
(Pre-Crash Safety
system) ............................293
LDA
(Lane Departure Alert) .....310
Automatic High Beam ........317
RSA (Road Sign Assist).....322
4-6. Using the driving support
systems
Cruise control.....................328
Speed limiter ......................332
Stop & start system............337
Driving assist systems .......348
4-7. Driving tips
Winter driving tips ..............355
5-1. Basic Operations
Audio system types ........... 360
Steering wheel audio
switches .......................... 362
AUX port/USB port ............ 363
5-2. Using the audio system
Optimal use of the audio
system............................. 364
5-3. Using the radio
Radio operation ................. 366
5-4. Playing audio CDs and
MP3/WMA discs
CD player operation .......... 370
5-5. Using an external device
Listening to an iPod........... 379
Listening to a USB
memory device ................ 387
Using the AUX port ........... 394
5Audio system

5
1
7
8
6
5
4
3
2
9
YARIS_F_OM_Europe_OM52K19E
5-6. Using Bluetooth®
devices
Bluetooth® audio/phone .....395
Using the steering
wheel switches ................401
Registering a Bluetooth®
device ..............................402
5-7. “SETUP” menu
Using the “SETUP” menu
(“Bluetooth*” menu) .........403
Using the “SETUP” menu
(“Phone” menu) ...............408
5-8. Bluetooth® Audio
Operating a Bluetooth®
enabled portable
player ...............................412
5-9. Bluetooth® Phone
Making a phone call ...........415
Receiving a phone call.......417
Speaking on the phone ......418
5-10. Bluetooth®
Bluetooth®.........................420
6-1. Using the air conditioning
system and defogger
Manual air conditioning
system............................. 432
Automatic air conditioning
system............................. 440
Seat heaters ...................... 450
6-2. Using the interior lights
Interior lights list ................ 452
• Interior light ................... 452
• Personal lights .............. 453
6-3. Using the storage features
List of storage features...... 454
• Glove box ...................... 455
• Cup holders .................. 456
• Bottle holders ................ 457
• Auxiliary box ................. 458
Luggage compartment
features ........................... 459
6Interior features
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.

15Pictorial index
YARIS_F_OM_Europe_OM52K19E
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . P. 120, 125
If a warning message or indicator is displayed*3 . . . . . . P. 576, 587
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 268
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 268
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 356
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 576
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 267
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 269
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 269
Front fog lights*5/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 274
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . P. 276, 280
Usage (front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
Usage (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 280
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 501
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 564
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 483
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 207
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . P. 432, 440
Usage (manual air conditioning system) . . . . . . . . . . . . . . . . . P. 432
Usage (automatic air conditioning system) . . . . . . . . . . . . . . . P. 440
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 434, 445
Audio system*5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 360
Navigation/Multimedia system*5, 6
*1: Vehicles with a smart entry & start system
*2: Vehicles with monochrome display
*3: Vehicles with color display
*4: Vehicles with a Multidrive
*5: If equipped
*6: Refer to “Navigation and multimedia system Owner’s manual”.
4
5
6
7
8
9
10
11
12

23Pictorial index
YARIS_F_OM_Europe_OM52K19E
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . P. 120, 125
If a warning message or indicator is displayed*3 . . . . . . P. 576, 587
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 268
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 268
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 356
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 576
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 267
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 269
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 269
Front fog lights*5/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 274
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . P. 276, 280
Usage (front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
Usage (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 280
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 501
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 564
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 483
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 207
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . P. 432, 440
Usage (manual air conditioning system) . . . . . . . . . . . . . . . . . P. 432
Usage (automatic air conditioning system) . . . . . . . . . . . . . . . P. 440
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 434, 445
Audio system*5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 360
Navigation/Multimedia system*5, 6
*1: Vehicles with a smart entry & start system
*2: Vehicles with monochrome display
*3: Vehicles with color display
*4: Vehicles with a Multidrive
*5: If equipped
*6: Refer to “Navigation and multimedia system Owner’s manual”.
4
5
6
7
8
9
10
11
12

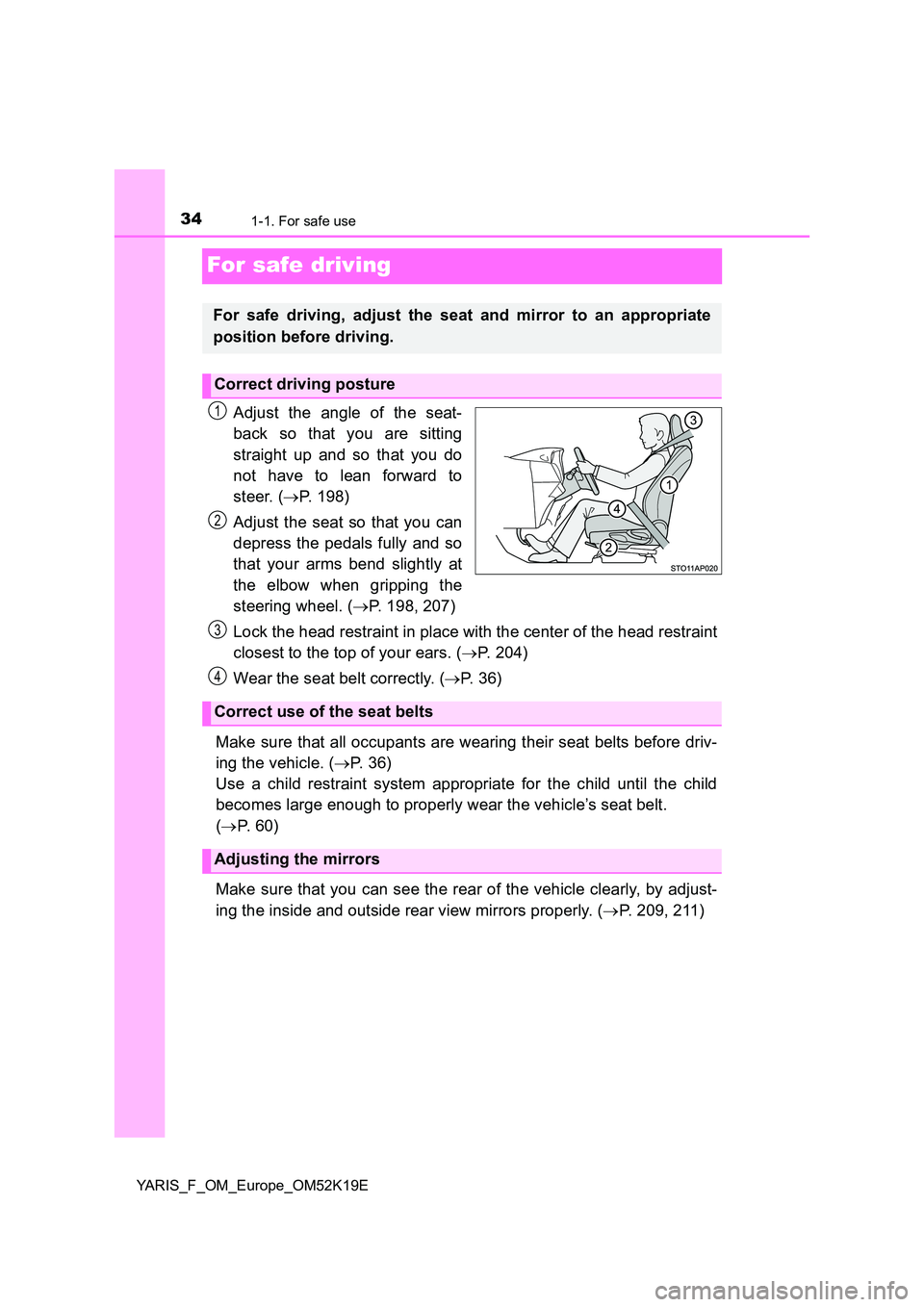

341-1. For safe use
YARIS_F_OM_Europe_OM52K19E
For safe driving
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. ( P. 198)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 198, 207)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( P. 204)
Wear the seat belt correctly. ( P. 3 6 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 3 6 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 6 0 )
Make sure that you can see the rear of the vehicle clearly, by adjust-
ing the inside and outside rear view mirrors properly. ( P. 209, 211)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4

451-1. For safe use
1
For safety and security
YARIS_F_OM_Europe_OM52K19E
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. As
the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occu-
pants.
WARNING
■ SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the vehicle must wear their seat belts
properly.
The SRS airbags are supplemental devic es to be used with the seat belts.
● The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.)
of inflation, placing yourself 250 mm ( 10 in.) from your driver airbag pro-
vides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than
250 mm (10 in.) away now, you can change your driving position in sev-
eral ways:
• Move your seat to the rear as far as you can while still reaching the ped-
als comfortably.
• Slightly recline the back of the seat. Although vehicle designs vary,
many drivers can achieve the 250 mm (10 in.) distance, even with the
driver seat all the way forward, simply by reclining the back of the seat
somewhat. If reclining the back of your seat makes it hard to see the
road, raise yourself by using a firm, non-slippery cushion, or raise the
seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the
airbag toward your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintain-
ing control of the foot pedals, steering wheel, and your view of the instru-
ment panel controls.

471-1. For safe use
1
For safety and security
YARIS_F_OM_Europe_OM52K19E
WARNING
■SRS airbag precautions
●Vehicles without SRS curtain shield
airbags: Do not lean against the front
door.
● Vehicles with SRS curtain shield
airbags: Do not lean against the door,
the roof side rail or the front, side and
rear pillars.
● Do not allow anyone to kneel on the
passenger seat toward the door or put
their head or hands outside the vehicle.
● Vehicles without an SRS driver knee
airbag: Do not attach anything to or lean
anything against areas such as the
dashboard or steering wheel pad.
These items can become projectiles
when the SRS driver and front passen-
ger airbags deploy.
● Vehicles with an SRS driver knee
airbag: Do not attach anything to or lean
anything against areas such as the
dashboard, steering wheel pad and
lower portion of the instrument panel.
These items can become projectiles
when the SRS driver, front passenger
and driver knee airbags deploy.
