• When the currently remaining Li-ion bat-tery level exceeds each percentage level,
the charging time will be displayed as [---].
• When the Li-ion battery was fully charge, all the charging time information will be
displayed as [---].
3The currently selected electrical power
(supplied to the charger).
4The estimated charge level of the Li-ion
battery to be reached when the remaining
charging time has passed.
5The remaining charging time before the
quick charger is shut off.
6The electrical power that is actually sup-
plied while quick charging.
When charging is not performed, pushing
the button on the steering wheel will
switch the display to the [Charge Time
Screen]. Select the electrical power that
you wish to show in the Estimated Charge
Time display.
NOTE:
• While charging, the estimated charging
time is calculated based on the electri-
cal power that is currently being sup-
plied to the charger.
•
The electrical power for the normal
charging is displayed at a fixed value.
Therefore, the displayed electrical power
may differ from the one that is actually
supplied.
• For the quick charging, the electrical
power display will change to the actual
electrical power while charging. If the
charging is stopped or the power sup-
ply is stopped (unplugged, etc.), the dis-
played electrical power returns to the
selected electrical power.
• The displayed charging time on each
percentage level is the current estima-
tion, and the actual charging time will
vary depending on the conditions of the
vehicle or the state of charge.
• Right af ter starting of stopping charge,
the estimated charging time may differ
from the actual charging time. The ac-
tual charging time will be displayed
af ter a period of time.
While charging (quick charge
[if so equipped])
2-12Instruments and controls

OUTSIDE AIR TEMPERATURE
The outside air temperature is displayed in
°F or °C.
The display may differ from the actual out-
side temperature displayed on various
signs or billboards.
CLOCK
Type A:
Adjust the clock on the setting screen of
the vehicle information display. For addi-
tional information, refer to “Settings” in this
section. If the power supply (12-volt battery)
is disconnected, the clock will not indicate
the correct time. Readjust the time.Type B:
This clock is synchronized with the clock
displayed on the center display. For addi-
tional information, refer to the separate
NissanConnect® Manual (for Leaf ).
Instruments and controls2-13

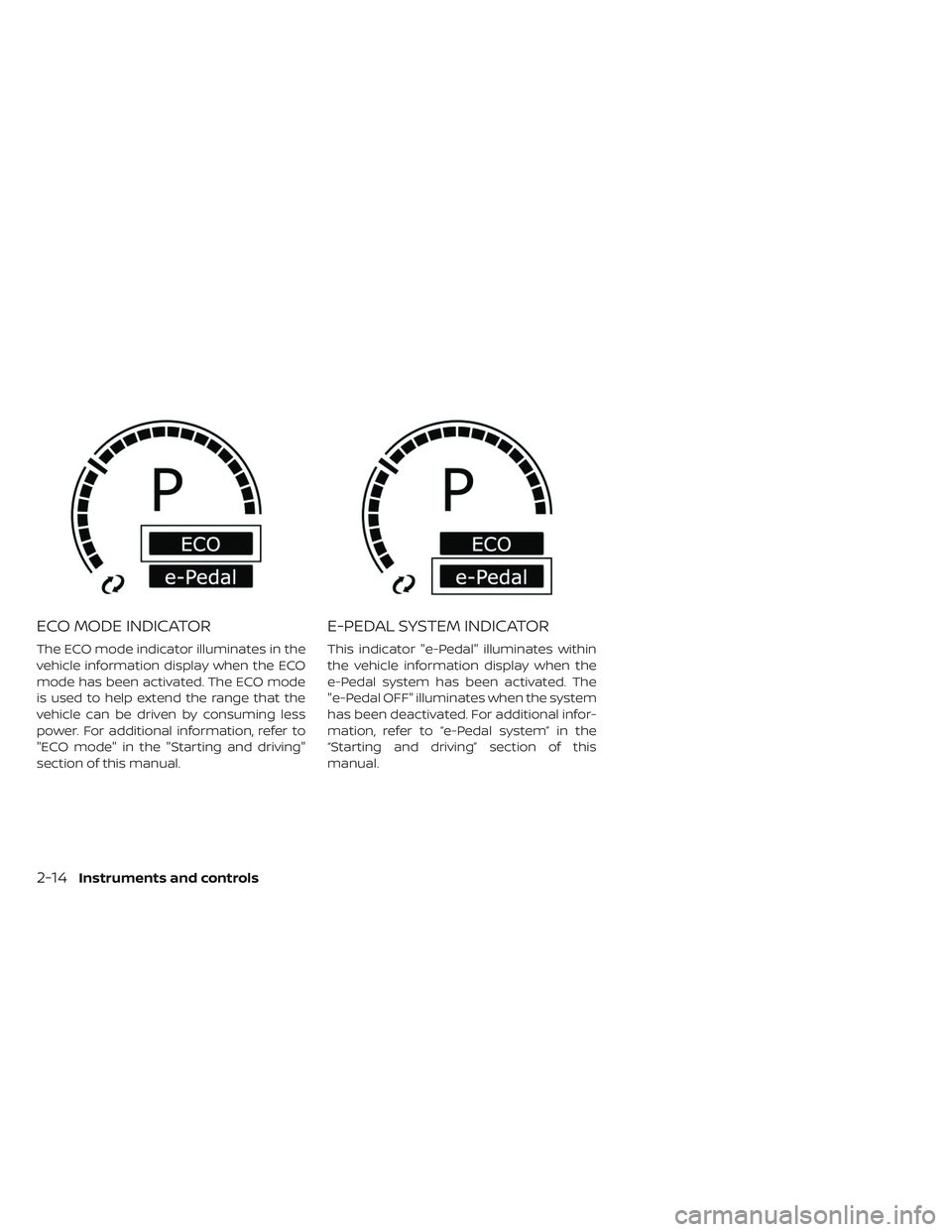

ECO MODE INDICATOR
The ECO mode indicator illuminates in the
vehicle information display when the ECO
mode has been activated. The ECO mode
is used to help extend the range that the
vehicle can be driven by consuming less
power. For additional information, refer to
"ECO mode" in the "Starting and driving"
section of this manual.
E-PEDAL SYSTEM INDICATOR
This indicator "e-Pedal" illuminates within
the vehicle information display when the
e-Pedal system has been activated. The
"e-Pedal OFF" illuminates when the system
has been deactivated. For additional infor-
mation, refer to “e-Pedal system” in the
“Starting and driving” section of this
manual.
2-14Instruments and controls

12-volt battery charge
warning lightLow tire pressure warning
lightHigh beam indicator light (blue)
orAnti-lock Braking System
(ABS) warning light
Master warning light
(red/yellow)Plug-in indicator light
Approaching Vehicle Sound
for Pedestrians (VSP) OFF
system warning lightPower steering warning lightPower limitation indicator light
Automatic Emergency Brak-
ing (AEB) system warning
light (if so equipped)Seat belt warning lightREADY to drive indicator light
Automatic Emergency Brak-
ing (AEB) with Pedestrian
Detection system warning
light (if so equipped)Supplemental air bag
warning lightSecurity indicator light
WARNING LIGHTS, INDICATOR LIGHTS
AND AUDIBLE REMINDERS
Instruments and controls2-15

Brake system warning light
(yellow)
or
Electronic parking brake
indicator lightSlip indicator light
or
Brake warning light (red)Exterior light indicator lightTurn signal/hazard indicator lights
Electronic parking brake
system warning light
(yellow) (if so equipped)Front fog light indicator light
(if so equipped)Vehicle Dynamic Control (VDC) OFF
indicator light
Electric shif t control system
warning lightFront passenger air bag
status light
Electric Vehicle (EV) system
warning lightHigh Beam Assist indicator
light (if so equipped)
2-16Instruments and controls

CHECKING LIGHTS
With all doors closed, apply the parking
brake, fasten the seat belts and place the
power switch for LEAF to the ON position
without starting the EV system. The follow-
ing lights (if so equipped) will come on:
,,or,
The following lights (if so equipped) come
on briefly and then turn off:
(yellow),,or(red),
or,,,,,,,
If any light does not come on or operate in
a way other than described, it may indicate
a burned-out bulb and/or a system mal-
function. Have the system checked. It is
recommended that you visit a NISSAN cer-
tified LEAF dealer for this service.
Some indicators and warnings are also dis-
played on the vehicle information display.
For additional information, refer to “Vehicle
information display” in this section.
WARNING LIGHTS
For additional information, refer to “Vehicle
information display” in this section.
12-volt battery charge
warning light
The DC/DC converter converts 400 volt Li-
ion battery voltage to charge the 12-volt
battery.
This light illuminates continuously af ter the
bulb is checked when the power switch is
in the ON position, and turns off when the
power switch is placed in the READY to
drive position.
When this warning light illuminates, a
chime sounds and the following warnings
are also displayed.
• Master warning (red)
• EV system warning light
The following messages also flash on and
off on the vehicle information display.
If the vehicle is being driven; “Stop the ve-
hicle” and if the vehicle is stopped; “When
parked apply parking brake”. When these
messages flash, immediately stop the ve-
hicle in a safe location, pull the parking
brake switch and push the P (Park) position
switch on the shif t lever to place the vehicle
in the P (Park) position. The warning on the
meter and the chime stops when the park- ing brake is operated or the vehicle is in the
P (Park) position. Have the system checked.
It is recommended that you visit a NISSAN
certified LEAF dealer for this service.
CAUTION
• The DC/DC converter system may not be functioning properly if the 12-
volt battery charge warning light il-
luminates continuously when the
power switch is in the READY to drive
position. Immediately stop the ve-
hicle in a safe location and have the
system checked. It is recommended
that you visit a NISSAN certified LEAF
dealer for this service.
• The DC/DC converter system may not be functioning properly if the 12-
volt warning light illuminates con-
tinuously when the power switch is
in the READY to drive position. Do not
charge the 12-volt battery while this
warning light is illuminated. It may
lead to a malfunction of the DC/DC
converter system. Have the system
checked. It is recommended that
you visit a NISSAN certified LEAF
dealer for this service.
Instruments and controls2-17

NOTE:
•If the vehicle does not go into the READY
to drive position (when the power switch
is pushed and the brake pedal is de-
pressed), jump-start the vehicle to place
the power switch in the READY to drive
position. For additional information, refer
to “Jump starting” in the “In case of emer-
gency ” section of this manual.
•Do not jump-start the vehicle if the con-
ditions below occur. Have the system
checked. It is recommended that you
visit a NISSAN certified LEAF dealer for
this service:
– If the 12-volt charge warning light turns off when the vehicle is in the
READY to drive mode, the 12-volt bat-
tery may be discharged or there may
be a malfunction in the 12-volt bat-
tery related system.
– If the 12-volt charge warning light continues to illuminate when the ve-
hicle is in the READY to drive mode,
there may be a malfunction in the
DC/DC converter. Have the system
checked. It is recommended that you
visit a NISSAN certified LEAF dealer
for this service.

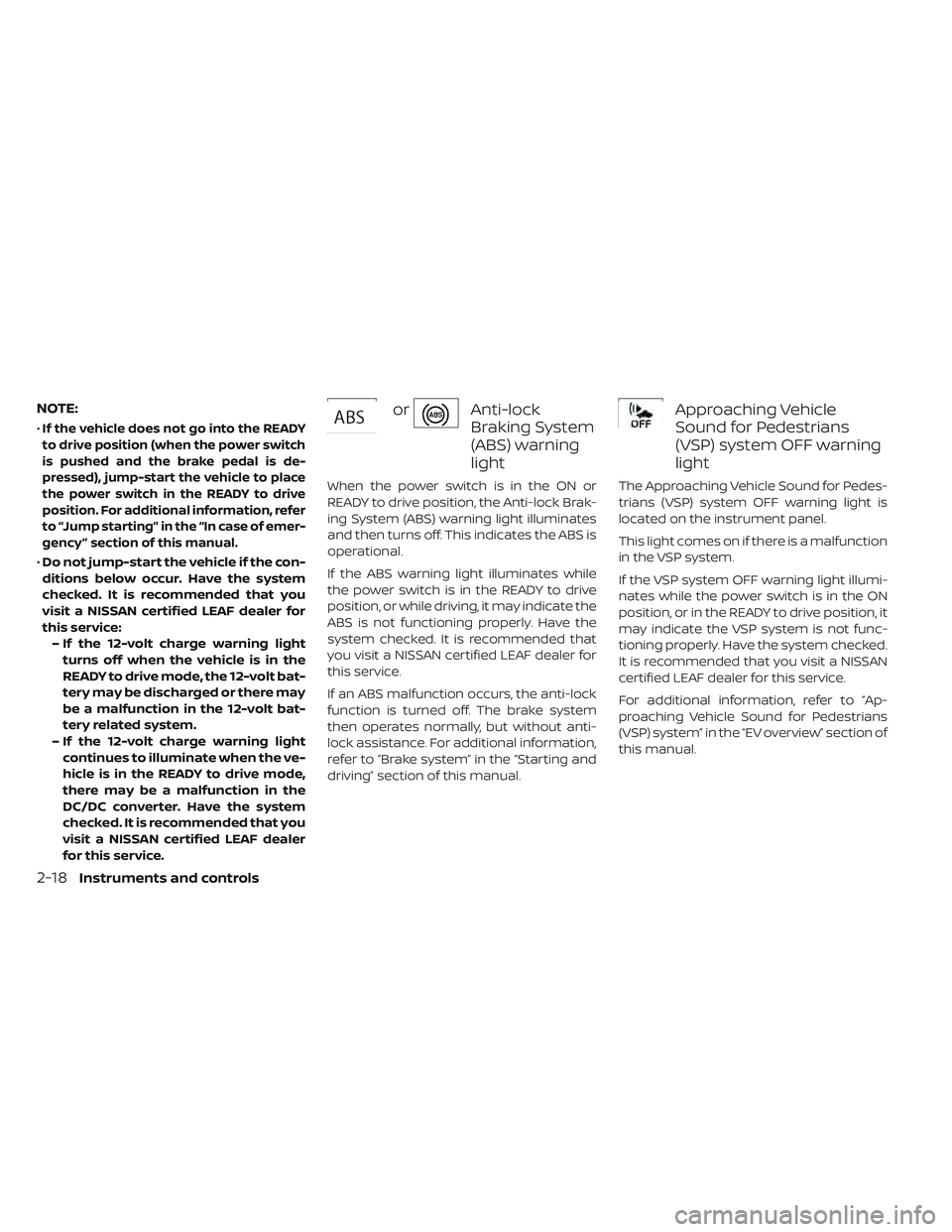

orAnti-lock
Braking System
(ABS) warning
light
When the power switch is in the ON or
READY to drive position, the Anti-lock Brak-
ing System (ABS) warning light illuminates
and then turns off. This indicates the ABS is
operational.
If the ABS warning light illuminates while
the power switch is in the READY to drive
position, or while driving, it may indicate the
ABS is not functioning properly. Have the
system checked. It is recommended that
you visit a NISSAN certified LEAF dealer for
this service.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system
then operates normally, but without anti-
lock assistance. For additional information,
refer to “Brake system” in the “Starting and
driving” section of this manual.
Approaching Vehicle
Sound for Pedestrians
(VSP) system OFF warning
light
The Approaching Vehicle Sound for Pedes-
trians (VSP) system OFF warning light is
located on the instrument panel.
This light comes on if there is a malfunction
in the VSP system.
If the VSP system OFF warning light illumi-
nates while the power switch is in the ON
position, or in the READY to drive position, it
may indicate the VSP system is not func-
tioning properly. Have the system checked.
It is recommended that you visit a NISSAN
certified LEAF dealer for this service.
For additional information, refer to “Ap-
proaching Vehicle Sound for Pedestrians
(VSP) system” in the “EV overview” section of
this manual.
2-18Instruments and controls

Automatic Emergency
Braking (AEB) system
warning light (if so
equipped)
This light comes on when the power switch
is placed in the ON position. It turns off af ter
the EV system is started.
This light illuminates when the AEB system
is set to OFF on the meter display.
If the light illuminates when the AEB sys-
tem is on, it may indicate that the system is
unavailable. For additional information, re-
fer to “Automatic Emergency Braking (AEB)”
in the “Starting and driving” section of this
manual.
Automatic Emergency
Braking (AEB) with
Pedestrian Detection
system warning light (if so
equipped)
This light comes on when the power switch
is placed in the ON position. It turns off af ter
the EV system is started.This light illuminates when the AEB with
Pedestrian Detection system is set to OFF
in the vehicle information display.
If the light illuminates when the AEB with
Pedestrian Detection system is on, it may
indicate that the system is unavailable. For
additional information, refer to “Automatic
Emergency Braking (AEB) with Pedestrian
Detection” and “Intelligent Forward Colli-
sion Warning (I-FCW)” in the “Starting and
driving” section of this manual.
Brake system warning
light (yellow)
This light functions for both the coopera-
tive regenerative brake and the electroni-
cally driven intelligent brake systems.
When the power switch is placed in the ON
position or in the READY to drive position,
the light remains illuminated for about 2 or
3 seconds. If the light illuminates at any
other time, it may indicate that the coop-
erative regenerative brake and/or the elec-
tronically driven intelligent brake systems
are not functioning properly. Have the sys-
tem checked. It is recommended that you
visit a NISSAN certified LEAF dealer for this
service.
If
the BRAKE warning light (red) also illumi-
nates, stop the vehicle immediately and
have the system checked. It is recom-
mended that you visit a NISSAN certified
LEAF dealer for this service. For additional
information, refer to “Brake system” in the
“Starting and driving” section of this manual.
WARNING
• Pressing the brake pedal when the power switch position is not in the
ON or READY to drive position and/or
low brake fluid level may increase
the stopping distance and braking
will require greater pedal effort as
well as pedal travel.
• If the brake fluid level is below the minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It is
recommended that you visit a
NISSAN certified LEAF dealer for this
service.
Instruments and controls2-19
