2019 NISSAN LEAF Owner´s Manual

REAR WIPER OPERATION
WARNING
In freezing temperatures the
windshield-washer fluid may freeze on
the rear window glass and obscure
your vision. Warm the rear window
with the defroster before you wash the
rear window.
CAUTION
• Do not operate the washer continu- ously for more than 30 seconds.
• Do not operate the washer if the windshield-washer fluid reservoir is
empty.
• Do not fill the windshield-washer fluid reservoir with windshield-
washer fluid concentrates at full
strength. Some methyl alcohol
based windshield-washer fluid con-
centrates may permanently stain
the grille if spilled while filling the
windshield-washer fluid reservoir.
• Pre-mix windshield-washer fluid concentrates with water to the
manufacturer’s recommended lev-
els before pouring the fluid into the
windshield-washer fluid reservoir.
Do not use the windshield-washer
fluid reservoir to mix the
windshield-washer fluid concen-
trate and water.
NOTE:
If the rear window wiper operation is in-
terrupted by snow etc., the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow etc. on
and around the wiper arms. Af ter about
1 minute, turn the switch on again to op-
erate the wiper.
The rear window wiper and washer oper-
ate when the power switch is in the ON
position.
Turn the switch clockwise from the OFF
position to operate the wiper.
1Intermittent (INT) — intermittent opera-
tion (not adjustable)
2Low (ON) — continuous low speed op-
eration
Push the switch forward
3to operate the
washer. Then the wiper will also operate
several times.
2-52Instruments and controls

To defrost the rear window glass and out-
side mirrors, place the power switch in the
ON position and push the switch
1on. The
indicator light will illuminate. Push the
switch again to turn the defroster off.
It will automatically turn off in approxi-
mately 15 minutes.
CAUTION
When cleaning the inner side of the
rear window, be careful not to scratch
or damage the rear window defroster.
HEADLIGHT SWITCH
Lighting
1Rotate the switch to theposi-
tion, the front parking, tail, license
plate, and instrument panel lights
come on.
2Rotate the switch to theposi-
tion, the headlights come on and all
the other lights remain on.
Type A (if so equipped)
Type B (if so equipped)
REAR WINDOW AND OUTSIDE
MIRROR (IF SO EQUIPPED)
DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL
SWITCH
Instruments and controls2-53

Autolight system
The autolight system allows the headlights
and tail lights to be set so they turn on and
off automatically.
To set the autolight system:
1. Make sure the headlight switch is in theAUTO position
1.
2.
Place the power switch in the ON position.
3.The autolight system automatically turns
the headlights and tail lights on and off.
To turn the autolight system off, turn the
switch to the OFF,
orposition.
The autolight system can turn on the
headlights and tail lights automatically
when it is dark and turn off the headlights
when it is light.
For US models: The headlights and tail
lights will also be turned on automatically
at twilight or in rainy weather (when the
windshield wiper is operated continuously).
If the power switch is placed in the OFF
position and one of the doors is opened
and this condition continues, the head-
lights remain on for 45 seconds.
Automatic headlights off delay:
You can keep the headlights on for up to
180 seconds af ter you push the power
switch to OFF and open any door then
close all the doors.
You can adjust the period of the automatic
headlights off delay from 0 seconds (OFF)
to 180 seconds. The factory default setting
is 45 seconds.
NOTE:
For additional information on adjust-
ing the automatic headlights off delay,
refer to “Vehicle information display ”
in this section.
2-54Instruments and controls

Be sure not to put anything on top of the
photo sensor
1located on the top of the
instrument panel. The photo sensor con-
trols the autolight; if it is covered, the
photo sensor reacts as if it is dark and
the headlights will illuminate.Headlight beam select
1To select the low beam, have the lever
in the neutral position as shown and
rotate the switch to the desired posi-
tion. For additional information, refer
to “Headlight switch” in this section.
2To select the high beam, push the
lever forward while the switch is in the
position. The high beams will
come on and the high beam indicator
(blue)
will illuminate. Pull it back
to return to the low beam.
3Pulling the lever toward you will flash
the headlight high beam even when
the headlight switch is in the OFF po-
sition.
High Beam Assist (if so equipped)
The High Beam Assist system will operate
when the vehicle is driven at speeds of ap-
proximately 19 mph (30 km/h) and above.
If an oncoming vehicle or leading vehicle
appears in front of your vehicle when the
headlight high beam is on, the headlight
will be switched to the low beam automati-
cally.
Precautions on High Beam Assist:
WARNING
• The High Beam Assist system is a convenience but it is not a substitute
for safe driving operation. The driver
should remain alert at all times,
ensure safe driving practices and
switch the high beams and low
beam manually when necessary.
Instruments and controls2-55

• The high beam or low beam may notswitch automatically under the fol-
lowing conditions. Switch the high
beam and low beam manually.
– During bad weather (rain, fog,snow, wind, etc.).
– When a light source similar to a headlight or tail light is in the vi-
cinity of the vehicle.
–
When the headlights of the oncom-
ing vehicle or the leading vehicle
are turned off, when the color of the
light is affected due to foreign ma-
terials on the lights, or when the
light beam is out of position.
– When there is a sudden, continu- ous change in brightness.
– When driving on a road that passes over rolling hills, or a road
that has level differences.
– When driving on a road with many curves.
– When a sign or mirror-like surface is reflecting intense light towards
the front of the vehicle.
– When the container, etc. being towed by a leading vehicle is re-
flecting intense light. – When a headlight on your vehicle
is damaged or dirty.
– When the vehicle is leaning at an angle due to a punctured tire, be-
ing towed, etc.
• The timing of switching the low beam and high beam may change
under the following situations.
– The brightness of the headlightsof the oncoming vehicle or lead-
ing vehicle.
– The movement and direction of the oncoming vehicle and the
leading vehicle.
– When only one light on the on coming vehicle or the leading ve-
hicle is illuminated.
– When the oncoming vehicle or the leading vehicle is a two-wheeled
vehicle.
– Road conditions (incline, curve, the road surface, etc.).
– The number of passengers and the amount of luggage.High Beam Assist operations:
To activate the High Beam Assist system,
turn the headlight switch to the AUTO po-
sition
1and push the lever forward2
(high beam position). The High Beam Assist
indicator light in the meter will illuminate
while the headlights are turned on.
2-56Instruments and controls

If the High Beam Assist indicator light does
not illuminate in the above condition, it may
indicate that the system is not functioning
properly. It is recommended that you visit a
NISSAN certified LEAF dealer for this ser-
vice.
When the vehicle speed lowers to less than
approximately 12 mph (20 km/h), the head-
light remains the low beam.
To turn off the High Beam Assist system,
turn the headlight switch to the
posi-
tion or select the low beam position by
placing the lever in the neutral position.
Ambient image sensor maintenance:
The ambient image sensor for the High
Beam Assist system is located above the
inside mirror
1. To keep the proper opera-
tion of the High Beam Assist system and
prevent a system malfunction, be sure to
observe the following:
• Always keep the windshield clean.
• Do not attach a sticker (including trans- parent material) or install an accessory
near the ambient image sensor.
• Do not strike or damage the areas around the ambient image sensor. If the ambient image sensor is damaged
due to an accident, it is recommended that
you visit a NISSAN certified LEAF dealer for
this service.
Battery saver system
• When the headlight switch is in the
orposition while the power switch is
in the ON position, the lights will automati-
cally turn off 45 seconds af ter the power
switch has been placed in the OFF
position.
• When the headlight switch remains in the
orposition af ter the lights
automatically turn off, the lights will turn
on when the power switch is placed in the
ON position.
Instruments and controls2-57

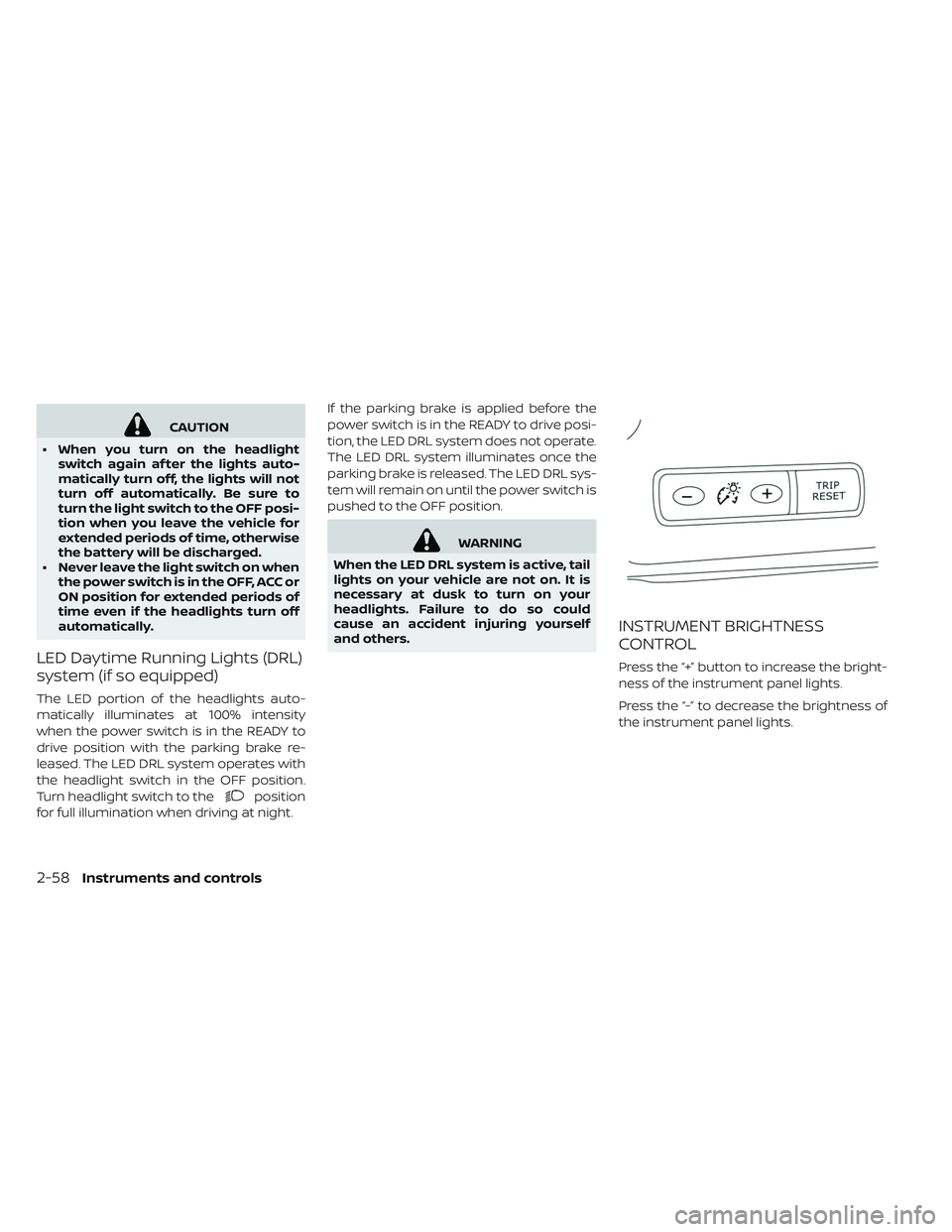

CAUTION
• When you turn on the headlight switch again af ter the lights auto-
matically turn off, the lights will not
turn off automatically. Be sure to
turn the light switch to the OFF posi-
tion when you leave the vehicle for
extended periods of time, otherwise
the battery will be discharged.
• Never leave the light switch on when the power switch is in the OFF, ACC or
ON position for extended periods of
time even if the headlights turn off
automatically.
LED Daytime Running Lights (DRL)
system (if so equipped)
The LED portion of the headlights auto-
matically illuminates at 100% intensity
when the power switch is in the READY to
drive position with the parking brake re-
leased. The LED DRL system operates with
the headlight switch in the OFF position.
Turn headlight switch to the
position
for full illumination when driving at night. If the parking brake is applied before the
power switch is in the READY to drive posi-
tion, the LED DRL system does not operate.
The LED DRL system illuminates once the
parking brake is released. The LED DRL sys-
tem will remain on until the power switch is
pushed to the OFF position.
WARNING
When the LED DRL system is active, tail
lights on your vehicle are not on. It is
necessary at dusk to turn on your
headlights. Failure to do so could
cause an accident injuring yourself
and others.
INSTRUMENT BRIGHTNESS
CONTROL
Press the “+” button to increase the bright-
ness of the instrument panel lights.
Press the “-” to decrease the brightness of
the instrument panel lights.
2-58Instruments and controls

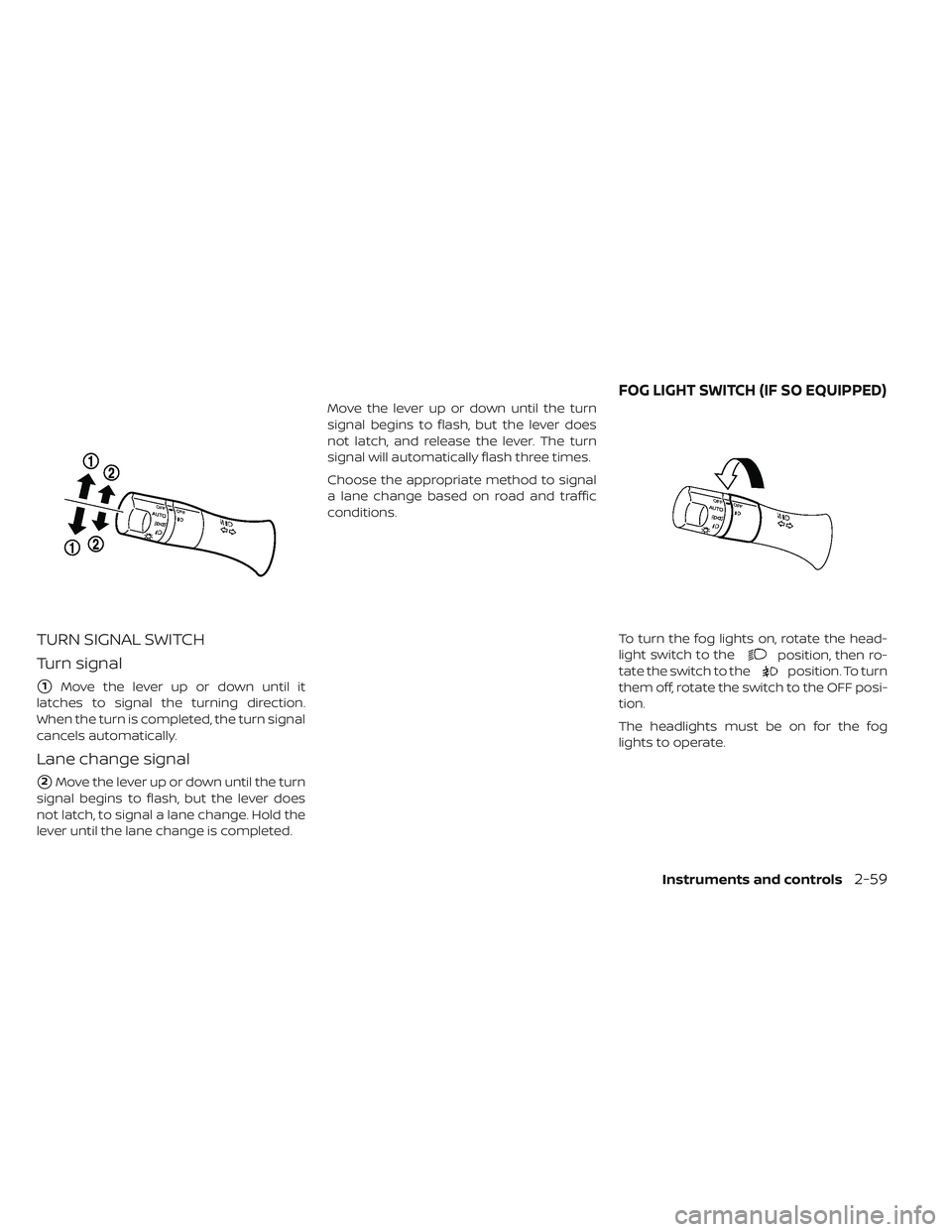

TURN SIGNAL SWITCH
Turn signal
1Move the lever up or down until it
latches to signal the turning direction.
When the turn is completed, the turn signal
cancels automatically.
Lane change signal
2Move the lever up or down until the turn
signal begins to flash, but the lever does
not latch, to signal a lane change. Hold the
lever until the lane change is completed. Move the lever up or down until the turn
signal begins to flash, but the lever does
not latch, and release the lever. The turn
signal will automatically flash three times.
Choose the appropriate method to signal
a lane change based on road and traffic
conditions.
To turn the fog lights on, rotate the head-
light switch to the
position, then ro-
tate the switch to the
position. To turn
them off, rotate the switch to the OFF posi-
tion.
The headlights must be on for the fog
lights to operate.
FOG LIGHT SWITCH (IF SO EQUIPPED)
Instruments and controls2-59
