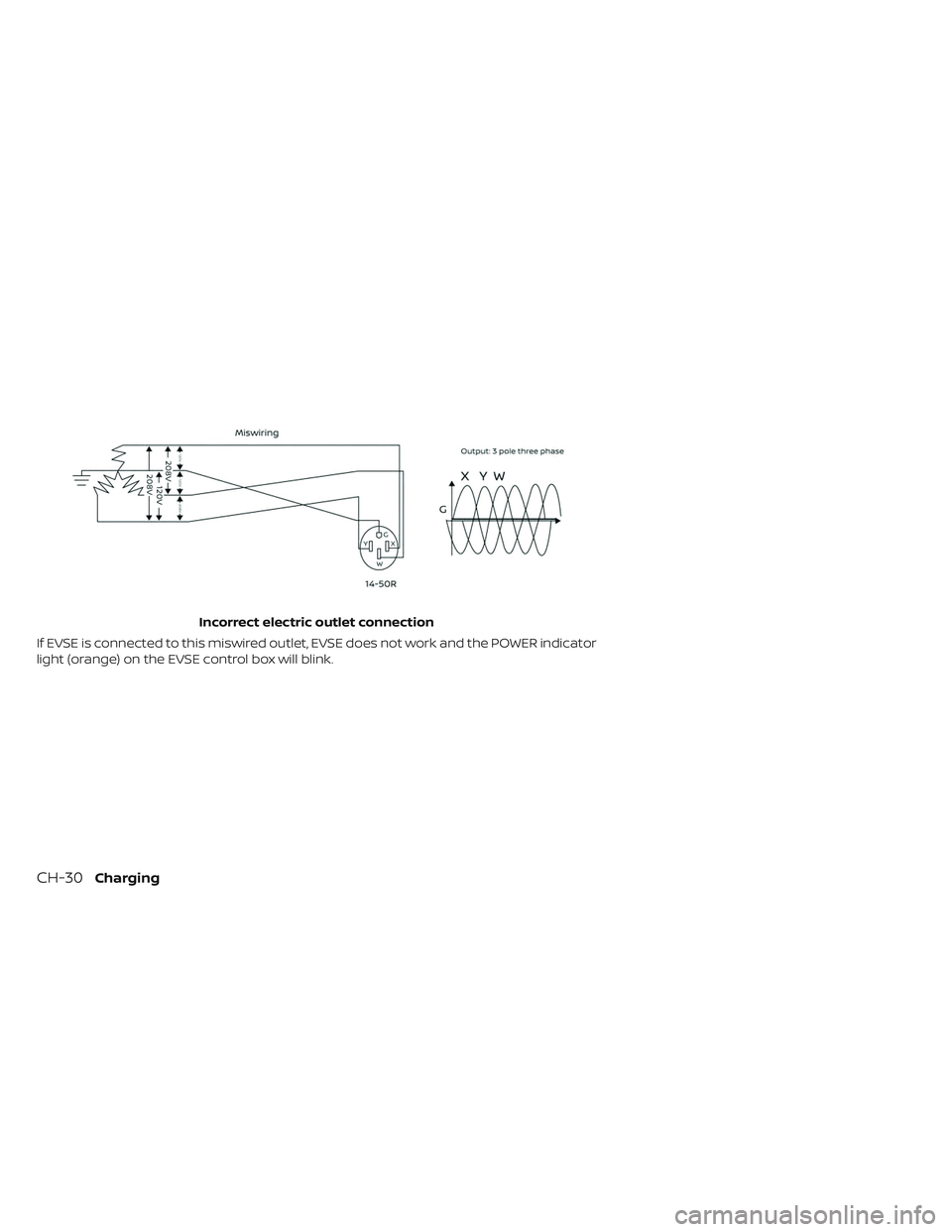

Incorrect electric outlet connection
If EVSE is connected to this miswired outlet, EVSE does not work and the POWER indicator
light (orange) on the EVSE control box will blink.
CH-30Charging

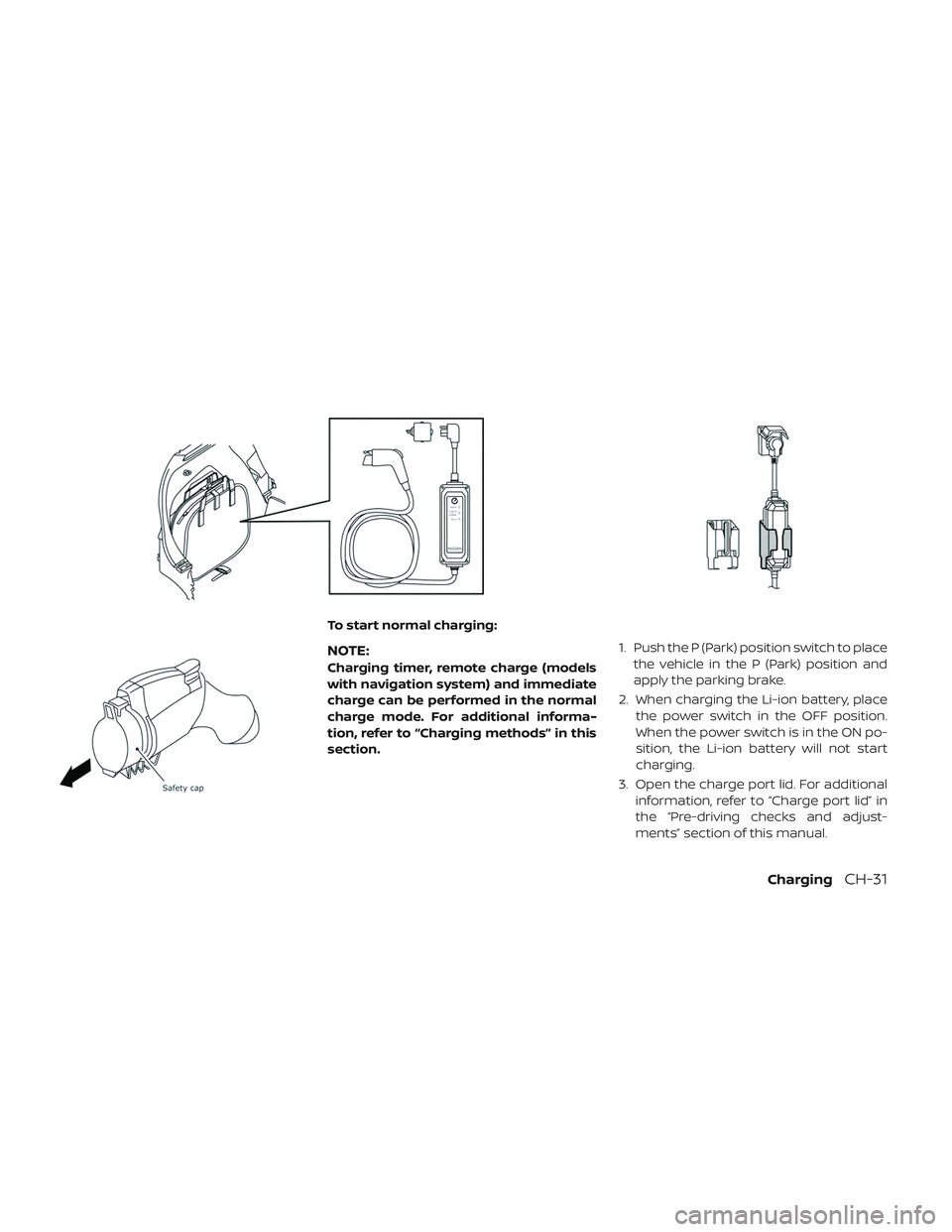

To start normal charging:
NOTE:
Charging timer, remote charge (models
with navigation system) and immediate
charge can be performed in the normal
charge mode. For additional informa-
tion, refer to “Charging methods” in this
section.1. Push the P (Park) position switch to place
the vehicle in the P (Park) position and
apply the parking brake.
2. When charging the Li-ion battery, place the power switch in the OFF position.
When the power switch is in the ON po-
sition, the Li-ion battery will not start
charging.
3. Open the charge port lid. For additional information, refer to “Charge port lid” in
the “Pre-driving checks and adjust-
ments” section of this manual.
ChargingCH-31

4. Take out the EVSE from the rear hatch.
5. Connect the electrical plug to the AC 220- 240 volt, 50A dedicated electrical outlet.
If it is connected normally, the green light
on the EVSE control box indicator light
illuminates.
NOTE:

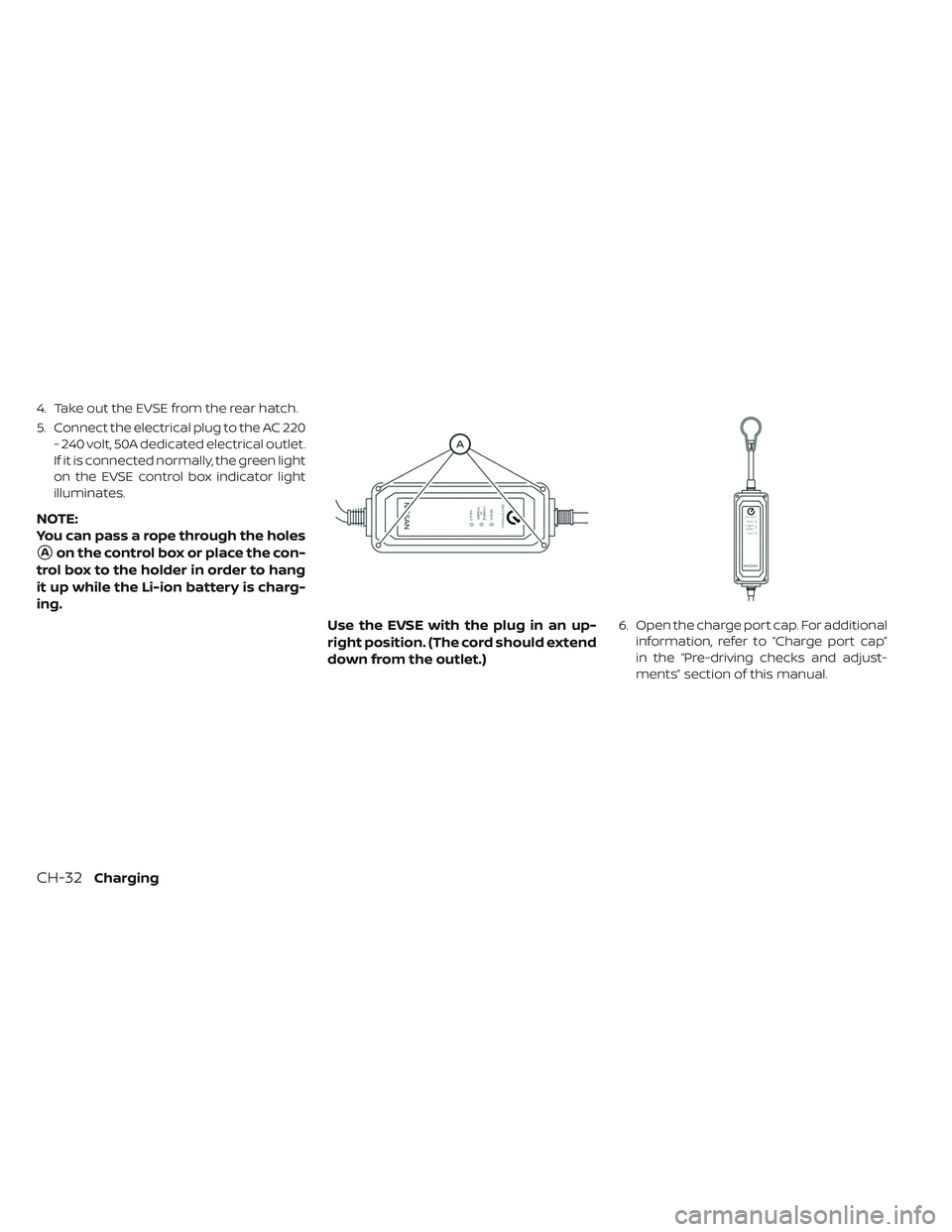

You can pass a rope through the holes
Aon the control box or place the con-
trol box to the holder in order to hang
it up while the Li-ion battery is charg-
ing.
Use the EVSE with the plug in an up-
right position. (The cord should extend
down from the outlet.)
6. Open the charge port cap. For additionalinformation, refer to “Charge port cap”
in the “Pre-driving checks and adjust-
ments” section of this manual.
CH-32Charging

7. Remove the safety cap from the chargeconnector. 8. Connect the charge connector to the
charge port. If it is connected normally, a
beep will sound once.
9. If charging has started, or if the Li-ion battery is waiting for the charging timer,
a beep will sound twice and the charg-
ing status indicator light display will
change. For additional information, refer
to “Charging status indicator lights” in
this section. 10. When recharging outside, such as in
your driveway, use a commercially
available padlock attached in position
Ato prevent thef t.
ChargingCH-33

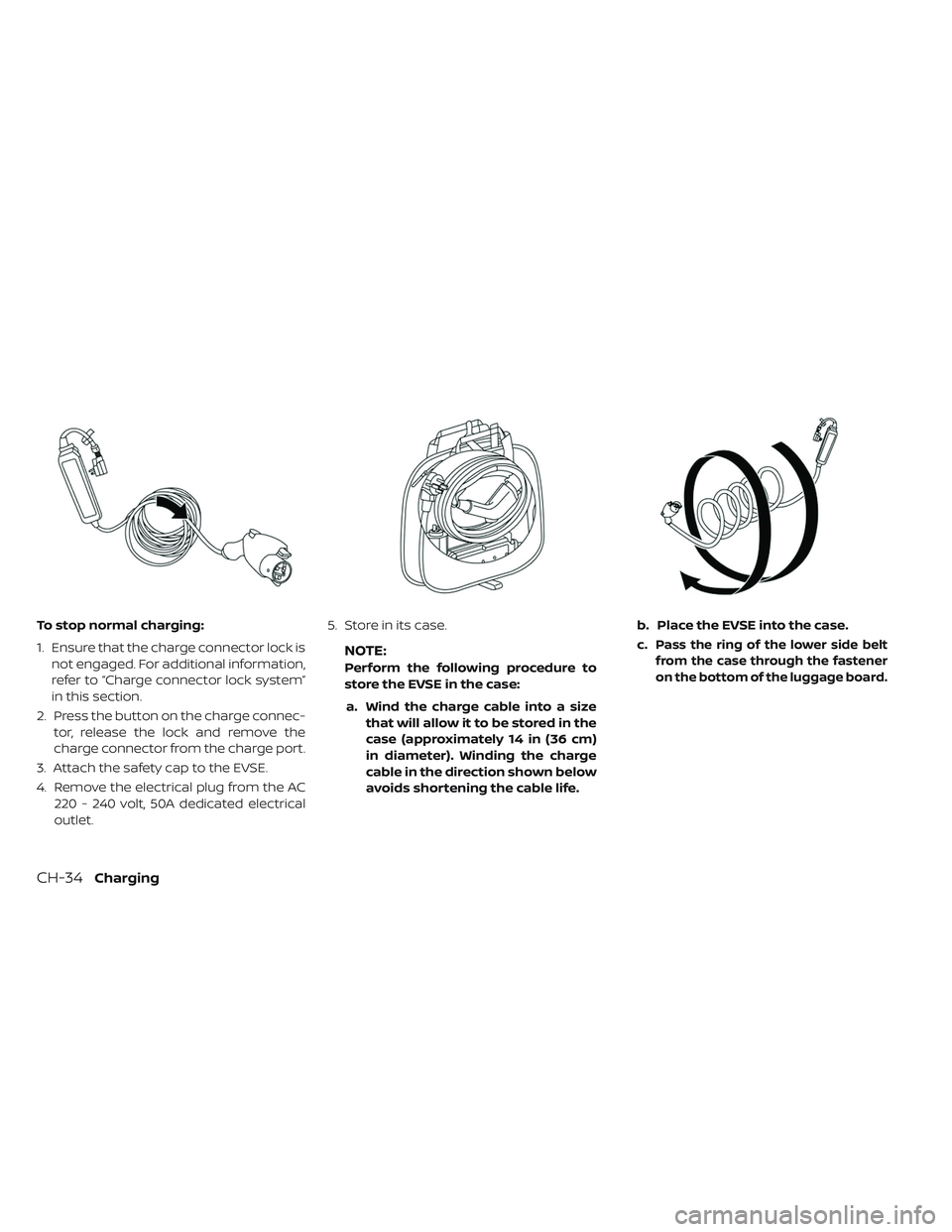

To stop normal charging:
1. Ensure that the charge connector lock isnot engaged. For additional information,
refer to “Charge connector lock system”
in this section.
2. Press the button on the charge connec- tor, release the lock and remove the
charge connector from the charge port.
3. Attach the safety cap to the EVSE.
4. Remove the electrical plug from the AC 220 - 240 volt, 50A dedicated electrical
outlet. 5. Store in its case.
NOTE:
Perform the following procedure to
store the EVSE in the case:
a. Wind the charge cable into a size that will allow it to be stored in the
case (approximately 14 in (36 cm)
in diameter). Winding the charge
cable in the direction shown below
avoids shortening the cable life. b. Place the EVSE into the case.
c.
Pass the ring of the lower side belt
from the case through the fastener
on the bottom of the luggage board.
CH-34Charging

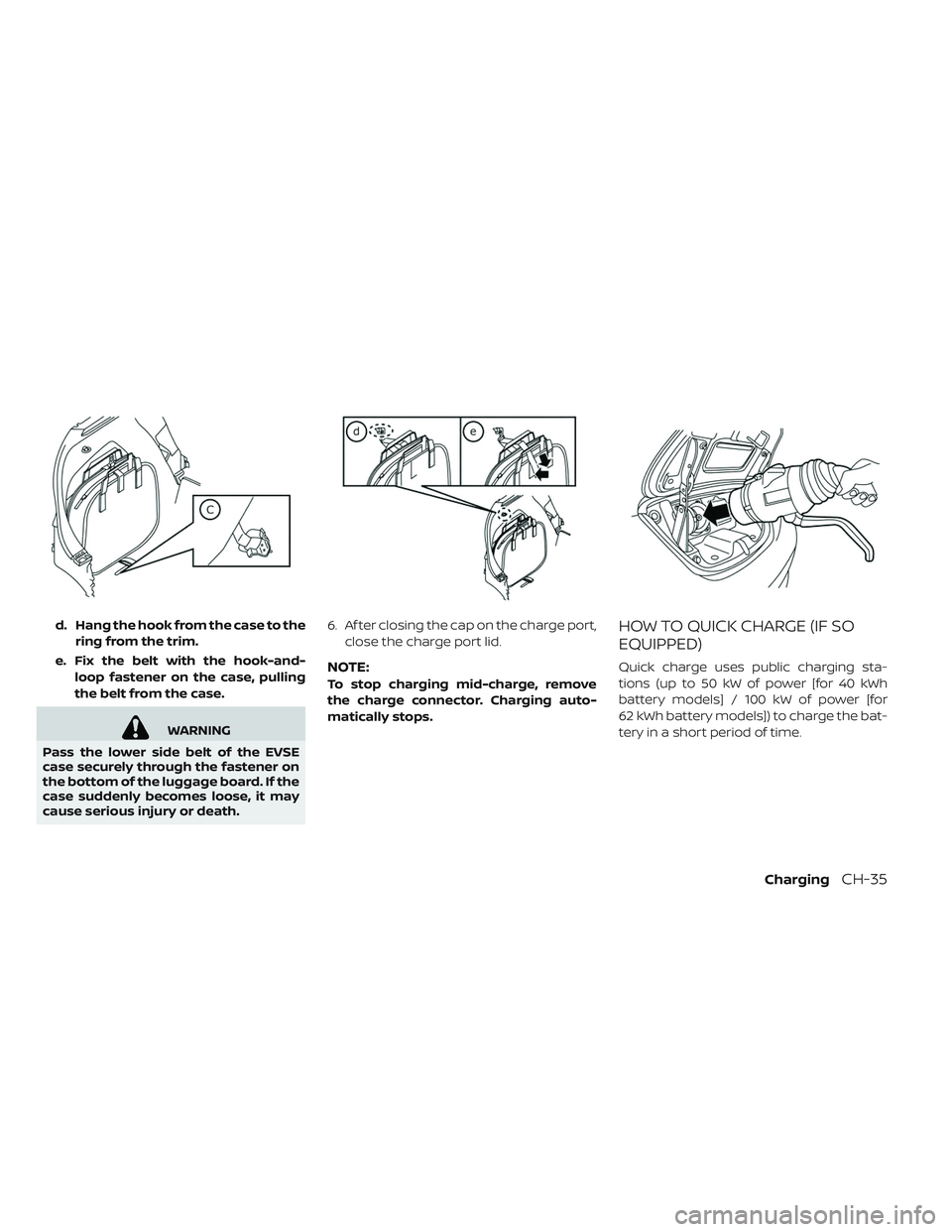

d. Hang the hook from the case to thering from the trim.
e. Fix the belt with the hook-and- loop fastener on the case, pulling
the belt from the case.
WARNING
Pass the lower side belt of the EVSE
case securely through the fastener on
the bottom of the luggage board. If the
case suddenly becomes loose, it may
cause serious injury or death. 6. Af ter closing the cap on the charge port,
close the charge port lid.
NOTE:
To stop charging mid-charge, remove
the charge connector. Charging auto-
matically stops.
HOW TO QUICK CHARGE (IF SO
EQUIPPED)
Quick charge uses public charging sta-
tions (up to 50 kW of power [for 40 kWh
battery models] / 100 kW of power [for
62 kWh battery models]) to charge the bat-
tery in a short period of time.
ChargingCH-35

WARNING
• Always use a quick charger that is compatible with the LEAF. Using an
incompatible quick charger may
cause a fire or malfunction resulting
in serious personal injury or death.
• Before starting the quick charge, carefully read the instructions pro-
vided on the quick charger and
make sure the quick charge connec-
tor is properly connected and
locked. Failure to connect or operate
the quick charger correctly could
cause damage to the vehicle or the
charging equipment.
NOTE:
•Quick charging is possible (even several
times a day) if the battery temperature
is not near the red zone. If the battery
temperature reaches the red zone, in
order to protect the battery, quick
charging is not allowed and the power
limitation mode will be triggered. For
additional information, refer to “Li-ion
battery temperature gauge” in the “EV
Overview” and “Instruments and con-
trols” section of this manual. •
When the Li-ion battery available
charge and the Li-ion battery capacity
are shown on the quick charger unit, the
readings may differ from the Li-ion bat-
tery available charge/capacity reading
shown on the vehicle’s display.
To start charging:
1. Push the P (Park) position switch to placethe vehicle in the P (Park) position and
apply the parking brake.
2. When charging the Li-ion battery, place the power switch in the OFF position.
When the power switch is in the ON po-
sition, the Li-ion battery will not start
charging.
3. Open the charge port lid and charge port cap. For additional information, re-
fer to “Charge port lid” and “Charge port
cap” in the “Pre-driving checks and ad-
justments” section of this manual.
CH-36Charging

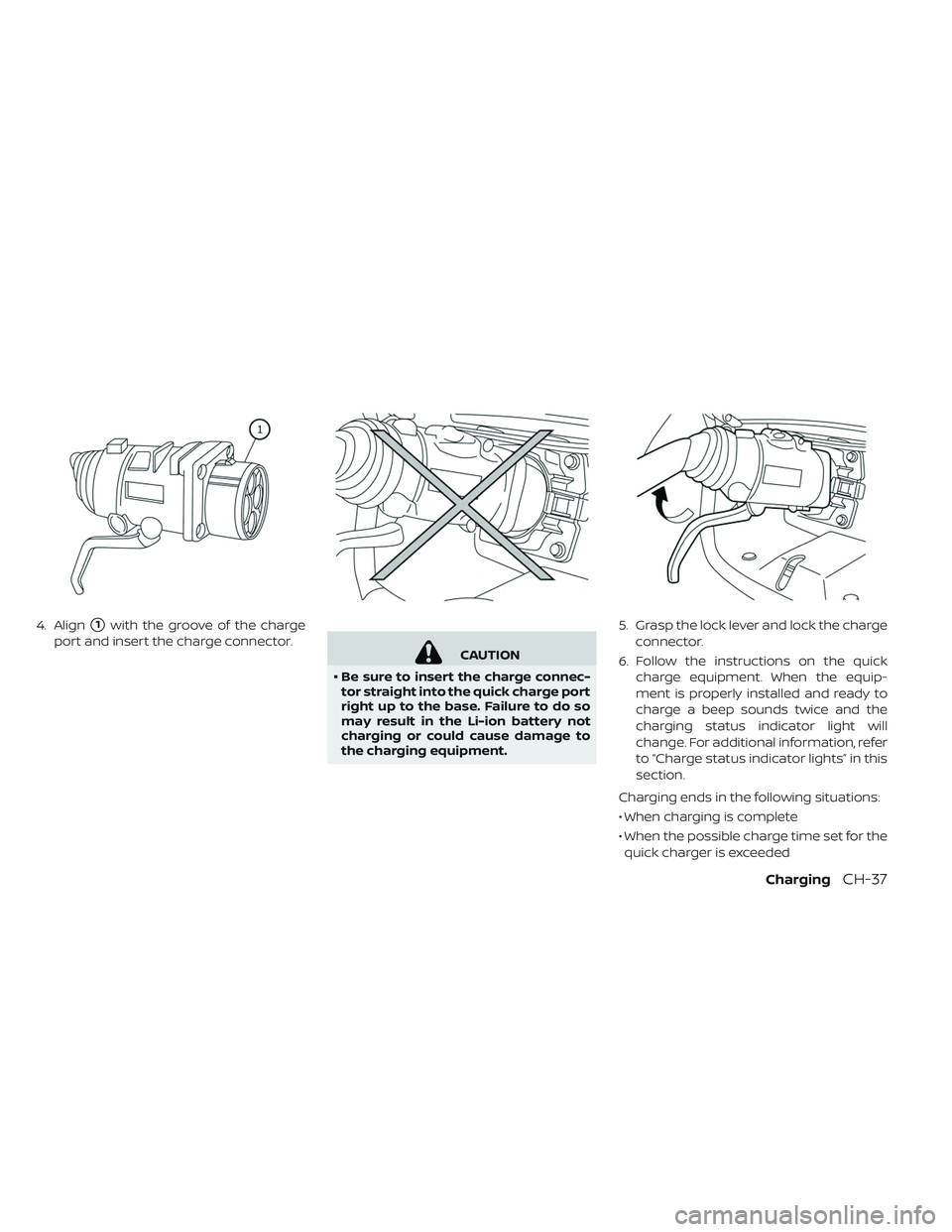

4. Align1with the groove of the charge
port and insert the charge connector.
CAUTION
• Be sure to insert the charge connec-
tor straight into the quick charge port
right up to the base. Failure to do so
may result in the Li-ion battery not
charging or could cause damage to
the charging equipment. 5. Grasp the lock lever and lock the charge
connector.
6. Follow the instructions on the quick charge equipment. When the equip-
ment is properly installed and ready to
charge a beep sounds twice and the
charging status indicator light will
change. For additional information, refer
to “Charge status indicator lights” in this
section.
Charging ends in the following situations:
• When charging is complete
• When the possible charge time set for the quick charger is exceeded
ChargingCH-37
