Timer Charge setting screenChg. Timer Only at HOME (models
with Navigation System):
If you register your home in the navigation
system and turn on “Chg. Timer Only at
HOME,” the timer charging is applied only
when the normal or trickle charge is per-
formed at home. For additional informa-
tion, refer to the NissanConnect® Manual
(for Leaf ) for the registration. When the
charging is performed at a place other
than home, the charging automatically
starts when a normal or trickle charge con-
nector is connected to the vehicle.
Full charge has priority:
If “Full charge has priority” is turned on, the
charge start timer will be advanced if the
fully charged condition of the Li-ion battery
cannot be achieved during the start time
to end time interval. If the fully charged
battery condition cannot be achieved, the
charge continues until the battery is fully
charged.
CH-46Charging

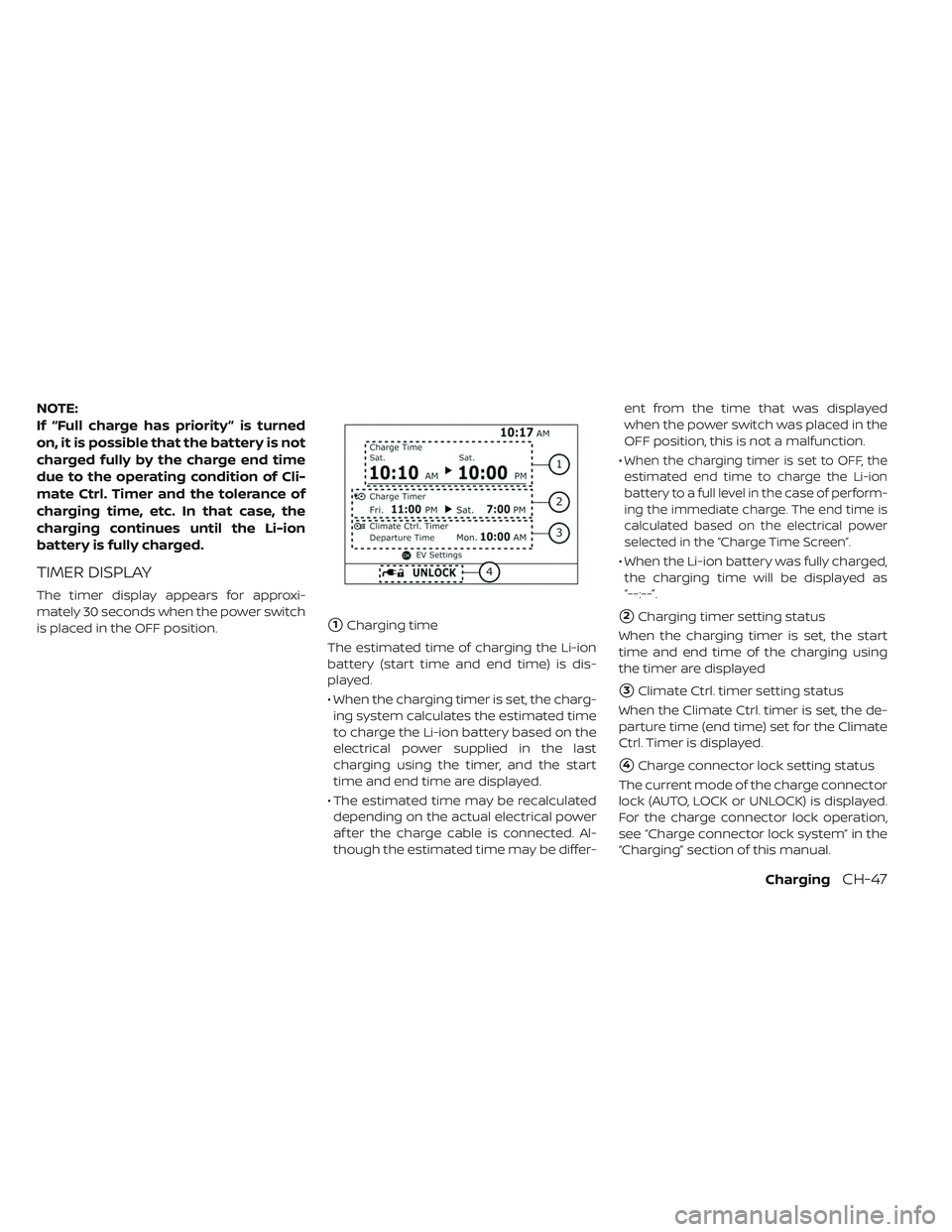

NOTE:
If “Full charge has priority ” is turned
on, it is possible that the battery is not
charged fully by the charge end time
due to the operating condition of Cli-
mate Ctrl. Timer and the tolerance of
charging time, etc. In that case, the
charging continues until the Li-ion
battery is fully charged.
TIMER DISPLAY
The timer display appears for approxi-
mately 30 seconds when the power switch
is placed in the OFF position.
1Charging time
The estimated time of charging the Li-ion
battery (start time and end time) is dis-
played.
• When the charging timer is set, the charg- ing system calculates the estimated time
to charge the Li-ion battery based on the
electrical power supplied in the last
charging using the timer, and the start
time and end time are displayed.
• The estimated time may be recalculated depending on the actual electrical power
af ter the charge cable is connected. Al-
though the estimated time may be differ- ent from the time that was displayed
when the power switch was placed in the
OFF position, this is not a malfunction.
•
When the charging timer is set to OFF, the
estimated end time to charge the Li-ion
battery to a full level in the case of perform-
ing the immediate charge. The end time is
calculated based on the electrical power
selected in the “Charge Time Screen”.
• When the Li-ion battery was fully charged, the charging time will be displayed as
“--:--”.
2Charging timer setting status
When the charging timer is set, the start
time and end time of the charging using
the timer are displayed
3Climate Ctrl. timer setting status
When the Climate Ctrl. timer is set, the de-
parture time (end time) set for the Climate
Ctrl. Timer is displayed.
4Charge connector lock setting status
The current mode of the charge connector
lock (AUTO, LOCK or UNLOCK) is displayed.
For the charge connector lock operation,
see “Charge connector lock system” in the
“Charging” section of this manual.
ChargingCH-47

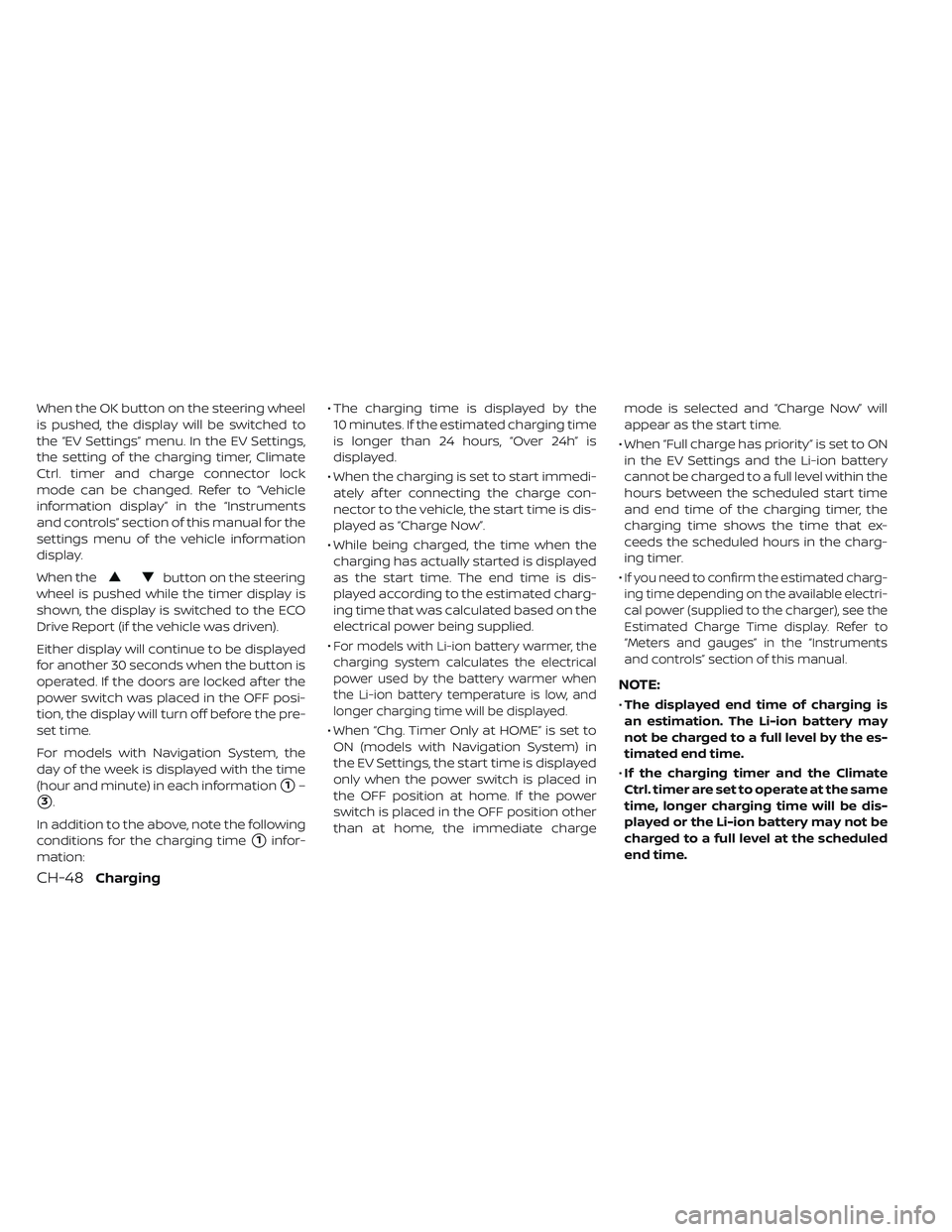

When the OK button on the steering wheel
is pushed, the display will be switched to
the “EV Settings” menu. In the EV Settings,
the setting of the charging timer, Climate
Ctrl. timer and charge connector lock
mode can be changed. Refer to “Vehicle
information display” in the “Instruments
and controls” section of this manual for the
settings menu of the vehicle information
display.
When the
button on the steering
wheel is pushed while the timer display is
shown, the display is switched to the ECO
Drive Report (if the vehicle was driven).
Either display will continue to be displayed
for another 30 seconds when the button is
operated. If the doors are locked af ter the
power switch was placed in the OFF posi-
tion, the display will turn off before the pre-
set time.
For models with Navigation System, the
day of the week is displayed with the time
(hour and minute) in each information
1–
3.
In addition to the above, note the following
conditions for the charging time
1infor-
mation: • The charging time is displayed by the
10 minutes. If the estimated charging time
is longer than 24 hours, “Over 24h” is
displayed.
• When the charging is set to start immedi- ately af ter connecting the charge con-
nector to the vehicle, the start time is dis-
played as “Charge Now”.
• While being charged, the time when the charging has actually started is displayed
as the start time. The end time is dis-
played according to the estimated charg-
ing time that was calculated based on the
electrical power being supplied.
•
For models with Li-ion battery warmer, the
charging system calculates the electrical
power used by the battery warmer when
the Li-ion battery temperature is low, and
longer charging time will be displayed.
• When “Chg. Timer Only at HOME” is set to ON (models with Navigation System) in
the EV Settings, the start time is displayed
only when the power switch is placed in
the OFF position at home. If the power
switch is placed in the OFF position other
than at home, the immediate charge mode is selected and “Charge Now” will
appear as the start time.
• When “Full charge has priority” is set to ON in the EV Settings and the Li-ion battery
cannot be charged to a full level within the
hours between the scheduled start time
and end time of the charging timer, the
charging time shows the time that ex-
ceeds the scheduled hours in the charg-
ing timer.
•
If you need to confirm the estimated charg-
ing time depending on the available electri-
cal power (supplied to the charger), see the
Estimated Charge Time display. Refer to
“Meters and gauges” in the “Instruments
and controls” section of this manual.
NOTE:
• The displayed end time of charging is
an estimation. The Li-ion battery may
not be charged to a full level by the es-
timated end time.
• If the charging timer and the Climate
Ctrl. timer are set to operate at the same
time, longer charging time will be dis-
played or the Li-ion battery may not be
charged to a full level at the scheduled
end time.
CH-48Charging

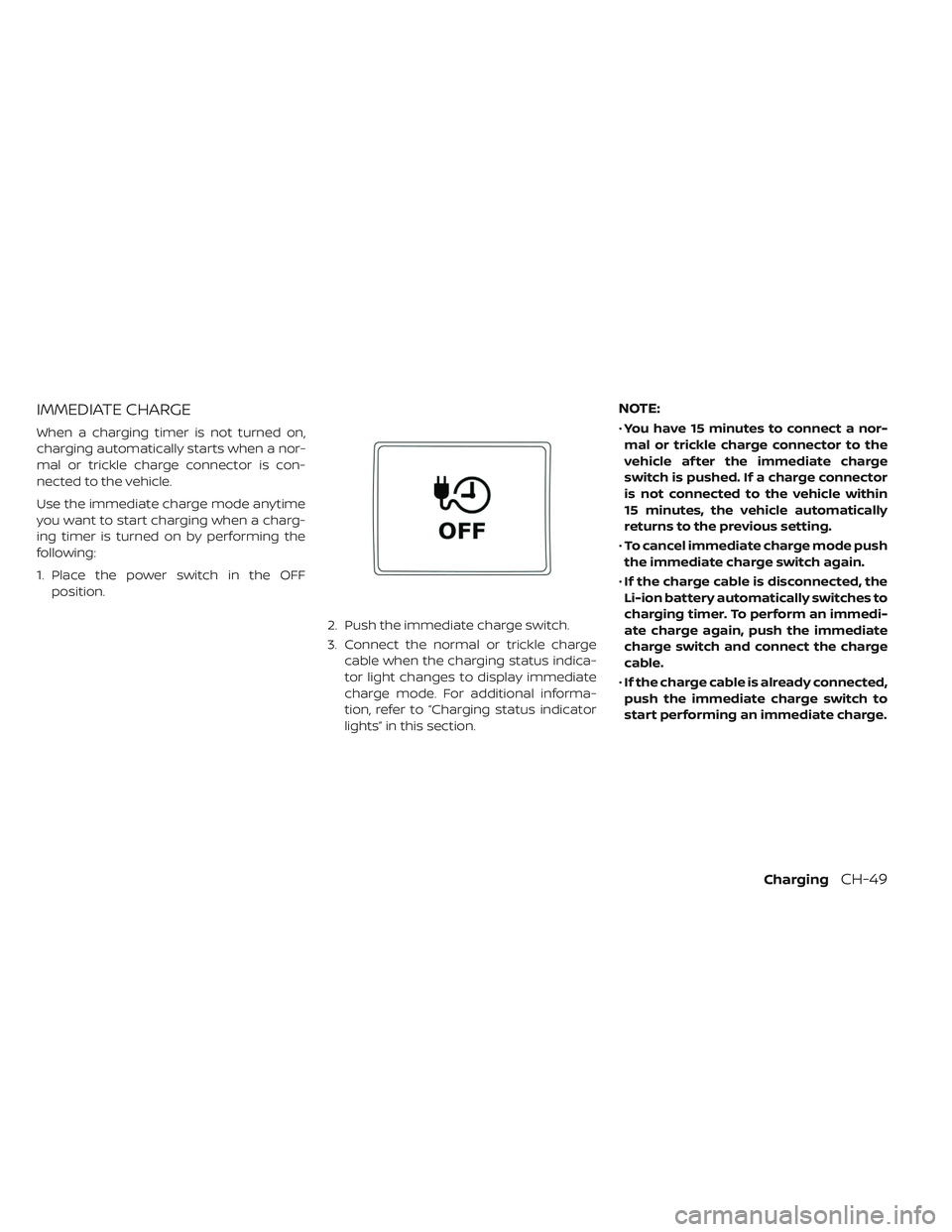

IMMEDIATE CHARGE
When a charging timer is not turned on,
charging automatically starts when a nor-
mal or trickle charge connector is con-
nected to the vehicle.
Use the immediate charge mode anytime
you want to start charging when a charg-
ing timer is turned on by performing the
following:
1. Place the power switch in the OFFposition.
2. Push the immediate charge switch.
3. Connect the normal or trickle chargecable when the charging status indica-
tor light changes to display immediate
charge mode. For additional informa-
tion, refer to “Charging status indicator
lights” in this section.
NOTE:
•You have 15 minutes to connect a nor-
mal or trickle charge connector to the
vehicle af ter the immediate charge
switch is pushed. If a charge connector
is not connected to the vehicle within
15 minutes, the vehicle automatically
returns to the previous setting.
• To cancel immediate charge mode push
the immediate charge switch again.
• If the charge cable is disconnected, the
Li-ion battery automatically switches to
charging timer. To perform an immedi-
ate charge again, push the immediate
charge switch and connect the charge
cable.
• If the charge cable is already connected,
push the immediate charge switch to
start performing an immediate charge.
ChargingCH-49

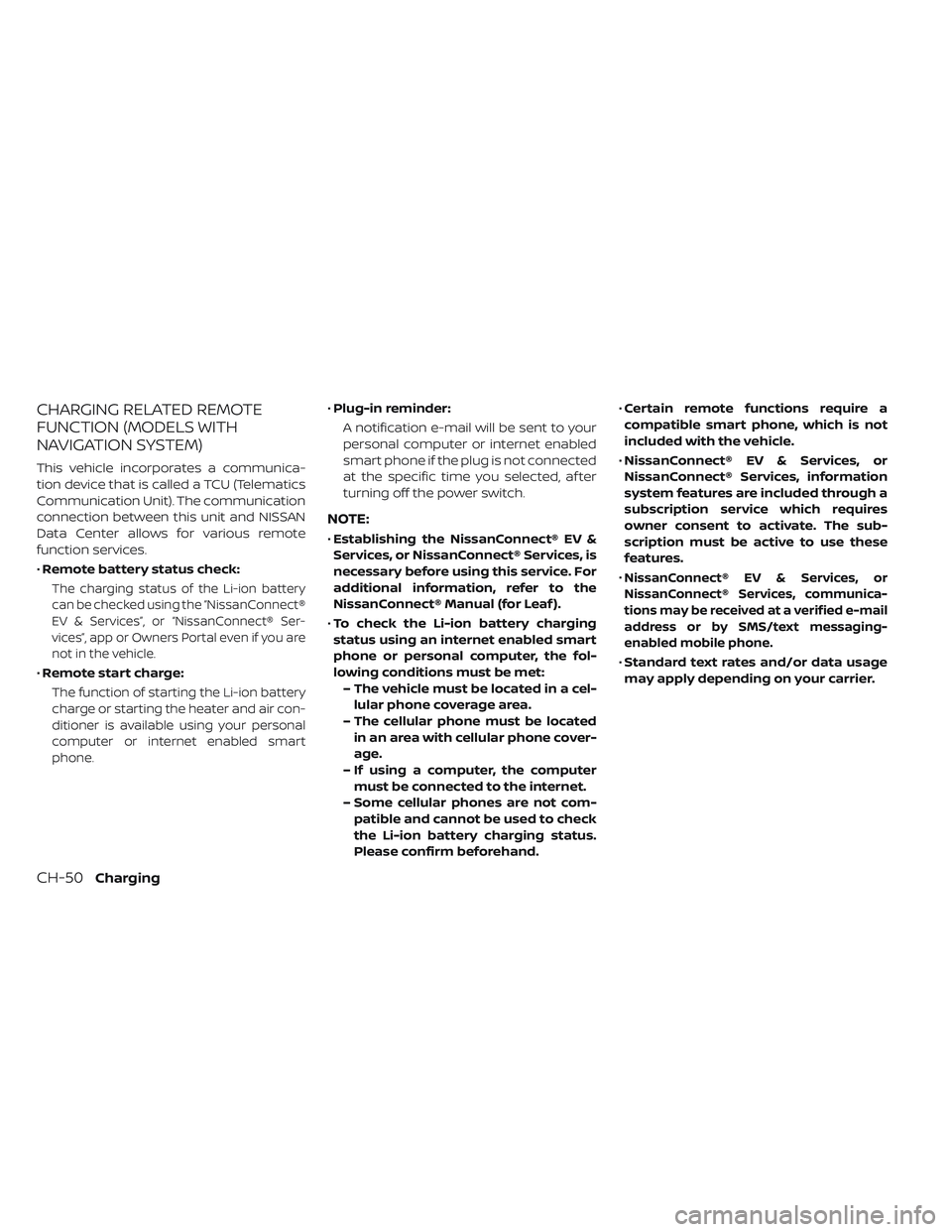

CHARGING RELATED REMOTE
FUNCTION (MODELS WITH
NAVIGATION SYSTEM)
This vehicle incorporates a communica-
tion device that is called a TCU (Telematics
Communication Unit). The communication
connection between this unit and NISSAN
Data Center allows for various remote
function services.
•Remote battery status check:
The charging status of the Li-ion battery
can be checked using the “NissanConnect®
EV & Services”, or “NissanConnect® Ser-
vices”, app or Owners Portal even if you are
not in the vehicle.
•Remote start charge:
The function of starting the Li-ion battery
charge or starting the heater and air con-
ditioner is available using your personal
computer or internet enabled smart
phone.
•Plug-in reminder:
A notification e-mail will be sent to your
personal computer or internet enabled
smart phone if the plug is not connected
at the specific time you selected, af ter
turning off the power switch.
NOTE:
•Establishing the NissanConnect® EV &
Services, or NissanConnect® Services, is
necessary before using this service. For
additional information, refer to the
NissanConnect® Manual (for Leaf ).
• To check the Li-ion battery charging
status using an internet enabled smart
phone or personal computer, the fol-
lowing conditions must be met:
– The vehicle must be located in a cel- lular phone coverage area.
– The cellular phone must be located in an area with cellular phone cover-
age.
– If using a computer, the computer must be connected to the internet.
– Some cellular phones are not com- patible and cannot be used to check
the Li-ion battery charging status.
Please confirm beforehand. •
Certain remote functions require a
compatible smart phone, which is not
included with the vehicle.
• NissanConnect® EV & Services, or
NissanConnect® Services, information
system features are included through a
subscription service which requires
owner consent to activate. The sub-
scription must be active to use these
features.
•
NissanConnect® EV & Services, or
NissanConnect® Services, communica-
tions may be received at a verified e-mail
address or by SMS/text messaging-
enabled mobile phone.
• Standard text rates and/or data usage
may apply depending on your carrier.
CH-50Charging

CHARGING STATUS INDICATOR
LIGHTS
The charging status indicator lights (1) to (3)
display the charging status, and are visible
from both inside and outside the vehicle.When the normal charge connector lock
is unlocked
All of the indicator lights, (1) to (3), will flash
and a beep will sound three times when
the normal charge connector lock switch
on the Intelligent Key or the charge port lid
switch is pushed.
When the normal charge connector is
connected incorrectly
All of the indicator lights, (1) to (3), will flash
and a beep will sound three times within
30 seconds when the charge connector is
connected incorrectly to the normal
charge port.Ready for charging timer
If the charging timer is set, the indicator
lights illuminate in order from (1) to (3). The
indicator lights turn off af ter approximately
5 minutes.
CHARGING RELATED INDICATOR
LIGHTS
ChargingCH-51

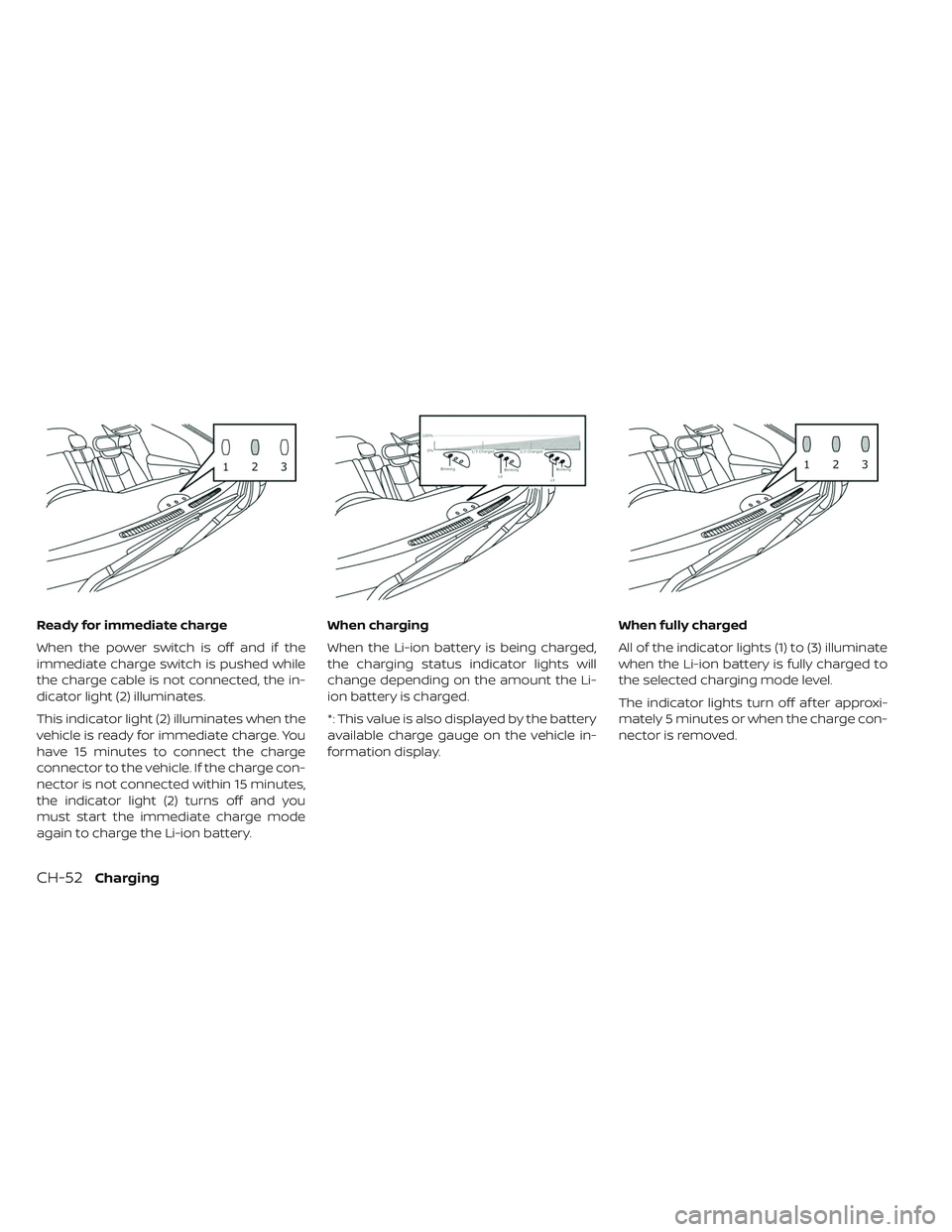

Ready for immediate charge
When the power switch is off and if the
immediate charge switch is pushed while
the charge cable is not connected, the in-
dicator light (2) illuminates.
This indicator light (2) illuminates when the
vehicle is ready for immediate charge. You
have 15 minutes to connect the charge
connector to the vehicle. If the charge con-
nector is not connected within 15 minutes,
the indicator light (2) turns off and you
must start the immediate charge mode
again to charge the Li-ion battery.When charging
When the Li-ion battery is being charged,
the charging status indicator lights will
change depending on the amount the Li-
ion battery is charged.
*: This value is also displayed by the battery
available charge gauge on the vehicle in-
formation display.
When fully charged
All of the indicator lights (1) to (3) illuminate
when the Li-ion battery is fully charged to
the selected charging mode level.
The indicator lights turn off af ter approxi-
mately 5 minutes or when the charge con-
nector is removed.
CH-52Charging

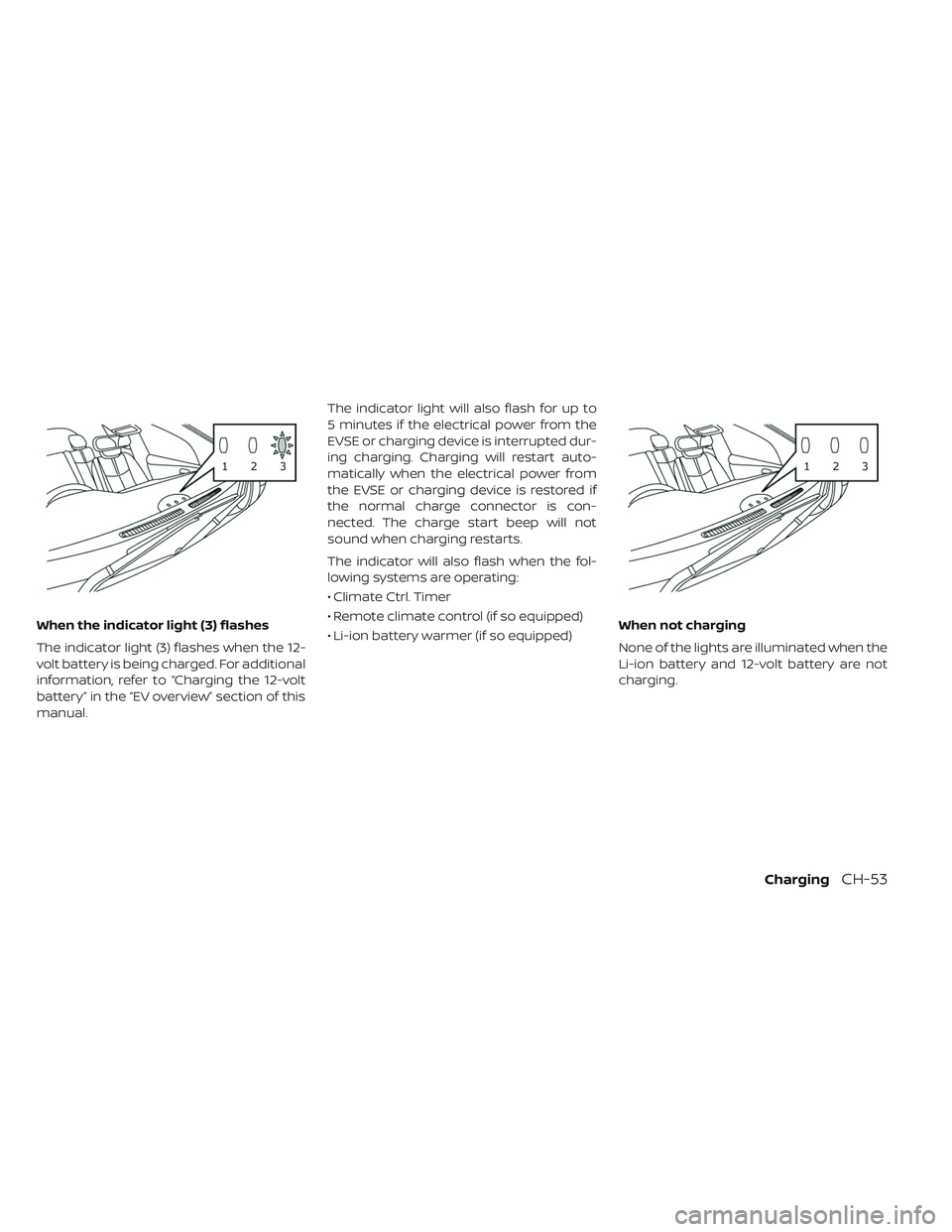

When the indicator light (3) flashes
The indicator light (3) flashes when the 12-
volt battery is being charged. For additional
information, refer to “Charging the 12-volt
battery” in the “EV overview” section of this
manual.The indicator light will also flash for up to
5 minutes if the electrical power from the
EVSE or charging device is interrupted dur-
ing charging. Charging will restart auto-
matically when the electrical power from
the EVSE or charging device is restored if
the normal charge connector is con-
nected. The charge start beep will not
sound when charging restarts.
The indicator will also flash when the fol-
lowing systems are operating:
• Climate Ctrl. Timer
• Remote climate control (if so equipped)
• Li-ion battery warmer (if so equipped)
When not charging
None of the lights are illuminated when the
Li-ion battery and 12-volt battery are not
charging.
ChargingCH-53
