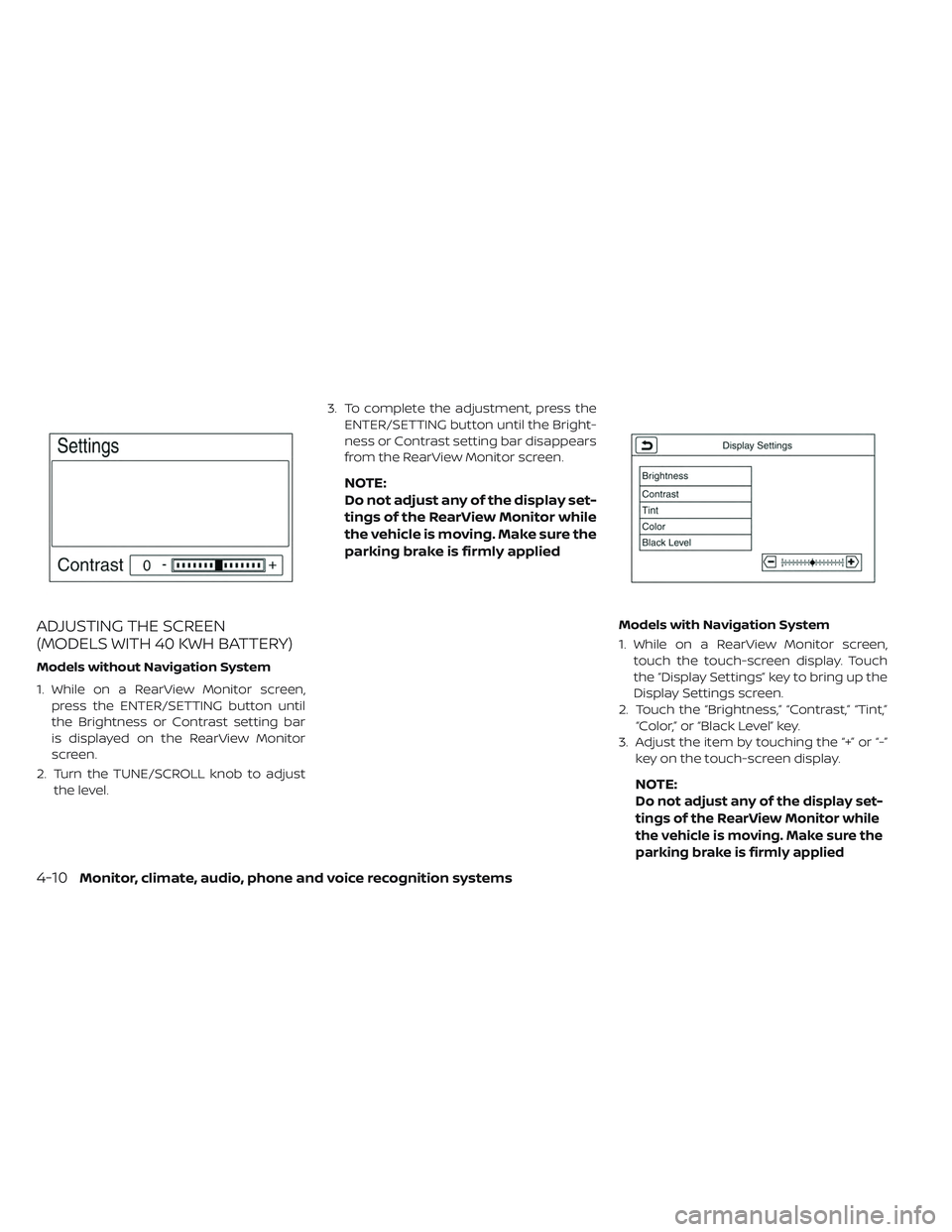

ADJUSTING THE SCREEN
(MODELS WITH 40 KWH BATTERY)
Models without Navigation System
1. While on a RearView Monitor screen,press the ENTER/SETTING button until
the Brightness or Contrast setting bar
is displayed on the RearView Monitor
screen.
2. Turn the TUNE/SCROLL knob to adjust the level. 3. To complete the adjustment, press the
ENTER/SETTING button until the Bright-
ness or Contrast setting bar disappears
from the RearView Monitor screen.
NOTE:
Do not adjust any of the display set-
tings of the RearView Monitor while
the vehicle is moving. Make sure the
parking brake is firmly applied
Models with Navigation System
1. While on a RearView Monitor screen,touch the touch-screen display. Touch
the “Display Settings” key to bring up the
Display Settings screen.
2. Touch the “Brightness,” “Contrast,” “Tint,” “Color,” or “Black Level” key.
3. Adjust the item by touching the “+” or “-” key on the touch-screen display.
NOTE:
Do not adjust any of the display set-
tings of the RearView Monitor while
the vehicle is moving. Make sure the
parking brake is firmly applied
4-10Monitor, climate, audio, phone and voice recognition systems

ADJUSTING THE SCREEN
(MODELS WITH 62 KWH BATTERY)
1. Push the MENU button.
2. Touch the ”Settings” key.
3. Touch the “Camera” key.
4. Touch the “Display Settings” key.
5. Touch the “Brightness”, “Contrast”, “Tint”,“Color”, or “Black Level” key.
6. Adjust the item by touching the “+” or “-” key on the touch-screen display.
NOTE:
Do not adjust any of the display
settings of the RearView Monitor
while the vehicle is moving. Make
sure the parking brake is firmly
applied
HOW TO TURN ON AND OFF
PREDICTIVE COURSE LINES (FOR
MODELS WITH 40 KWH BATTERY)
To toggle ON and OFF the predictive course
lines while in the P (Park) position:
1. Touch the “Settings” key.
2. Touch the “Camera” key.
3. Touch the “Predictive Course Lines” keyto turn the feature ON or OFF.
To toggle ON and OFF the predictive course
lines while in the R (Reverse) position:
1. Touch the touch-screen display.
2. Touch the “Predictive Course Lines” key to turn the feature ON or OFF.
HOW TO TURN ON AND OFF
PREDICTIVE COURSE LINES (FOR
MODELS WITH 62 KWH BATTERY)
To toggle ON and OFF the predictive course
lines while in the P (Park) position:
1. Touch the “Settings” key.
2. Touch the “Camera” key.
3. Touch the “Predictive Course Lines” keyto turn the feature ON or OFF.
REARVIEW MONITOR SYSTEM
LIMITATIONS
WARNING
Listed below are the system limita-
tions for RearView Monitor. Failure to
operate the vehicle in accordance with
these system limitations could result
in serious injury or death.
• The system cannot completely eliminate blind spots and may not
show every object.
Monitor, climate, audio, phone and voice recognition systems4-11

• Underneath the bumper and thecorner areas of the bumper cannot
be viewed on the RearView Monitor
because of its monitoring range
limitation. The system will not show
small objects below the bumper,
and may not show objects close to
the bumper or on the ground.
• Objects viewed in the RearView Monitor differ from actual distance
because a wide-angle lens is used.
• Objects in the RearView Monitor will appear visually opposite compared
to when viewed in the rearview and
outside mirrors.
• Use the displayed lines as a refer- ence. The lines are highly affected by
the number of occupants, fuel level,
vehicle position, road conditions
and road grade.
• Make sure that the rear hatch is se- curely closed when backing up.
• Do not put anything on the rearview camera. The rearview camera is in-
stalled above the license plate. • When washing the vehicle with high
pressure water, be sure not to spray
it around the camera. Otherwise,
water may enter the camera unit
causing water condensation on the
lens, a malfunction, fire or an electric
shock.
• Do not strike the camera. It is a pre- cision instrument. Otherwise, it may
malfunction or cause damage re-
sulting in a fire or an electric shock.
The following are operating limitations and
do not represent a system malfunction:
• When the temperature is extremely high or low, the screen may not clearly display
objects.
• When strong light directly shines on the camera, objects may not be displayed
clearly.
• Vertical lines may be seen in objects on the screen. This is due to strong reflected
light from the bumper.
• The screen may flicker under fluorescent light. • The colors of objects on the RearView
Monitor may differ somewhat from the
actual color of objects.
• Objects on the monitor may not be clear in a dark environment.
• There may be a delay when switching be- tween views.
• If dirt, rain or snow accumulate on the camera, RearView Monitor may not dis-
play objects clearly. Clean the camera.
• Do not use wax on the camera lens. Wipe off any wax with a clean cloth dampened
with a diluted mild cleaning agent, then
wipe with a dry cloth.
4-12Monitor, climate, audio, phone and voice recognition systems

SYSTEM MAINTENANCE
CAUTION
• Do not use alcohol, benzine or thin- ner to clean the camera. This will
cause discoloration.
• Do not damage the camera as the monitor screen may be adversely
affected. If dirt, rain or snow accumulates on the
camera
1, the RearView Monitor may not
display objects clearly. Clean the camera
by wiping it with a cloth dampened with a
diluted mild cleaning agent and then wip-
ing it with a dry cloth.
Monitor, climate, audio, phone and voice recognition systems4-13

1. CAMERA button
WARNING
Failure to follow the warnings and in-
structions for proper use of the Intelli-
gent Around View Monitor system
could result in serious injury or death.

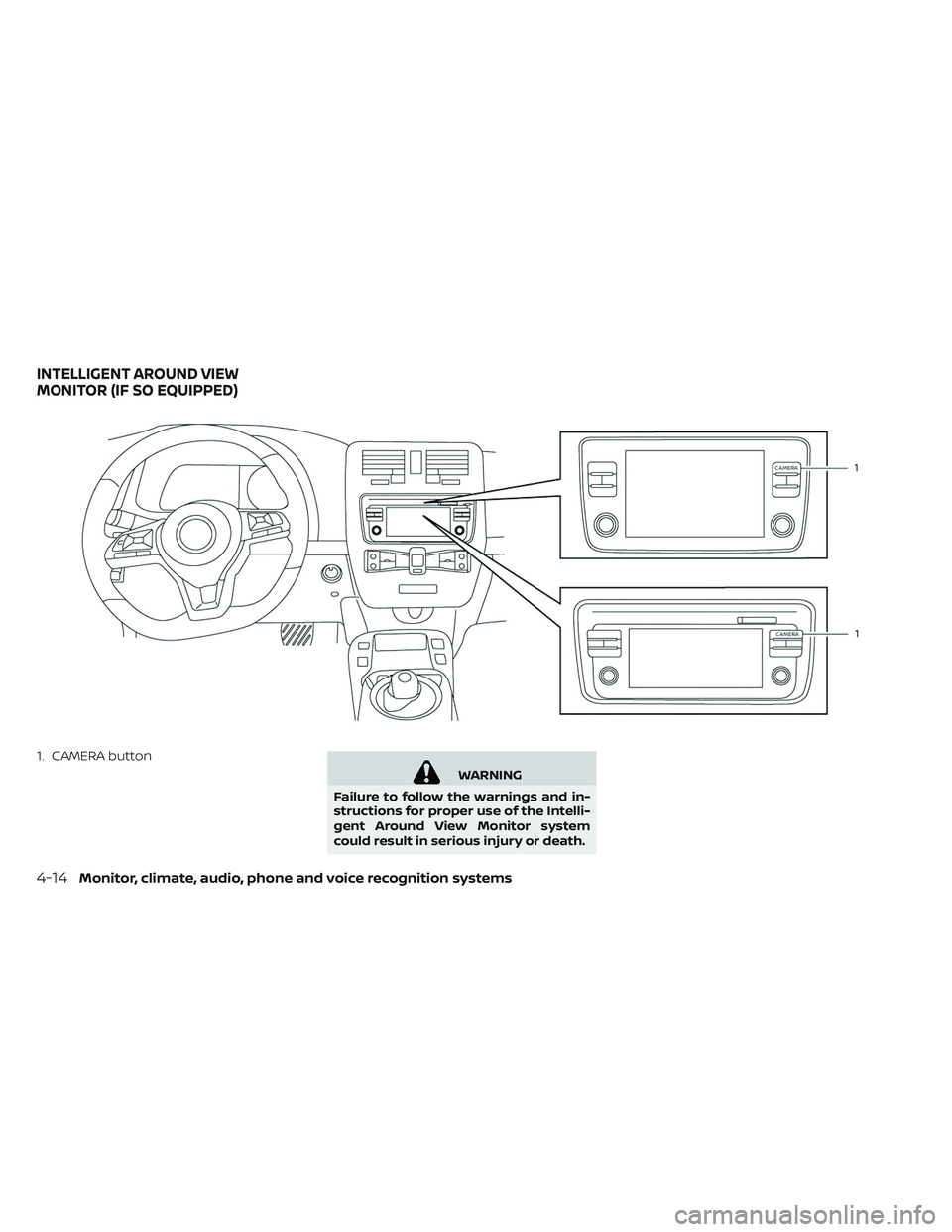

INTELLIGENT AROUND VIEW
MONITOR (IF SO EQUIPPED)
4-14Monitor, climate, audio, phone and voice recognition systems

• The Intelligent Around View Monitoris a convenience feature and is not a
substitute for proper vehicle opera-
tion because it has areas where ob-
jects cannot be viewed. The four cor-
ners of the vehicle in particular, are
areas where objects do not always
appear in the bird’s-eye, front, or
rear views. Always check your sur-
roundings to be sure that it is safe to
move before operating the vehicle.
Always operate the vehicle slowly.
• The driver is always responsible for safety during parking and other ma-
neuvers.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.
The Intelligent Around View Monitor sys-
tem is designed as an aid to the driver in
situations such as slot parking or parallel
parking. The monitor displays various
views of the position of the vehicle in a split
screen format. Not all views are available at
all times. Available views:
• Front View
The view of the front of the vehicle.
• Rear View The view of the rear of the vehicle.
• Bird’s-Eye View The surrounding views of the vehicle
from above.
• Front-Side View The view around and ahead of the front
passenger’s side wheel.
• Full screen rear view The view to the rear of the vehicle (which
is a little wider than the standard rear
view). To display the multiple views, the Intelligent
Around View Monitor system uses cam-
eras located in the front grille, on the vehi-
cle’s outside mirrors and one just above
the vehicle’s license plate
1.
Monitor, climate, audio, phone and voice recognition systems4-15

INTELLIGENT AROUND VIEW
MONITOR SYSTEM OPERATION
With the EV (electric vehicle) system on,
move the shif t lever to the R (Reverse) po-
sition or press the CAMERA button to oper-
ate the Intelligent Around View Monitor. The
screen displayed on the Intelligent Around
View Monitor will automatically return to
the previous screen 3 minutes af ter the
CAMERA button has been pressed with the
shif t lever in a position other than the R
(Reverse) position.
Available views
WARNING
• The distance guide lines and the ve- hicle width lines should be used as a
reference only when the vehicle is on
a paved, level surface. The apparent
distance viewed on the monitor may
be different than the actual distance
between the vehicle and displayed
objects. • Use the displayed lines and the
bird’s eye view as a reference. The
lines and the bird’s-eye view are
greatly affected by the number of
occupants, cargo, fuel level, vehicle
position, road condition and road
grade.
• If the tires are replaced with differ- ent sized tires, the predictive course
lines and the bird’s-eye view may be
displayed incorrectly.
• When driving the vehicle up a hill, objects viewed in the monitor are
further than they appear. When driv-
ing the vehicle down a hill, objects
viewed in the monitor are closer
than they appear.
• Objects in the rear view will appear visually opposite compared to when
viewed in the rear view and outside
mirrors.
• Use the mirrors or actually look to properly judge distances to other
objects.
• On a snow-covered or slippery road, there may be a difference between
the predictive course lines and the
actual course line. • The vehicle width and predictive
course lines are wider than the ac-
tual width and course.
• The displayed lines will appear slightly off to the right, because the
rearview camera is not installed in
the rear center of the vehicle.
4-16Monitor, climate, audio, phone and voice recognition systems

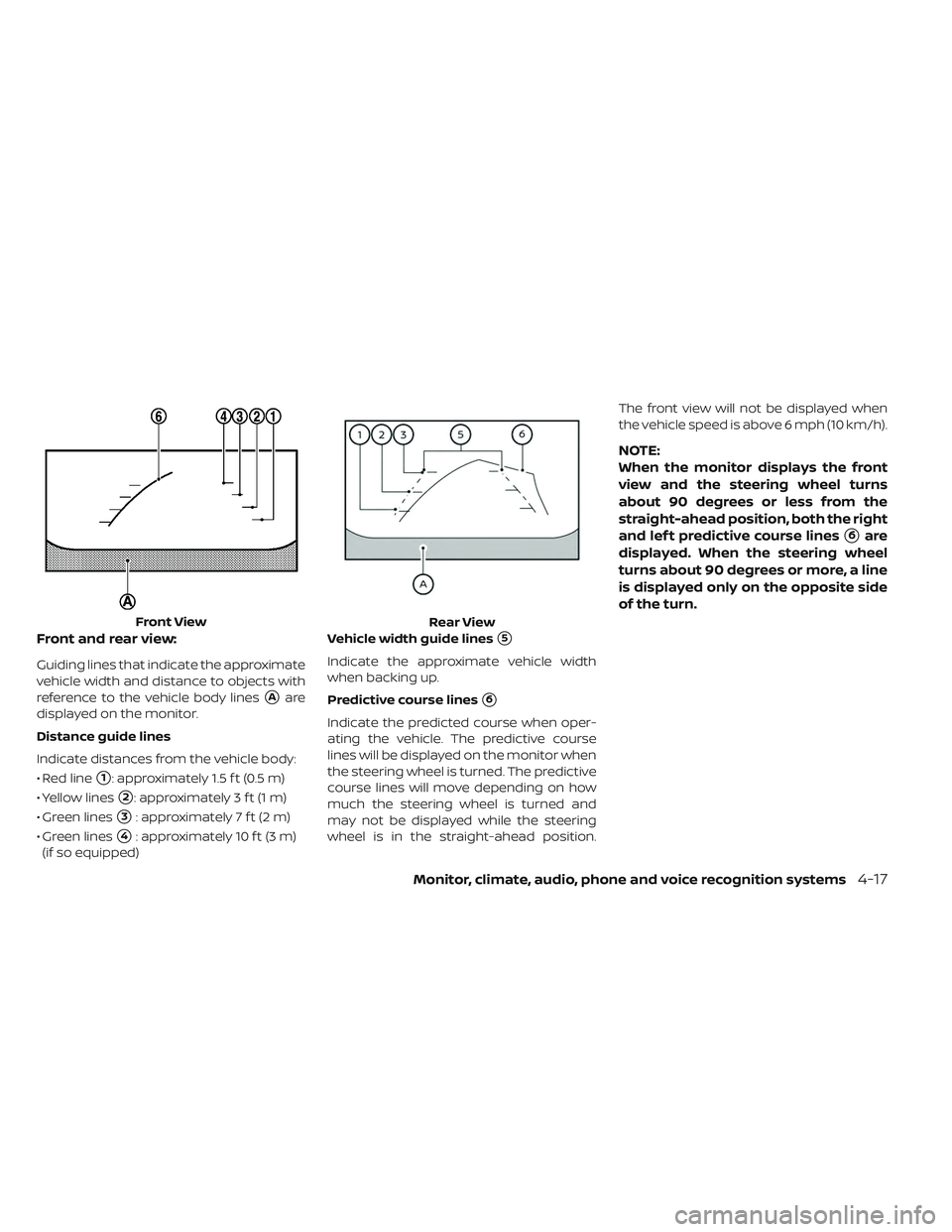

Front and rear view:
Guiding lines that indicate the approximate
vehicle width and distance to objects with
reference to the vehicle body lines
Aare
displayed on the monitor.
Distance guide lines
Indicate distances from the vehicle body:
• Red line
1: approximately 1.5 f t (0.5 m)
• Yellow lines
2: approximately 3 f t (1 m)
• Green lines
3: approximately 7 f t (2 m)
• Green lines
4: approximately 10 f t (3 m)
(if so equipped) Vehicle width guide lines
5
Indicate the approximate vehicle width
when backing up.
Predictive course lines
6
Indicate the predicted course when oper-
ating the vehicle. The predictive course
lines will be displayed on the monitor when
the steering wheel is turned. The predictive
course lines will move depending on how
much the steering wheel is turned and
may not be displayed while the steering
wheel is in the straight-ahead position. The front view will not be displayed when
the vehicle speed is above 6 mph (10 km/h).
NOTE:
When the monitor displays the front
view and the steering wheel turns
about 90 degrees or less from the
straight-ahead position, both the right
and lef t predictive course lines
6are
displayed. When the steering wheel
turns about 90 degrees or more, a line
is displayed only on the opposite side
of the turn.
Front View Rear View
