Extended storage switch
If any electrical equipment does not oper-
ate, remove the extended storage switch
and check for an open fuse.
NOTE:
The extended storage switch is used
for long term vehicle storage. Even if
the extended storage switch is broken
it is not necessary to replace it. Re-
place only the open fuse in the switch
with a new one.
How to replace the extended storage
switch:
1. To remove the extended storage switch,be sure the power switch is in the OFF
position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
1and2found
on each side of the storage switch.
5. Pull the storage switch straight out from the fuse box
3.
CAUTION
• Be careful not to allow children to swallow the battery and removed
parts.
• An improperly disposed battery can harm the environment. Always con-
firm local regulations for battery
disposal.
• When changing batteries, do not let dust or oil get on the components.
• There is danger of explosion if the lithium battery is incorrectly re-
placed. Replace only with the same
or equivalent type.
NISSAN INTELLIGENT KEY® BATTERY
REPLACEMENT
8-22Maintenance and do-it yourself

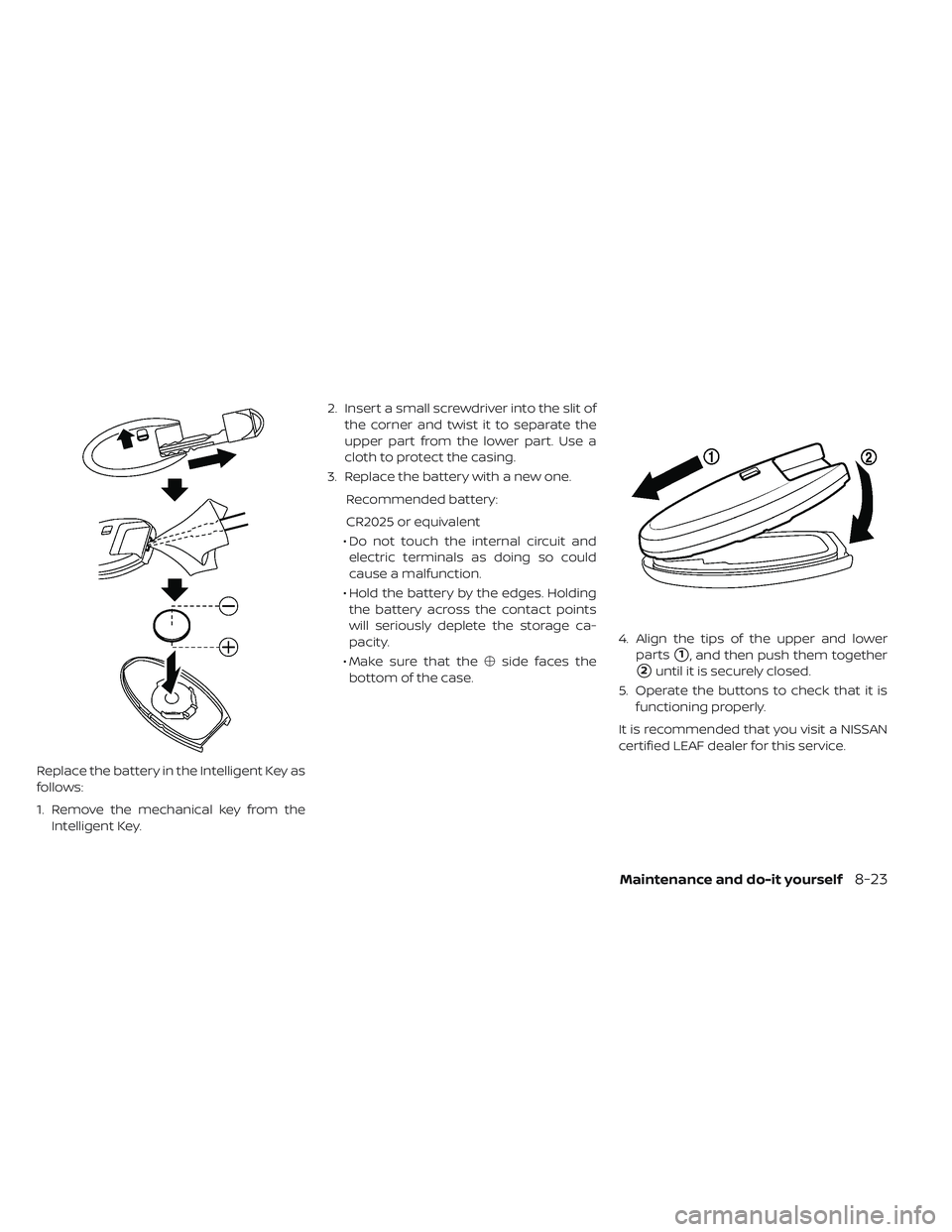

Replace the battery in the Intelligent Key as
follows:
1. Remove the mechanical key from theIntelligent Key. 2. Insert a small screwdriver into the slit of
the corner and twist it to separate the
upper part from the lower part. Use a
cloth to protect the casing.
3. Replace the battery with a new one.
Recommended battery:
CR2025 or equivalent
• Do not touch the internal circuit and electric terminals as doing so could
cause a malfunction.
• Hold the battery by the edges. Holding the battery across the contact points
will seriously deplete the storage ca-
pacity.
• Make sure that the side faces the
bottom of the case. 4. Align the tips of the upper and lower
parts
1, and then push them together
2until it is securely closed.
5. Operate the buttons to check that it is functioning properly.
It is recommended that you visit a NISSAN
certified LEAF dealer for this service.
Maintenance and do-it yourself8-23

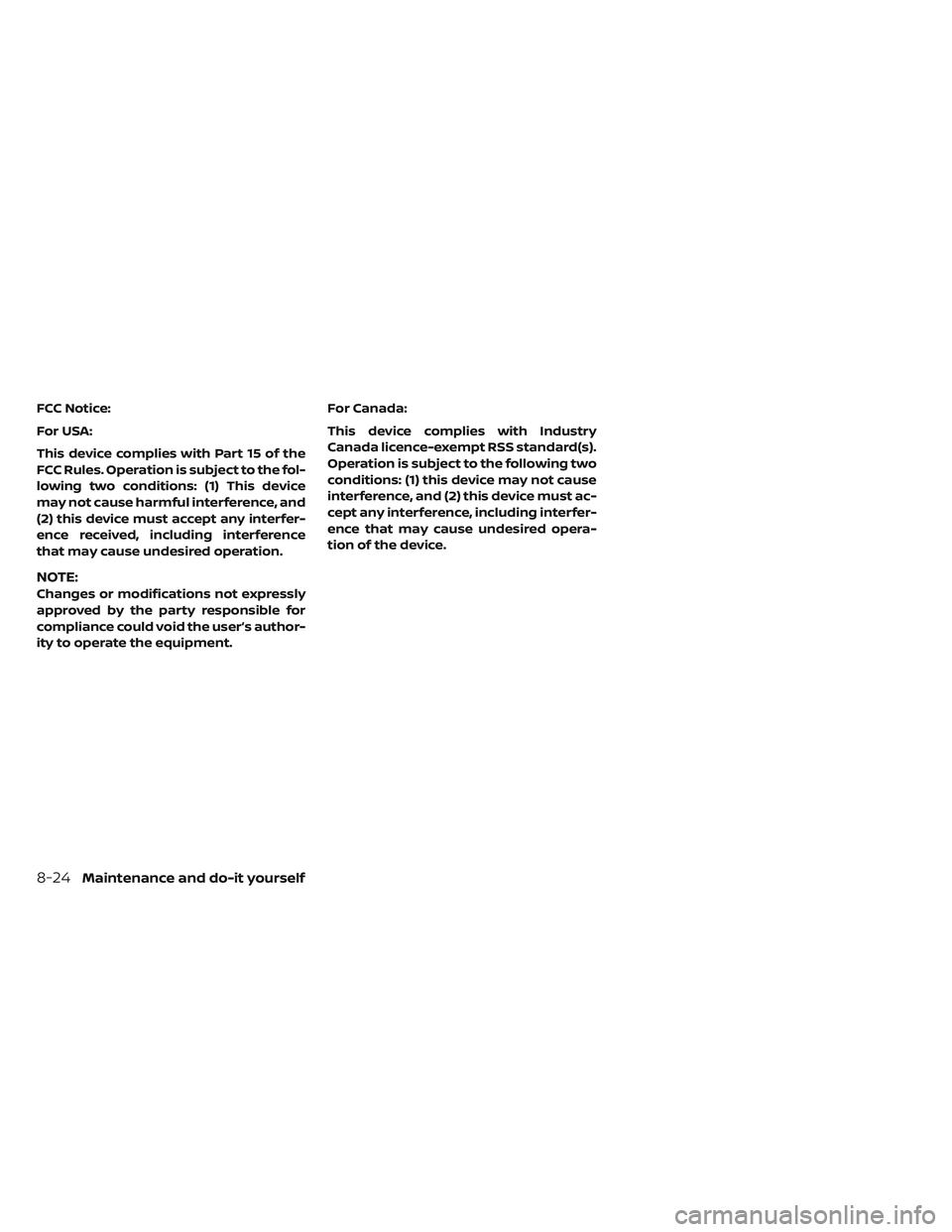

FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.For Canada:
This device complies with Industry
Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.
8-24Maintenance and do-it yourself

1. Headlight assembly
2. Map light
3. Room light4. High-mounted stop light
5. Rear combination light6. Door mirror turn signal light (if so
equipped)
7. Cargo light
8. License plate light
9. Fog light (if so equipped)
Fog may temporarily form inside the lens
of the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the lens,
it is recommended that you visit a NISSAN
certified LEAF dealer for this service.
HEADLIGHTS
If headlight bulb replacement is required, it
is recommended that you visit a NISSAN
certified LEAF dealer for this service.
Replacing the LED headlight bulb
(if so equipped)
If LED headlight bulb replacement is neces-
sary, it is recommended that you visit a
NISSAN certified LEAF dealer for this service.
LIGHTS
Maintenance and do-it yourself8-25

Replacing the halogen headlight
bulb (if so equipped)
The headlight is a semi-sealed beam type
that uses a headlight (halogen) bulb. If bulb
replacement is required, it is recom-
mended that you visit a NISSAN certified
LEAF dealer.
CAUTION
• Do not leave the bulb out of the headlight reflector for a long period
of time. Dust, moisture, smoke, etc.
entering the headlight body may af-
fect bulb performance
• High-pressure halogen gas is sealed inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.
• Only touch the base when handling the bulb. Never touch the glass en-
velope. Touching the glass envelope
could significantly affect bulb life
and/or headlight performance. • Aiming is not necessary af ter re-
placing the bulb. When aiming ad-
justment is necessary, it is recom-
mended that you visit a NISSAN
certified LEAF dealer for this service.
• Fog may temporarily form inside the lens of the exterior lights in the rain
or in a car wash. A temperature dif-
ference between the inside and the
outside of the lens causes the fog. If
large drops of water collect inside
the lens, it is recommended that you
visit a NISSAN certified LEAF dealer.
Use the same number and wattage as
originally installed as shown in the chart.
FOG LIGHTS (IF SO EQUIPPED)
For additional information on fog light bulb
replacement, refer to the instruction out-
lined in this section
Replacing the fog light bulb
If fog light bulb replacement is required, it is
recommended that you visit a NISSAN cer-
tified LEAF dealer for this service.
8-26Maintenance and do-it yourself

EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight assembly (Type A)
(if so equipped)* High* 60HB3
Low* 55H11
Park/Turn signal* 28/87444NA
Side marker* ——
Headlight assembly (Type B)
(if so equipped)* High* ——
Low* ——
Daytime running (if so equipped)* ——
Park/Turn signal* 28/87444NA
Side marker* ——
Front fog light (if so equipped)* 35H8
Charge port lid light* ——
Rear combination light Turn signal 21WY21W
Stop/Tail* ——
Back-up 16W16W
Side marker* ——
License plate light* 5W5W
Map light* ——
Door mirror turn signal light (if so equipped)* ——
High-mounted stop light* ——
Vanity mirror light* 1.8—
Glove box light* 1.4—
Room light* 8—
Cargo light 5W5W
*It is recommended that you visit a NISSAN certified LEAF dealer for replacement.
NOTE:
Always check with the Parts Department
at a NISSAN certified LEAF dealer for the
latest information about parts.
Maintenance and do-it yourself8-27

Replacement procedures
All other lights are either type A, B, C, D or E.
When replacing a bulb, first remove the lens
and/or cover.
: REMOVE
: INSTALLCargo light
8-28Maintenance and do-it yourself

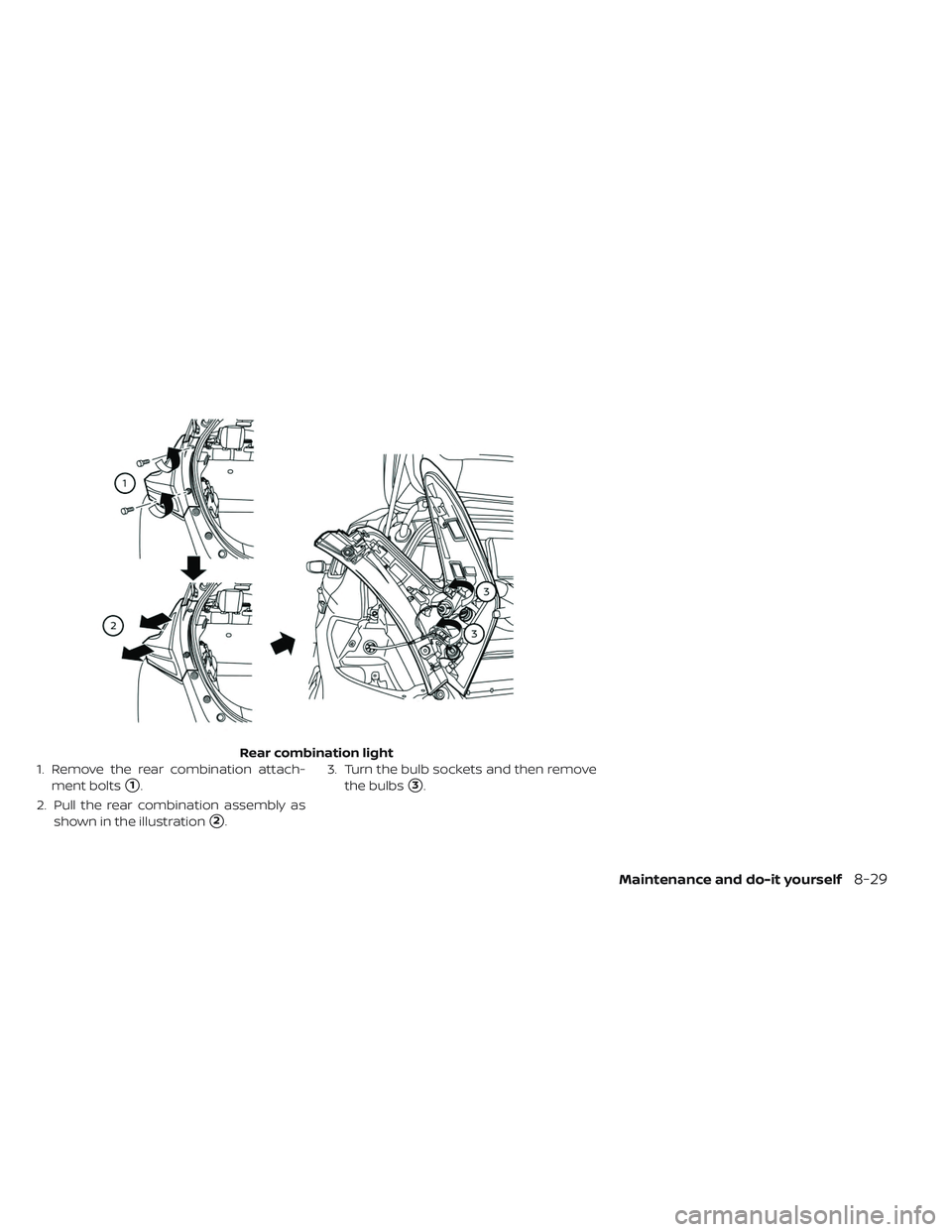

1. Remove the rear combination attach-ment bolts
1.
2. Pull the rear combination assembly as shown in the illustration
2. 3. Turn the bulb sockets and then remove
the bulbs
3.
Rear combination light
