NOTE:
•Charging may automatically stop even
if it is not completed.
• If charging stops mid-charge, you can
restart charging by pressing the start
button on the quick charger again.
• The charge connector is locked to the
charge port during charging and can-
not be disconnected. Follow the in-
structions on the quick charge equip-
ment to stop charging. Confirm
charging is stopped by looking at the
indicators on the instrument panel. The
charge connector can be disconnected
from the vehicle when charging is
stopped.
• When quick charging, the Li-ion battery
charging rate is slower as the percent-
age of available battery charge in-
creases. To finish charging:
1. Confirm charging is stopped by looking
at the indicators on the instrument
panel. The charge connector can be dis-
connected from the vehicle when charg-
ing is stopped.
2. Unlock the charge connector, remove from the vehicle and properly store it.
3. Close the quick charge port cap.
4. Shut the charge port lid.CAUTION
• As the quick charge connector is heavier in comparison to the other
charge connectors, allowing it to
drop could cause damage to the ve-
hicle or charge connector or per-
sonal injury. When removing the
connector, be sure to pull it out
straight and as carefully as possible.
HOW TO CHARGE/DISCHARGE
USING QUICK CHARGE PORT (IF SO
EQUIPPED)
V2X (vehicle to everything) enables the EV
to supply electric power to a home or a
building, etc.
“V2X ” includes all of the following:
• Vehicle to home (V2H)
• Vehicle to building (V2B)
• Vehicle to grid (V2G)
• Vehicle to load (V2L)
• Vehicle to vehicle (V2V)
V2X charge/discharge uses a V2X device.
CH-38Charging

WARNING
• Always use a quick charger/V2X de- vice that is compatible with the LEAF.
Using an incompatible quick
charger/V2X device may cause a fire
or malfunction resulting in serious
personal injury or death.
• Before starting the quick charge/ V2X charge, carefully read the in-
structions provided on the quick
charger/V2X device and make sure
the quick charge connector is prop-
erly connected and locked. Failure to
connect or operate the quick char-
ger correctly could cause damage to
the vehicle or the charging equip-
ment.
NOTE:
•Charging/discharging using quick
charge port is possible (even several
times a day) if the battery temperature
is not near the red zone. If the battery
temperature reaches the red zone, in
order to protect the battery, charging/
discharging is not allowed and the
power limitation mode will be triggered.
For additional information, refer to “Li-
ion battery temperature gauge” in the
“EV Overview” and “Instruments and
controls” section of this manual.
• When the Li-ion battery available
charge/discharge and the Li-ion bat-
tery capacity are shown on the quick
charger unit or V2X device, the readings
may differ from the Li-ion battery avail-
able charge/discharge/capacity read-
ing shown on the vehicle’s display. To start charging/discharging:
1. Push the P (Park) position switch to place
the vehicle in the P (Park) position and
apply the parking brake.
2. When charging/discharging the Li-ion battery, place the power switch in the
OFF position. When the power switch is
in the ON position, the Li-ion battery will
not start charging/discharging.
3. Open the charge port lid and charge port cap. For additional information, re-
fer to “Charge port lid” and “Charge port
cap” in the “Pre-driving checks and ad-
justments” section of this manual.
ChargingCH-39

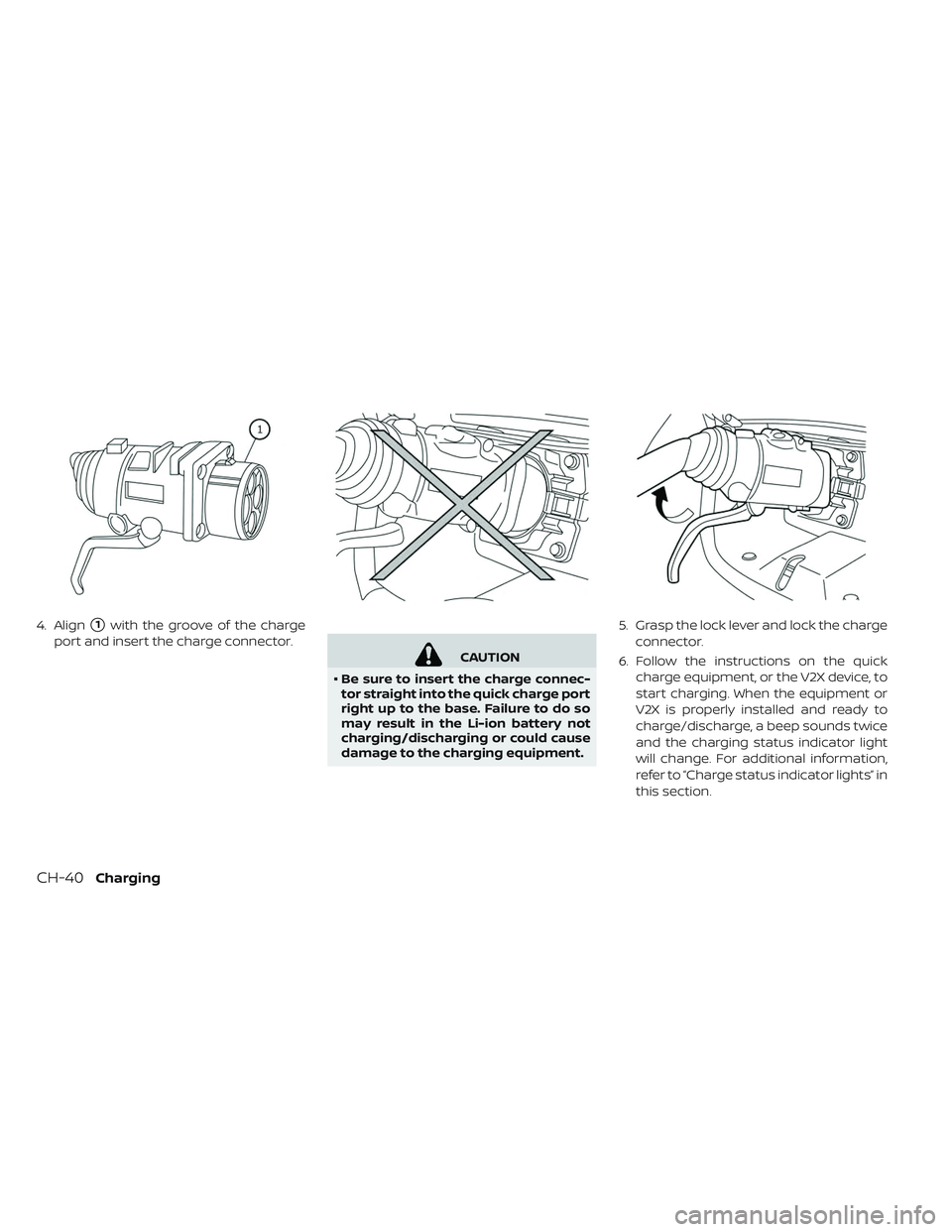

4. Align1with the groove of the charge
port and insert the charge connector.
CAUTION
• Be sure to insert the charge connec-
tor straight into the quick charge port
right up to the base. Failure to do so
may result in the Li-ion battery not
charging/discharging or could cause
damage to the charging equipment. 5. Grasp the lock lever and lock the charge
connector.
6. Follow the instructions on the quick charge equipment, or the V2X device, to
start charging. When the equipment or
V2X is properly installed and ready to
charge/discharge, a beep sounds twice
and the charging status indicator light
will change. For additional information,
refer to “Charge status indicator lights” in
this section.
CH-40Charging

Charging/discharging ends in the follow-
ing situations:
• When charging is complete
• When the possible charge time set for thequick charger is exceeded
NOTE:
• Charging/discharging may automati-
cally stop even if it is not completed.
• If charging stops mid-charge, you can
restart charging by pressing the start
button on the quick charger again.
•
The charge connector is locked to the
charge port during charging/discharging
and cannot be disconnected. Follow
the instructions on the quick charge
equipment or the V2X device to stop
charging/discharging. Confirm charging/
discharging is stopped by looking at the
i
ndicators on the instrument panel. The
charge connector can be disconnected
from the vehicle when charging is stopped.
•When V2X charging, the Li-ion battery
charging rate is slower as the percentage
of available battery charge increases.
To finish charging/discharging:
1.
Confirm charging/discharging is stopped
by looking at the indicators on the instru-
ment panel. The charge connector can be
disconnected from the vehicle when
charging/discharging is stopped.
2. Unlock the charge connector, remove from the vehicle and properly store it.
3. Close the quick charge port cap.
4. Shut the charge port lid.
CHARGE CONNECTOR LOCK
SYSTEM
The normal or trickle charge connector
can be locked to the normal charge port.
Perform the following steps and the
charge connector lock mode can be se-
lected:
1. Push the
button to select “EV
settings” and then push the OK button.
2. Push the
button until “Chg.
Connector Lock” is selected and then
push the OK button.
ChargingCH-41

3. Push thebutton until the
preferred mode of AUTO, LOCK or UN-
LOCK, is selected and then push the OK
button.
NOTE:
The charge connector lock can be acti-
vated when the shif t lever is in the P
(Park) position and the charge connector
is connected. The charge connector lock
will not be activated if the charge con-
nector is not properly connected.
AUTO mode
To select AUTO mode, push the up and
down switch until "AUTO" is selected and
then push the OK button. The indicator
light for "AUTO" will illuminate.
When AUTO mode is selected, the charge
connector is locked while charging is in
process. The charge connector will be un-
locked automatically when charging is
complete.
LOCK mode
To select the LOCK mode, push the up and
down switch until "LOCK" is selected and
then push the OK button. The indicator
light for "LOCK" will illuminate.
When LOCK mode is selected, the charge
connector will remain locked. The charge
connector will be unlocked when UNLOCK
mode is selected or temporary unlock op-
eration is performed.
UNLOCK mode
To select UNLOCK mode, push the up and
down switch until "UNLOCK" is selected
and then push the OK button. The indicator
light for "UNLOCK" will illuminate.
When UNLOCK mode is selected, the
charge connector will remain unlocked.
Temporary unlock mode:
When the charge connector lock system is
in the AUTO or LOCK mode, the charge
connector lock can be unlocked temporar-
ily by using the NISSAN Intelligent Key® or
the charge port lid switch.
Unlock operation using Intelligent
Key
1. Press the charge port lid opener button on the Intelligent Key for more than
1 second.
2. The charging status indicator light flashes three times and a beep sounds
three times. The charge connector lock
is unlocked for 30 seconds.
3. Af ter 30 seconds, the charge connector lock is locked.
CH-42Charging

The charge connector lock can also be un-
locked for 30 seconds when unlocking a
door or the rear hatch (in this case, the
charging status indicator light does not
operate). If the lock is operated again within
30 seconds af ter unlocking the door/rear
hatch, the charge connector lock is locked
again.

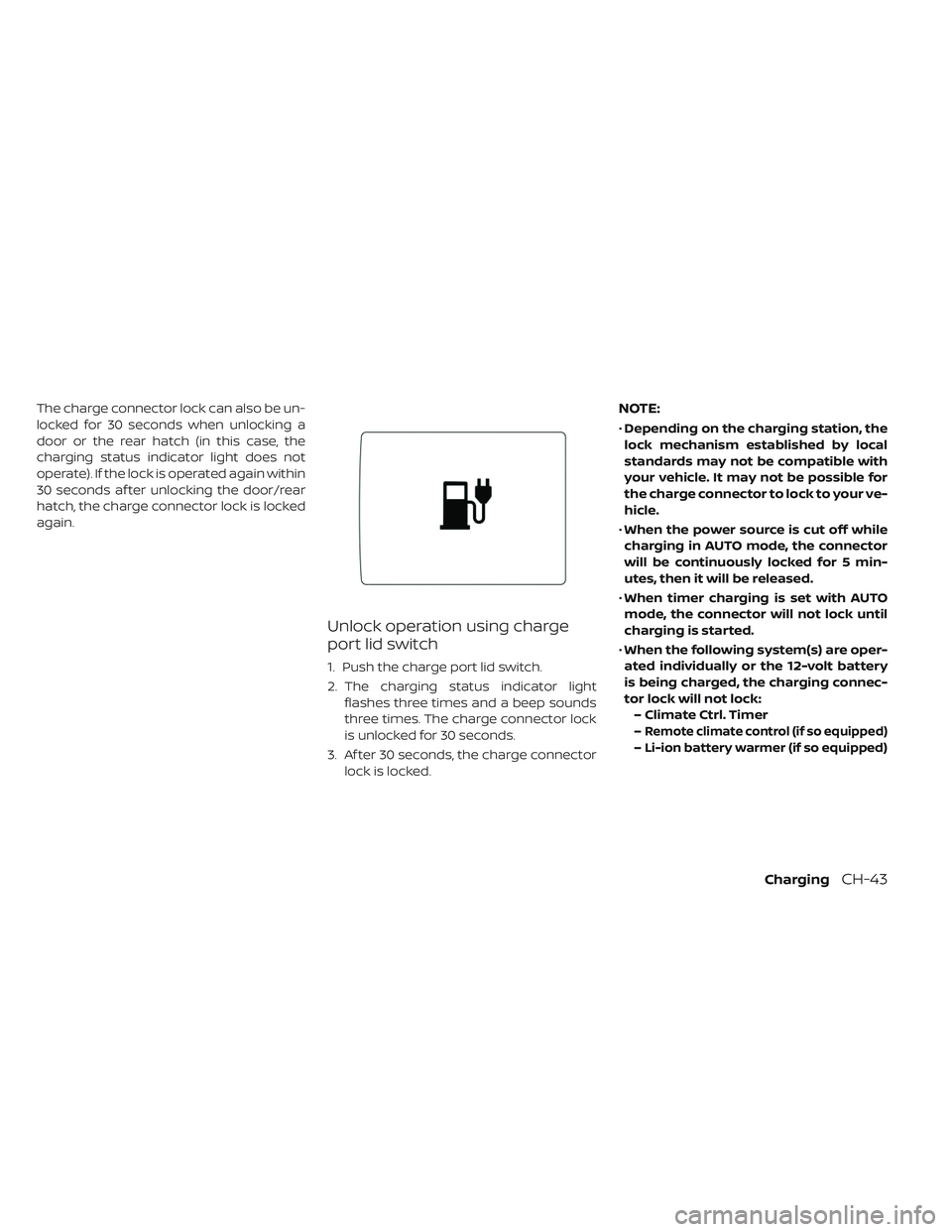

Unlock operation using charge
port lid switch
1. Push the charge port lid switch.
2. The charging status indicator lightflashes three times and a beep sounds
three times. The charge connector lock
is unlocked for 30 seconds.
3. Af ter 30 seconds, the charge connector lock is locked.
NOTE:
•Depending on the charging station, the
lock mechanism established by local
standards may not be compatible with
your vehicle. It may not be possible for
the charge connector to lock to your ve-
hicle.
• When the power source is cut off while
charging in AUTO mode, the connector
will be continuously locked for 5 min-
utes, then it will be released.
• When timer charging is set with AUTO
mode, the connector will not lock until
charging is started.
• When the following system(s) are oper-
ated individually or the 12-volt battery
is being charged, the charging connec-
tor lock will not lock:
– Climate Ctrl. Timer
–
Remote climate control (if so equipped)
–Li-ion battery warmer (if so equipped)
ChargingCH-43

If the charge connector cannot be
unlocked
1. Place power switch in the OFF position.
2. Open the hood.
3. Insert a flat head screwdriver or suitabletool into the screw that is located on the
front of the hood lock.
4. Turn it clockwise to release the charge connector lock.
5. Remove the charge connector.
CHARGING TIMER
Use charging timer to schedule when the
Li-ion battery charges. The vehicle auto-
matically begins charging at the scheduled
times when the charge connector is con-
nected to the vehicle. The timers do not
need to be reset each time the Li-ion bat-
tery needs charging.
The charging timer can save two timer set-
tings that include the charging start time
and end time. The charging timer can be
applied to the timer settings for each day
of the week (models with Navigation Sys-
tem).
The vehicle automatically begins charging
at the scheduled times when the charge
connector is connected to the vehicle. The
timers do not need to be reset each time
the Li-ion battery needs to be charged. 1. Push the
button to select “EV
settings” and then push the OK button.
2. Push the
button to select
“Charge Timer1” or “Charge Timer2” and
then push the OK button.
3. Push the
button to select
“Timer” and then push the OK button.
The indicator light will turn on when the
timer setting is turned on.
4. Push the
button until to select
“Start time” and then push the OK
button.
5. Push the
button to set “Hour”
and then push the OK button.
CHARGING METHODS
CH-44Charging

6. Push thebutton to set “Min-
ute” and then push the OK button.
7. Push the
button to select “End
time” and then push the OK button.
8. Push the
button to set “Hour”
and then push the OK button.
9. Push the
button to set “Min-
ute” and then push the OK button.
10. Models with Navigation System: Push the
button to select the days
of the week you wish to activate the
charging timer and then push the OK
button. Push the Back button to return
to the previous display.
11. Af ter the setting is complete, place the power switch in the OFF position, and
then connect the charge connector to
the vehicle.
NOTE:
•Always place the power switch in the
OFF position af ter setting the charging
timers. When the power switch in the
ON position, the Li-ion battery will not
start charging.
• Charging stations that are used to per-
form normal charging may be equipped
with timer functions. If the charging
timer function and the vehicle timer are
both set, and the two timers are not set
to operate at the same time, it is pos-
sible that the charger will not start or
the battery will not be charged to the
level expected.
• The Li-ion battery may not charge to
the expected level using the charging
timer while the Li-ion battery warmer (if
so equipped) operates.
• Charging timer is performed according
to the current time setting of the clock
on the vehicle information display.
When setting the charging timer func-
tion, be sure to check that the current
time displayed is correct. •
To turn off the charging timer function,
select "Timer" on the charge timer dis-
play (vehicle information display) using
the
button and push the OK
button to turn off the indicator light.
The start and end time settings are not
deleted, even if the charging timer func-
tion is turned off.
• If the day of the week is not selected on
the timer charge setting screen, the
charging timer will not operate on that
day. The system will wait until the next
set charging time to perform charging
(models with Navigation System).
ChargingCH-45
