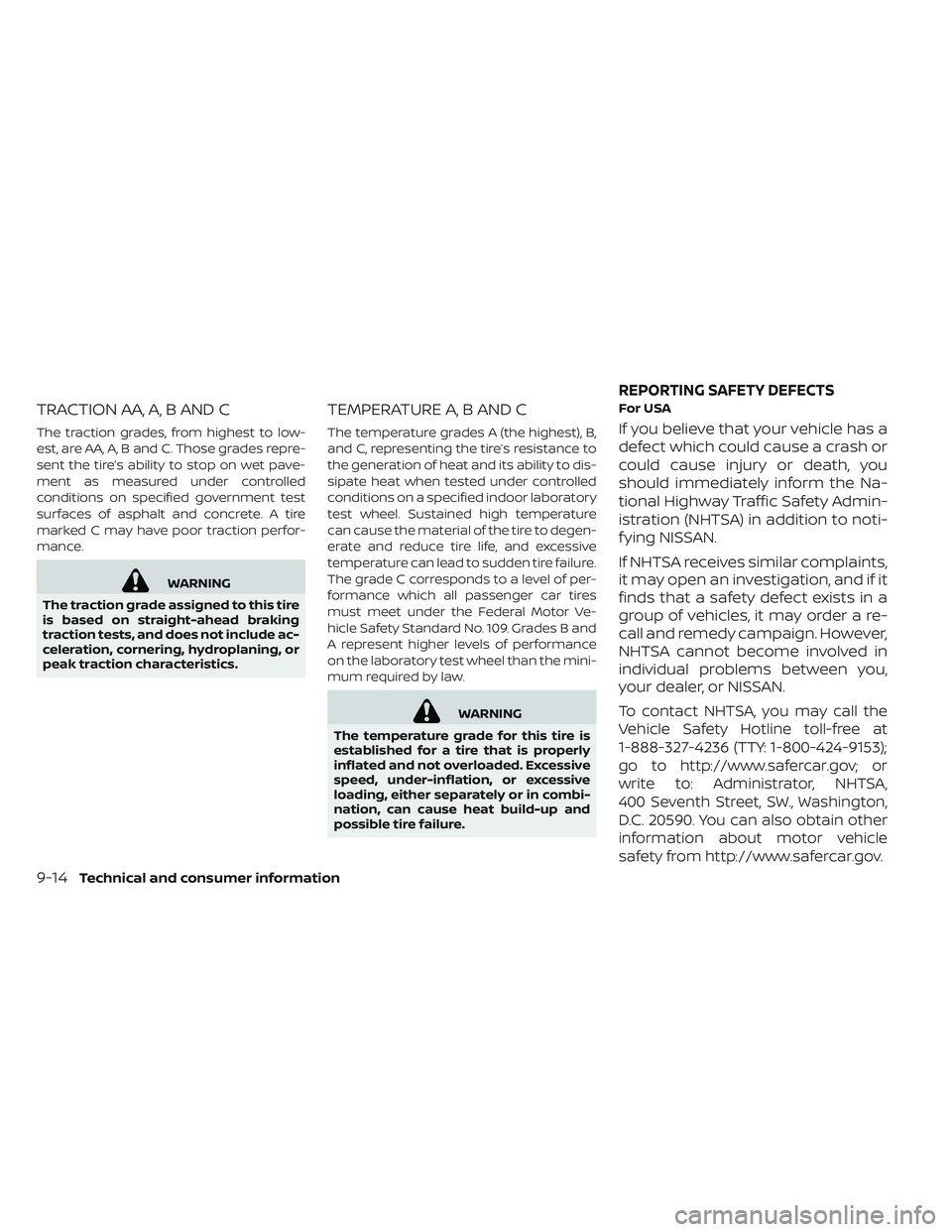

TRACTION AA, A, B AND C
The traction grades, from highest to low-
est, are AA, A, B and C. Those grades repre-
sent the tire’s ability to stop on wet pave-
ment as measured under controlled
conditions on specified government test
surfaces of asphalt and concrete. A tire
marked C may have poor traction perfor-
mance.
WARNING
The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include ac-
celeration, cornering, hydroplaning, or
peak traction characteristics.
TEMPERATURE A, B AND C
The temperature grades A (the highest), B,
and C, representing the tire’s resistance to
the generation of heat and its ability to dis-
sipate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature
can cause the material of the tire to degen-
erate and reduce tire life, and excessive
temperature can lead to sudden tire failure.
The grade C corresponds to a level of per-
formance which all passenger car tires
must meet under the Federal Motor Ve-
hicle Safety Standard No. 109. Grades B and
A represent higher levels of performance
on the laboratory test wheel than the mini-
mum required by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive
loading, either separately or in combi-
nation, can cause heat build-up and
possible tire failure. For USA
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the Na-
tional Highway Traffic Safety Admin-
istration (NHTSA) in addition to noti-
f ying NISSAN.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a re-
call and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you,
your dealer, or NISSAN.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov; or
write to: Administrator, NHTSA,
400 Seventh Street, SW., Washington,
D.C. 20590. You can also obtain other
information about motor vehicle
safety from http://www.safercar.gov.
REPORTING SAFETY DEFECTS
9-14Technical and consumer information

You may notif y NISSAN by contact-
ing our Consumer Affairs Depart-
ment, toll-free, at 1-800-NISSAN-1.
For Canada
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform Trans-
port Canada in addition to notif ying
NISSAN.
If
Transport Canada receives com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
request that
NISSAN conduct a recall
campaign. However, Transport Canada
cannot become involved in individual
problems between you, your dealer, or
NISSAN.
You may contact Transport Canada's
Defect Investigations and Recalls
Division toll free at 1-800-333-0510.
You may also report safety defects
online at: https://wwwapps.tc.gc.ca/
Saf-Sec-Sur/7/PCDB-BDPP/fc-
cp.aspx?lang=eng (English speakers)
or https://wwwapps.tc.gc.ca/
Saf-Sec-Sur/7/PCDB-BDPP/fc-
cp.aspx?lang=fra (French speakers)
Additional information concerning
motor vehicle safety may be obtained
from Transport Canada's Road Safety
Information Centre at 1-800-333-0371
or online at www.tc.gc.ca/roadsafety
(English speakers) or www.tc.gc.ca/
securiteroutiere (French speakers).
To notif y NISSAN of any safety con-
cerns please contact our Consumer
Information Centre toll free at
1-800-387-0122.
In addition to Event Data Recorders (EDRs)
mentioned in this Owner's Manual, this ve-
hicle is equipped with electronic modules
that monitor, control and record data con-
cerning various vehicle systems, including
the motor, batteries, braking and electrical
systems. Other electronic modules record
information concerning driving conditions,
including idling, braking, acceleration, trip
and other related data, information about
your use of the car and its features such as
air conditioner or headlight usage, diag-
nostic trouble codes, vehicle charging, ve-
hicle speed, direction and/or location.
Some of this data is stored by the vehicle for
use during vehicle servicing. Other data con-
cerning your vehicle's operation and perfor-
mance is wirelessly transmitted by cellular
connection through the vehicle onboard
telematics system upon vehicle start-up or
at other intervals to NISSAN. This data may
be used by NISSAN for various purposes, in-
cluding: to provide you with NissanConnect®
EV & Services or NissanConnect® Services
(For additional information, refer to
“NissanConnect® Manual (for Leaf )”.); trouble-
shooting; evaluation of your vehicle's quality,
functionality and performance; analysis and
TELEMATICS OVERVIEW (MODELS
WITH NAVIGATION SYSTEM)
Technical and consumer information9-15

research by NISSAN designed to, among
other things, optimize performance of future
electric vehicles including improvements in
future battery life; to offer you new or addi-
tional products or services; and as otherwise
may be required by law. Such data may be
shared with NISSAN's parents, subsidiaries,
affiliates, successors or assignees; autho-
rized NISSAN certified LEAF dealers; NISSAN's
marketing partners; your fleet company, if
your vehicle is a fleet vehicle; your rental
company, if your vehicle is a rental vehicle;
and third party service providers such as cel-
lular, information systems and data man-
agement providers.
State and provincial laws allow access and
use of data recorded by vehicle devices
with the consent of the vehicle owner or
pursuant to subscription agreement. While
you are not required to allow such access
and use, if you do not so agree NISSAN may
be unable under applicable law to activate
the vehicle telematics system in your ve-
hicle, and certain features of your vehicle
which are dependent on vehicle telematics
will not operate as intended or designed.
These may include features such as auto-
matic charging station map updates, re-mote battery state of charge check, charg-
ing complete notice, remote plug in
reminder, remote charging on, remote cli-
mate control on, drive route planning, driv-
ing tips to improve range, driving history,
billing simulation, ECO ranking, ECO forest,
maintenance reminders, etc. Other fea-
tures that may be developed and offered
by NISSAN in the future may also not func-
tion without telematics data transmission.
NissanConnect® EV & Services or
NissanConnect® Services telematics ser-
vices are provided by NISSAN pursuant to a
subscription services agreement covering
your vehicle. This agreement is necessary for
all owners. This agreement, and an explana-
tion of its terms and conditions, can be found
at the NISSAN Owner’s Portal webpage. Fur-
ther, the operator of the vehicle must also
touch [OK] on the Navi screen to indicate
assent each time he or she starts the car. If
you decide at any time that you do not want
your vehicle to transmit data to NISSAN, you
can deactivate the telematics account asso-
ciated with this vehicle by canceling the sub-
scription services agreement by visiting the
NISSAN Owner’s Portal Webpage or calling
NISSAN at 1-877-NOGASEV (1-877-664-2738). The service can be reactivated later upon
request if you choose. Simply visit the same
website or call the number above. Alterna-
tively, you can turn off the transmission of
certain categories of data through the use of
settings found in the navigation system un-
der Menu, NissanConnect® EV & Services or
NissanConnect® Services, Vehicle Informa-
tion Sharing with NISSAN. Note, turning off
“Vehicle Information Sharing with NISSAN”
will only disable the automatic sharing of
information at vehicle start-up. Certain cat-
egories of data may still be transmitted if
vehicle telematics features are accessed ei-
ther in the vehicle or remotely.
Your agreement to the transmission and use
of data by NISSAN can be provided in various
ways. The vehicle is equipped with a “pop up”
screen on the vehicle navigation system that
will ask for your consent to this data transfer.
A version of the following message will ap-
pear: “Pursuant to subscription agreement,
your vehicle wirelessly transmits recorded
vehicle data to NISSAN for various purposes,
including NissanConnect® EV & Services or
NissanConnect® Services, product evalua-
tion, research and development. By touching
OK, you consent to the transmission and use
9-16Technical and consumer information

of your vehicle data. See Owner's Manual or
NISSAN Owner's portal webpage for terms
and details.” If you touch [OK], your vehicle will
transmit data as designed in connection
with the vehicle telematics system. If you
touch [Decline] your vehicle will not transmit
data. However, the telematics features refer-
enced above, and perhaps others, will not be
available to you. The vehicle’s static naviga-
tion system will remain operational, and you
will be able to access your radio and climate
controls.
Telematics features are dependent on cel-
lular data transmission. Some areas may
have limited or no cellular connectivity, re-
sulting in a loss or interruption of data
transmission and, as a result, certain fea-
tures may be temporarily unavailable. Even
if areas with good signal reception, cellular
connectivity can be adversely affected by
things such as tall buildings, apartments,
tunnels, underground parking, mountain-
ous areas, etc. Even if the signal strength
bar of the in-vehicle data communication
module indicates good reception, connec-
tivity may be disrupted. This does not indi-
cate a malfunction. Operate the system
again af ter a few minutes to restoreconnectivity.NissanConnect® EV & Services
or NissanConnect® Services telematics
features are offered as a convenience to
the vehicle owner. NISSAN is not respon-
sible for, and owner assumes all risk of,
interruptions in service or errors based
on incomplete or inaccurate data.
NissanConnect® EV & Services or
NissanConnect® Services communica-
tions may be received at a verified e-mail
address or by SMS/text messaging-
enabled mobile phone. Standard text rates
and/or data usage may apply depending
on your carrier.
If your vehicle’s telematics account is ac-
tive, and you are not the original owner,
please contact NISSAN at the website or
phone number above as soon as possible
to update the telematics enrollment infor-
mation. Upon sale of the vehicle, please
contact NISSAN at the website or phone
number above so that NISSAN’s records
may be updated. NissanConnect® EV &
Services or NissanConnect® Services sub-
scription services will automatically termi-
nate at the end of the initial free term if you
do not wish to renew your subscription

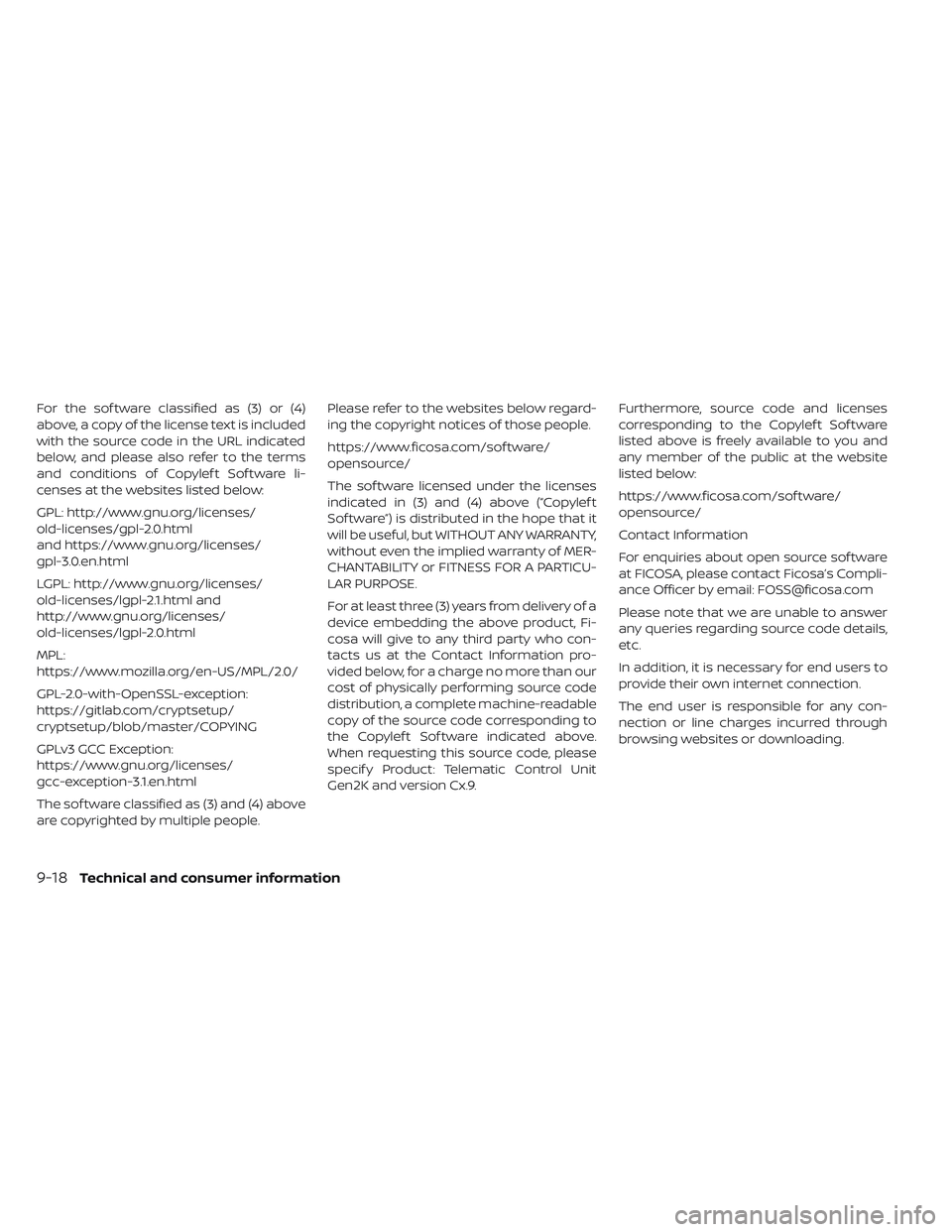

agreement at the prices then in effect.A. INTRODUCTION
This product Telematic Control Unit Gen2K
incorporates the following sof tware:
1. the sof tware developed by, or developed
for, Ficosa International, S.A. (“Ficosa”),
2. the sof tware owned by third party and licensed to Ficosa,
3. the sof tware licensed under the GNU GENERAL PUBLIC LICENSE, Version 2
(“GPL”),
4. the sof tware licensed under the GNU LIBRARY GENERAL PUBLIC LICENSE, Ver-
sion 2.0 or the GNU LESSER GENERAL
PUBLIC LICENSE, Version 2.1 (collectively
“LGPL”), the Mozilla Public license v2
(“MPL”), the GPL-2.0 license with-
OpenSSL-exception (“GPLOpenSSL”) and
GNU GENERAL PUBLIC LICENSE, Version
3 with GCC exception (together with the
GPL sof tware, jointly “Copylef t Sof t-
ware”), and/or
5.
open sourced sof tware licensed under
terms and conditions other than Copylef t
Sof tware.
TELEMATIC CONTROL UNIT GEN2K
Technical and consumer information9-17

For the sof tware classified as (3) or (4)
above, a copy of the license text is included
with the source code in the URL indicated
below, and please also refer to the terms
and conditions of Copylef t Sof tware li-
censes at the websites listed below:
GPL: http://www.gnu.org/licenses/
old-licenses/gpl-2.0.html
and https://www.gnu.org/licenses/
gpl-3.0.en.html
LGPL: http://www.gnu.org/licenses/
old-licenses/lgpl-2.1.html and
http://www.gnu.org/licenses/
old-licenses/lgpl-2.0.html
MPL:
https://www.mozilla.org/en-US/MPL/2.0/
GPL-2.0-with-OpenSSL-exception:
https://gitlab.com/cryptsetup/
cryptsetup/blob/master/COPYING
GPLv3 GCC Exception:
https://www.gnu.org/licenses/
gcc-exception-3.1.en.html
The sof tware classified as (3) and (4) above
are copyrighted by multiple people.Please refer to the websites below regard-
ing the copyright notices of those people.
https://www.ficosa.com/sof tware/
opensource/
The sof tware licensed under the licenses
indicated in (3) and (4) above (“Copylef t
Sof tware”) is distributed in the hope that it
will be useful, but WITHOUT ANY WARRANTY,
without even the implied warranty of MER-
CHANTABILITY or FITNESS FOR A PARTICU-
LAR PURPOSE.
For at least three (3) years from delivery of a
device embedding the above product, Fi-
cosa will give to any third party who con-
tacts us at the Contact Information pro-
vided below, for a charge no more than our
cost of physically performing source code
distribution, a complete machine-readable
copy of the source code corresponding to
the Copylef t Sof tware indicated above.
When requesting this source code, please
specif y Product: Telematic Control Unit
Gen2K and version Cx.9.
Furthermore, source code and licenses
corresponding to the Copylef t Sof tware
listed above is freely available to you and
any member of the public at the website
listed below:
https://www.ficosa.com/sof tware/
opensource/
Contact Information
For enquiries about open source sof tware
at FICOSA, please contact Ficosa’s Compli-
ance Officer by email: [email protected]
Please note that we are unable to answer
any queries regarding source code details,
etc.
In addition, it is necessary for end users to
provide their own internet connection.
The end user is responsible for any con-
nection or line charges incurred through
browsing websites or downloading.
9-18Technical and consumer information

B. LICENSING ANC COPYRIGHT NOTICE
INFORMATION
The sof tware classified as (5) above con-
tains various open sourced sof tware
(“OSS”) listed in the below website. Please
see the website indicted next for the terms
and conditions of the licenses (OSS Li-
censes) and other information regarding
the OSS contained this Product:
https://www.ficosa.com/sof tware/
opensource/This vehicle is equipped with an Event Data
Recorder (EDR). The main purpose of an
EDR is to record, in certain crash or near
crash-like situations, such as an air bag
deployment or hitting a road obstacle, data
that will assist in understanding how a ve-
hicle’s systems performed. The EDR is de-
signed to record data related to vehicle dy-
namics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to re-
cord such data as:
• How various systems in your vehicle were
operating;
• Whether or not the driver and passenger safety belts were buckled/fastened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
• Sounds are not recorded.
These data can help provide a better un-
derstanding of the circumstances in which
crashes and injuries occur.NOTE:
EDR data are recorded by your vehicle
only if a nontrivial crash situation occurs;
no data are recorded by the EDR under
normal driving conditions and no per-
sonal data (for example, name, gender,
age and crash location) are recorded.
However, other parties, such as law en-
forcement, could combine the EDR data
with the type of personally identif ying
data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special
equipment is required and access to the
vehicle or the EDR is needed. In addition
to the vehicle manufacturer and NISSAN
certified LEAF dealer, other parties, such
as law enforcement, that have the spe-
cial equipment, can read the information
if they have access to the vehicle or the
EDR. EDR data will only be accessed with
the consent of the vehicle owner or les-
see or as otherwise required or permit-
ted by law.
EVENT DATA RECORDERS (EDR)
Technical and consumer information9-19

ADDITIONAL DATA RECORDING
(ON VEHICLES EQUIPPED WITH
OPTIONAL PROPILOT ASSIST)
If your vehicle is equipped with the optional
ProPILOT Assist, it will also be equipped
with supplemental data recording function
intended to assist in understanding how
ProPILOT Assist performs in certain non-
trival crash or near-crash scenarios. Spe-
cifically, supplemental recording is de-
signed to capture the following:
• Driver operational status of the accelera-tor, brakes, steering, etc.
• Detection status of a vehicle ahead and lane markers
• Vehicle information including distance to vehicle ahead and lateral position
• Information on the operation of the ProPI- LOT Assist and other crash avoidance
features
• ProPILOT Assist malfunction diagnosis information
• External images from the multi-sensing front camera (Available only when the SRS
air bag or IEB system is activated) The ProPILOT Assist does not record con-
versations, sounds or images of the inside
of the vehicle.
To read this supplemental data, special
equipment is required and access to the
vehicle or the recording unit is needed. This
supplemental data will only be accessed
with the consent of the vehicle owner or
lessee or as otherwise required or permit-
ted by law. If downloaded, NISSAN and third
parties entrusted by
NISSAN may use the data recorded for the
purpose of improving NISSAN’s vehicle
safety performance.
NISSAN and third parties entrusted by
NISSAN will not disclose/provide the re-
corded data to a third party except:
- With the consent of the vehicle owner or
with the consent of the lessee
- In response to an official request from law
enforcement, court order, governmental
agency, or other legally enforceable request.
- For research purposes af ter the data is
modified such that it is no longer tied to a
specific vehicle or vehicle owner (anony-
mized) Genuine NISSAN Service Manuals for this
model year and prior can be purchased. A
Genuine NISSAN Service Manual is the best
source of service and repair information for
your vehicle. This manual is the same one
used by the factory trained technicians
working at a NISSAN certified LEAF dealer.
Genuine NISSAN Owner’s Manuals can also
be purchased.
For USA:
For current pricing and availability of Genu-
ine
NISSAN Service Manuals, contact:
www.nissan-techinfo.com
For current pricing and availability of Genu-
ine NISSAN Owner’s Manuals, contact:
1-800-247-5321
For Canada:
To purchase a copy of a Genuine NISSAN Ser-
vice Manual or Owner’s Manual for this model
year and prior, please contact a NISSAN certi-
fied LEAF dealer. For the phone number and
location of a NISSAN certified LEAF dealer in
your area, call the NISSAN Information Center
at 1-800-387-0122 and a bilingual NISSAN rep-
resentative will assist you.
OWNER'S MANUAL/SERVICE
MANUAL ORDER INFORMATION
9-20Technical and consumer information

CHARGING INFORMATION
Technical and consumer information9-21
